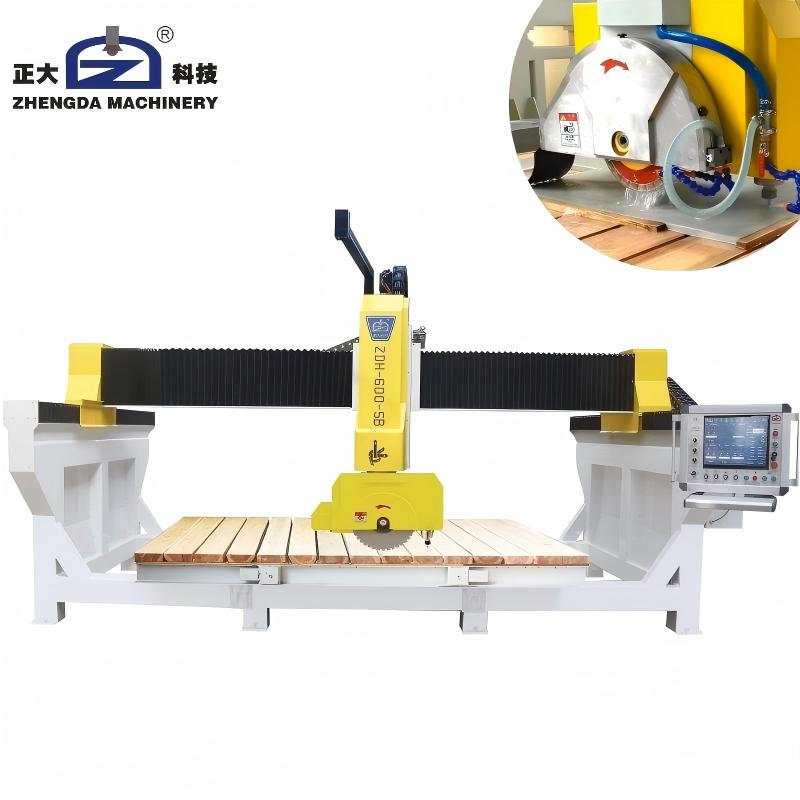

Zhengda Automatic Stone Cutting Machine 5-Axis CNC Bridge Saw for Countertop Edge Profiling Sink Cutout with High-Speed Spindle

After-sales Service: Technical Support 24 Hour on Line.
Warranty: 12 Month After Bl Date
Type: Stone Cutting Machine

Product Description

📋

Basic Information

Model NO.ZDH-600-5B
UsageCeramics, Granite, Marble, Porcelane
ApplicationMachinery & Hardware, Construction, Stone Industry
Source Voltage380V
AutomationAutomatic
Cutting AbilityHigh Speed
ControlPC
CertificationCE
Production Capacity1000 Sets/Year
⚙️

Product Description

We are a professional manufacturer of Stone cutting machines, stone polishing machines, grinding machines, and countertop processing machines. Suitable for home decoration, hotel, and municipal engineering. Equipped with an ISO 9001 and CE-certified modern factory, we strictly adhere to international standards to ensure superior performance equipment quality. With strong functionality, high efficiency, and stable quality, we provide competitive pricing and fast delivery.

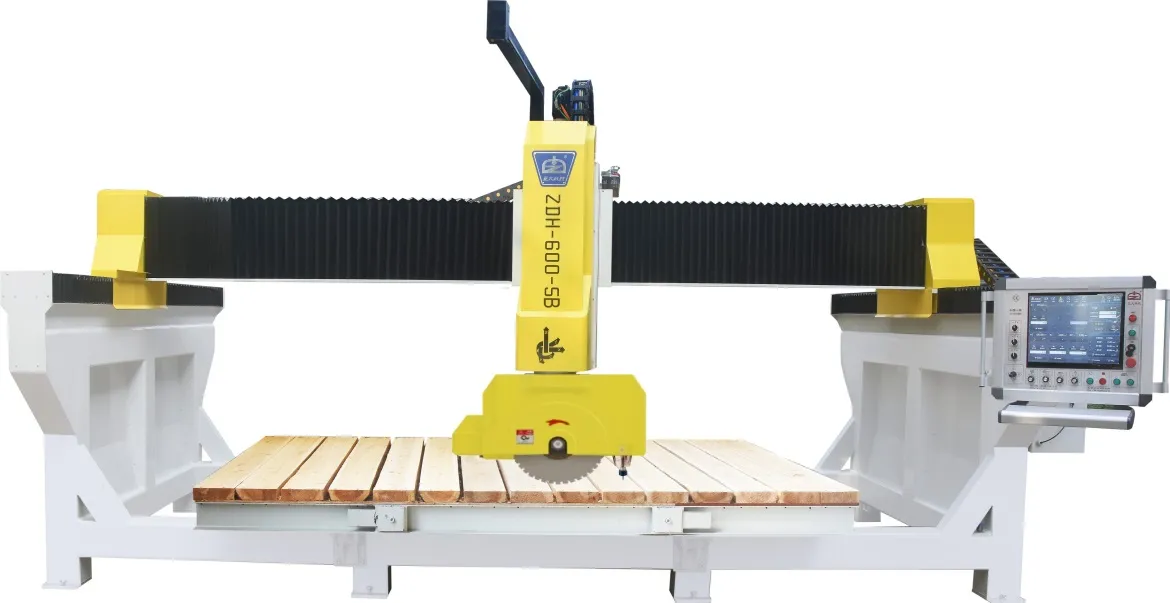

Automatic Stone Cutting Machine

5 Axis CNC Bridge Saw for marble, granite, quartz, and porcelain countertop processing. The machine head rotates 360 degrees and tilts 0-90 degrees, enabling straight cutting, chamfer cutting, curve cutting, and basin hole cutting. It features a high-speed milling shaft for drilling holes, ensuring easy operation with high efficiency.

🚀

Technical Features

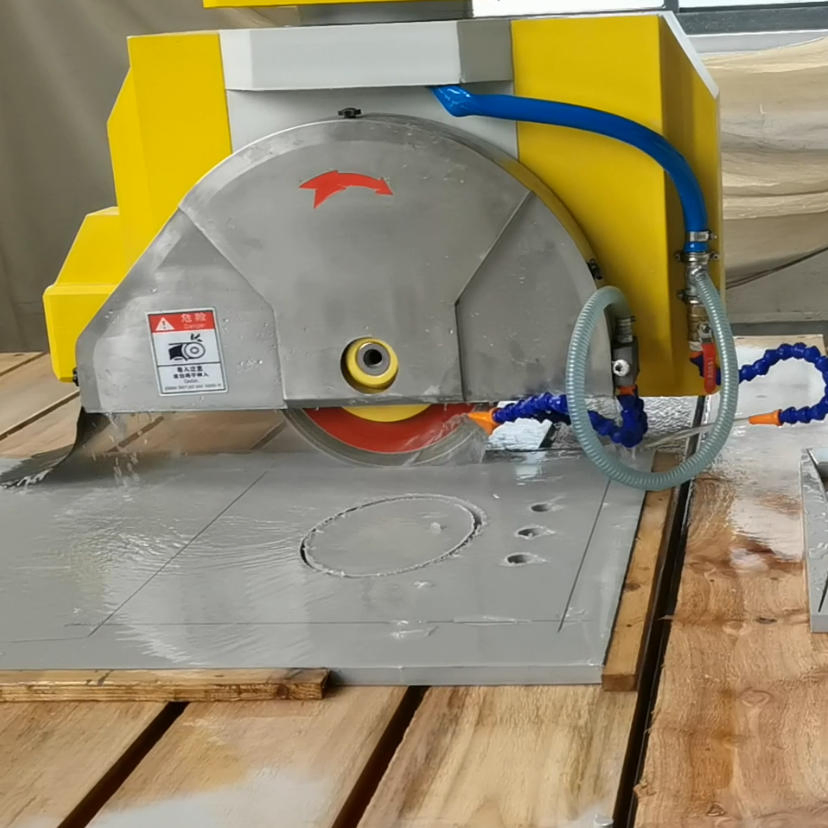

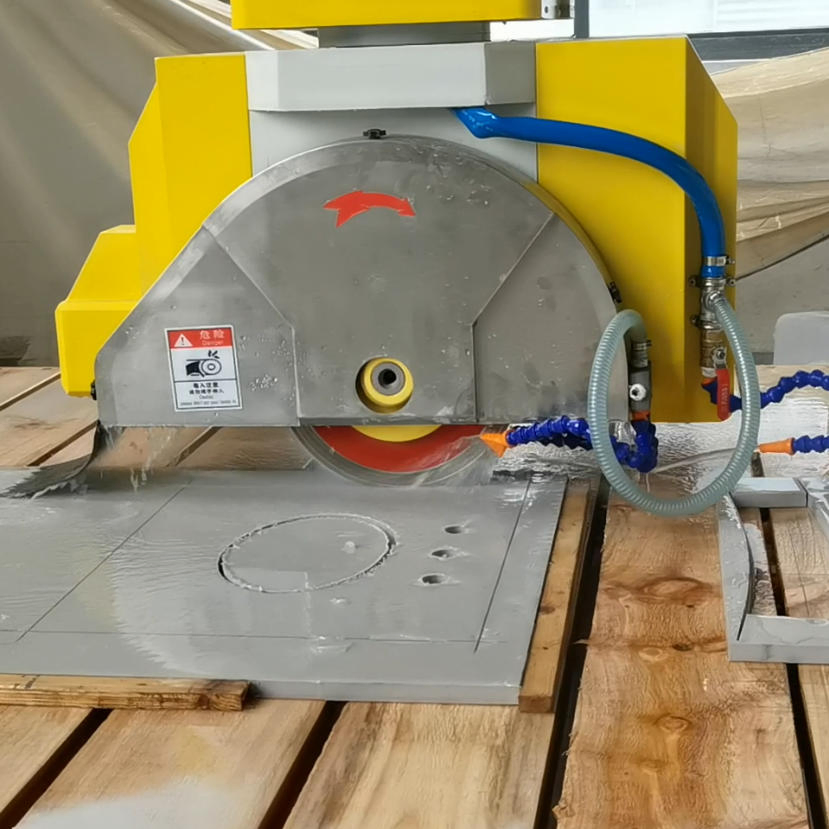

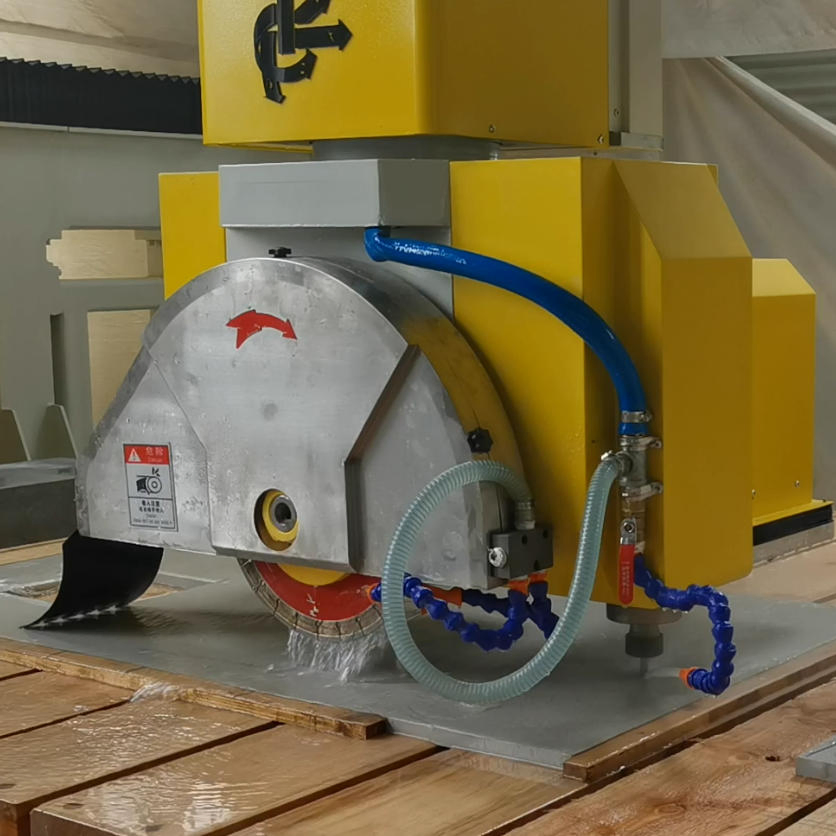

Machine Cutting Head

Cutting motor uses a 15kw variable frequency motor. It can tilt 45° for chamfer mitre cutting. The head rotates 360° to cut round shapes.

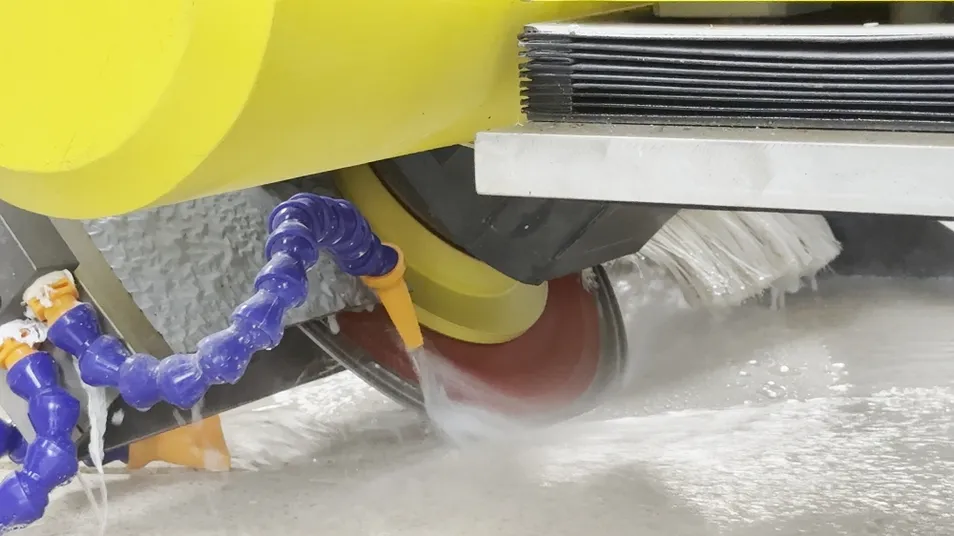

Machine cutting head

Machine Milling Head

Uses a 6.5kw high-speed electric spindle. Ideal for square basin corner cutting, round basin, and faucet hole cutting.

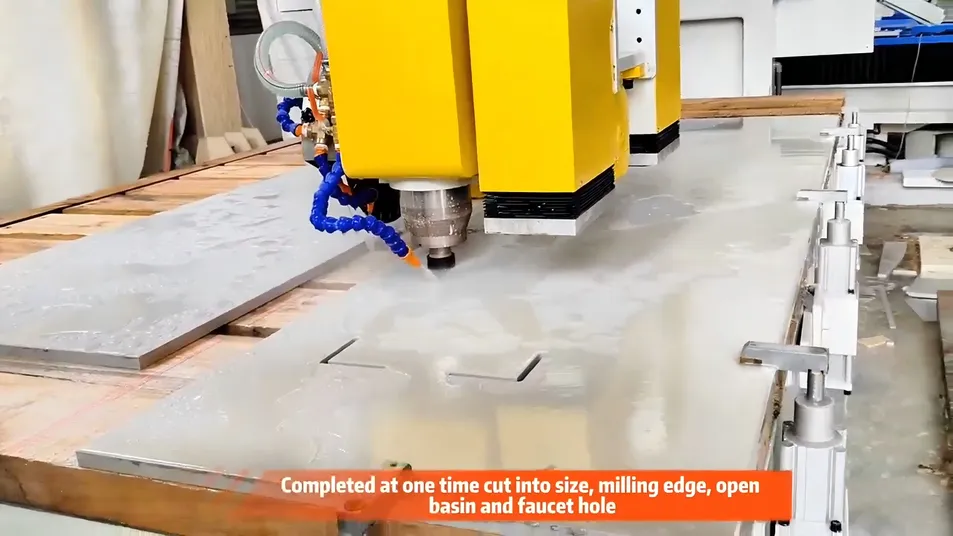

Machine milling head

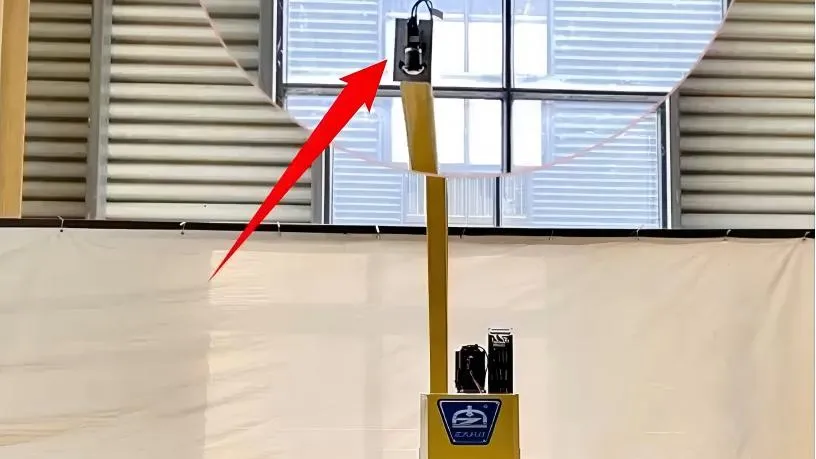

Camera Device

Captures workbench images to locate the origin and arrange processing shapes to avoid material defects. Supports multiple image arrangement.

Camera device

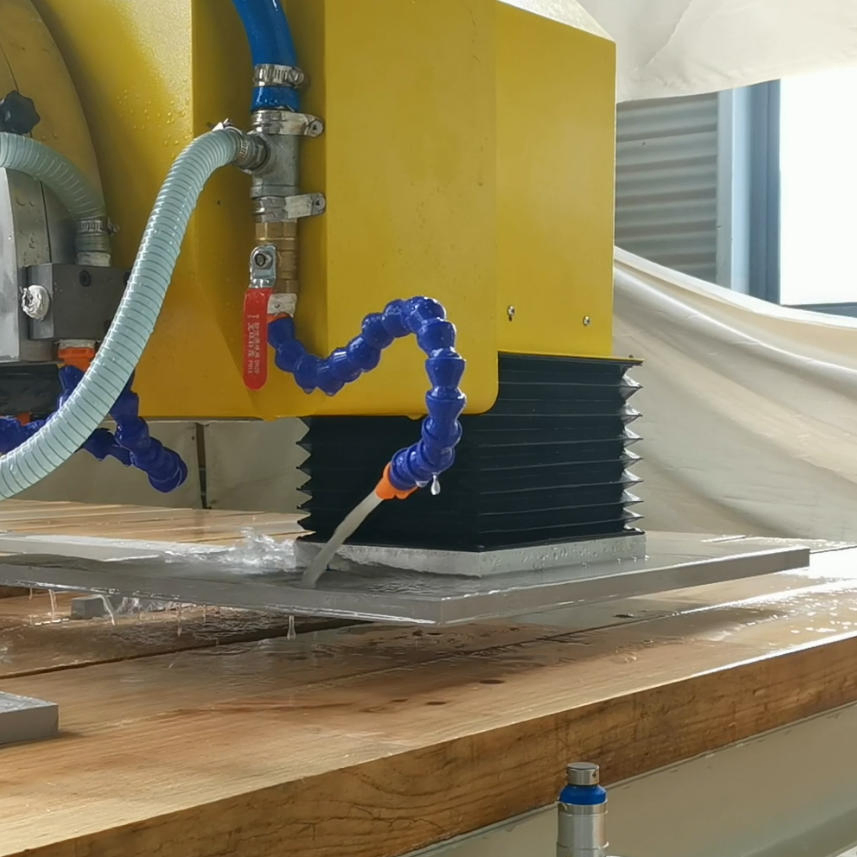

Suction Cup Device

Enables the application to move slabs automatically across the workbench for streamlined processing.

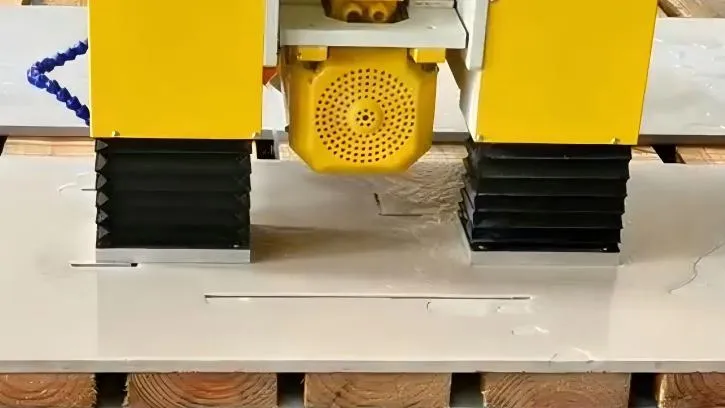

Suction cup device
📊

Specifications

X-Axis Travel3600mm
Y-Axis Travel2300mm
Z-Axis Travel500mm
A-Axis Travel0-90°
C-Axis Travel±365°
Max. Processing Dimension3400 * 2100 * 170mm
Saw Blade Diameter300-600mm
Main Motor Power18.5kw
Milling Motor Power6.5kw
Weight5900 kgs
📦

Packing & Delivery

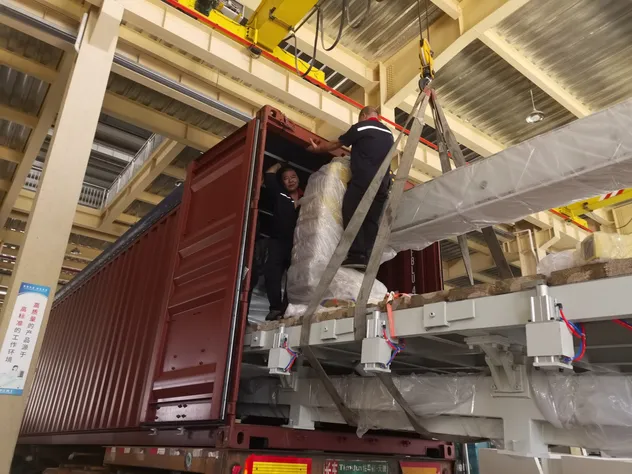

Packing 1

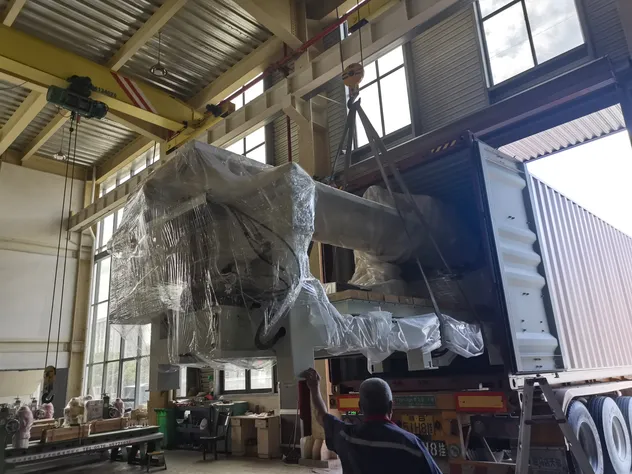

Packing 2

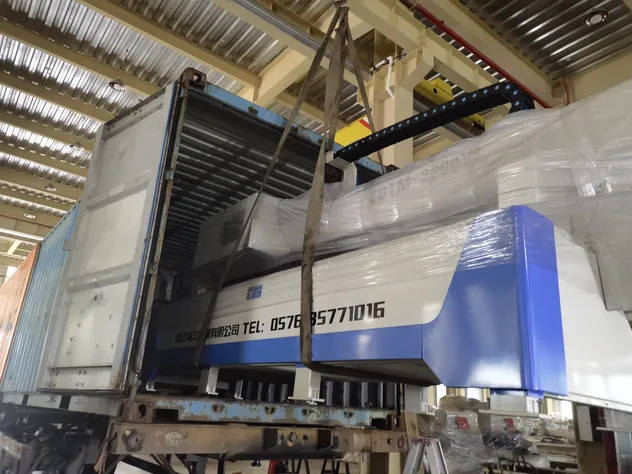

Packing 3
Package Size6020cm * 2300cm * 2600cm
Gross Weight5900.00kg
🏢

Company Profile

Our history dates back to 1978. Over 40 years of pursuit and hard work, we have become a professional high-tech enterprise combining R&D, manufacturing, sales, and after-sales service. We specialize in deep processing for stone, ceramic tile, and quartz stone kitchen countertops.

Our production base covers an area of more than 60,000 square meters, featuring intelligent office buildings and standard workshops. Our brand machines, including Laser automatic bridge cutting machines and edge grinding machines, are favored globally.

Factory view 1

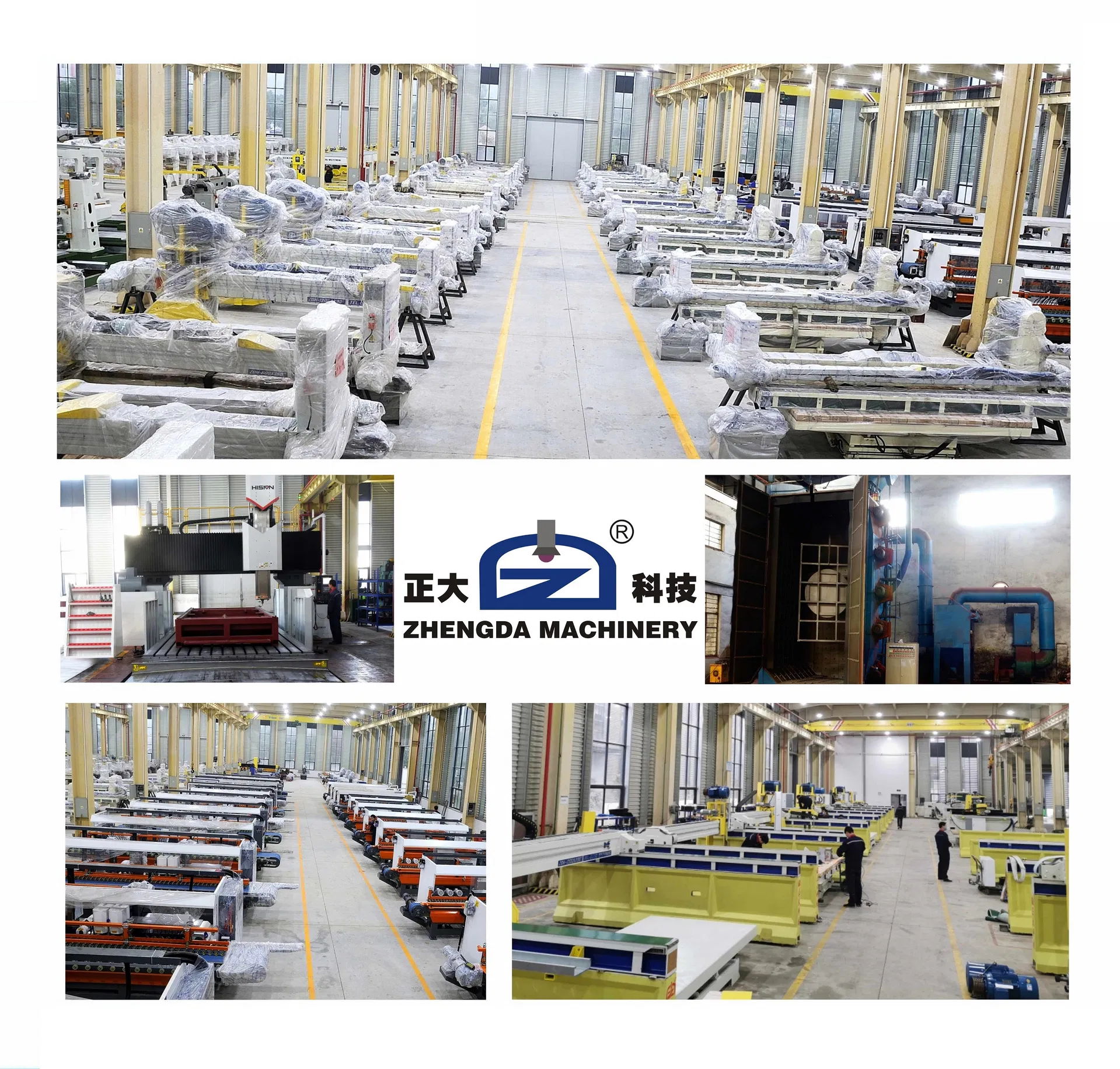

Factory view 2
🛠️

After Sales Service

After sales service

We provide a professional management team and a senior technology R&D team to support all after-sales requirements worldwide, ensuring your machinery operates at peak efficiency.

Frequently Asked Questions

What materials can the ZDH-600-5B process?
The machine is designed to handle ceramics, granite, marble, and porcelain, making it ideal for stone industry and construction applications.
What are the main functions of the 5-axis CNC system?
It supports straight cutting, 45-degree chamfer mitre cutting, curve cutting, and intricate sink cutout processing with 360-degree head rotation.
Does the machine include a milling function?
Yes, it features a 6.5kw high-speed electric spindle specifically for drilling faucet holes and cutting square basin corners.
How does the camera device improve efficiency?
The camera allows the operator to capture the slab's image to locate the origin and arrange cutting patterns effectively, avoiding material defects.
What is the purpose of the suction cup device?
The suction cup device allows the machine to move slabs automatically on the table, reducing manual labor and streamlining the production process.
Is the machine certified for international markets?
Yes, the machine and the factory are CE and ISO 9001 certified, ensuring compliance with international quality and safety standards.
