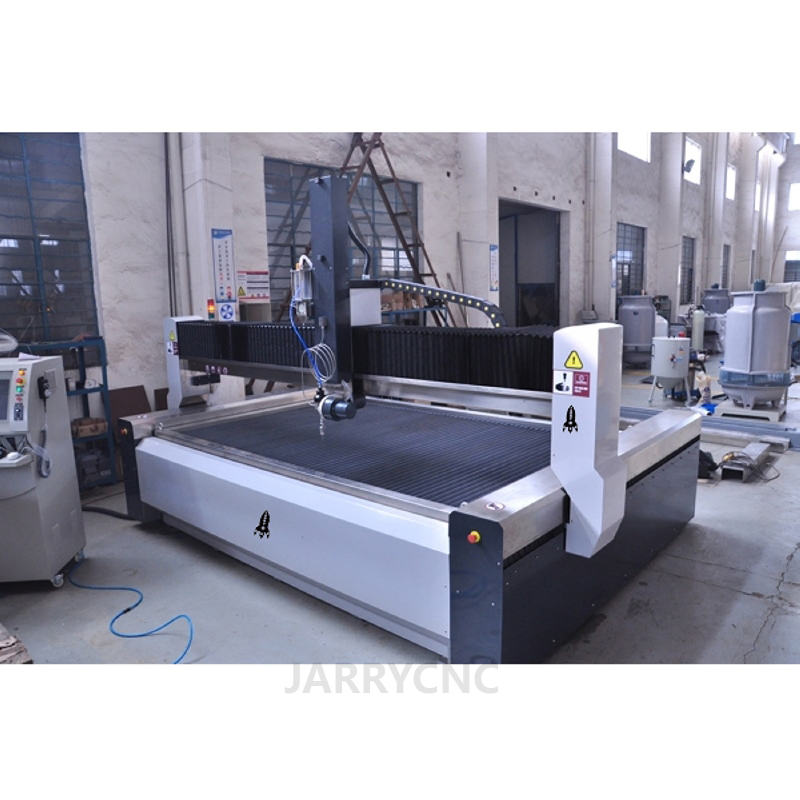

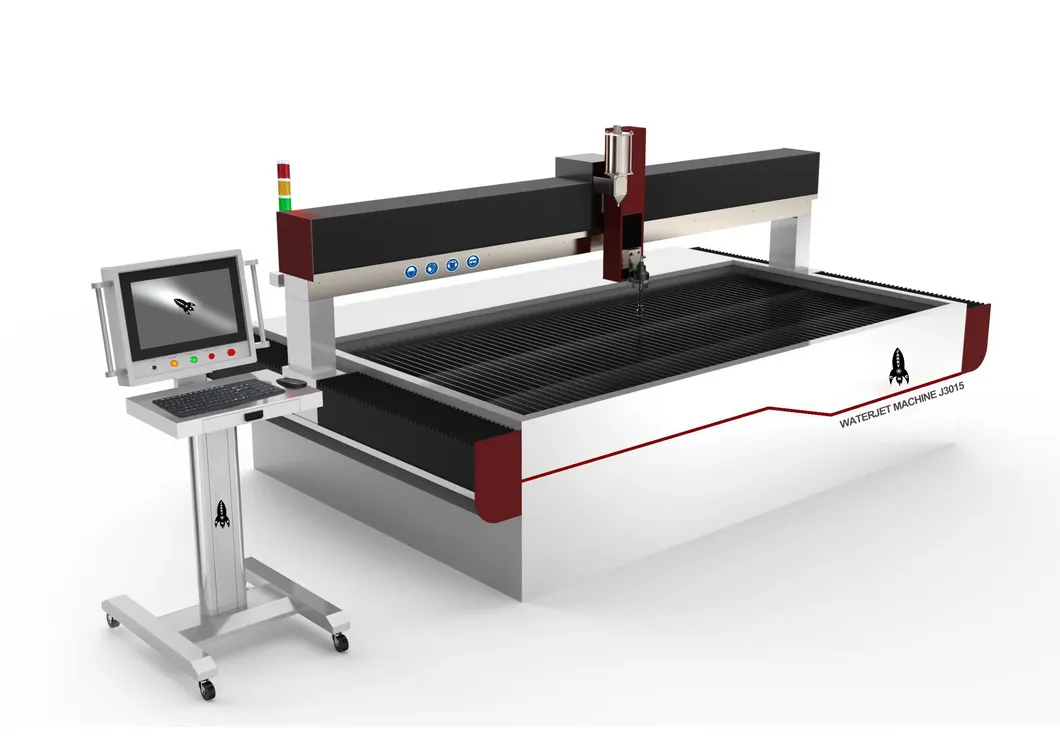

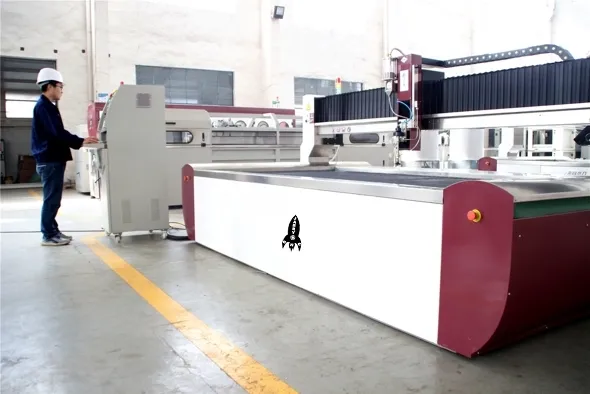

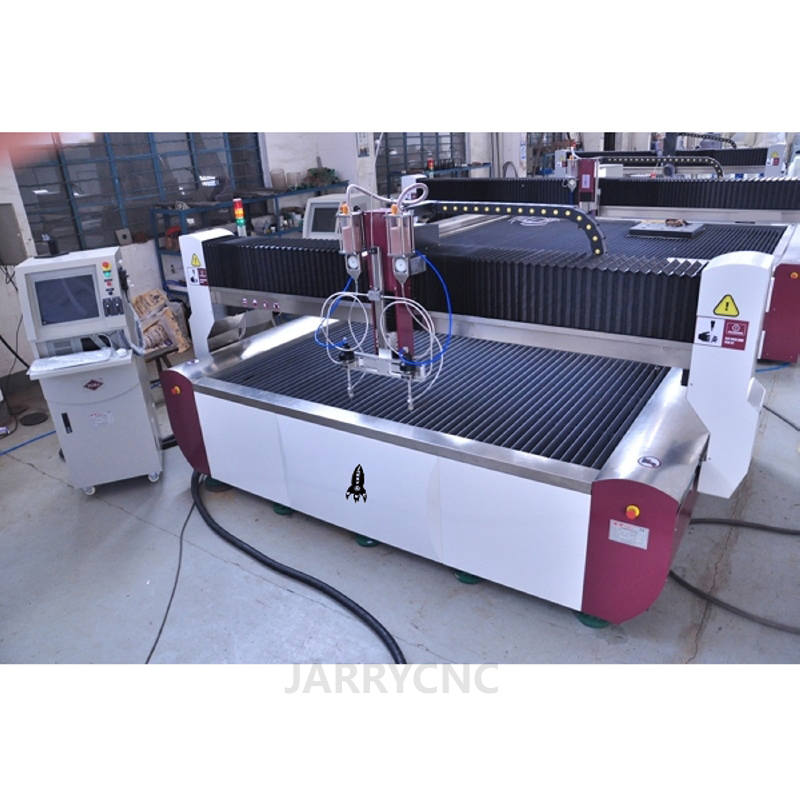

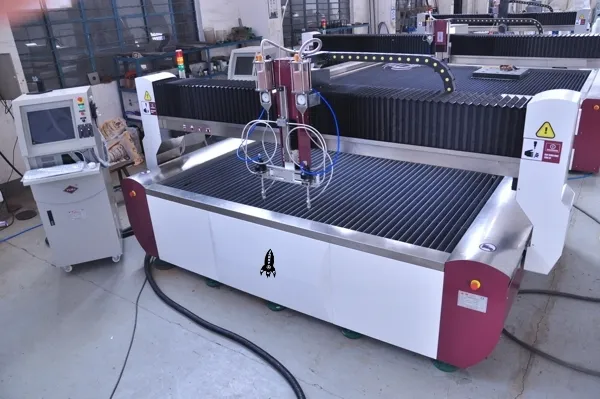

TitanPro Cutting
TitanPro Cutting

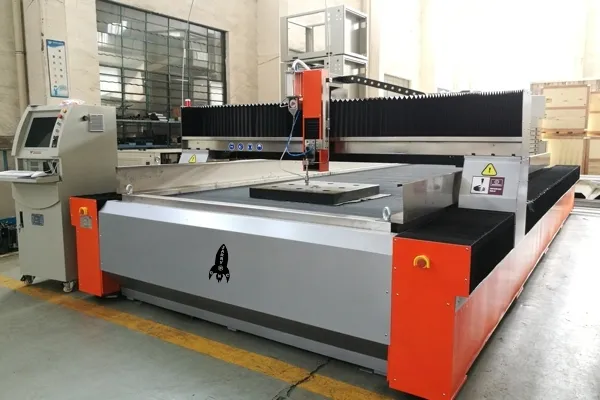

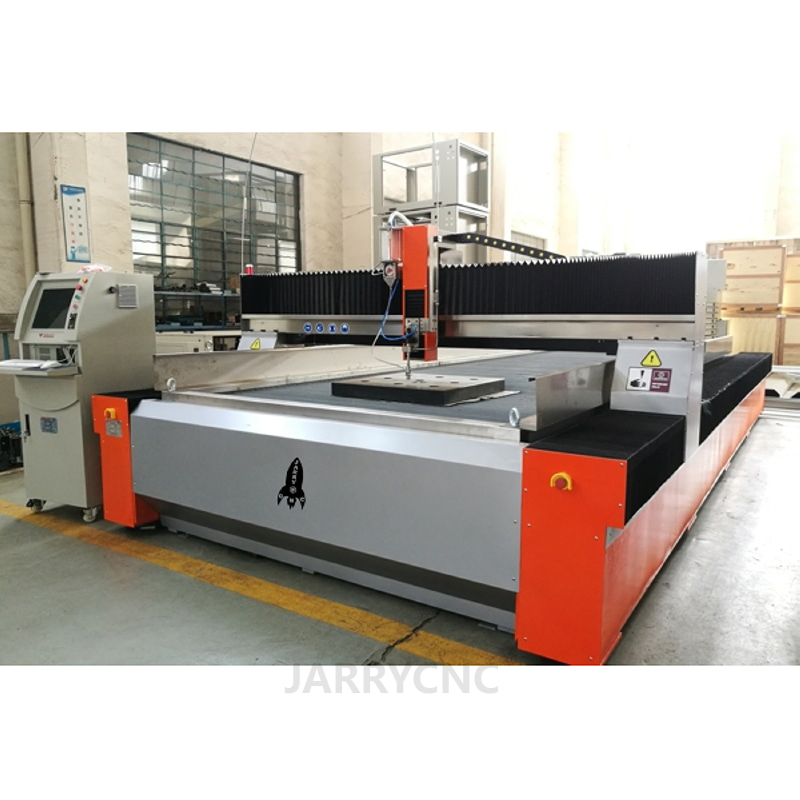

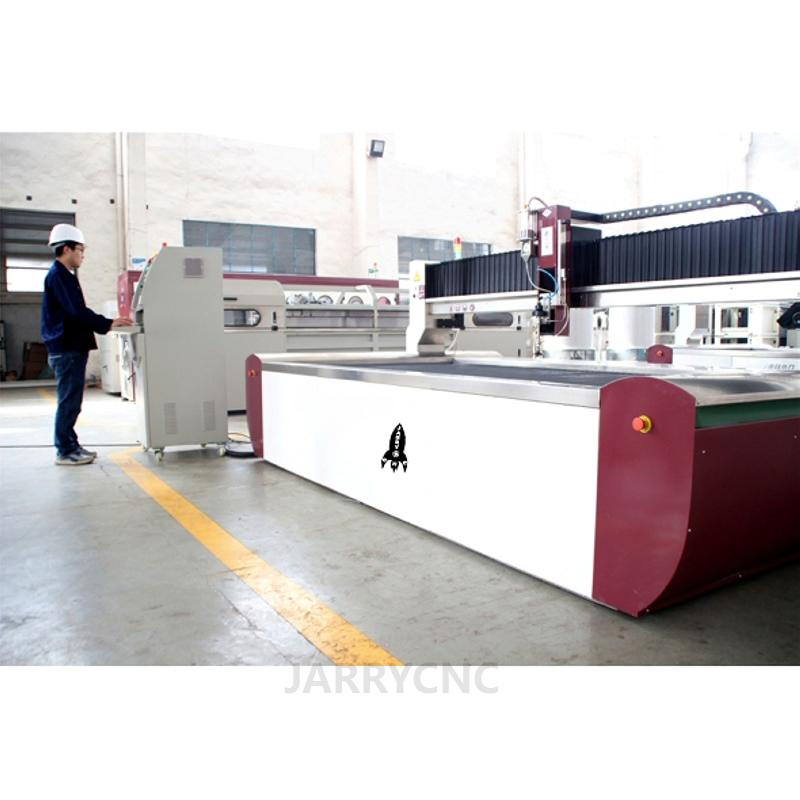

| Cutting Table Main Parameters | |
| Model | YCG-3742S |
| Maximum output flow | 3.7L/min |
| Maximum orifice | 0.33mm |
| Max output pressure | 420mpa |
| Intensifier configuration | Single |
| Pressure control | Manual |
| Shifting control | Electro-hydraulic control |
| Pump Power & Physical Data | |
| Motor Power | 37kw/50HP |
| Voltage | 380V/50Hz |
| Width / Length / Height | 1300mm / 1800mm / 1500mm |
| Operating weight | 1200kg |
| Options | Air cooling/Water chiller |
| No. | Name | Amount |
| 1 | Ruby | 4 |
| 2 | Nozzle | 1 |
| 3 | Connecter of pipe | 2 |
| 4 | Shift valve elements | 1 |
| 5 | Air valve repair kit | 1 |
| 6 | Shield cap | 2 |
| 7 | Hp water switch kit | 1 |
| 8 | Hp seal | 1 |
| 9 | Low pressure oil seal | 1 |
| 10 | Lp check valve repair kit | 1 |
| 11-13 | Filter elements (5/1/0.45 Micron) | 1 each |
Established in July 2014, we are a professional machinery supplier specializing in CNC-Lathe, Milling Machines, Cutting Machines, and high-quality Spare Parts.
Our company offers a variety of CNC Machining Centers and other machine tools to meet multifarious demands. We adhere to "quality first, customer first" principles and aim for win-win cooperation in the global market. Our products are exported to Europe, Asia, Africa, and the Americas with a perfect hassle-free service system covering pre-sales and post-sales support.
