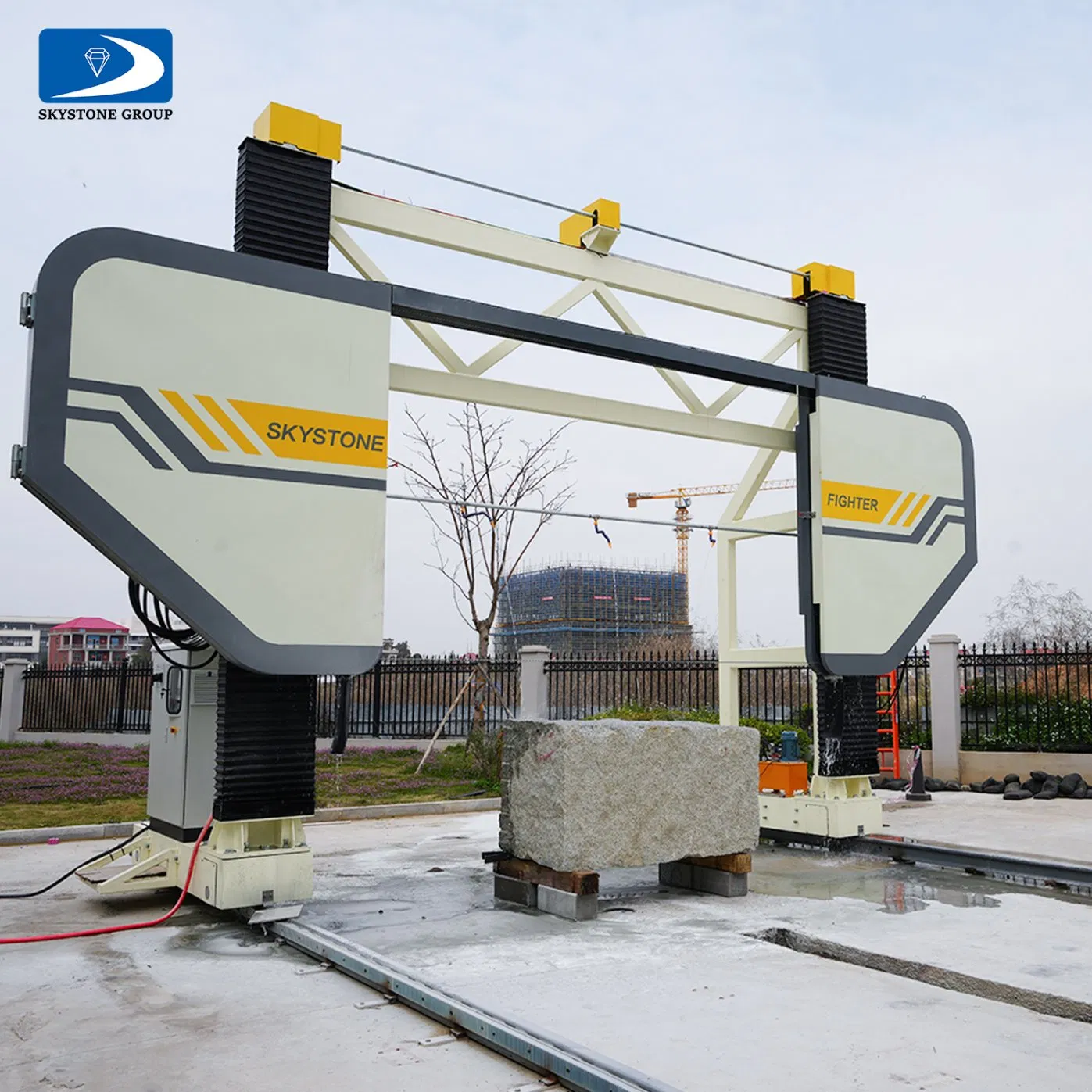

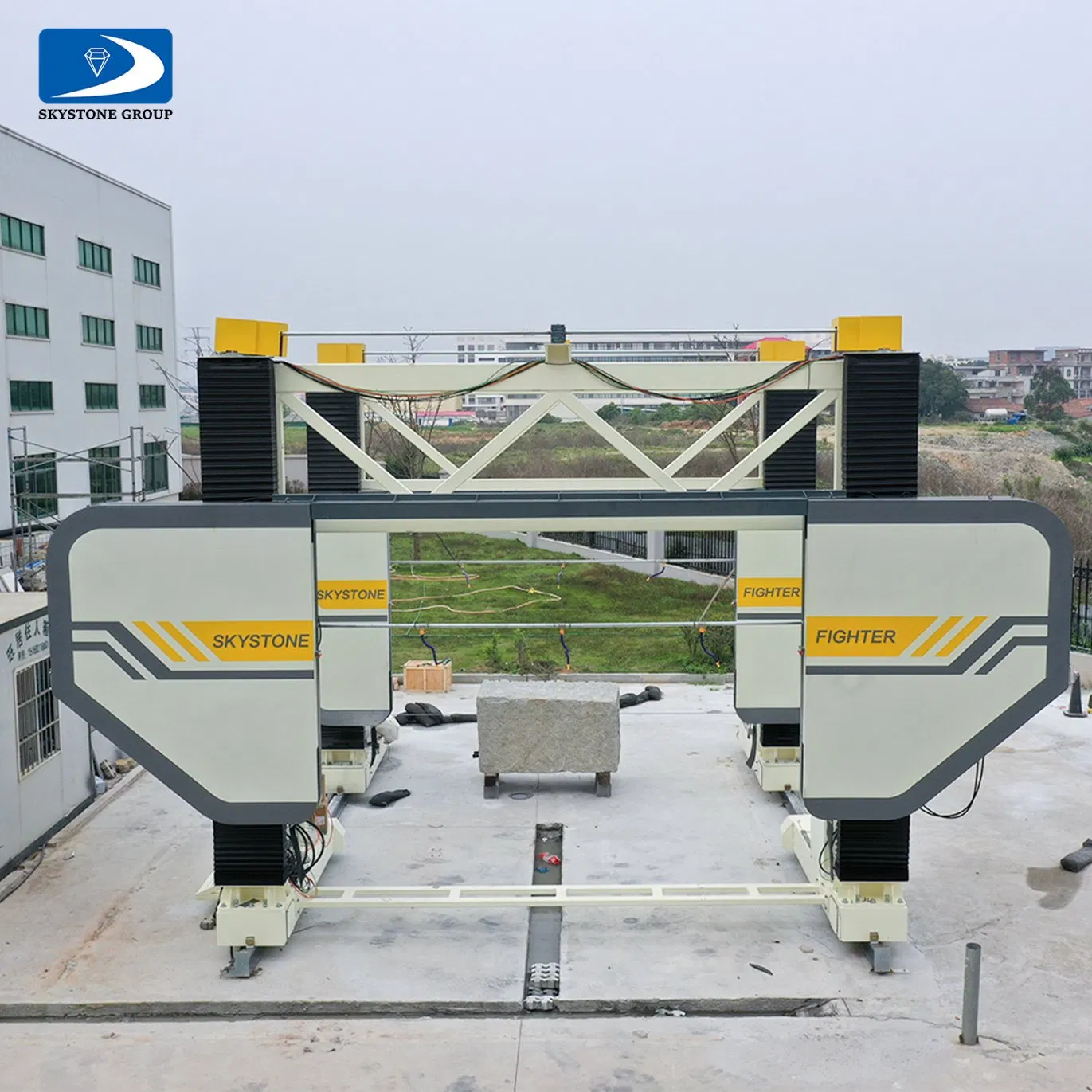

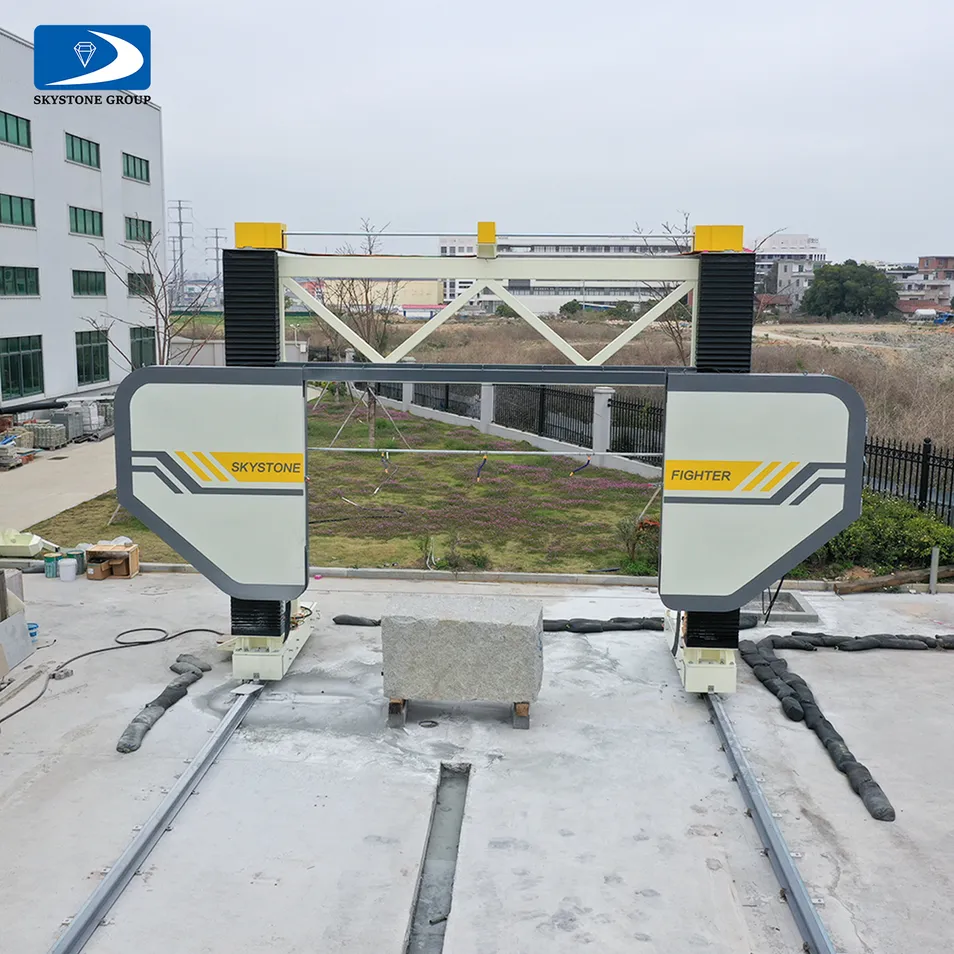

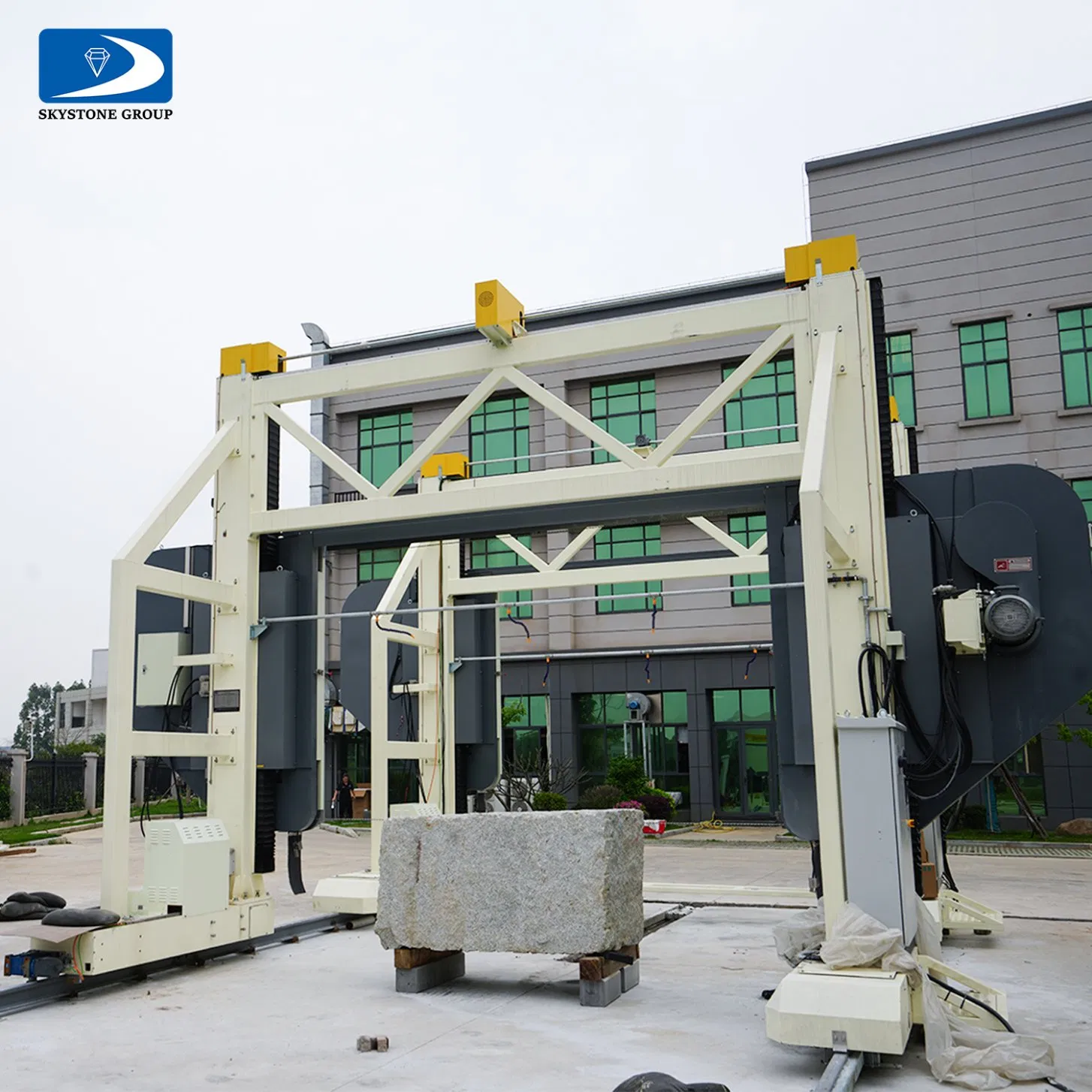

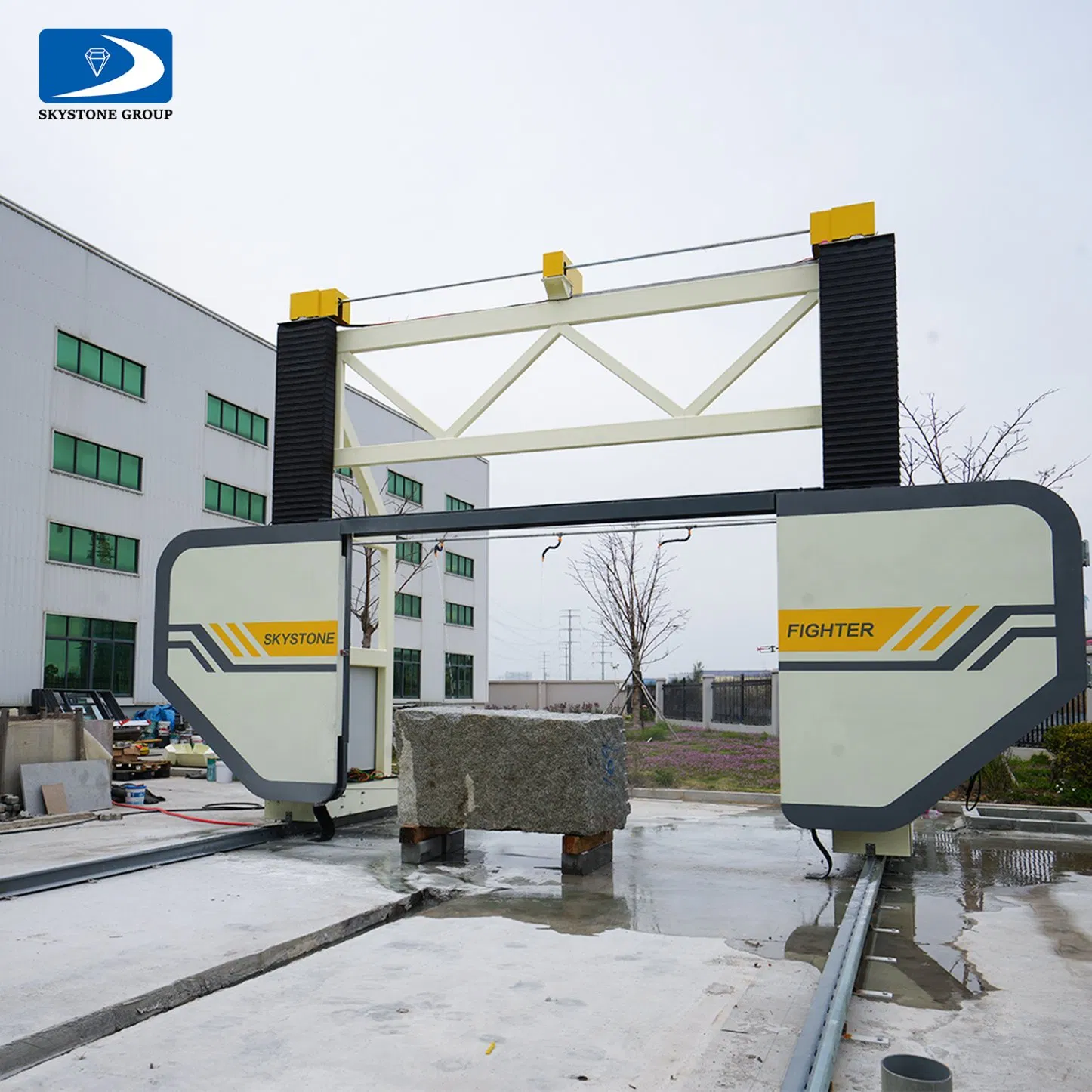

Mono Wire Saw Machine: This equipment is designed for processing all varieties of hardness in stone blocks. It is capable of cutting slabs of different thicknesses and sizes, making it highly versatile for stone block trimming and shaping.

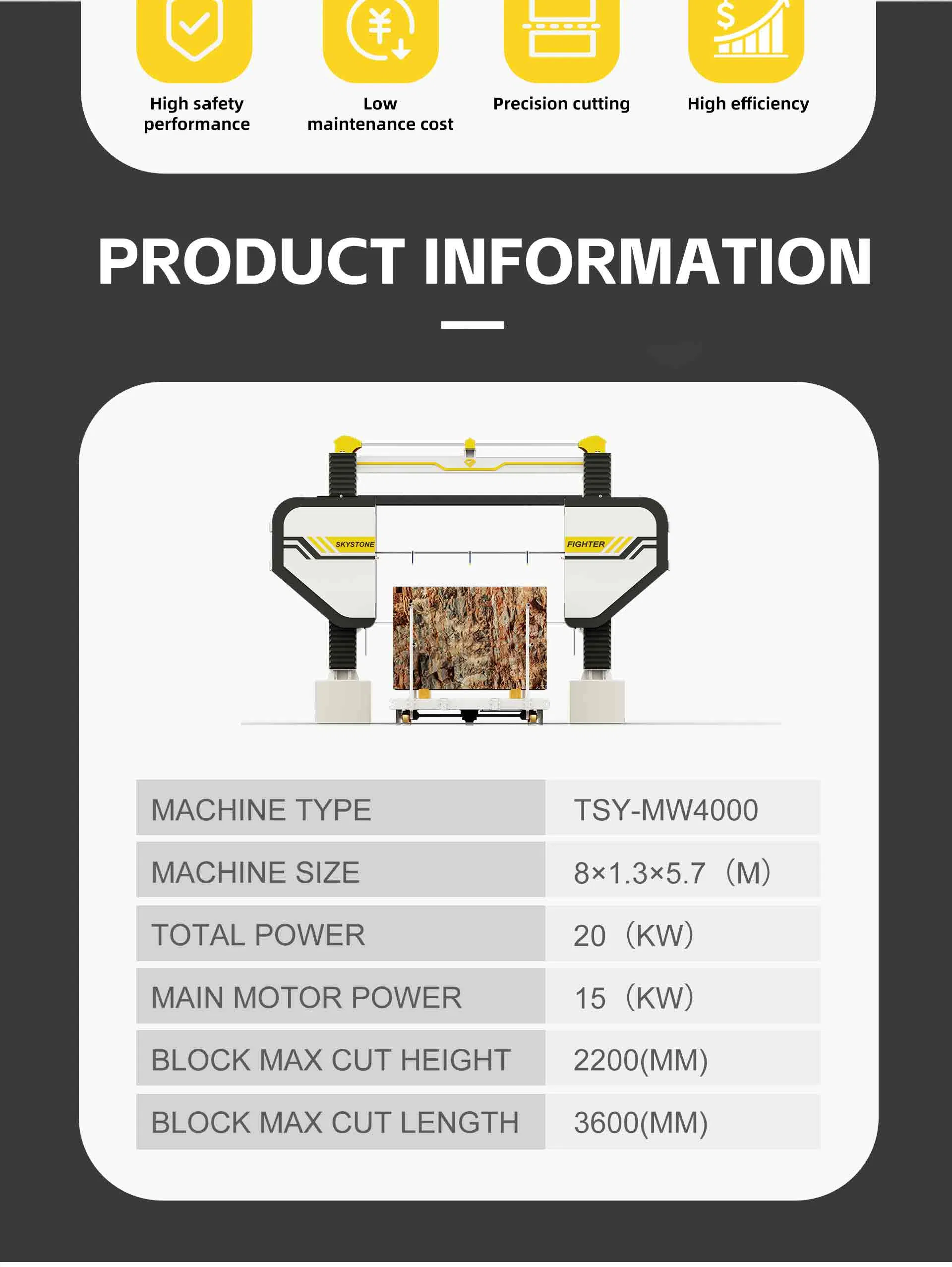

| Technical Parameters (TSY-WB3600B) | |
|---|---|
| Wire diameter (mm) | φ8.3-φ11 |
| Wire length (m) | 18 |
| Line speed (m/s) | 0-40 |
| Block max cut height (mm) | 2200 |
| Block max cut length (mm) | 3600 |
| Tension (kg) | 0-350 |
| Cooling water (L/min) | 20 |
| Machine size (m) | 8×1.3×5.7 |
| Equipment rise maximum (m) | 5.7 |
| Machine weight (t) | 7 |
| Total power (kW) | 20 |
| Main motor power (kW) | 15 |
| Rail length (m) | 6 |
