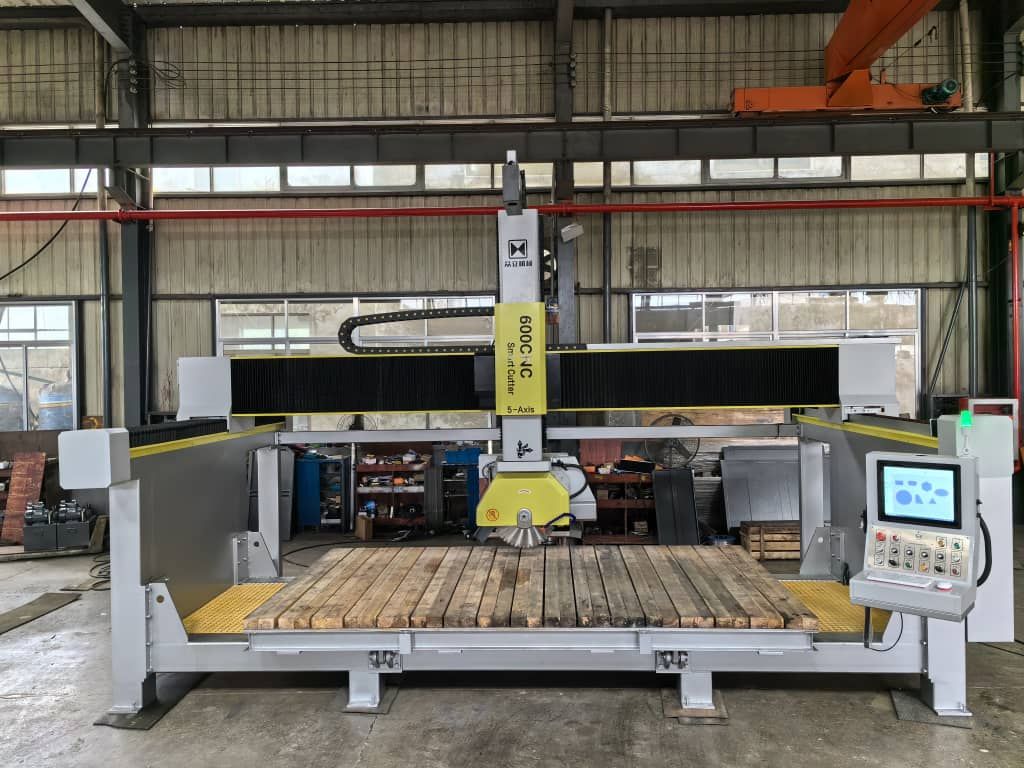

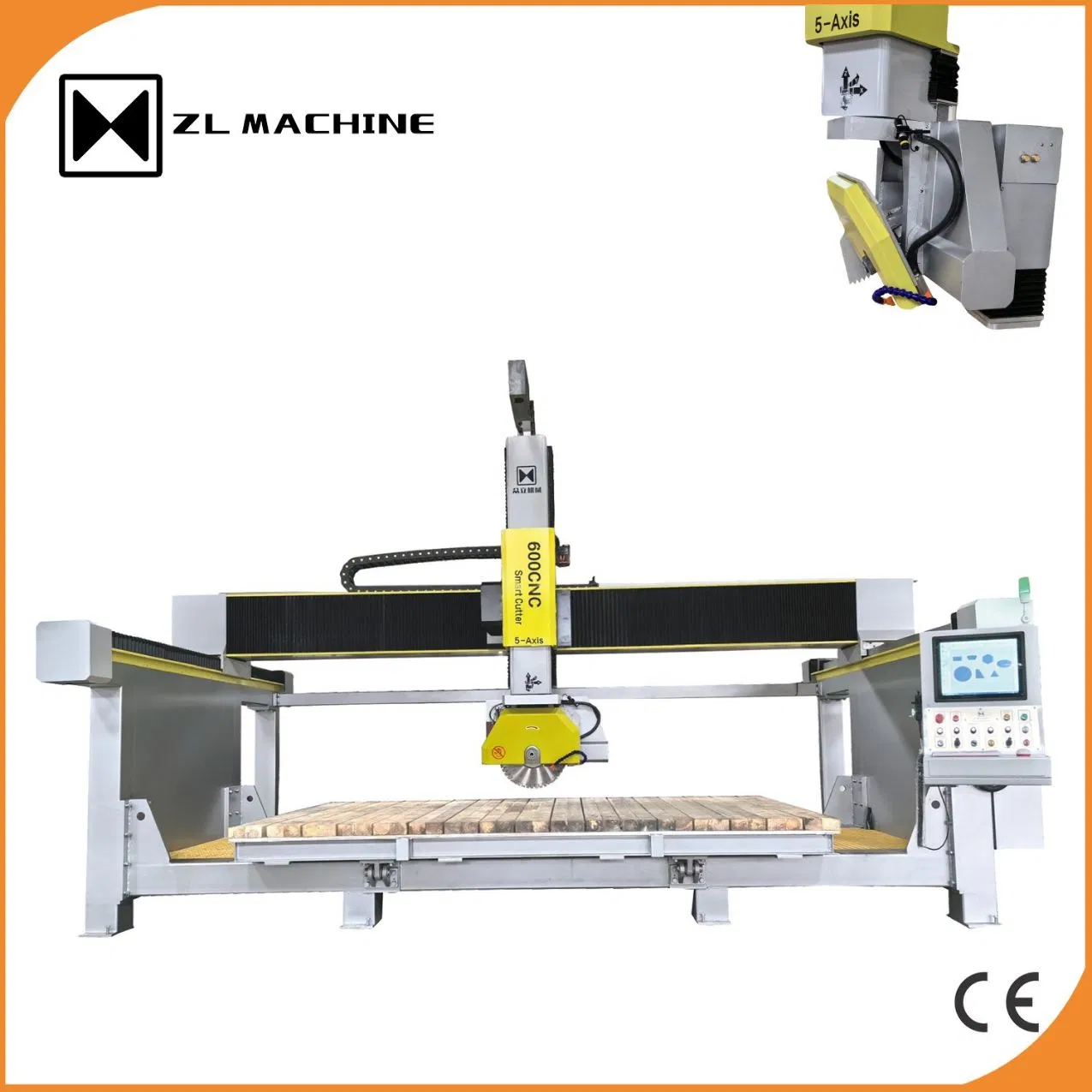

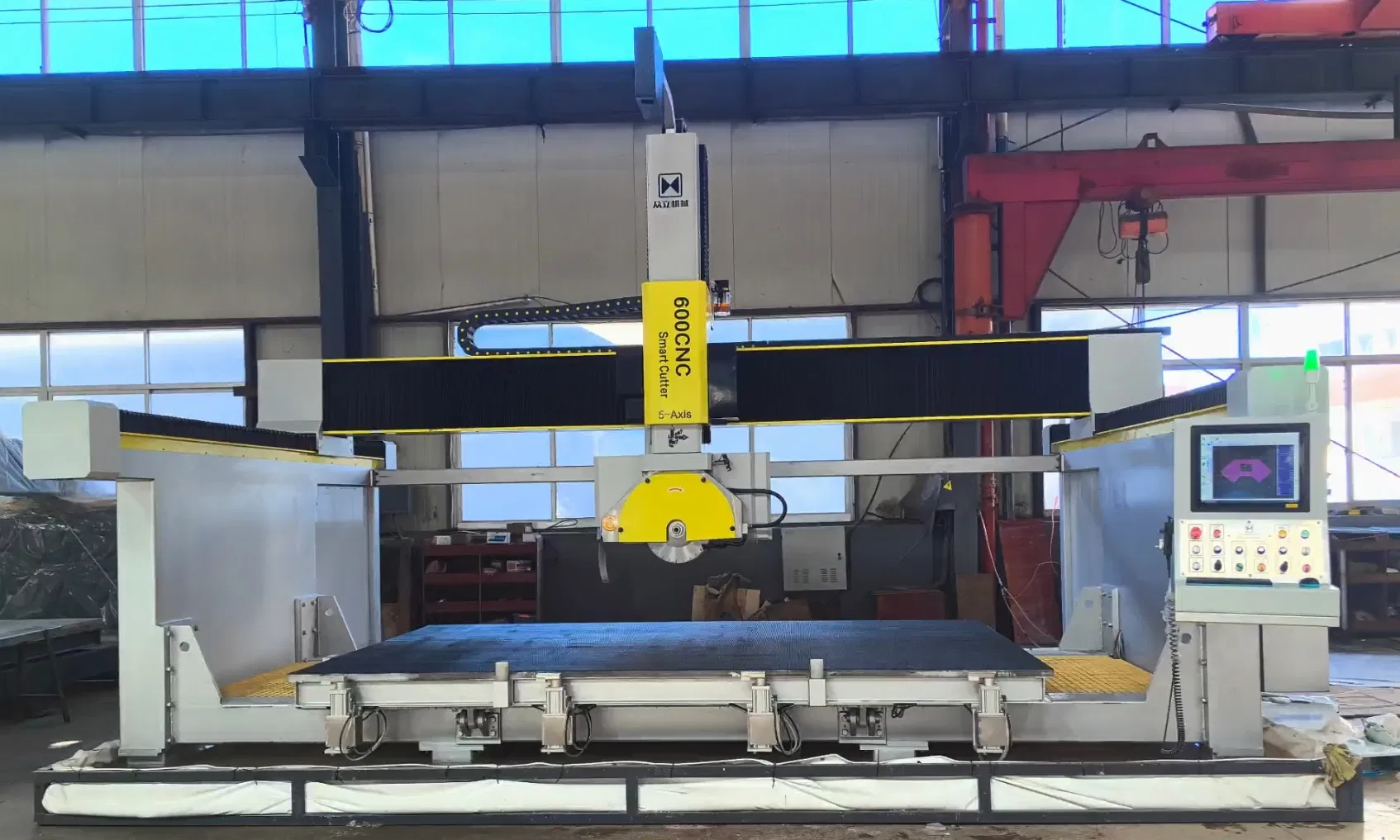

Heavy Duty CE 5 Axis CNC Stone Cutting Machine for Granite Marble Quartz Ceramic Processing Profiling 2.5D Shaping, Automatic Bridge Saw in Europe America
Heavy Duty CE 5 Axis CNC Stone Cutting Machine for Granite Marble Quartz Ceramic Processing Profiling 2.5D Shaping, Automatic Bridge Saw in Europe America
Heavy Duty CE 5 Axis CNC Stone Cutting Machine for Granite Marble Quartz Ceramic Processing Profiling 2.5D Shaping, Automatic Bridge Saw in Europe America
Heavy Duty CE 5 Axis CNC Stone Cutting Machine for Granite Marble Quartz Ceramic Processing Profiling 2.5D Shaping, Automatic Bridge Saw in Europe America
Heavy Duty CE 5 Axis CNC Stone Cutting Machine for Granite Marble Quartz Ceramic Processing Profiling 2.5D Shaping, Automatic Bridge Saw in Europe America
1 / 5
Heavy Duty CE 5 Axis CNC Stone Cutting Machine for Granite Marble Quartz Ceramic Processing Profiling 2.5D Shaping, Automatic Bridge Saw in Europe America
Heavy Duty CE 5 Axis CNC Stone Cutting Machine for Granite Marble Quartz Ceramic Processing Profiling 2.5D Shaping, Automatic Bridge Saw in Europe America
Heavy Duty CE 5 Axis CNC Stone Cutting Machine for Granite Marble Quartz Ceramic Processing Profiling 2.5D Shaping, Automatic Bridge Saw in Europe America
Heavy Duty CE 5 Axis CNC Stone Cutting Machine for Granite Marble Quartz Ceramic Processing Profiling 2.5D Shaping, Automatic Bridge Saw in Europe America
Heavy Duty CE 5 Axis CNC Stone Cutting Machine for Granite Marble Quartz Ceramic Processing Profiling 2.5D Shaping, Automatic Bridge Saw in Europe America

Heavy Duty CE 5 Axis CNC Stone Cutting Machine for Granite Marble Quartz Ceramic Processing Profiling 2.5D Shaping, Automatic Bridge Saw in Europe America

Customization: Available
After-sales Service: Response Within 24 Hours
Warranty: 1 Year
Send Inquiry

Product Description

💠 Overview

This Heavy Duty CE 5 Axis CNC Stone Cutting Machine is designed for processing Granite, Marble, Quartz Stone, Ceramic, Porcelain, and other materials. It is a fully automatic machine that enables operators to process various forms of chamfering and 2/2.5D shaping, including arc and wave line shaping.

Equipped with a sophisticated CNC control system, it supports manual or automatic programming to perform transversal, longitudinal, orthogonal, arc, and circle cuts, as well as concave-convex shaping. It is an essential tool for modern stone processing factories.

📋 Technical Parameters
Parameter ZLBS-600CNC/5A ZLBS-600CNC/5+1A
Worktable Size L3500 * W2000 mm L3500 * W2000 mm
Maximum Cutting Size L3500 * W2000 * H150 mm L3500 * W2000 * H150 mm
Main Motor 22KW Special Motor 22KW Permanent Magnet
Blade Diameter 350-600 mm 350-600 mm
X, Y, Z Transmission Linear Guide + Helical Rack Linear Guide + Helical Rack
C-axis (Head Rotate) 0° - 360° 0° - 360°
A-axis (Head Tilt) 0° - 90° 0° - 90°
Control Center CNC System / Italian ESA CNC System / Italian ESA
🚀 Core Product Features

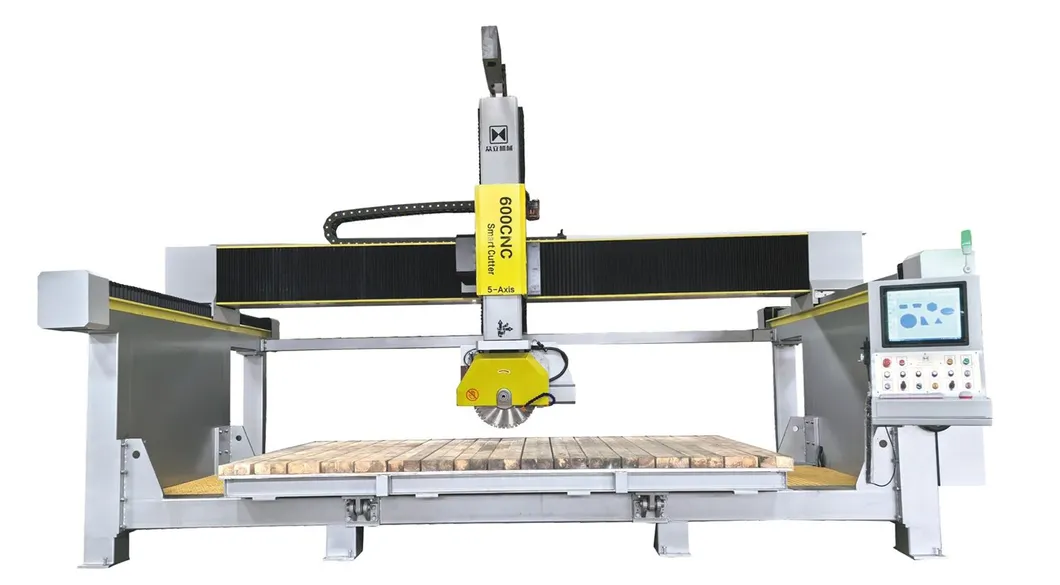

5 Axis CNC Stone Machine
1. Heavy Duty #35 Guide Rail Adopts #35 Guide Rail for Y and Z axes, ensuring stability when processing slabs up to 15cm thick. This ensures a long lifetime for the machine even under high loads.
2. Rotating Pressing Cylinders Equipped with rotating cylinders to press piecework during milling, making the work extremely accurate and precise.
3. Full Axis Mobility The A-axis automatically rotates 0-90° and the C-axis rotates up to 360°, allowing for complex profiling and shaping.
4. 85° Worktable Turnover The worktable flips up to 85 degrees to facilitate the easy and safe loading of heavy stone slabs.
5. Vacuum Suction Cups Equipped with suction cups to move slabs automatically on the table, preventing conflict with the blade cutting path.
6. Large Range Chamfering Supports excellent four-side chamfering with a comprehensive range of 3500x2000mm.

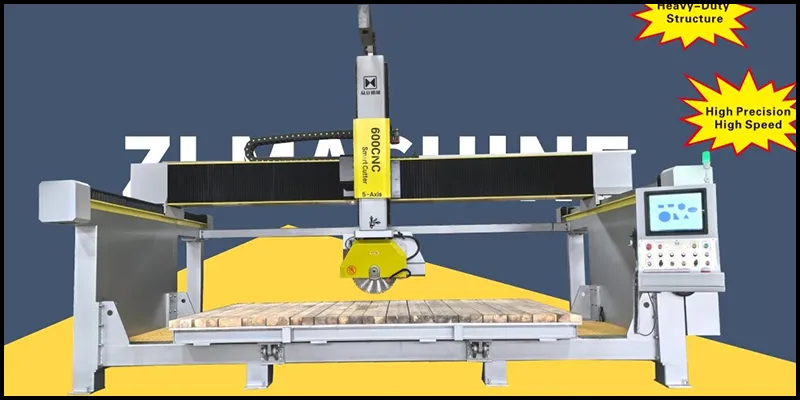

Guide Rail Detail

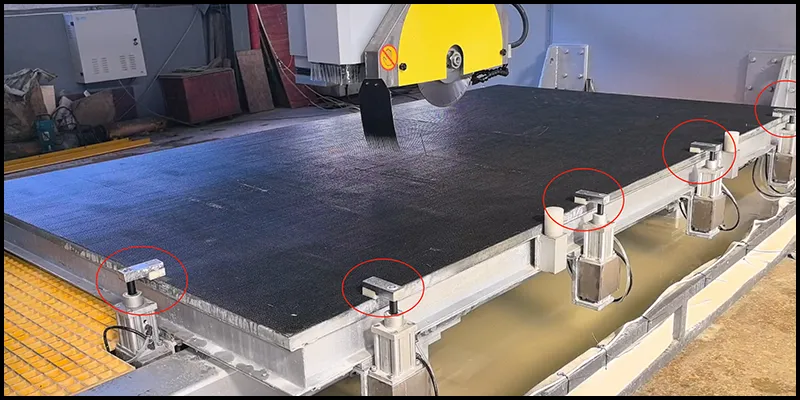

Cylinder Detail

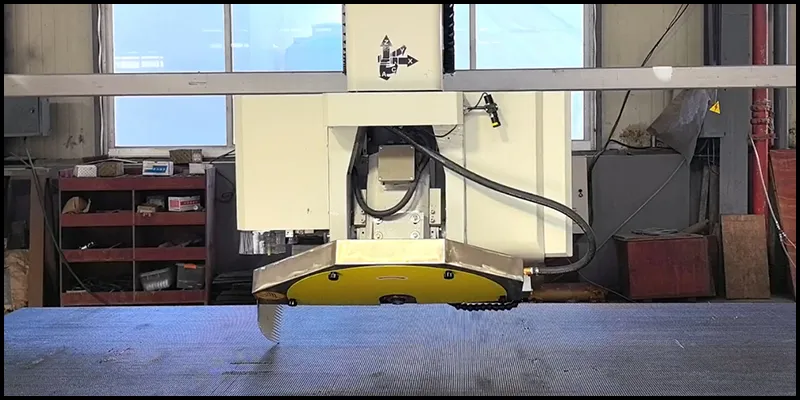

Working Head
💻 Intelligent Control System
Industrial Computer Features a 17" color touch-screen for intuitive operation and monitoring.
Built-in Library Contains conventional-shaped drawings and supports DXF format imports from external design software.
Auto Tool Setting Equipped with an automatic tool setting gauge that checks the blade state automatically.

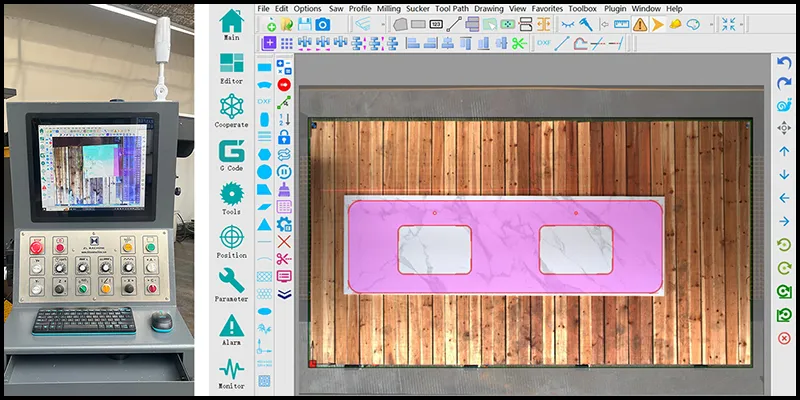

Control System

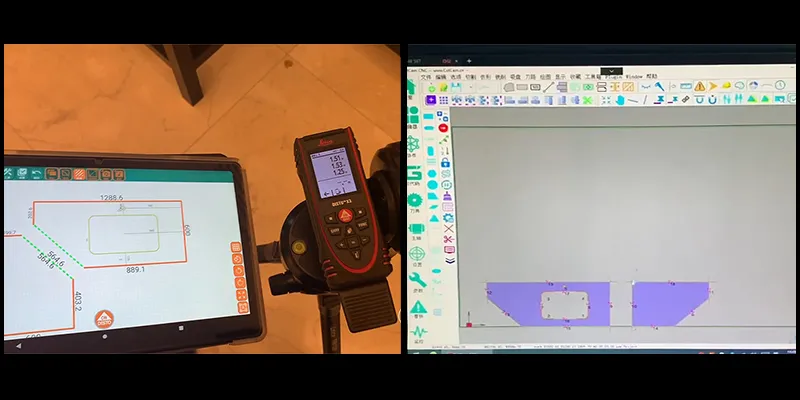

CNC Library
🖼️ Application & Shipping

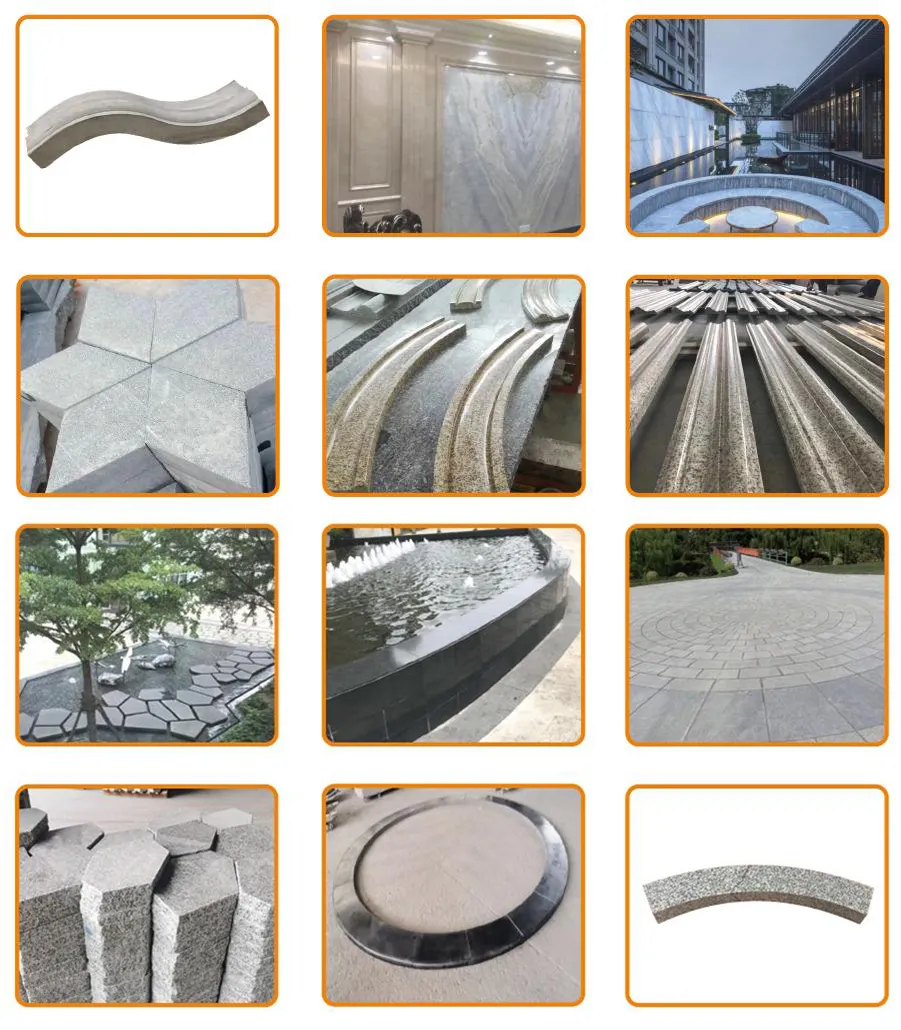

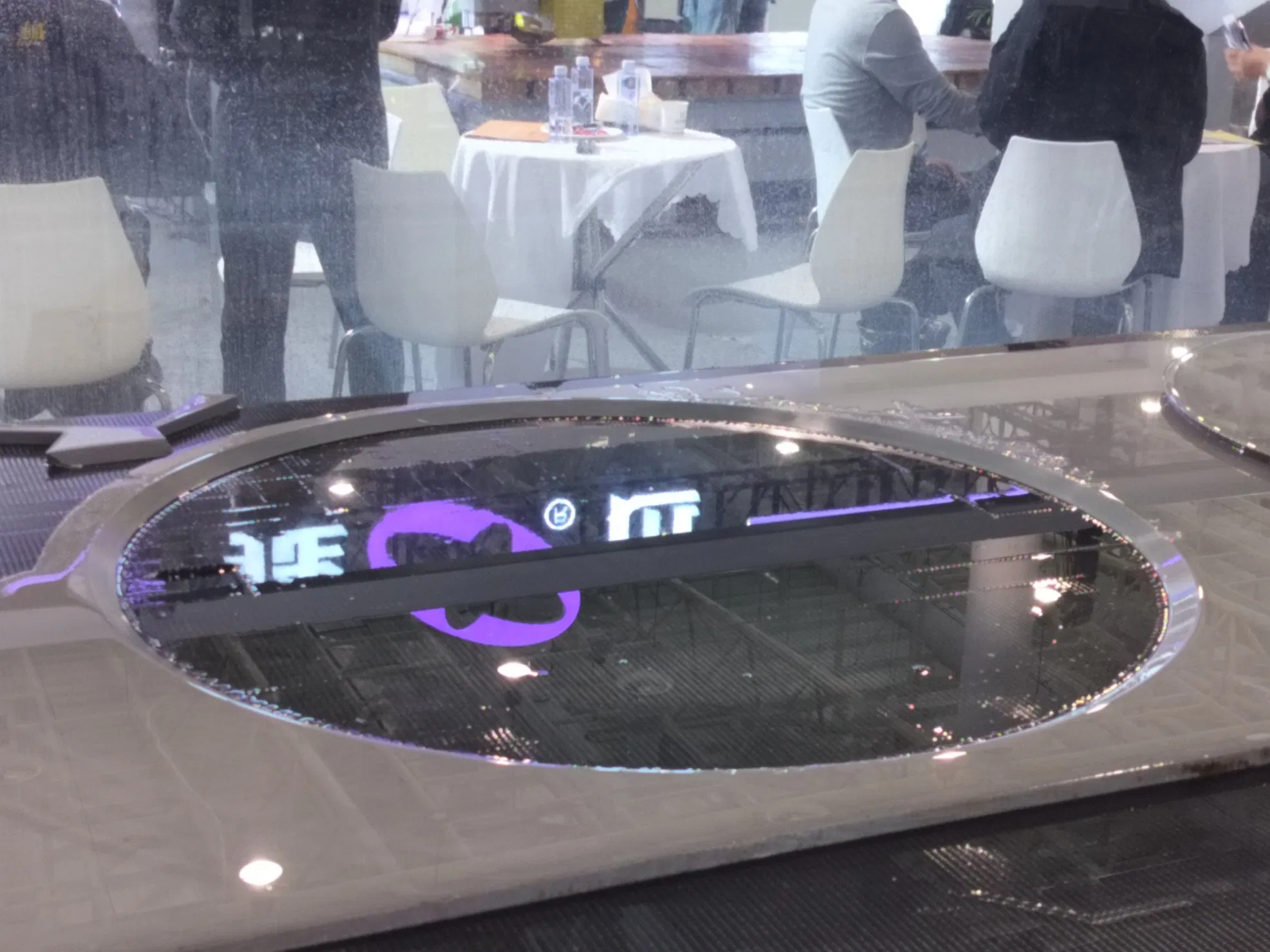

Processing Example

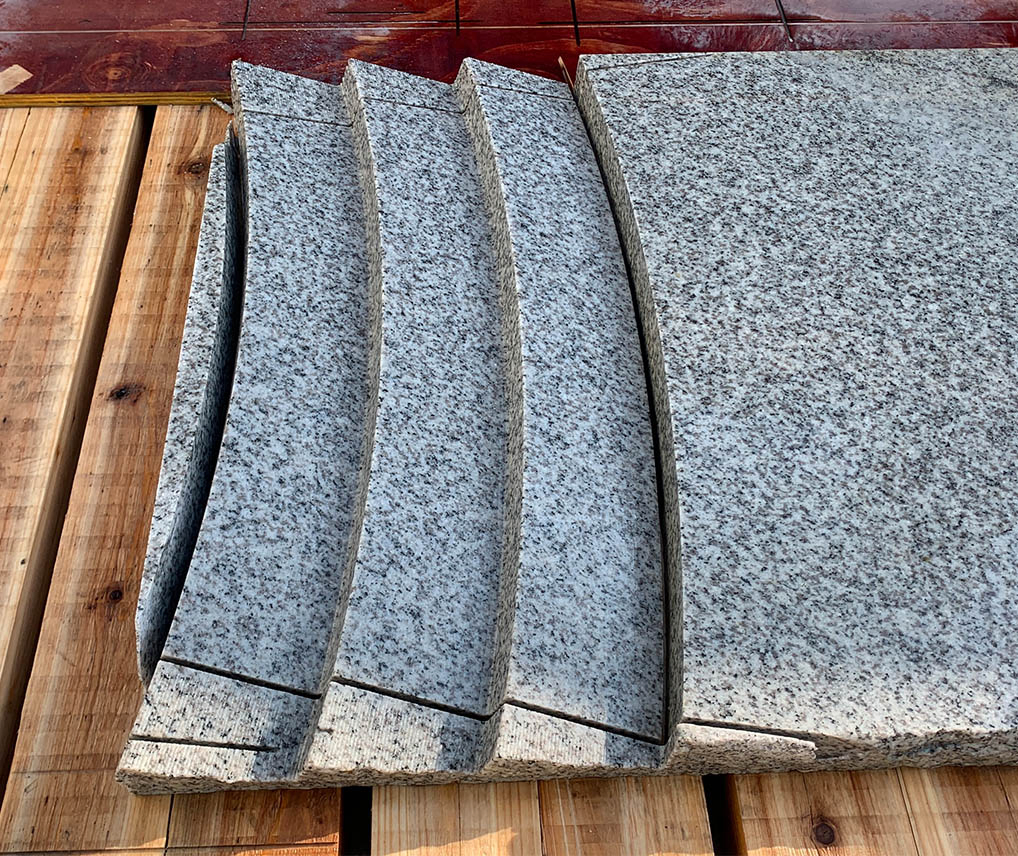

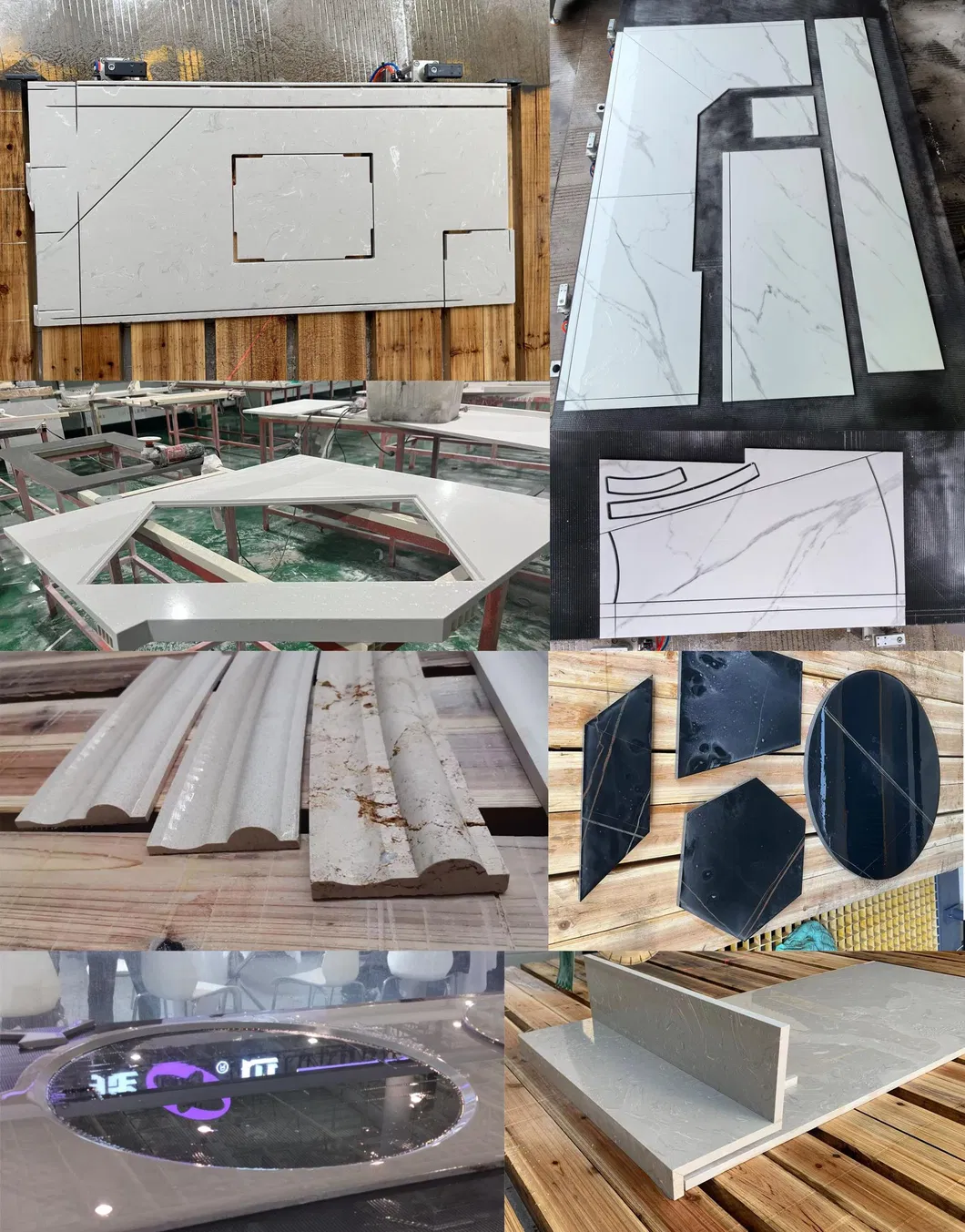

Shaping Example

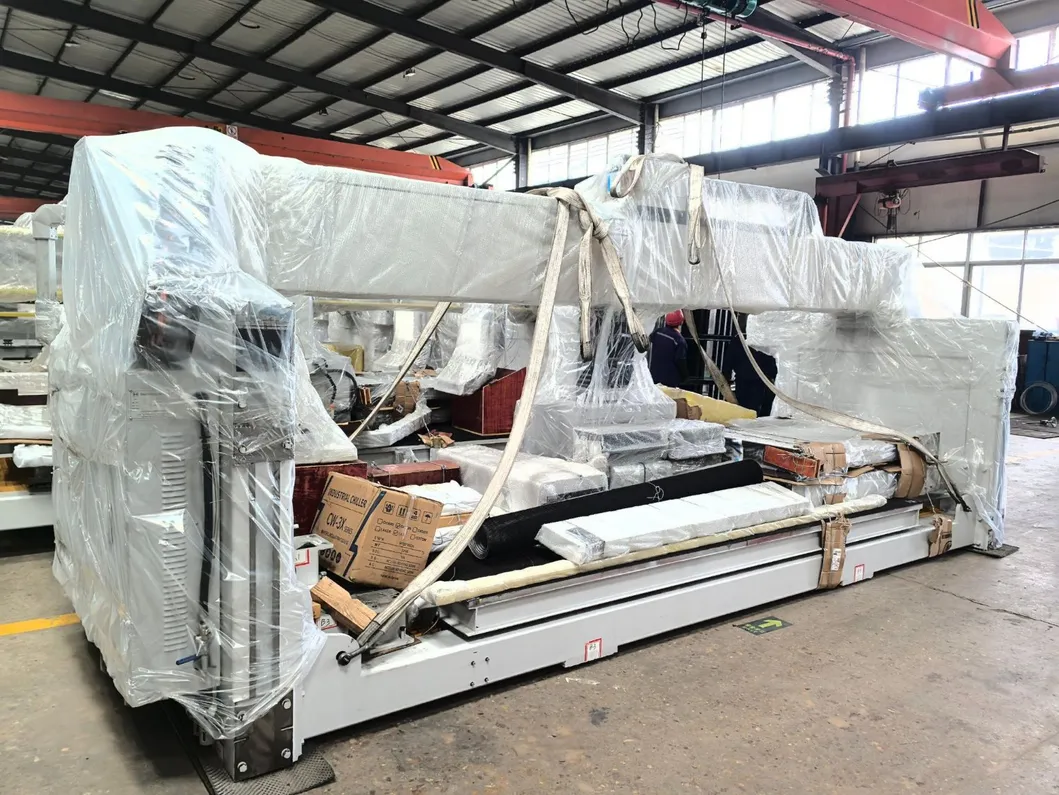

Packaging

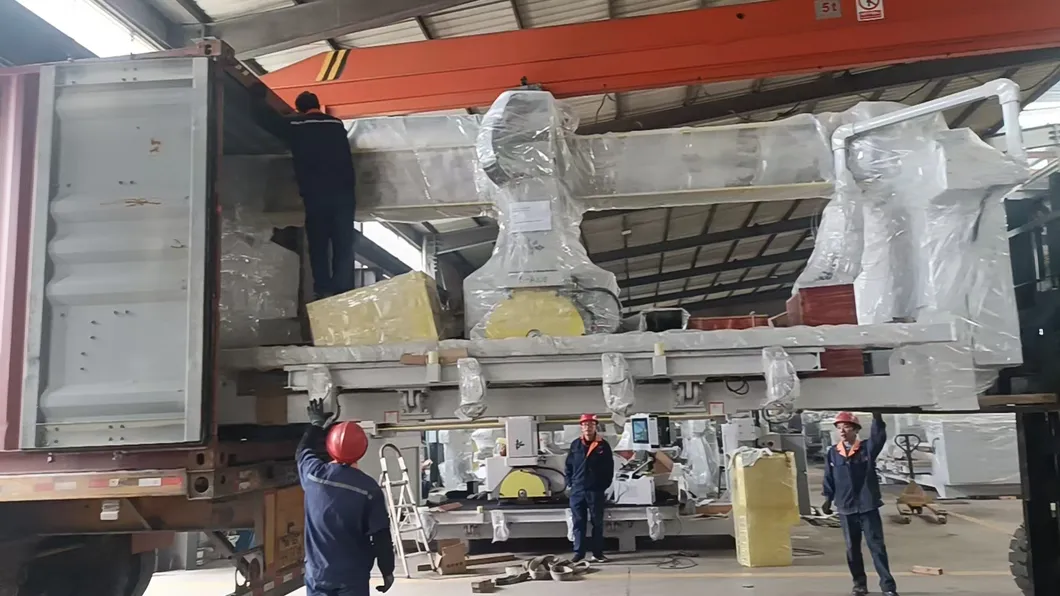

Shipping
🛠️ Professional Service
  • Factory Visit and Machine Testing prior to purchase.
  • Online and On-Site Installation and Training.
  • In-Time Technical Support and After-Sale Service.
  • OEM & ODM service capability.

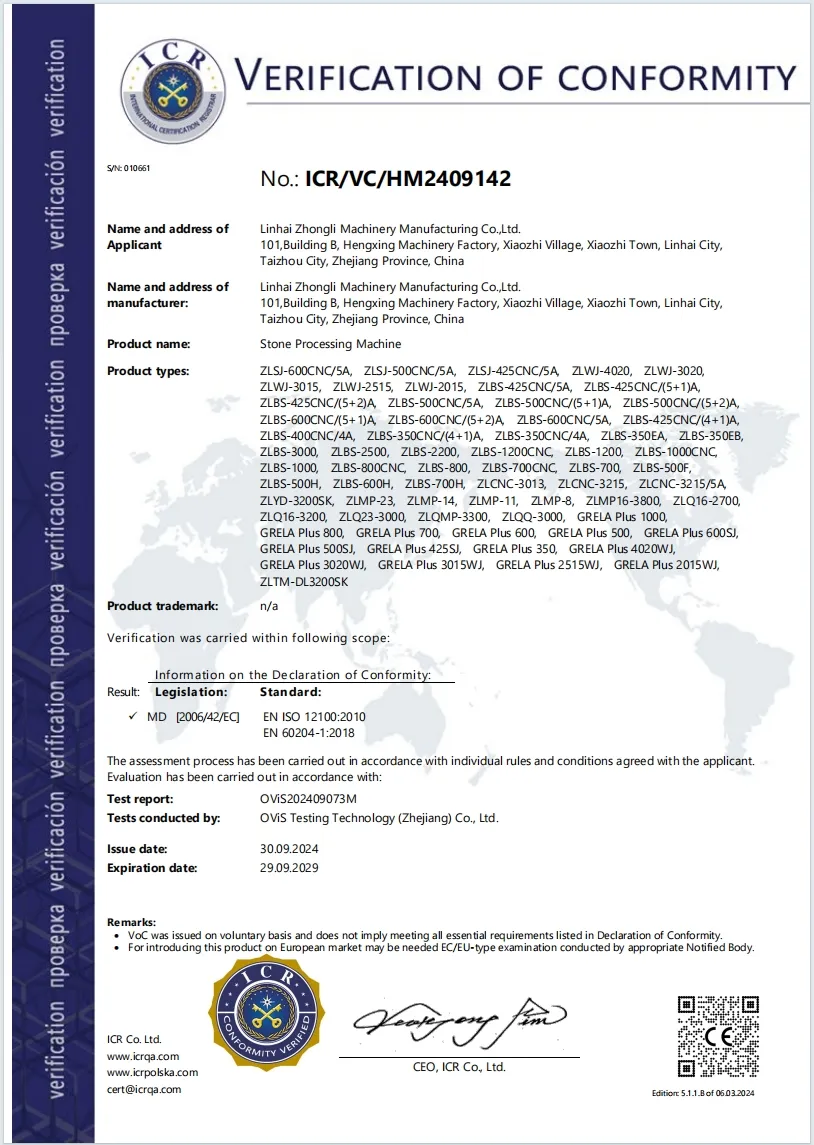

Certification
❓ Frequently Asked Questions
What types of stone can this 5-axis machine cut?
It is designed for high-speed cutting and processing of Granite, Marble, Quartz, Porcelain, Ceramic, and other hard stone materials.
Can the machine handle complex shapes?
Yes, it performs transversal, longitudinal, orthogonal, arc, circle cuts, and 2.5D concave-convex shaping effortlessly.
What is the range of the head movement?
The A-axis (head tilt) can move from 0° to 90°, and the C-axis (head rotation) can rotate from 0° to 360°.
Is the loading process difficult for heavy slabs?
Not at all. The worktable features an 85° turnover function, allowing for easy and safe slab loading.
Does the system support imported designs?
Yes, the control system has a built-in library and supports DXF format imports from designers or measuring gauges.
What kind of after-sales support do you provide?
We offer online and on-site installation, comprehensive training, and timely technical support.
