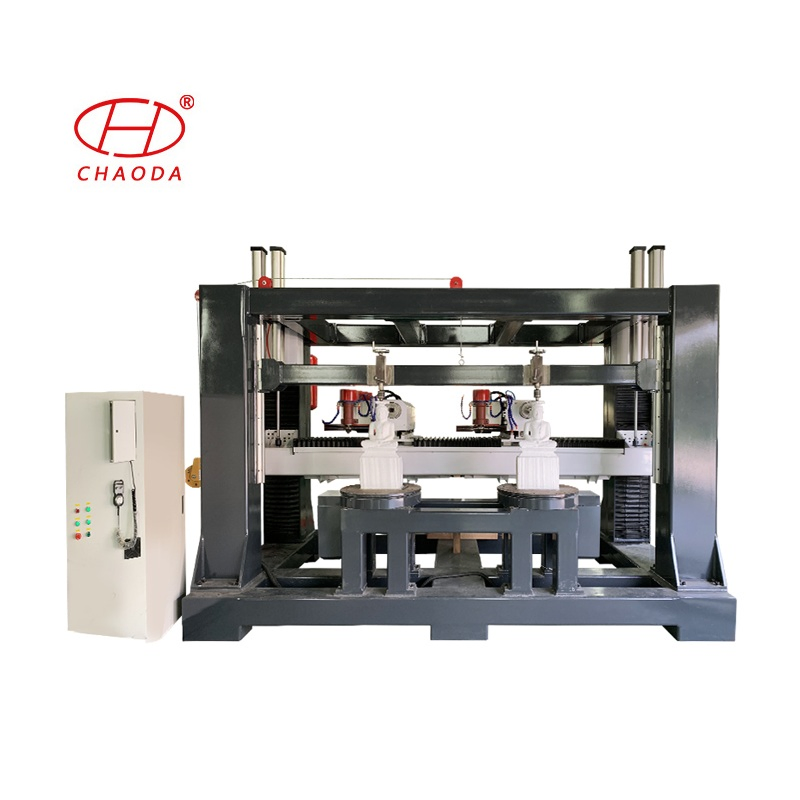

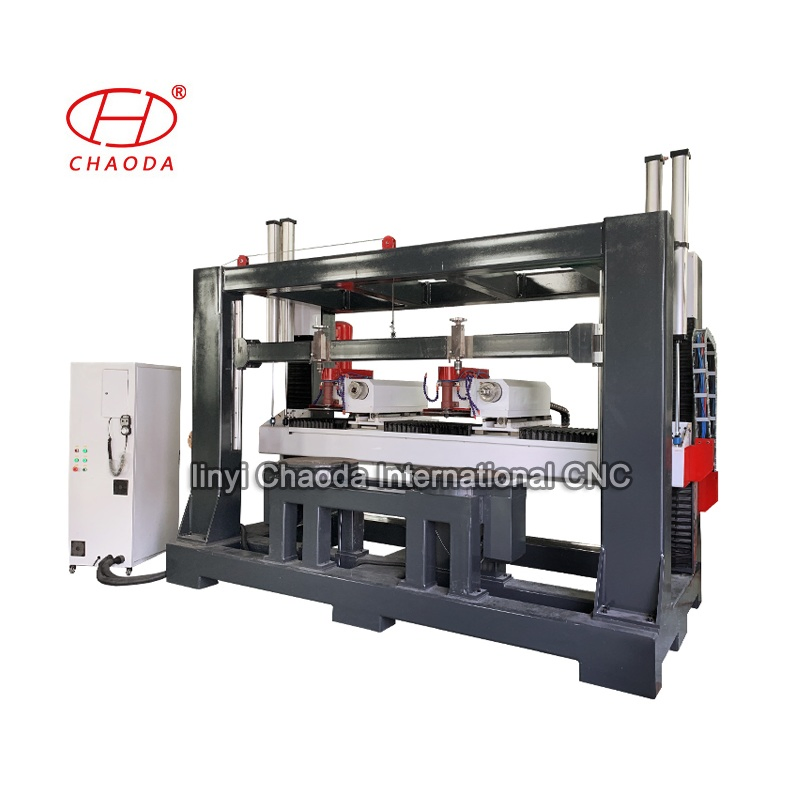

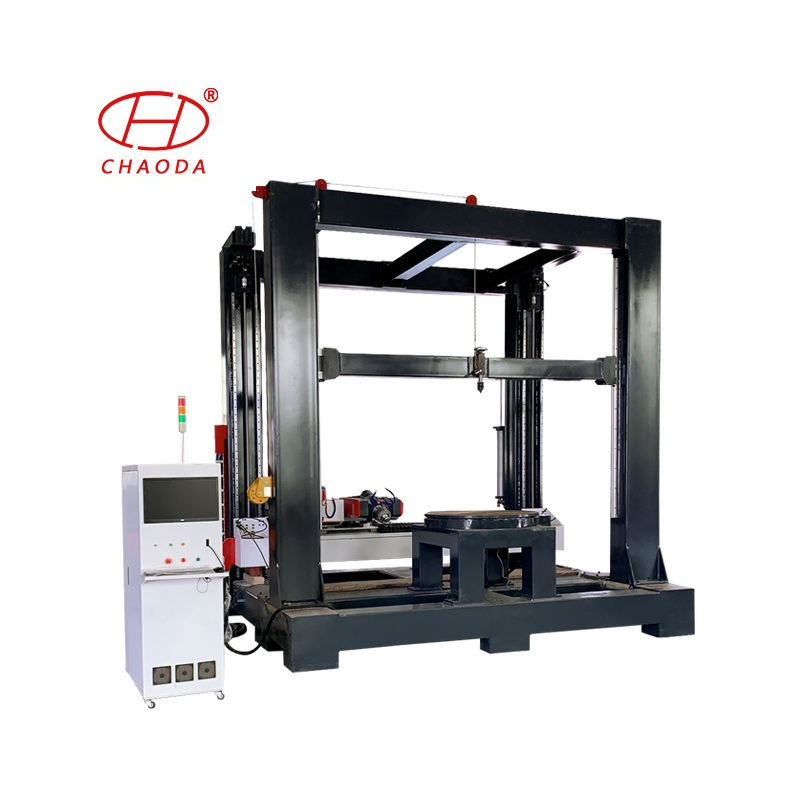

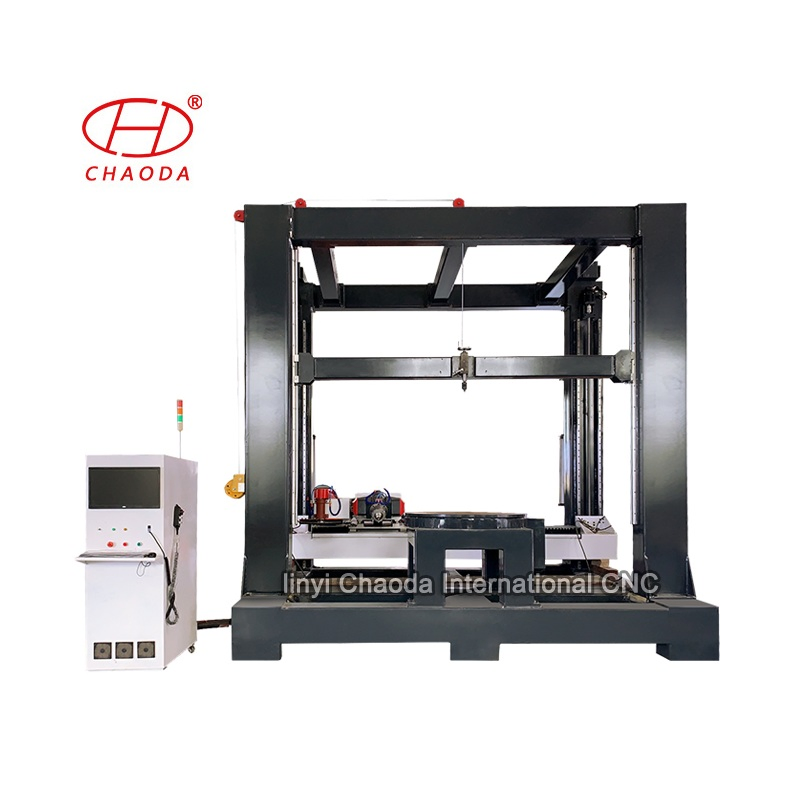

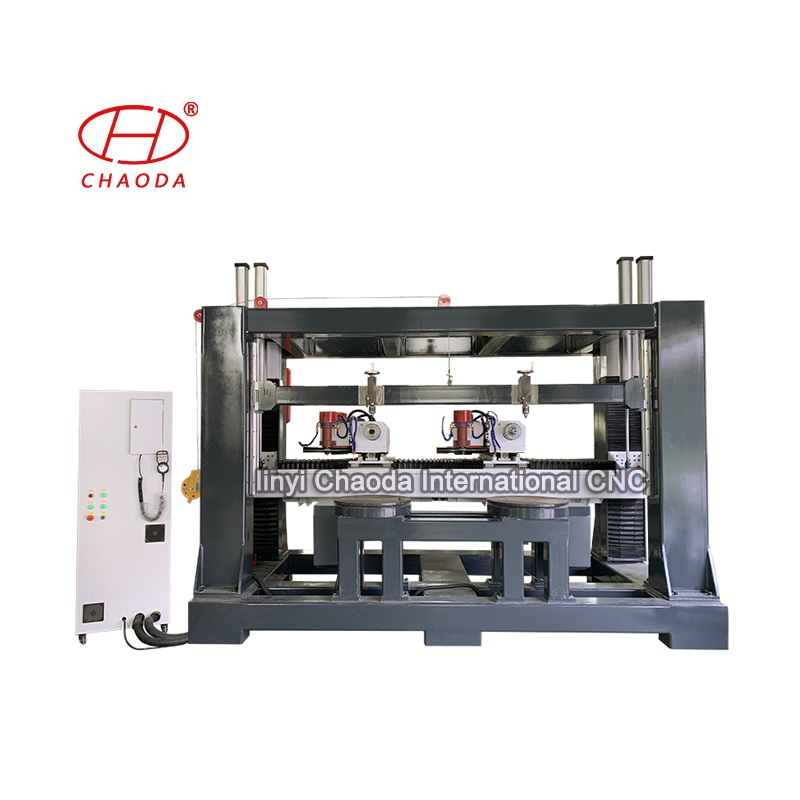

Granite Counter Top, 4 Axis CNC Rotary Stone Cutting Machine for Buddha Figure Sculpture Carving and Edge Profiling
Granite Counter Top, 4 Axis CNC Rotary Stone Cutting Machine for Buddha Figure Sculpture Carving and Edge Profiling
Granite Counter Top, 4 Axis CNC Rotary Stone Cutting Machine for Buddha Figure Sculpture Carving and Edge Profiling
Granite Counter Top, 4 Axis CNC Rotary Stone Cutting Machine for Buddha Figure Sculpture Carving and Edge Profiling
Granite Counter Top, 4 Axis CNC Rotary Stone Cutting Machine for Buddha Figure Sculpture Carving and Edge Profiling
1 / 5
Granite Counter Top, 4 Axis CNC Rotary Stone Cutting Machine for Buddha Figure Sculpture Carving and Edge Profiling
Granite Counter Top, 4 Axis CNC Rotary Stone Cutting Machine for Buddha Figure Sculpture Carving and Edge Profiling
Granite Counter Top, 4 Axis CNC Rotary Stone Cutting Machine for Buddha Figure Sculpture Carving and Edge Profiling
Granite Counter Top, 4 Axis CNC Rotary Stone Cutting Machine for Buddha Figure Sculpture Carving and Edge Profiling
Granite Counter Top, 4 Axis CNC Rotary Stone Cutting Machine for Buddha Figure Sculpture Carving and Edge Profiling

Granite Counter Top, 4 Axis CNC Rotary Stone Cutting Machine for Buddha Figure Sculpture Carving and Edge Profiling

Customization: Available
Function: Cutting, Line Engraving
Application Material: Marble
Send Inquiry

Product Description

Basic Specifications
Model NO.
JCS5080R
Automation
Automatic
Control
CNC
Motor Power
High Power
Certification
CE, ISO, CCC
Application
Glass, Ceramics, Decoration, Advertising, Art & Craft, Stone Industry
Type
4 Axis CNC Rotary Stone Cutting Machine
Lathe Bed Structure
Heavy Duty Steel Structure
Rotary Working Size
500mm Diameter, 800mm Length
Spindle Power
7.5kw /11kw Water Cooling
Driving System
Japan Servo Motor and Driver
Control System
DSP/Ncstudio/Syntec
Production Capacity
100 Set/Month
Product Description
Granite Counter Top, 4 Axis CNC Rotary Stone Cutting Machine for Buddha Figure Sculpture Carving and Edge Profiling

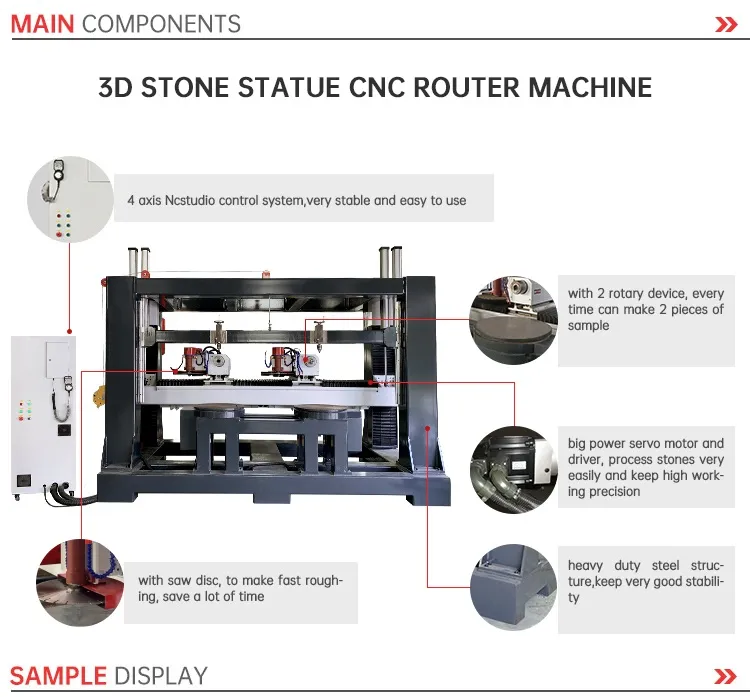

CNC Rotary Stone Cutting Machine
  • Heavy duty steel structure, keep machine with very good stability.
  • Adopt top quality machine parts, to make machine with high performance and durability.
  • Machine is with two rotary device, can process different kinds of 3D stone statues, sculptures, roman columns, corbel pilasters, cylinders, and pillars.
  • With saw blade function, for fast rough machining, saving up to 10 times working time.
  • Spindles can work together or independently.
  • Advanced Ncstudio control system, very stable and convenient to use.
Machine Detail
Model No.JCS5080R
Lathe bedHeavy duty steel structure
Rotary Working size500mm diameter, 800mm length * 2PCS
Spindle power7.5kw /11kw water cooling spindle
Spindle rotating12000 / 24000rpm
Max. travelling speed55m/min
Max. working speed15m/min
Control system4 Axis Ncstudio / Syntec
MotorServo / Stepper
Saw blade unitYes
Auto oil systemYes
VoltageAC380v, 3 phase, 50Hz
Material Display

Compatible Materials: Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, Grindstone, Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum composite panel, Aluminum block, Copper and more.

Stone Samples
Work Sample 1
Work Sample 2
Work Sample 3
Work Sample 4
Work Sample 5
Work Sample 6
Manufacturing
Service & Support
✅ Sample testing before shipment
✅ 2 days free training for each machine
✅ 12 months warranty for each machine
✅ English manual and operation videos
✅ Free technical support via phone/email/remote
✅ Engineers available for overseas service
Package and Delivery
Frequently Asked Questions
What types of products can this 4 Axis CNC machine carve?
This machine is specifically designed for 3D objects including statues, Buddha figures, Roman columns, pillars, corbels, and complex sculptures in stone or other materials.
How does the saw blade function benefit the production process?
The integrated saw blade unit allows for fast rough machining, which can save up to 10 times the working time compared to using standard carving bits alone.
Which materials are compatible with this machine?
It can process a wide range of materials including Marble, Granite, Sandstone, Quartzite, Glass, Acrylic, Wood, EPS Foam, and even soft metals like Aluminum and Copper.
What control systems are used to operate the machine?
The machine supports professional and stable control systems such as 4 Axis Ncstudio, Syntec, or DSP, ensuring precision and ease of use for complex carvings.
Is technical training provided for new operators?
Yes, we provide 2 days of free training for each machine, along with friendly English version manuals and operation videos to help you get started quickly.
What is the warranty period for this CNC Stone Cutting Machine?
Each machine comes with a 12-month warranty. Additionally, we offer lifelong free technical support through various channels including phone, email, and remote assistance.
