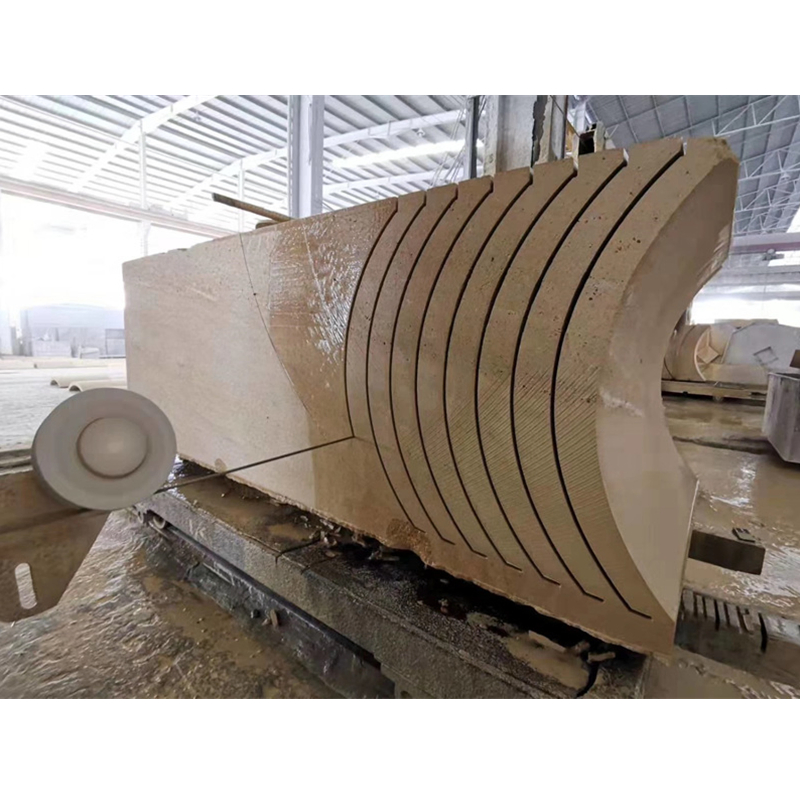

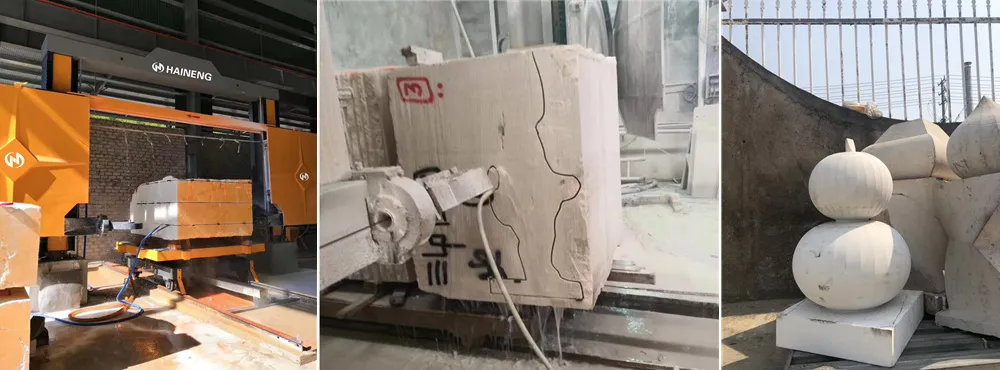

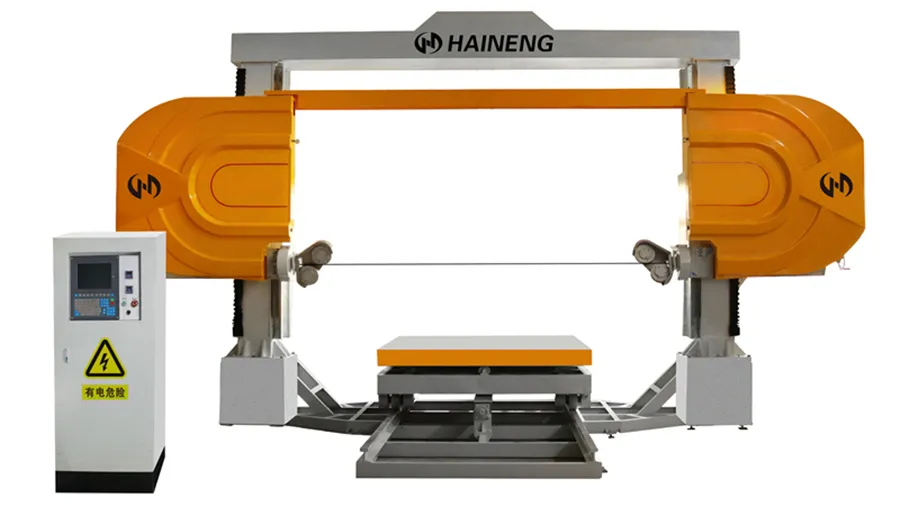

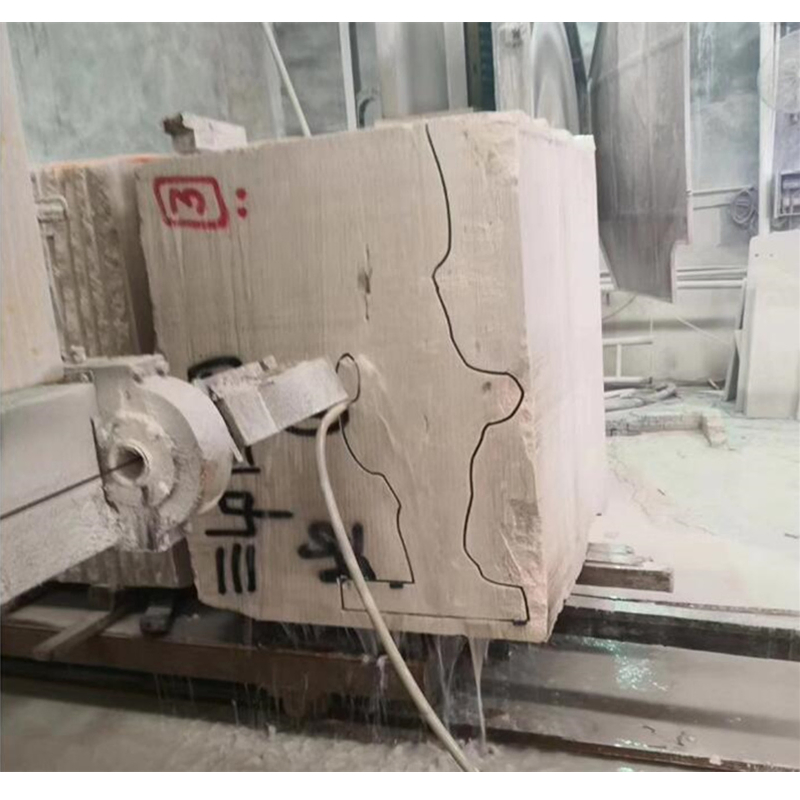

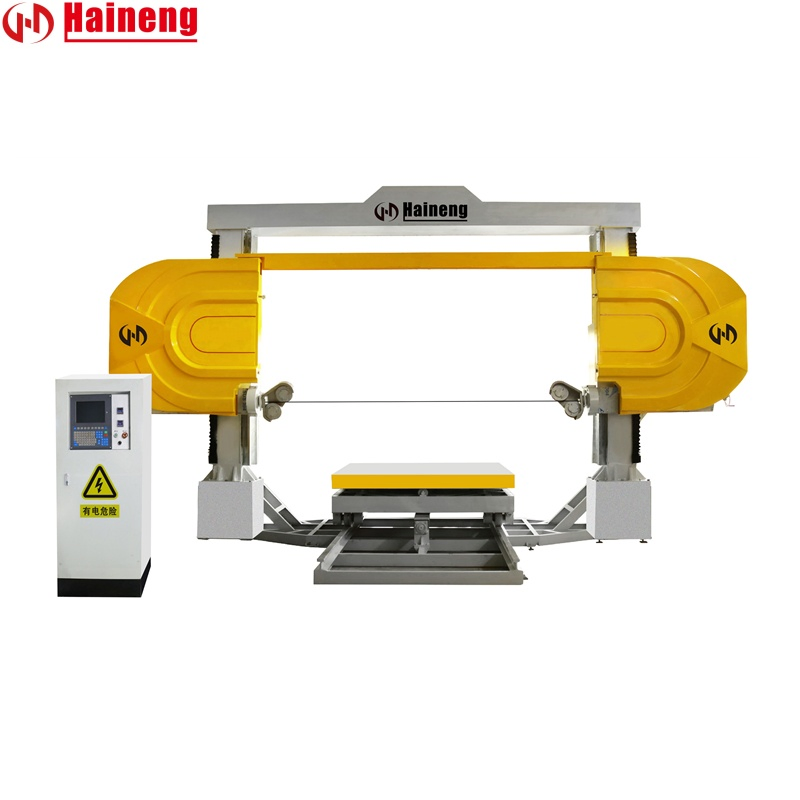

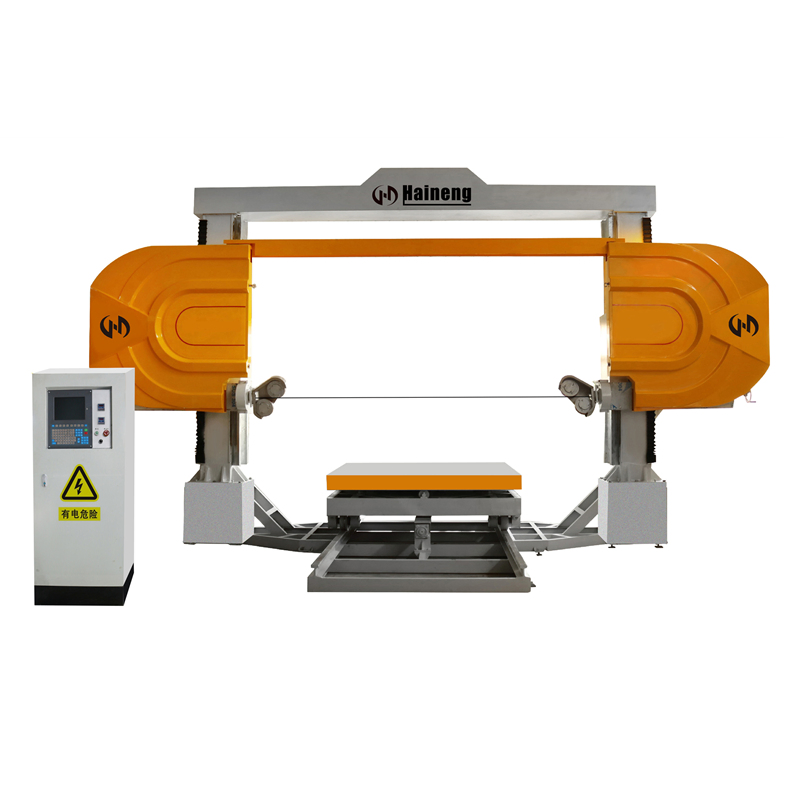

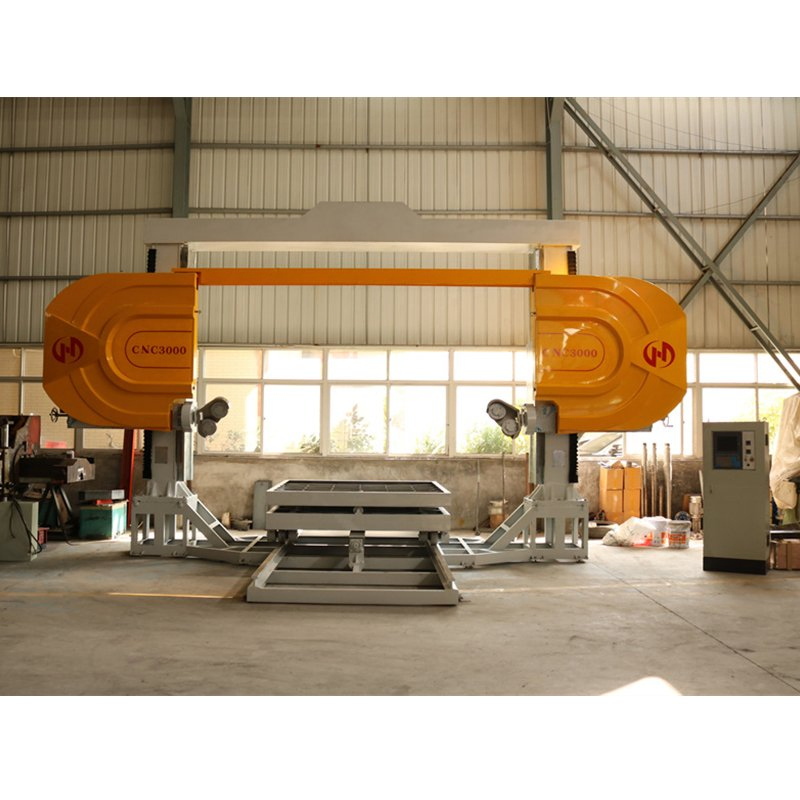

Diamond Bead Wire Saw adopts CNC control system, man-machine integration operation interface, supplemented by super high precision servo motor drive. The lifting is controlled by four independent guide rails, ensuring flywheel movement along the track is stable and balanced. The flywheel adopts a tensioning force balance method to improve the service life of the emerald beads rope. The Z and Y axis speed can be adjusted according to the texture of stone material, significantly improving the cutting precision of complex shapes. High-speed moving parts utilize imported high-quality spare parts, offering high efficiency, precision, stability, and flexible operation. It is especially suitable for high-value granite and marble plate profiling.
| SJJ2500 Technical Specifications | ||
| Beaded rope diameter | mm | ¢7.6-¢10.8 |
| Beaded string length | mm | 15700 |
| Max. working dimensions (L*W*H) | mm | 2500x2500x1500 |
| Table size (L*W) | mm | 2500x1300 |
| Main motor power | kw | 7.5 |
| Gross power | kw | 15 |
| Water consumption | m3/h | 4 |
| Trolley dimension (L*W*H) | mm | 6700x5850x4200 |
| Total weight | kg | 5000 |
