Factory Price Tile Stone Sink Cutter CNC Router Granite Marble Slab Cutting Edge Profiling Polishing Sinking Cutout Machine
Factory Price Tile Stone Sink Cutter CNC Router Granite Marble Slab Cutting Edge Profiling Polishing Sinking Cutout Machine
Factory Price Tile Stone Sink Cutter CNC Router Granite Marble Slab Cutting Edge Profiling Polishing Sinking Cutout Machine
Factory Price Tile Stone Sink Cutter CNC Router Granite Marble Slab Cutting Edge Profiling Polishing Sinking Cutout Machine
Factory Price Tile Stone Sink Cutter CNC Router Granite Marble Slab Cutting Edge Profiling Polishing Sinking Cutout Machine
1 / 5
Factory Price Tile Stone Sink Cutter CNC Router Granite Marble Slab Cutting Edge Profiling Polishing Sinking Cutout Machine
Factory Price Tile Stone Sink Cutter CNC Router Granite Marble Slab Cutting Edge Profiling Polishing Sinking Cutout Machine
Factory Price Tile Stone Sink Cutter CNC Router Granite Marble Slab Cutting Edge Profiling Polishing Sinking Cutout Machine
Factory Price Tile Stone Sink Cutter CNC Router Granite Marble Slab Cutting Edge Profiling Polishing Sinking Cutout Machine
Factory Price Tile Stone Sink Cutter CNC Router Granite Marble Slab Cutting Edge Profiling Polishing Sinking Cutout Machine

Factory Price Tile Stone Sink Cutter CNC Router Granite Marble Slab Cutting Edge Profiling Polishing Sinking Cutout Machine

Customization: Available
After-sales Service: Provided
Warranty: 1 Year
Send Inquiry

Product Description

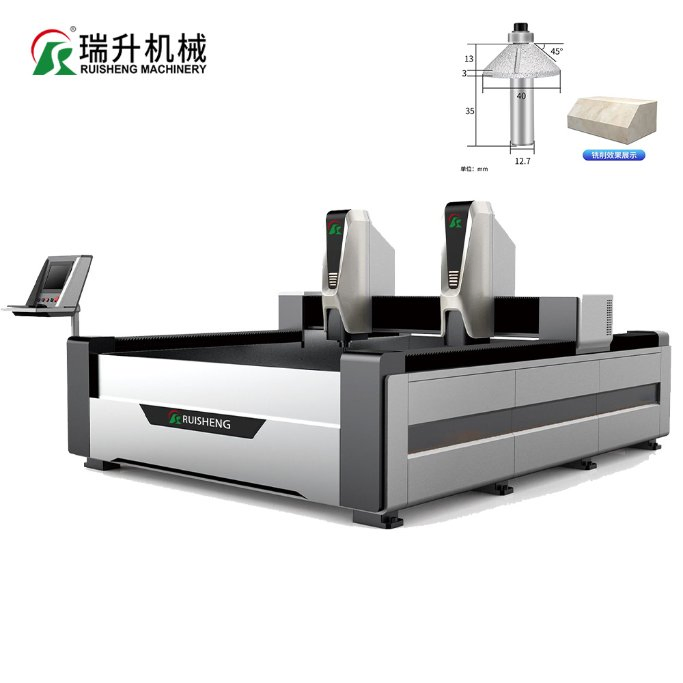

CNC Stone Engraving Machine

Basic Specifications

Model NO.
Engraving Machine
Function
Engraving Router
Application Material
Glass, Cement Brick, Granite, Marble
Automation
Automatic
Control
CNC
Motor Power
High Power
Spindle Speed
Wide Adjustable Range
Certification
CE, ISO
Current
DC
Spindle Number
Double-Spindle
Traveling Area
2000*3000*300mm
Working Voltage
380V/50Hz
Max Spindle Speed
24000RM/Min
Production Capacity
50pieces/Month

Detailed Technical Parameters

Feature 2030T-2D Double-Spindle 3020T-2D/3D/4D
Processing Size2000*3000*300mm3000*2000mm
External Dimensions3200*4300*2300mm4300*3200*2100mm
Material Size950*3000mm / 1500*3000mm1400*1900*2 / 850*1900*3
Weight3.0T3.6T
Spindle Power7.5KW*27.5KW
Spindle Speed24000rm/min24000rm/min
Voltage380V/50HZ380V/50HZ
Positioning Accuracy±0.02 mm±0.02 mm
Repeatability±0.01 mm±0.01 mm
Air Speed20m/min20m/min
Processing Speed20m/min20m/min

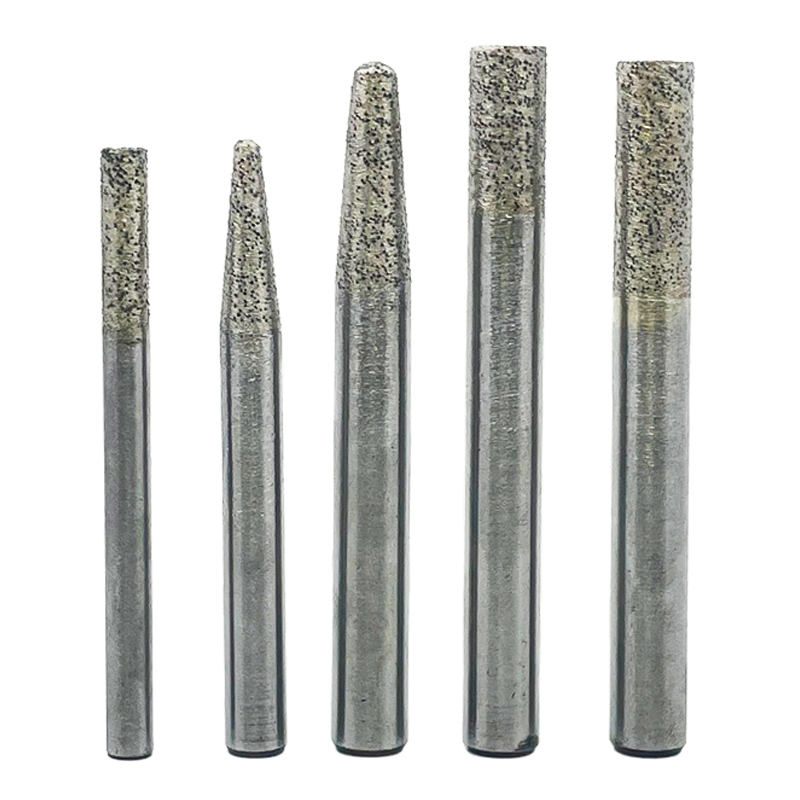

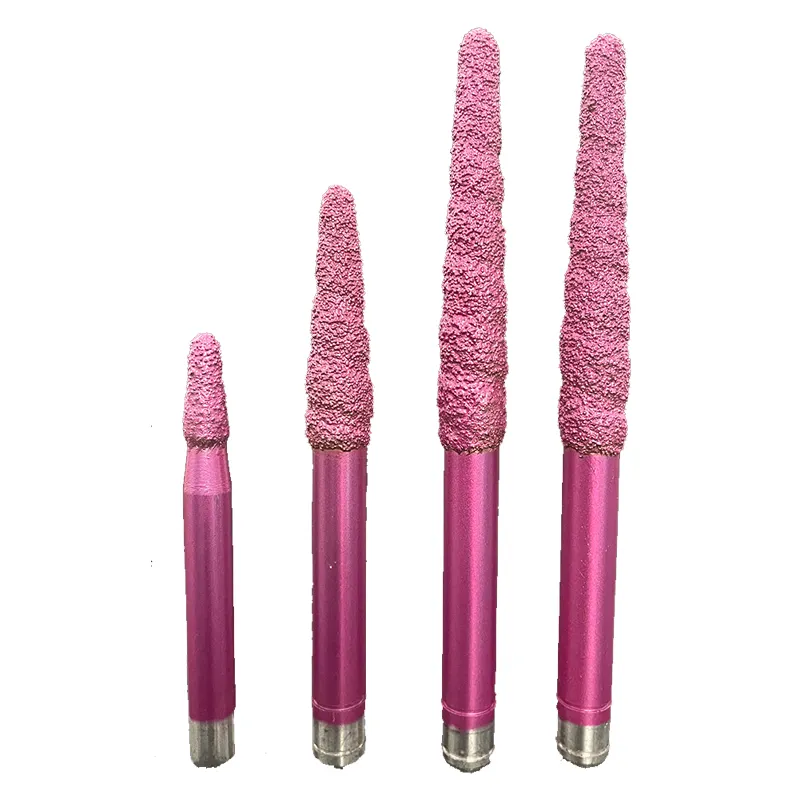

Engraving Tool6/8/10/12/14/16mm6/8/10/12/14/16mm

Key Features & Advantages

⚡
Big power spindle with great cutting intensity, high efficiency, and low noise.
🎯
Special Z-axis structure for increased stone relief precision and reduced failure rates.
⚙️
High precision rack and pinion transmission for fast speed and powerful movement.
🏗️
Stable Gantry moving design ensures uniformity and no shaking during operation.
💧
Stainless steel water slot cooling system to prolong tool life and improve engraving quality.
🔄
Breakpoint memory allows continuing work after power failure, reducing rejection rates.
💻
Compatible with Artcam, Type3, Ucancam, JDPaint, and other CAD/CAM software.
CNC Machine Detail 1
CNC Machine Detail 2

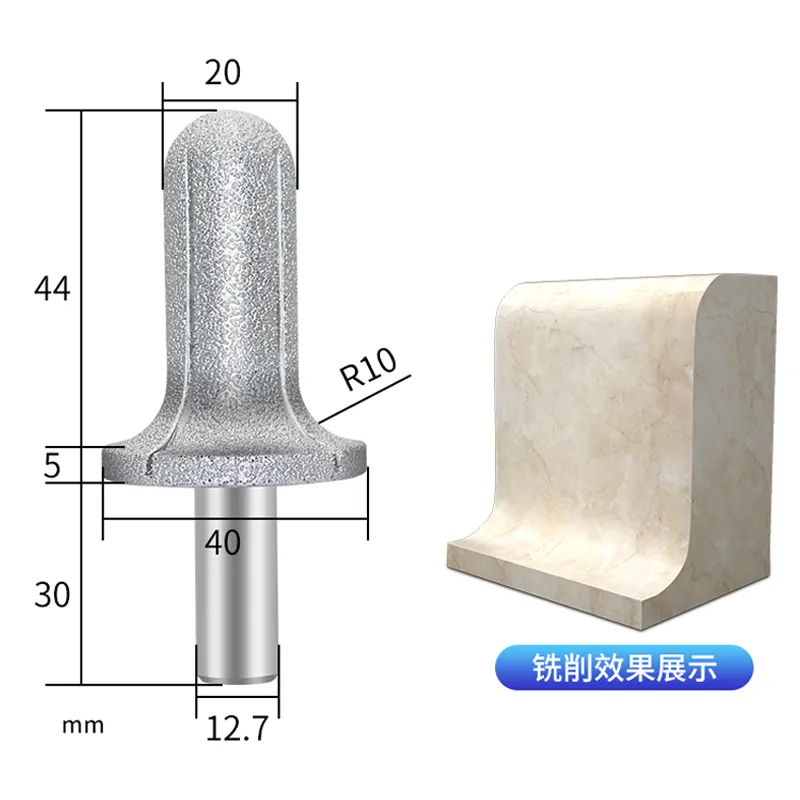

CNC Machine Detail 3

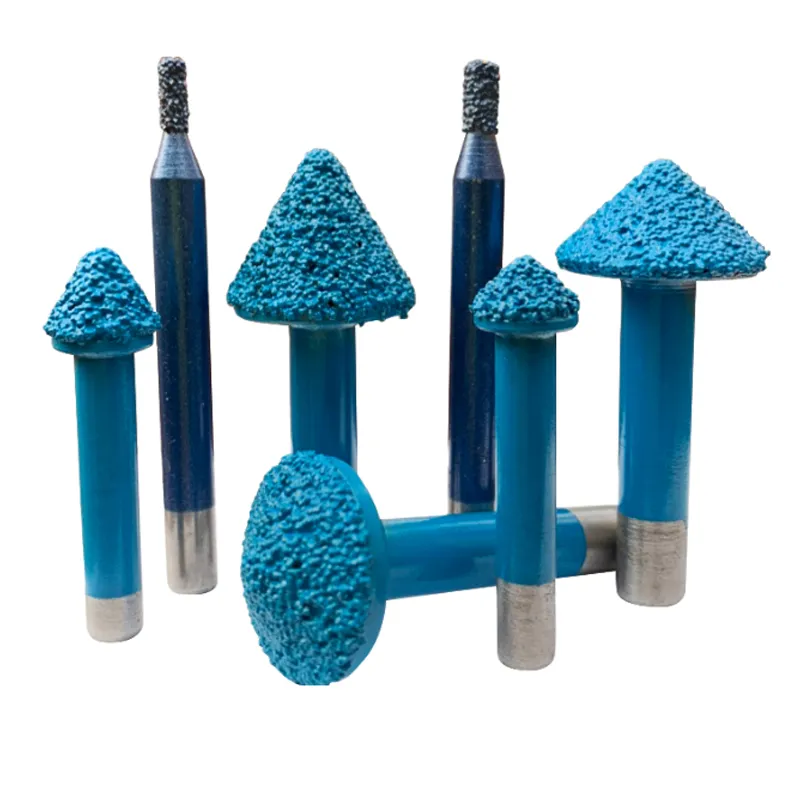

Workpiece 1
Workpiece 2

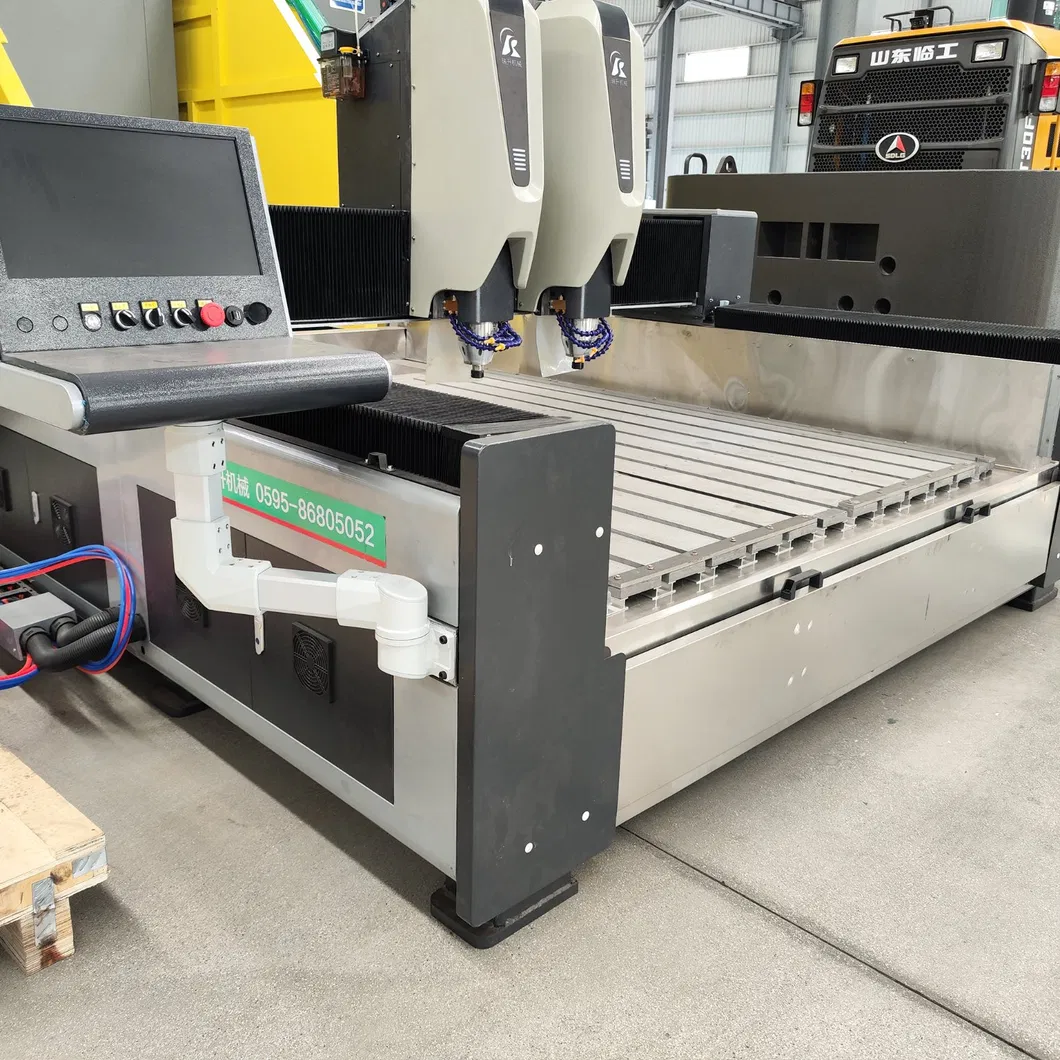

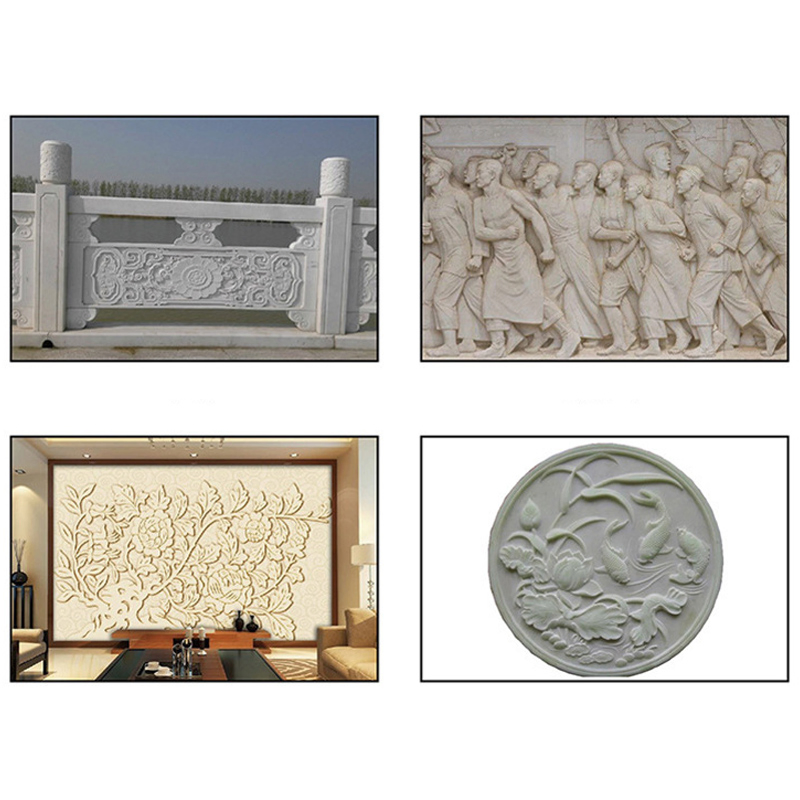

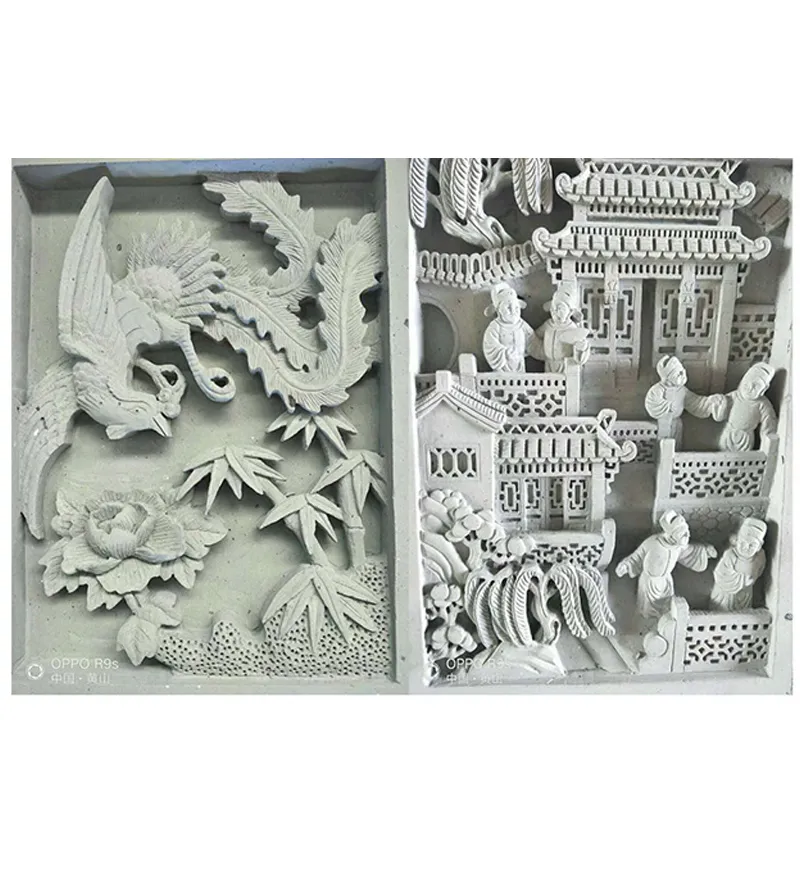

Processing Result 1

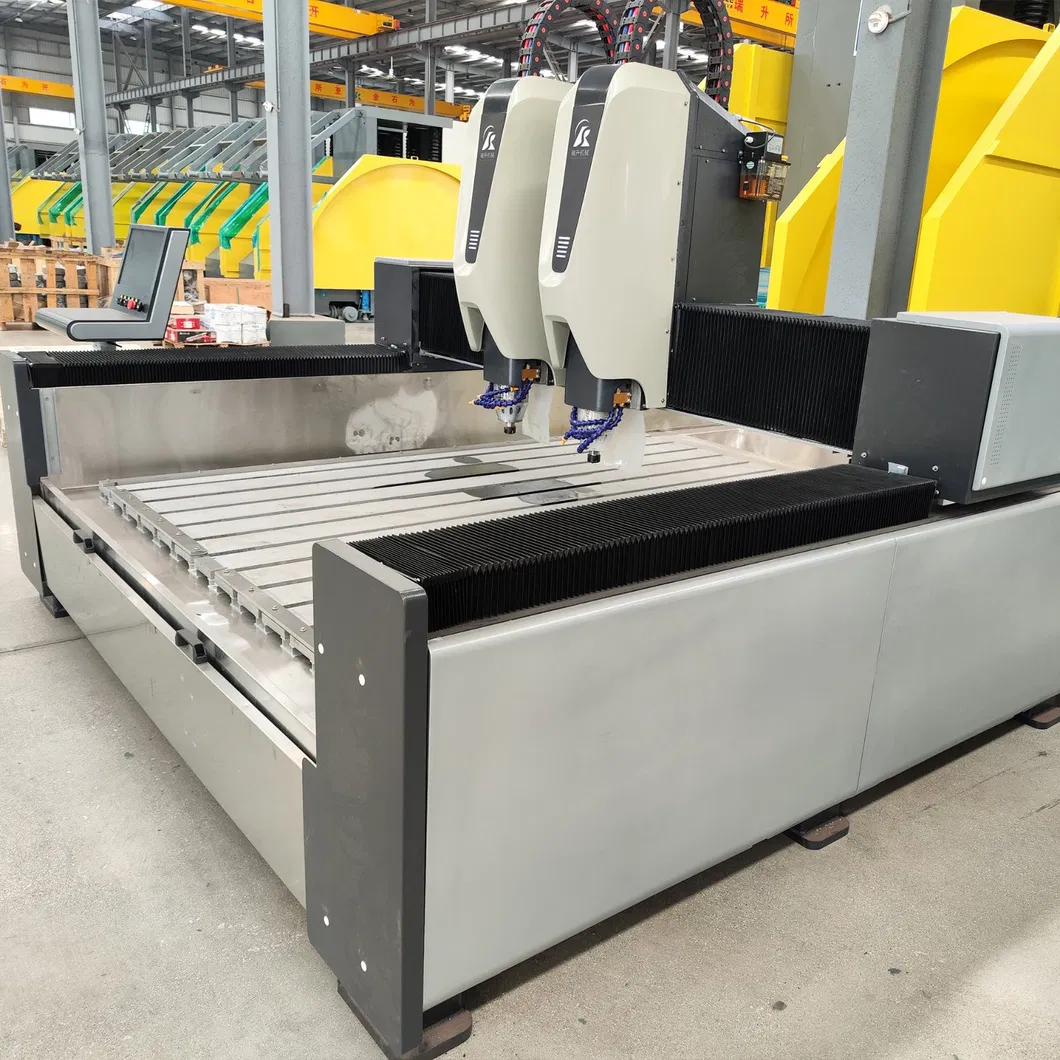

Processing Result 2

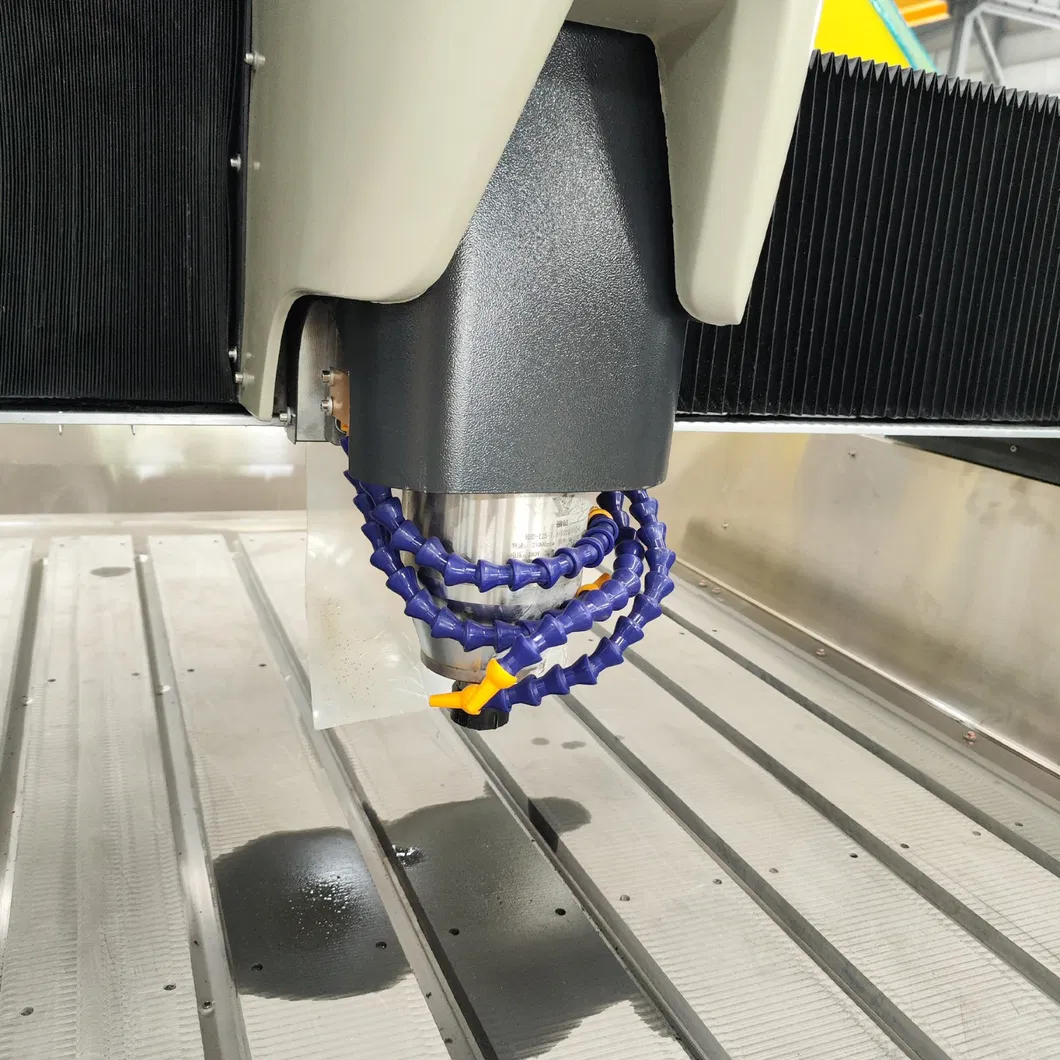

Processing Result 3
Processing Result 4
Application 1
Application 2
Application 3

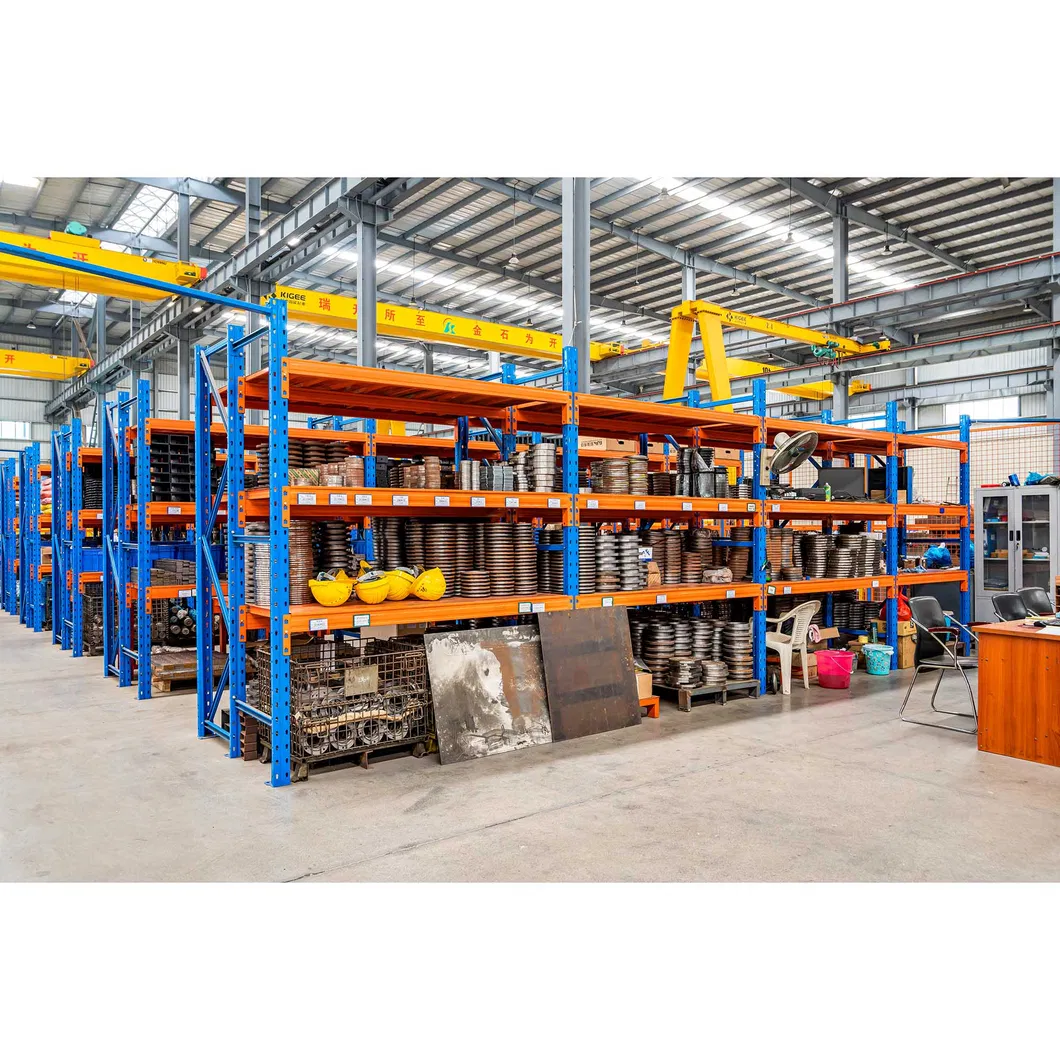

CNC Machine Finish

Frequently Asked Questions

1. What materials can this CNC engraving machine process? The machine is versatile and can process glass, cement bricks, granite, marble, and other stone-related materials used in decoration and advertising.
2. How accurate is the machine's positioning? It offers high precision with a motion positioning accuracy of ±0.02 mm and a repeatability of ±0.01 mm.
3. Does it support recovery after a power failure? Yes, the system is designed to continue working from the breakpoint after a power failure, significantly lowering the rejection rate of materials.
4. What design software is compatible with this router? It has excellent software compatibility and supports major CAD/CAM programs like Artcam, Type3, Ucancam, and JDPaint for 2D, 3D, and 4D processing.
5. How is the cooling handled during heavy cutting? The machine features a stainless steel water slot cooling system that ensures tools remain adequately cooled, extending tool life and improving engraving results.
6. Is the machine suitable for 3D stone carving? Yes, with its specialized Z-axis structure and compatibility with 3D processing software, it is ideal for high-precision stone relief and 3D carving.
