Basic Information
Application
Stone Industry
Source Voltage
230V / 380V
Cutting Ability
High Speed
Control System
CNC Control System
Transmission
X/Y Rack & Pinion, Z Ball Screw
Spindle
Water Cooling Spindle
Lathe Structure
T-Slot Square Tube
Production Capacity
500 Units

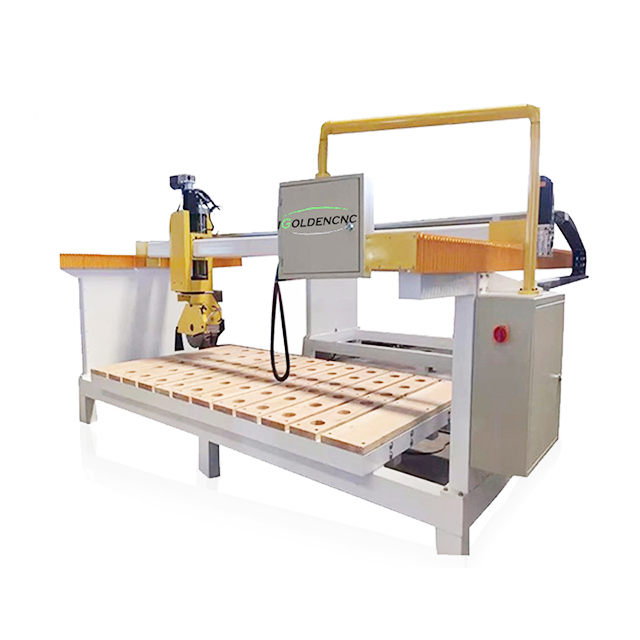

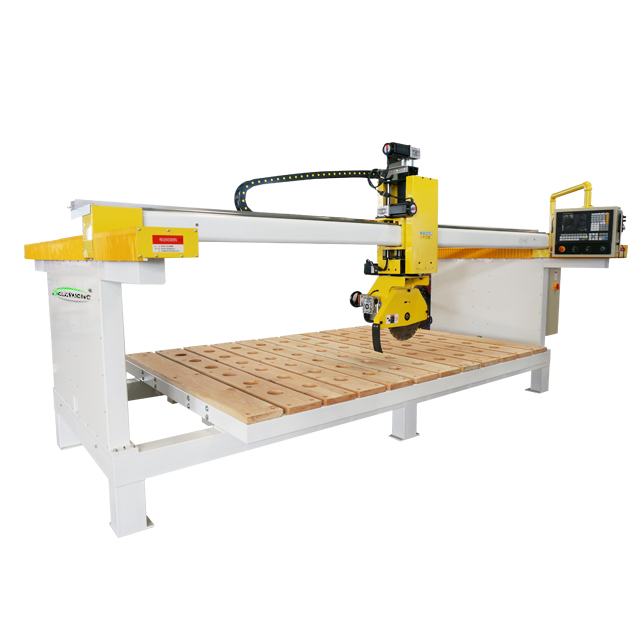

Bridge Saw Stone CNC Machine

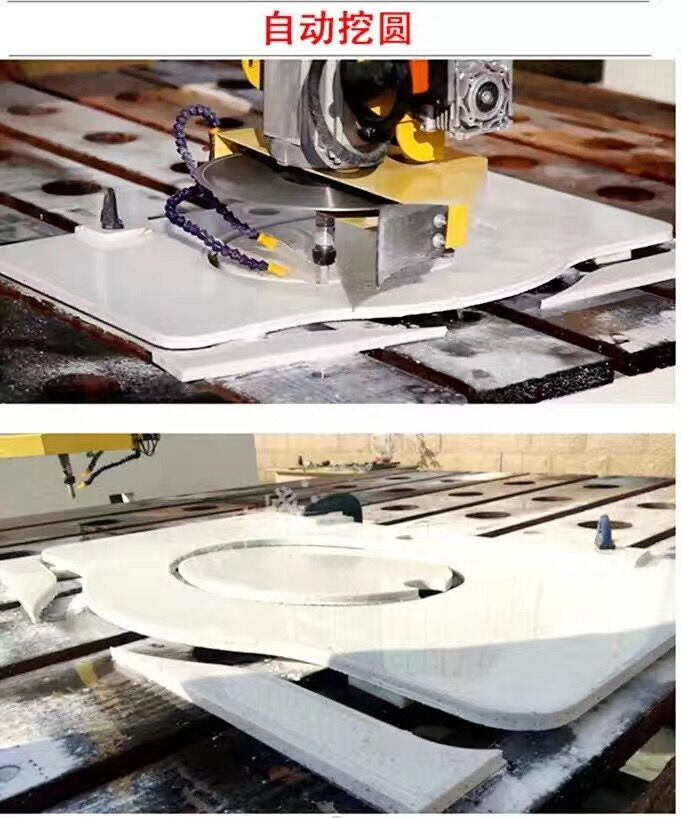

Bridge Saw Stone Shape Milling 3D Edge Profiling Marble Granite Quartz Arc Cutting CNC Machine
| No. |
Description |
Parameters |
| 1 | Working area | 3000*2000*350mm |
| 2 | Table size | 3000*2000mm |
| 3 | Transmission | X/Y rack and pinion, Z ball screw |
| 4 | Table structure | T Slot |
| 5 | Spindle power | 4.5KW |
| 6 | Spindle speed | 24000r/min |
| 7 | Travelling speed | 10m/min |
| 8 | Working speed | 8m/min |
| 9 | Working Delicacy | 0.005mm |
| 10 | Repositioning Accuracy | 0.05mm |
| 11 | Driving Motor | Servo brand |
| 12 | Control System | Special cnc control System |
| 13 | Command Code | G Code*.u00*.mmg*.plt |
| 14 | Tilting table and loading wheel | With |
| 15 | Software | Artcam/Type3, other CAD/CAM |

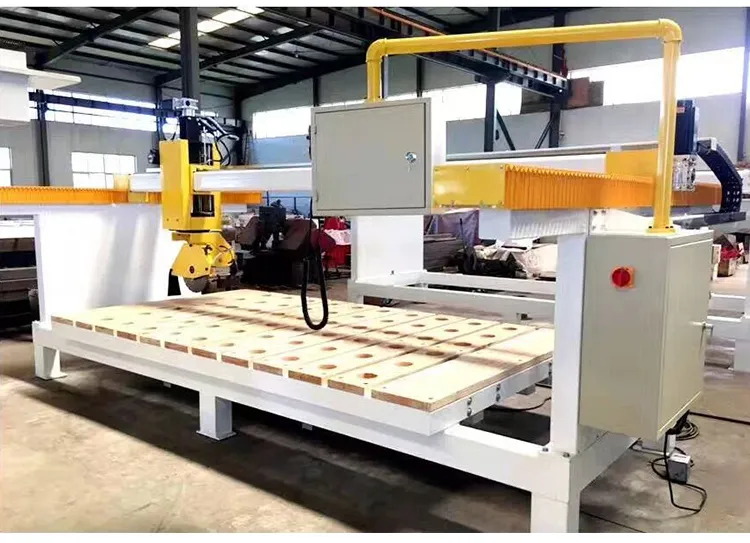

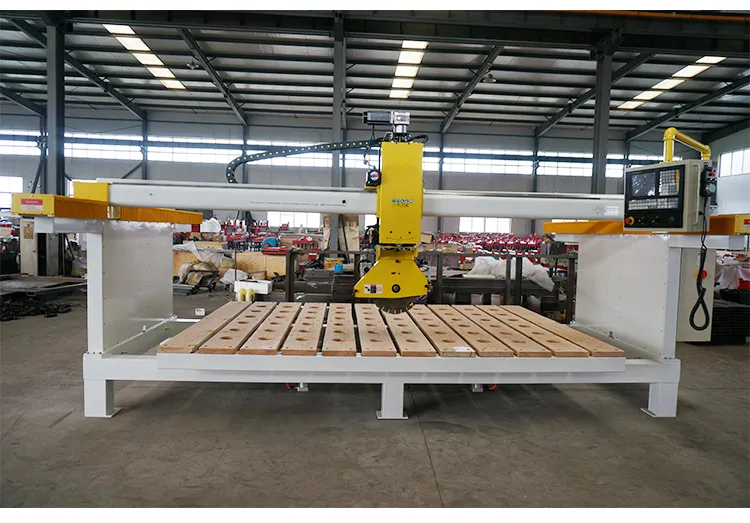

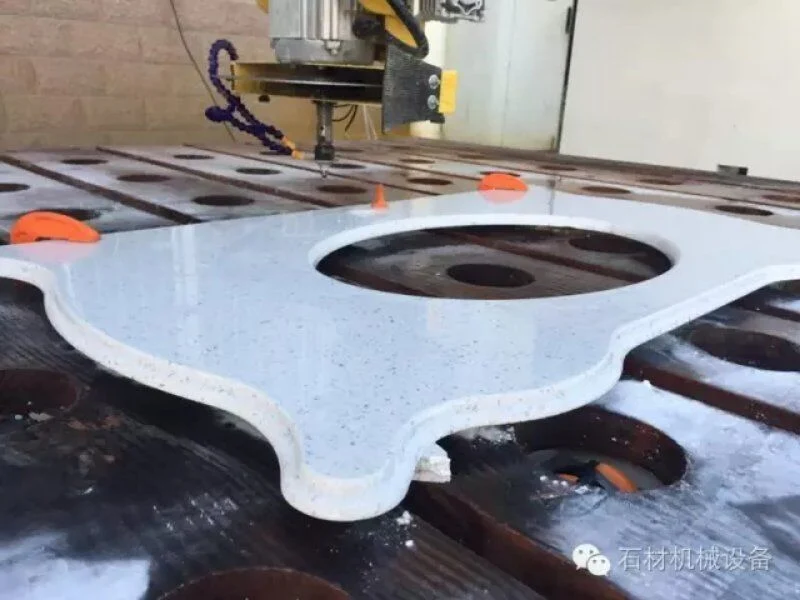

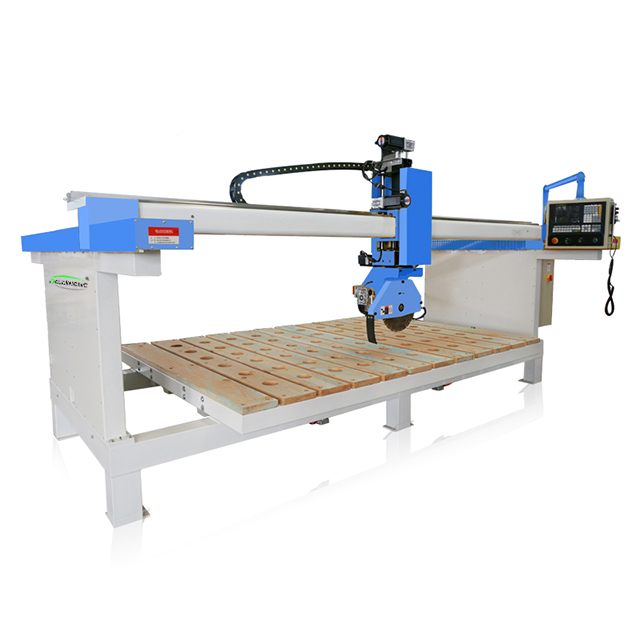

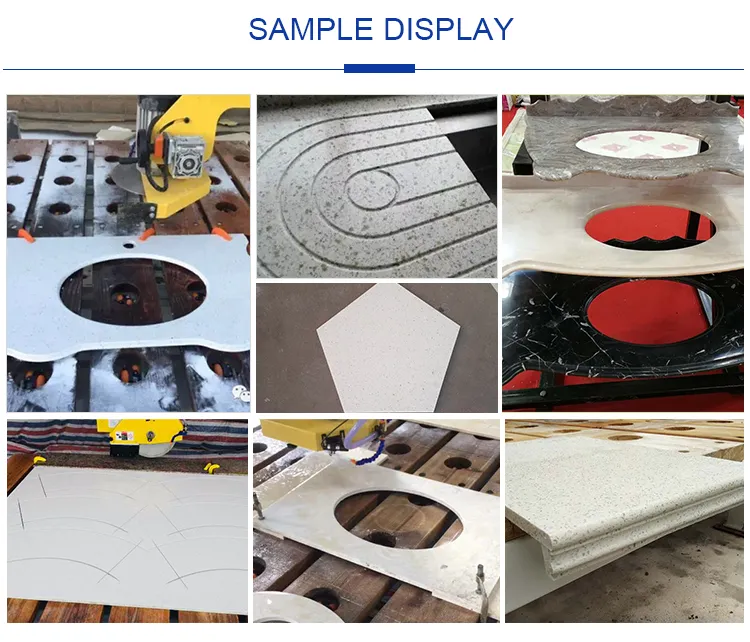

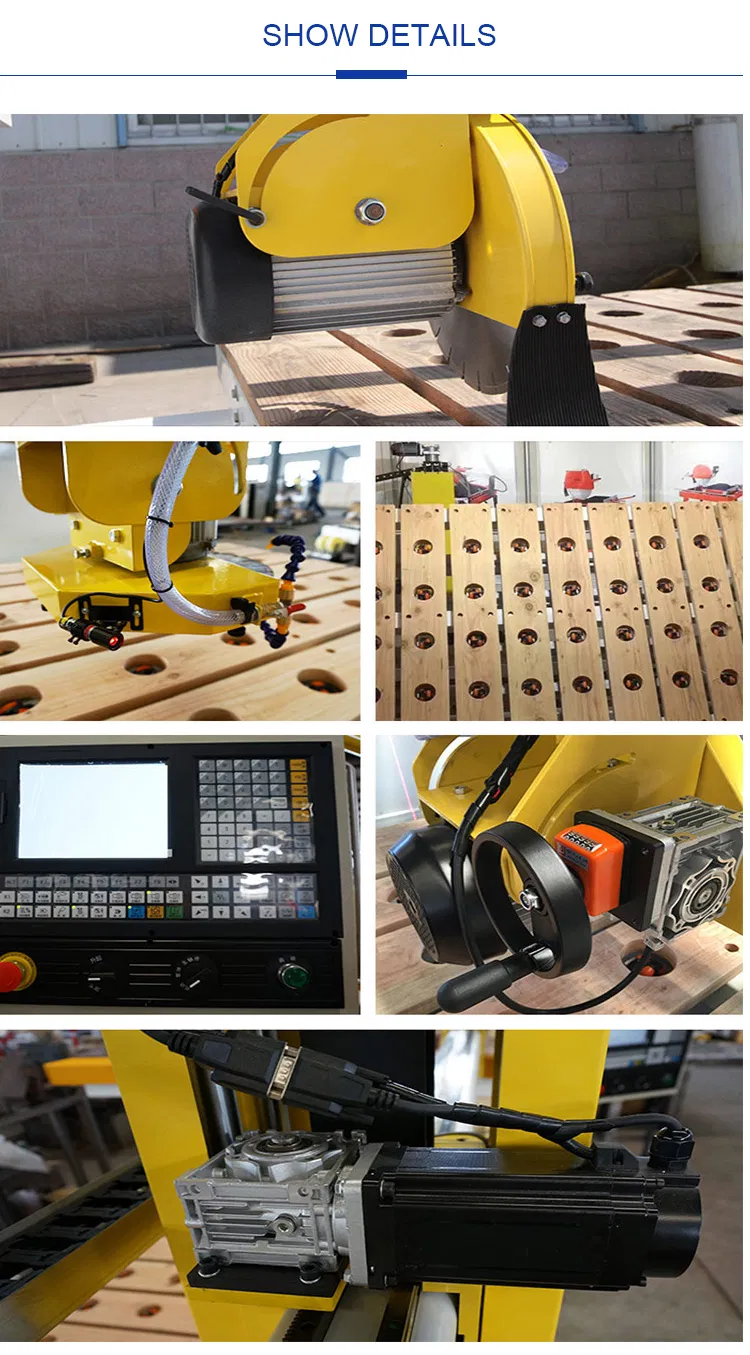

Product Display
Frequently Asked Questions
Is this machine easy to operate for a first-time buyer?
Yes, we provide a comprehensive operation manual and guidance videos. We also offer online support via remote viewing tools and communication apps to explain the process step-by-step.
How do I choose the most suitable machine for my needs?
Please provide us with details about your material type, the dimensions of your workpieces, and the specific functions you require. Based on our experience, we will recommend the optimal configuration.
What is the quality control process for these machines?
The entire production procedure undergoes regular inspection and strict quality control. Every machine is fully tested before leaving the factory to ensure perfect operation. Testing videos and photos are available prior to delivery.
What support is available if the machine encounters a problem?
During the warranty period, replacement parts are provided free of charge. We offer lifetime after-sales service and are available 24/7 via phone and online messaging to assist you.
What is the standard delivery time?
Standard machines typically take about 15 working days to deliver, while customized machine configurations require approximately 20 working days.
What is the Minimum Order Quantity (MOQ)?
The MOQ is one set. We can ship the machine directly to your designated port; simply provide your port name for a detailed shipping freight and price quote.
