Wisdom Stone Machinery Machinery CNC Granite Marble Bridge Saw 5 Axis Stone Cutting Profiling Machine for Countertop with Vacuums and Router

Customization: Available
After-sales Service: Response Within 24 Hours
Warranty: 1 Year

Product Description

i

Basic Information

Model NO.ZLBS-425CNC/5+1A
TypeCNC Cutting Machine
UsageCeramics, Glass, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
ApplicationMachinery & Hardware, Stone Industry
Source Voltage380V/220V
AutomationAutomatic
Cutting AbilityHigh Speed
ControlCNC
CertificationISO, CE
Control CenterIndustry Computer with CNC
Driving MotorServo Motor
DimensionsL5750*W3260*H3500mm
Maximum CuttingL3500xw2000xh90mm
Maximum Chamfering SizeL3500xw2000xh60mm
HS Code8464209000

Product Description

Model5+1 Axis CNC bridge sawUnit
Worktable sizeL3500*W2000mm
Maximum cuttingL3500*W2000*H90mm
Maximum chamferingL3500*W2000*H60mm
Blade diameter350-425mm
Main motor power22 (permanent magnet motor with frequency)kw
Router power5.5kw
Control centerIndustry computer with CNC-
Driving motorServo motor-
Router max speed24000RPM
Total power35kw
Suction cup lifting weight200kg
Head rotate / tilt0°-360° / 0°-90°-
Total weight5.4t

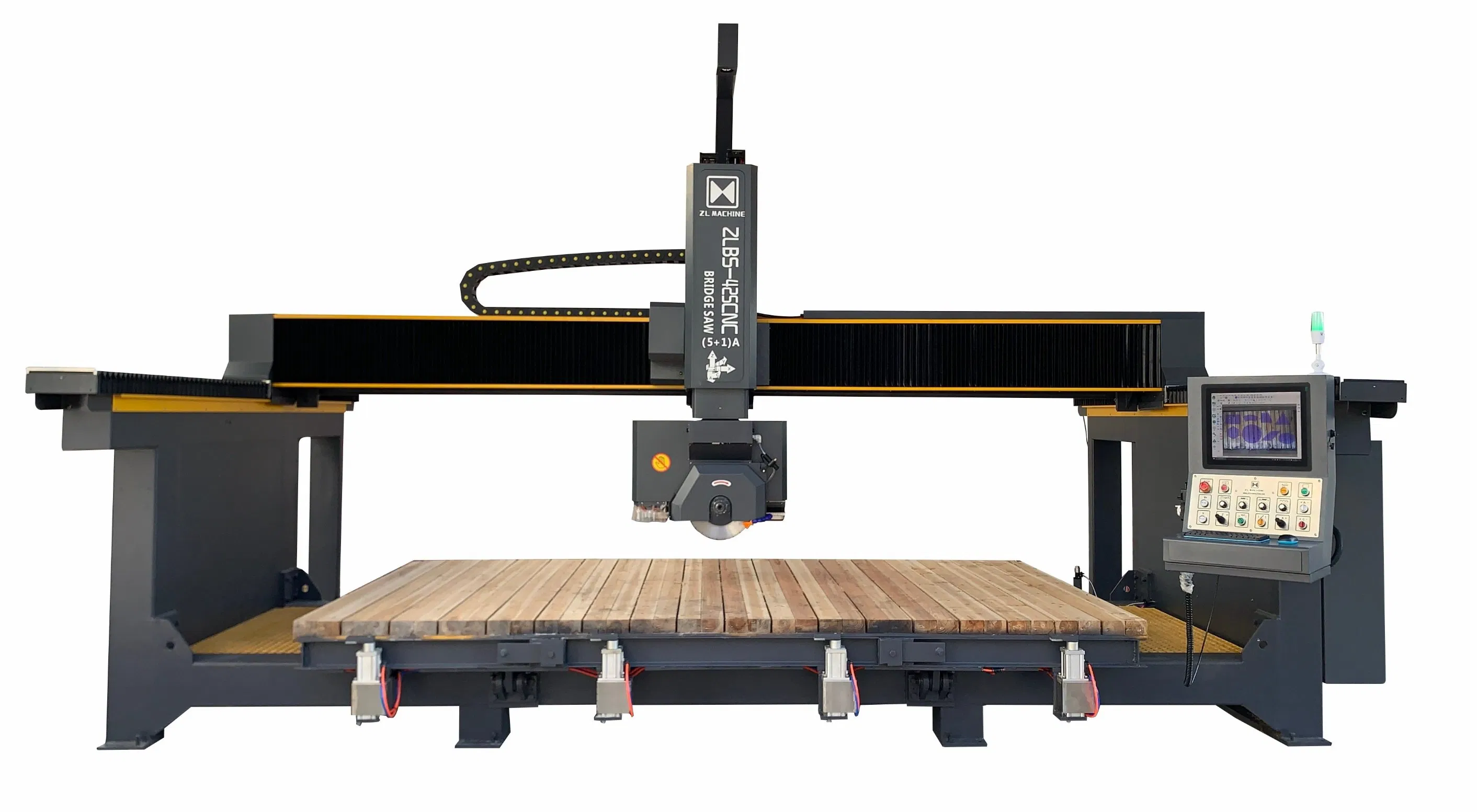

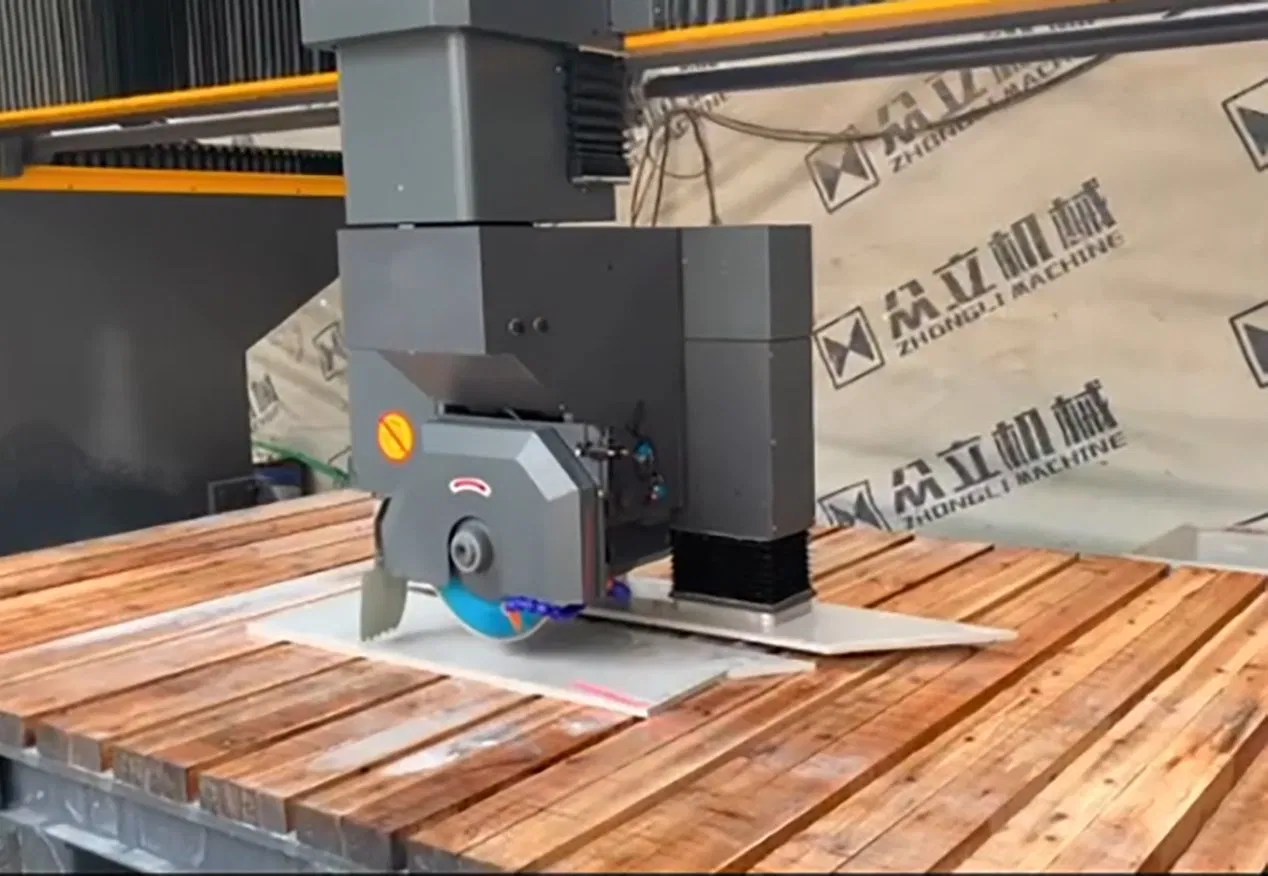

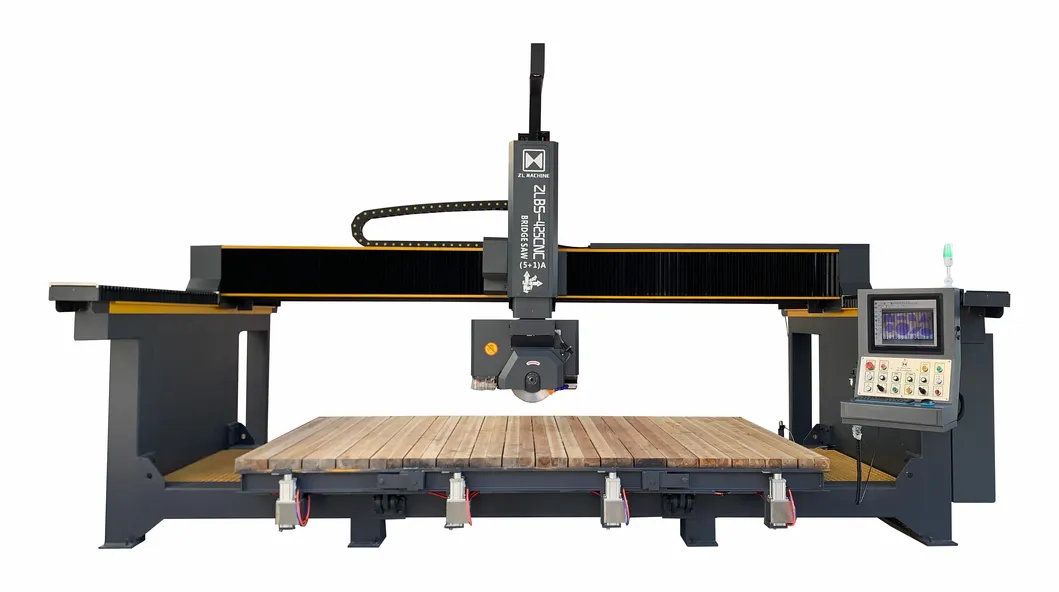

CNC Granite Marble Bridge Saw

For processing marble, granite, porcelain, and quartz stone countertops, we provide the ZLBS-425CNC/(5+1)A precise, effective, and user-friendly machine. The operator begins processing after taking a picture of the plate and adding the drawing layout to the image. Saw blades, milling cutters, suction cups, and pressure plate cylinders will automatically generate combined processing steps according to the program.

Conventional cross and straight slices, various polygons, circles, ovals, L-shaped countertops and four-sided under-hung countertops are all easily cut and chamfered. Basins, faucets, and inner angles are processed by the miller, ensuring dust-free installation.

Key Features & Advantages

1
The machine features a conjoined structure; it takes up less space and is easy to install and move.
2
Excellent chamfering range of 3500x2000mm.

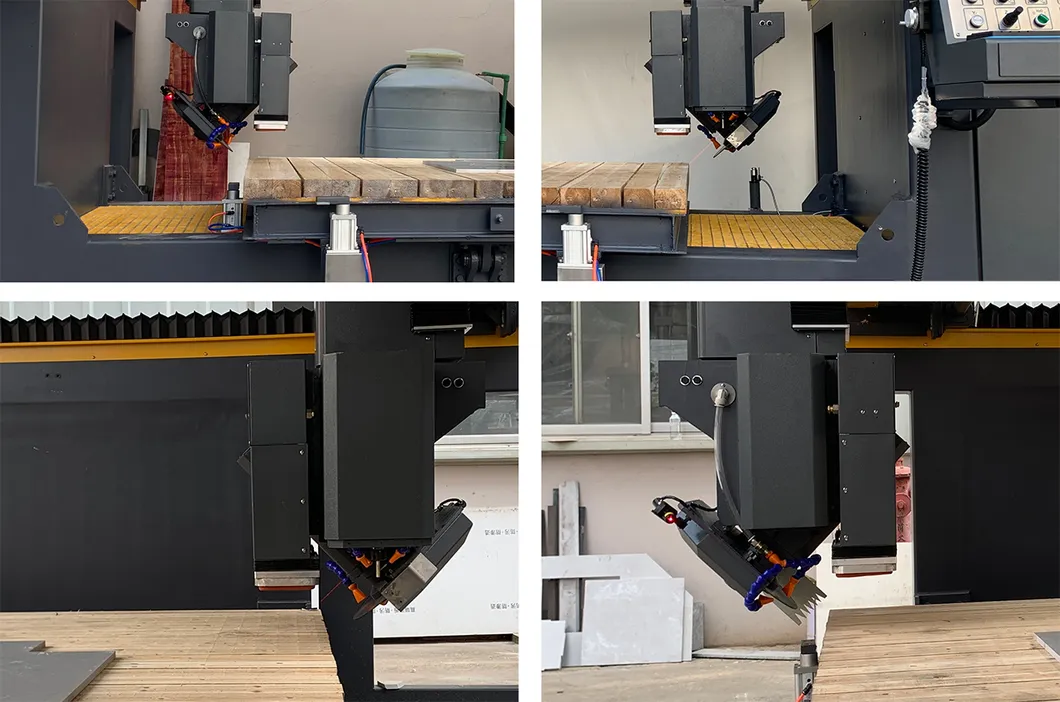

CNC Bridge Saw Setup
3

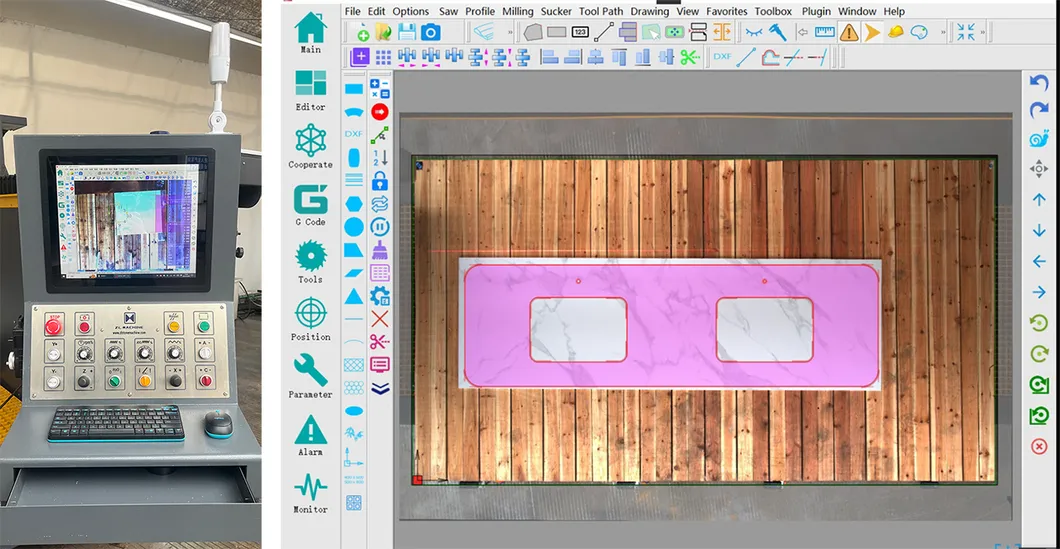

Equipped with an industrial computer and a 17" color touch-screen.
Industrial CNC Control Screen
4

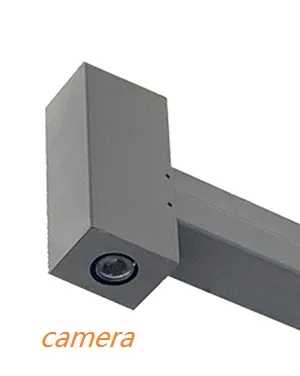

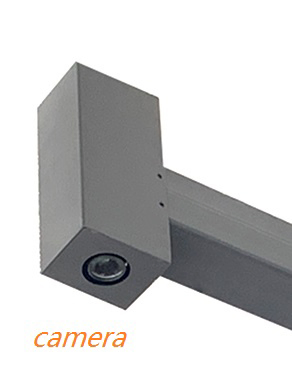

On-board camera system to locate plate position and display it in the cutting procedure.
Camera Positioning System
5
22-KW permanent magnet motor automatically adjusts output power for energy saving.
6

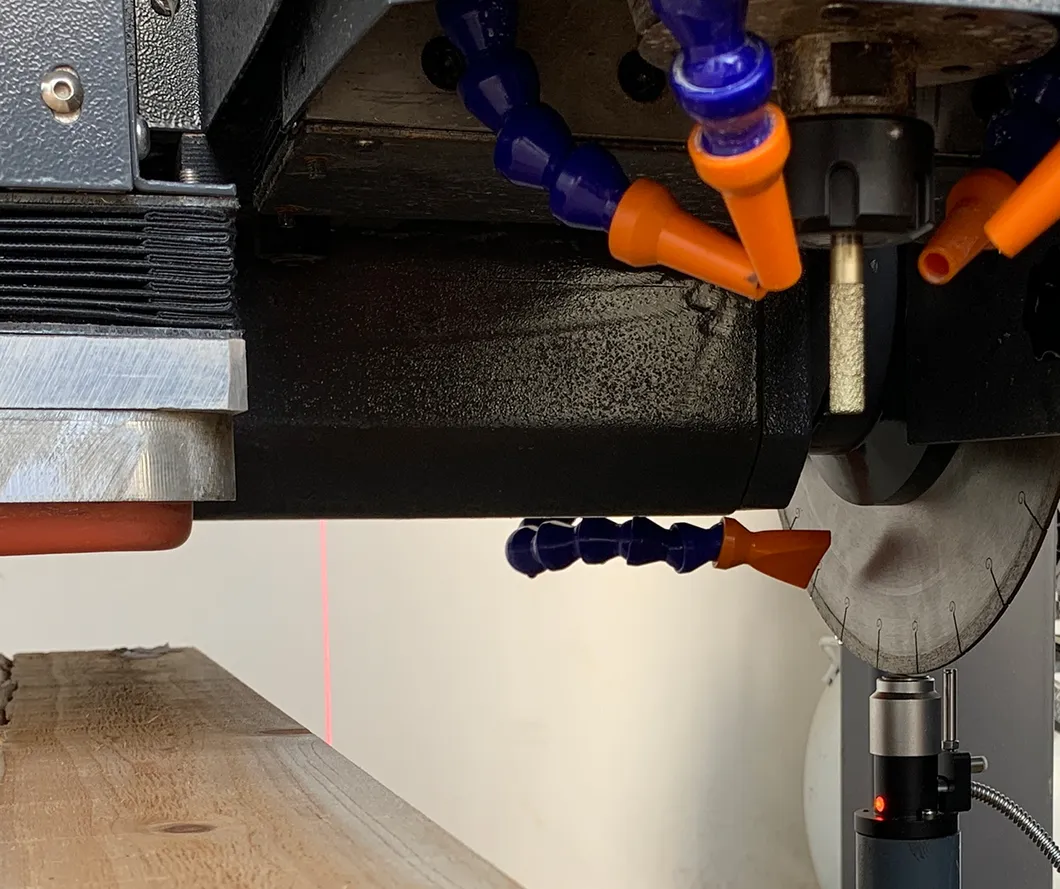

Automatic tool setting gauge for precise blade checks.
Automatic Tool Setting
7

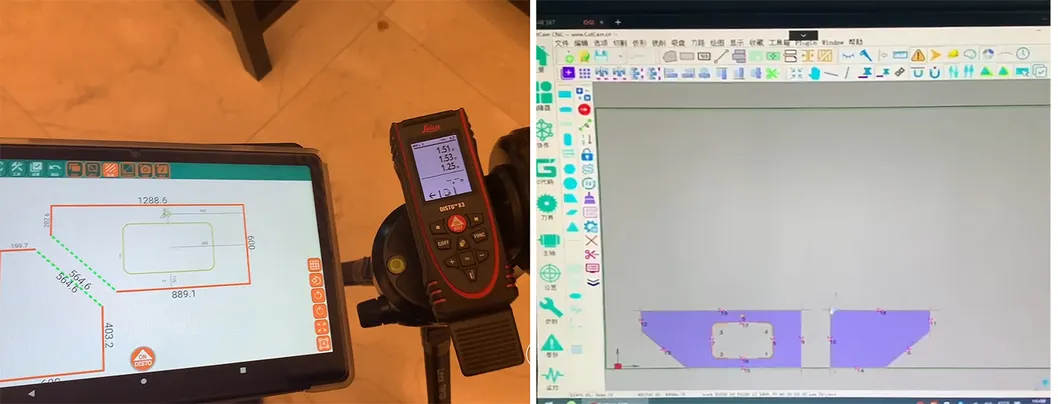

Built-in library of conventional shapes and DXF format support for custom designs.
DXF Drawing Support
8
The worktable can be flipped up to 85° for easier loading.
9

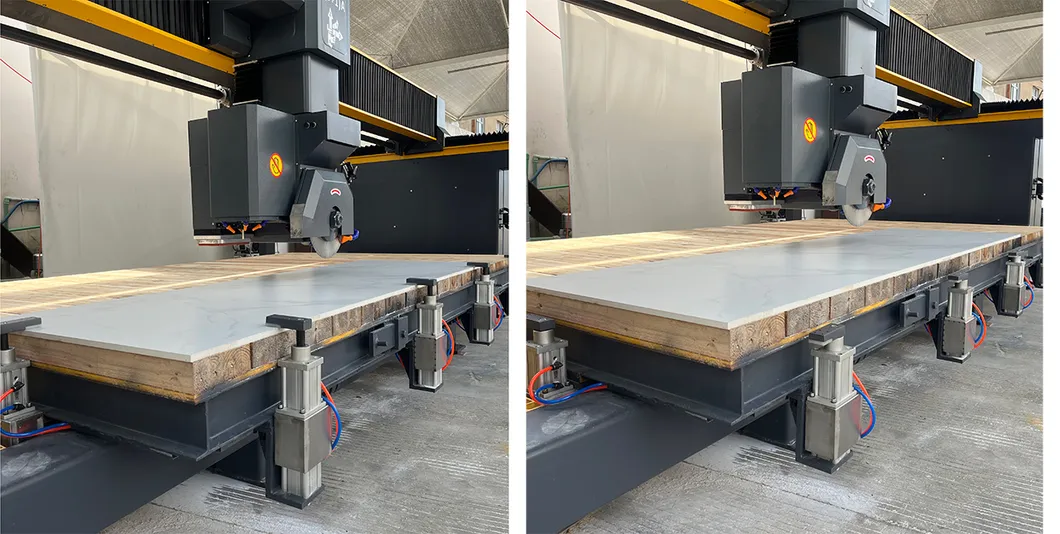

Rotating cylinders automatically press the plate during milling and withdraw afterwards.

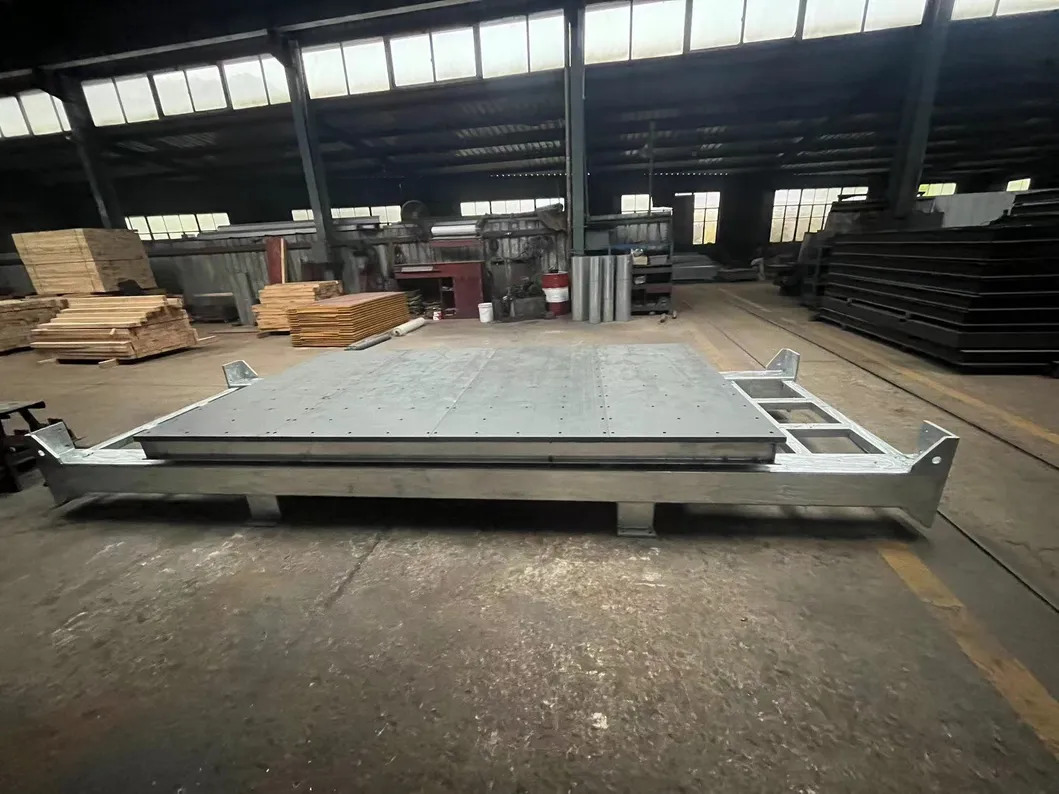

Cylinder Press System Machine Overview
📷

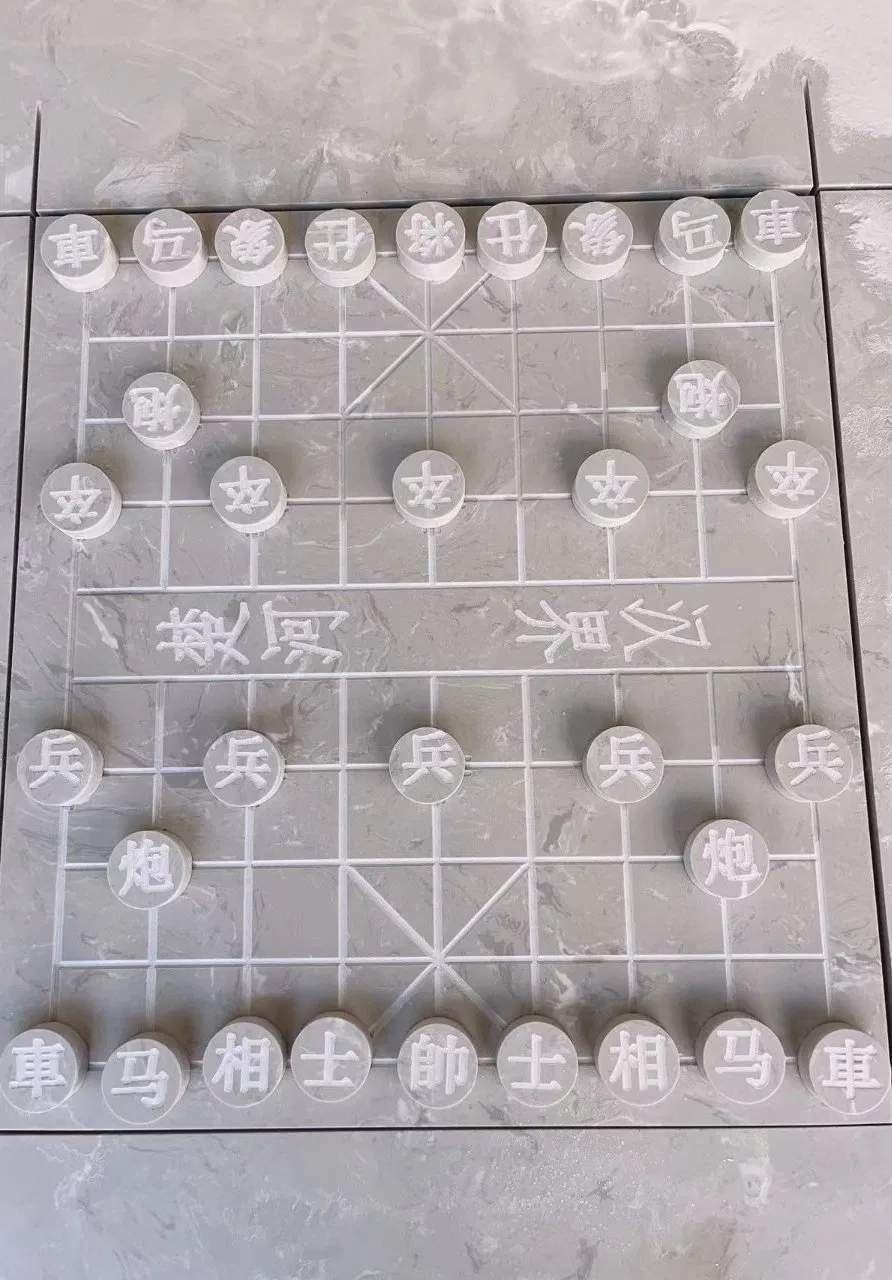

Application Pictures

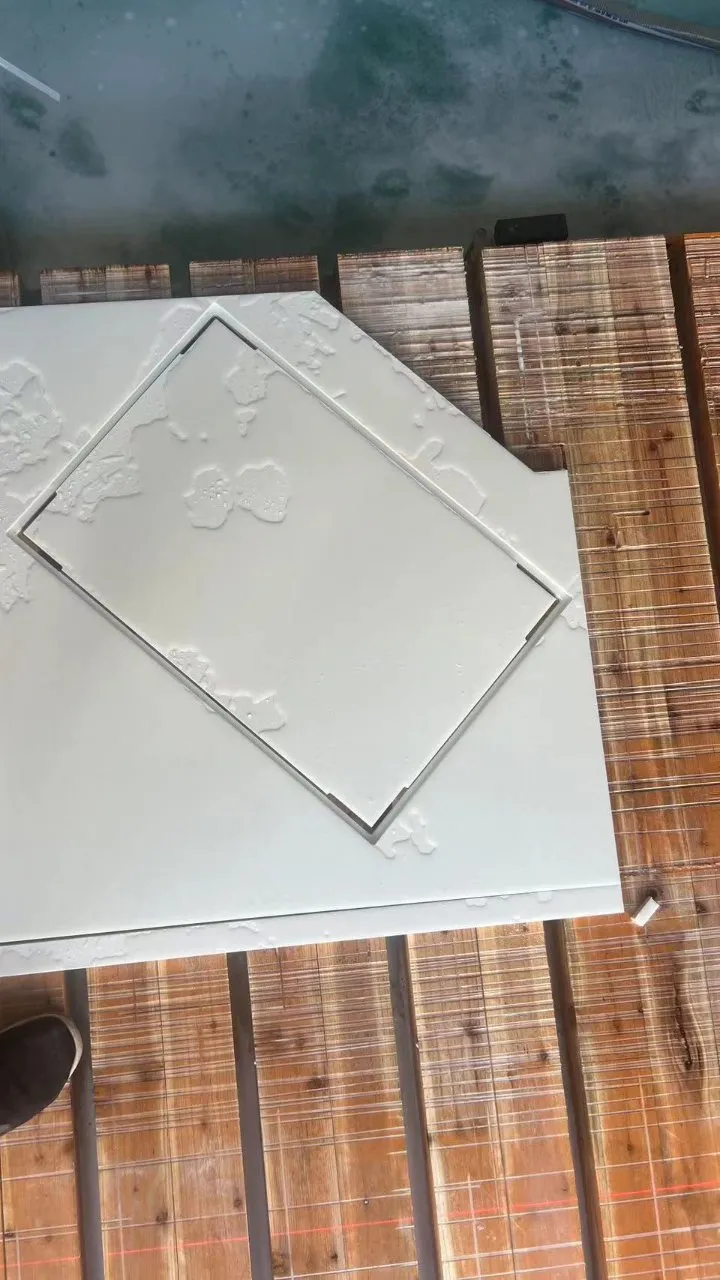

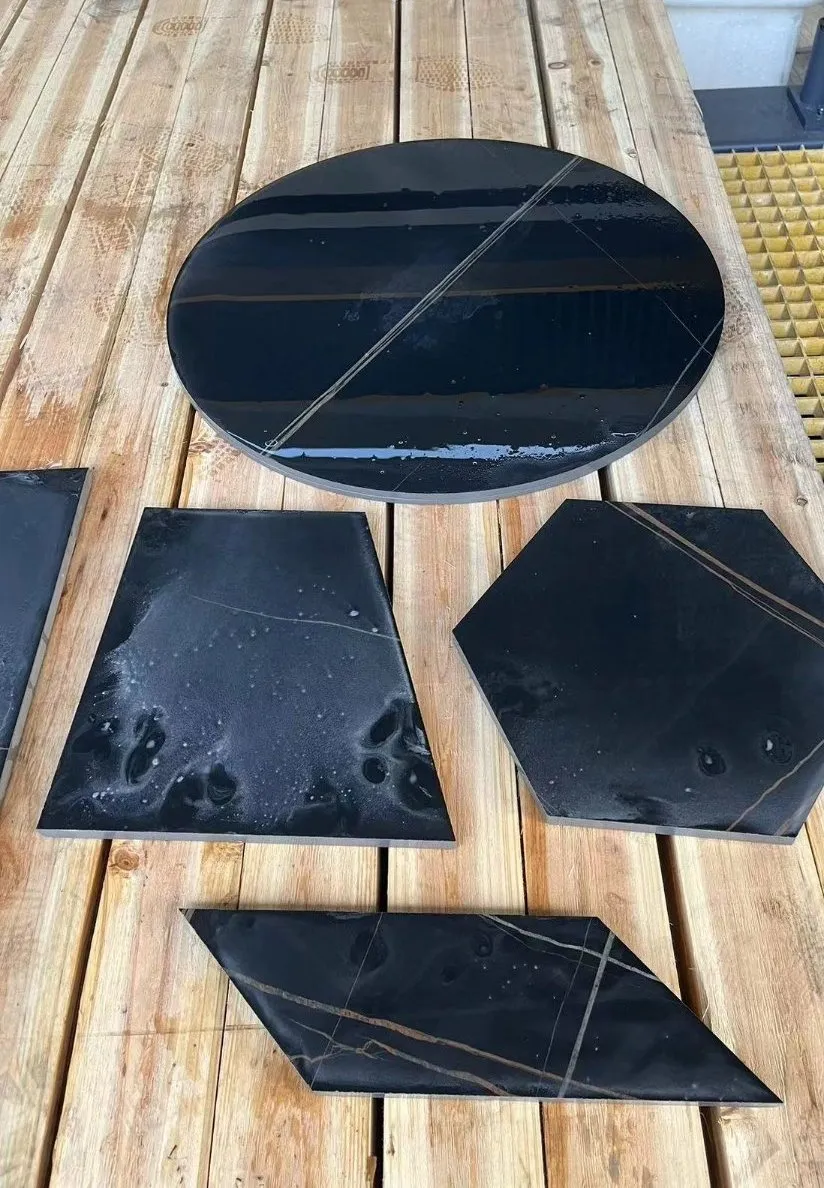

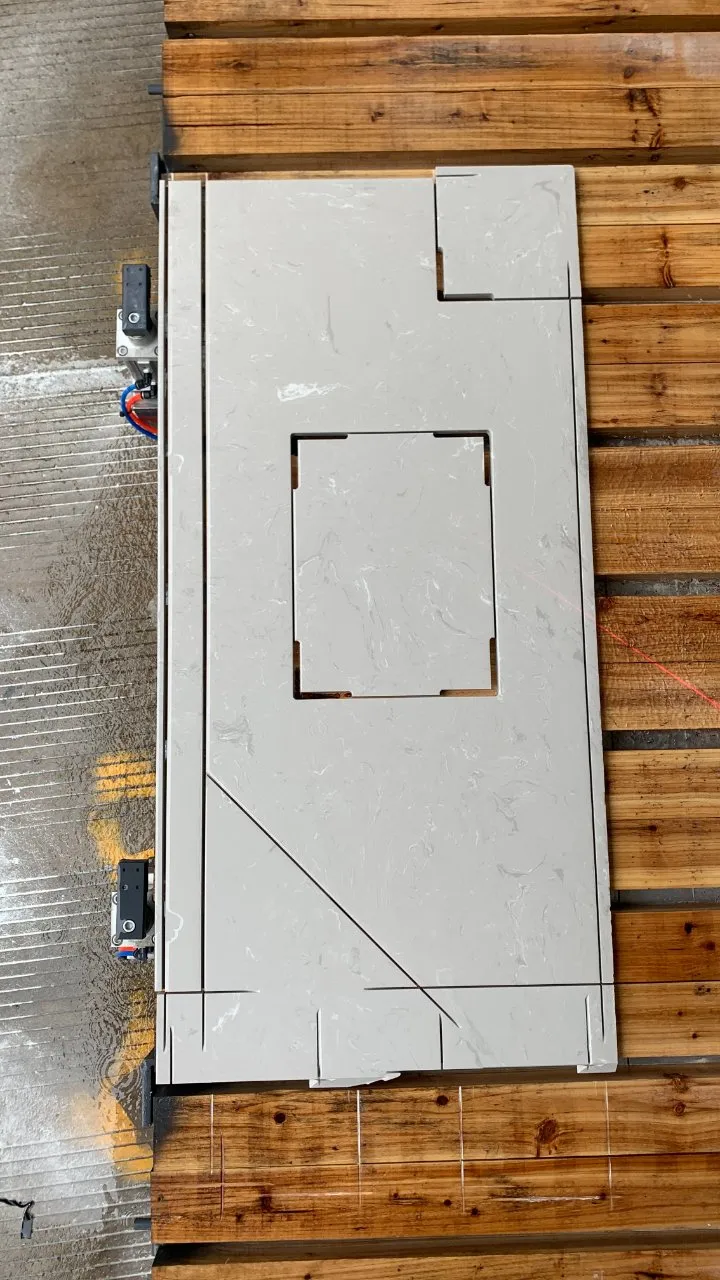

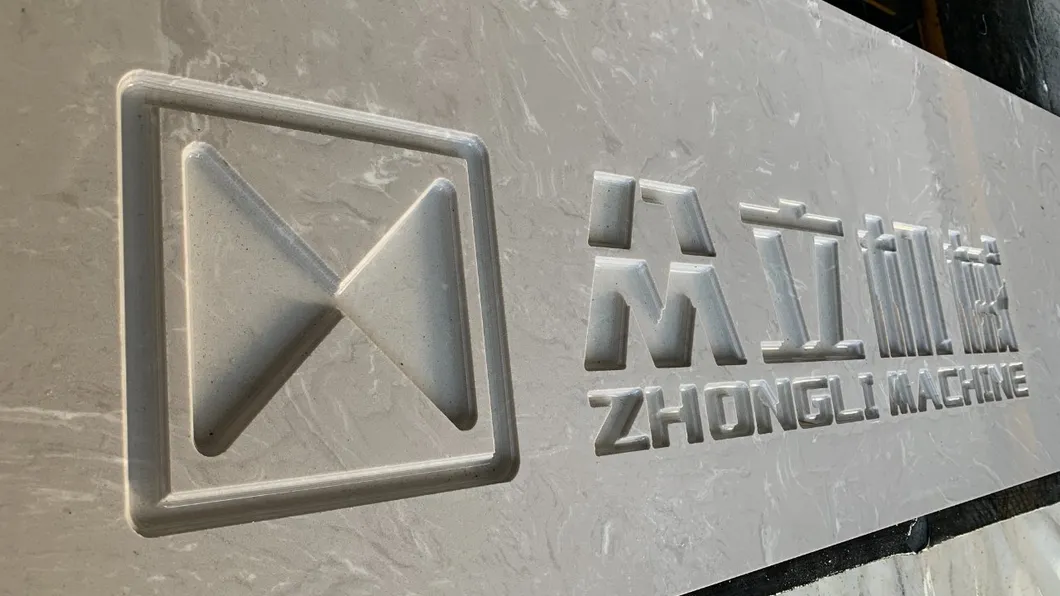

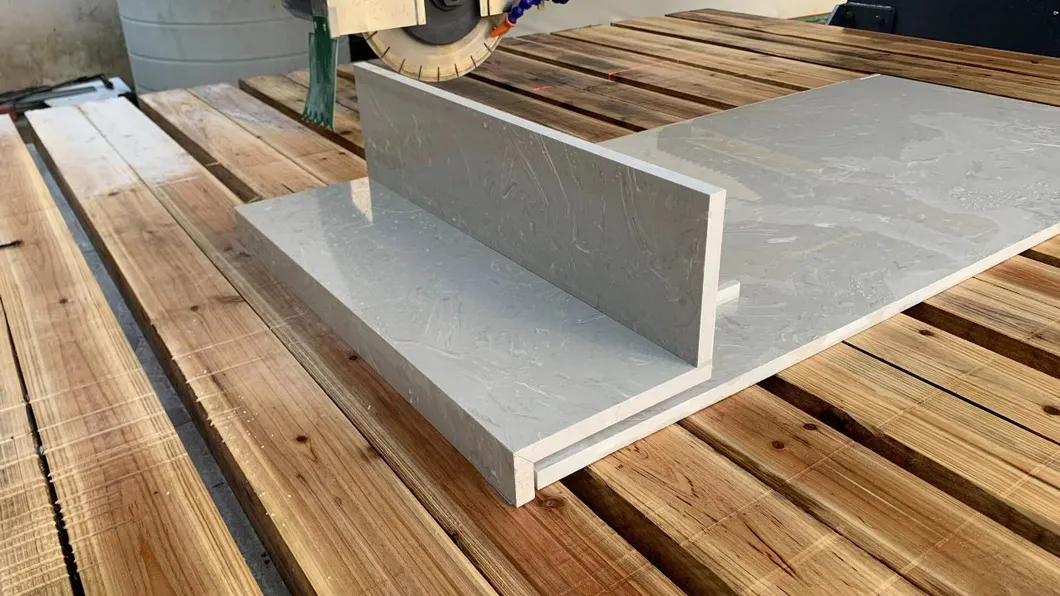

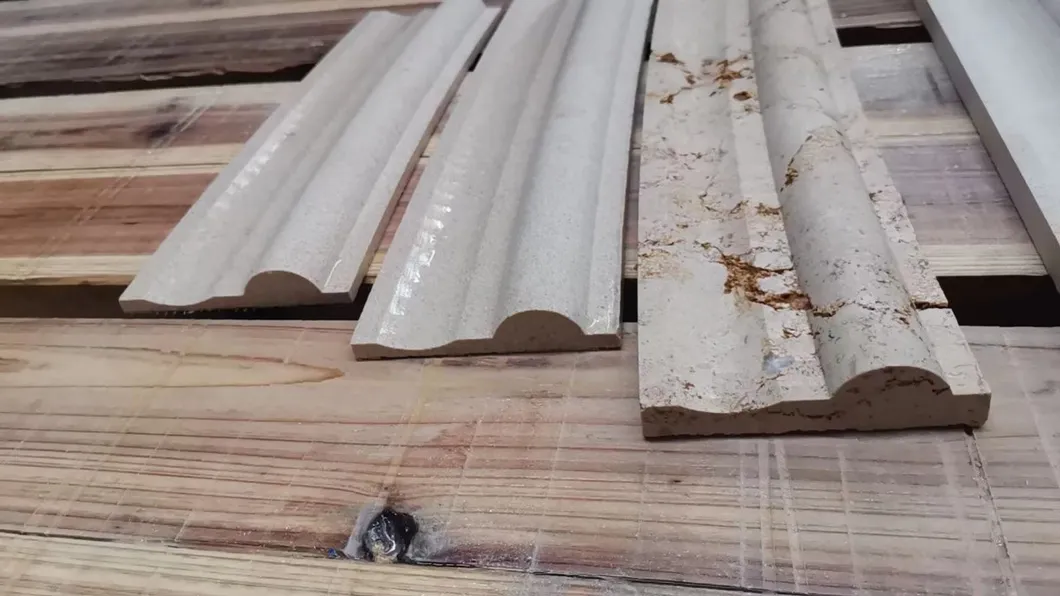

Workpiece 1 Workpiece 2 Workpiece 3
📦

Packaging & Shipping

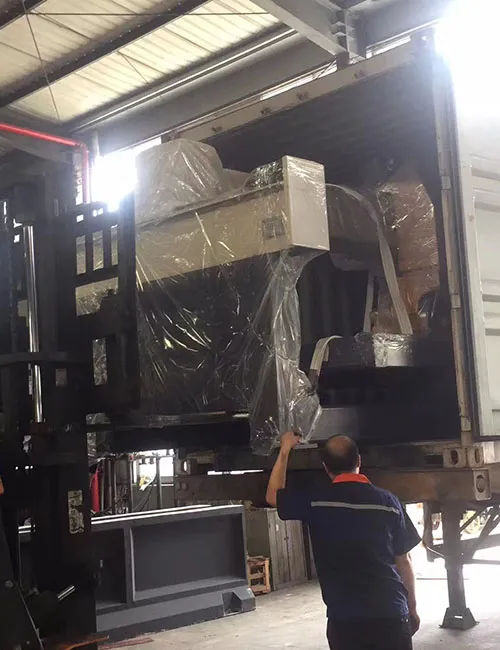

Packaging Process
🏭

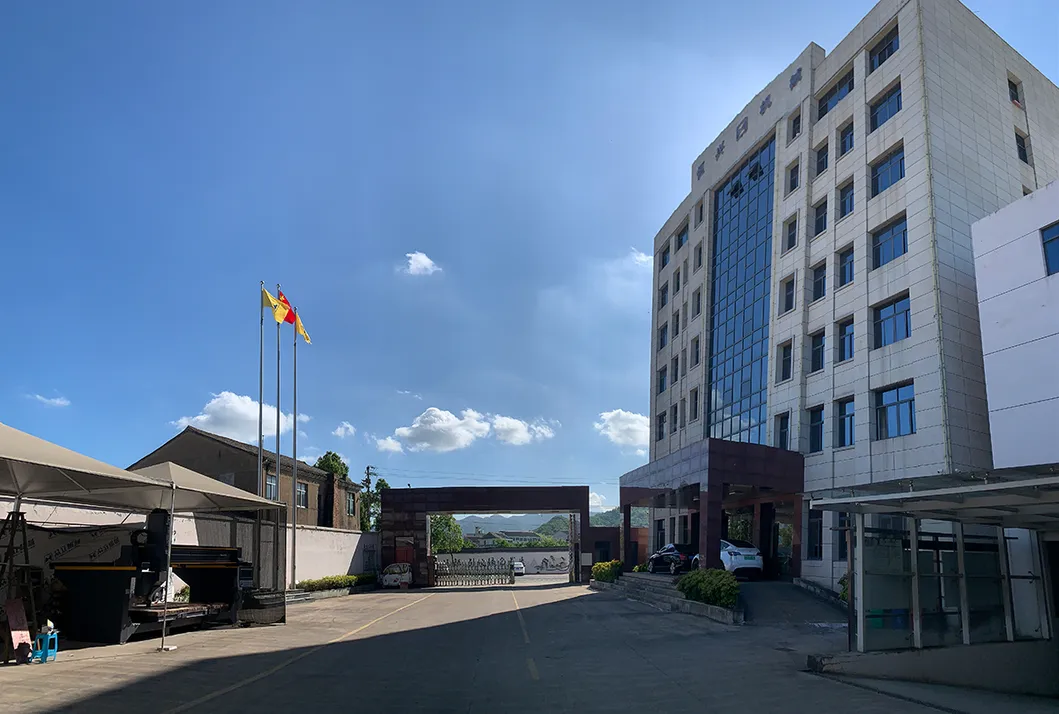

Facility & Certifications

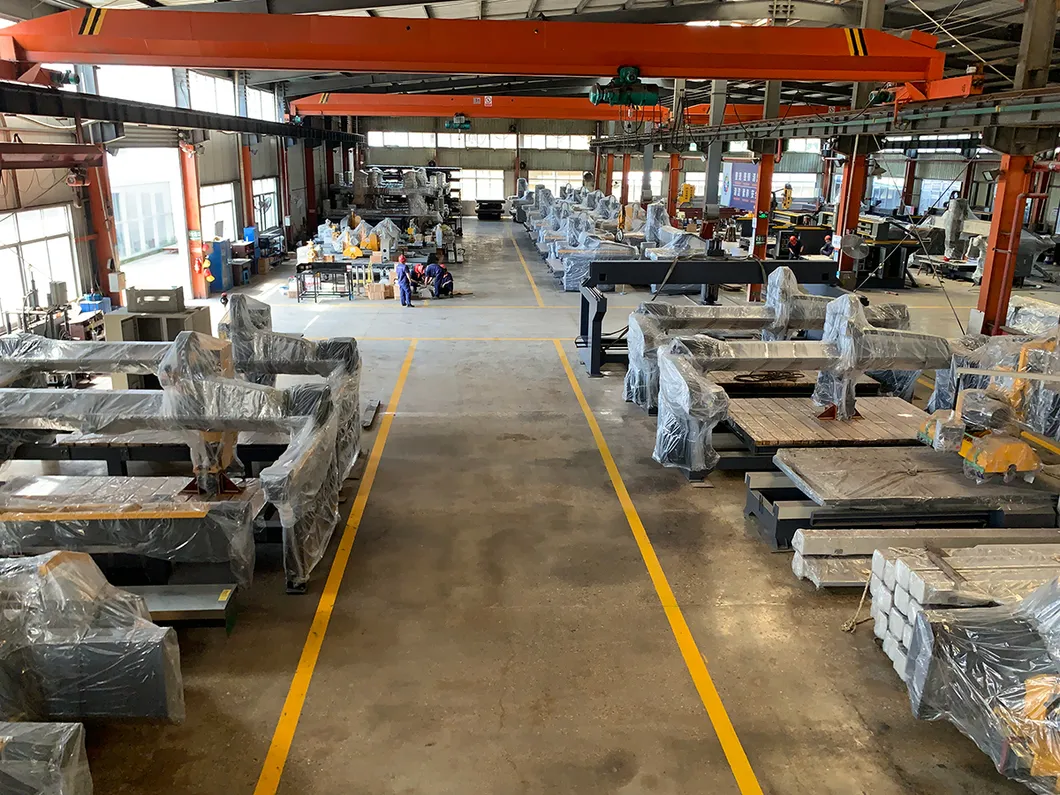

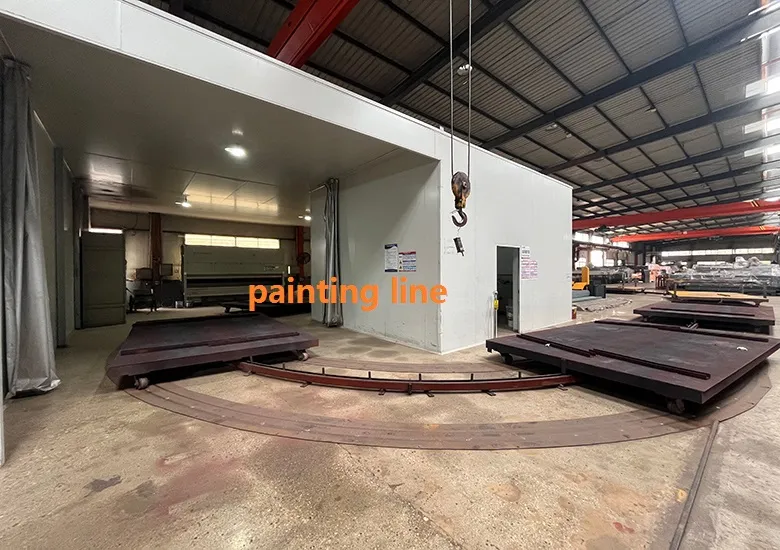

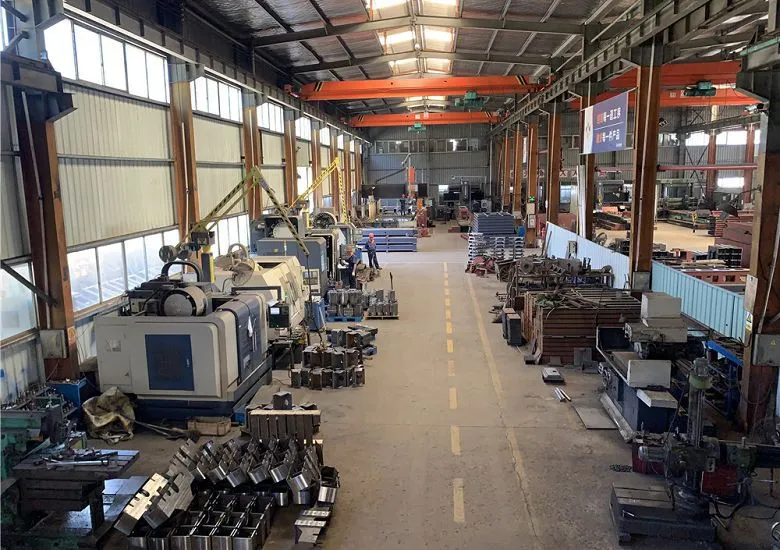

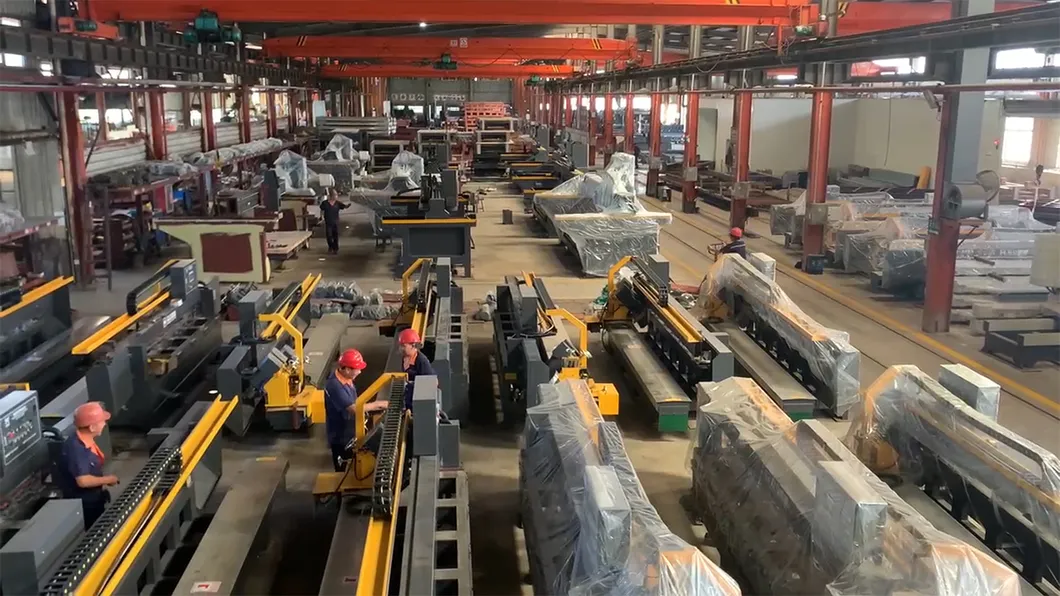

Production Line Certification 1 Certification 2
?

Frequently Asked Questions

What materials can this CNC bridge saw process?
It is designed for high-speed cutting and profiling of ceramics, glass, jadestone, cement bricks, concrete curbs, granite, marble, and quartz stone.
Does the machine support custom design imports?
Yes, the system supports DXF format imports from designers or countertop measuring gauges, and includes a built-in library of standard shapes.
How does the camera system help in the cutting process?
The camera is used to locate the exact position of the plate on the worktable and displays it within the cutting procedure for precise alignment.
What is the advantage of the 5+1 axis configuration?
The 5+1 axis system allows for complex profiling, milling, and 0-90 degree chamfering, enabling the creation of intricate countertop designs and basin cutouts with high automation.
Is the worktable adjustable for loading heavy slabs?
Yes, the worktable can be flipped up to 85 degrees, making it significantly easier and safer to load large and heavy stone plates.
