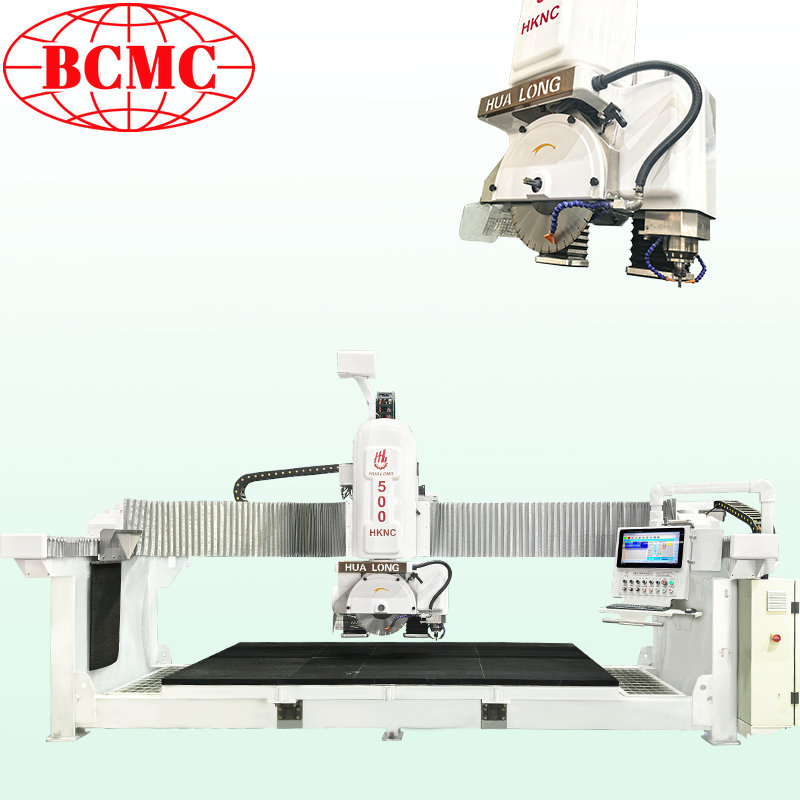

Bcmc Hualong 5 Axis Italian System Heavy Duty CNC Bridge Saw Quartz Marble Granite Stone Cutting Machine Cutter Countetop Processing Profiling Shaping 2/3D
Bcmc Hualong 5 Axis Italian System Heavy Duty CNC Bridge Saw Quartz Marble Granite Stone Cutting Machine Cutter Countetop Processing Profiling Shaping 2/3D
Bcmc Hualong 5 Axis Italian System Heavy Duty CNC Bridge Saw Quartz Marble Granite Stone Cutting Machine Cutter Countetop Processing Profiling Shaping 2/3D
Bcmc Hualong 5 Axis Italian System Heavy Duty CNC Bridge Saw Quartz Marble Granite Stone Cutting Machine Cutter Countetop Processing Profiling Shaping 2/3D
Bcmc Hualong 5 Axis Italian System Heavy Duty CNC Bridge Saw Quartz Marble Granite Stone Cutting Machine Cutter Countetop Processing Profiling Shaping 2/3D
1 / 5
Bcmc Hualong 5 Axis Italian System Heavy Duty CNC Bridge Saw Quartz Marble Granite Stone Cutting Machine Cutter Countetop Processing Profiling Shaping 2/3D
Bcmc Hualong 5 Axis Italian System Heavy Duty CNC Bridge Saw Quartz Marble Granite Stone Cutting Machine Cutter Countetop Processing Profiling Shaping 2/3D
Bcmc Hualong 5 Axis Italian System Heavy Duty CNC Bridge Saw Quartz Marble Granite Stone Cutting Machine Cutter Countetop Processing Profiling Shaping 2/3D
Bcmc Hualong 5 Axis Italian System Heavy Duty CNC Bridge Saw Quartz Marble Granite Stone Cutting Machine Cutter Countetop Processing Profiling Shaping 2/3D
Bcmc Hualong 5 Axis Italian System Heavy Duty CNC Bridge Saw Quartz Marble Granite Stone Cutting Machine Cutter Countetop Processing Profiling Shaping 2/3D

Bcmc Hualong 5 Axis Italian System Heavy Duty CNC Bridge Saw Quartz Marble Granite Stone Cutting Machine Cutter Countetop Processing Profiling Shaping 2/3D

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

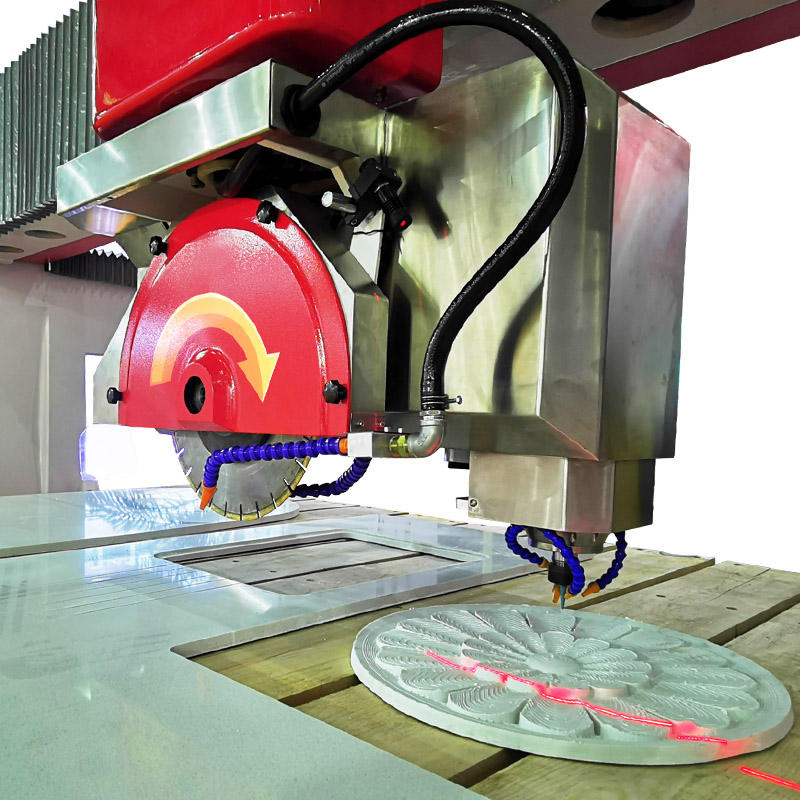

BCNC-500+ is a multifunctional manufacturing machine designed for slab cutting, milling, drilling, and carving. It handles various complex tasks in a single machine. Equipped with a CNC touch screen system, USB port, WIFI connectivity, photographing camera, and vacuum lifter, it is ideal for processing kitchen tops, cooking benches, marble, granite, and artificial stone. It is your reliable partner for professional slab processing.

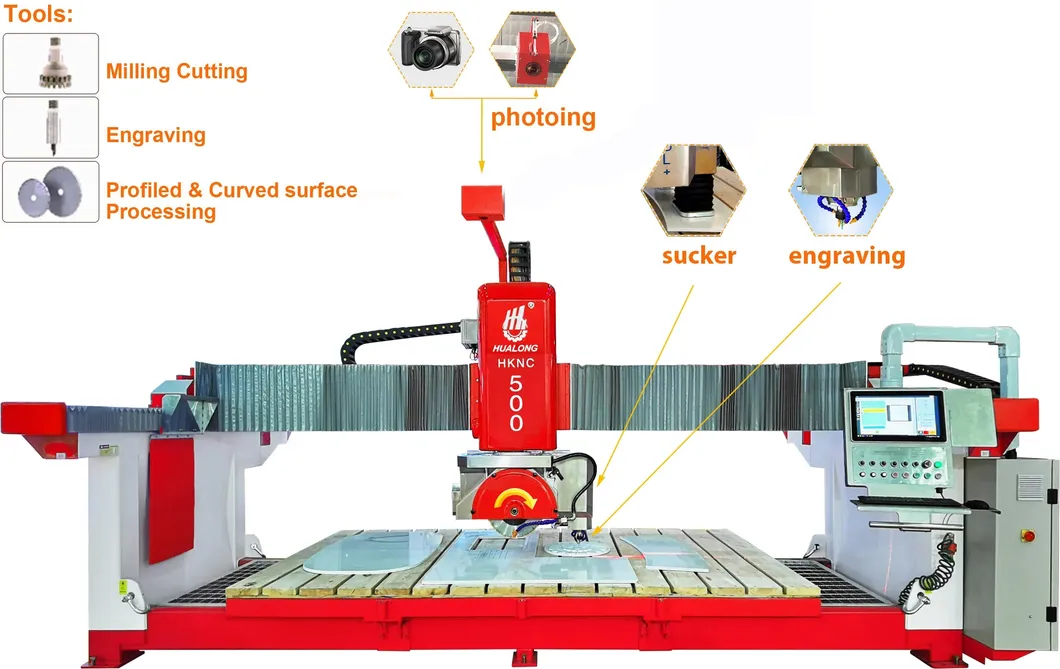

CNC Bridge Saw

Technical Specifications

Model NO.
BCNC-500PLUS
Type
CNC Cutting Machine
Usage
Ceramics, Granite, Marble
Automation
Automatic
Control
CNC
Source Voltage
380V
Overall Weight
5800 Kg
Work Bench
3500*2000 (2100) mm
Control System
Esa CNC
HS Code
8464109000

Main Features

1
Equipped with 5 interpolated axis which move in X, Y, Z axis together with the cutter head turning and rotation.
2
Advanced vacuum lifter for easy and efficient slab movement.
3
CNC touch screen control system for intuitive interactivity and ease of use.
4
Integrated photographing camera to assist in slab positioning and typesetting, reducing waste.
5
Multifunctional capabilities: cutting, milling, drilling, carving, and curved surface processing.
6
Cutter head moves 90 degrees vertically and 360 degrees horizontally with automatic chamfering cutting.

Technical Parameters

Parameters Max. length of horizontal cutting 3300 mm
Max. thickness of cutting 140 mm
Diameter of saw blade Φ400 - Φ500 mm
Main motor power 26.4 kw
Measurement Gross weight 5800 kg
Dimension (L x W x H) 5700x3260x2765 mm

Spare Parts Detail

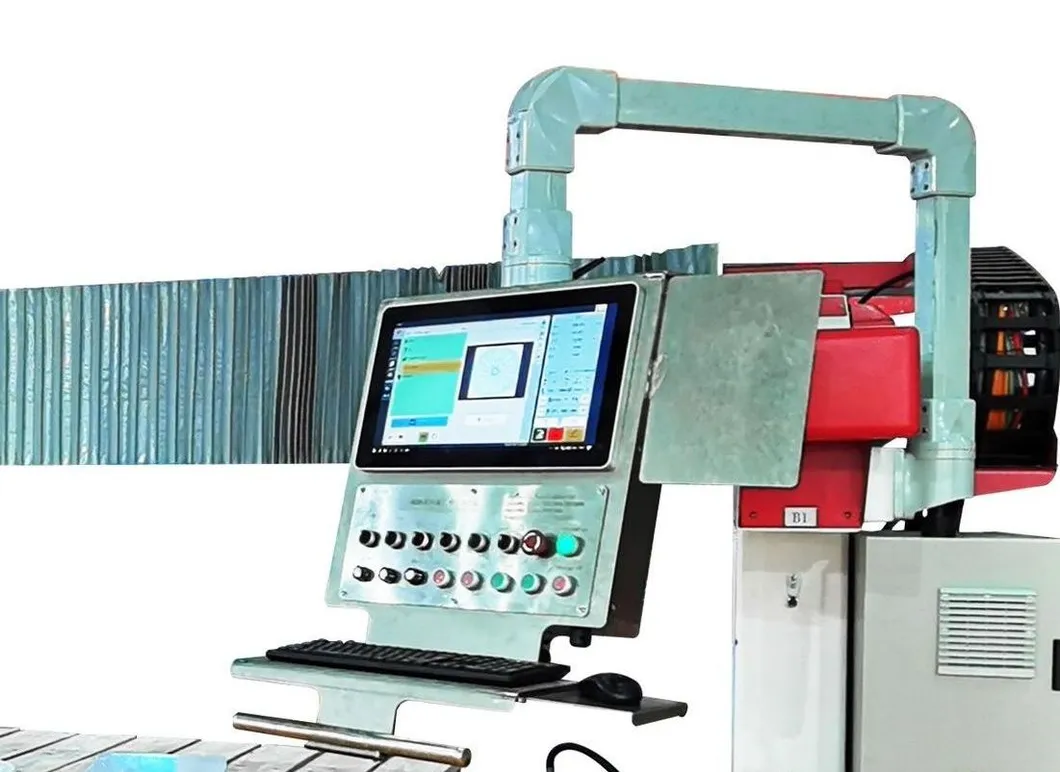

Control System

Italian ESA CNC Control System

Features a touch screen for easy computer setting and visible control. Simplifies complicated tasks with high efficiency. No frequent switching between PC and machine required.

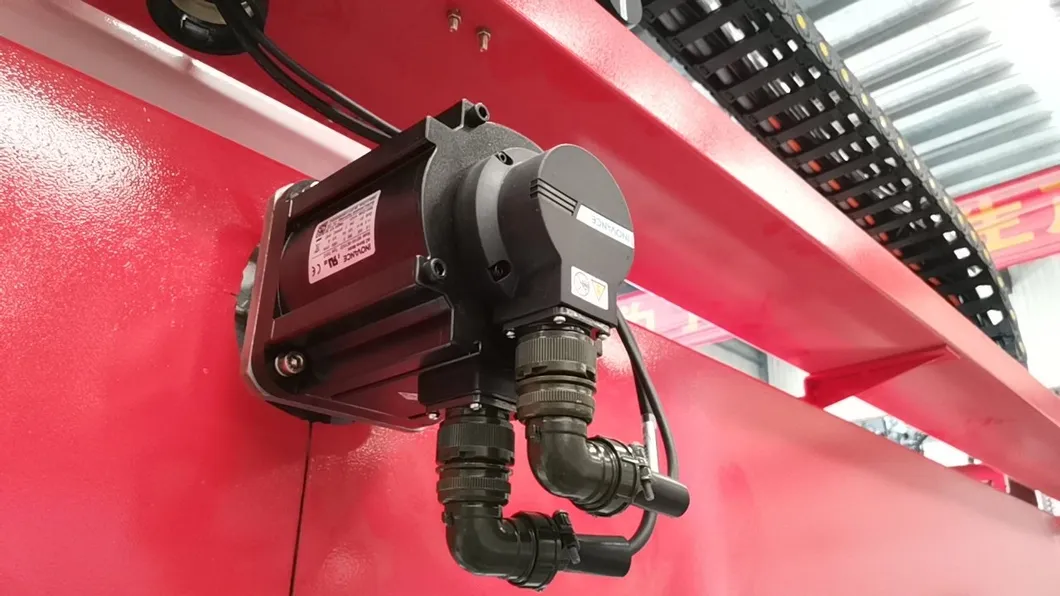

Italian Digital Servomotor

Uses permanent magnet brushless servomotors with integrated drives. Achieves total digital integration with ESA CNC to provide reliable power for X, Y, Z, A, and C axes.

Servomotor

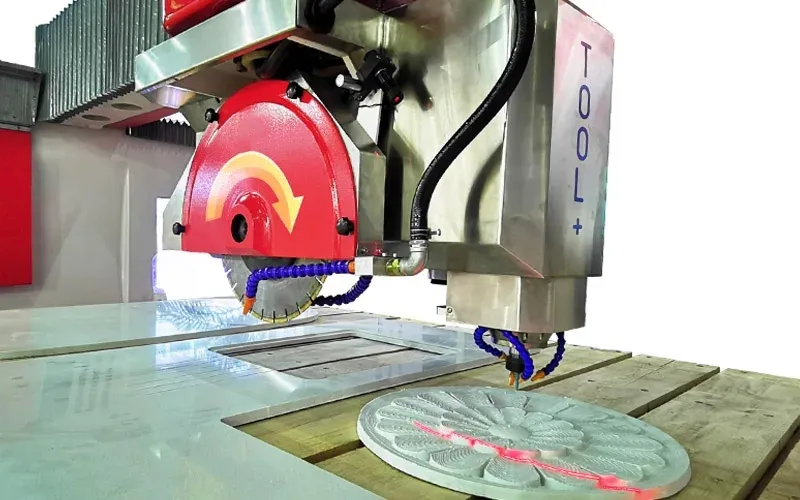

Engraving Module

Engraving Module (Optional)

Electric spindle with 0-24000 rpm speed and 5.5 kw power. Faster engraving, curve cutting, and corner milling compared to mechanical spindles.

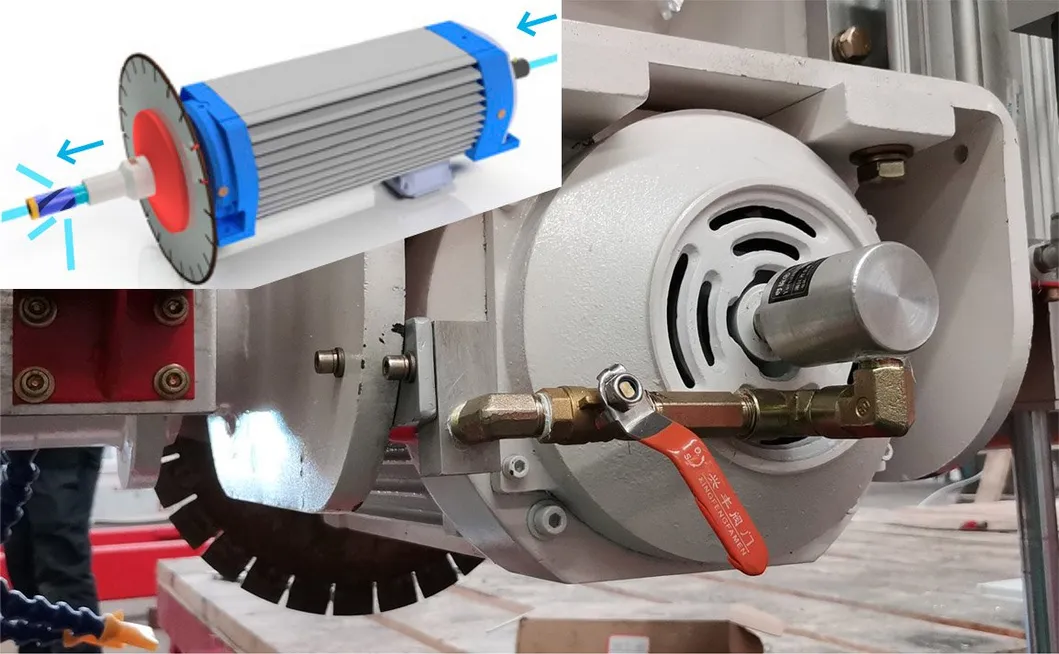

High Quality Electro-spindle

Controlled by an inverter allowing adjustment from 0 to 6000 rpm. Supports blade and diamond tools like core drills or milling cutters.

Electro-spindle

Processing & Applications

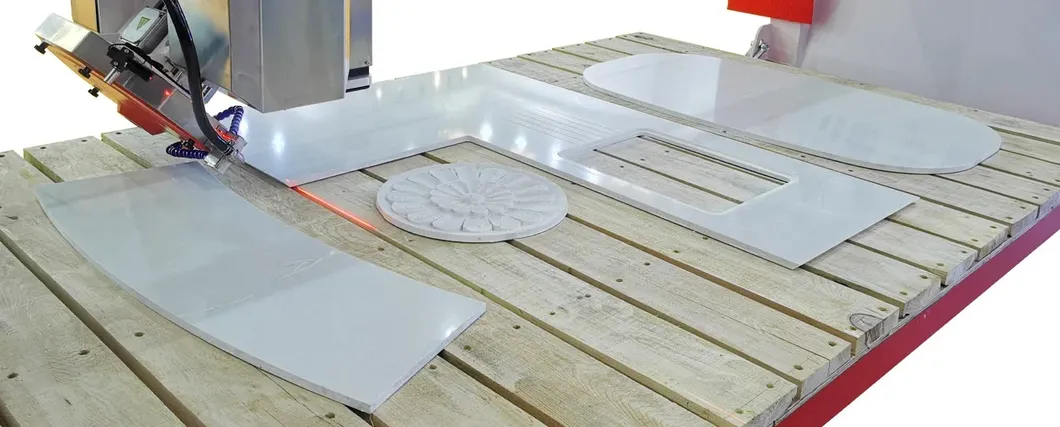

Processing

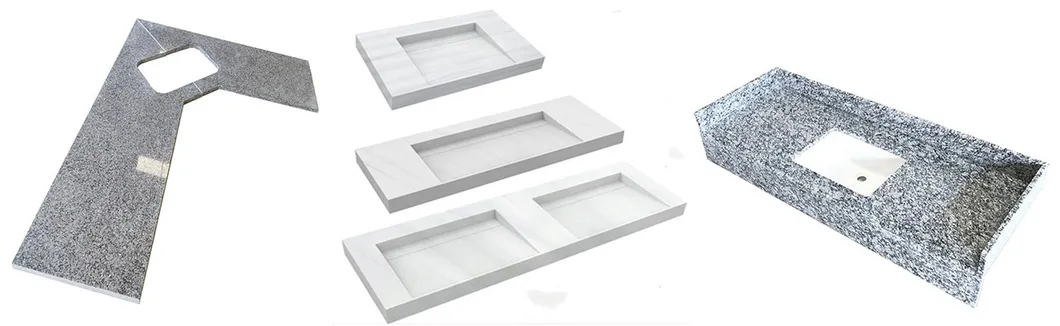

Final Products

Final Products

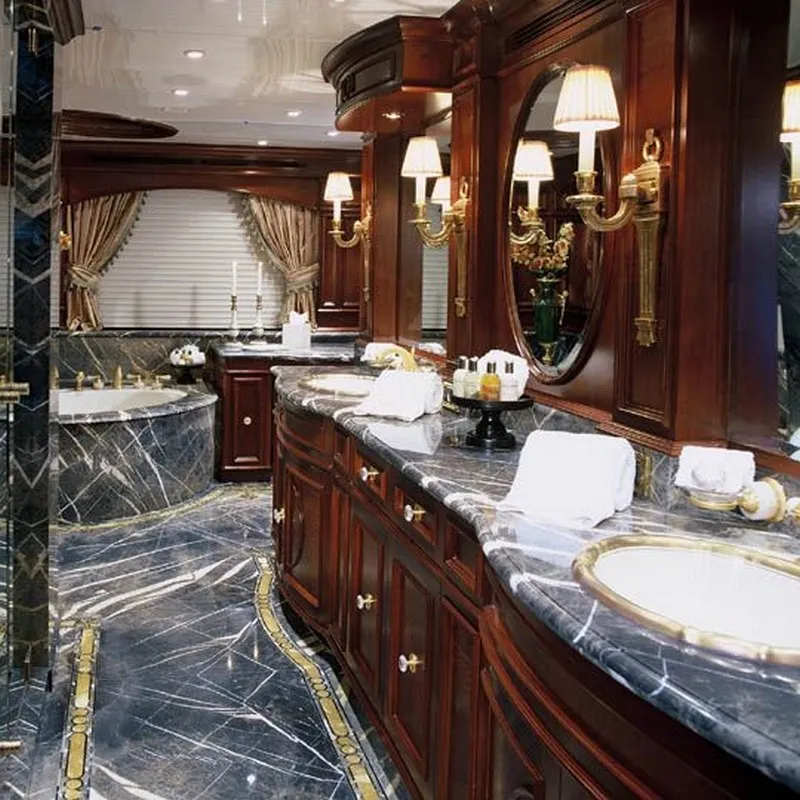

App 1 App 2
  • 3D decorative wall panels
  • Kitchen Countertops
  • Doorsteps, staircases and thresholds
  • Fireplaces
  • Stone Flooring
  • Funerary art / tombstones
  • Street furniture
  • Ventilated facades

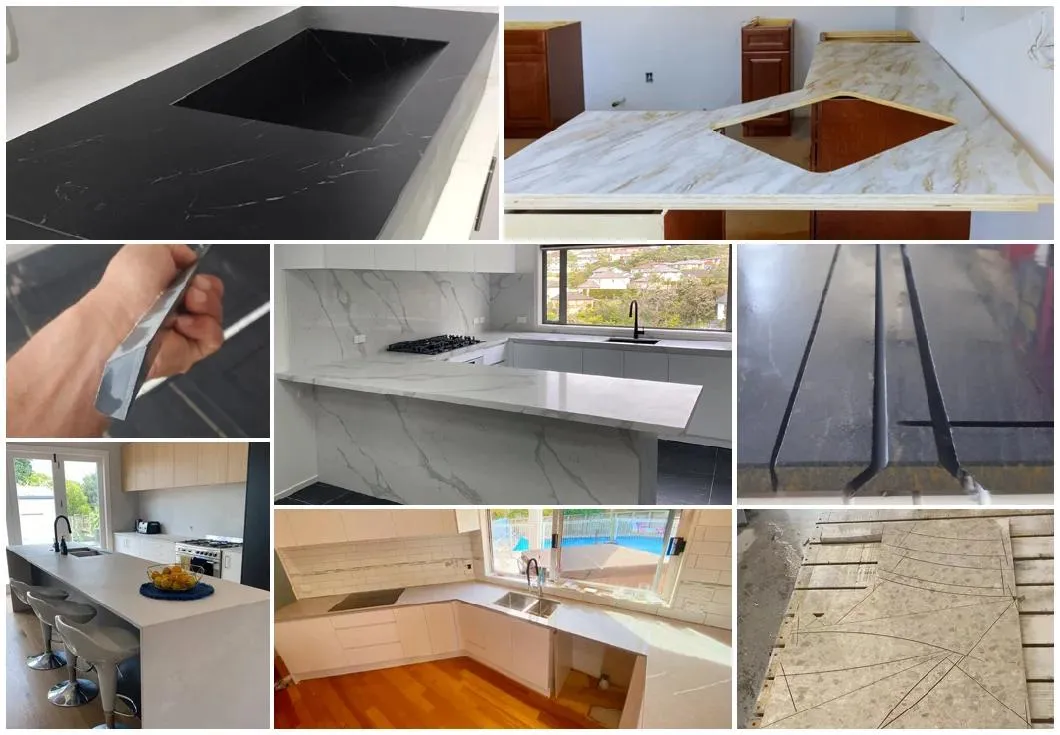

Customer Spotlight

Customer Spot

Related Equipment

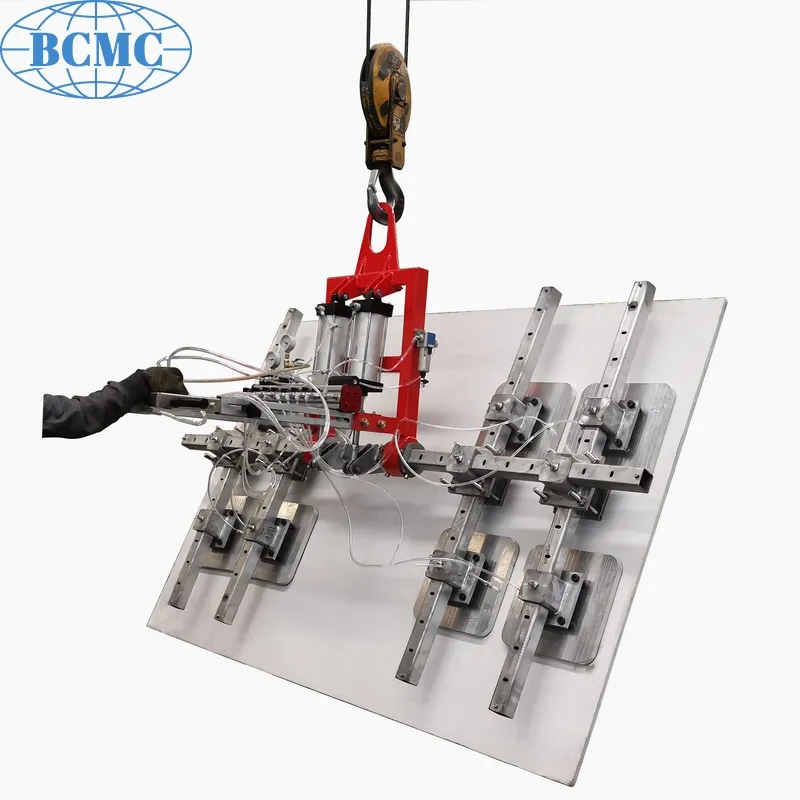

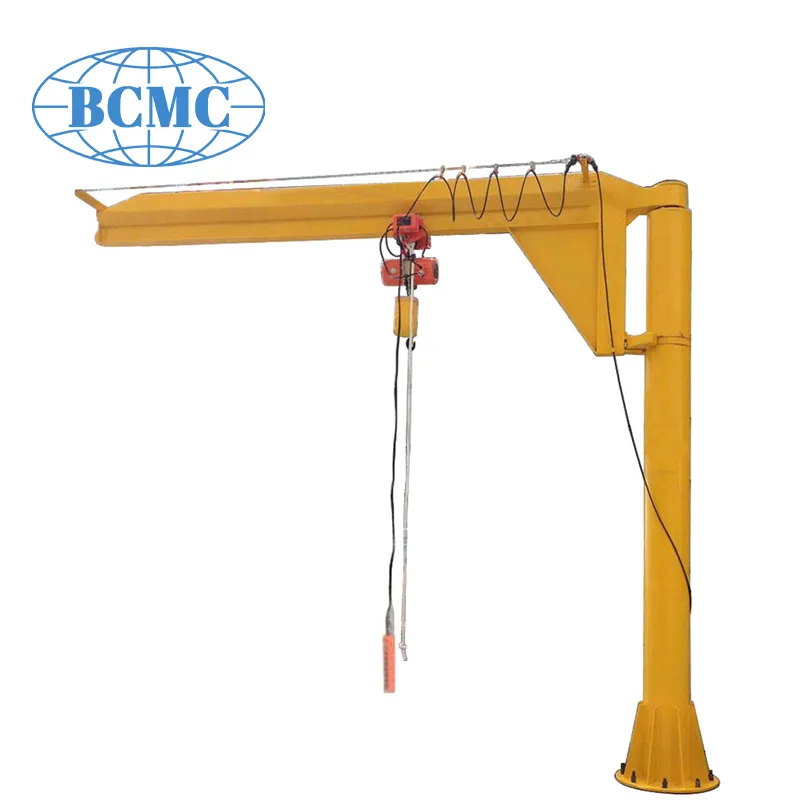

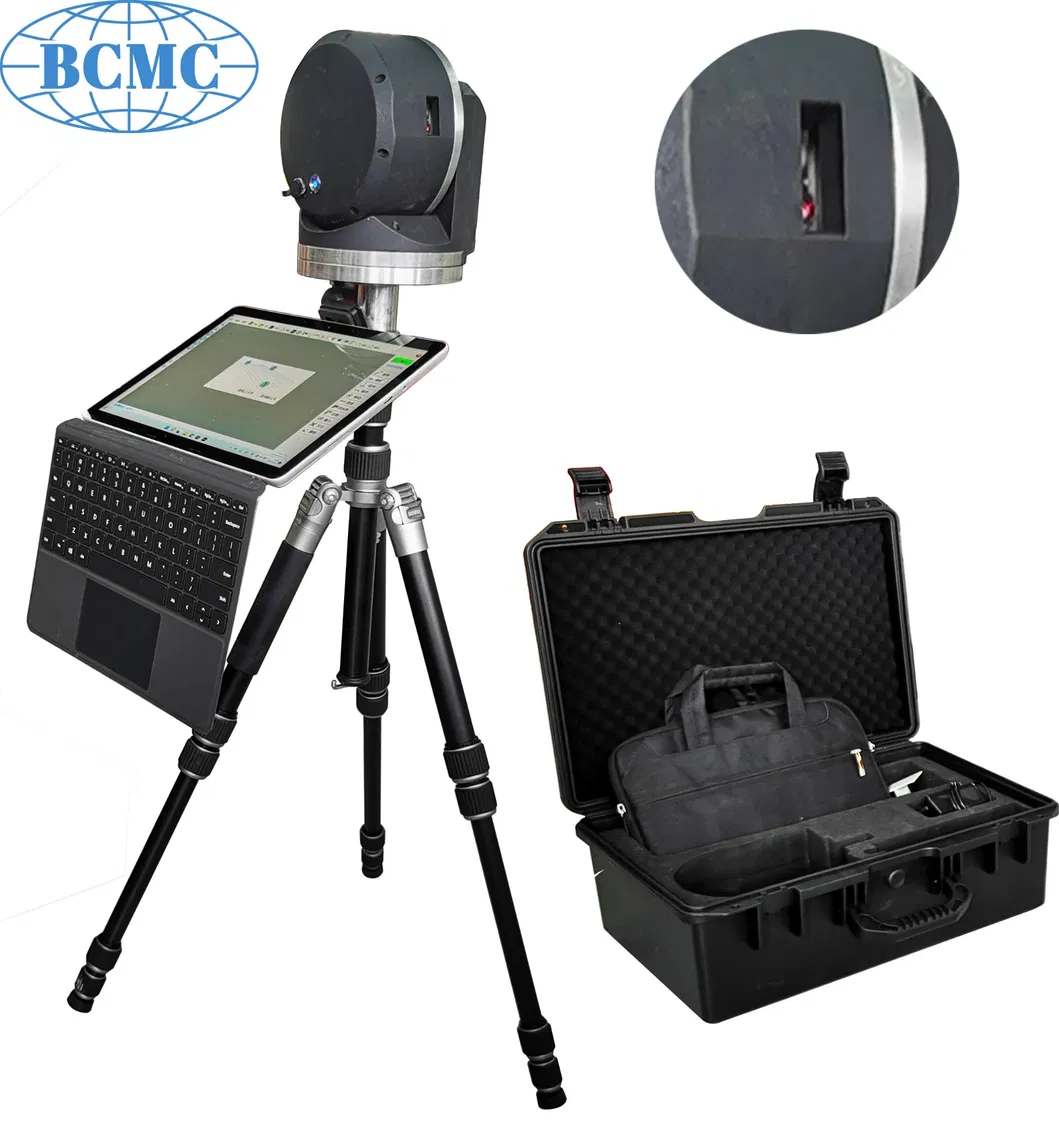

Crane Vacuum Lifter Measure Kit
Gallery 1 Gallery 2 Gallery 3 Gallery 4 Gallery 5 Gallery 6

Frequently Asked Questions

Q1: What materials can the BCNC-500PLUS cut? A1: It is specifically designed for processing Ceramics, Granite, Marble, and artificial stone slabs.
Q2: What is the benefit of the 5-axis interpolated system? A2: The 5 interpolated axes allow the X, Y, and Z axes to move simultaneously with the head rotation, enabling complex 3D carving and precision curved surface processing.
Q3: How does the camera system assist in production? A3: The photographing camera helps in exact slab positioning and typesetting on the touch screen, which saves time and significantly reduces material waste.
Q4: Does the machine support digital file imports? A4: Yes, the machine is equipped with USB and WIFI connections, making it easy to upload CAD/CAM files directly to the Italian ESA CNC system.
Q5: Can this machine perform automatic chamfering? A5: Yes, the cutter head can rotate 360 degrees and tilt up to 90 degrees to handle automatic chamfering at any angle.
Q6: What is the maximum cutting thickness? A6: Using a standard blade (Φ400-Φ500mm), the machine can achieve a maximum cutting thickness of 140mm.
