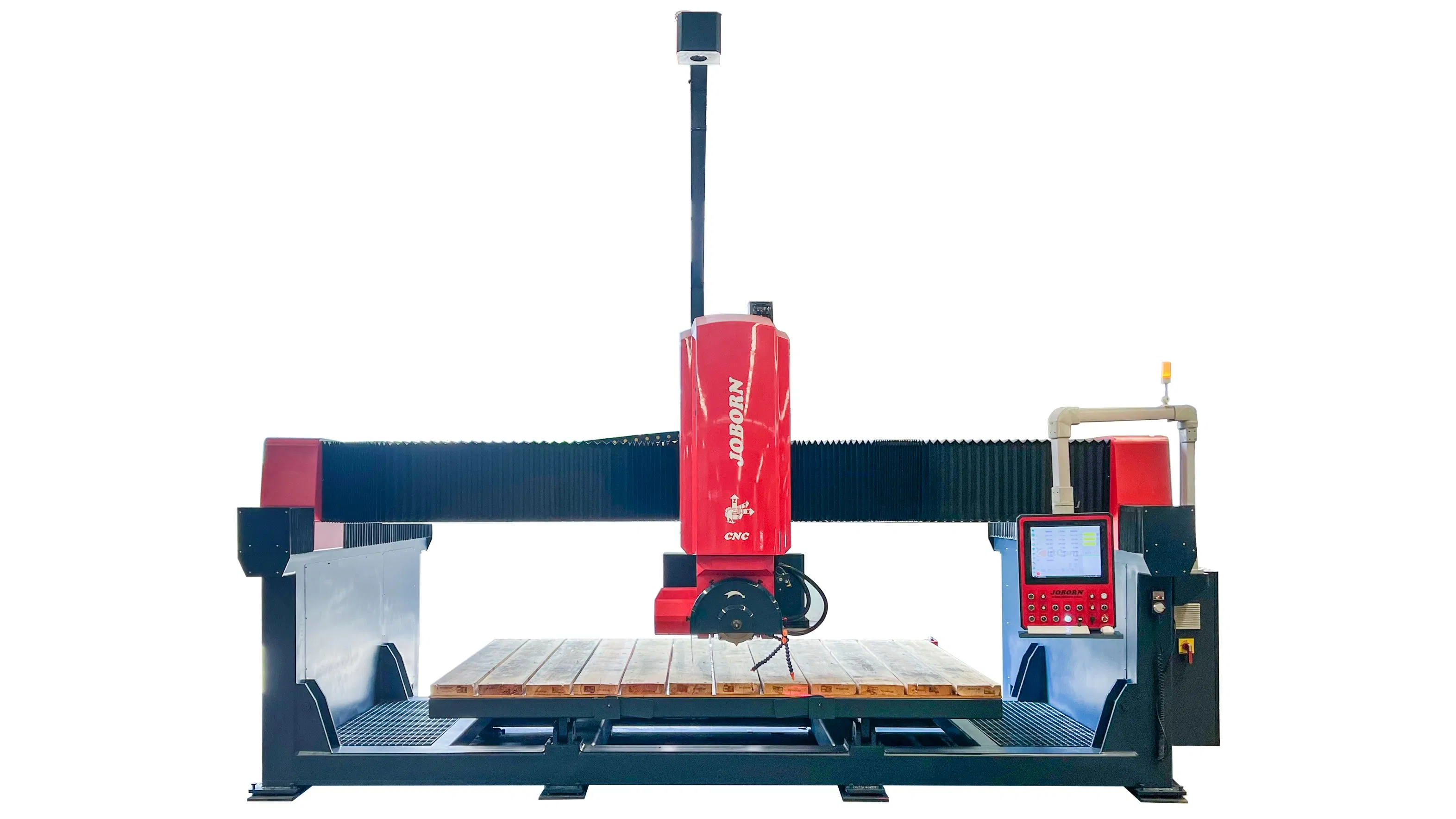

5 Axis CNC Marble Granite Cutter with High Efficiency for Countertop Vanity Cutting and Profiling Stone Cutting Machine
5 Axis CNC Marble Granite Cutter with High Efficiency for Countertop Vanity Cutting and Profiling Stone Cutting Machine
5 Axis CNC Marble Granite Cutter with High Efficiency for Countertop Vanity Cutting and Profiling Stone Cutting Machine
5 Axis CNC Marble Granite Cutter with High Efficiency for Countertop Vanity Cutting and Profiling Stone Cutting Machine
5 Axis CNC Marble Granite Cutter with High Efficiency for Countertop Vanity Cutting and Profiling Stone Cutting Machine
1 / 5
5 Axis CNC Marble Granite Cutter with High Efficiency for Countertop Vanity Cutting and Profiling Stone Cutting Machine
5 Axis CNC Marble Granite Cutter with High Efficiency for Countertop Vanity Cutting and Profiling Stone Cutting Machine
5 Axis CNC Marble Granite Cutter with High Efficiency for Countertop Vanity Cutting and Profiling Stone Cutting Machine
5 Axis CNC Marble Granite Cutter with High Efficiency for Countertop Vanity Cutting and Profiling Stone Cutting Machine
5 Axis CNC Marble Granite Cutter with High Efficiency for Countertop Vanity Cutting and Profiling Stone Cutting Machine

5 Axis CNC Marble Granite Cutter with High Efficiency for Countertop Vanity Cutting and Profiling Stone Cutting Machine

After-sales Service: Available
Warranty: 1 Year
Type: CNC Cutting Machine
Send Inquiry

Product Description

Basic Specifications
Model NO.
CNC450-5AI
Usage
Cement Brick, Concrete Curb, Granite, Marble
Application
Machinery, Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Control
CNC
Certification
ISO, CE
Max. Disc Diameter
300-600mm
Main Motor
18.5kw
Water Consumption
3 M3/H
Product Description

This five-axis CNC bridge cutting machine adopts an industrial computer equipped with a Windows system. It realizes manual or PC programming to automatically complete processing operations including cutting, grooving, countertop processing, and special-shaped profiling. Features a standard camera for visualization and real-time tool setting for saw blade wear compensation.

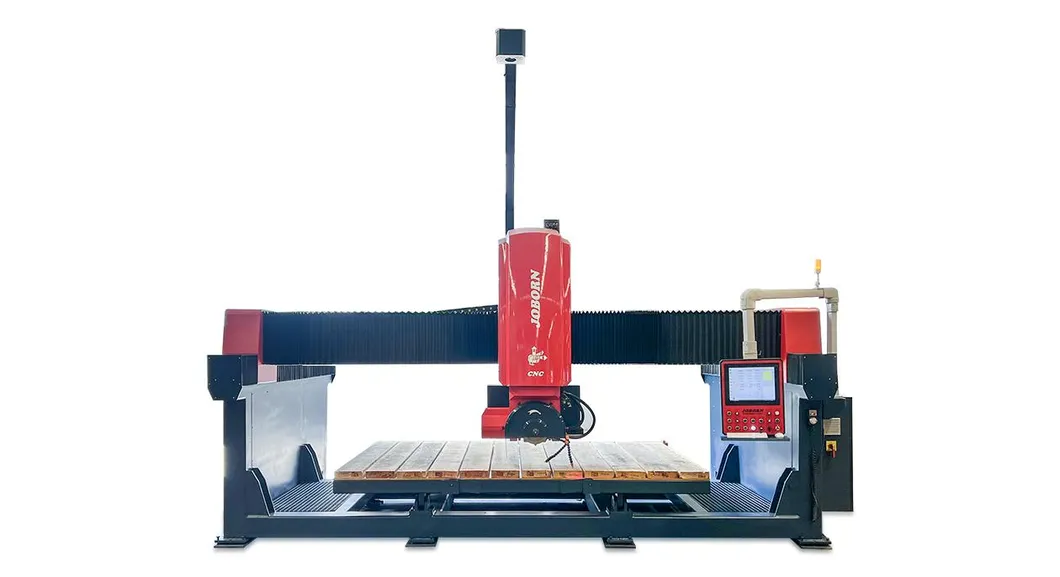

5 Axis CNC Stone Cutting Machine

The structure uses an integral steel frame treated for stress relief, ensuring high precision and easy installation. Equipped with high-precision linear guides and ball screws, it provides exceptional positioning accuracy, ideal for high-value granite, marble, and slate processing.

Key Features
⚙️
5 axis linkage control with CNC control system and 17" color touch-screen.
💻
Industrial computer supports CAD file import for streamlined workflow.
🏗️
Integrated carbon steel frame and beam for high stability and reliability.
📏
Servo motor driven X/Y/Z axes with high-precision planetary reducers.
🔄
A-axis (0-90°) and C-axis (0-360°) rotation via precision robot RV reducers.
📐
Working platform tilts 85 degrees for easy slab loading.
Functionality & Processing

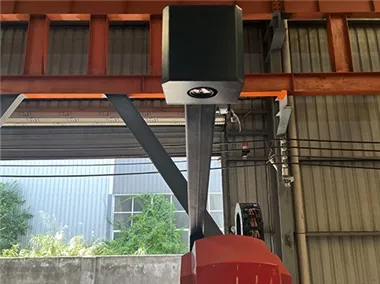

Camera function

Camera Function

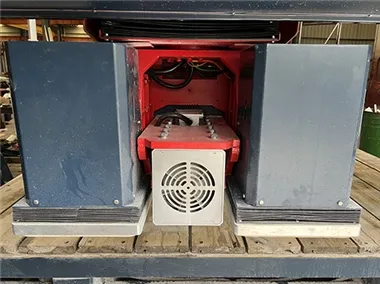

Sucker function

Sucker Function (Optional)

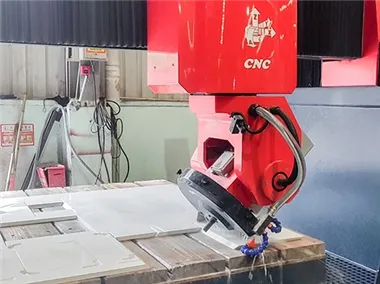

45 degree processing

45 Degree Processing

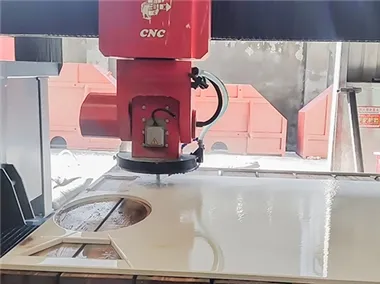

Milling processing

Milling Processing

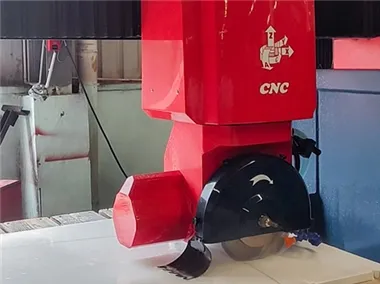

Straightline processing

Straightline Processing

Technical Parameters
Appellation Unit CNC450-5 AI CNC600-5 AI CNC700-5 AI
Max.Diameter of saw blademmΦ350-450Φ400-600Φ450-700
Vertical Z strokemm300500500
Main motor rotation rangedegree±360°±360°±360°
Main motor tilting rangedegree0~90°0~90°0~90°
Power of main motorkW1518.522
Dimension of worktablemm3200x20003200x20003200x2000
Total powerkW273134
Processing Spot

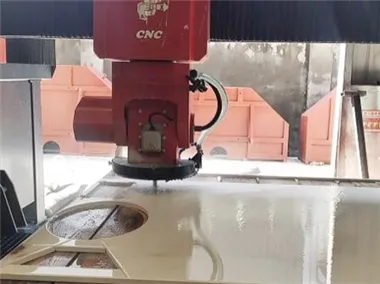

Spot 1

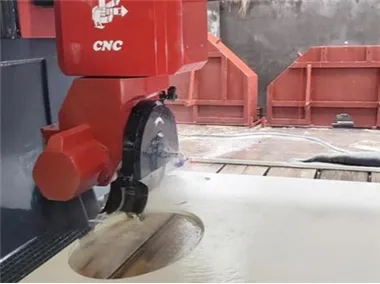

Spot 2

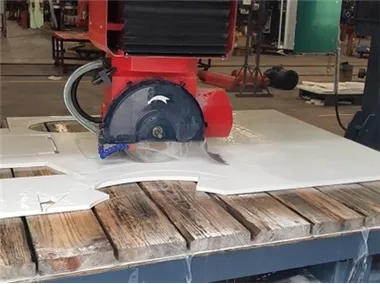

Spot 3
Detail Detail Detail
Frequently Asked Questions
❓ Are you a manufacturer?
Yes, we are a professional stone machine manufacturer with over 30 years of experience. We also have authorized agents worldwide for after-sales service.
❓ Can I get a machine according to my own requirements?
Sure. We welcome OEM and ODM orders to meet specific production needs.
❓ Is the machine easy to operate for a first-time user?
Yes, the machine comes with an English instruction manual and guide videos. We also provide free professional online guidance until you can operate the machine proficiently.
❓ What is your MOQ and delivery process?
Our MOQ is 1 set. We can ship the machine directly to your port or address. We provide competitive pricing and freight options.
❓ How is your after-sales service?
We offer lifelong free online guide services. In many regions, local dealers are available for physical installation and maintenance.
❓ What if the machine breaks down?
Most machines feature remote troubleshooting. We can solve issues via remote control, video guides, or provide guidelines for part replacement. Authorized agents can also perform onsite repairs.
