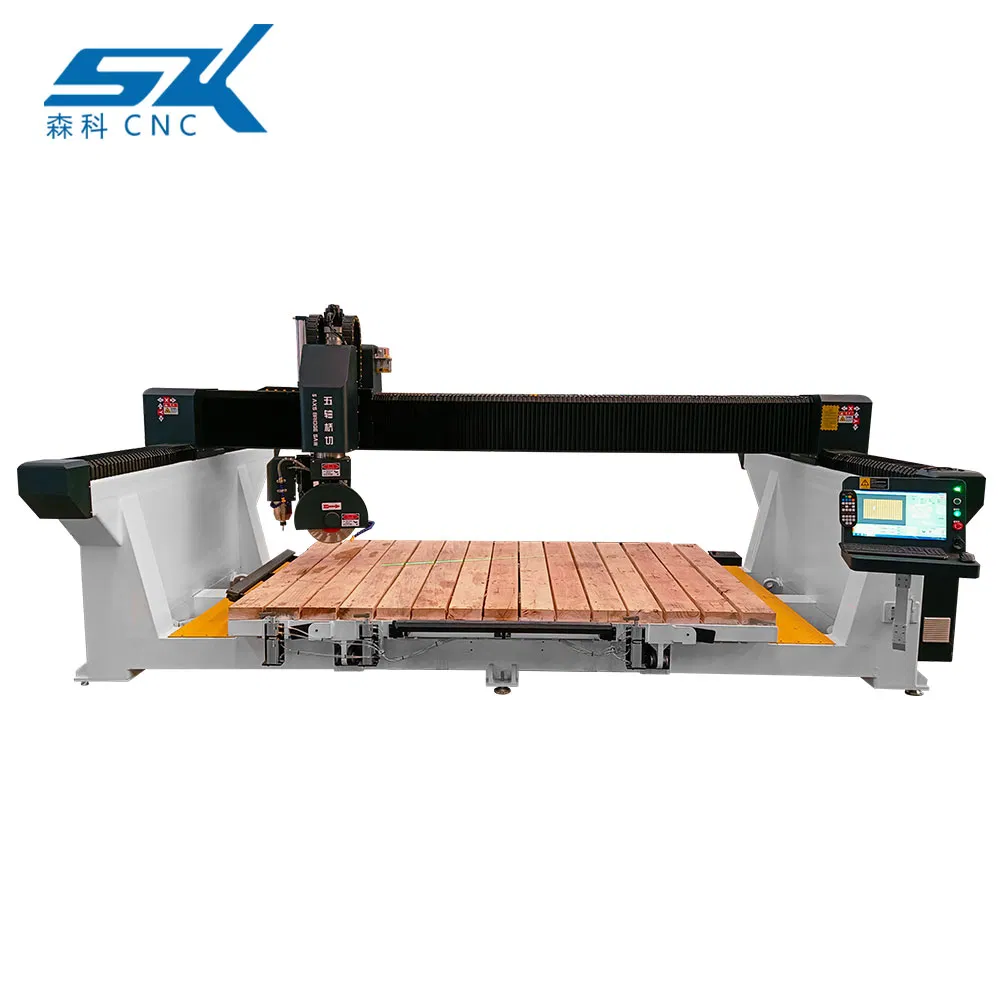

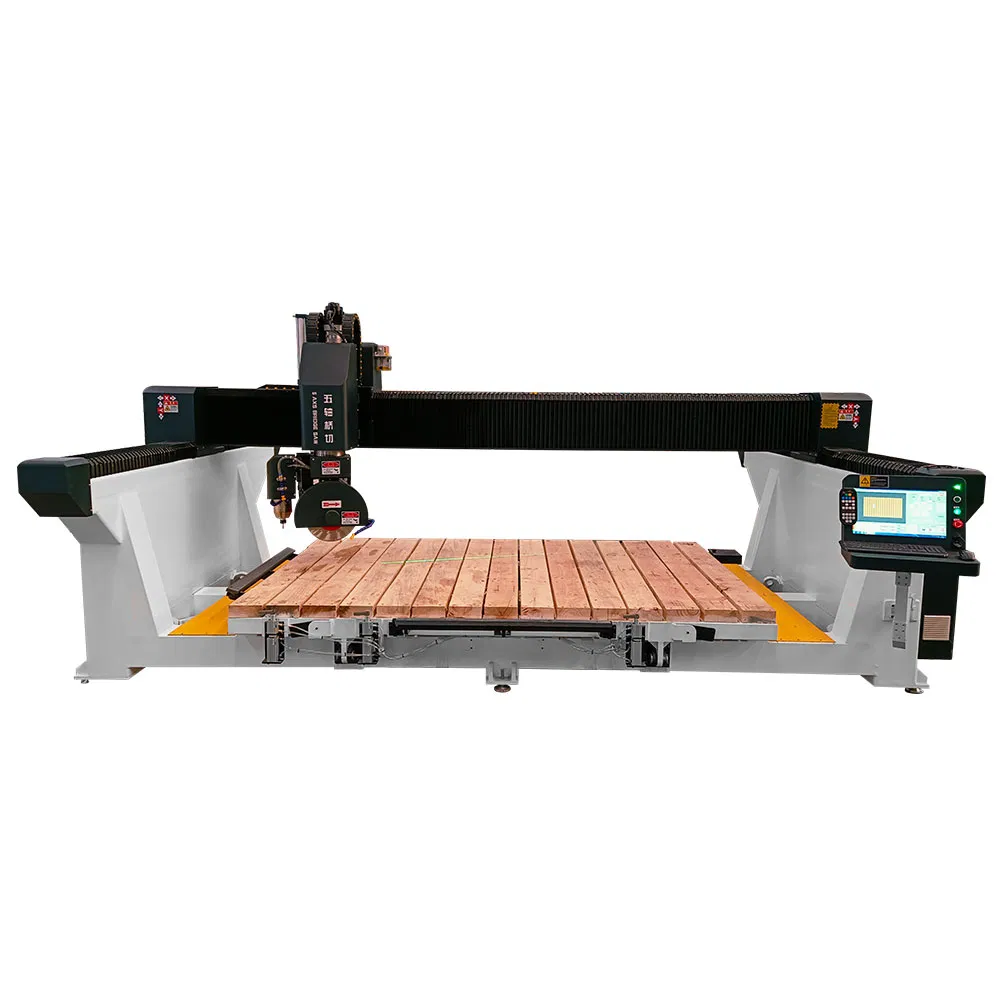

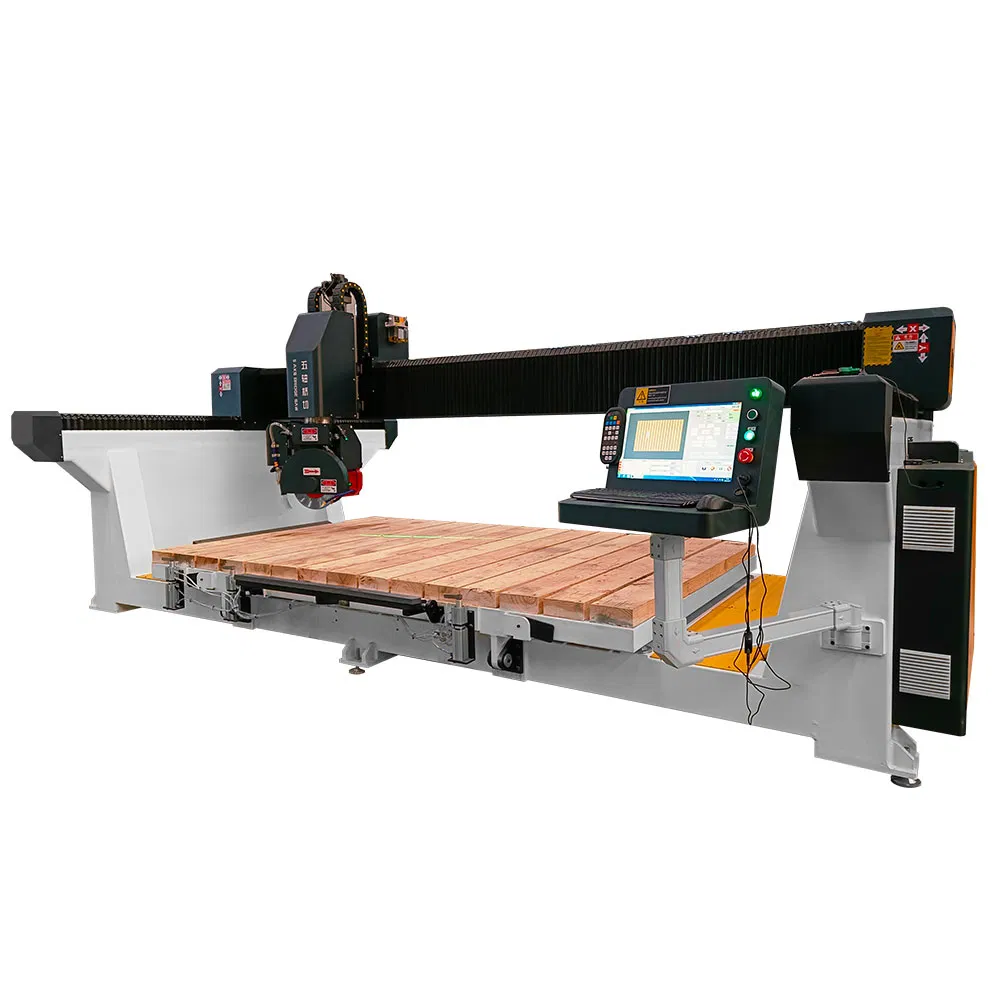

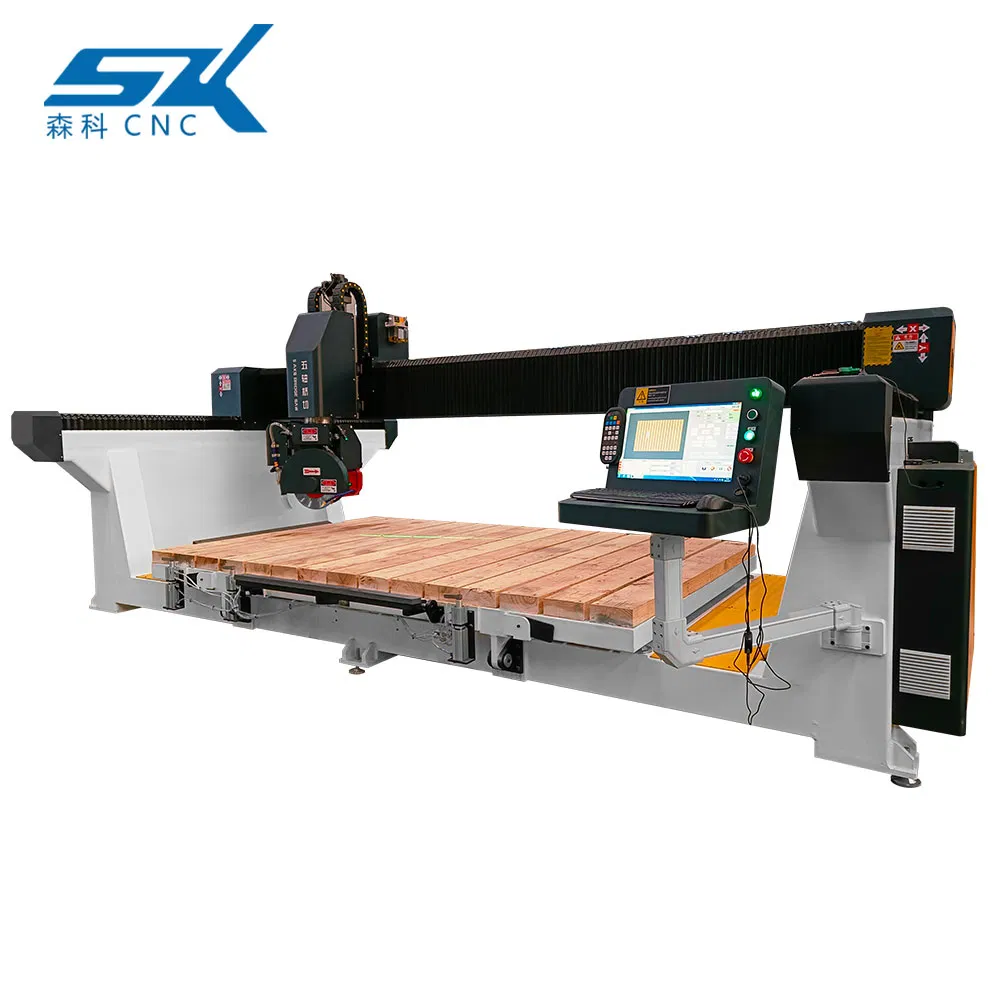

5 Axis 3D Profiling Granite Stone Bridge Saw 5 Axis CNC Monoblock Bridge Saw Cut No Chips Cutting Machine
5 Axis 3D Profiling Granite Stone Bridge Saw 5 Axis CNC Monoblock Bridge Saw Cut No Chips Cutting Machine
5 Axis 3D Profiling Granite Stone Bridge Saw 5 Axis CNC Monoblock Bridge Saw Cut No Chips Cutting Machine
5 Axis 3D Profiling Granite Stone Bridge Saw 5 Axis CNC Monoblock Bridge Saw Cut No Chips Cutting Machine
5 Axis 3D Profiling Granite Stone Bridge Saw 5 Axis CNC Monoblock Bridge Saw Cut No Chips Cutting Machine
1 / 5
5 Axis 3D Profiling Granite Stone Bridge Saw 5 Axis CNC Monoblock Bridge Saw Cut No Chips Cutting Machine
5 Axis 3D Profiling Granite Stone Bridge Saw 5 Axis CNC Monoblock Bridge Saw Cut No Chips Cutting Machine
5 Axis 3D Profiling Granite Stone Bridge Saw 5 Axis CNC Monoblock Bridge Saw Cut No Chips Cutting Machine
5 Axis 3D Profiling Granite Stone Bridge Saw 5 Axis CNC Monoblock Bridge Saw Cut No Chips Cutting Machine
5 Axis 3D Profiling Granite Stone Bridge Saw 5 Axis CNC Monoblock Bridge Saw Cut No Chips Cutting Machine

5 Axis 3D Profiling Granite Stone Bridge Saw 5 Axis CNC Monoblock Bridge Saw Cut No Chips Cutting Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.SKS-3220-5 AXIS
UsageCeramics, Jadestone, Granite, Marble
ApplicationMachinery & Hardware, Construction, Stone Industry
Source Voltage380V
AutomationAutomatic
Cutting AbilityHigh Speed
ControlCNC
CertificationISO, CE
Head Tilting0 to 90 Degree
Head Rotation0 to 360 Degree
Spindle Motor15kw
Guide RailLinear Guide
Capacity200sets/Month
HS Code84641010

Product Introduction

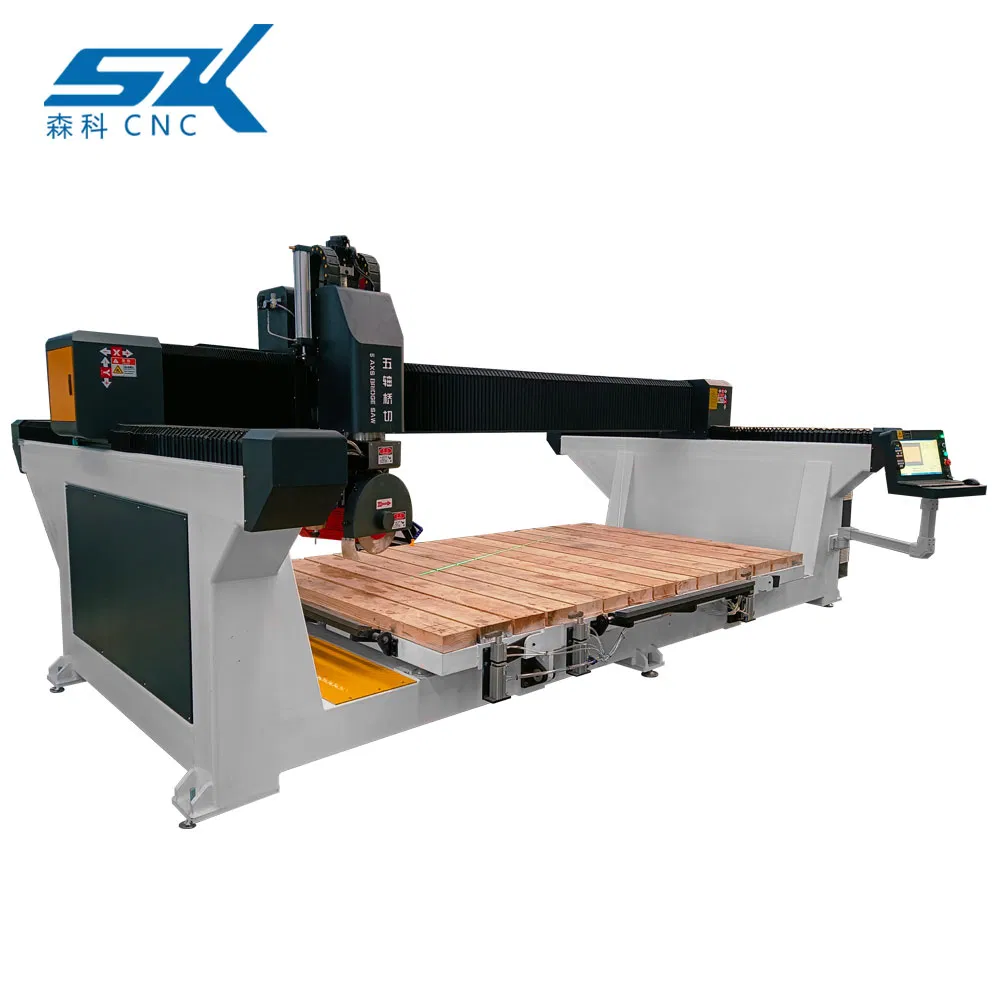

5 Axis 3D Profiling Granite Stone Bridge Saw - CNC Monoblock Precision Cutting

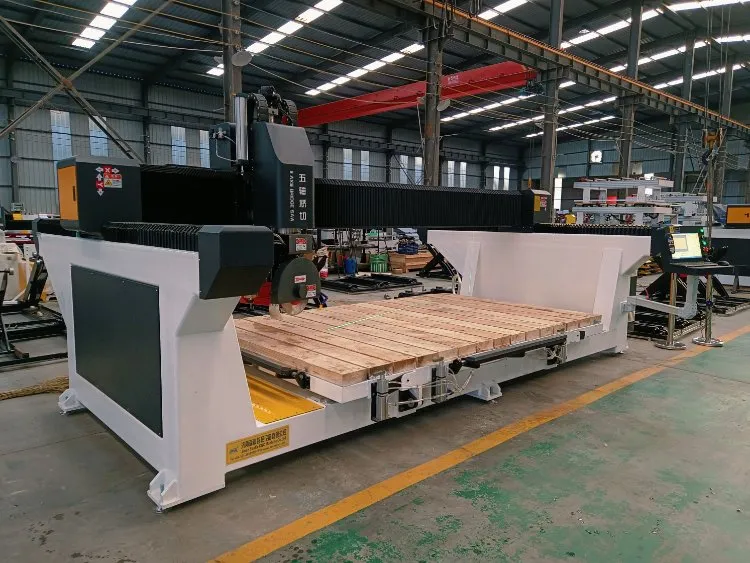

5 Axis CNC Stone Bridge Saw

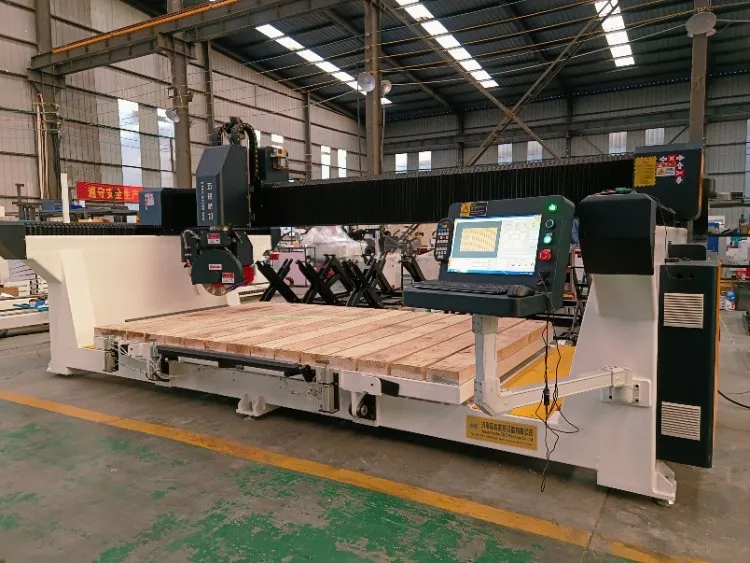

5 Axis Monoblock Bridge Saw

🚀 Main Features:

The 5-axis bridge saw stone cutting machine is a state-of-the-art equipment designed for precise and efficient cutting of stone materials. With its advanced 5-axis technology, this machine offers enhanced versatility and accuracy in stone cutting applications.

  • Sturdy Structure: Equipped with a sturdy bridge structure that ensures stability and rigidity during the cutting process.
  • Multidimensional Movement: Features five axes of movement (X, Y, Z, and two rotational axes) for complex and intricate cuts.
  • Smart Interface: Controlled by a user-friendly interface to set precise speed, depth, and angle parameters.
  • High-Speed Blade: Equipped with a high-speed diamond blade synchronized with axes movement to prevent chipping.
  • Safety First: Includes emergency stop buttons, protective barriers, and sensors for automatic halting.

Technical Parameters

Machine Specification Details
Working area3200*2000mm / 3100x2100mm
Voltage380V Three phase 50/60hz
Spindle7.5kw water cold spindle
Motor power11kw
Rotate of working platform0-80 degree
Motor1500w servo and drive
Guide railImported high precision 30mm linear guide
ReducerJapan Shimpo high precision reducer
Blade diameter350-450mm (Support bevel 45 degree cutting)
Maximum cutting thickness80mm
Lubrication systemAuto Lubrication
Infrared rayEquipped with laser infrared probe
Water cooling systemSpecial water circulating system
Weight (N.W./G.W.)4500KG / 4800KG

Working Samples & Performance

Stone Cutting Performance

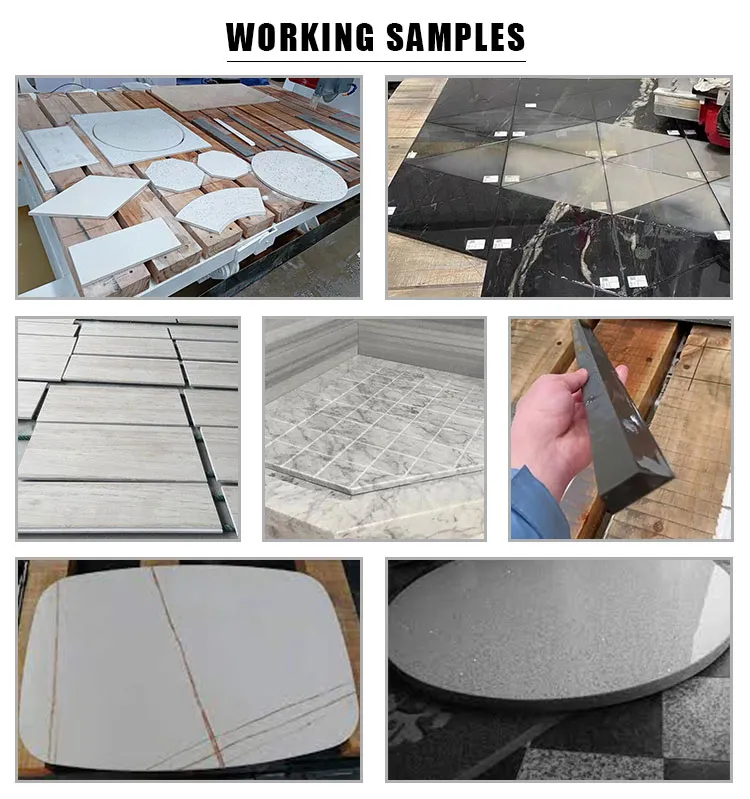

CNC Working Samples

Quality Assurance

Product Certificates

Packing and Transport

  • Outside Package: Standard export free fumigation wooden box.
  • Inner package: Moisture-proof and rust-proof elastic plastic film packaging.
  • Customized Service: Packaging can be adjusted based on specific customer requests.
Packaging Details

Frequently Asked Questions

1. Are you a factory or trading company? We are a professional manufacturer with an export license, focusing on high-quality CNC equipment development.
2. Can you provide OEM services? Yes, we can produce OEM products tailored to your specific industrial requirements.
3. How is the quality control managed in your facility? Quality is our priority. We implement strict quality control from raw materials to final testing, with a dedicated department checking each process.
4. What kind of CNC machines do you offer? We specialize in professional wood, marble, metal, and foam CNC routers, as well as laser cutting and marking machines.
5. Which materials can your machines process? Our machines are suitable for a wide range of materials including granite, marble, aluminum, brass, wood, PVC, glass, and tiles.
6. How should I choose the right model for my needs? Different models suit different tasks. Tell us your material type, size, and the primary job required, and our engineers will provide the best solution.
