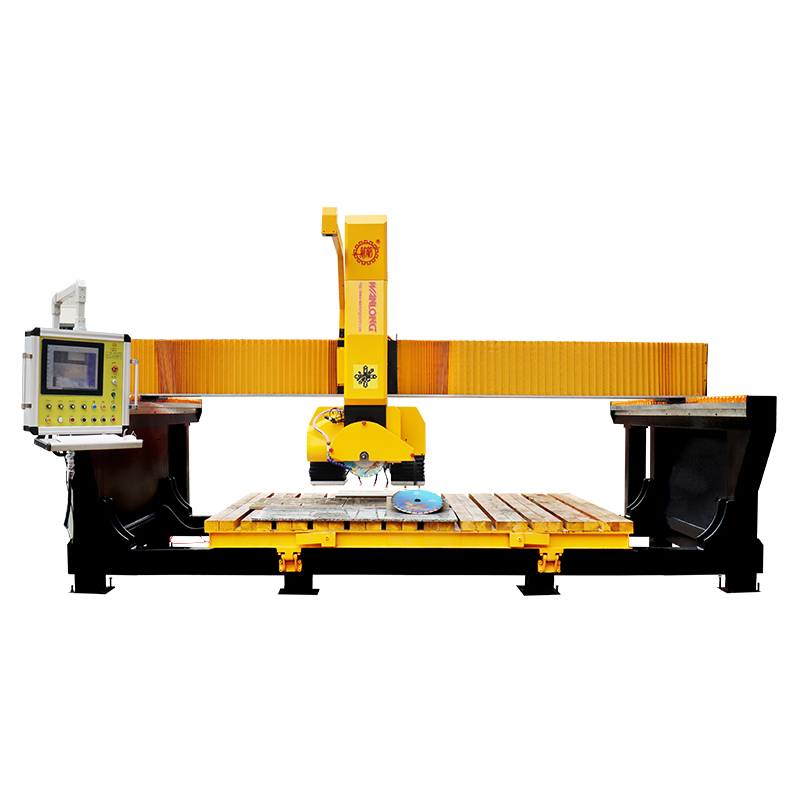

TitanPro Cutting
TitanPro Cutting

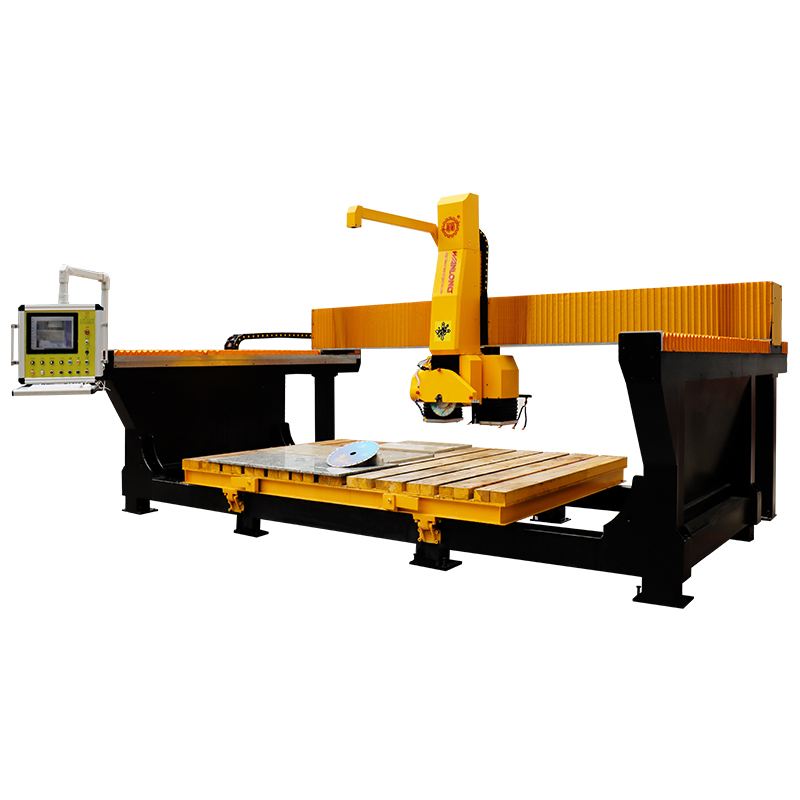

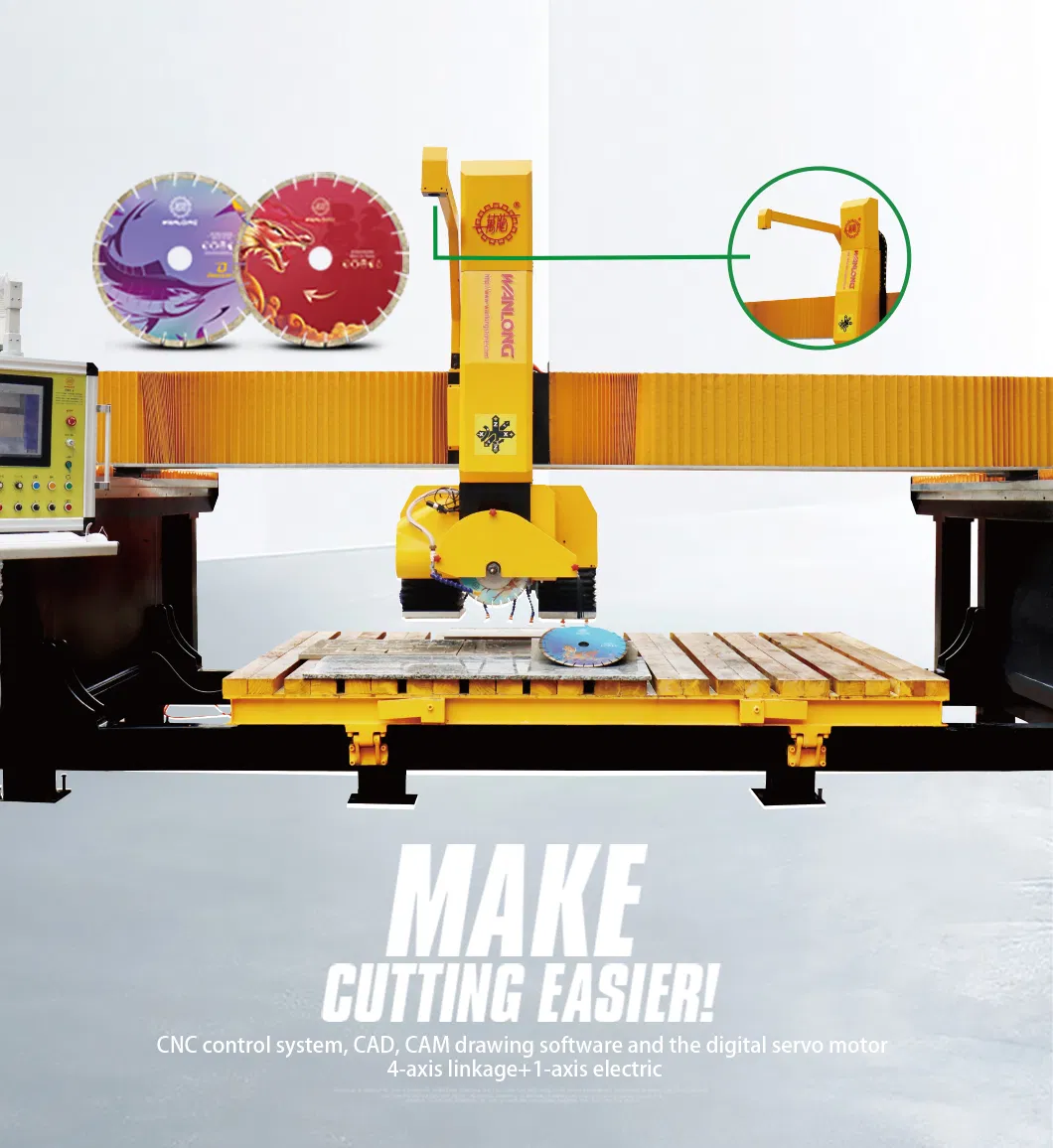

The machine is under computerized control, under the touch operating interface, and is equipped with wireless remote control, enabling the man-machine dialogue to be flexible and free. The main control components all use international famous brand components, cross frame oil diffuse type double V track, transverse knife adopts stepless frequency conversion speed regulation, longitudinal splitter adopts linear guide rail and high precision magnetic ruler count, to ensure the machine work stable and stable precision. The integration of fuselage and workbench base not only facilitates the installation and transportation of users, but also ensures the stability of the machine.
| Model | Unit | WLCNC-500 |
|---|---|---|
| Diameter of blade | mm | 700 |
| Dimension of working platform | mm | 3200*200 |
| Power of main motor | kw | 18.5 |
| Power of tool slide reciprocating motor | kw | 1.5 |
| Power of crossbeam shifting motor | kw | 1.5 |
| Power of hydraulic station motor | kw | 2.2 |
| Power of elevator motor | kw | 2 |
| Overall dimension (LxWxH) | cm | 5700*3300*3100 |
| Gross weight | kg | 5400 |
| Water consumption | m³/h | 4 |
