Basic Information
Model NO.
HTQ500GL HTQ700GL
Type
Stone Cutting Machine
Application
Machinery & Hardware, Stone Industry
Cutting Ability
High Speed
Product Description

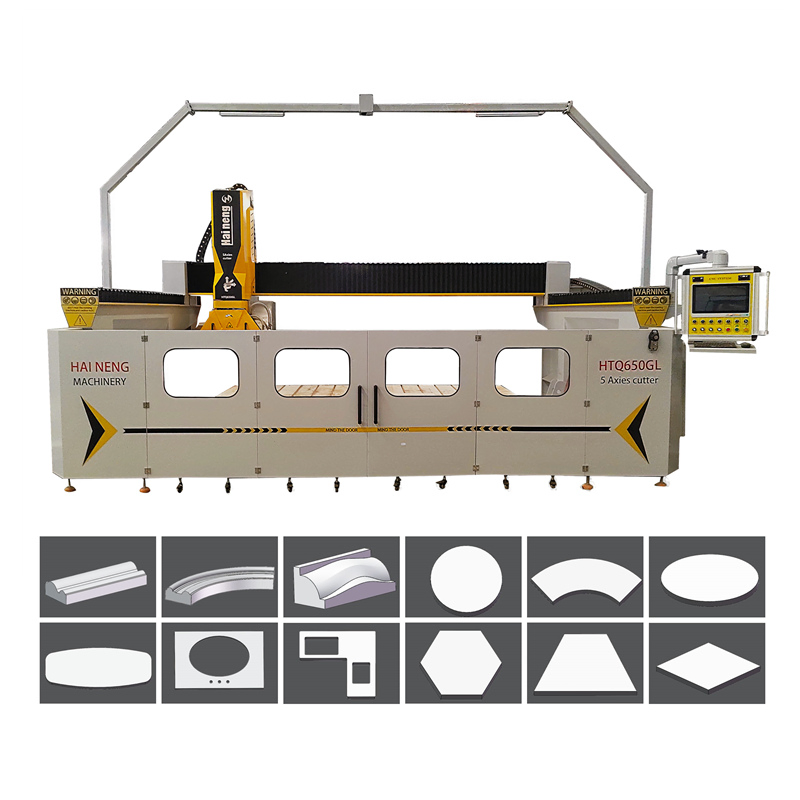

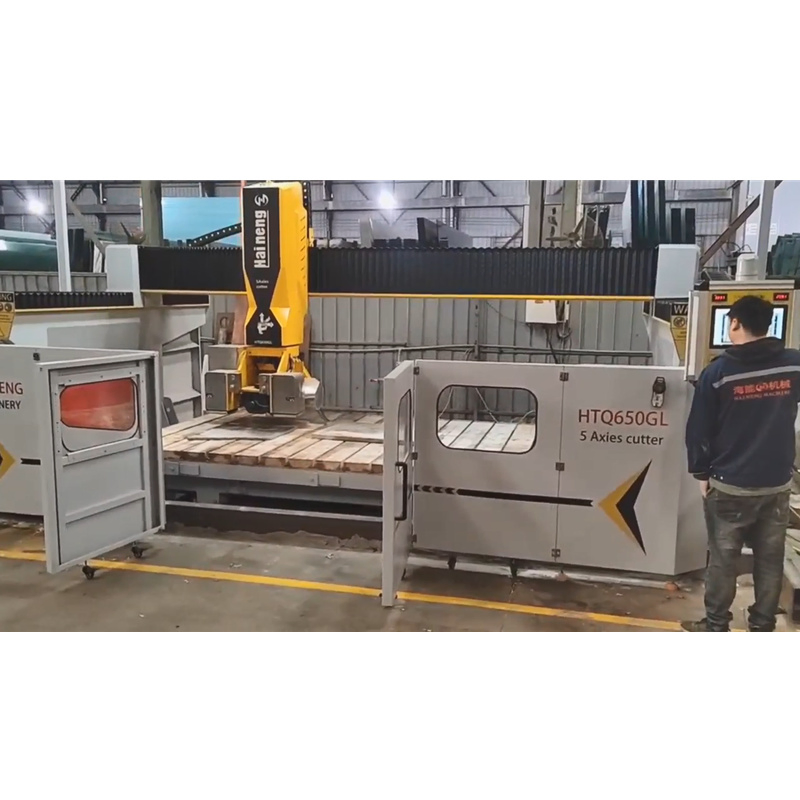

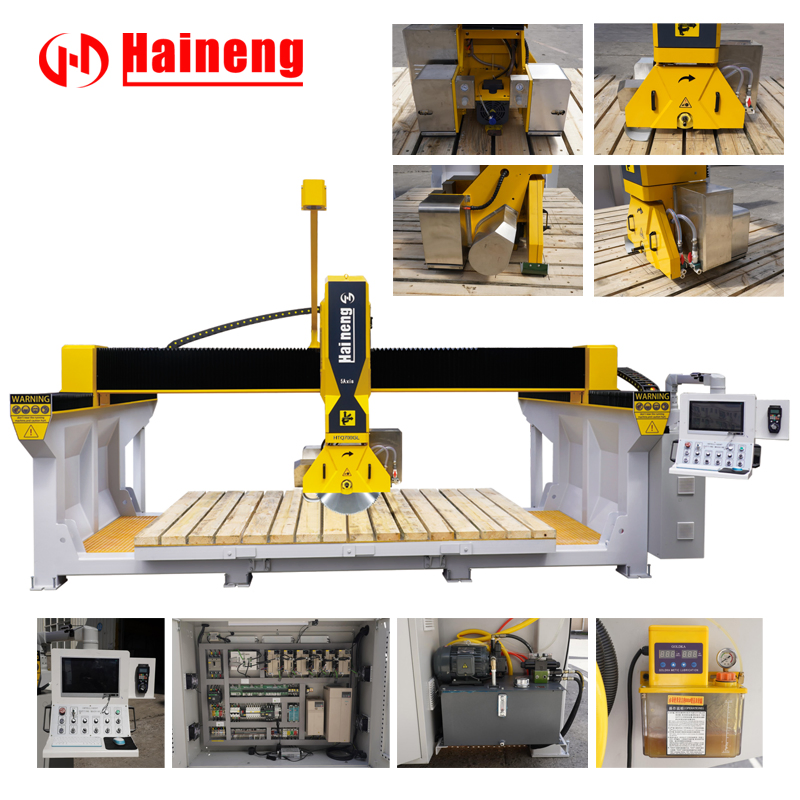

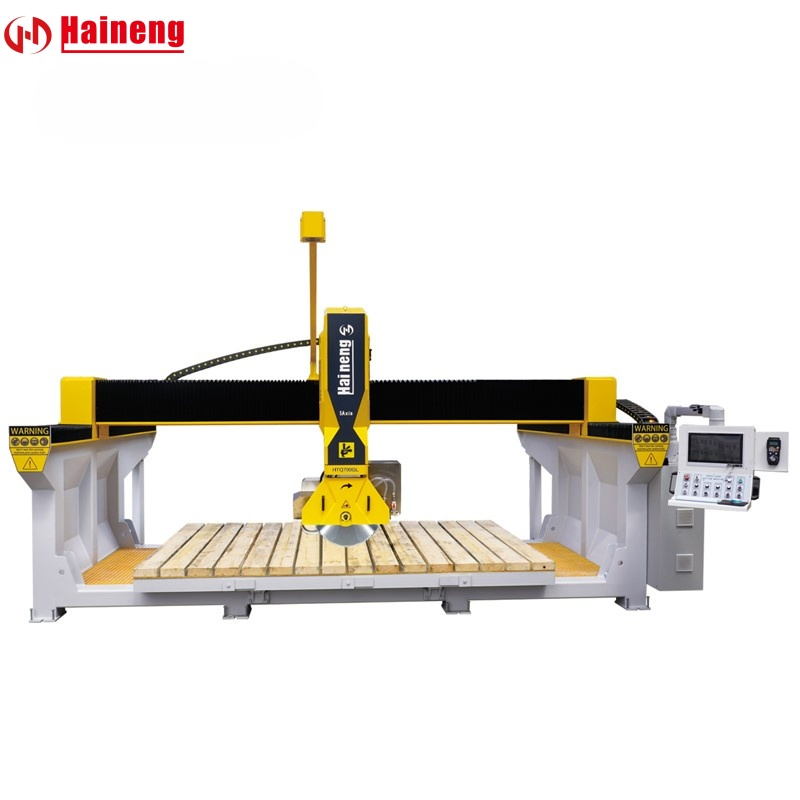

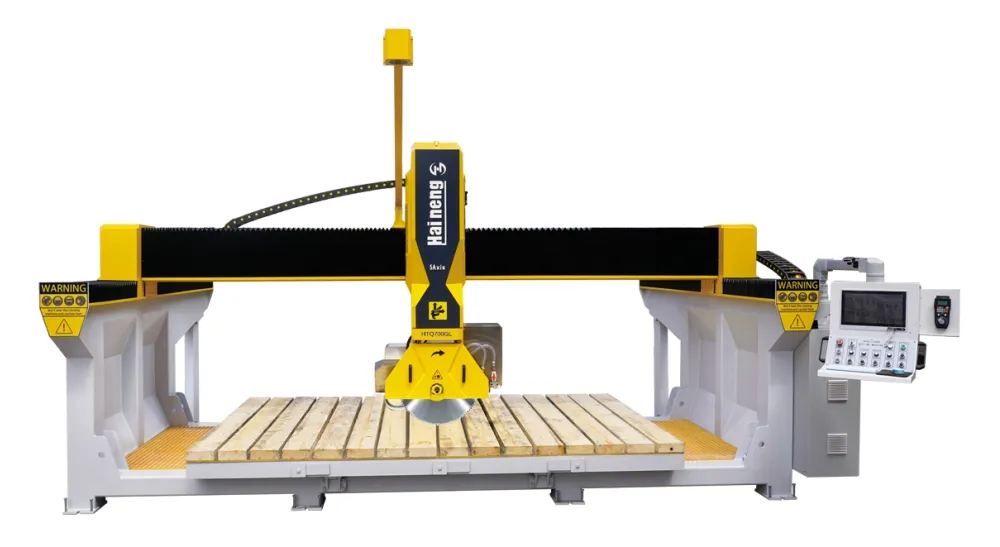

Multi Function CNC 5 Axis Bridge Saw is designed for processing slabs, tiles, marble, artificial stone, granite, and cement products. It is ideal for special-shaped edge cutting and multi-function processing in deep processing factories.
- Versatile Cutting: Supports chamfering, round cutting, oval, horse's belly edge shapes, polygons, and complex contours.
- Adjustable Angle: Saw blade and workbench angle adjustment between 0-90 degrees.

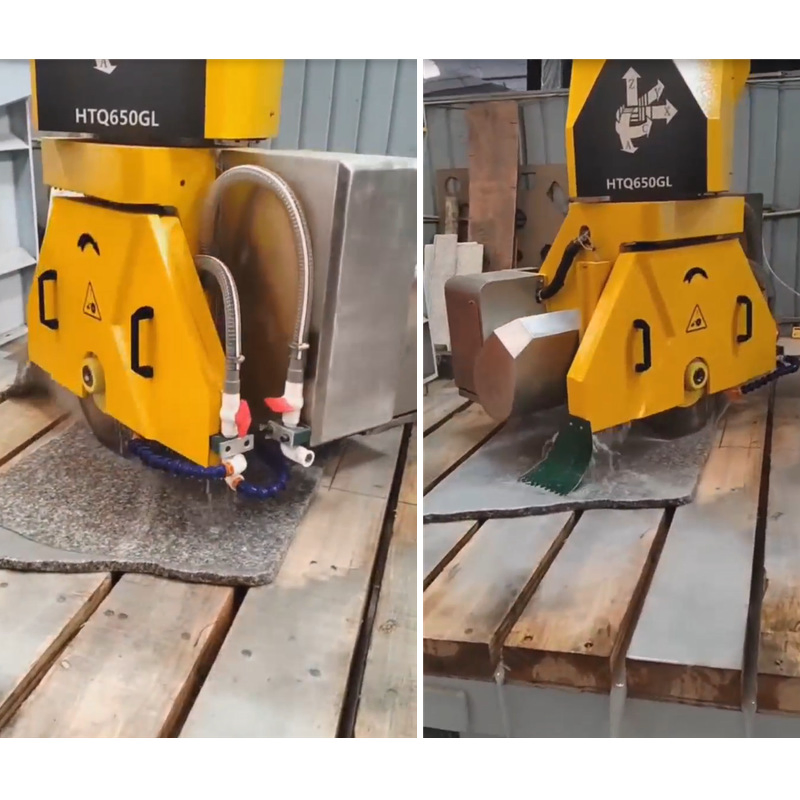

- High Speed Performance: Equipped with a water-cooled motor reaching speeds of 6000 RPM for smooth, neat edges.
- Intelligent Control: Simple touch interface where 2D/3D data automatically generates graphics for one-key processing.
- Rigid Structure: Integral rigid welding structure ensures stability, durability, and easy installation.
Product Parameters
| Specification Item |
Unit |
HTQ500GL |
HTQ700GL |
| Blade Diameter | mm | 350-500 | 350-700 |
| Mode of Control | - | CNC | CNC |
| Programming Method | - | CAD Import | CAD Import |
| Main Motor Power | kw | 18.5 | 22 |
| Spindle Speed | RPM | 0-6000 | 0-6000 |
| Stroke of X axis | mm | 3800 | 3800 |
| Stroke of Y axis | mm | 2400 | 2400 |
| Stroke of Z axis | mm | 350 | 500 |
| Stroke of C axis | n° | 0-360° | 0-360° |
| Stroke of A axis | n° | 0-90° | 0-90° |
| Max Table Tilt | n° | 0-85° | 0-85° |
| Gross Weight | kg | 4800 | 5000 |

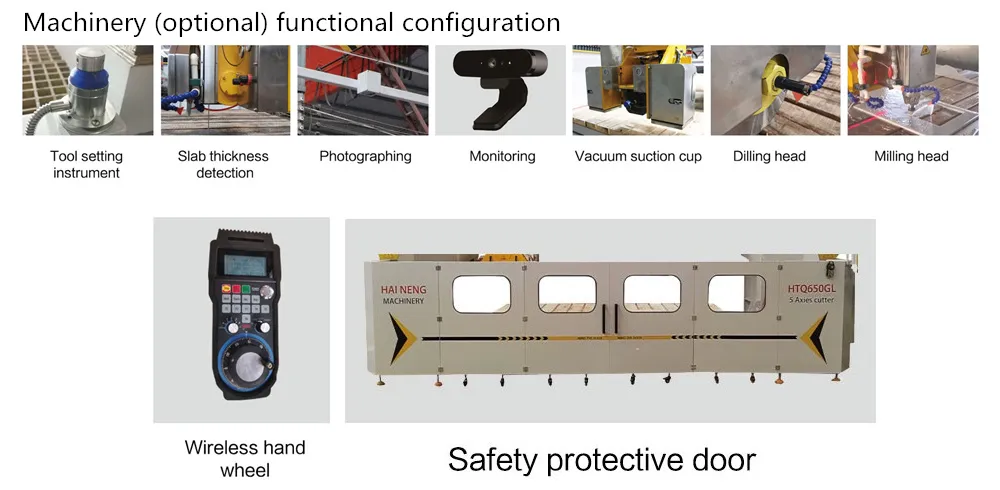

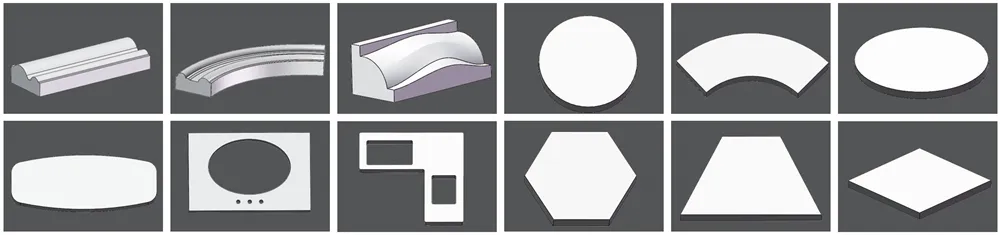

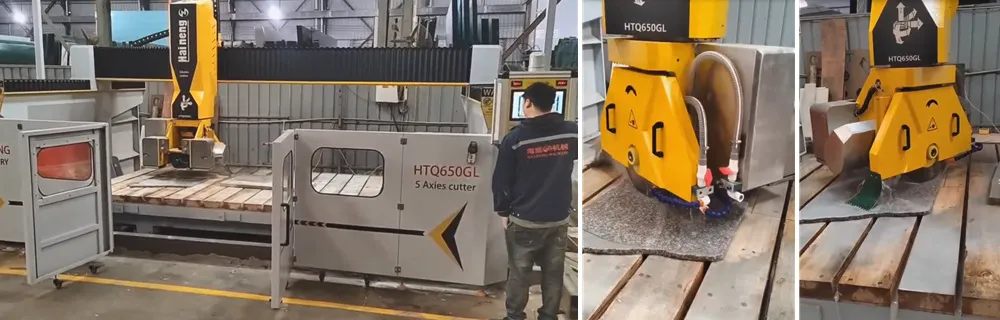

Processing Capabilities
Partial Control Elements
Quality Assurance & Global Reach
After Sales Service
- Parts & Accessories: Quick supply for all maintenance needs.
- Technical Support: Troubleshooting provided via phone, e-mail, or instant messaging apps.
- Documentation: Full product manuals available in both paper and electronic formats.
Frequently Asked Questions (FAQ)
Q: What is the Minimum Order Quantity (MOQ)?
A: The MOQ is 1 set.
Q: How do you ensure the machine quality?
A: We are professional manufacturers with over 20 years of experience. Our machines are exported to over 85 countries, including the USA, Brazil, and Russia, meeting high international standards.
Q: What is the warranty period for this CNC bridge saw?
A: The whole machine is guaranteed for one year, covering both electrical components and mechanical parts.
Q: Can the machine be customized to specific requirements?
A: Yes, customization is available. Our engineering team has over 25 years of design experience to tailor machines for diverse customer needs.
Q: Is technical training provided for the CNC system?
A: Yes, we provide comprehensive manuals and remote technical guidance to ensure your operators can handle the intelligent interface efficiently.
Q: What materials can this 5-axis machine cut?
A: It is suitable for granite, marble, artificial stone, tiles, cement products, and other building materials.
