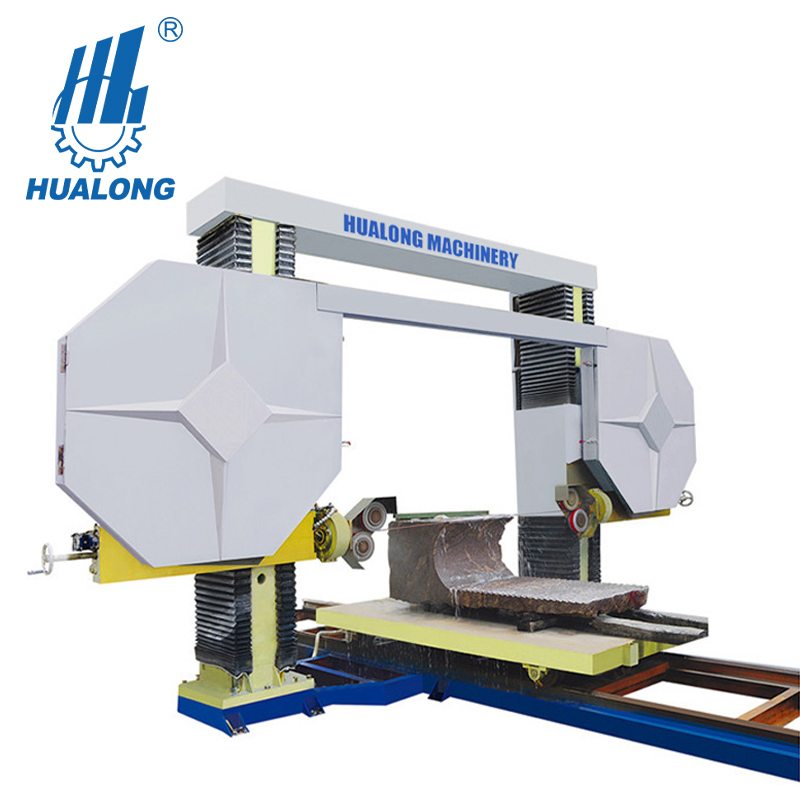

2026 5 Axis CNC Quarry Mining Block Cutter Stone Shaping Profiling Cutting Machine with Wire Rope
2026 5 Axis CNC Quarry Mining Block Cutter Stone Shaping Profiling Cutting Machine with Wire Rope
2026 5 Axis CNC Quarry Mining Block Cutter Stone Shaping Profiling Cutting Machine with Wire Rope
2026 5 Axis CNC Quarry Mining Block Cutter Stone Shaping Profiling Cutting Machine with Wire Rope
2026 5 Axis CNC Quarry Mining Block Cutter Stone Shaping Profiling Cutting Machine with Wire Rope
1 / 5
2026 5 Axis CNC Quarry Mining Block Cutter Stone Shaping Profiling Cutting Machine with Wire Rope
2026 5 Axis CNC Quarry Mining Block Cutter Stone Shaping Profiling Cutting Machine with Wire Rope
2026 5 Axis CNC Quarry Mining Block Cutter Stone Shaping Profiling Cutting Machine with Wire Rope
2026 5 Axis CNC Quarry Mining Block Cutter Stone Shaping Profiling Cutting Machine with Wire Rope
2026 5 Axis CNC Quarry Mining Block Cutter Stone Shaping Profiling Cutting Machine with Wire Rope

2026 5 Axis CNC Quarry Mining Block Cutter Stone Shaping Profiling Cutting Machine with Wire Rope

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.HLSJ-2000
TypeStone Profiling Machine
ConditionNew
Max Cutting Thickness1500mm
Power11kw
Key Selling PointsAutomatic
Core ComponentsMotor, Bearing, Gear
Weight6800kgs
Dimensions6000*7000*4000mm
Production Capacity50 Sets Per Month
💎

Product Description

CNC Diamond Wire Cutting Machine HLSJ-2000 adopts advanced CNC control with four-axis linkage. This machinery is designed to process stones of various specifications into complex shapes, including circular arc boards, solid and hollow columns, Roman columns, large-scale solid lines, letters, and more.

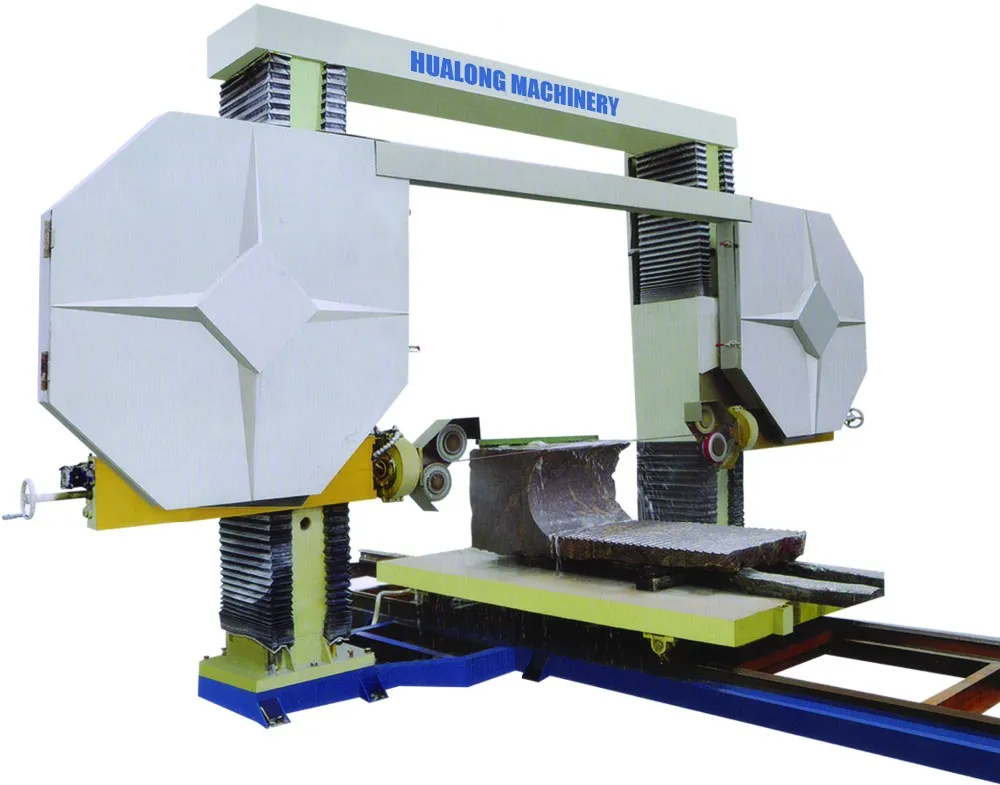

CNC Wire Cutting Machine

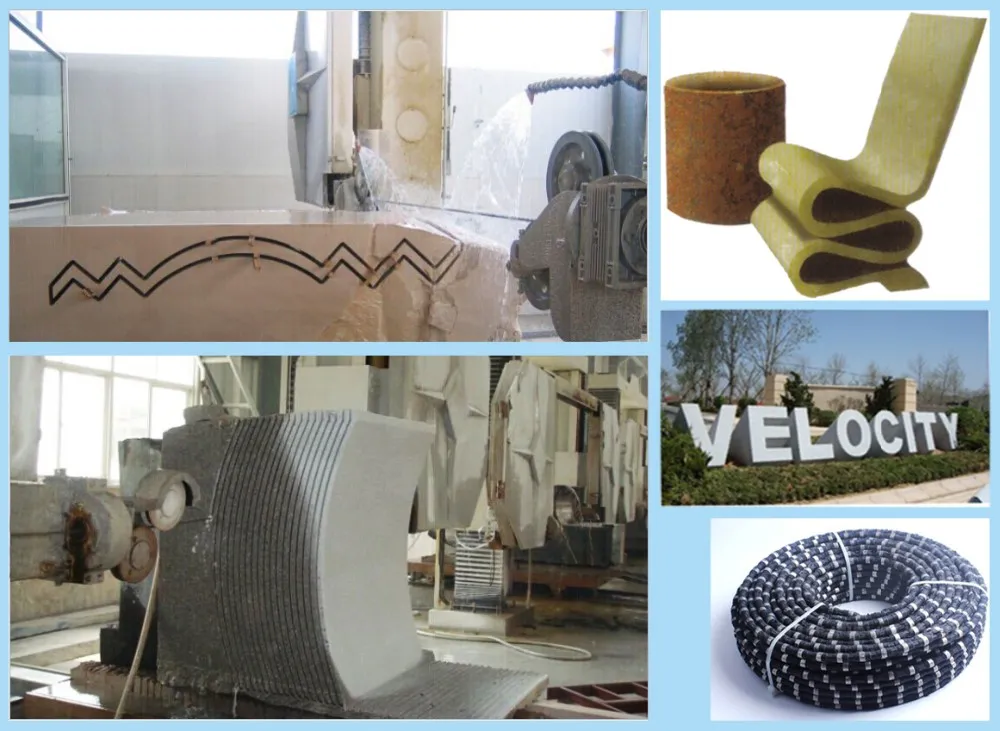

Stone Profiling Machine
Technical Data for HLSJ-2000
Diameter of wiremm8-10
Length of wiremm15100
Power of main motorkw11
Max. processing sizemm2000 x 2000 x 1500
Cutting linear speedm/s25-45
Water consumptionm3/h2
Gross weightkg6800
🚀

Main Features

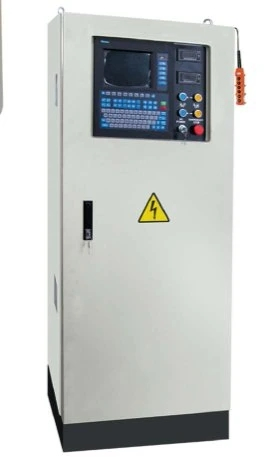

  • Equipped with a CNC system for an easy and flexible man-machine interface.
  • Flywheels tension utilizes a stable, constant stretch mode to enhance cutting accuracy.
  • Capable of processing diverse and complex 2-dimensional surfaces.
  • Adjustable cutting speed to meet different material requirements.
  • High efficiency processing ensures exact sizing with sleek, flattened margins.

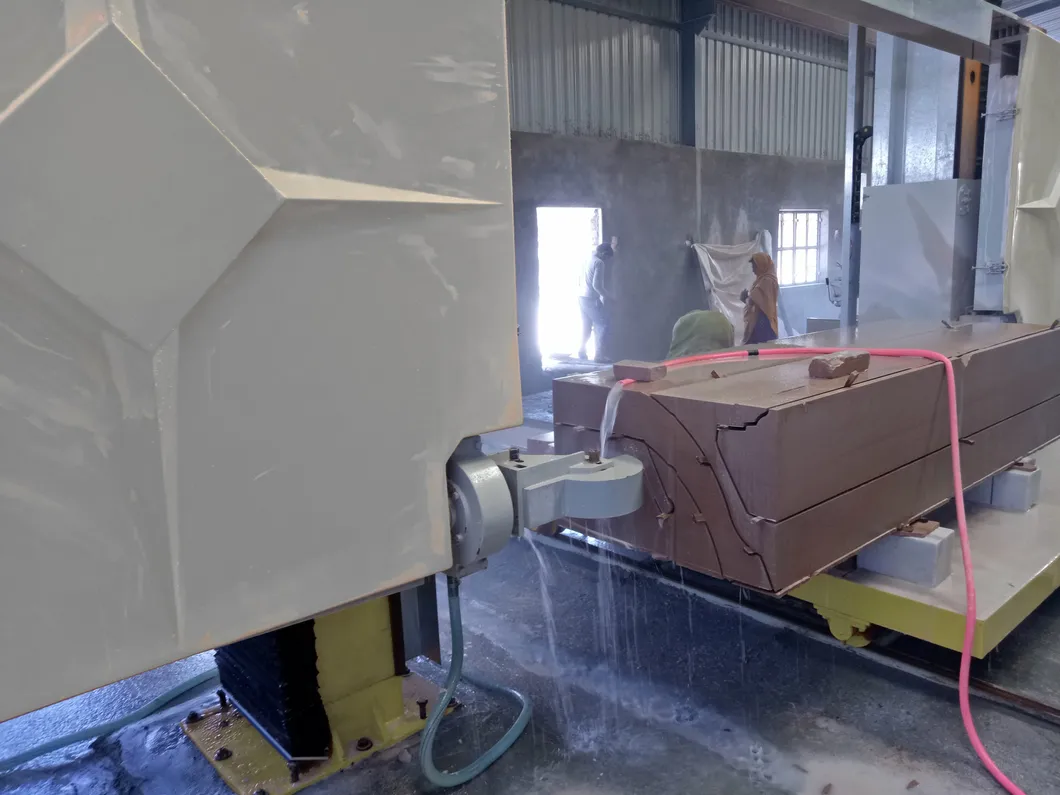

Machine Detail 1

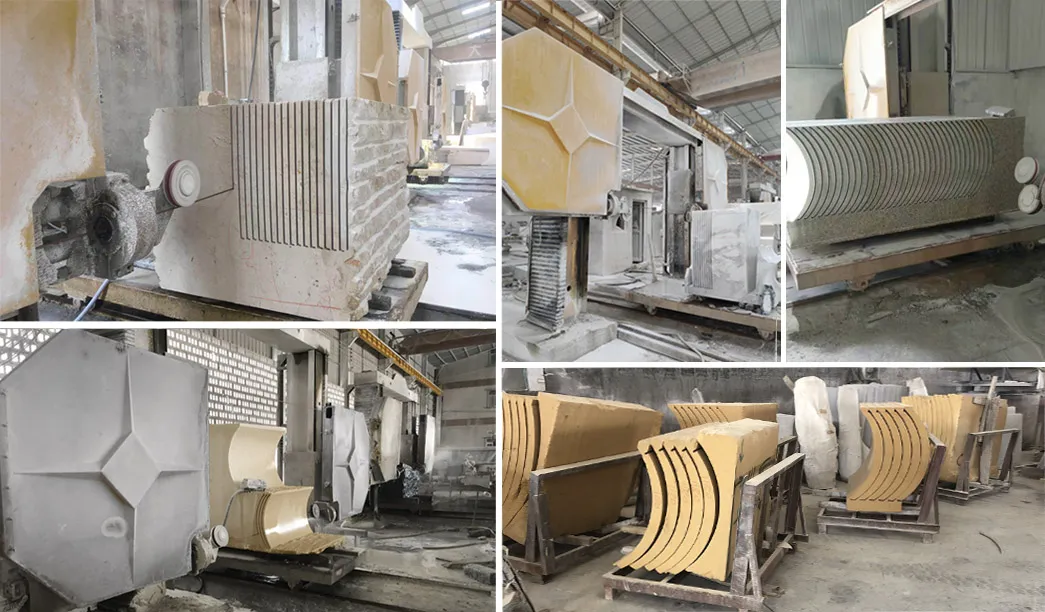

Machine Detail 2

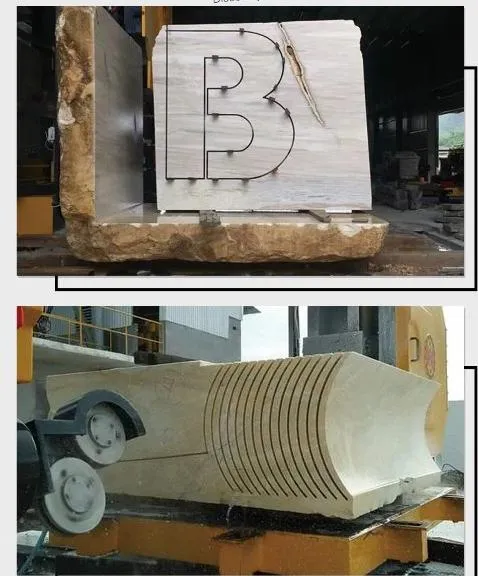

Machine Detail 3
🛠️

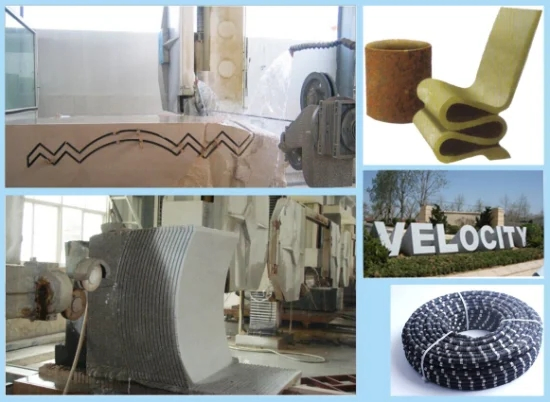

Application & Samples

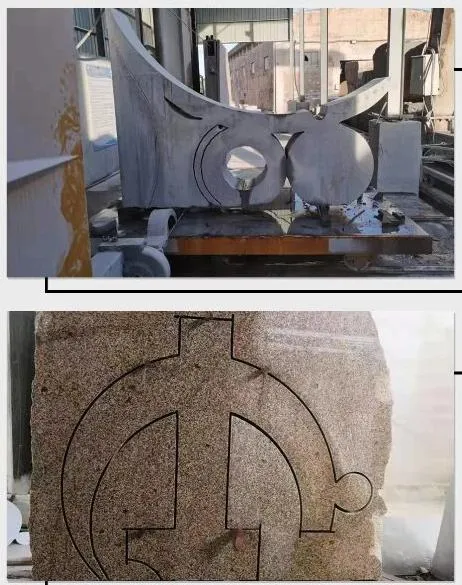

Sample 1
Sample 2
Sample 3
Machine Layout
Technical Drawing
Full Machine View
🤝

Professional Service

Pre-Sales Service

• Inquiry and consulting support.

• Sample testing support.

After-Sales Service

• Comprehensive training on machine installation and operation.

• Engineers available to service machinery overseas.

Frequently Asked Questions (FAQ)

Q1: What types of stone shapes can the HLSJ-2000 process? A: It can process complex shapes including circular arc boards, hollow and solid columns, Roman columns, large letters, and various 2D surfaces.
Q2: What is the maximum processing size of this machine? A: The maximum processing dimension is 2000 x 2000 x 1500 mm.
Q3: How does the machine ensure cutting accuracy? A: It uses a specialized flywheel tensioning system with a constant stretch mode and a high-precision CNC four-axis linkage system.
Q4: Is the cutting speed adjustable? A: Yes, the cutting linear speed is adjustable between 25 and 45 m/s to suit different stone types and thicknesses.
Q5: What support is available for international customers? A: We provide overseas engineer support for machine servicing and comprehensive training for your operators on installation and usage.
Q6: What are the core components of the machine? A: The machine is built with high-quality core components including the motor, bearings, and high-durability gears.
