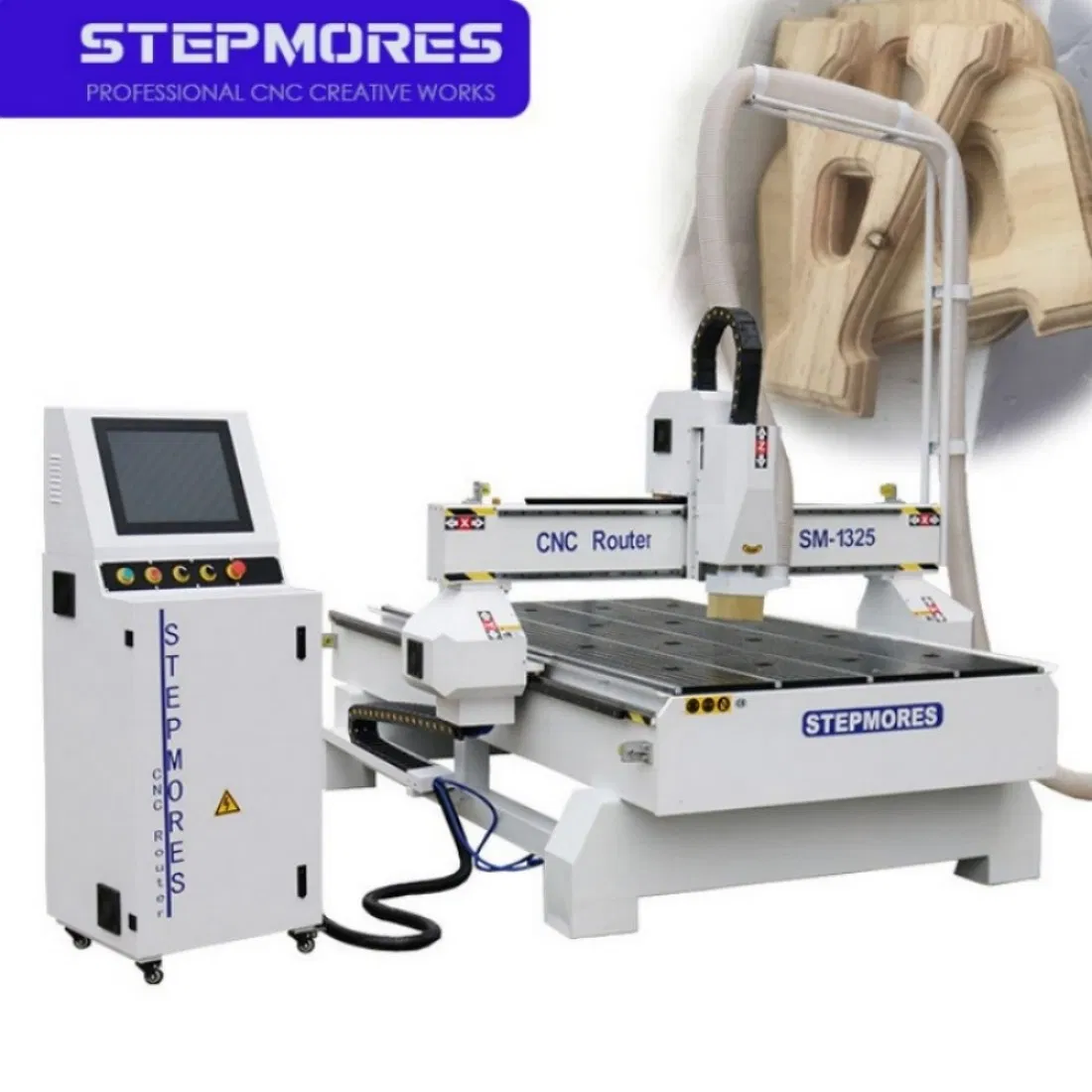

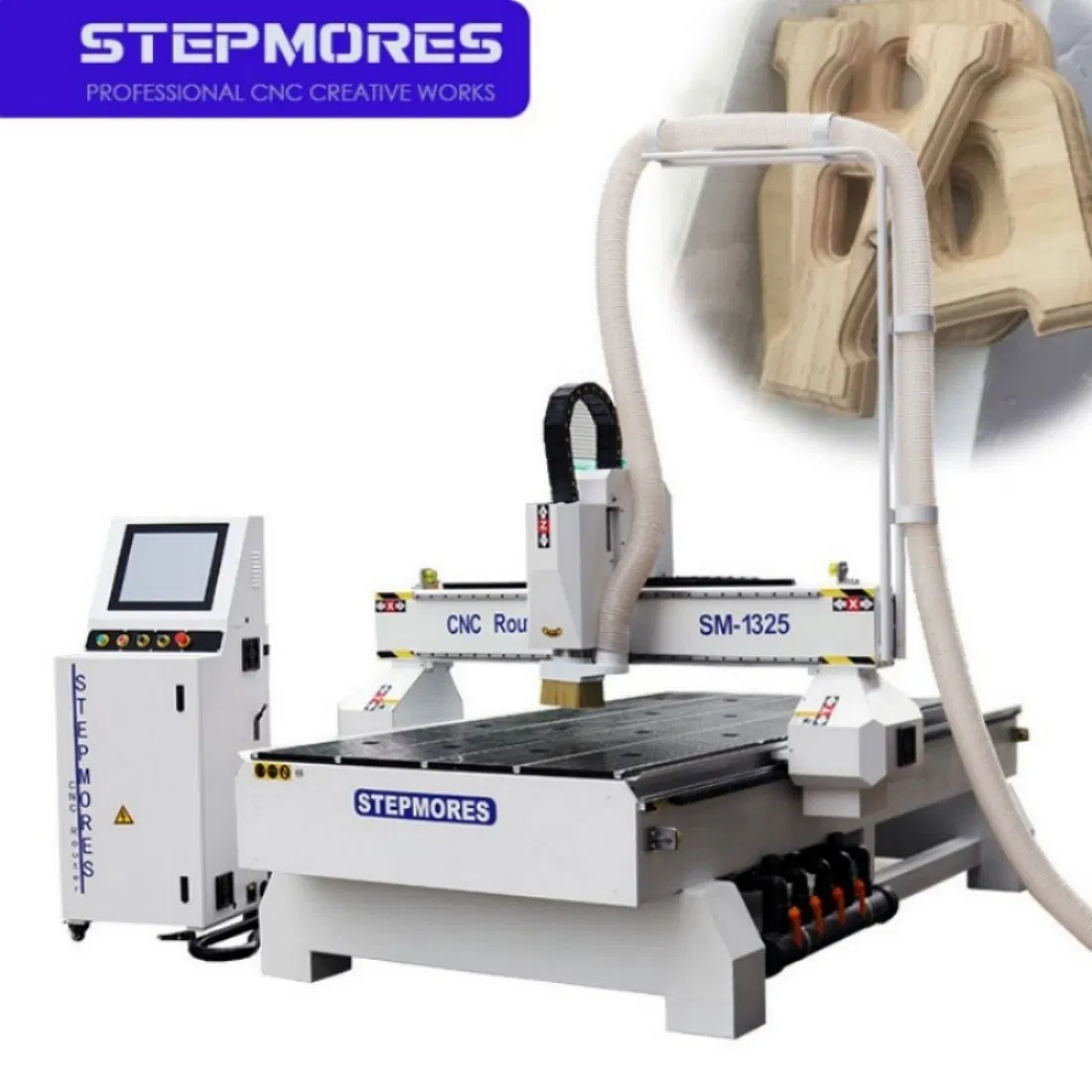

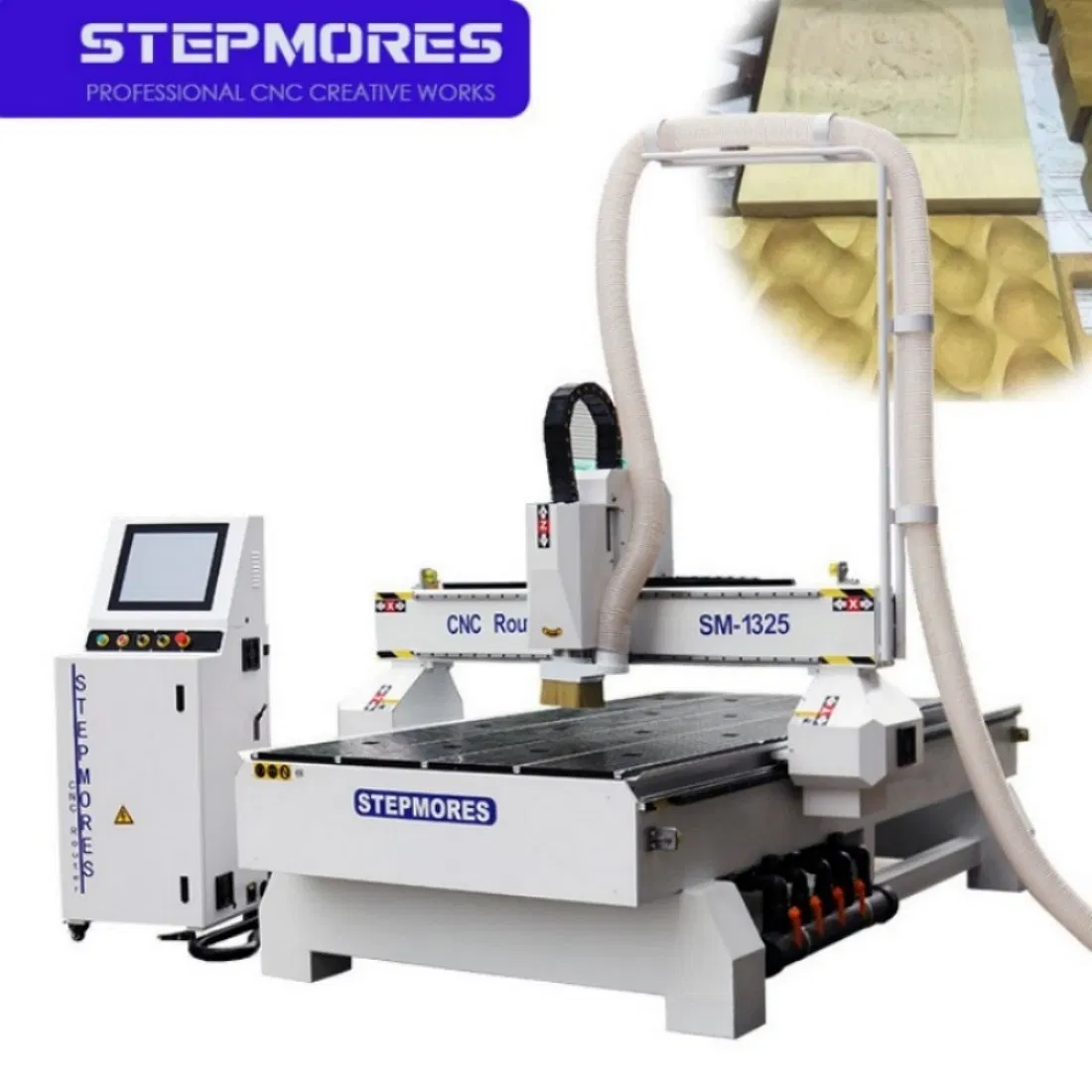

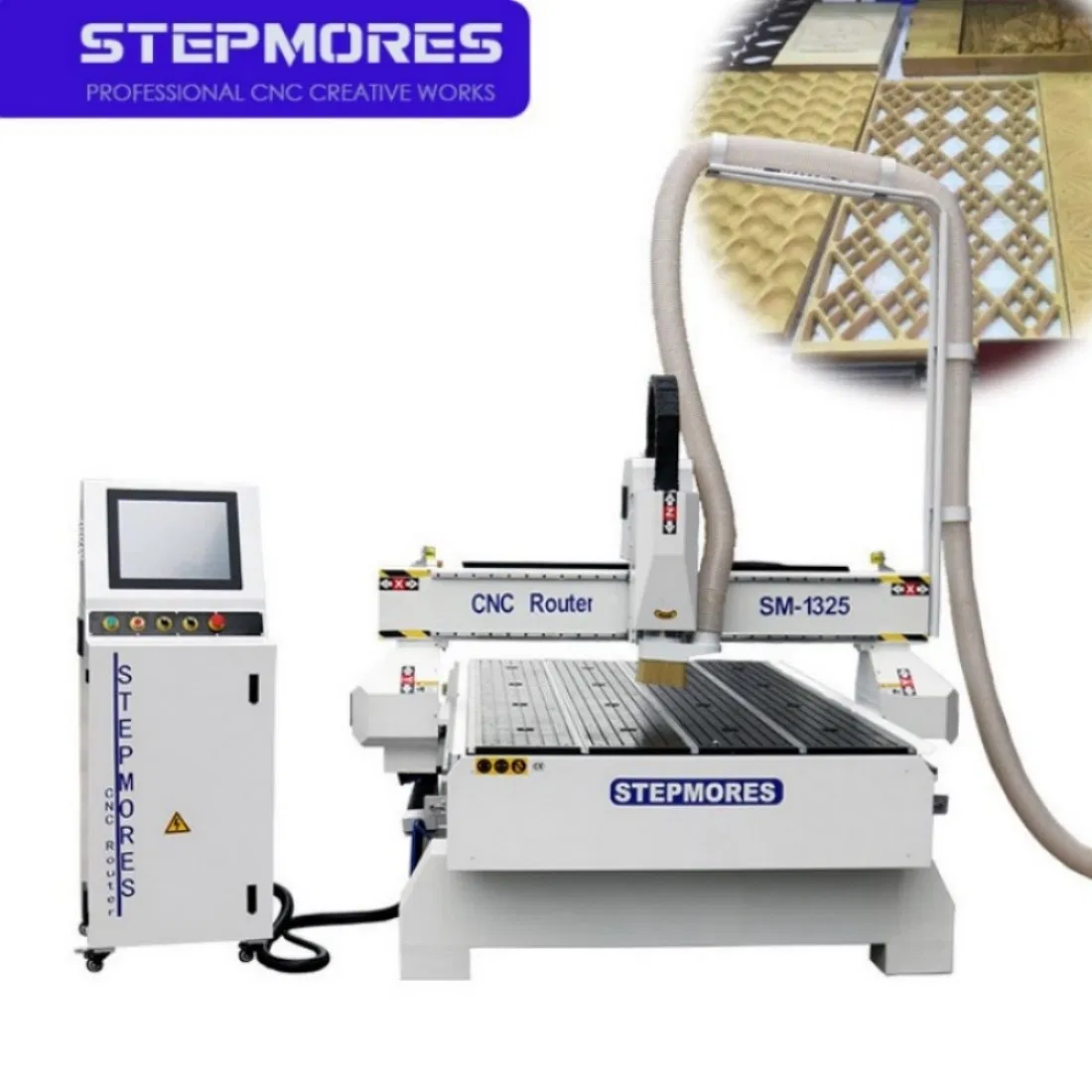

TitanPro Cutting
TitanPro Cutting
| Model NO. | 1325M |
| Condition | New |
| Certification | CE |
| CNC or Not | CNC |
| Voltage | AC220V/50Hz |
| Machine Type | CNC Router |
| Xyz Axis Travel | 1300*2500*200mm |
| Spindle Power | 4.5kw Air Cooling Spindle |
| Drive Type | Servo Motor |
| Max Travel Speed | 40000mm/Min |
| Working Precision | 0.05mm |
| Production Capacity | 500 Sets/Month |
This high-performance CNC cutting machine is designed for versatility across multiple sectors:
| MODEL | 1325M |
|---|---|
| XYZ axis travel | 1300x2500x200mm |
| Feeding height | 200mm |
| Table size | 1300*2500mm |
| Spindle power | 4.5KW air cooling spindle (0-18000RPM) |
| Control system | PC controller system/DSP/NK105G3 |
| Drive type | Servo motor |
| Rail type | Linear rails |
| Transmit | XY gear rack and Z ballscrew |
| Table type | Vacuum absorption with T slot clamping |
| Max travel speed | 40000mm/min |
| Working precision | 0.05mm |
| Compatible Software | Type3/Artcam/UG/Pro-E/Mastercam etc |

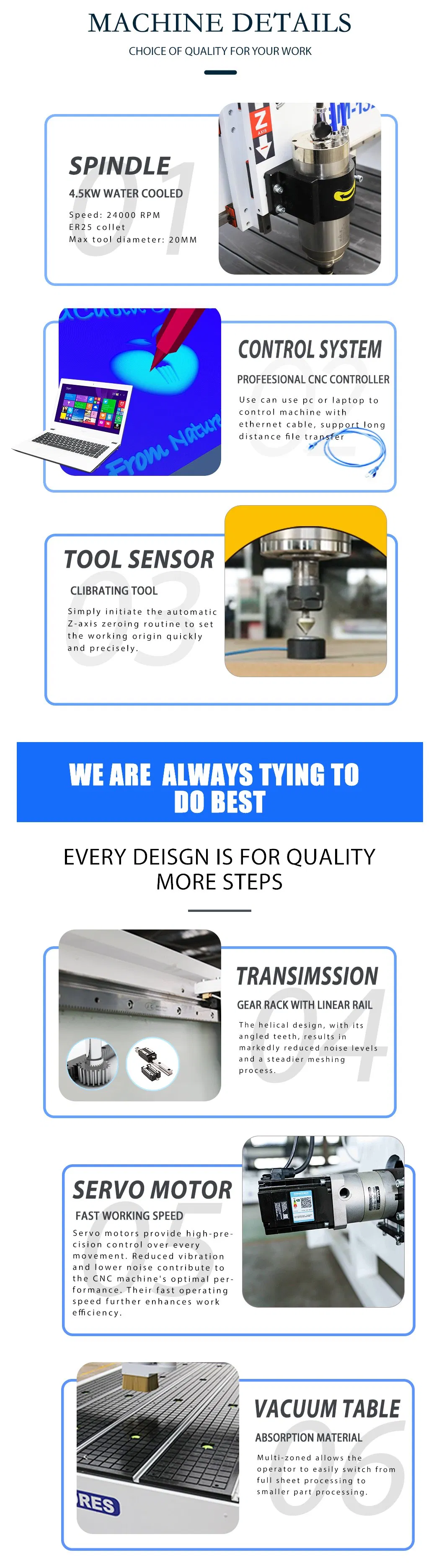

The Strong version stands as a benchmark for big size CNC equipment, integrating industrial-grade features that prioritize power, stability, and precision. Equipped with a 4.5KW high-power air-cooled spindle, it delivers rotational speeds up to 18000 RPM for efficient processing of tough materials. Every component undergoes strict quality testing, including 72 hours of continuous load trials.
Investing in the Strong version unlocks an exceptional power-to-performance ratio. This big size machine delivers the speed and precision of specialized equipment while handling a wider range of materials. Despite its size, it processes diverse materials from wood, acrylic, and PVC to aluminum, steel, and marble, streamlining your workflow and reducing the need for multiple machines.
