Basic Specifications
Application
Metal Cutting
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Machine Type

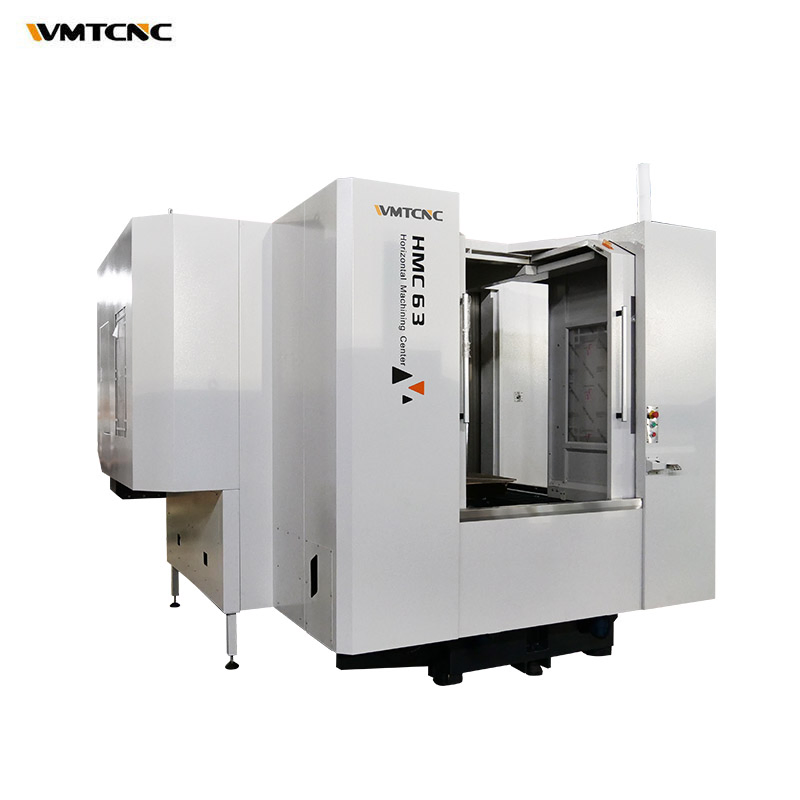

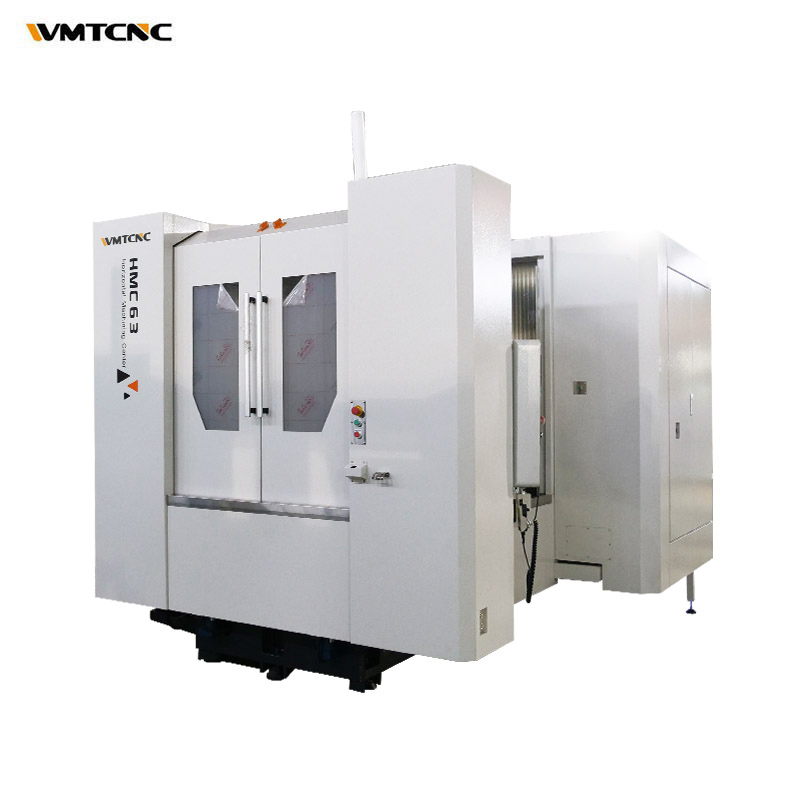

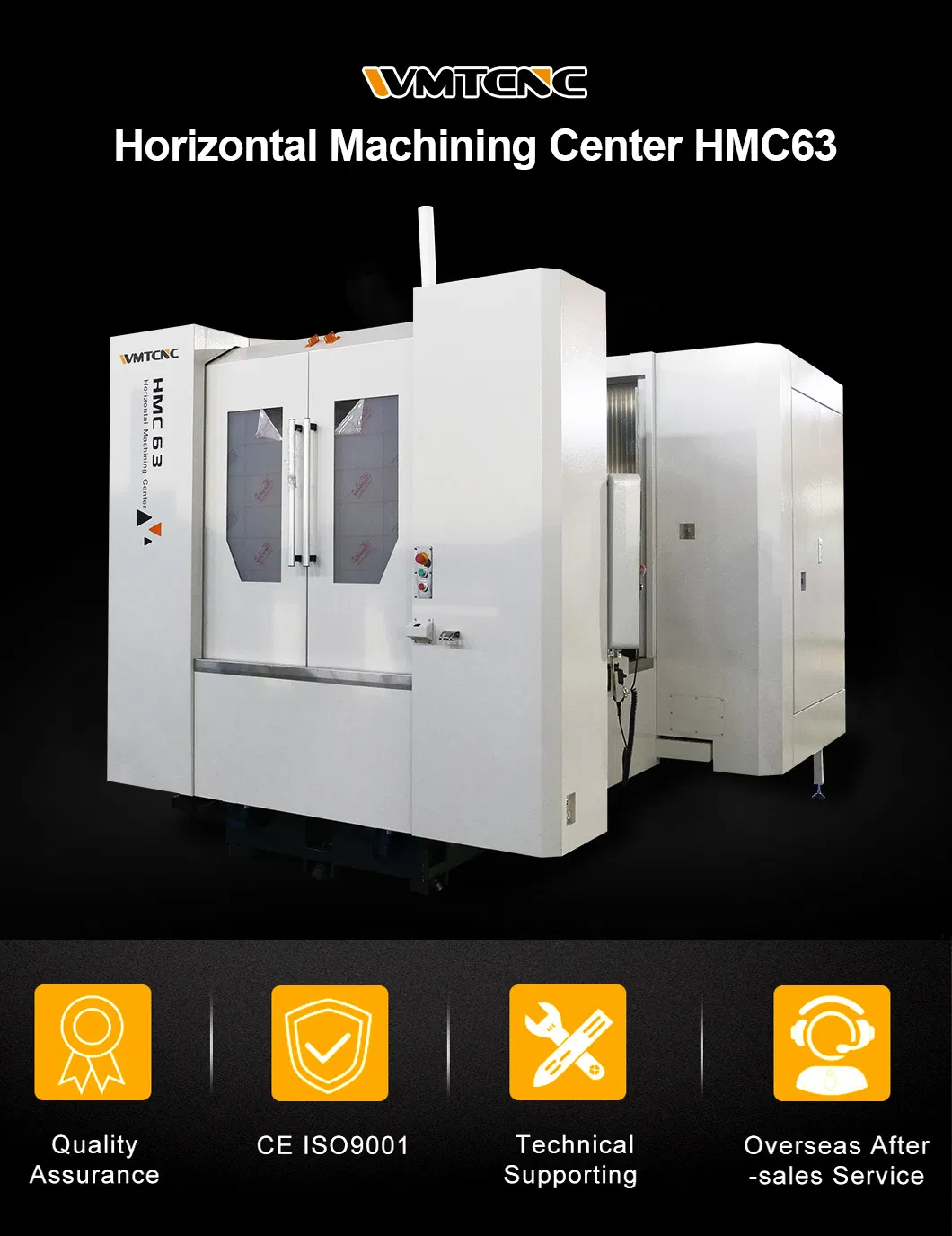

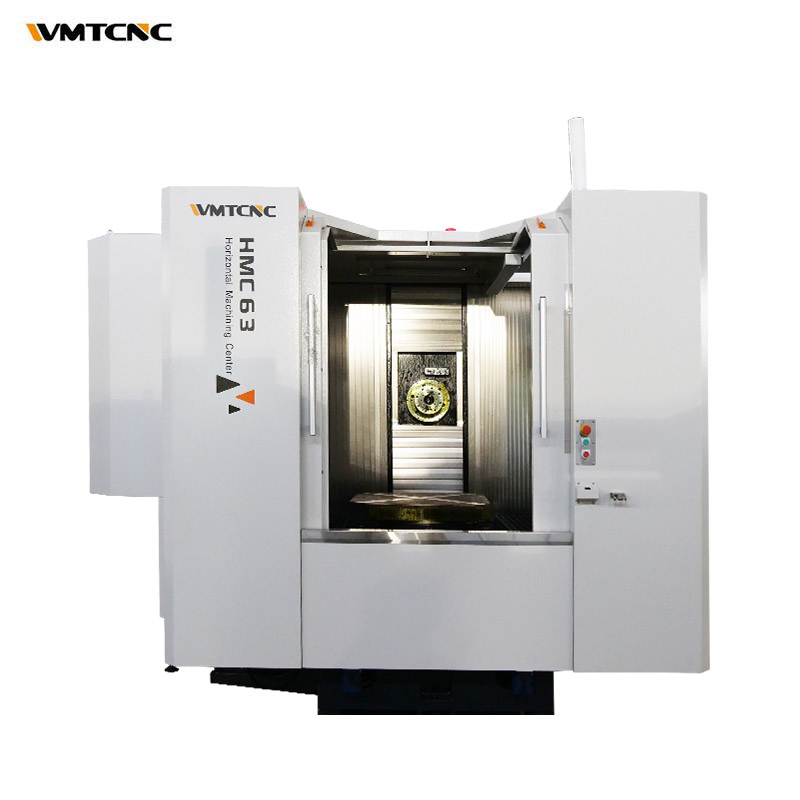

CNC Horizontal Machining Center
X/Y/Z Travel
1050/750/900mm
Product Description & Key Features
-
🔹

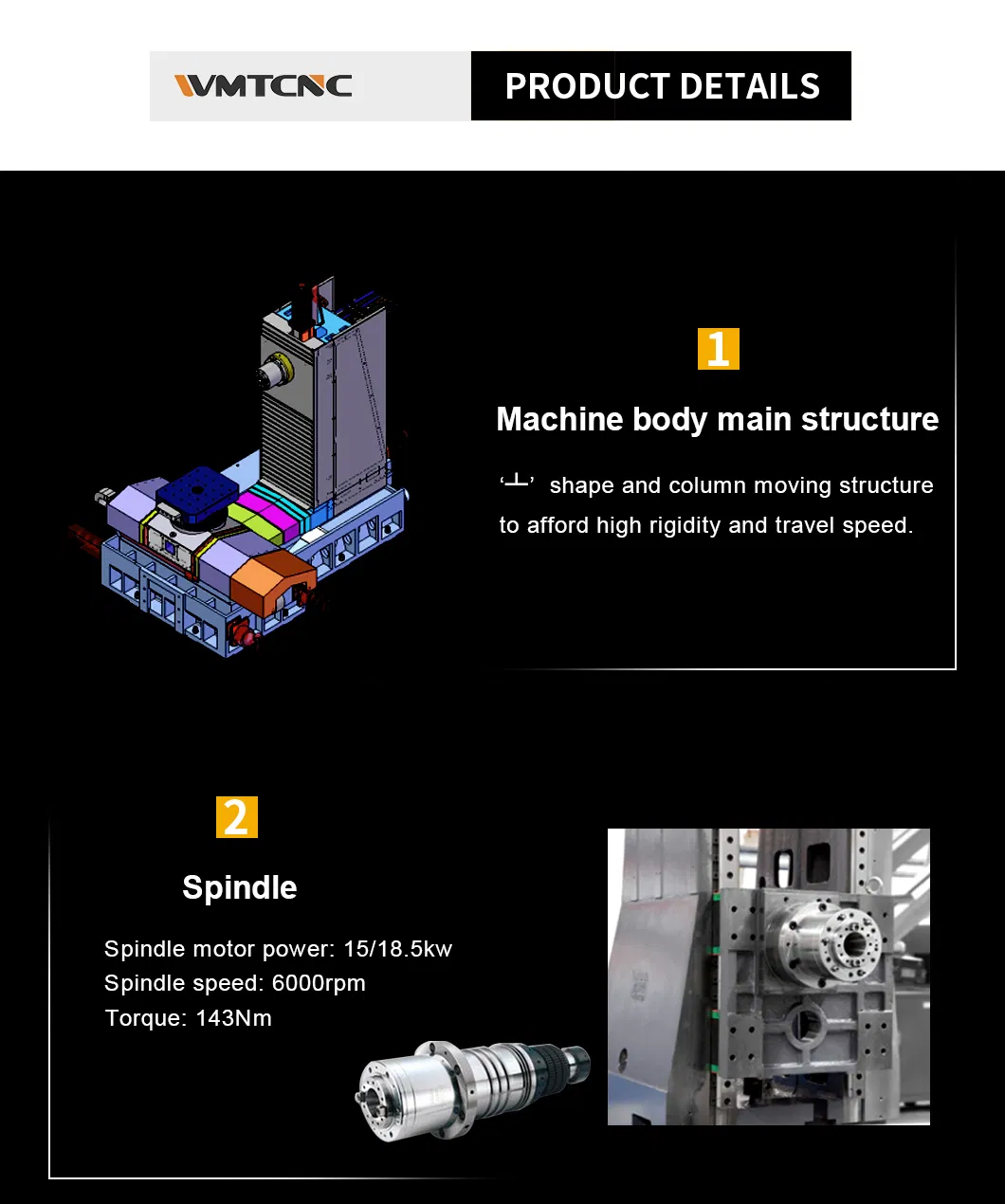

Rigid Structure: Positive T-shape machine body and column moving structure for high rigidity and travel speed.
-
🔹

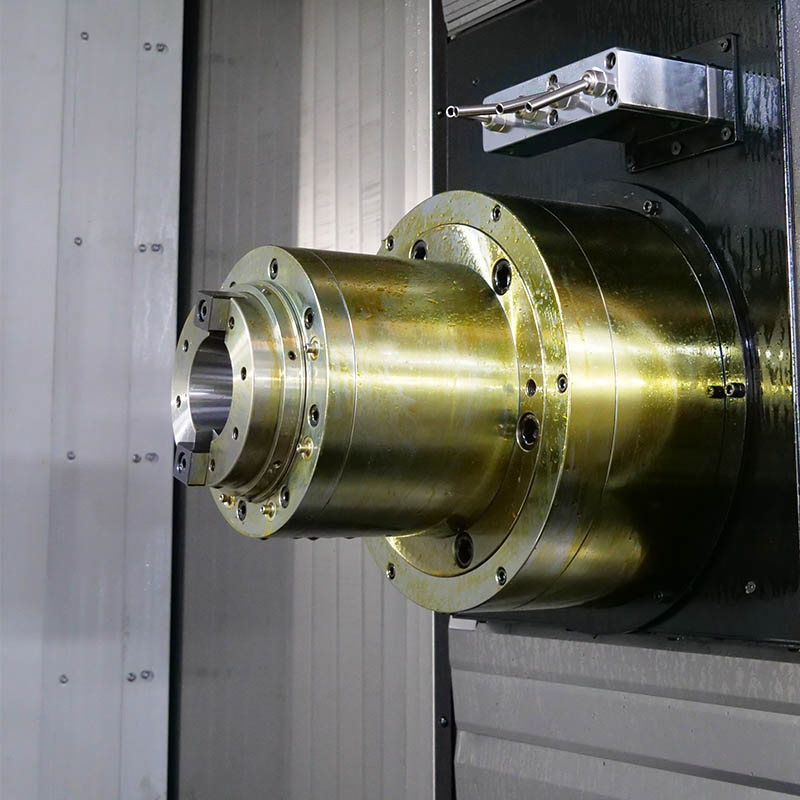

Thermal Stability: Standard spindle house oil cooling system reduces heat distortion and ensures stable accuracy.
-
🔹

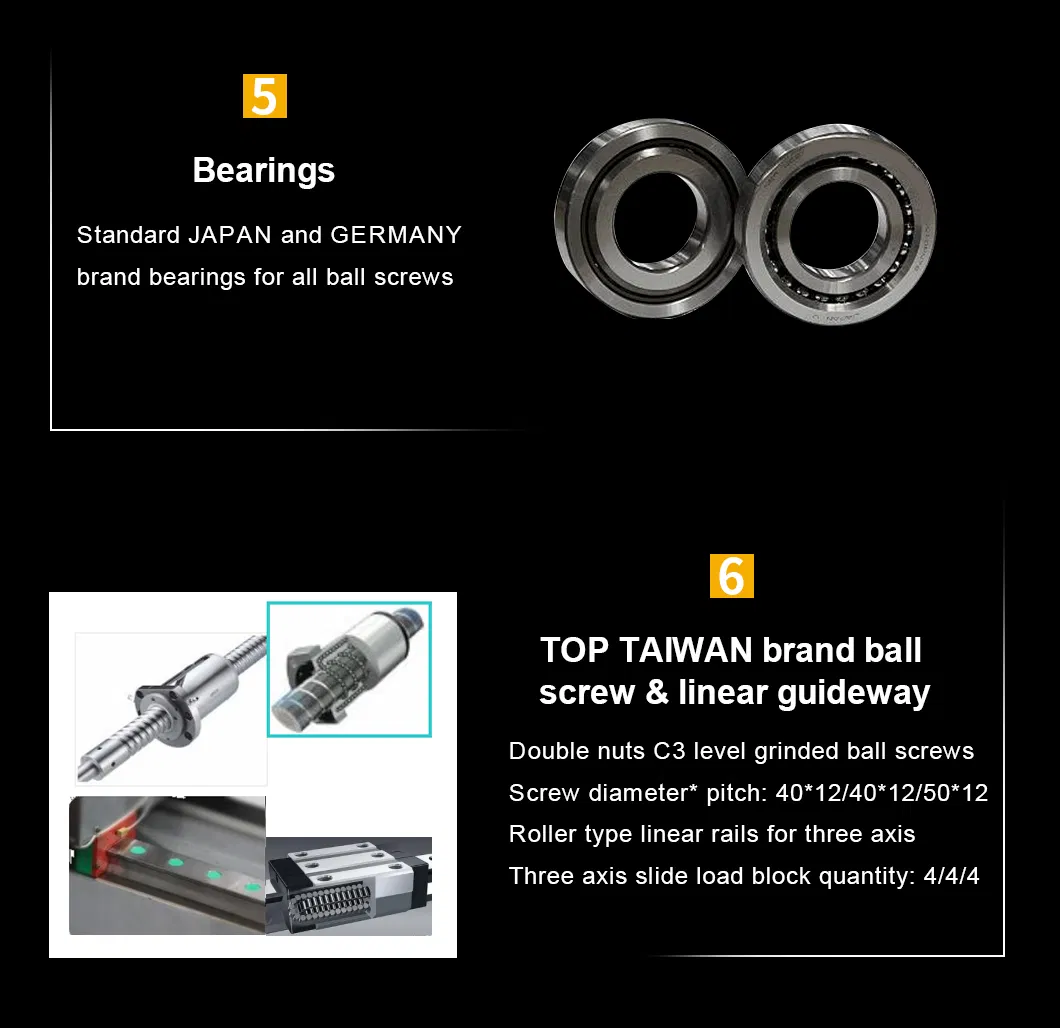

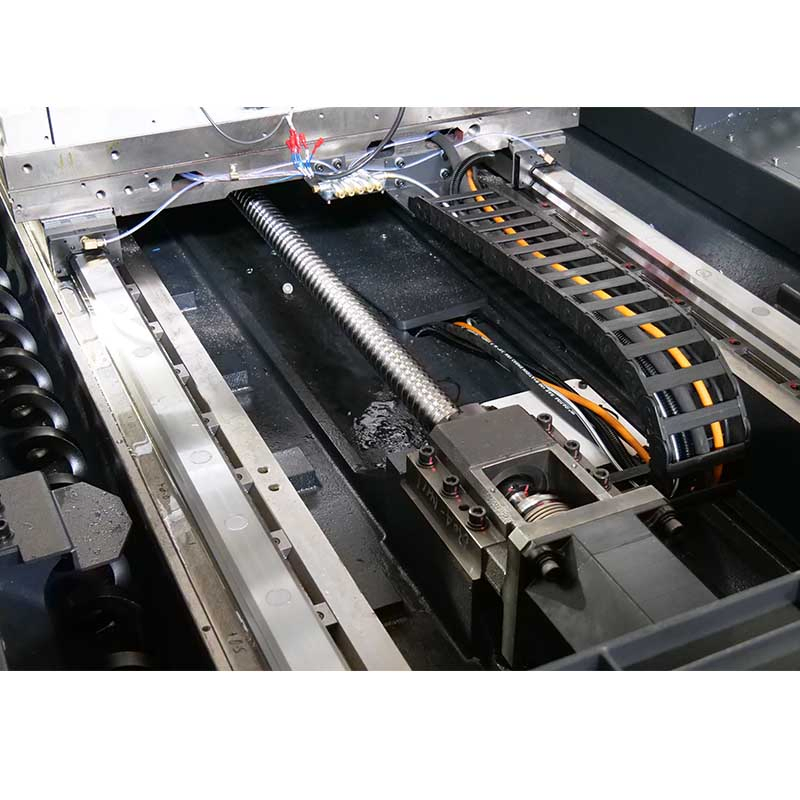

High-End Components: Equipped with BT50 24-position arm type tool magazine and top-tier linear guideways/ball screws.
-
🔹
Precision Engineering: Standard Japanese and German brand bearings used for all ball screws.
-
🔹

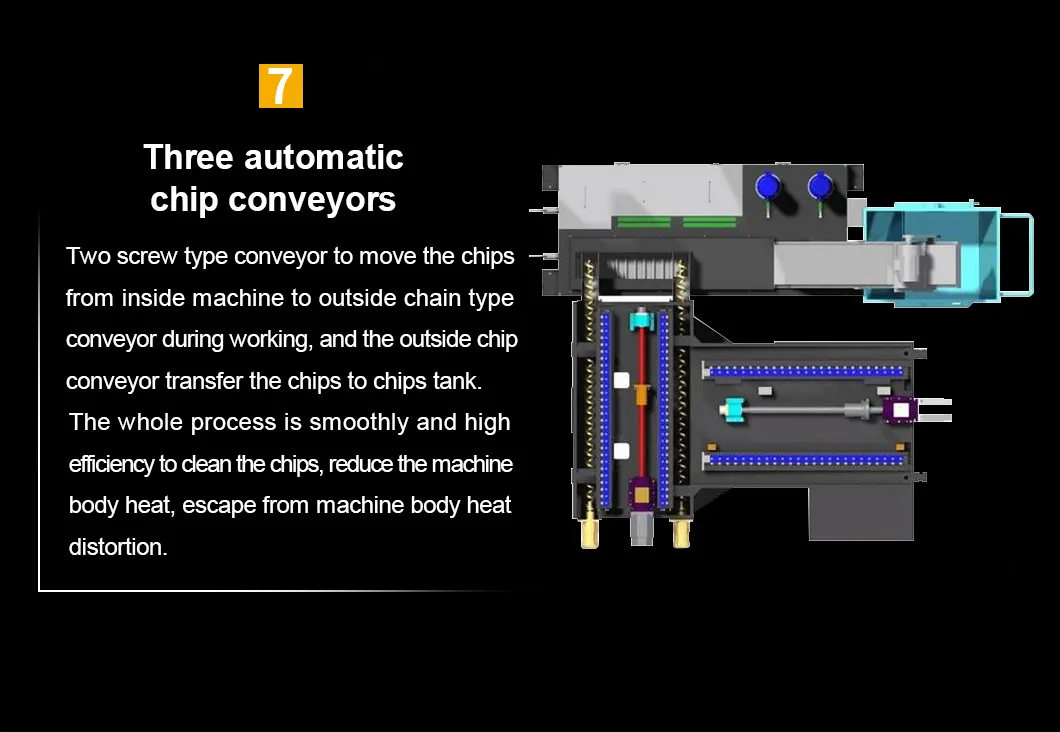

Efficient Chip Removal: Three automatic chip conveyors (two screw type, one chain type) effectively manage waste and reduce body heat.
Technical Parameters
| Specification Item |
Detail Parameters (HMC63) |
| Worktable size (W×L) | 630×700mm |
| Rotary diameter of workpiece | 1400mm |
| X/Y/Z axis Travel | 1050 / 750 / 900 mm |
| Distance from spindle center to table | 120-870mm |
| Spindle speed range | 5300rpm |
| X/Y/Z axis rapid feed | 32/32/32 m/min |
| Tool Magazine Capacity | 24T (Manipulator) |
| Max. Tool Weight / Length | 18kg / 550mm |
| Positioning accuracy (X/Y/Z) | ±0.010mm |
| Re-positioning accuracy (X/Y/Z) | ±0.006mm |
| Max. loading of worktable | 1200kg |
| Machine Weight | 12000kg |
Detailed Gallery
Frequently Asked Questions
What is the standard warranty period for this machine?
The warranty period is 13 months following the BL date.
Do you maintain stock for these machining centers?
Most machines are produced according to specific orders. However, occasionally samples may be available following international trade fairs.
What is the Minimum Order Quantity (MOQ)?
The MOQ is just one set.
What quality certifications do your products hold?
Our products are approved under ISO9001:2008, ISO14001, and OHSAS18001 systems. Most items also carry CE, GS, EMS, and UL certifications for the European and American markets.
Can the machine be customized to specific requirements?
Yes, we have professional engineers and designers who can provide OEM services and manufacture machines according to your specific technical needs.
What are the packaging details for transport?
The machine is securely packed into plywood cases. The package size is approximately 500cm * 370cm * 300cm with a gross weight of 12,000kg.
