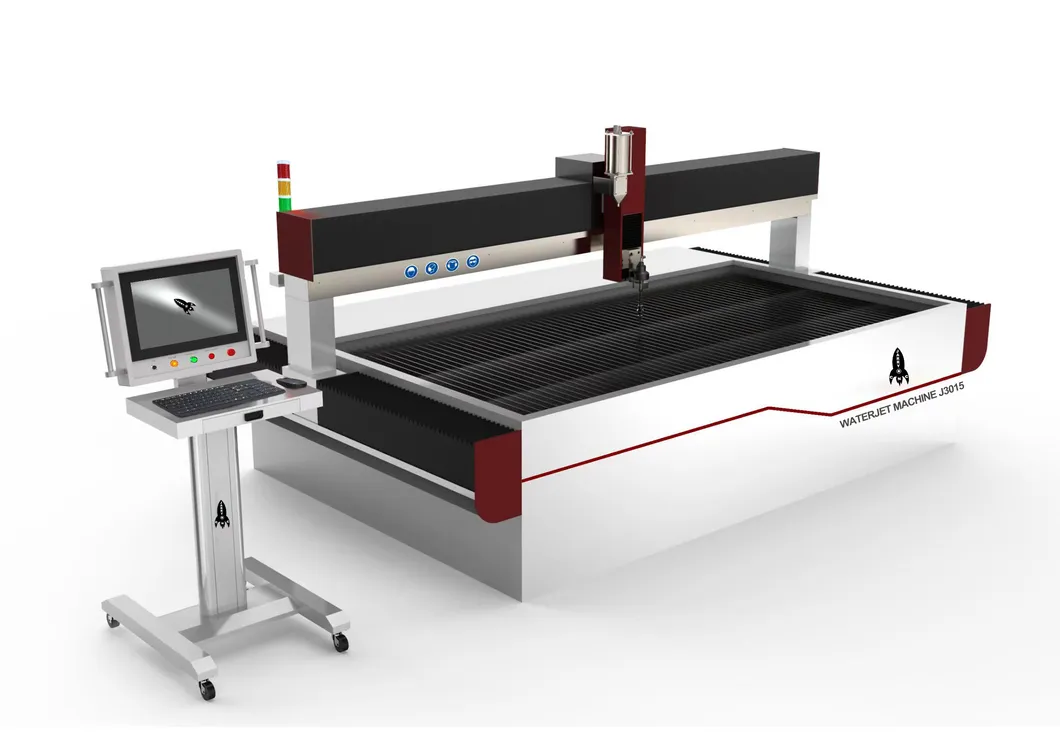

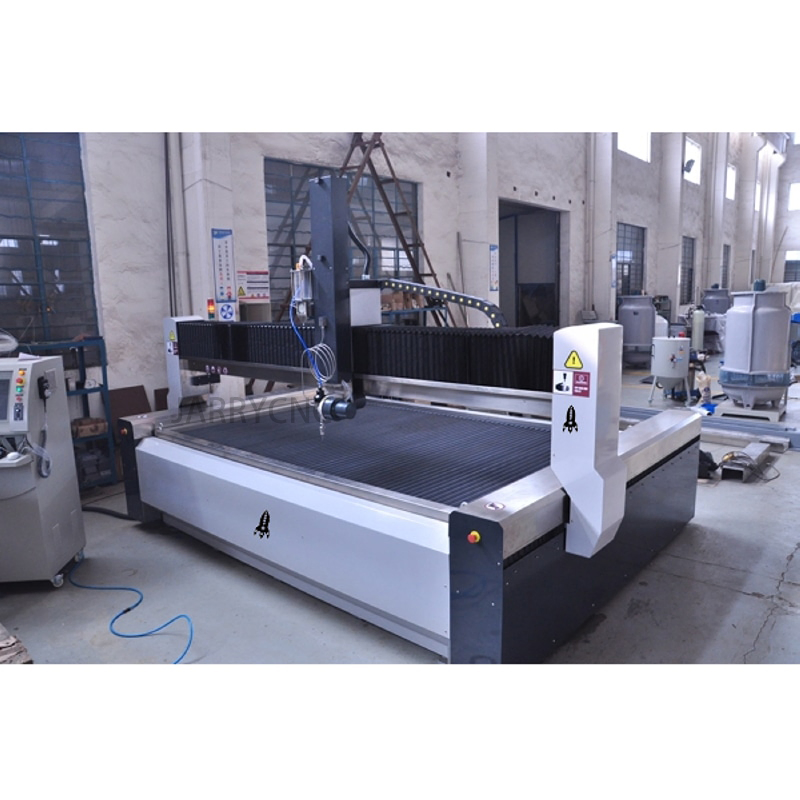

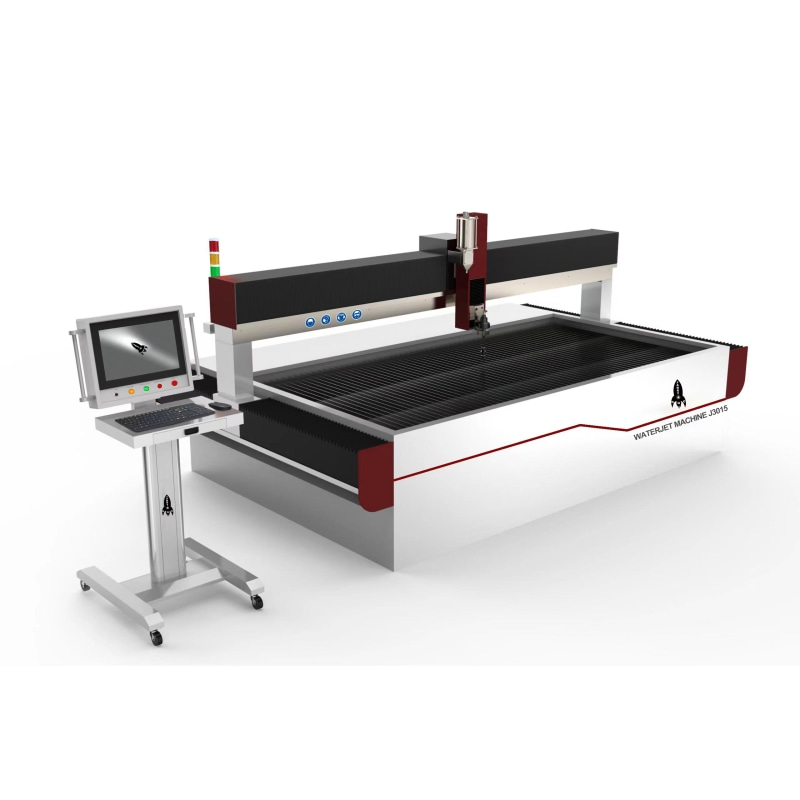

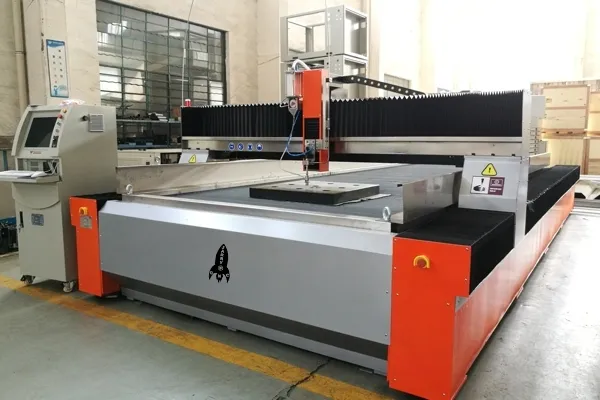

Wj-3015 Monthly Deals 5-Axis Water Jet Stone Cutter Machine, CNC Cutting Machine, Water Jet Cutting Machine CNC Metal Cutter, Glass Cutting Machine

1 / 5

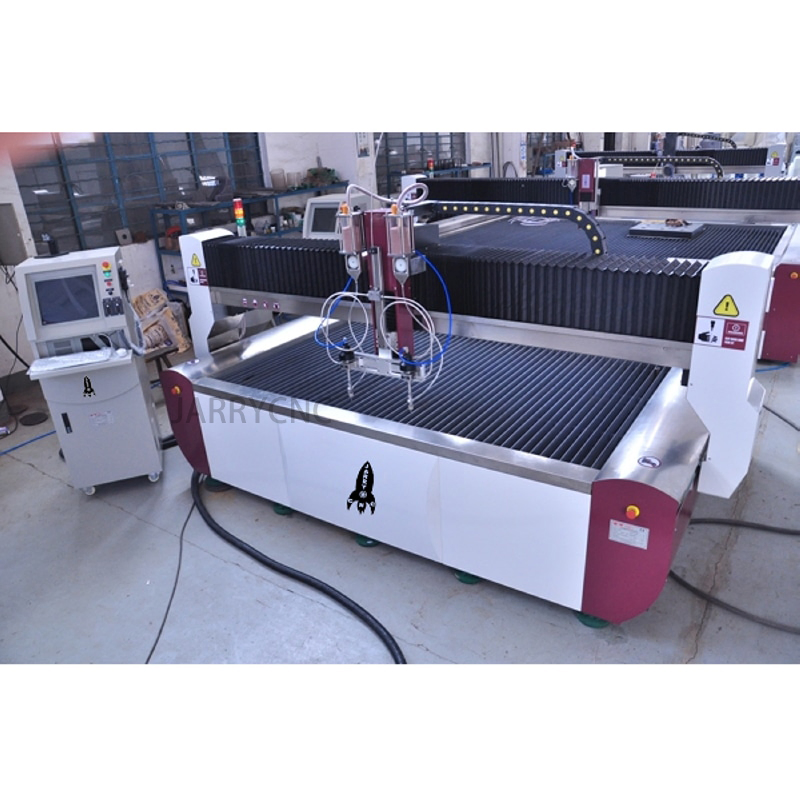

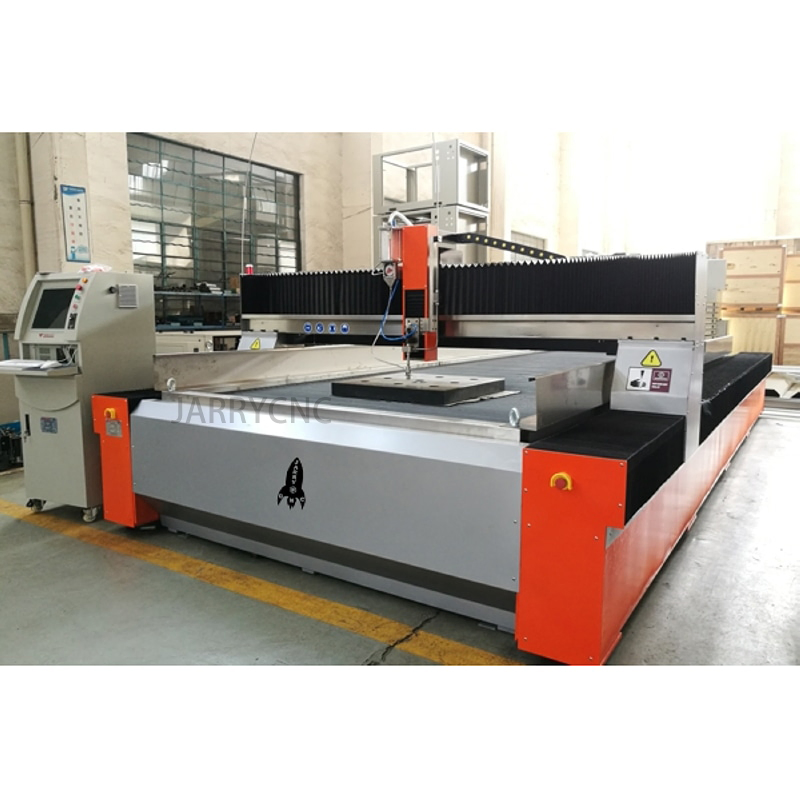

Wj-3015 Monthly Deals 5-Axis Water Jet Stone Cutter Machine, CNC Cutting Machine, Water Jet Cutting Machine CNC Metal Cutter, Glass Cutting Machine

Customization:	Available
Certification:	CE, ISO 9001:2000
Condition:	New

Send Inquiry

Product Description

1 Basic Information

Control	Manual	Application	Metal, Ceramic, Glass
Power Source	Electric	Style	Electro-Hydraulic
Maximum Output Flow	3.7L/Min	Maximum Orifice	0.33mm
Max Output Pressure	420MPa	Intensifier Configuration	Single
Pressure Control	Manual	Shifting Control	Electro-Hydraulic Control
Motor Power	37kw/50HP	Voltage	380V/50Hz
Dimensions (WxLxH)	1300mm x 1800mm x 1500mm
Operating Weight	1200kg	Production Capacity	500 Set/Sets Per Month

2 Product Parameters

Cutting Table Main Technical Parameters

Model: YCG-3742S
Maximum output flow	3.7L/min
Maximum orifice	0.33mm
Max output pressure	420mpa
Intensifier configuration	Single
Pressure control	Manual
Shifting control	Electro-hydraulic control
Motor Power	37kw/50HP
Voltage	380V/50Hz
Operating weight	1200kg
Options	Air cooling/Water chiller

3 Product Description

1.1 Platform Body

Structure Feature: Welding box structure with stress relief via annealing process. Split structure for table body and water tank to prevent sand/water splash into moving parts.

Controlling System: Mitsubishi digit servo system (Bus communication protocol).

1.1.4 Drilling Parameters

No-load speed: 1750 rpm
Max capacity: 8mm (aluminum alloy)
Total stroke: 100mm
Power: 450watt

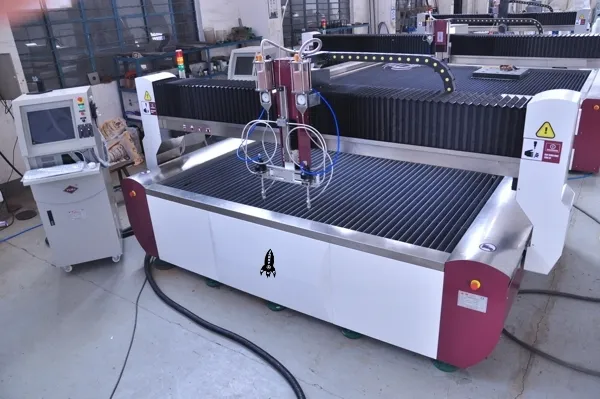

Prevention & Lubrication

Prevention: Over travel auto spacing and unique mazy protection with totally enclosed Z-axis to prevent erosion from sand and water.

Lubrication: Auto mass lubrication system ensuring oil reaches every site on time for steady operation.

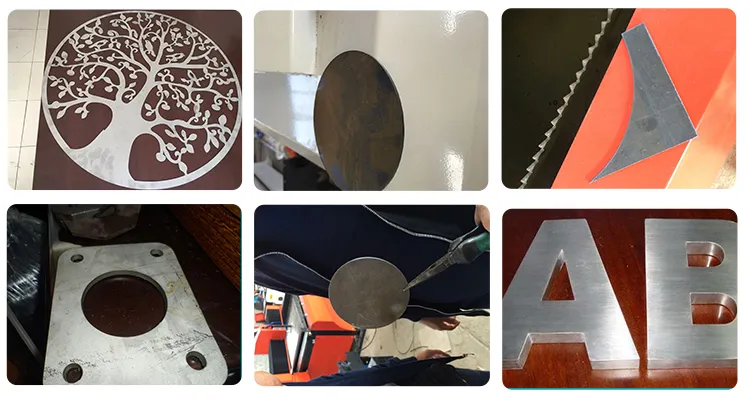

4 Product Applications

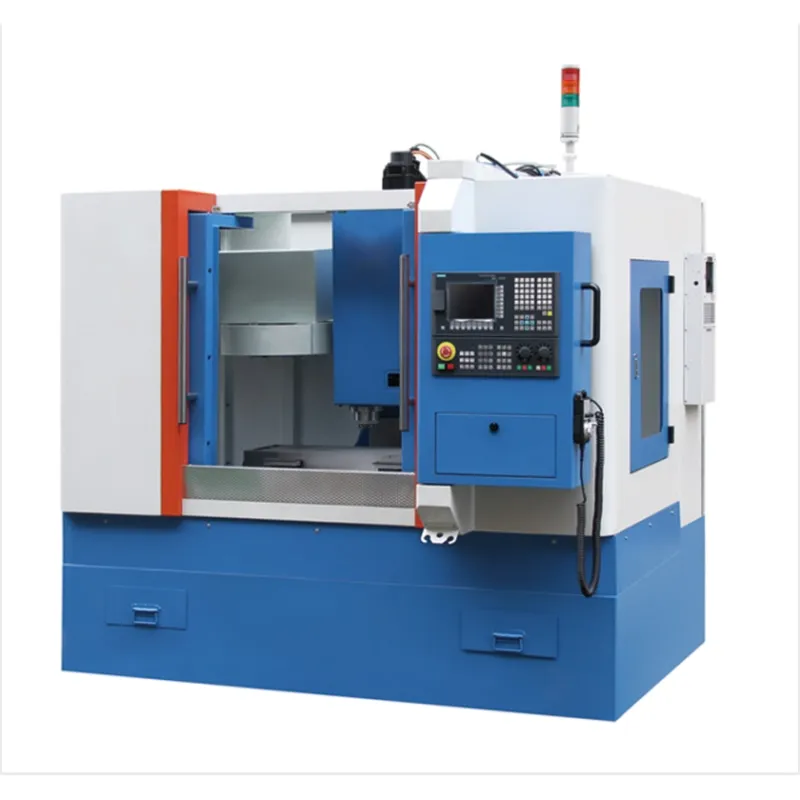

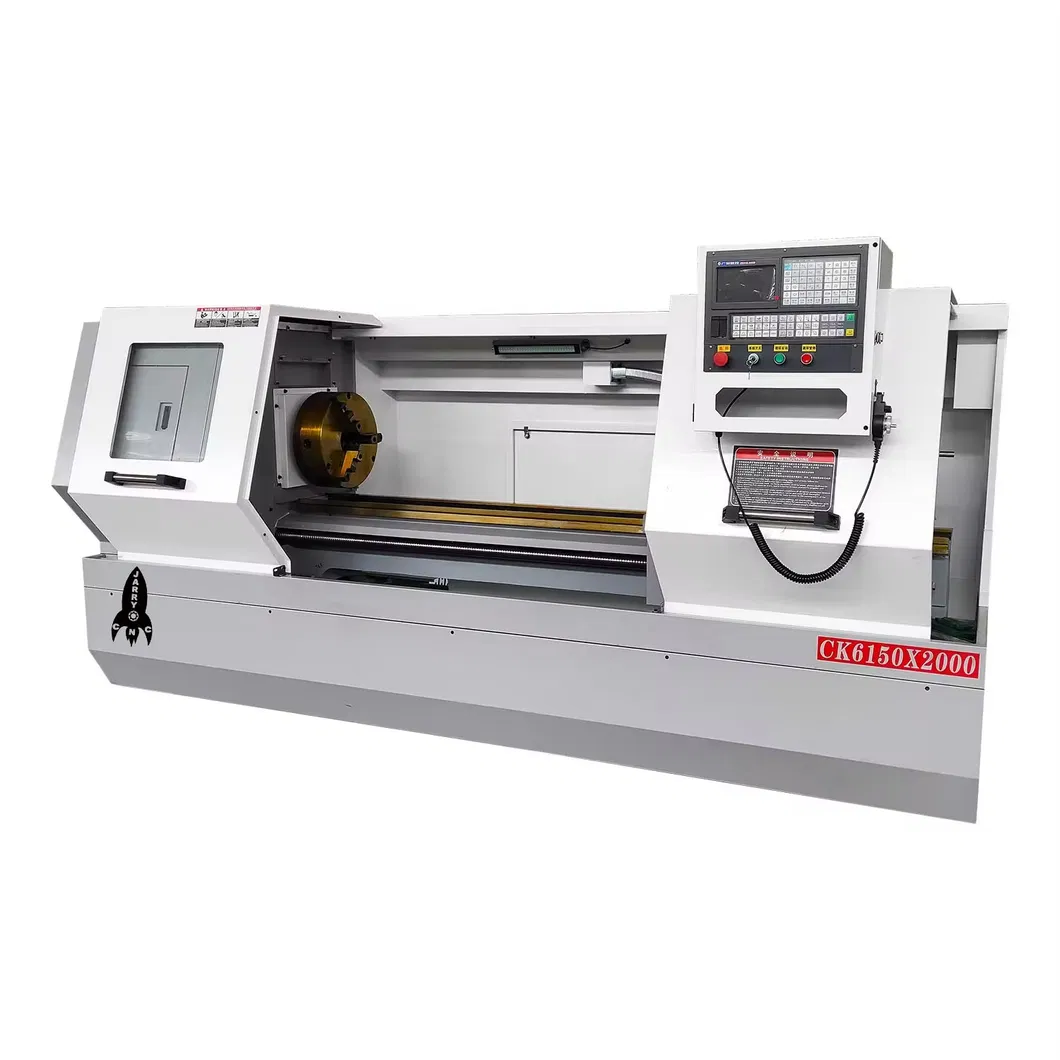

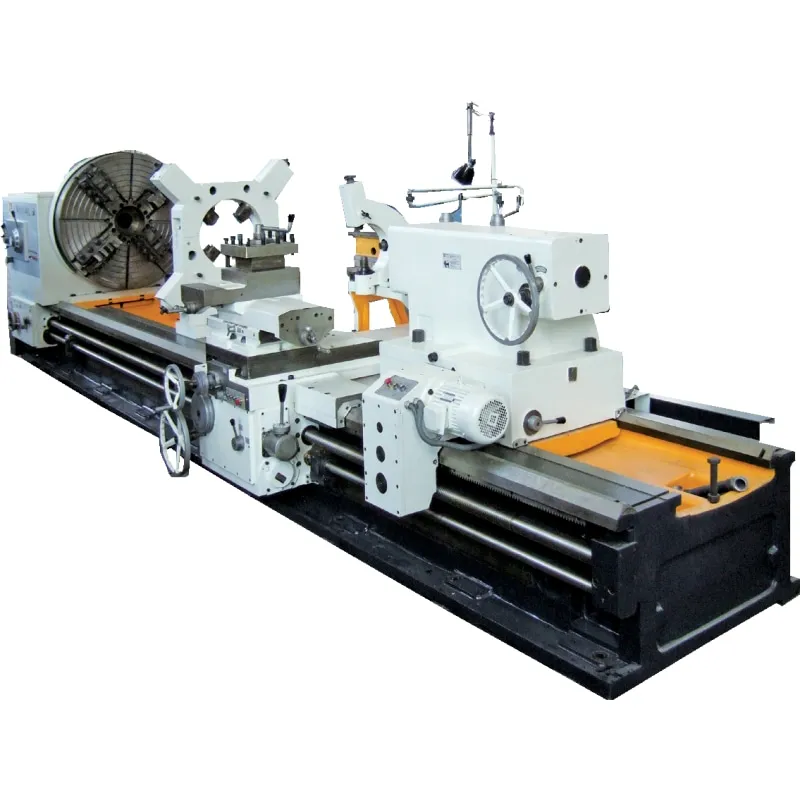

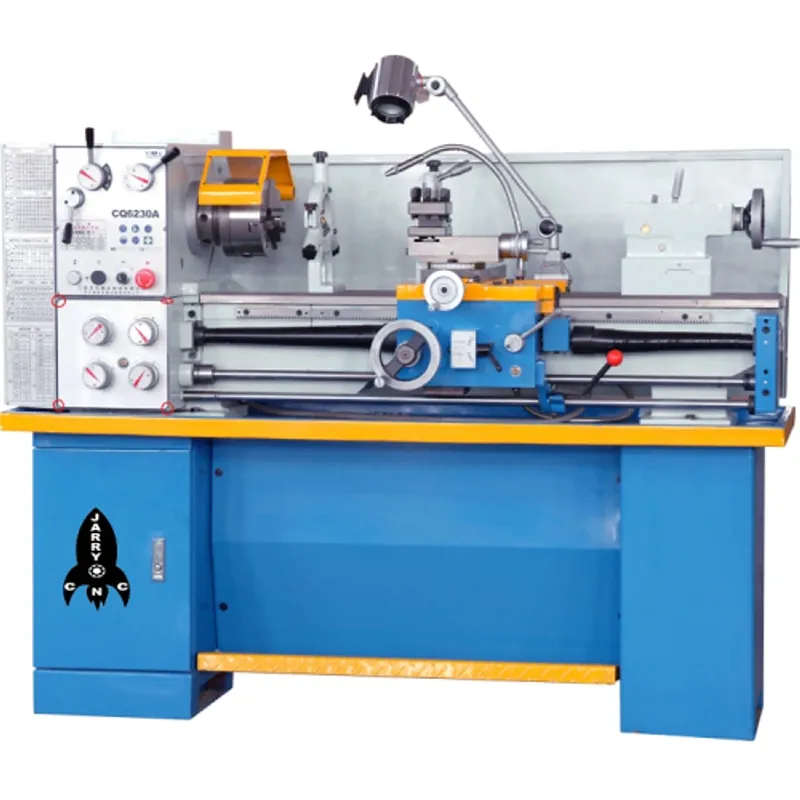

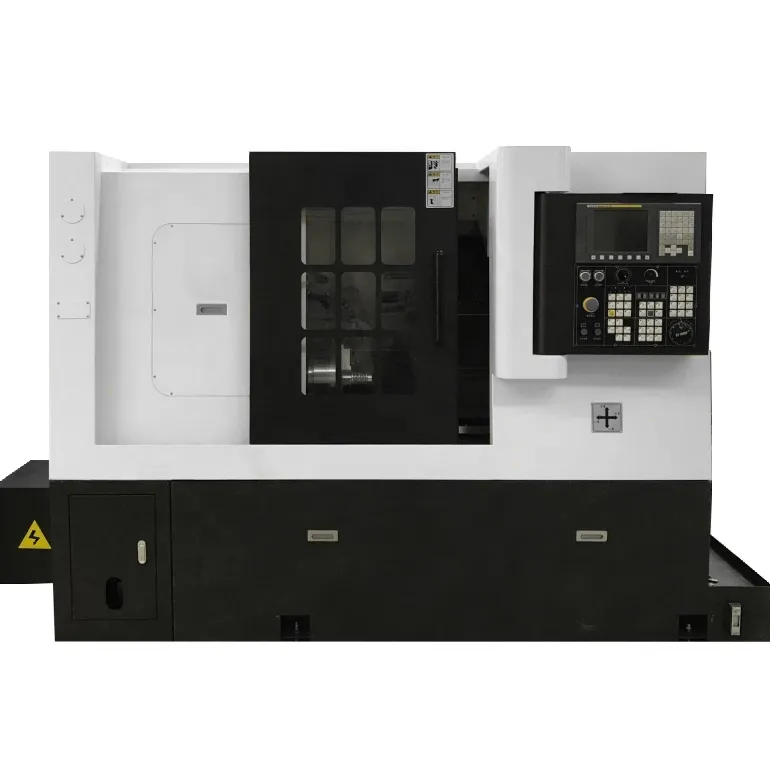

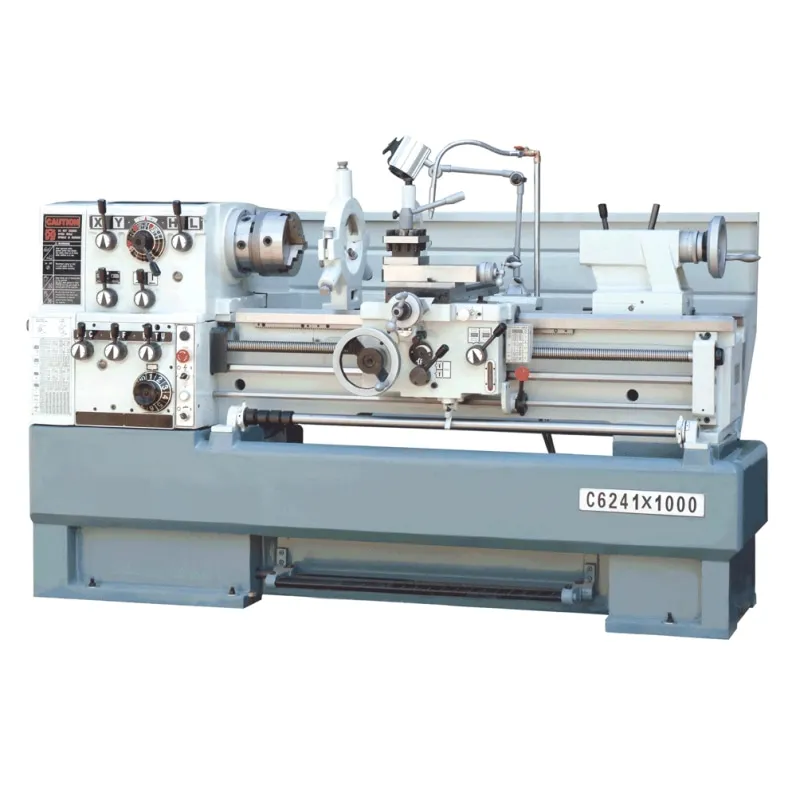

5 Related CNC Solutions

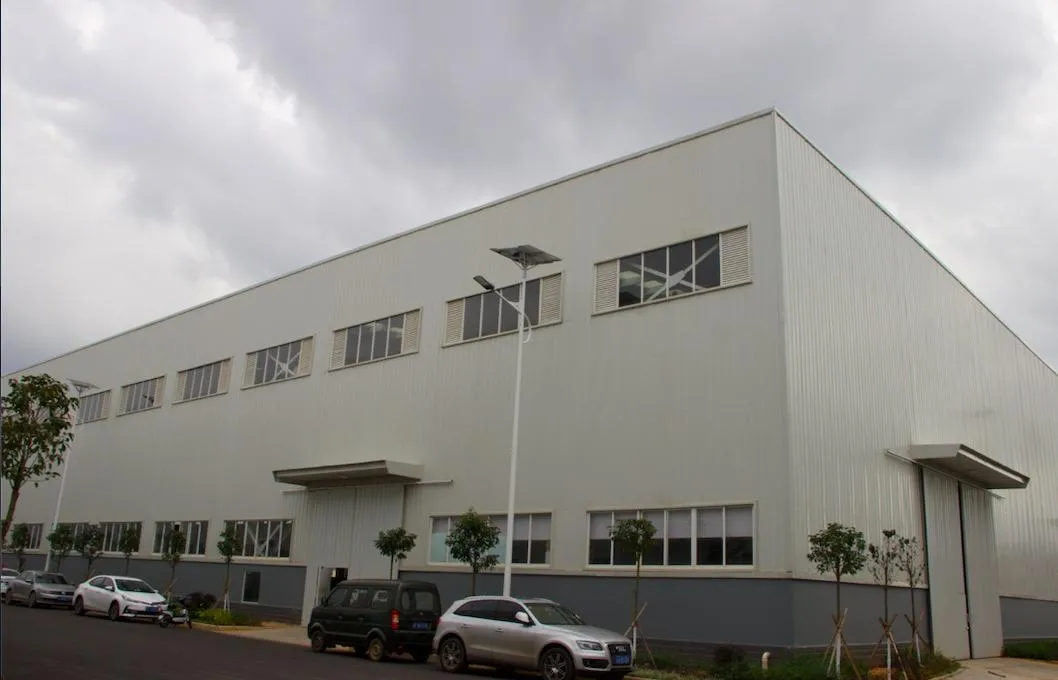

6 About Us

Established in July 2014, we are a professional machinery supplier specializing in CNC Lathes, Milling Machines, and Cutting Machines. With annual sales exceeding ten million USD, our products are exported to Europe, Asia, Africa, and the Americas. We provide a comprehensive, hassle-free service system covering pre-sales and post-sales support.

7 Quality Certification & Shipping

Frequently Asked Questions

? What are the payment terms?

We accept T/T or L/C. Typically, a 30% initial payment is required upon order, with the remaining 70% balance due before shipment. Irrevocable LC at sight is also accepted.

? What is the primary product range?

We specialize in manufacturing professional machine tools, including CNC Lathes, CNC Milling Machines, CNC Cutting Machines, and various CNC spare parts and accessories.

? What is the expected delivery time?

Standard machines are usually ready within 15 days. Custom or special machines may take longer. Shipping to Europe or America typically takes about 30 days, while Asia and Australia are faster.

? What is the Minimum Order Quantity (MOQ) and warranty?

The MOQ is one set. All machines come with a one-year warranty and we provide lifetime technical service.

? How are the machines packaged for transport?

The standard packaging consists of a robust wooden pallet wrapped with protective plastic film to ensure safety during transit.

? How do you handle quality control before shipping?

Once production is complete, we take detailed photos and videos of the ready machine for customer approval before final balance payment and dispatch.
