Product Description

Basic Info.

Model NO.
PMT50HE-4020AC
Certification
CE, RoHS, ISO 9001:2000
Condition
New
Control
Automatic
Power Source
Electric
Style
Cantilever
Type
Five-Axis
Use
Abrasive Waterjet Cutting
Application: Paper, Metal, Rubber, Ceramic, Glass, Stone, Plastic, Leather, Fabric

Application and Advantages

The Waterjet Cutting Machine is an effective tool for any shape of artistic creation. It can cut any shape of models under the control of the CNC program, overcoming traditional limitations.

Waterjet Cutting Advantage
  • Smooth cutting quality is perfect.
  • Cutting accuracy up to 0.1mm, ideal for complex murals.
  • Fast cutting speed with excellent consistency and interchangeability.
  • Drilling, cutting and forming can be done at once.
  • Reduced dust and noise impacts on the operator.
  • Cold cutting process that does not damage the internal structure of the material.
  • The only machine for processing composite materials and fragile porcelain.
  • Versatile: Cuts metal, rubber, foam, plastic, stone, glass, and more.

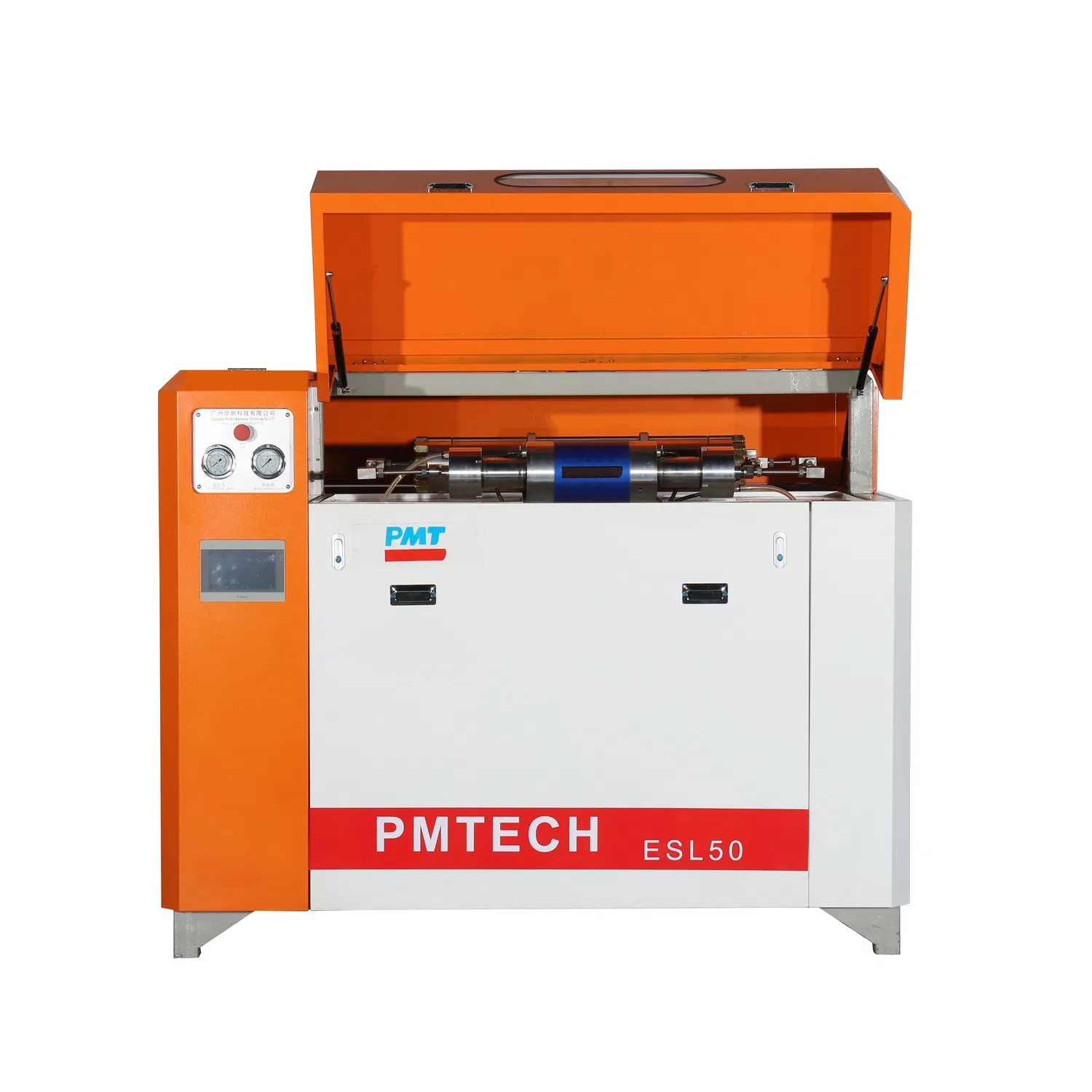

50HE High Pressure Pump

⚙️

The structure includes a water supply system, hydraulic system, and the intensifier system (high-pressure system).

Technical Specifications
Dimension(L*W*H)1800*1000*1400mm
Weight1200Kg
Power rate37kw/50hp
Max. pressure420Mpa / 4200bar
Working pressure300-350Mpa
Max. Flow rate3.7L/min
Φ of orifice0.30-0.33mm
Hydraulic systemBosch Rexroth
High Pressure Pump Detail
Pump Structure

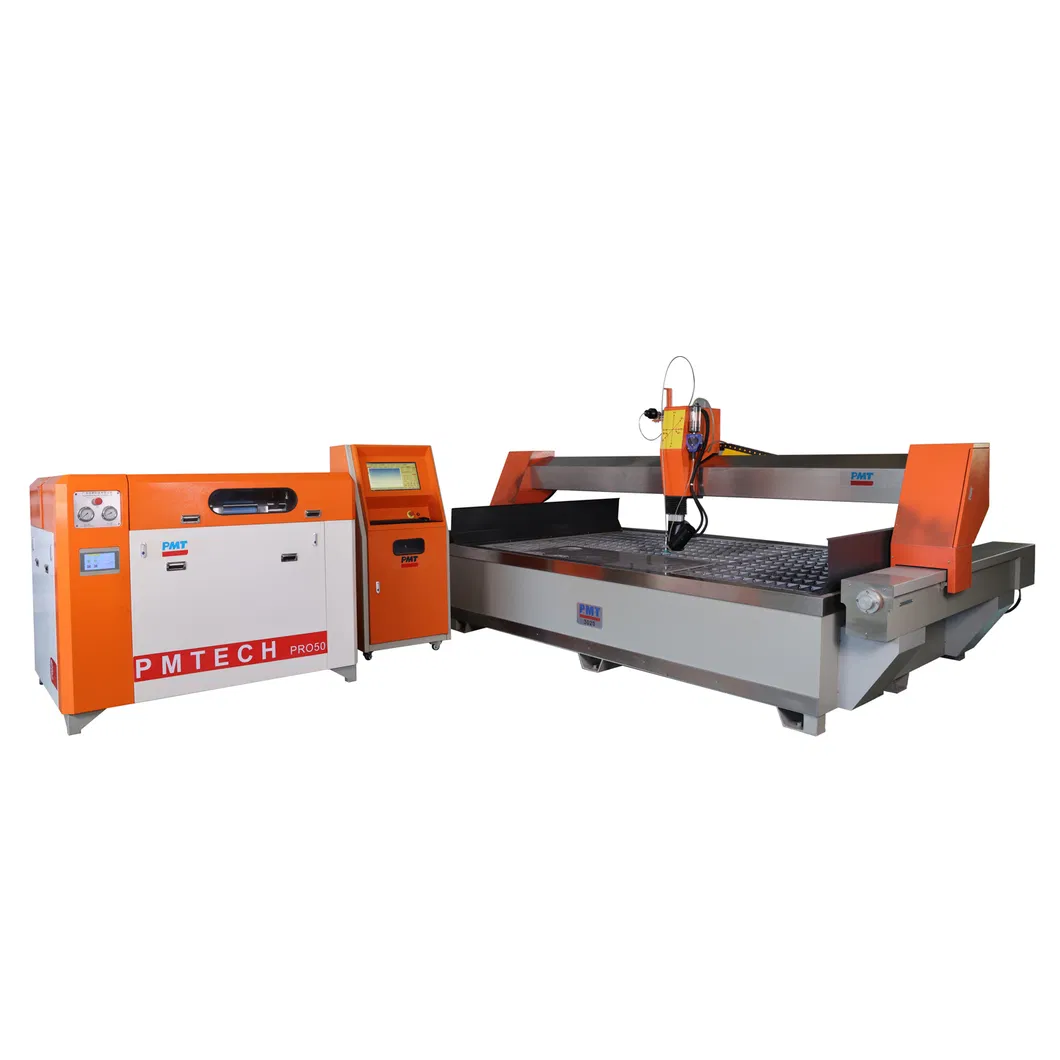

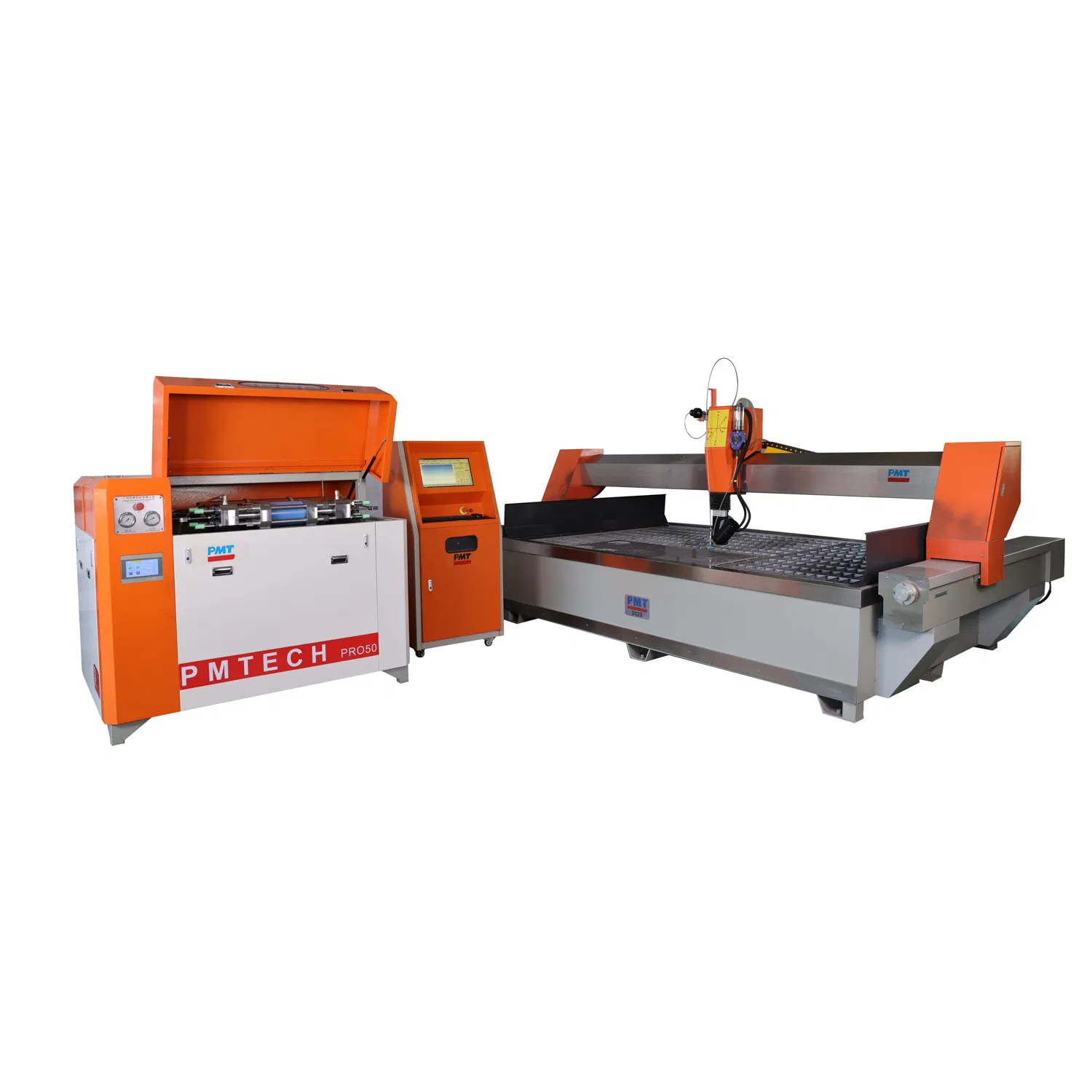

Cutting Table & CNC Controller

Consists of transmission parts (X, Y, Z axis), water tank, cutting head, and servo driving system. The Gantry mechanical structure is ideal for large-size processing.

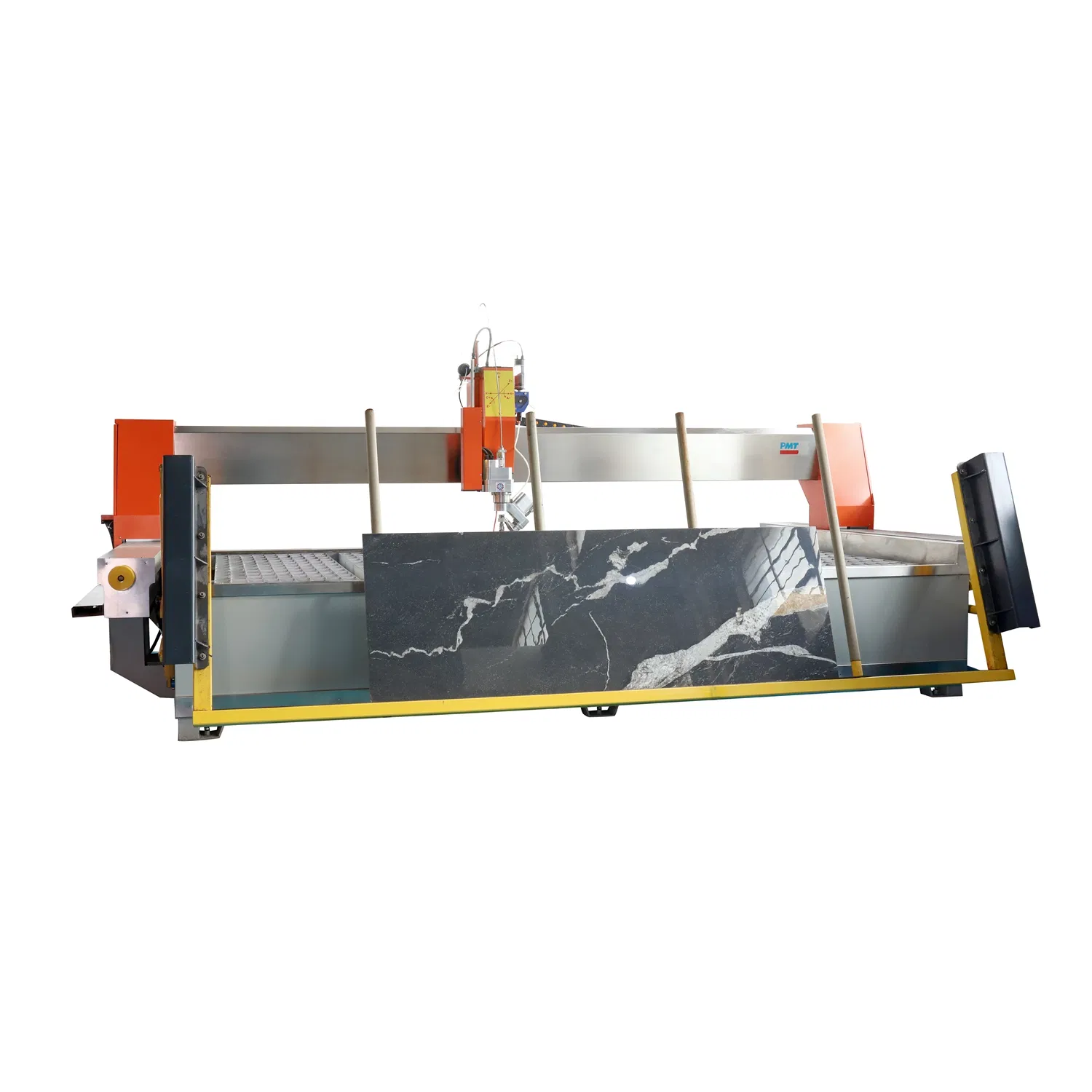

Working Table

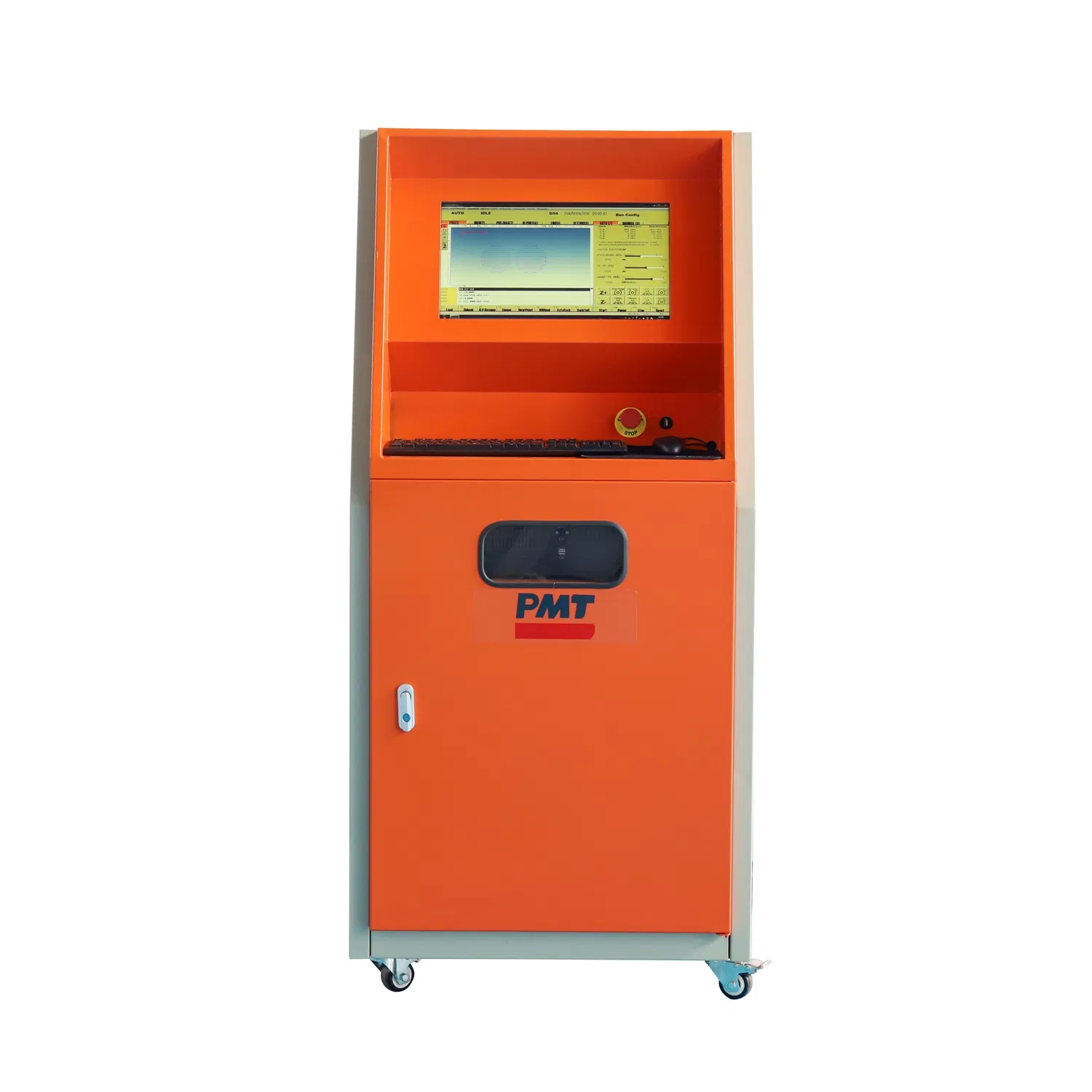

CNC Controller
Model 1616 2515 3020 4020
Max. cutting range1600*1600mm2500*1600mm3000*2000mm4000*2000mm
Re-positioning accuracy±0.025mm/m
Cutting accuracy±0.1mm
Servo systemYaskawa (Japanese Brand)
Ball-screw linear-railABBA (Taiwan Brand)

5-Axis AC Cutting System

A new generation head designed for high accuracy requirement. Realizes arbitrary curve and angle cutting controlled by computer, making arc plate and spiral leaf cutting possible.

5-Axis Head
A-Axis Angle: ±67°
C-Axis Angle: ±360°
Cutting Angle: ±45°
Cutting Accuracy: ±0.15/1000mm
Integrated Head Life: 1500 hours
Z-Axis Travel: 180mm

Abrasive Feeding & Speed

Feeding System
Feeding Detail

Cutting Speed Reference

Speed Chart

Workshop & Samples

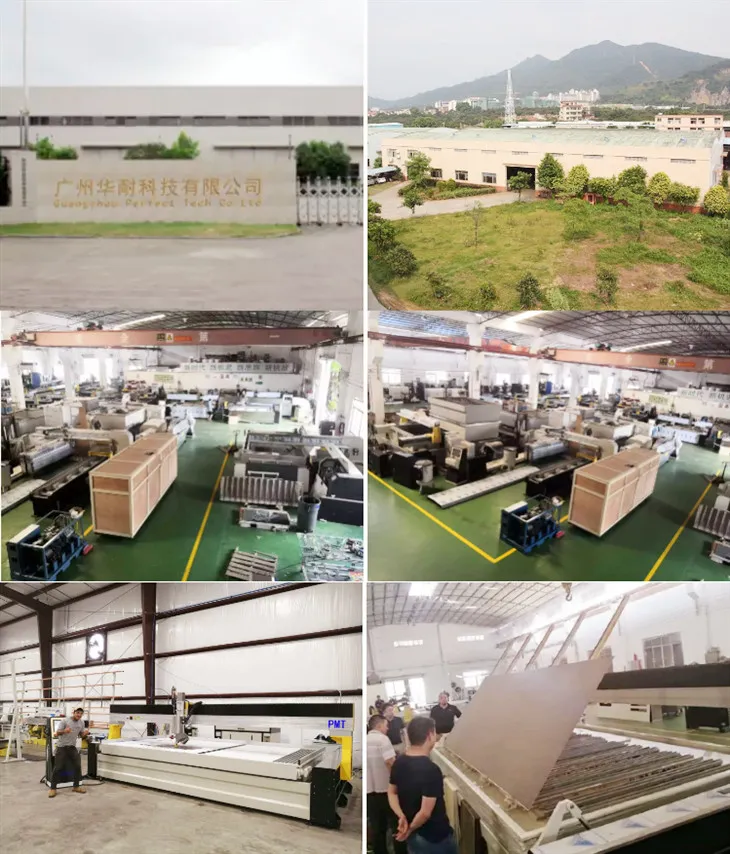

Workshop

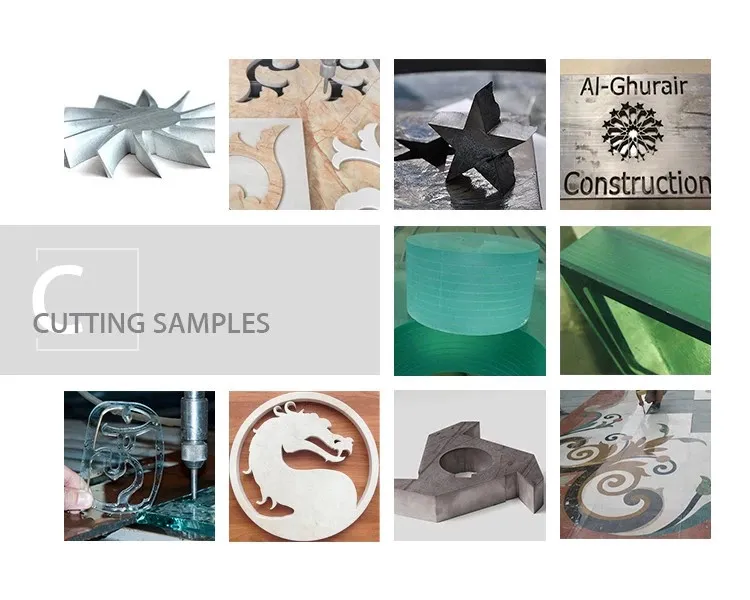

Samples 1

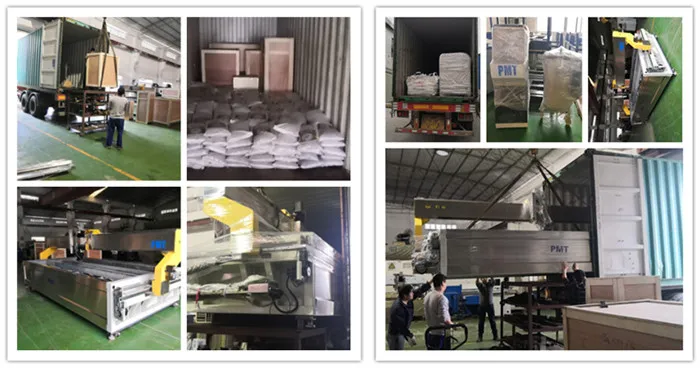

Packing

Frequently Asked Questions

What is the advantage of a water jet cutting machine?
It offers cold processing with no heat reaction zone, preventing deformation. It features strong cutting ability for both soft and hard materials, high precision, and neat edges without secondary processing.
How do I choose the right cutting table?
The choice depends on the size of the materials you intend to process. We offer various sizes such as 1600*1600mm, 2500*1500mm, and up to 6000*2000mm.
How do you solve the taper/incision problem in water cutting?
Standard waterjets have a natural physical taper. For precise vertical angle requirements, we provide a five-axis dynamic cutting system to compensate for the angle.
Is the equipment easy to operate?
Yes, the intelligent controller supports DXF files via USB or network. The system programs automatically after setting a few simple parameters.
What materials can this machine cut?
It is a universal cutter capable of processing metal, marble, ceramic tiles, glass, rubber, foam, plastic, and complex composite materials.
What kind of after-sales service is provided?
We provide a one-year free warranty, technical training for operators, lifetime maintenance, and a guaranteed long-term supply of spare parts.
