| Model NO. | VMC855G | Application | Metal |
|---|---|---|---|
| Process Usage | Metal-Cutting CNC Machine Tools | Movement Method | Linear Control |
| Numerical Control | CNC/MNC | Certification | CE, ISO 9001 |
| Condition | New | X-Axis Travel | 800 mm |
| Y-Axis Travel | 550 mm | Z-Axis Travel | 550 mm |
| Table Size | 1000×550 mm | Loading Capacity | 600 Kg |
| Spindle Speed | 8000 Rpm | Main Motor Power | 7.5/11 Kw |

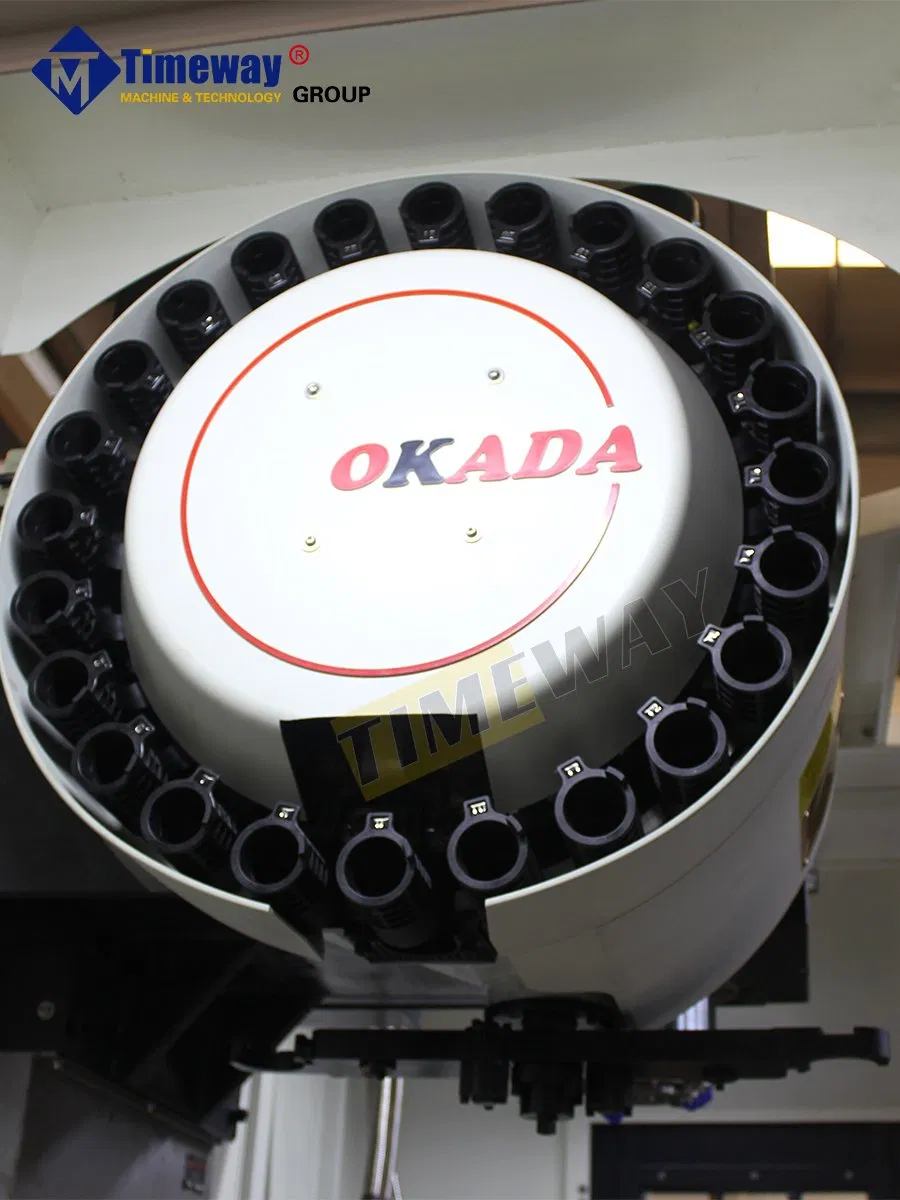

| ATC Style | Disc | ATC Capacity | 24 Tools |

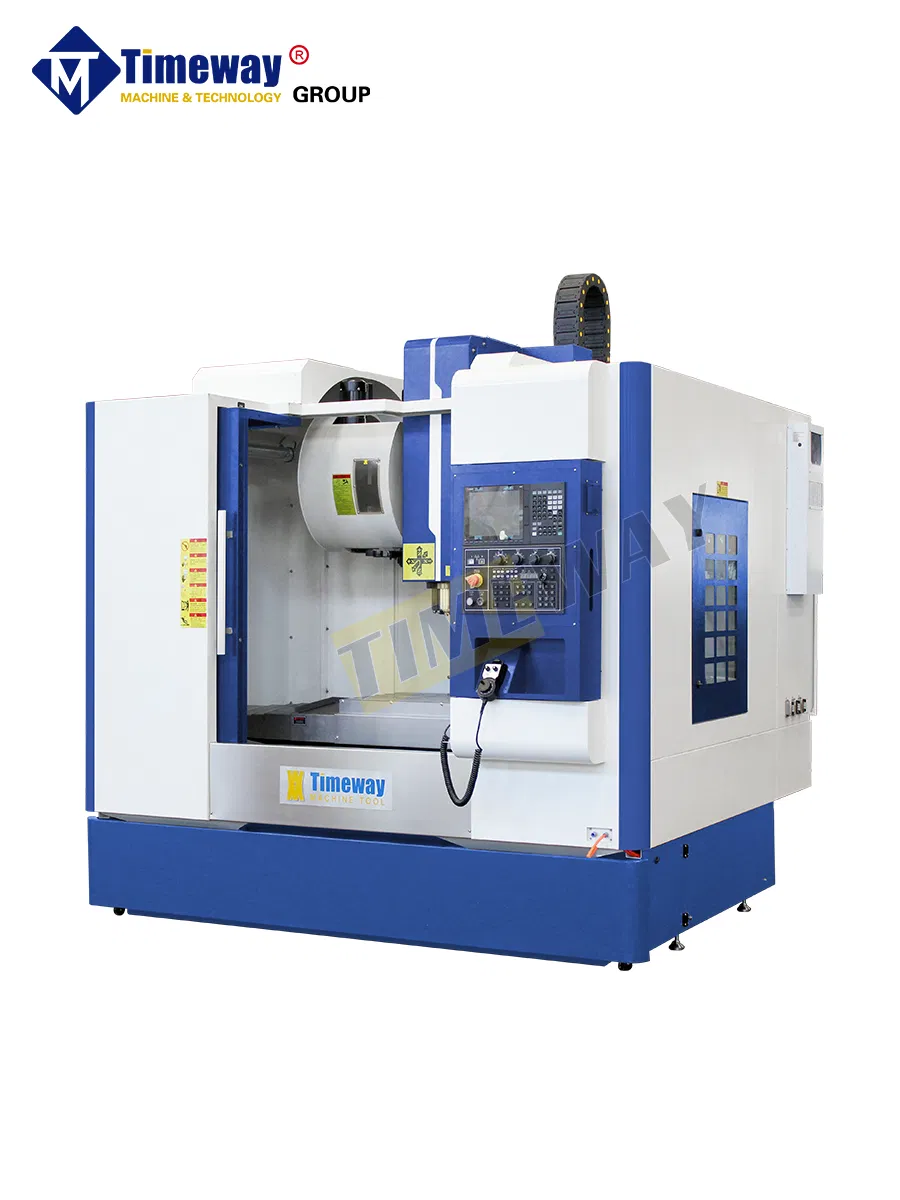

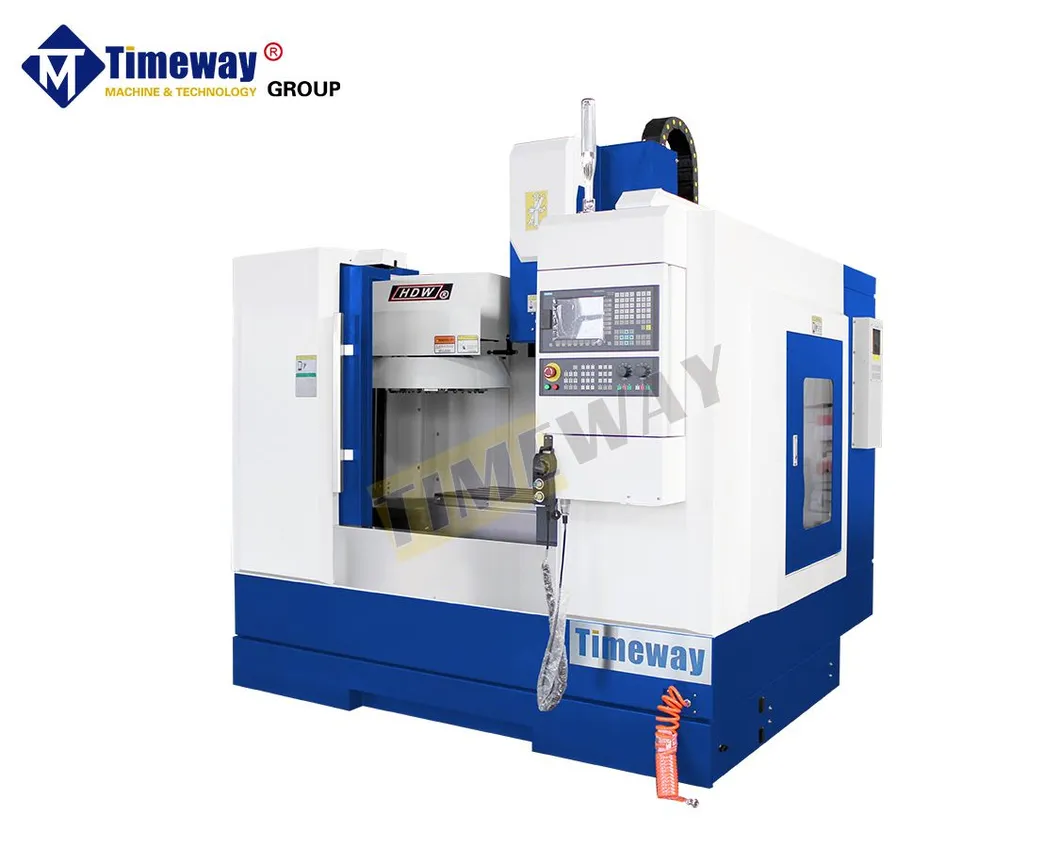

The VMC series vertical machining center is controlled by CNC and performs high-precision cutting processing.
| Specification | Unit | VMC855G |
|---|---|---|
| X/Y/Z-axis travel | mm | 800 / 550 / 550 |
| Distance spindle nose to table | mm | 120-670 |
| Distance spindle center to column | mm | 595 |

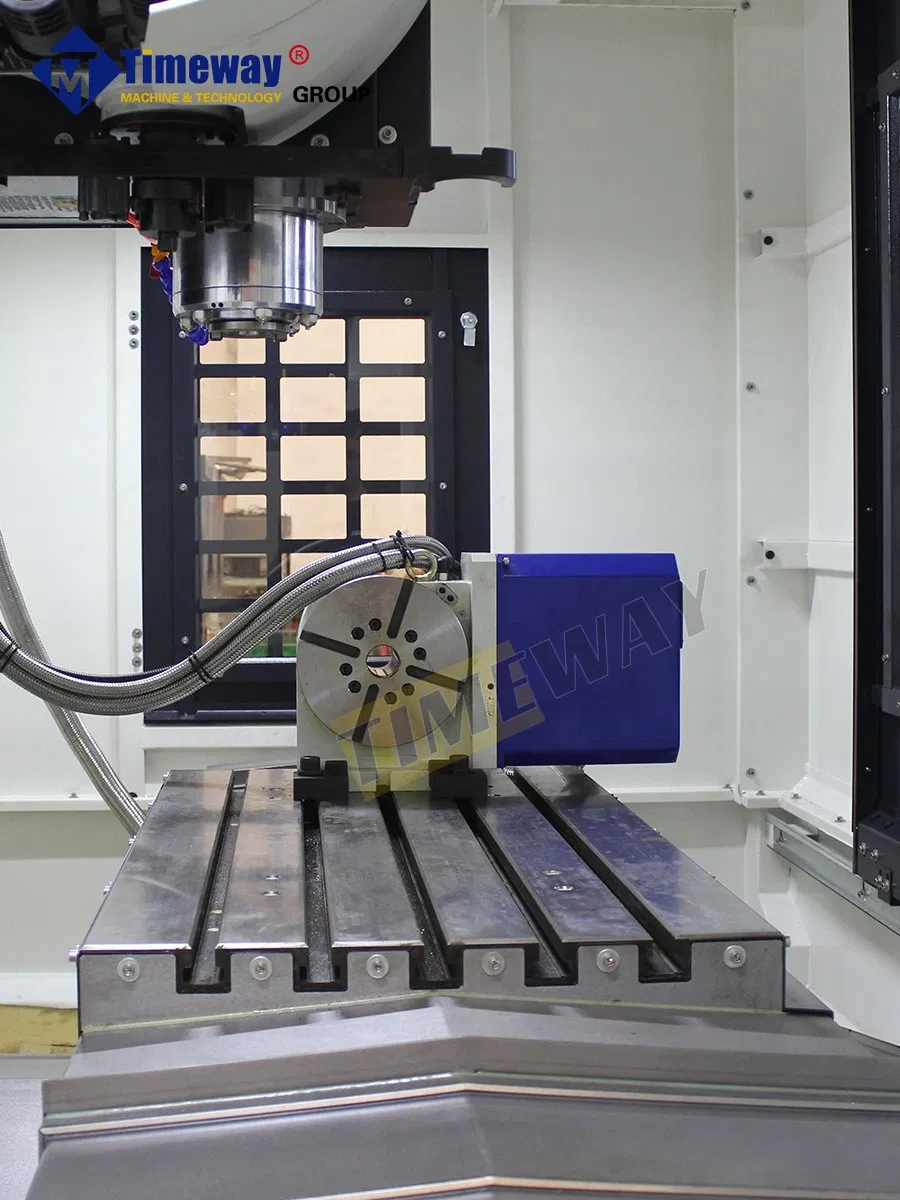

| Table size | mm | 1000x550 |
| Loading capacity | kg | 600 |

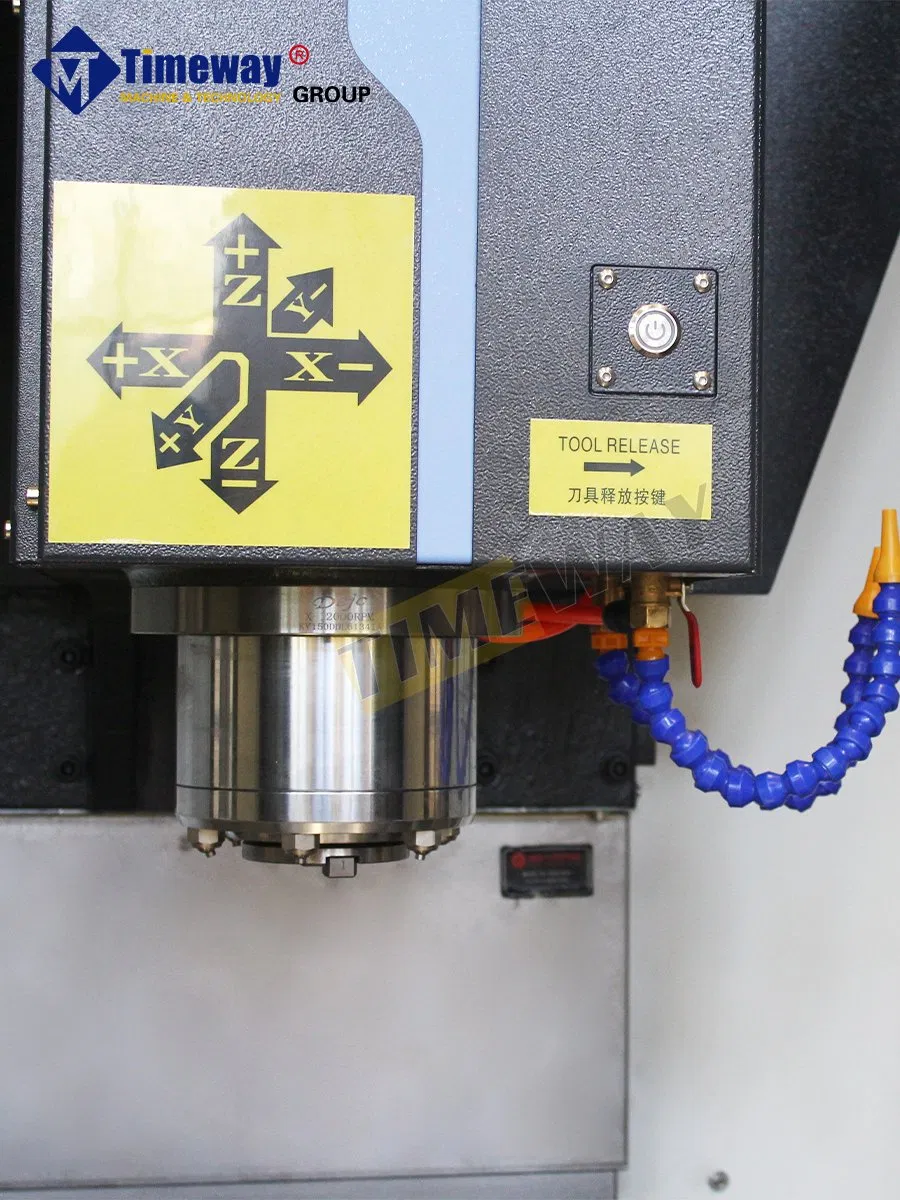

| Spindle taper | - | BT40 |
| Spindle speed | r/min | 8000 |
| X/Y/Z-axis rapid feed speed | m/min | 36/36/36 |
| Positioning accuracy | mm | ±0.005/300 |
| ATC capacity | tools | 24 |
| Machine weight | kg | 5500 |
We are a professional machine tool manufacturing enterprise specializing in lathes, milling machines, and grinding machines. We provide custom design and manufacturing for special purpose machines, along with technology upgrading and transformation services.
A: Our machines feature high quality with competitive pricing, supported by a professional R&D team with 25 years of industry experience and CE/ISO certifications.
A: The MOQ is 1 set for most of our machining centers and lathes.
A: Yes, we have a strict quality control department and our products comply with CE and ISO safety standards.
A: We accept T/T (30% advance, 70% before shipment), Irrevocable LC at sight, and Western Union.
A: The warranty period is 12 months after delivery. We also provide lifelong maintenance and service after the warranty expires.
A: Yes, we can dispatch engineers for on-site problem solving or installation upon customer request.
