Cost-effective Five-axis Simultaneous Machining Center

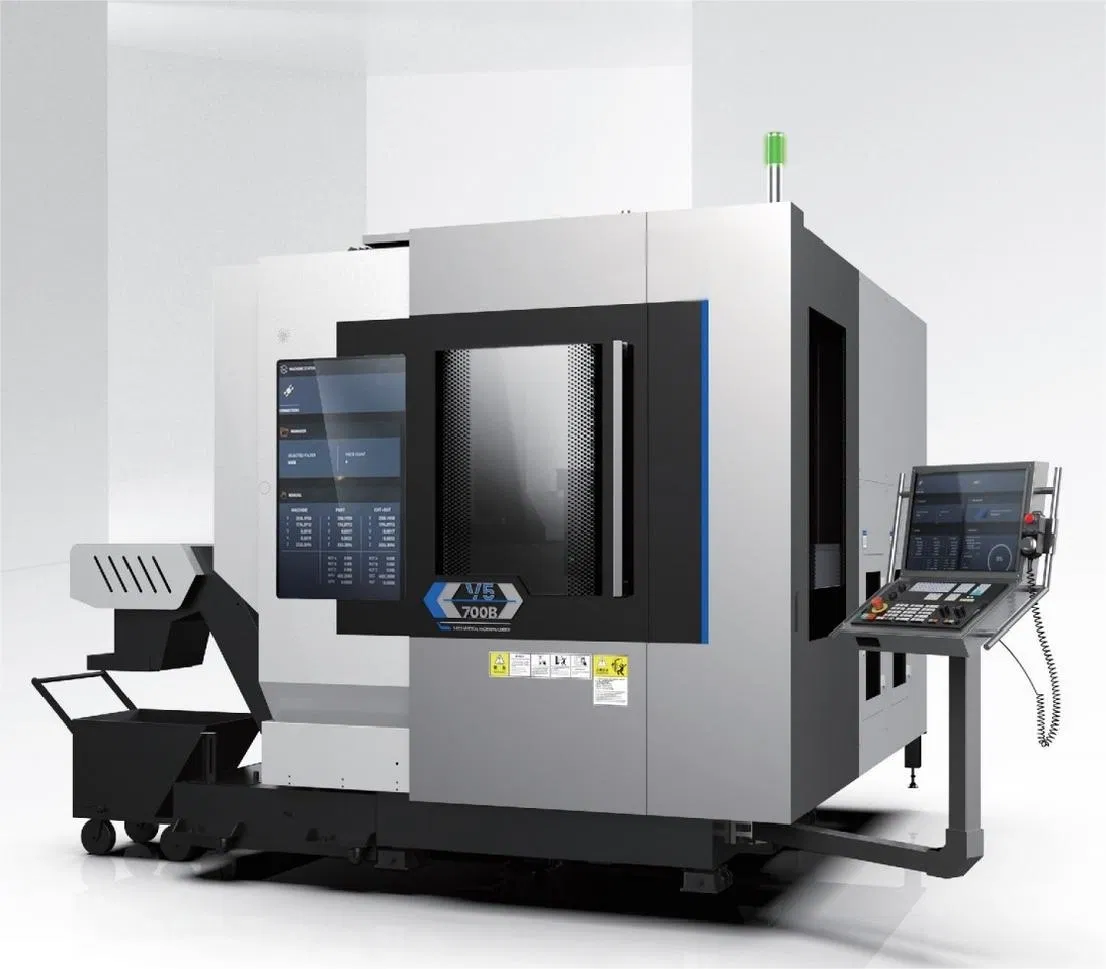

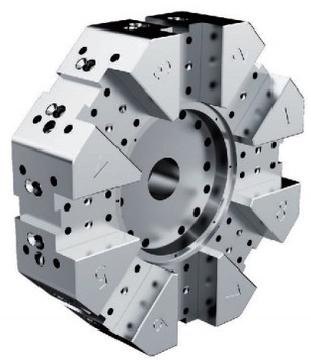

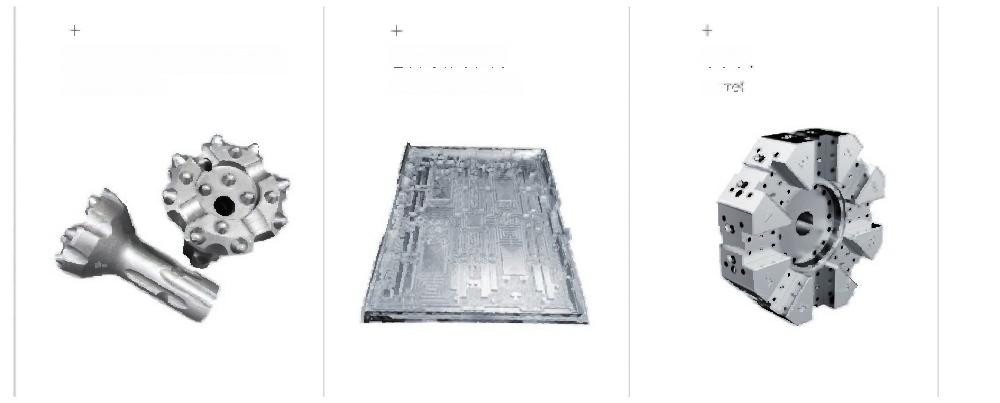

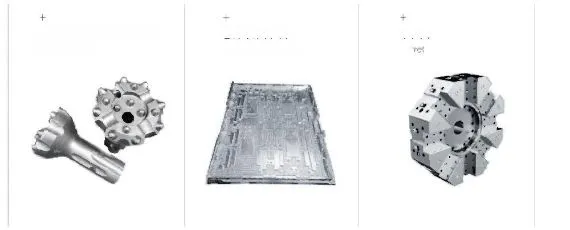

The V5-700B features a classic C-shaped structure, equipped with a self-developed high-precision electric spindle and direct-drive turntable. This high-quality CNC system perfectly presents excellent quality, supporting various electric spindles and turntables for both turning and milling applications.

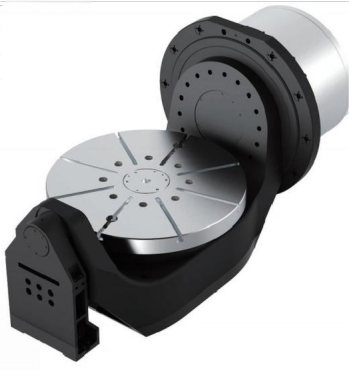

Self-developed direct drive turntable using a high-precision torque motor with zero transmission gap and no wear. Equipped with high-precision angle encoders and a high-end numerical control system to achieve high dynamic and precise control. The rotary swing turntable supports five-axis linkage processing with a maximum workpiece weight of 800kg.

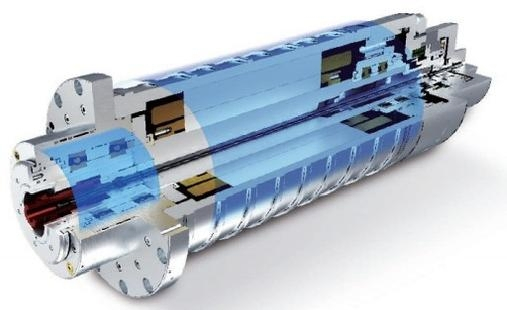

The electric spindle adopts a high-efficiency asynchronous built-in motor with high-precision ceramic bearings. Optional features include vibration sensors, temperature sensors, and internal tool cooling.
| Specification | Unit | Parameter | |
|---|---|---|---|
| Worktable | |||
| Diameter | mm | 700 | |
| Max Horizontal Load | kg | 800 | |
| Max Vertical Load | kg | 500 | |
| T-slot (Number x Width) | mm | 8×14H8 | |
| Processing Range | |||
| Distance Spindle to Worktable | Maximum | mm | 650 |
| Minimum | mm | 150 | |
| X Axis Travel | mm | 700 | |
| Y Axis Travel | mm | 600 | |
| Z Axis Travel | mm | 500 | |
| B Axis Angle | ° | -35 ~ +110 | |
| C Axis Angle | ° | n × 360 | |
| Spindle & Motion | |||
| Rapid Speed (X/Y/Z) | m/min | 36 | |
| Max Speed (B/C Axis) | rpm | 80 | |
| Positioning Accuracy (X/Y/Z) | mm | 0.007 | |
| Repeatability (X/Y/Z) | mm | 0.005 | |
| Total Weight | kg | 8500 | |

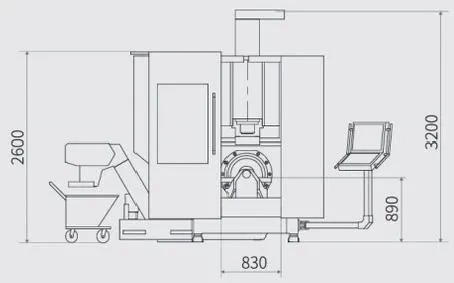

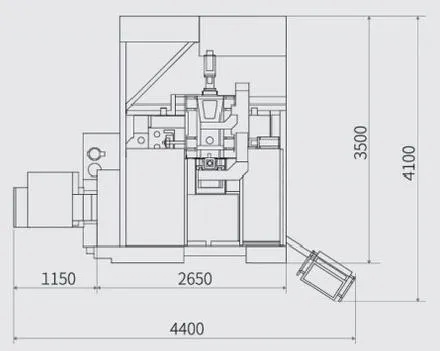

| Dimensions (L x W x H) | mm | 4400×4100×3200 | |
| Module | Standard / Optional |
|---|---|
| Siemens SINUMERIK 828D / 840D / ONE | Standard / Optional |
| HEIDENHAIN TNC640 | Optional |

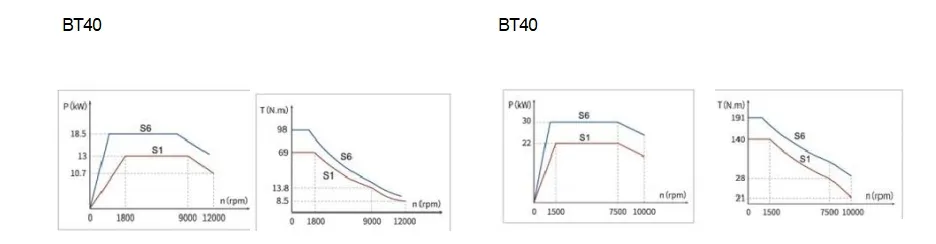

| BT40 12000rpm Spindle | Standard |

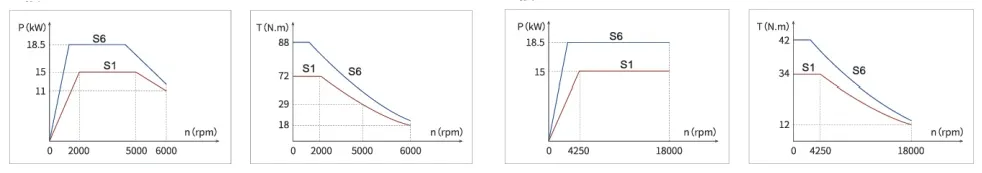

| HSKA63B 18000rpm Spindle | Optional |
| Optical / Radio Probe | Optional |
| Laser Tool Setting Instrument | Optional |
| Five-axis Precision Calibration | Standard |
