High-speed high-precision motorized spindle Direct driven rotary table with high dynamic responsiveness High-end CNC controller High-efficiency hybrid machining

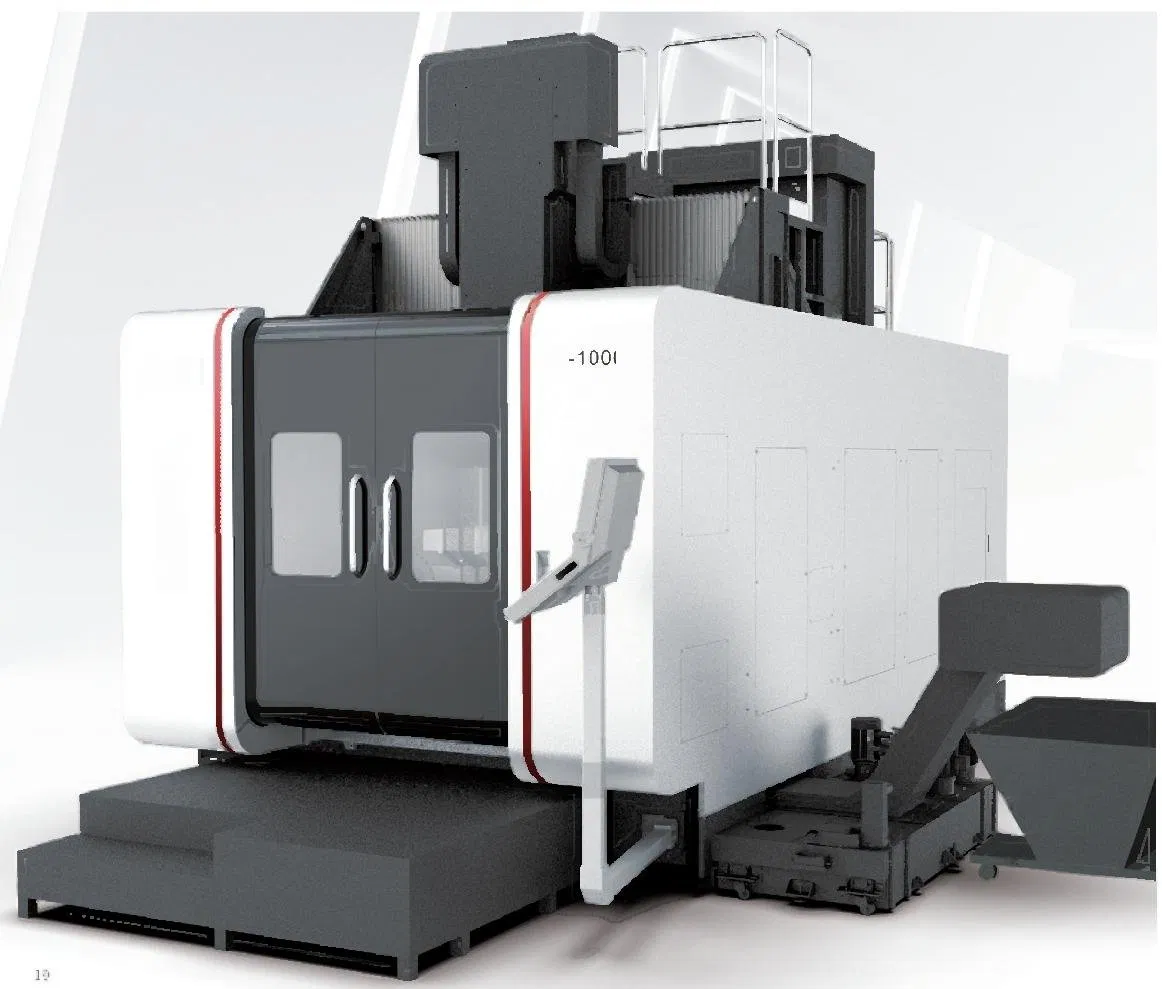

V5-1000A: Five-axis Simultaneous Machining With High Cost Performance Ratio
With original enclosed gantry construction, standard high-speed motorized spindle, NC rotary table with direct drive and horizontal chain type servo automatic tool changer, it can realize high-speed and high-precision machining of complicated parts. Precision high-speed lead screws and roller guide ways are employed to ensure rigidity and precision of the machine. It is widely used for manufacturing NEV motors, gearboxes, gas turbines, molds and other products.
Mold Making | Automobile Mold | Structural Member
Product Features:

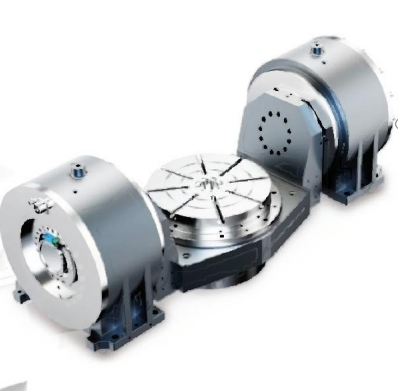

The independently developed rotary table with direct drive is provided with a high-precision torque motor featuring zero drive clearance and zero wear. A high-precision angle encoder and a high-end CNC controller are installed to realize high dynamic accuracy control. The rotary tilt table allows five-axis simultaneous machining and a maximum workpiece weight of 3,000kg. It can fulfill negative angle machining.
Product Features:

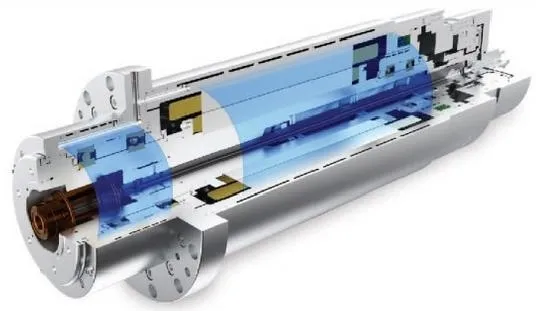

The motorized spindle adopts a high-efficiency built-in asynchronous motor and high precision ceramic bearing. Options include vibration sensors, temperature sensors, and tool internal cooling.
Performance Curves (HSKA100 & BT50):
| Category / Item | Unit | Specifications | |
|---|---|---|---|
| Table | |||
| Diameter | mm | 1,000 | |
| Max. horizontal load | kg | 3,000 | |
| Max. vertical load | kg | 2,000 | |
| T slots (number × width) | No. × mm | 5 × 18 | |
| Machining Range | |||
| Distance from spindle nose to table | Max/Min | mm | 1,080 / 180 |
| X / Y / Z axis | mm | 1,150 / 1,300 / 900 | |
| B axis | ° | -150 ~ +130 | |
| C axis | ° | n × 360 | |
| Spindle | |||
| Tool holder | - | BT50 / HSKA100 | |
| Max. speed | rpm | 10,000 | |
| Output power (S1/S6) | kW | 30 / 37 | |
| Accuracy | |||
| Positioning accuracy X/Y/Z | mm | 0.008 | |
| Positioning accuracy B/C | " | 8 | |
| Physical Data | |||
| Weight | kg | 33,000 | |

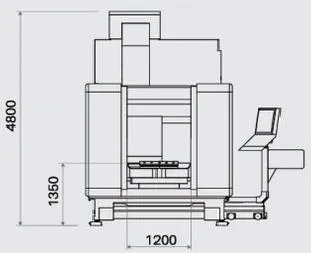

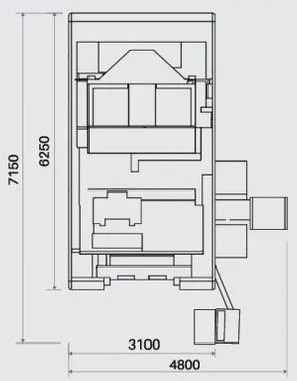

| Overall dimensions (L×W×H) | mm | 7,420×4,800×4,800 | |
