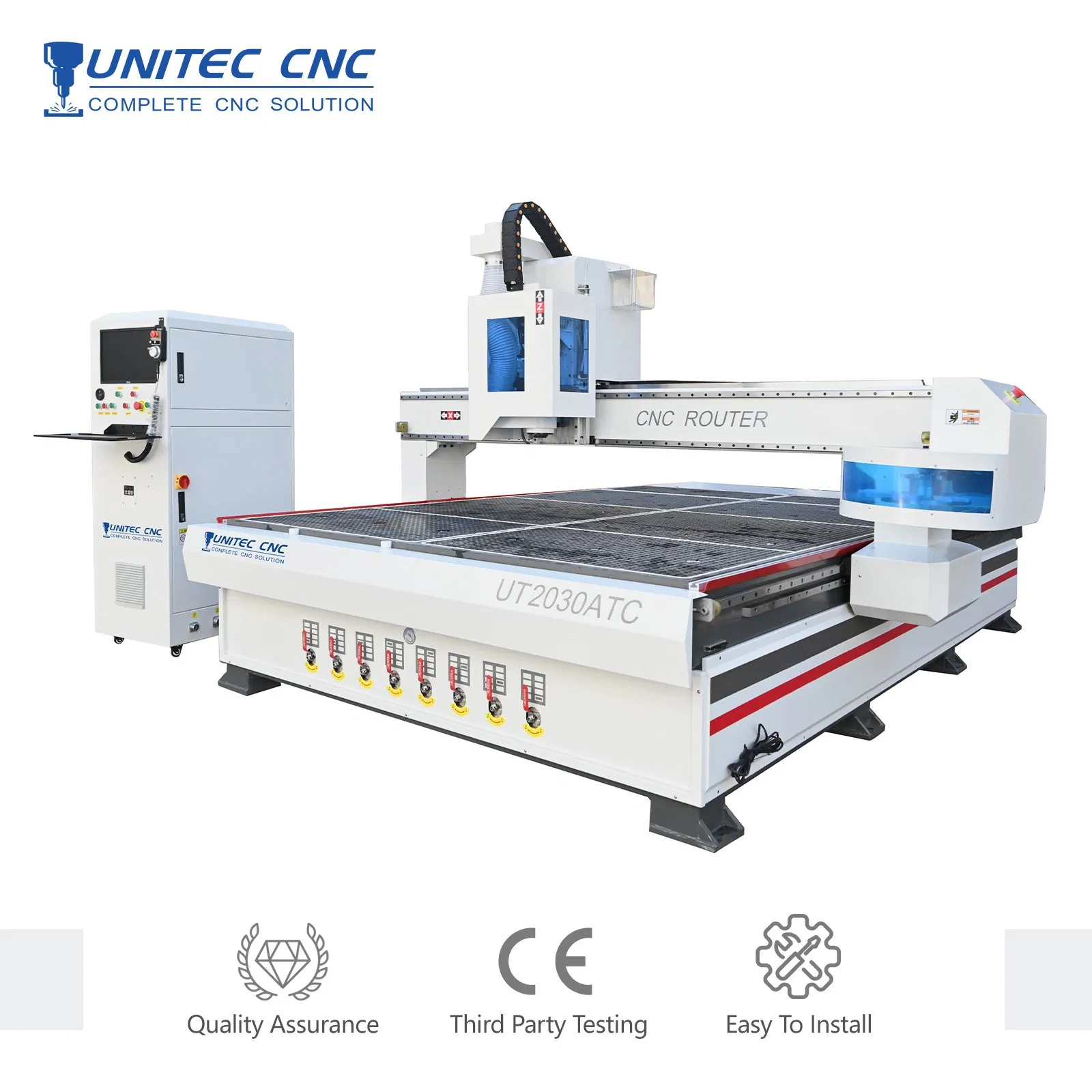

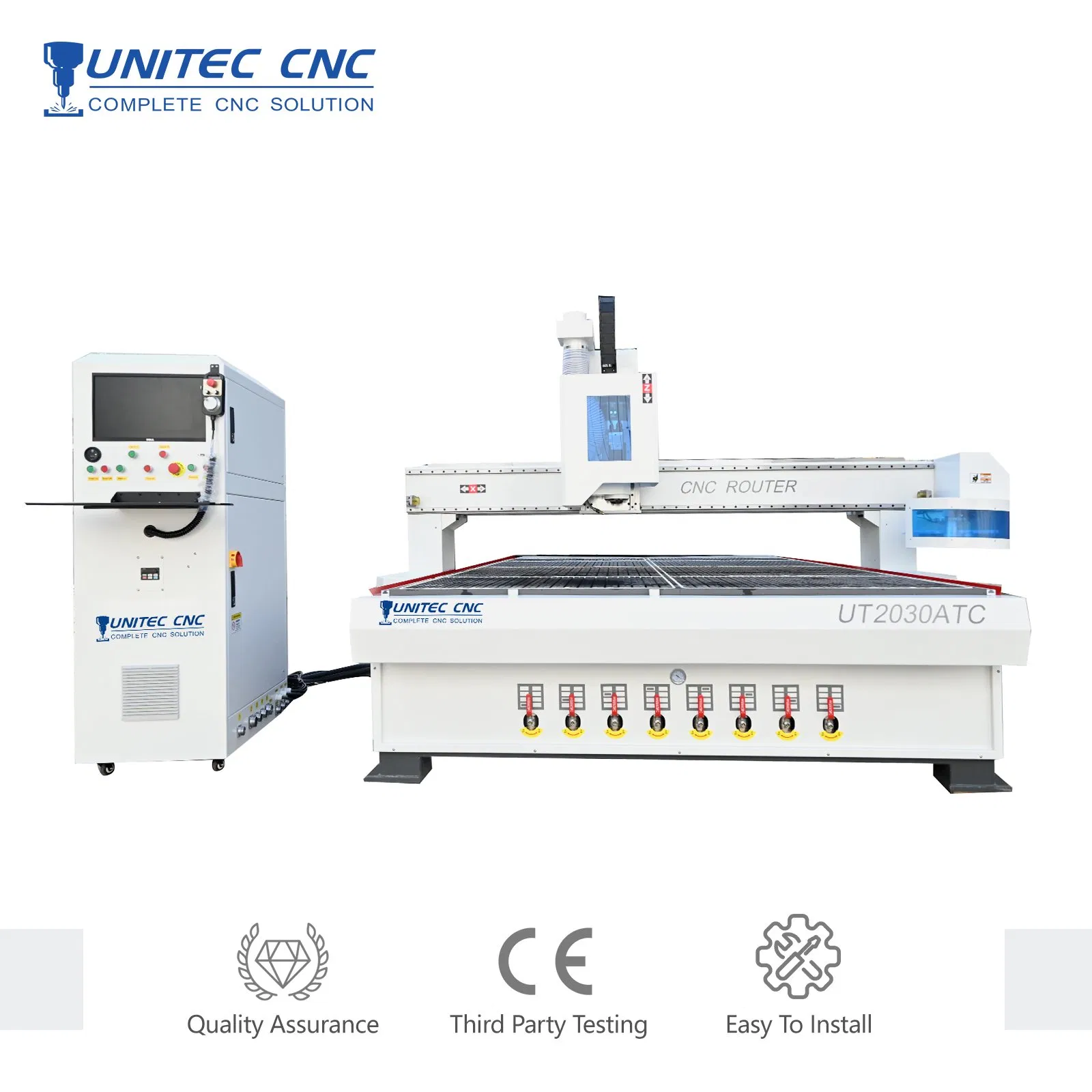

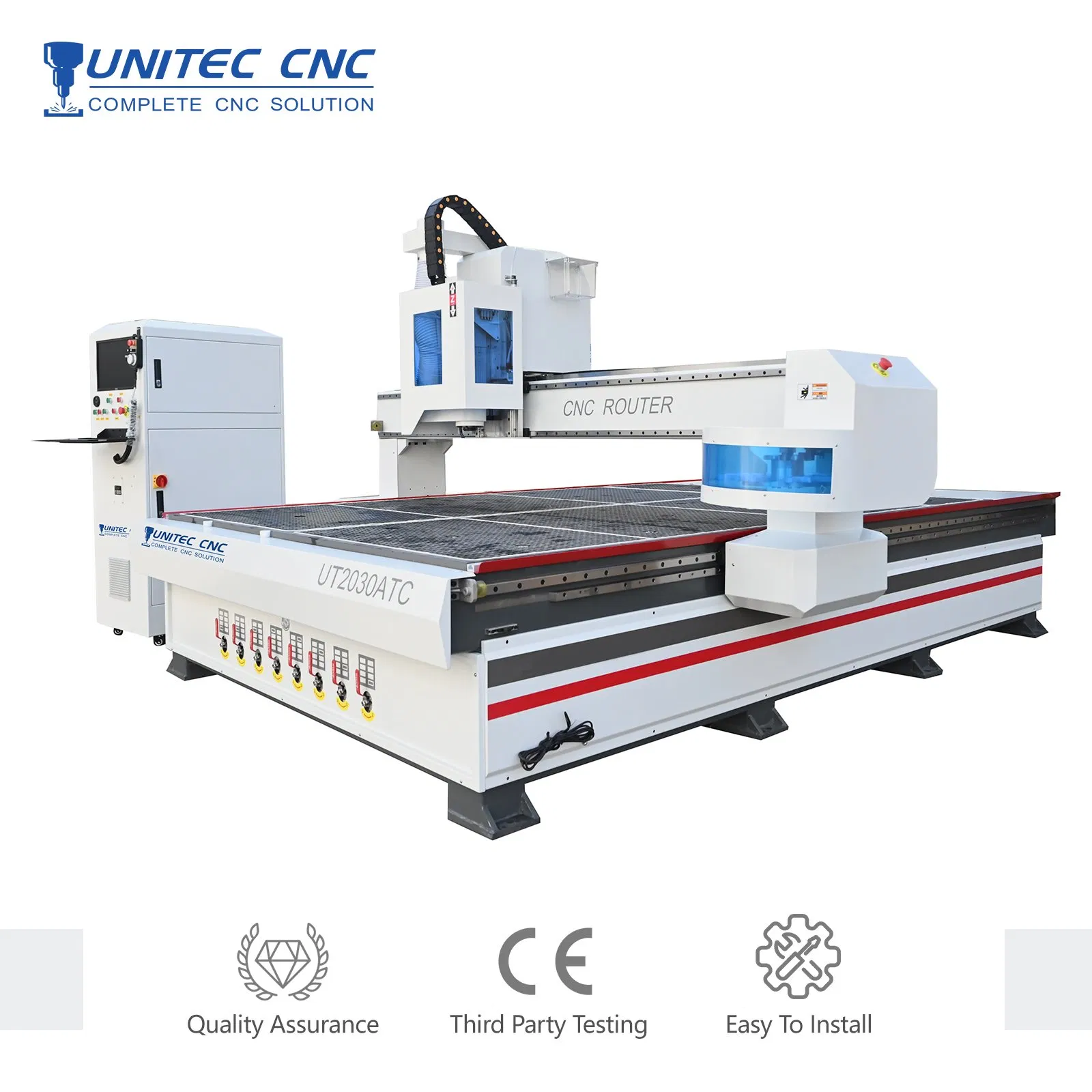

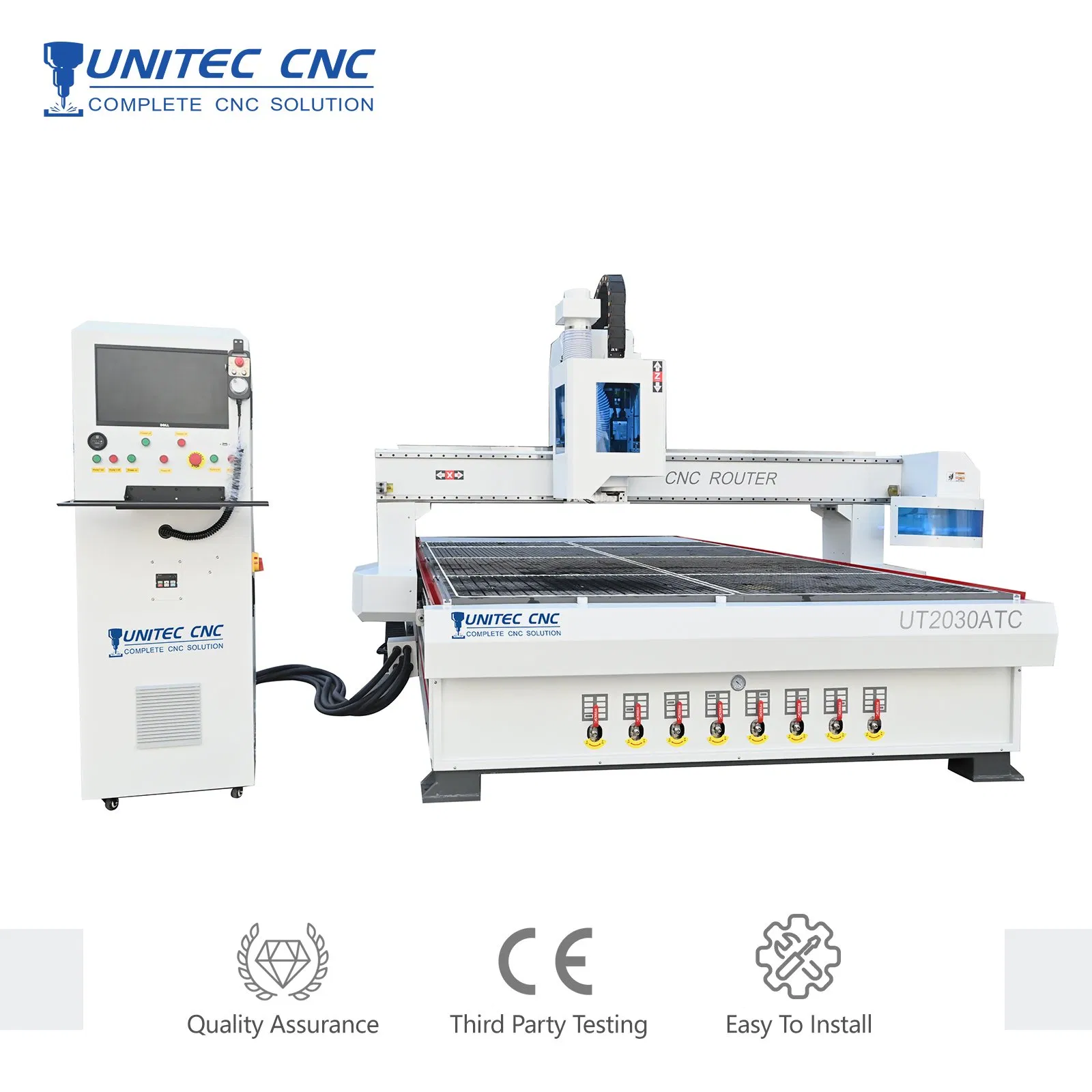

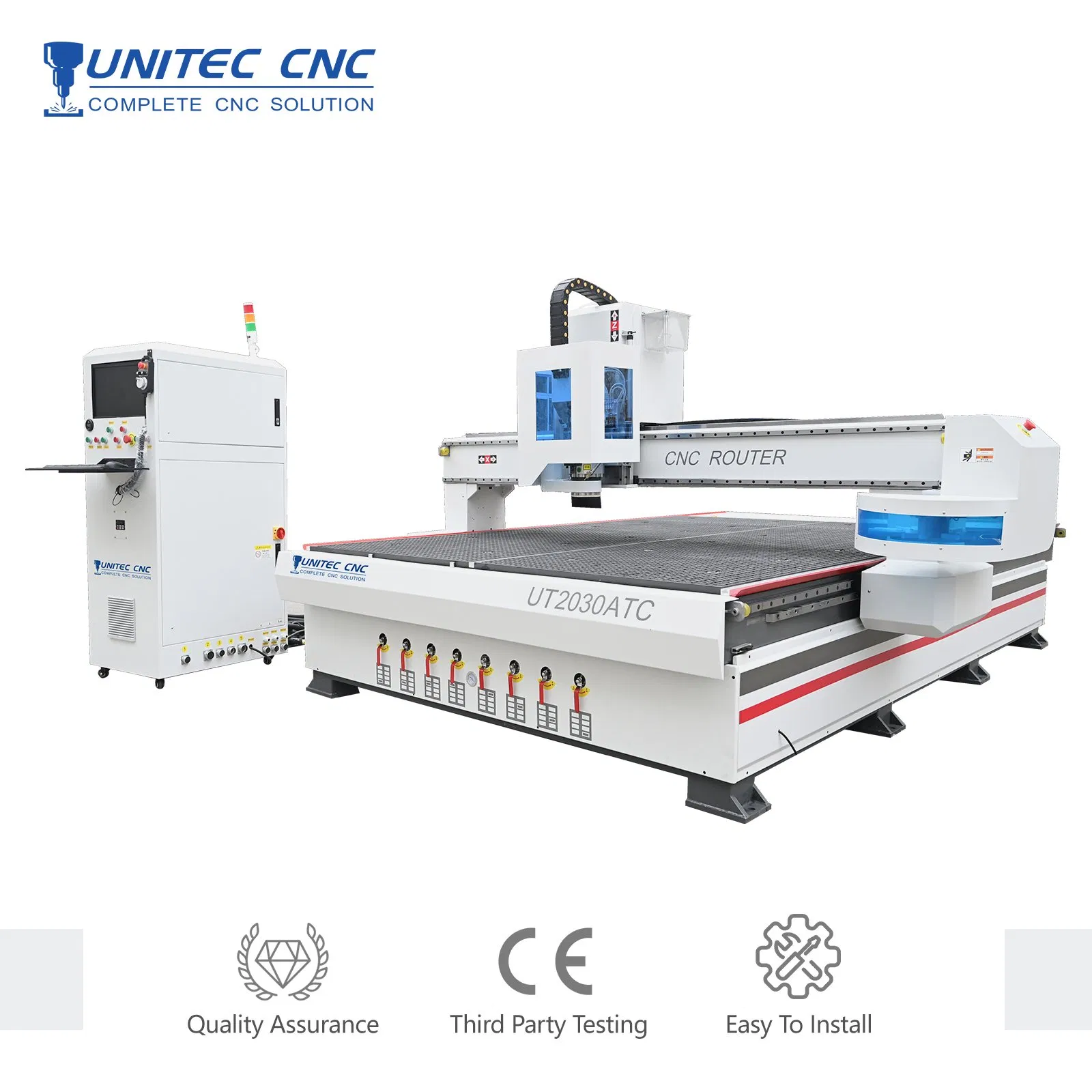

Unitec Factory 2030 3D Woodworking Cutting Carving Engraving Milling Machines Price 4 Axis 5axis Automatic Atc CNC Router CNC Machine for Wood MDF Furniture

Customization: Available
After-sales Service: 2 Years
Warranty: 2 Years

Product Description

🔹 Basic Information
Model NO.:UT2030ATC
Condition:New
Certification:CE
CNC or Not:CNC
Voltage:380V
Max Working Size:2000X3000X180mm
Table Size:2100X3100mm
Controller System:Ncstudio or Syntec
Accuracy:0.05mm
Repeatability:0.01mm
Overall Weight:2400kg
HS Code:8465990000
📷 Main Parts & Detailed Photos
Linear Guide

Taiwan CSK Linear Guide

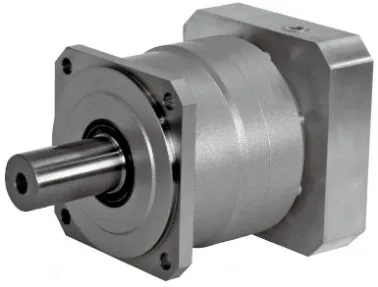

Reducer

Japan Shimpo Reducer

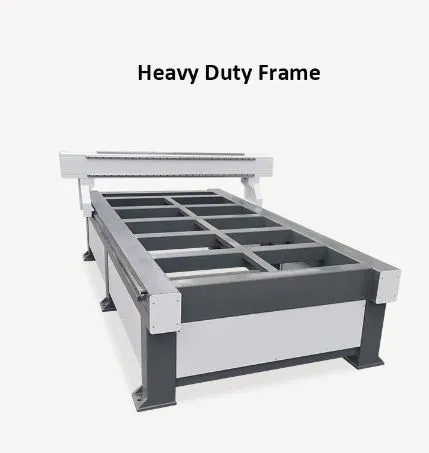

Frame

Heavy Duty Frame

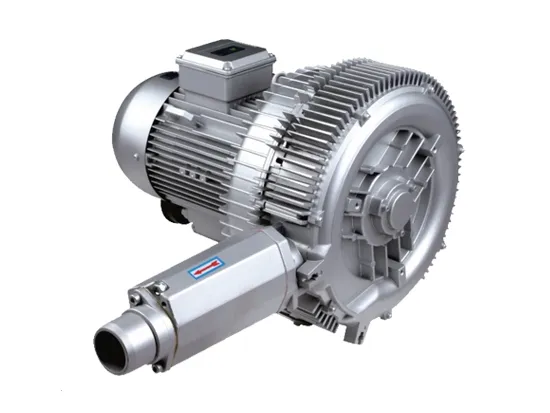

Vacuum Pump

7.5KW Vacuum Pump

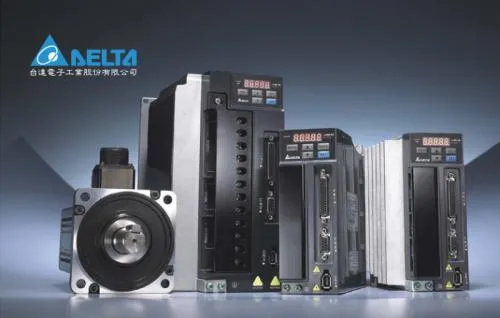

Servo Motor

Delta Servo Motor and Driver

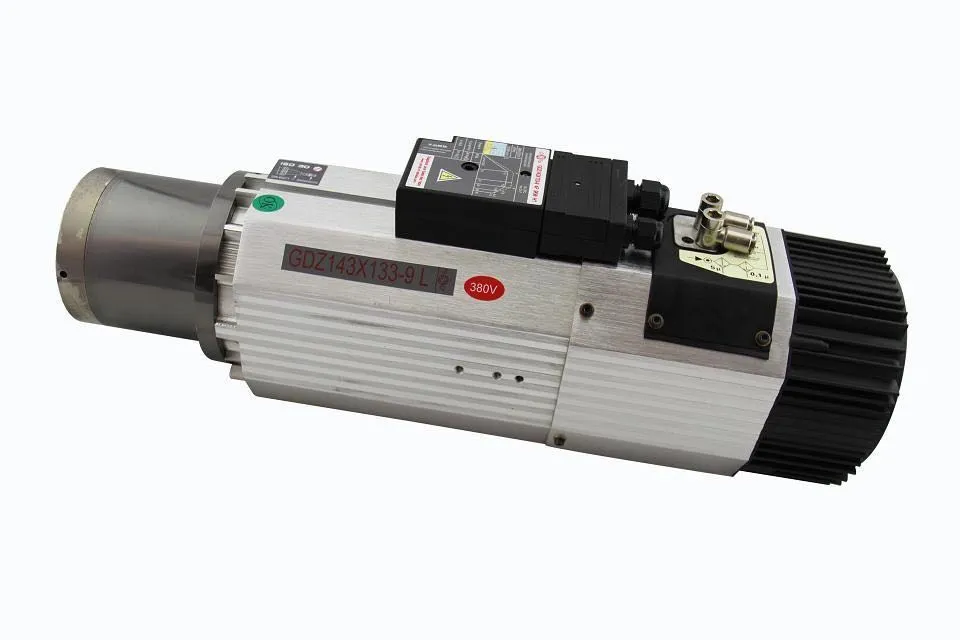

ATC Spindle

HQD ATC Spindle

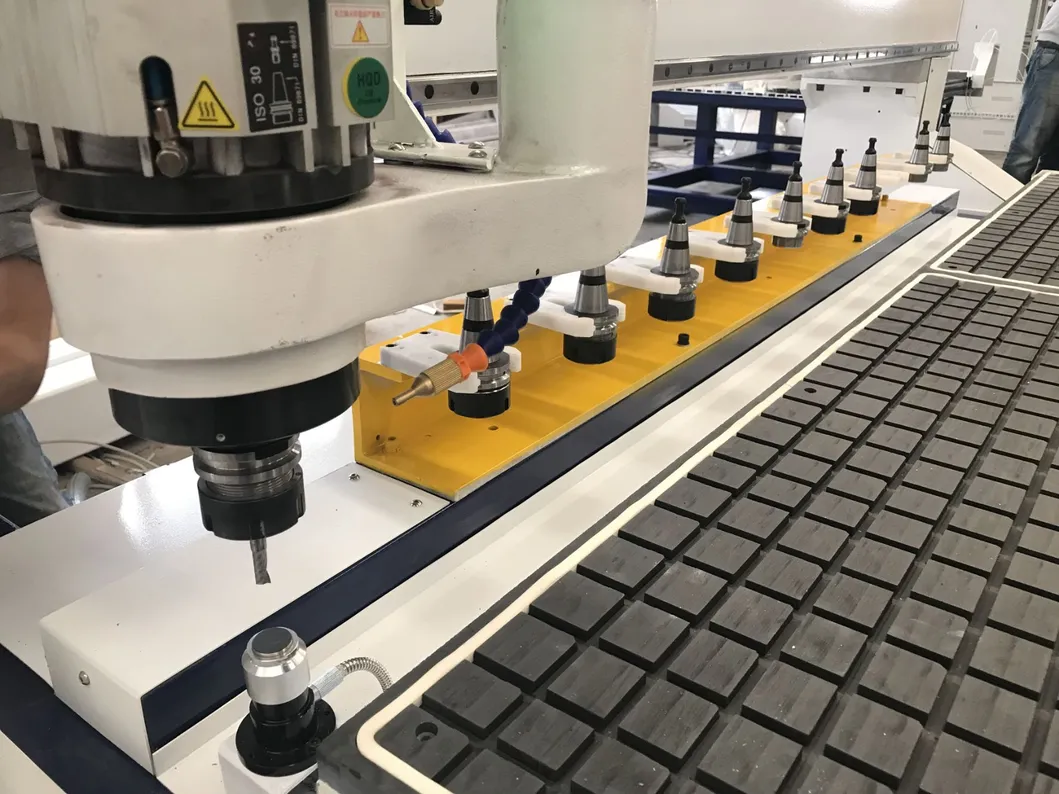

Linear ATC

Linear ATC with Auto Calibrator

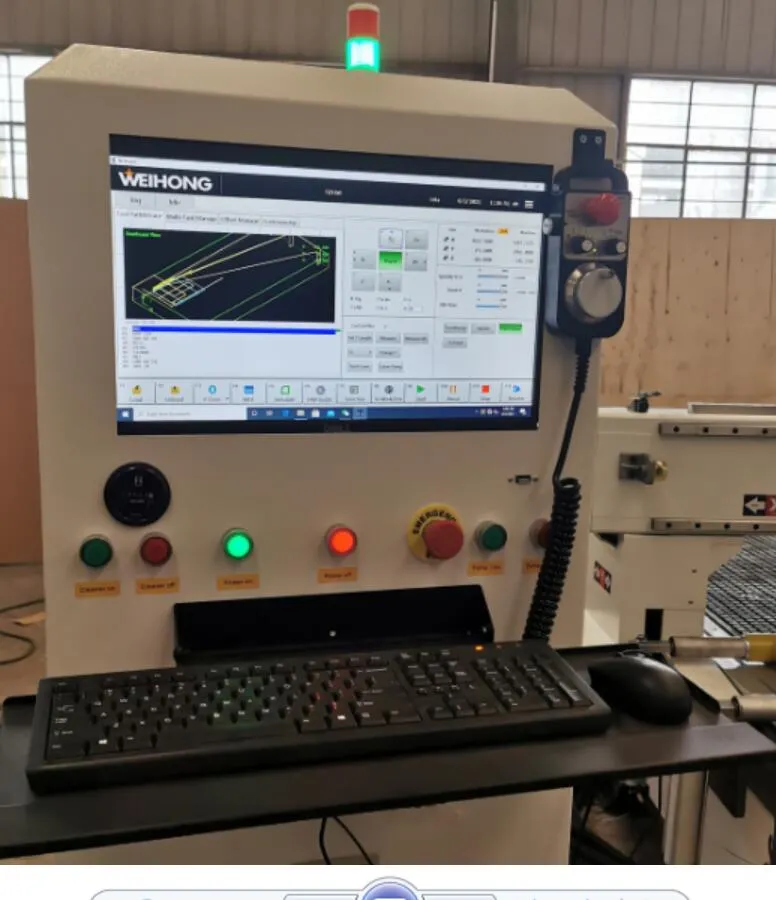

Controller

Ncstudio Controller

✨ Sample Presentation
Sample 1
Sample 2
📊 Product Parameters
XYZ Travel Size 2100X3300X210mm
Max Working Size 2000X3000X180mm
Transmission Type XY rack / Z ball screw
Table Type Vacuum Table
Spindle Power 9.0KW China ATC spindle or Italy HSD ATC spindle
Tool Changer Linear Tool Changer
Spindle Speed 24000rpm
Max Travel Speed 40000mm/min
Processing Accuracy ±0.05mm
Overall Dimension 2650X3800X1900mm
💡 Highlights & Applications

Applications: Furniture Industry (wood doors, cabinets, panel furniture), Woodworking (Automotive Trim, Stereo Equipment, Instruments, Office Furniture).

  • Integral welded big square steel pipe with high-precision milling for maximum stability.
  • Y-axis driven by double motors and planetary reducer for strong cutting strength.
  • Automatically materials locating system for improved accuracy and efficiency.
  • Equipped with automatically lubrication system for easy periodic maintenance.
  • Strict compliance with CE electrical standards for safe and reliable operation.
📜 Certifications
Certifications

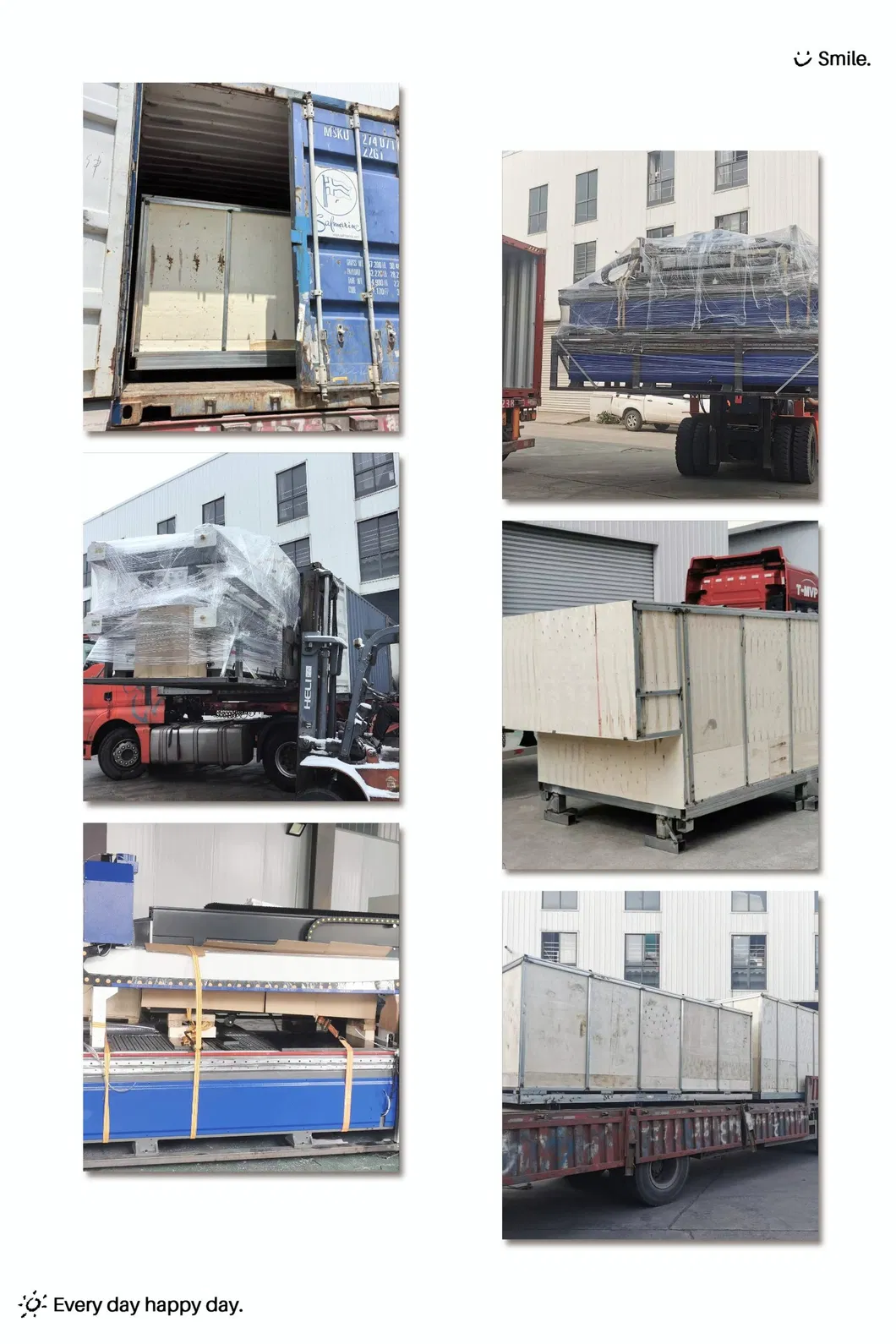

📦 Packaging & Shipping
Packaging
🏛️ Exhibition
Exhibition
🏢 Company Profile

We are a dynamic and innovative manufacturer at the forefront of CNC Technology. Established in 2008, our team provides cutting solutions and services across signmaking, metal working, woodworking, automotive interior, and packaging sectors.

Our facility is staffed by a team of highly skilled professionals dedicated to innovation and continuous improvement. We have established strong relationships with world-class suppliers including Italy HSD, Japan Yaskawa, and Taiwan Syntec to guarantee the highest quality for our machinery.

Our products are exported to more than 100 countries and regions worldwide, including the United Kingdom, United States, Germany, and Scandinavia, backed by comprehensive technical support and efficient service.

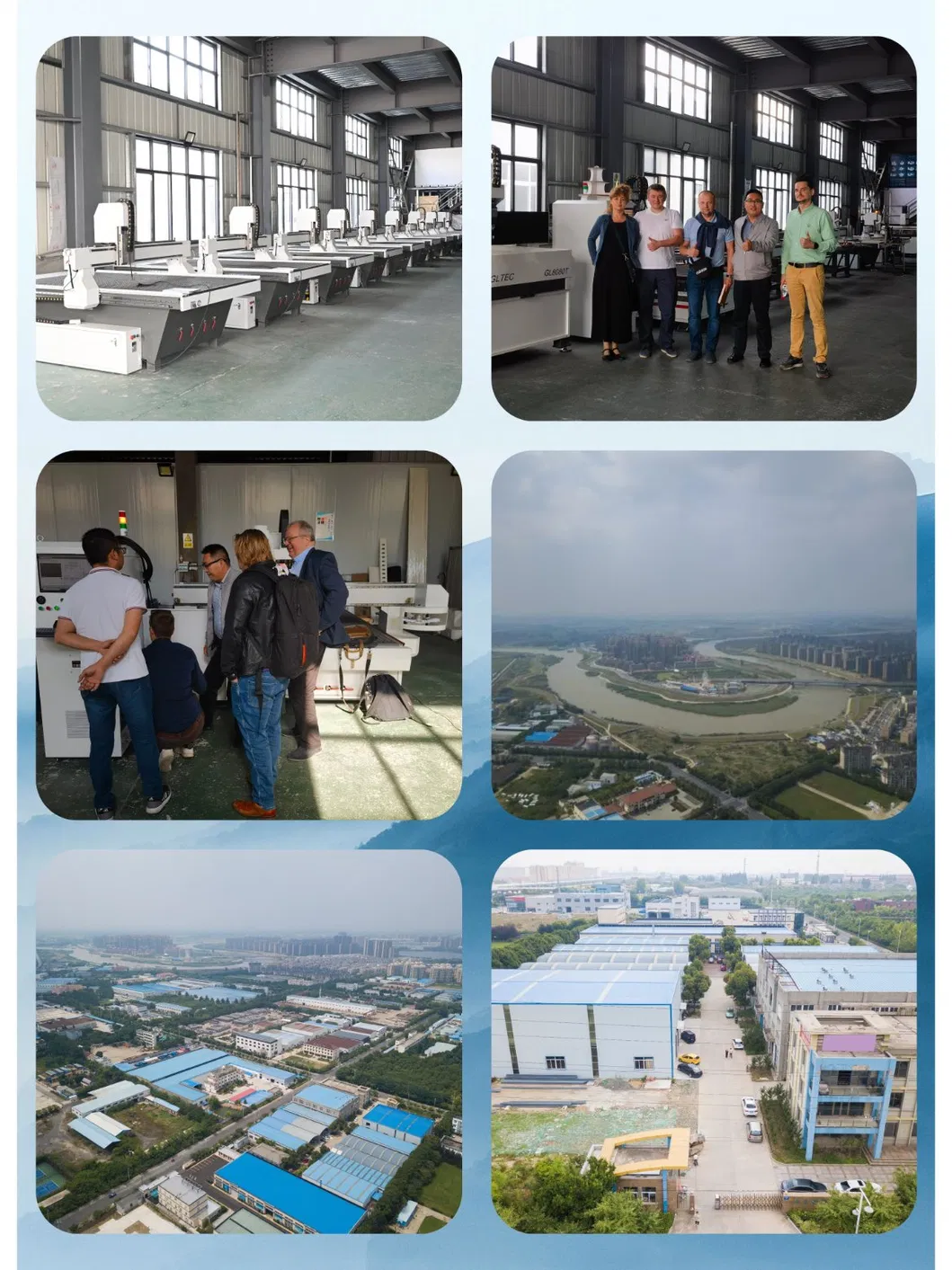

Factory
❓ Frequently Asked Questions (FAQ)
1. What is the effective working area of the UT2030ATC?
The machine features a maximum working size of 2000mm x 3000mm x 180mm, suitable for large-scale panel processing.
2. Which control systems are compatible with this CNC router?
The machine supports professional-grade Ncstudio or Syntec controller systems for high-precision operations.
3. What kind of materials can this machine process?
It is ideal for the furniture and woodworking industries, capable of cutting and engraving wood, MDF, cabinet panels, and automotive trims.
4. What is the processing accuracy of the UT2030ATC?
The machine offers a processing accuracy of ±0.05mm and a repeat positioning accuracy of ±0.01mm.
5. Does the machine come with an automatic tool changer?
Yes, it is equipped with a Linear Automatic Tool Changer (ATC) and an auto calibrator to maximize production efficiency.
6. Is the machine compliant with international safety standards?
Absolutely. The machine is CE certified and complies with strict electrical standards for safe and reliable protection.
