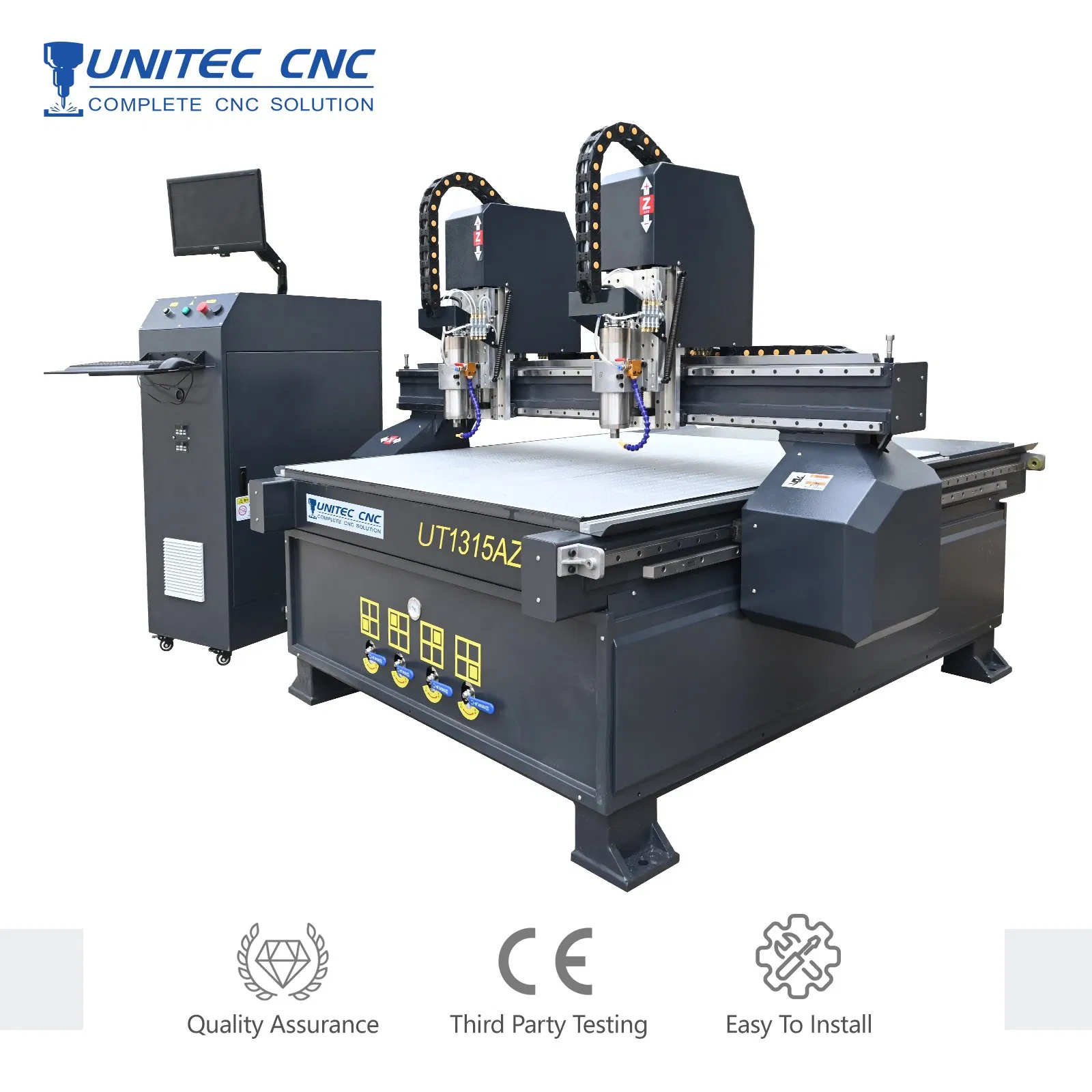

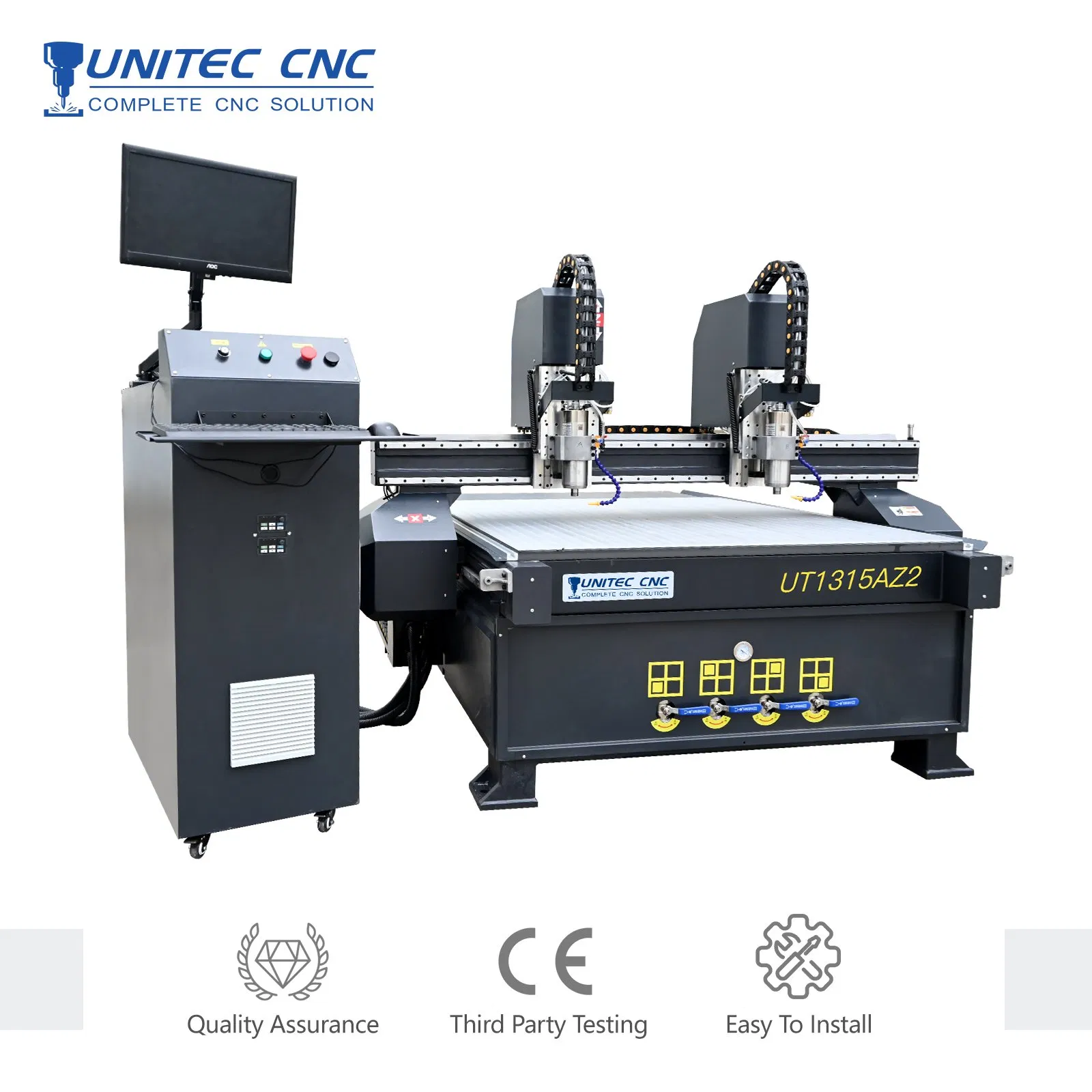

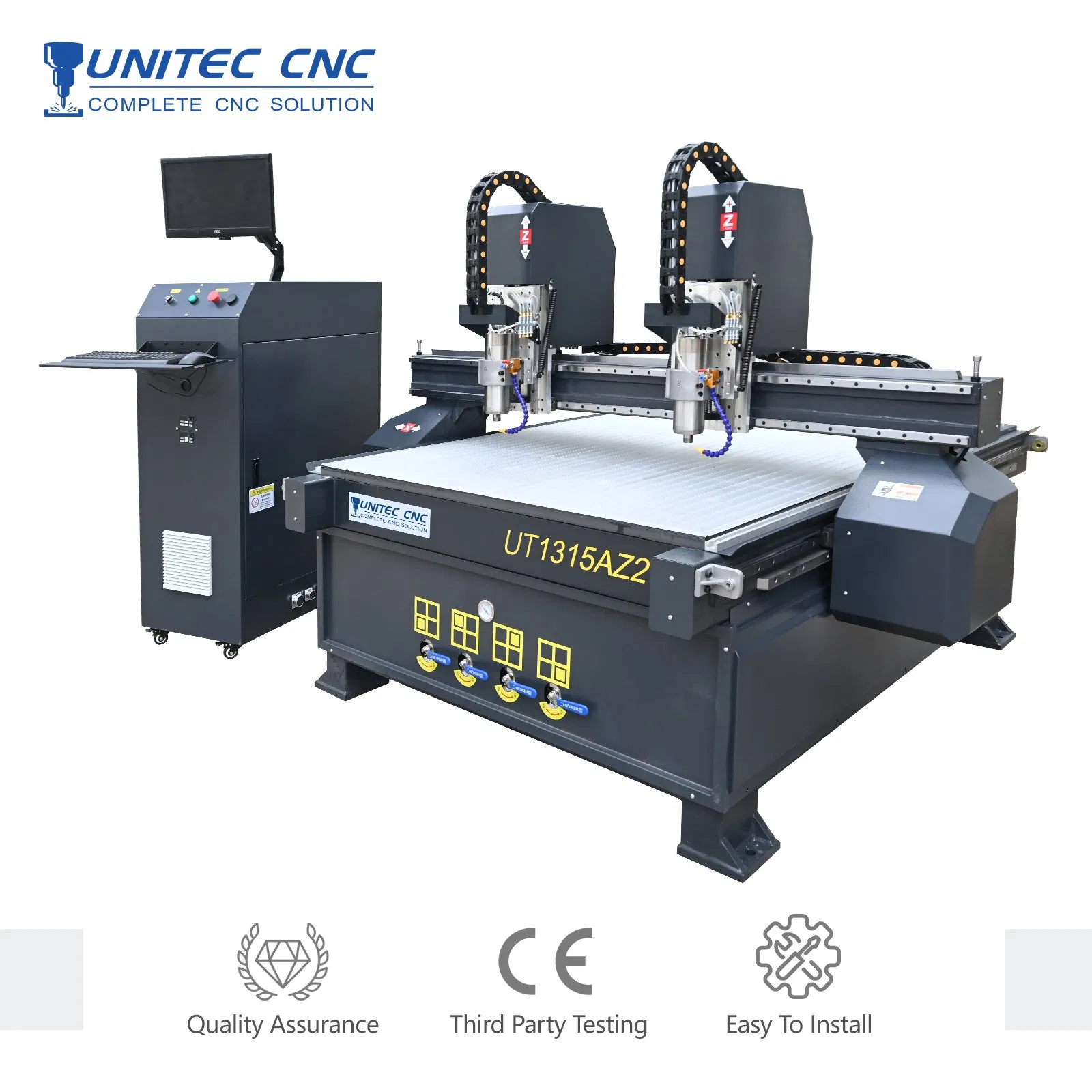

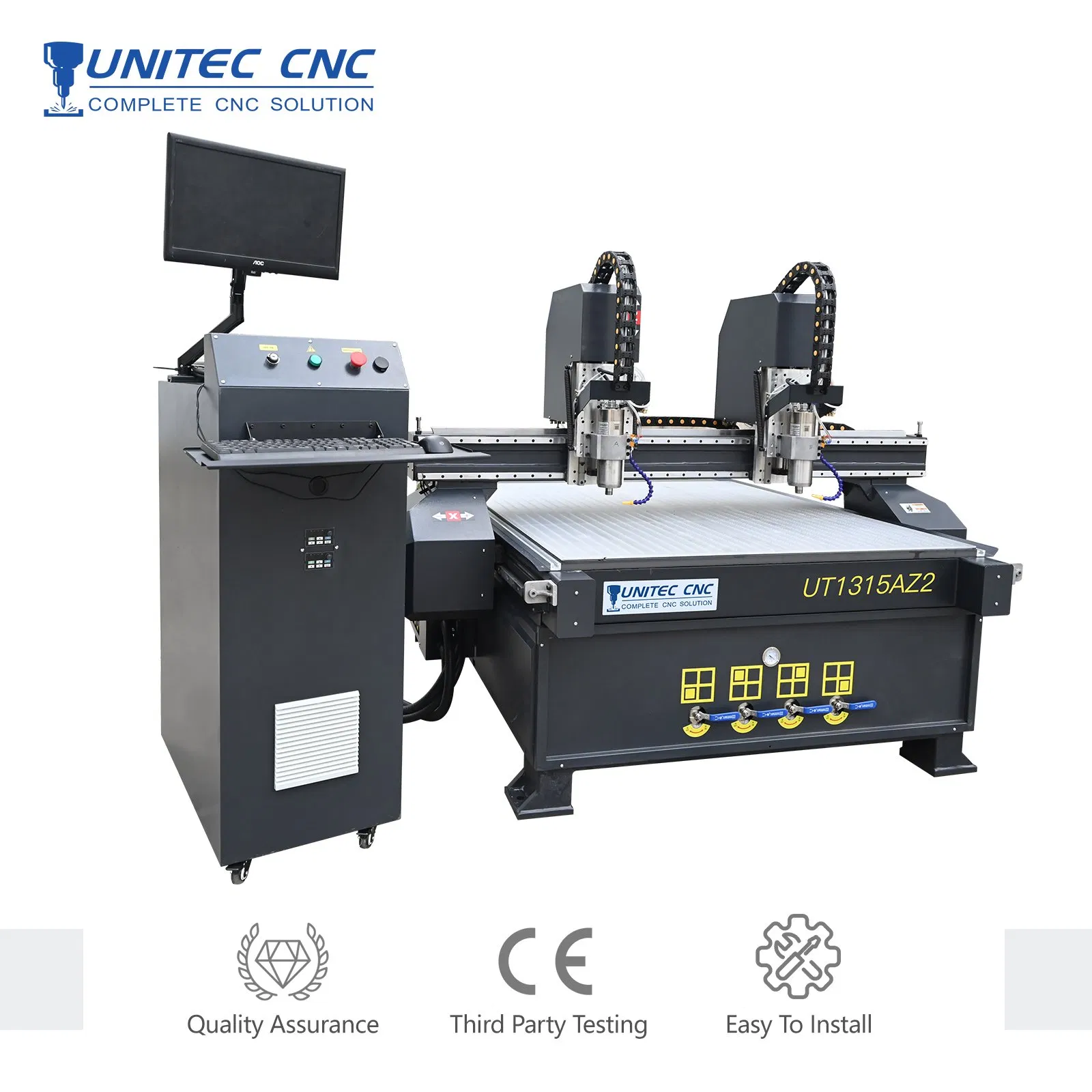

Unitec 2 Heads Multi Spindles Engraving Machine 1315 1325 Wood CNC Router for Wood MDF Wood Woodworking Machine Carving Cutting Machine
Unitec 2 Heads Multi Spindles Engraving Machine 1315 1325 Wood CNC Router for Wood MDF Wood Woodworking Machine Carving Cutting Machine
Unitec 2 Heads Multi Spindles Engraving Machine 1315 1325 Wood CNC Router for Wood MDF Wood Woodworking Machine Carving Cutting Machine
Unitec 2 Heads Multi Spindles Engraving Machine 1315 1325 Wood CNC Router for Wood MDF Wood Woodworking Machine Carving Cutting Machine
Unitec 2 Heads Multi Spindles Engraving Machine 1315 1325 Wood CNC Router for Wood MDF Wood Woodworking Machine Carving Cutting Machine
1 / 5
Unitec 2 Heads Multi Spindles Engraving Machine 1315 1325 Wood CNC Router for Wood MDF Wood Woodworking Machine Carving Cutting Machine
Unitec 2 Heads Multi Spindles Engraving Machine 1315 1325 Wood CNC Router for Wood MDF Wood Woodworking Machine Carving Cutting Machine
Unitec 2 Heads Multi Spindles Engraving Machine 1315 1325 Wood CNC Router for Wood MDF Wood Woodworking Machine Carving Cutting Machine
Unitec 2 Heads Multi Spindles Engraving Machine 1315 1325 Wood CNC Router for Wood MDF Wood Woodworking Machine Carving Cutting Machine
Unitec 2 Heads Multi Spindles Engraving Machine 1315 1325 Wood CNC Router for Wood MDF Wood Woodworking Machine Carving Cutting Machine

Unitec 2 Heads Multi Spindles Engraving Machine 1315 1325 Wood CNC Router for Wood MDF Wood Woodworking Machine Carving Cutting Machine

Customization: Available
After-sales Service: 2 Years
Warranty: 2 Years
Send Inquiry

Product Description

📋 Basic Info.
Model NO. UT1315AZ2 Condition New
Certification CE CNC or Not CNC
Voltage 380V Spindle Power 2 X 3kw Water Cool Spindle
Table Type Vacuum Table Vacuum Pump 7.5kw High-Performance Pump
Motor AC Servo Motor Controller System Ncstudio or DSP
HS Code 8465990000 Origin China
📦 Packaging & Delivery
Package Size 210.00cm * 300.00cm * 175.00cm
Package Gross Weight 1400.000kg
🖼️ Detailed Parts & Photos

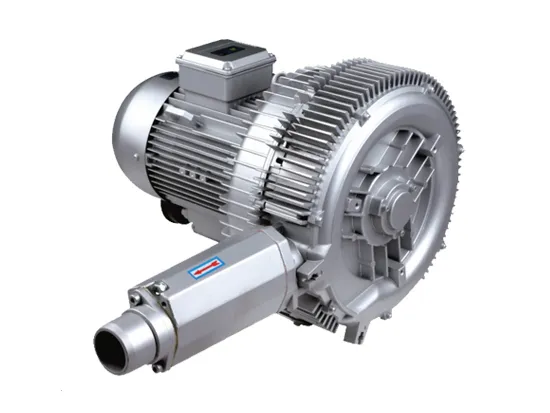

7.5KW Pump
7.5KW Pump

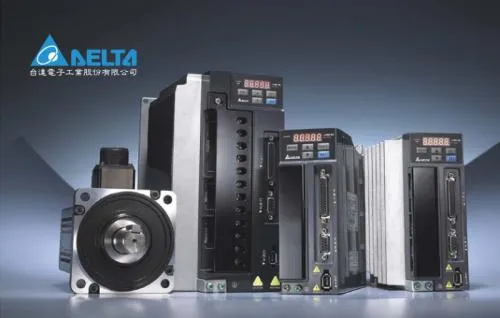

Servo Motor and Driver
Delta Servo Motor and Driver

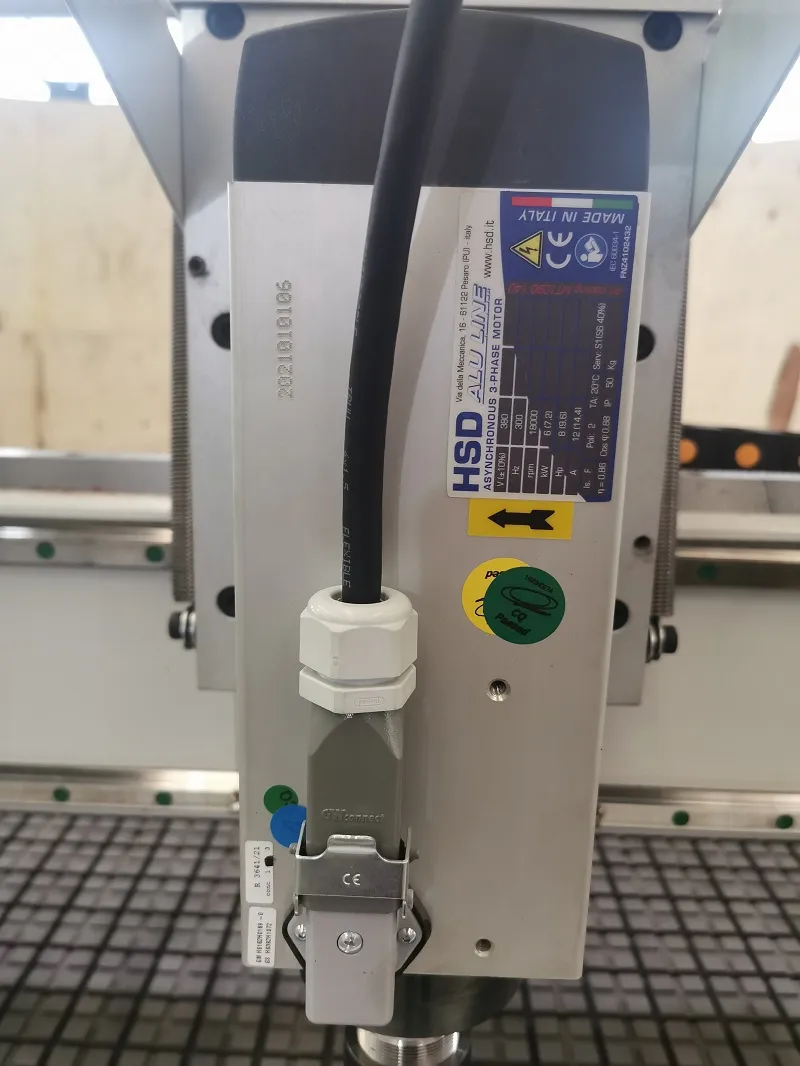

3KW Spindle
HSD 3KW Spindle

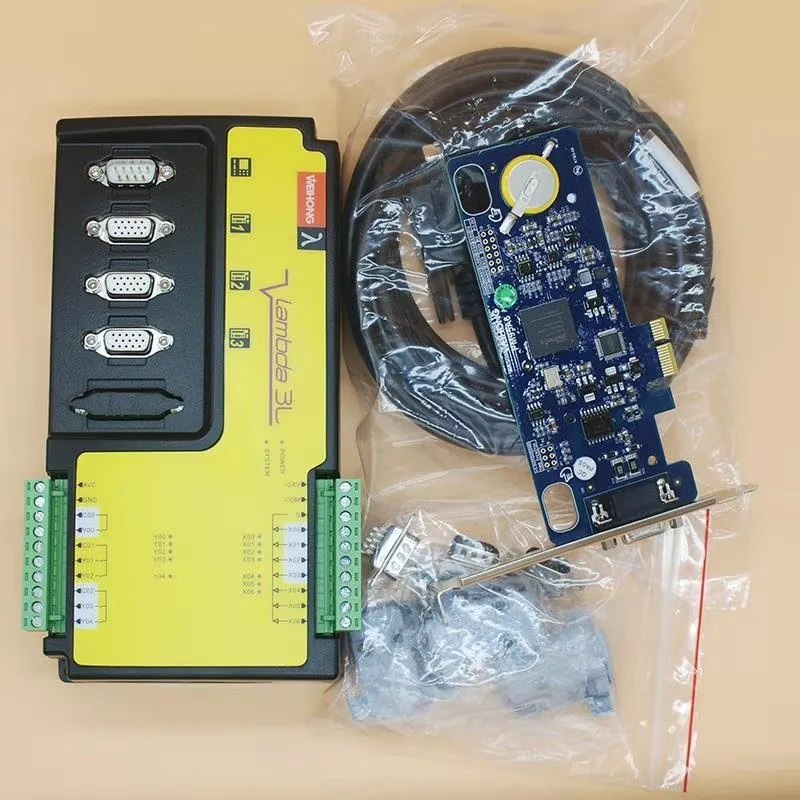

Ncstudio Controller
Ncstudio Controller 95A

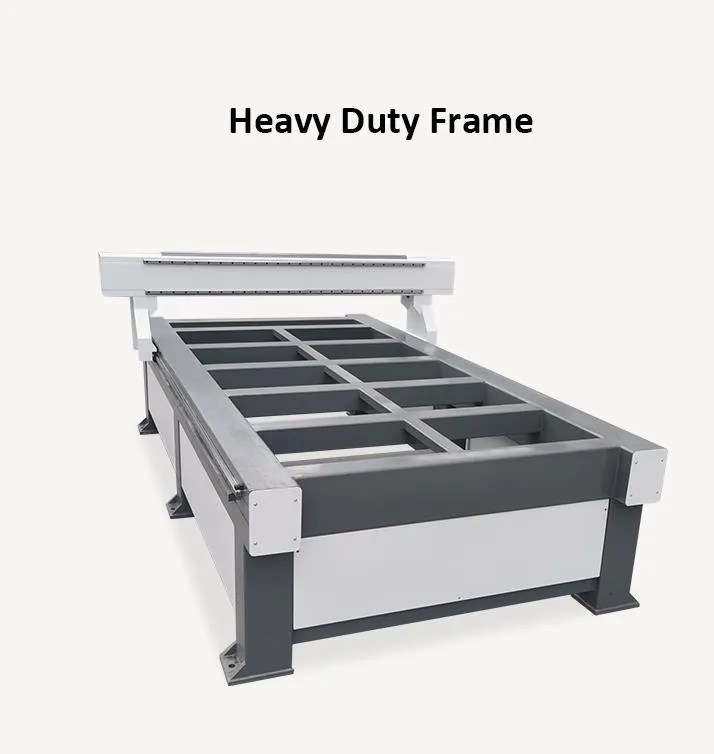

Heavy duty frame
Heavy Duty Frame

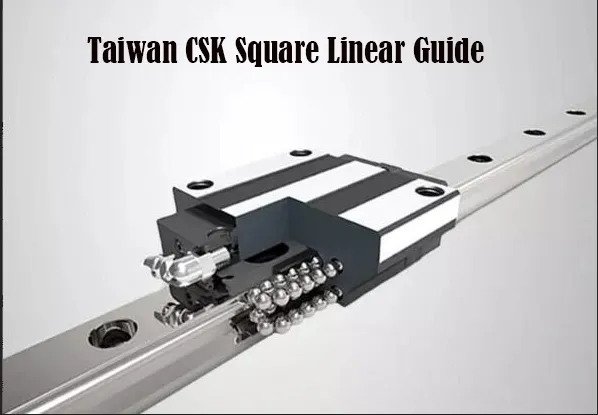

Square Linear Guide
Taiwan Square Linear Guide

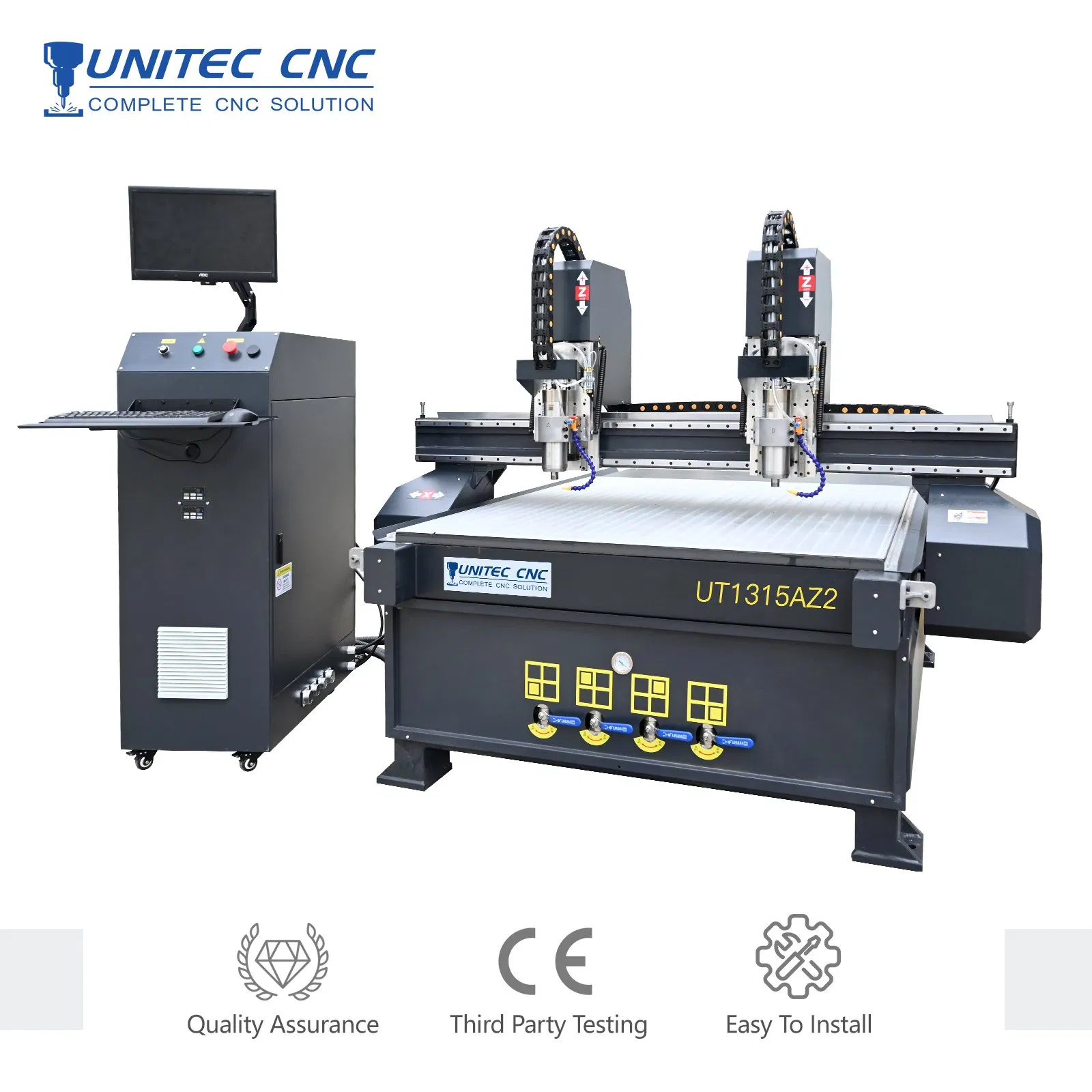

Machine Front View
Machine Working View
⚙️ Technical Parameters
ModelUT1315AZ2
Table Size1500 X 2500 mm
XYZ Working Size1350 X 2550 X 180 mm
Table TypeVacuum table with 7.5KW pump and dust system
TransmissionHelical rack and pinion; Taiwan Linear Guide Rail
Motor SystemEasy Servo Motors
Spindle Power2 X 3KW Water Cooled Spindle
Max Travel Speed18000 mm/min
ControllerOriginal Ncstudio / DSP / MACH3
Voltage380V/50~60HZ
Net Weight1400KG
💡 Applications & Features

Main Applications

✔ Furniture Industry: Wood doors, cabinets, classic furniture, panel furniture.
✔ Woodworking: Automotive trim, stereo equipment, instruments, office furniture.
✔ Industrial Materials: Aluminum panels, copper, soft metals, engineering plastics, ABS panels.

Key Highlights

🔹 High Precision Construction: Integral welded big square steel pipe with mounting surfaces processed by high-precision milling machines.
🔹 Superior Stability: Y-axis driven by double motors and planetary reducer ensure no deformation under high-speed running.
🔹 Automatic Lubrication: Equipped with an automatic lubrication system for easy periodic maintenance.
🔹 CE Standards: Strict compliance with CE electrical standards for circuit design with reliable protection devices.
📜 Certifications & Shipping
Certification

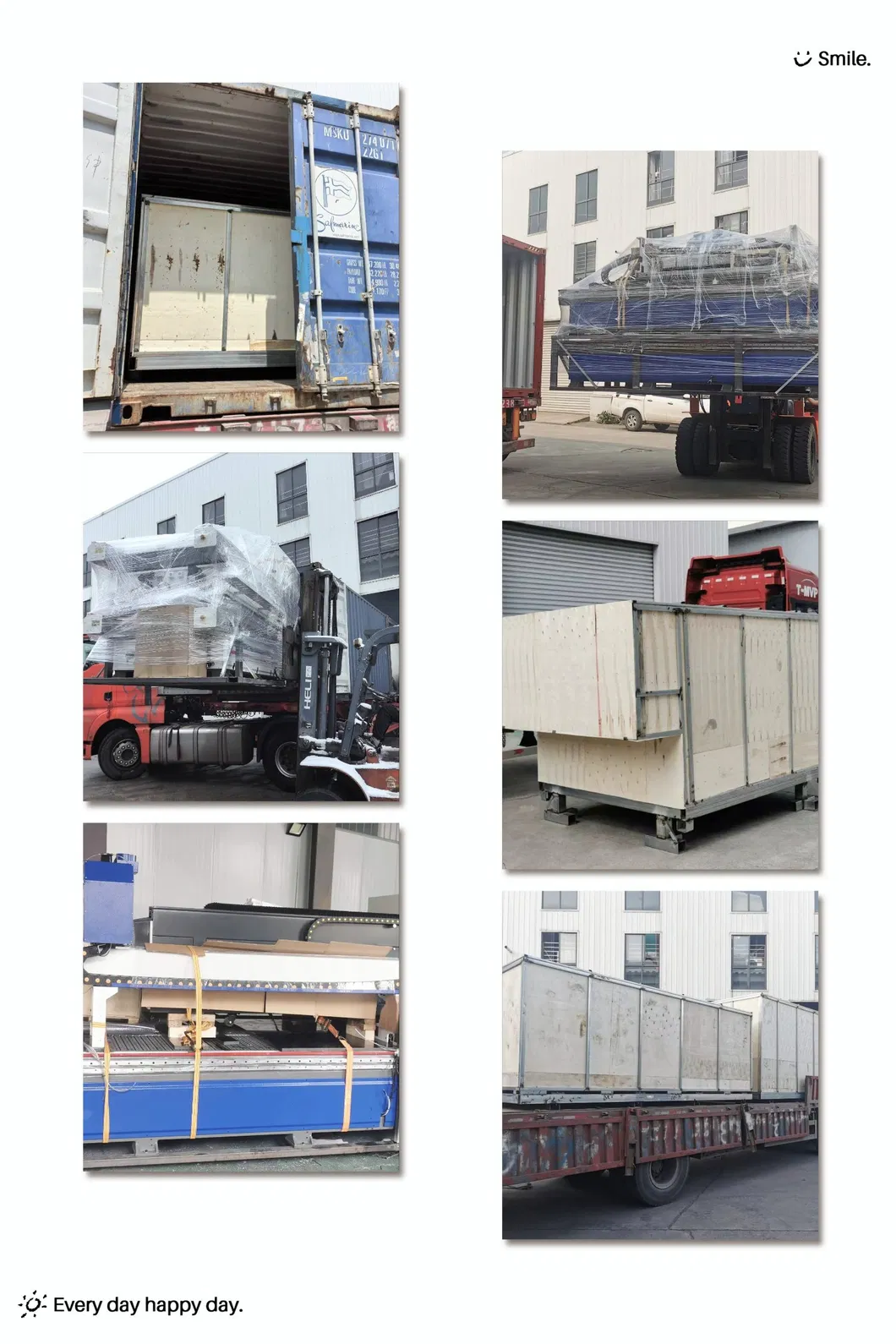

Packaging
🏢 Professional Manufacturing

A dynamic and innovative manufacturer at the forefront of CNC Technology. Established in 2008, the facility provides cutting-edge solutions for sign-making, metalworking, woodworking, and automotive interiors. The product range includes CNC Routers, CO2 Laser Cutting Machines, Fiber Laser Cutting Machines, and Digital Cutting Machines.

Our highly skilled technical team utilizes world-class components including Italian spindles, Japanese and Taiwanese servo motors, and high-precision linear guides. With products exported to over 100 countries including the USA, UK, Germany, and Japan, we ensure excellence through rigorous quality control and efficient service.

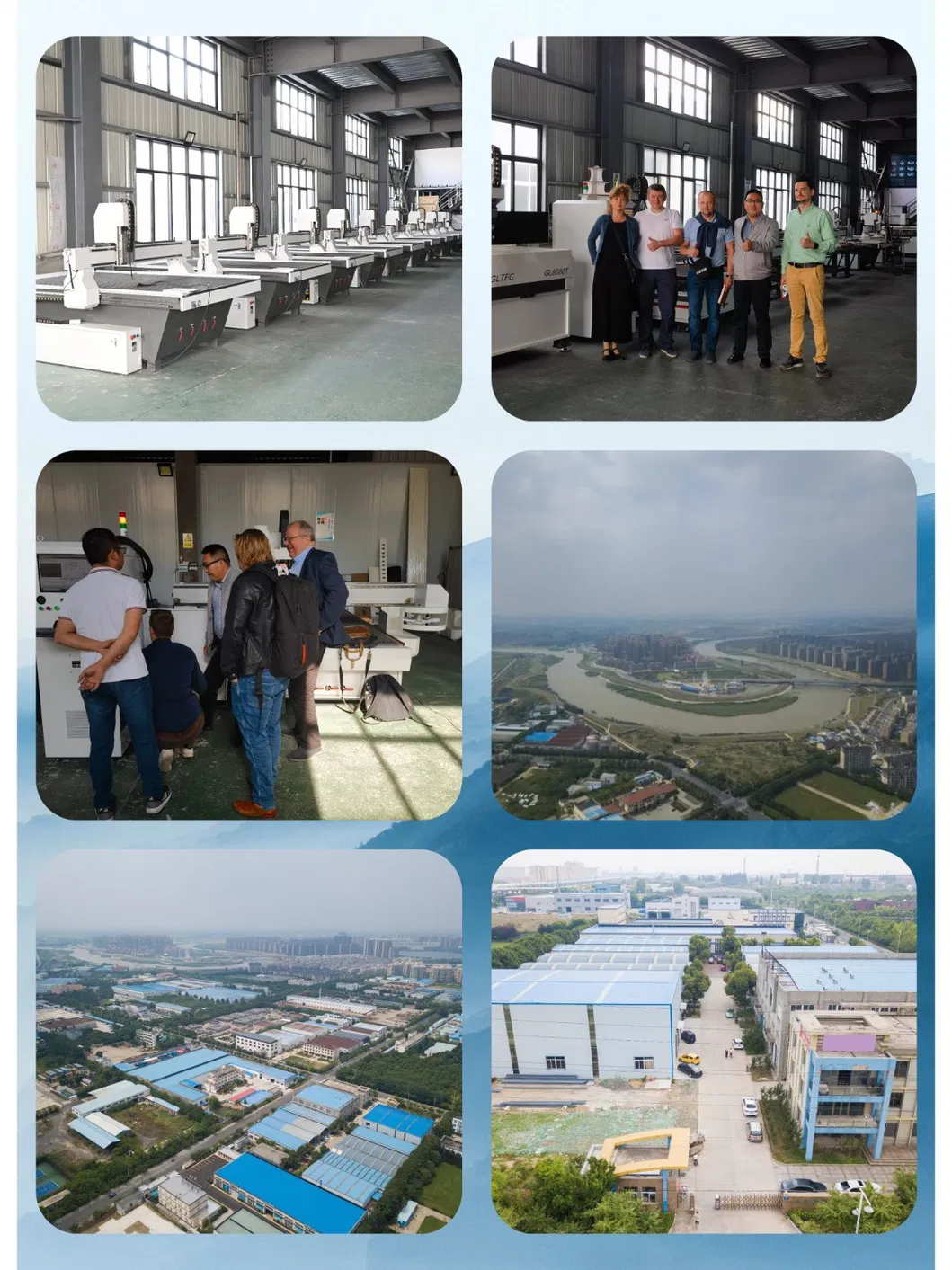

Manufacturing Facility
Frequently Asked Questions
Q1: What materials can this CNC router process? A: It is ideal for wood (doors, cabinets, furniture), MDF, aluminum panels, copper, soft metals, and various plastics like ABS and Epikote.
Q2: How does the vacuum table benefit the production? A: The vacuum table, powered by a 7.5KW pump, provides strong suction to securely hold materials in place, significantly improving clamping speed and overall production efficiency.
Q3: Is the machine structure durable for long-term use? A: Yes, it features an integral welded big square steel pipe frame and processed guide rails which ensure stability, high load capacity, and long service life.
Q4: What type of cooling system do the spindles use? A: This model is equipped with 2 sets of 3KW water-cooled spindles, which provide efficient temperature management for continuous high-speed engraving.
Q5: What control systems are available? A: We offer multiple options depending on your preference, including Ncstudio, DSP, or MACH3 controller systems.
Q6: Does the machine come with a maintenance system? A: Yes, it is equipped with an automatic lubrication system that allows for easy periodic maintenance of the moving parts with a simple operation.
