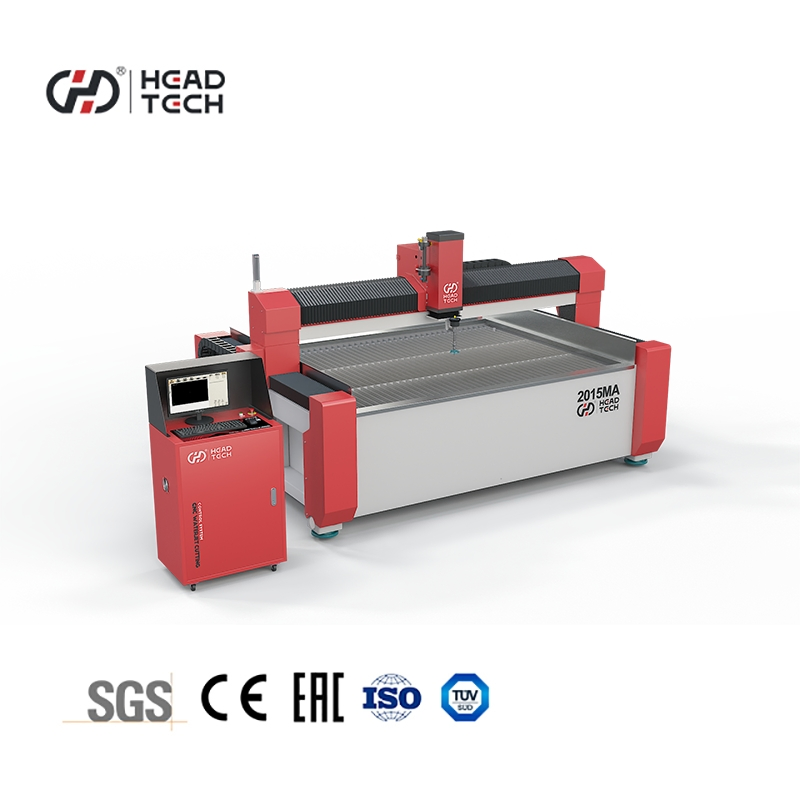

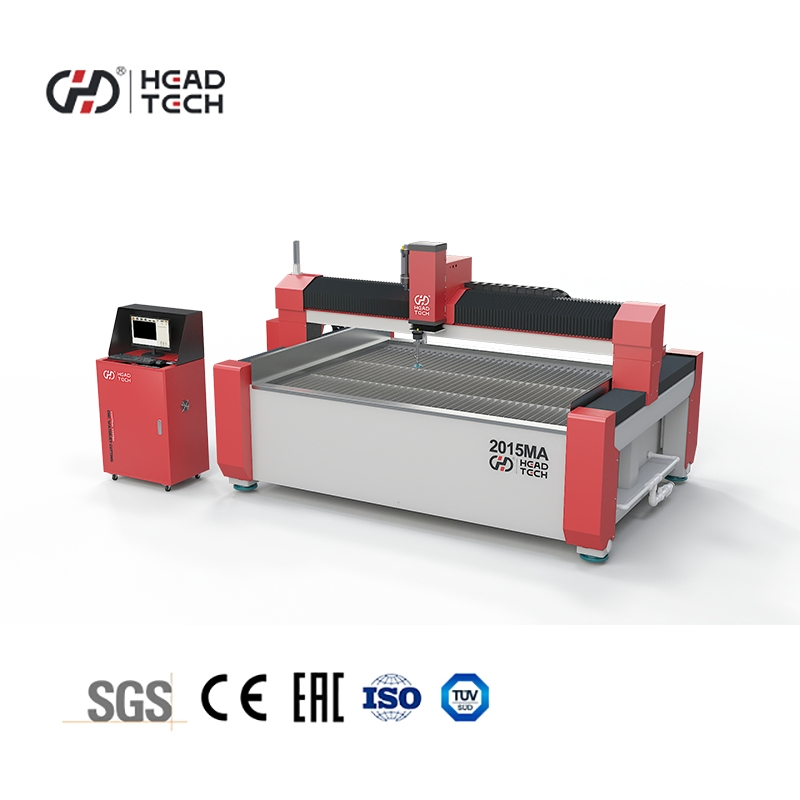

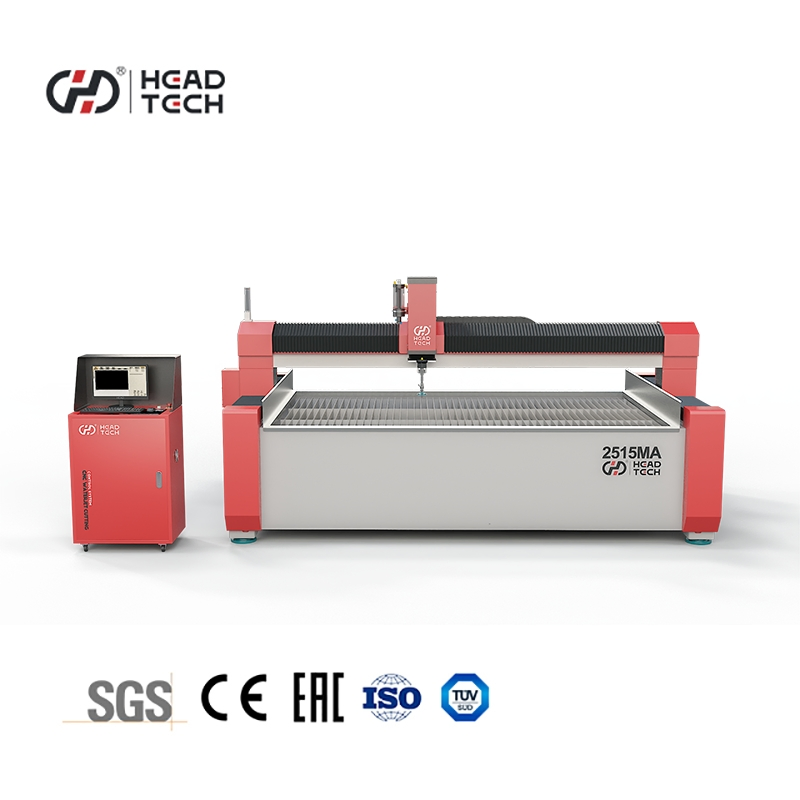

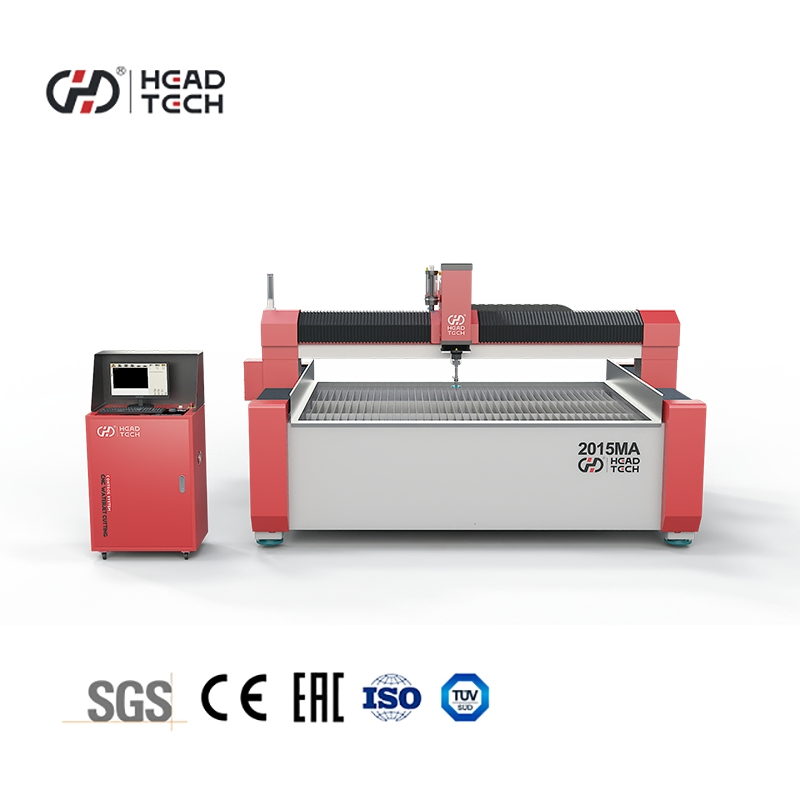

Head Three Axis Metal Sheet Aluminium CNC Waterjet Cutter Waterjet Cutting Machine

Customization: Available
After-sales Service: Engineer Come to Offer Service
Warranty: 1 Year

Product Description

i

Basic Information

Model NO.
custom made
Type
CNC Cutting Machine
Usage
Ceramics, Glass, Fire Brick, Red Brick, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
Application
Machinery & Hardware, Construction, Stone Industry
Source Voltage
380V
Automation
Semi-automatic
Cutting Ability
High Speed
Control
CNC
Certification
CCC, ISO, CE
Power(W)
37kw
Max Cutting Pressure
420MPa
Cutting Accuracy
0.1mm
Cutting Thickness
100mm
Max Travel Speed
9m/Min
📦

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
6000.000kg
Transport Package
Soft Package or Wooden Case

Product Description

Water jet is a kind of high pressure water cutting machine belonging to the category of cold cutting. It offers advantages such as a compact structure, no sparks, and no thermal deformation or heat effect. This tool is used for slicing metal and other materials using a high-velocity, high-pressure water jet. Featuring low noise, no pollution, high precision, and high reliability, it is used in various applications including mining, automobile manufacturing, paper manufacturing, food, art, and architecture. It can cut rubber, foam, plastic, composite, stone, tile, marble, glass, and other materials.

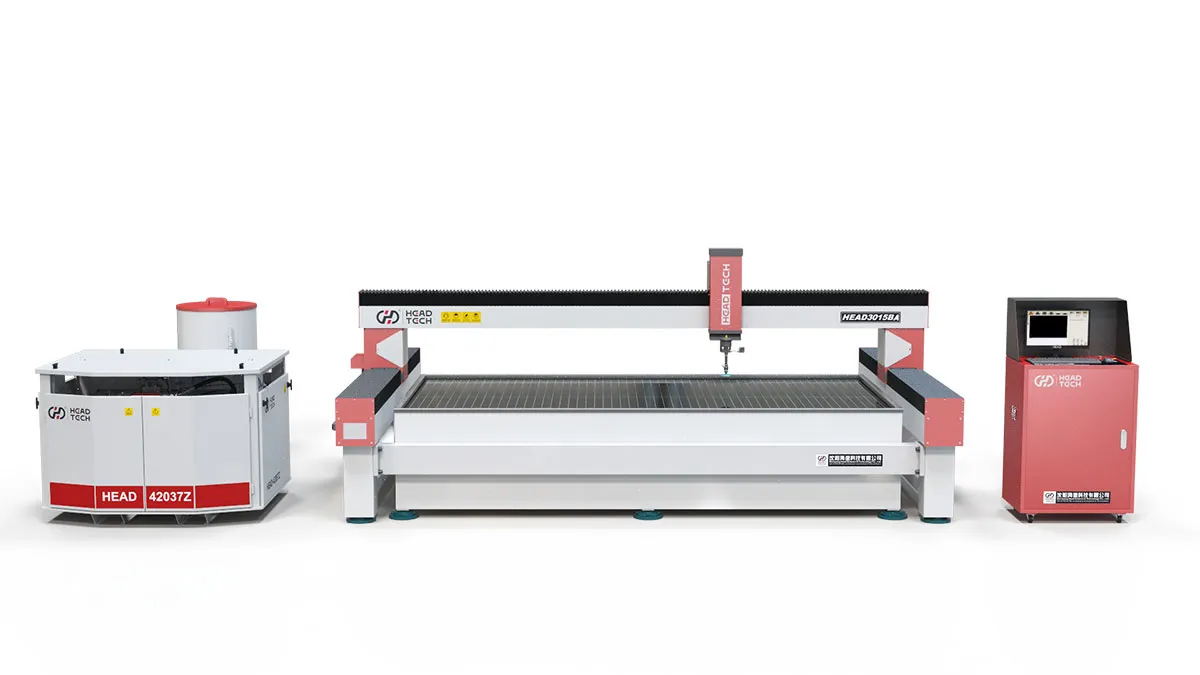

CNC Waterjet Cutter Main

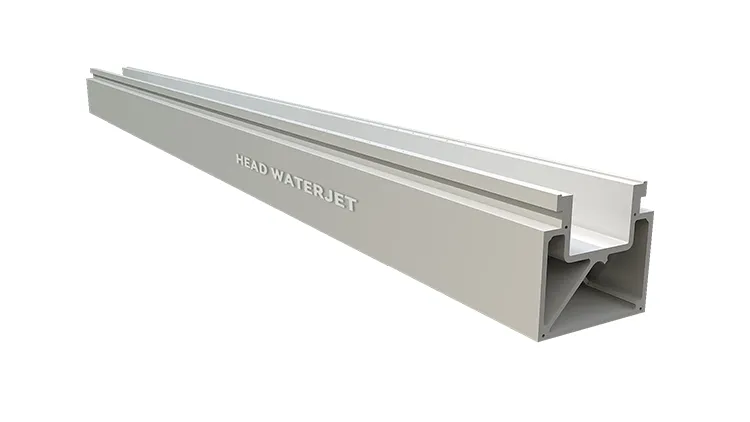

Aviation aluminum alloy crossbeam

Fourth Generation Aviation Aluminum Alloy Crossbeam

Processing is carried out using T6 heat treatment technology, which provides high strength and strong deformation resistance. Solution treatment improves strength and plasticity, optimizes weight reduction, and accelerates movement speed.

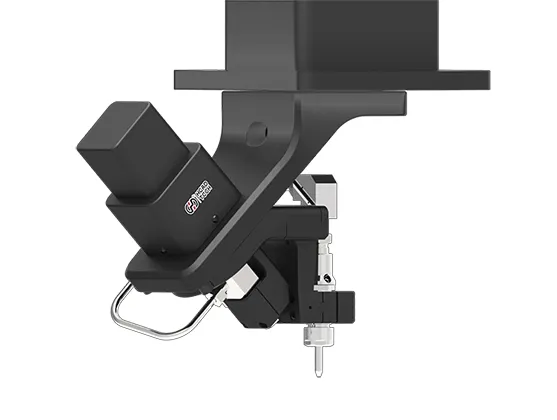

Intelligent Control 3D Cutting

Intelligent Control 3D Cutting

Achieves three-dimensional 3D cutting with strong rigidity. Made of aluminum alloy material, it features light weight and low load. Cutting position deviation is less than 0.01mm under 380Mpa high-pressure water, ensuring high accuracy.

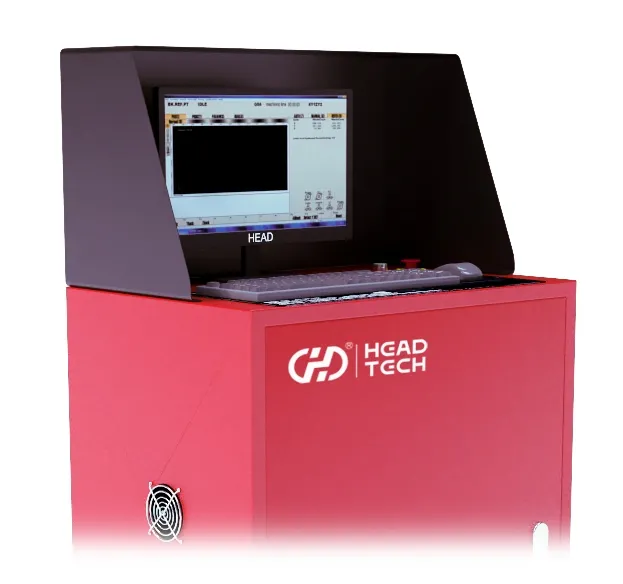

Intelligent operation software

Intelligent Operation Software

Ncstudio software is specially customized and developed for the water cutting industry. It is easy to operate, user-friendly, and suitable for various types of processing occasions.

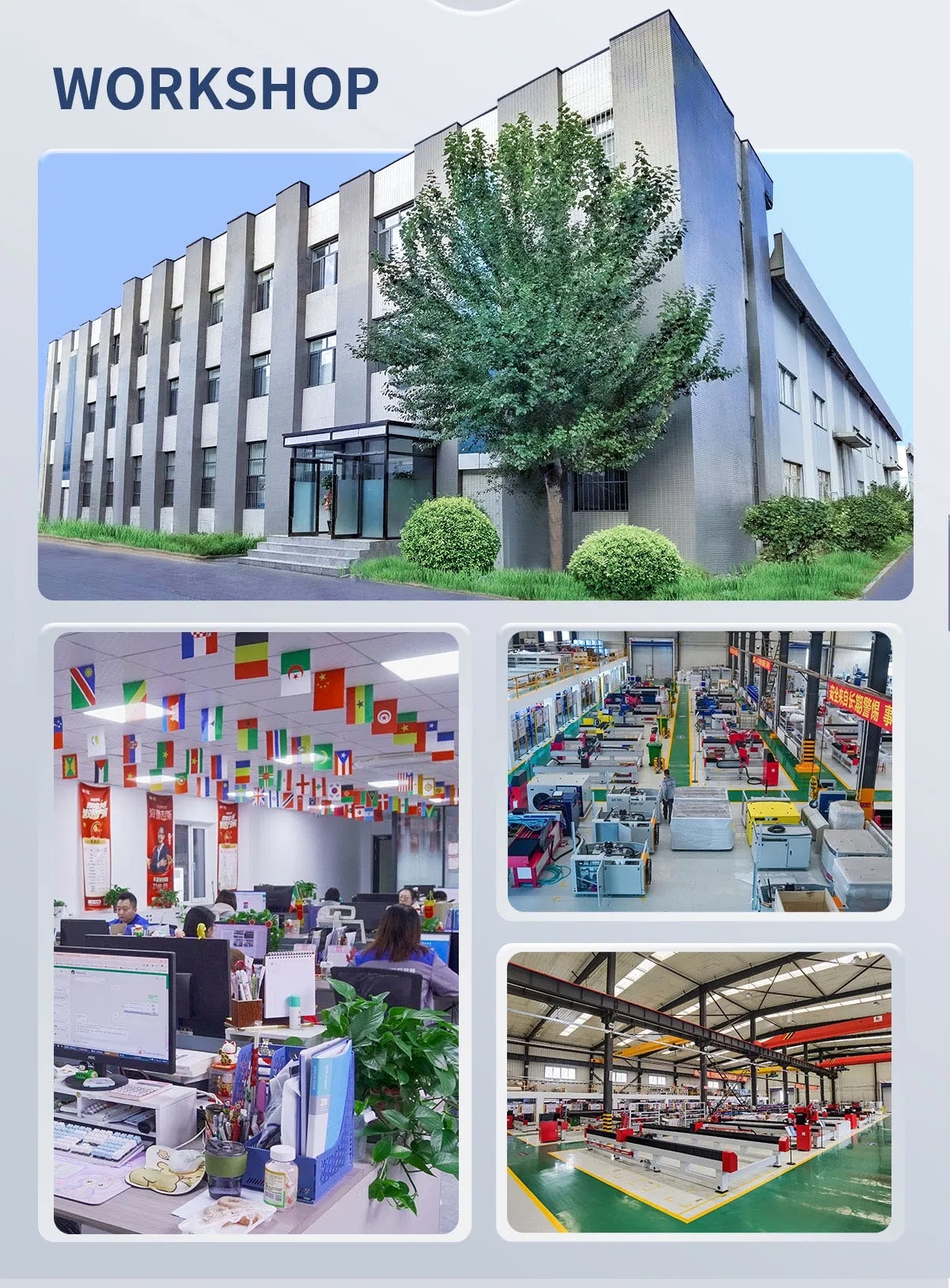

Manufacturing & Gallery

?

Frequently Asked Questions

Q1: Does this machine comply with international safety standards?
Yes, this machine has passed the European CE certificate and meets all relevant safety standards.
Q2: What is the cutting thickness for stone and glass materials?
Marble can be cut from 0-120mm, granite from 0-110mm, tiles from 0-40mm, and glass or mosaic from 0-80mm.
Q3: How effective is it at cutting metals like steel and aluminum?
The machine can cut steel, stainless steel, and copper up to 0-60mm, and aluminum up to 0-80mm. With a double-pressure system, it can even cut steel sheets up to 160mm.
Q4: Can it handle soft materials like plastic or foam?
Yes, for materials like plastic, acrylic, and foam, the cutting thickness capacity reaches up to 200mm.
Q5: How is the cutting speed determined and controlled?
Cutting speed depends on the specific material and requirements. Users can easily adjust the speed parameters through the control software to match their needs.
Q6: What is the precision and accuracy of the cutting process?
The machine offers high precision with a cutting accuracy of 0.1mm and a cutting position deviation of less than 0.01mm even under 380Mpa high pressure.
