TitanPro Cutting
TitanPro Cutting

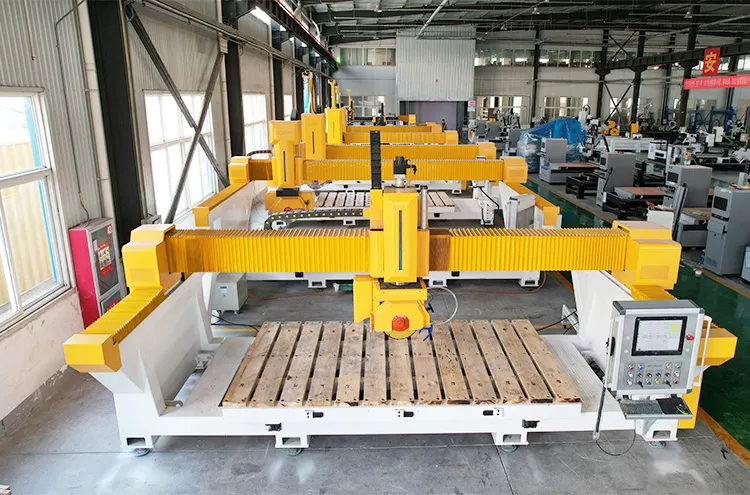

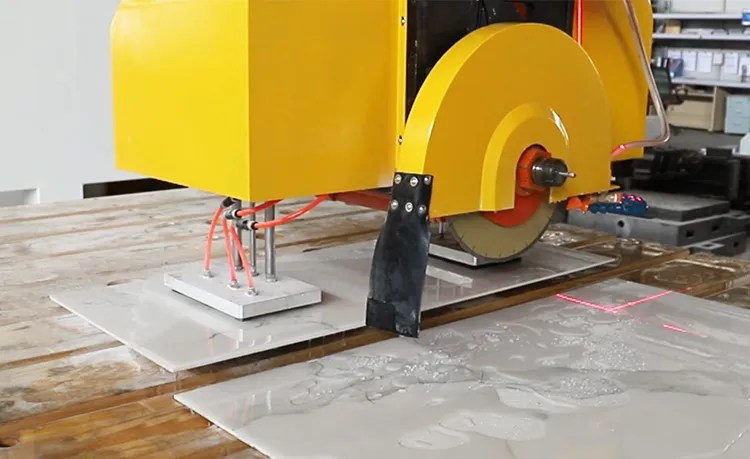

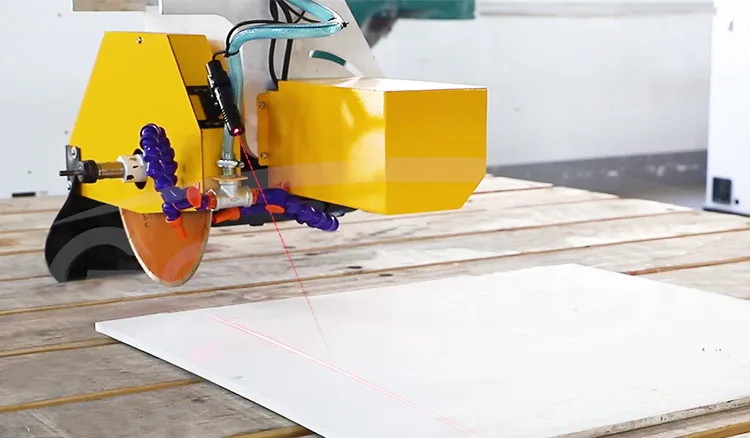

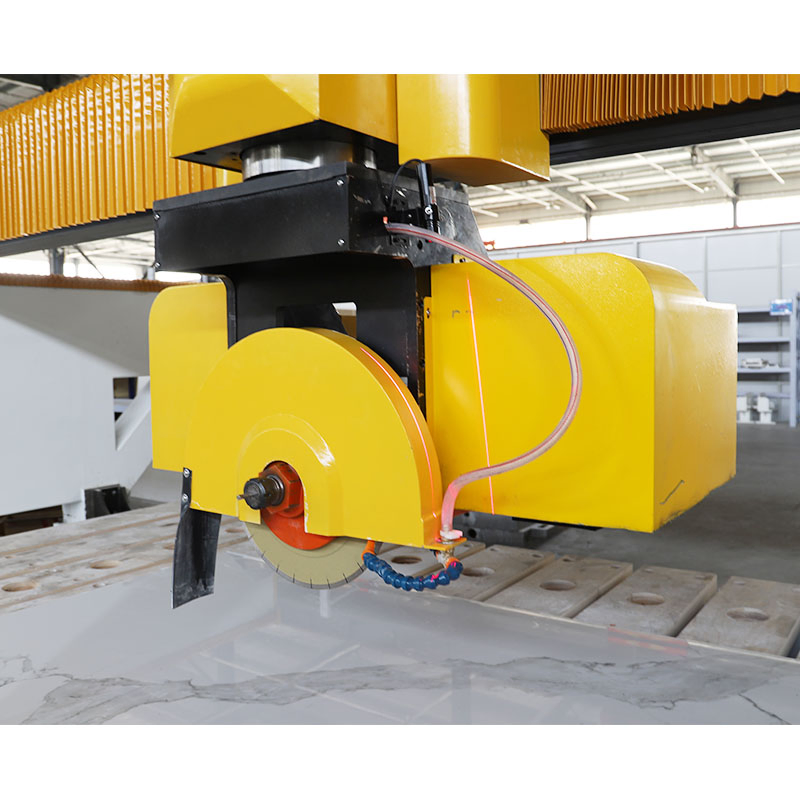

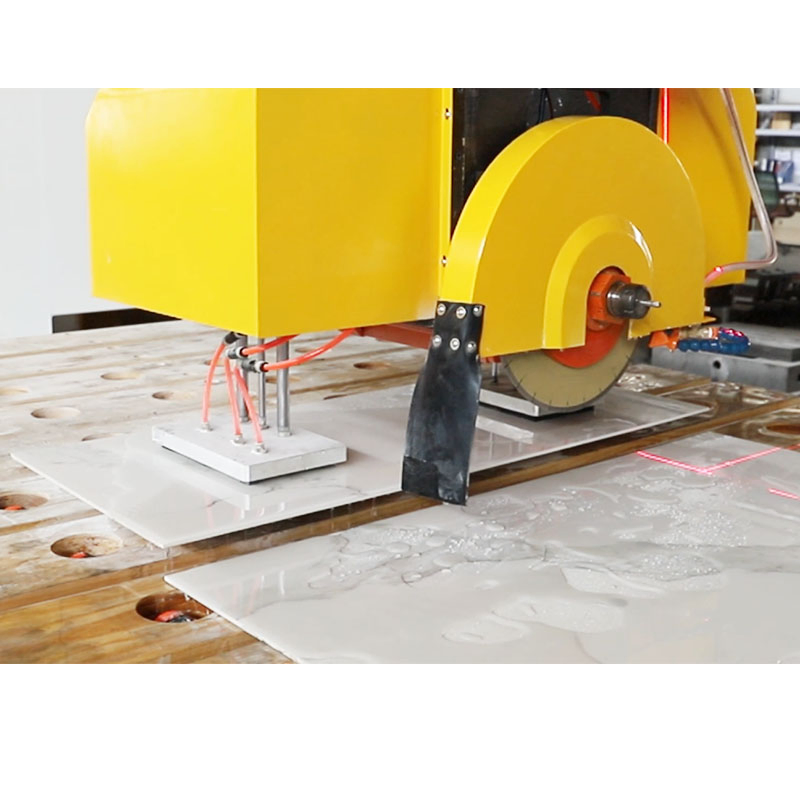

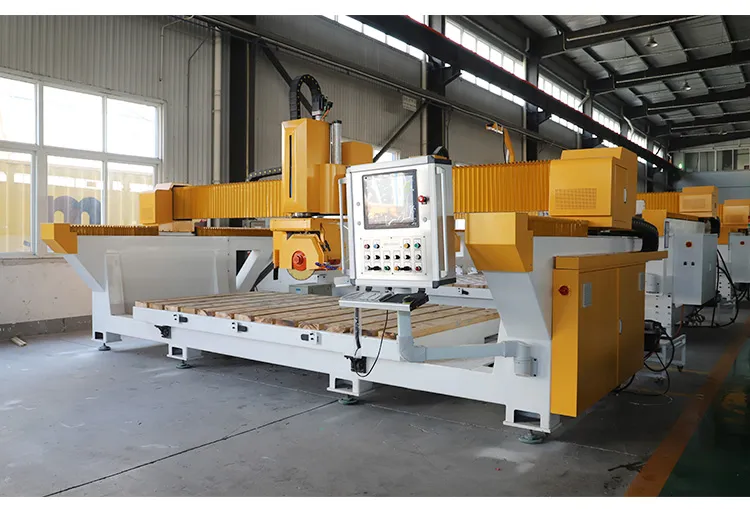

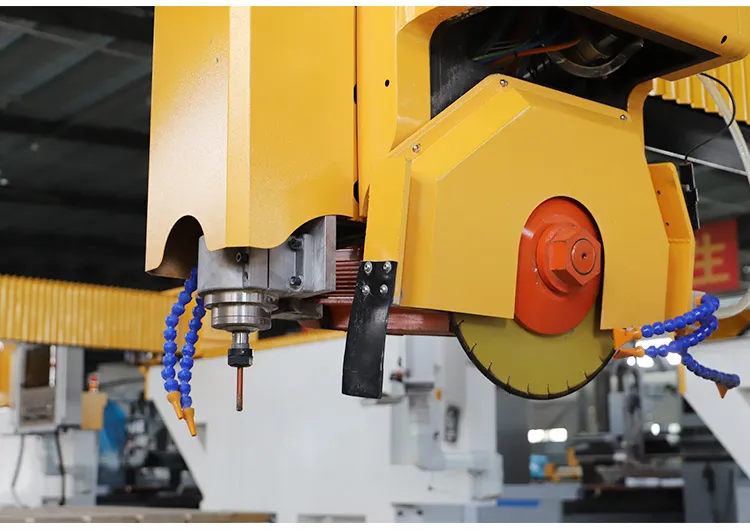

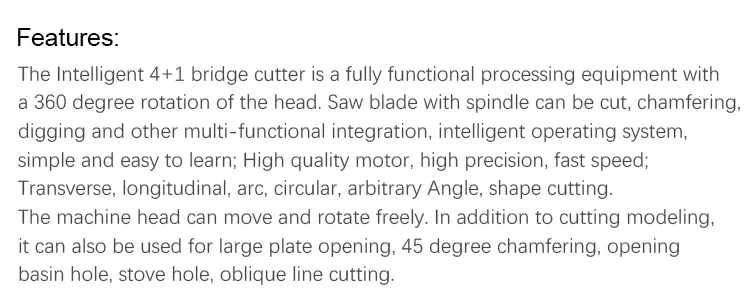

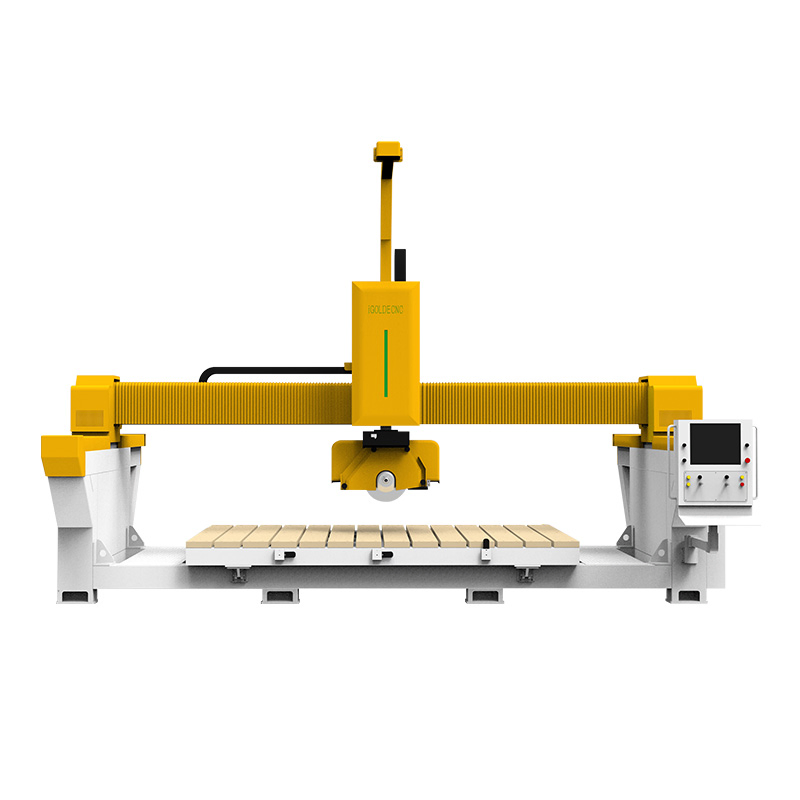

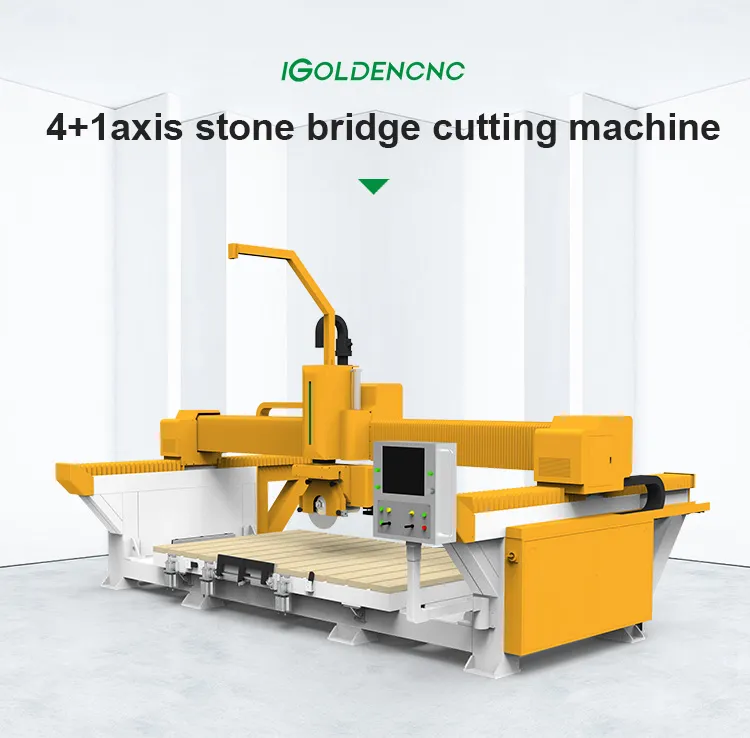

The Intelligent 4+1 bridge cutter is a high-performance processing equipment featuring a 360-degree rotating head. It integrates saw blade cutting, chamfering, and digging functionalities into one intelligent system. Designed for ease of use, it utilizes a high-quality motor for high precision and rapid operation.

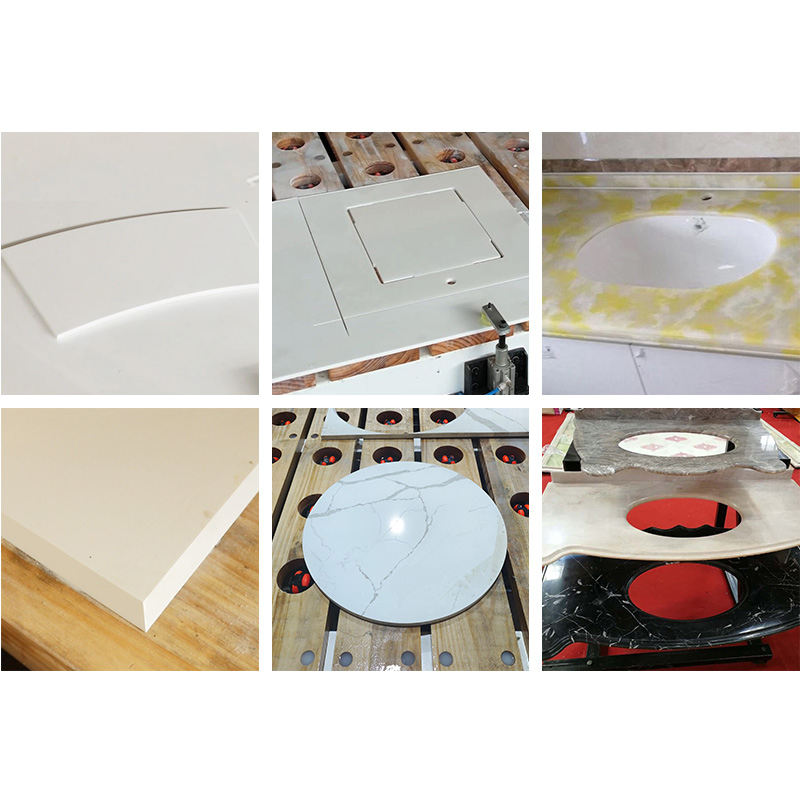

Capable of executing transverse, longitudinal, arc, circular, and arbitrary angle or shape cutting, the machine head moves freely to accommodate complex designs, including large plate opening, 45-degree chamfering, basin holes, and stove holes.

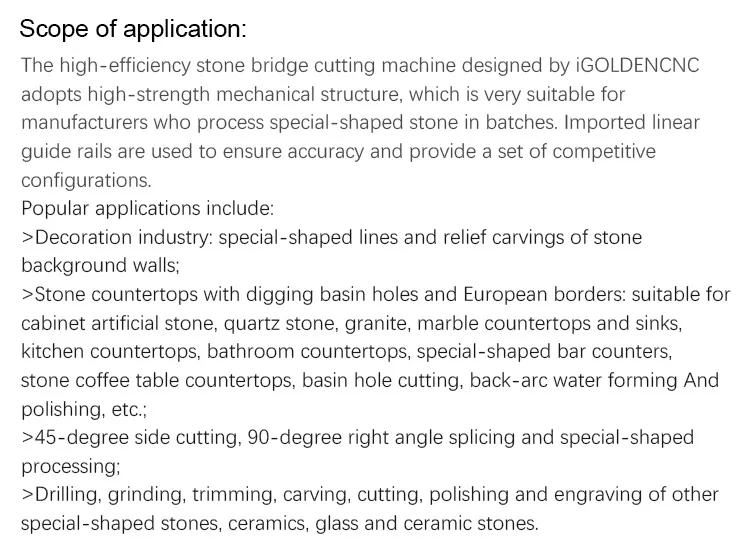

Suitable Materials: Ideally suited for quartzite, rock plate, artificial stone, granite, marble, and other stone materials used in decoration and engineering projects.

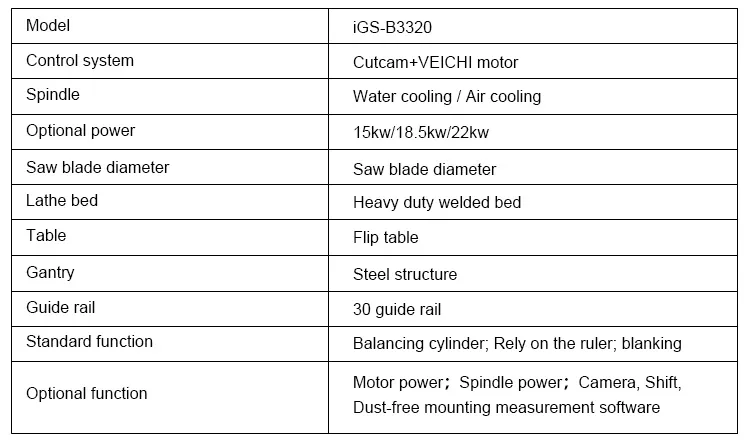

| Technical Indicators | Configuration 1 (iGS-B3220) | Configuration 2 (iGS-B3320) |
|---|---|---|

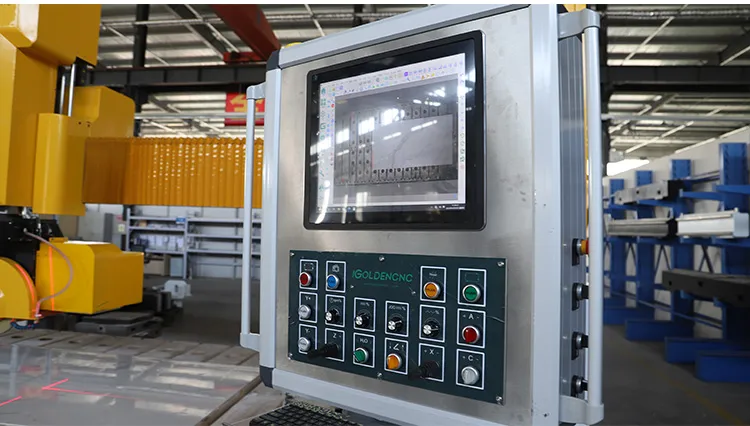

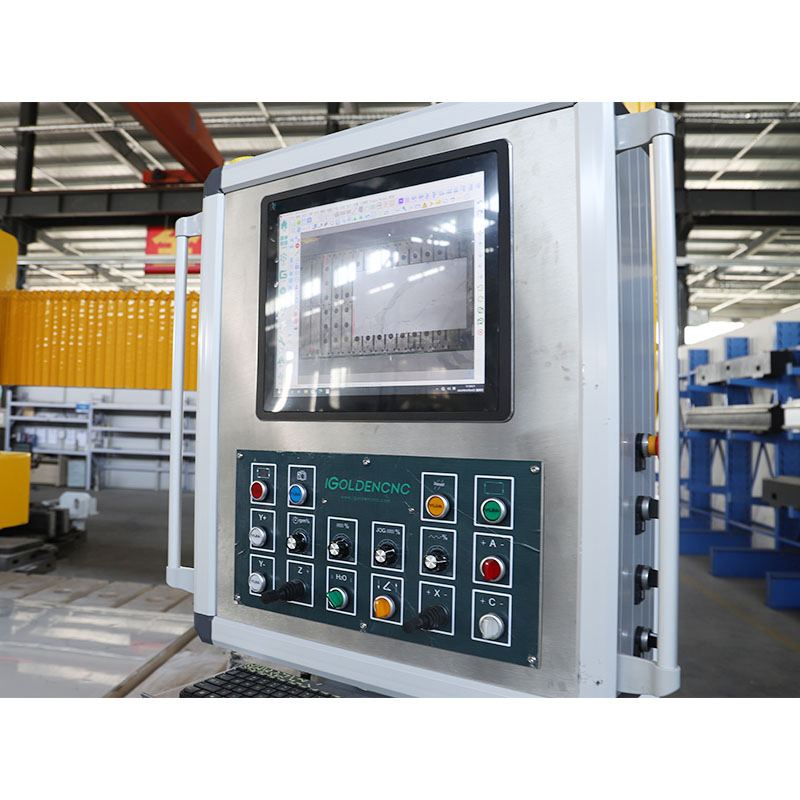

| Control system | WEIHONG + WEIHONG motor | Cutcam + VEICHI motor |
| Spindle | 4.5kw Water cooling | |
| Optional power | 15kw / 18.5kw / 22kw | |
| Saw blade diameter | 350/400mm | 350/400/450mm |
| Lathe bed | Heavy duty welded bed | |

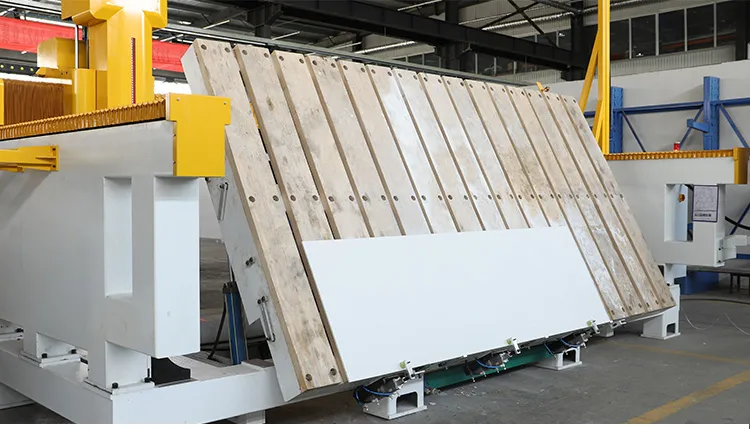

| Table Structure | Flip table (T-Slot) | |
| Guide rail | 30 guide rail | |
| Standard function | Handle; Rely on ruler | Hand wheel; Balancing cylinder; Blanking |
