Model NO.JC7030RP
FunctionCutting, Line Engraving, Engraving, Milling, Sculpturing
Application MaterialMarble, Granite, Stone
AutomationSemi-automatic
ControlCNC
Motor PowerHigh Power
CurrentAC

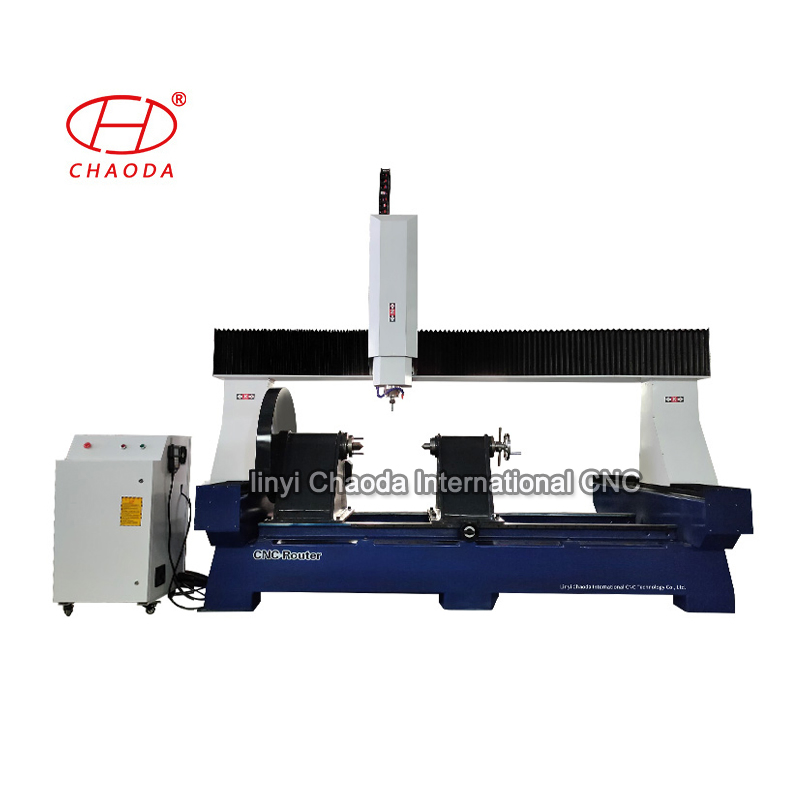

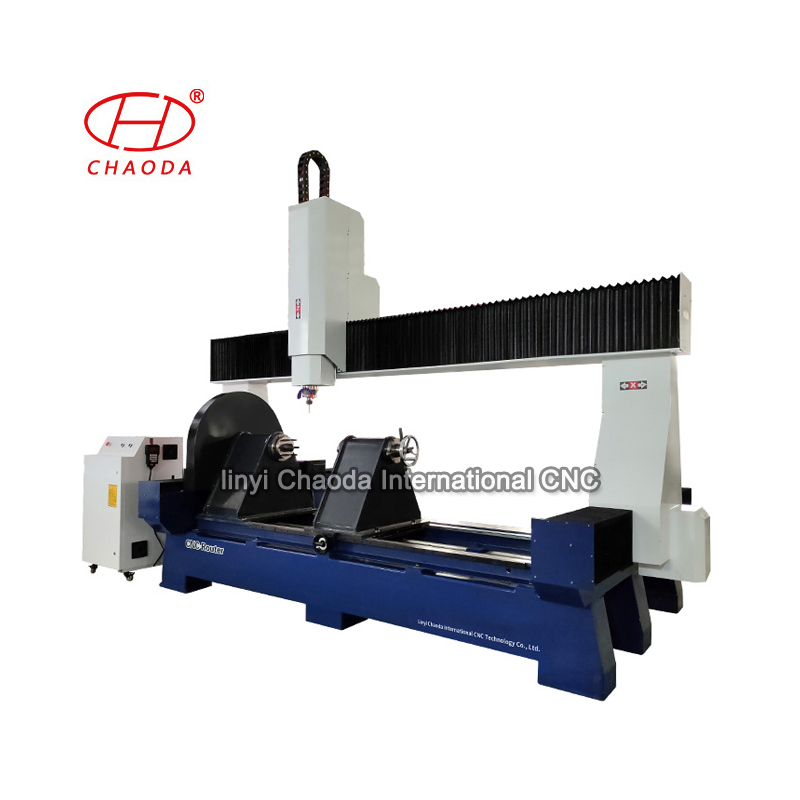

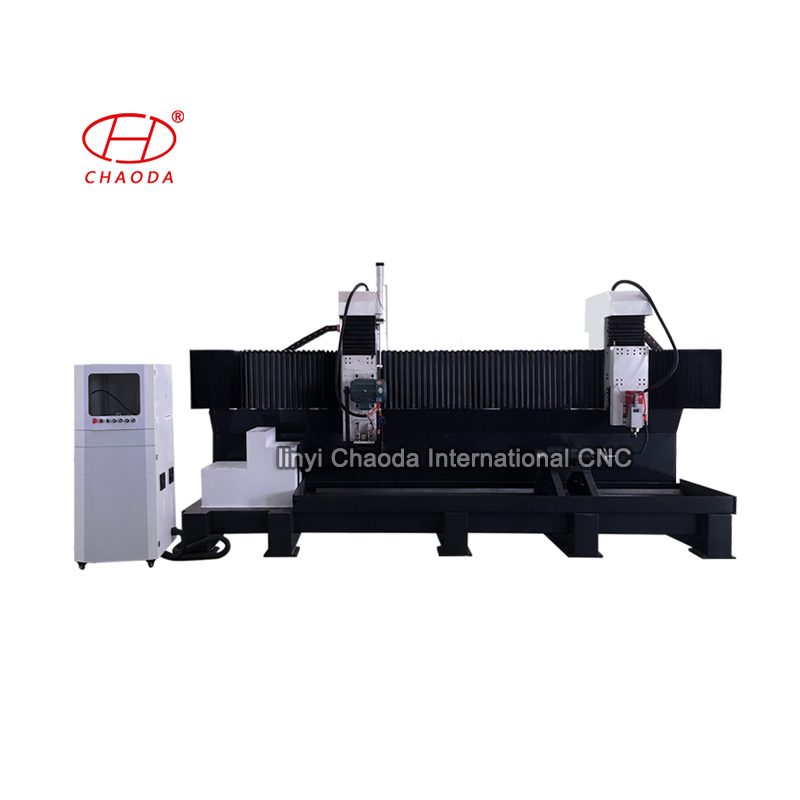

Product NameStone Column Balustrade Carving Machine
Working Size700mm Diameter, 3000mm Length
Control SystemDSP / Ncstudio / Syntec
Cooling SystemDouble Water Cooling
HS Code8465990000
Solid Rotary Marble Granite Stone Carving Solutions

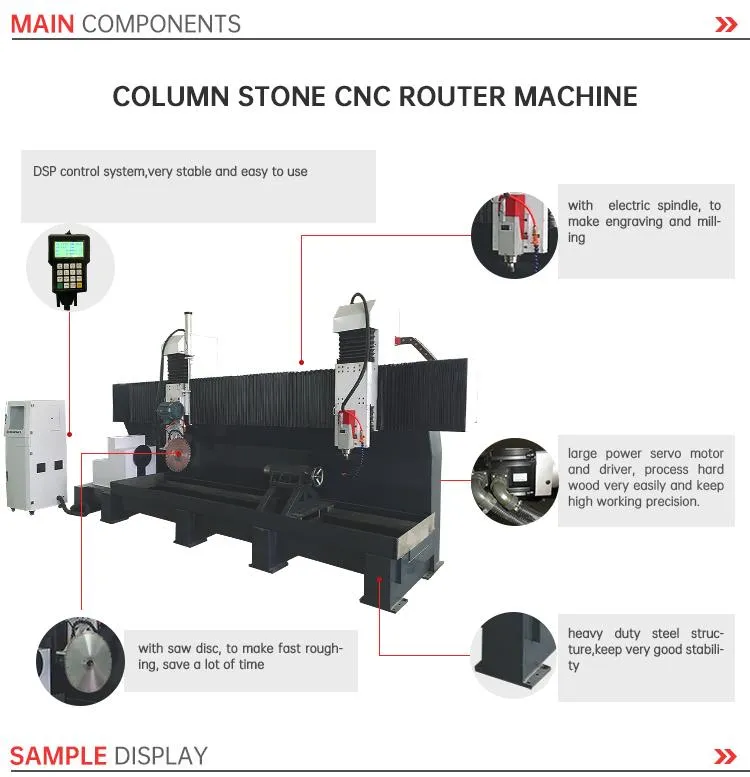

- Heavy duty steel structure ensures excellent machine stability.
- High-performance machine parts for durability and precision.
- Equipped with electrical spindle for intricate engraving tasks.

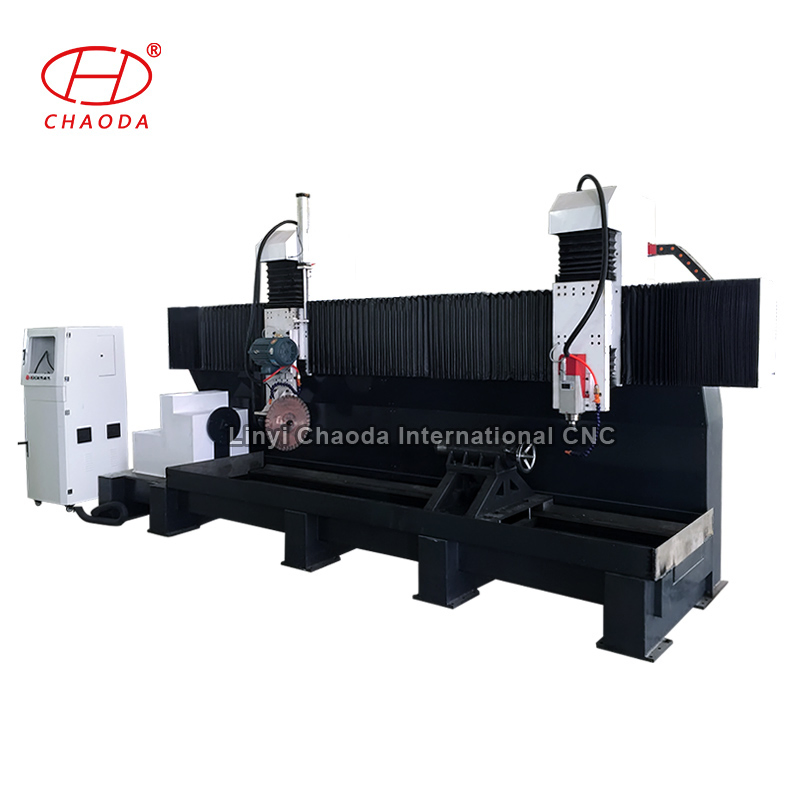

- Integrated saw blade unit for rapid roughing and grooving.

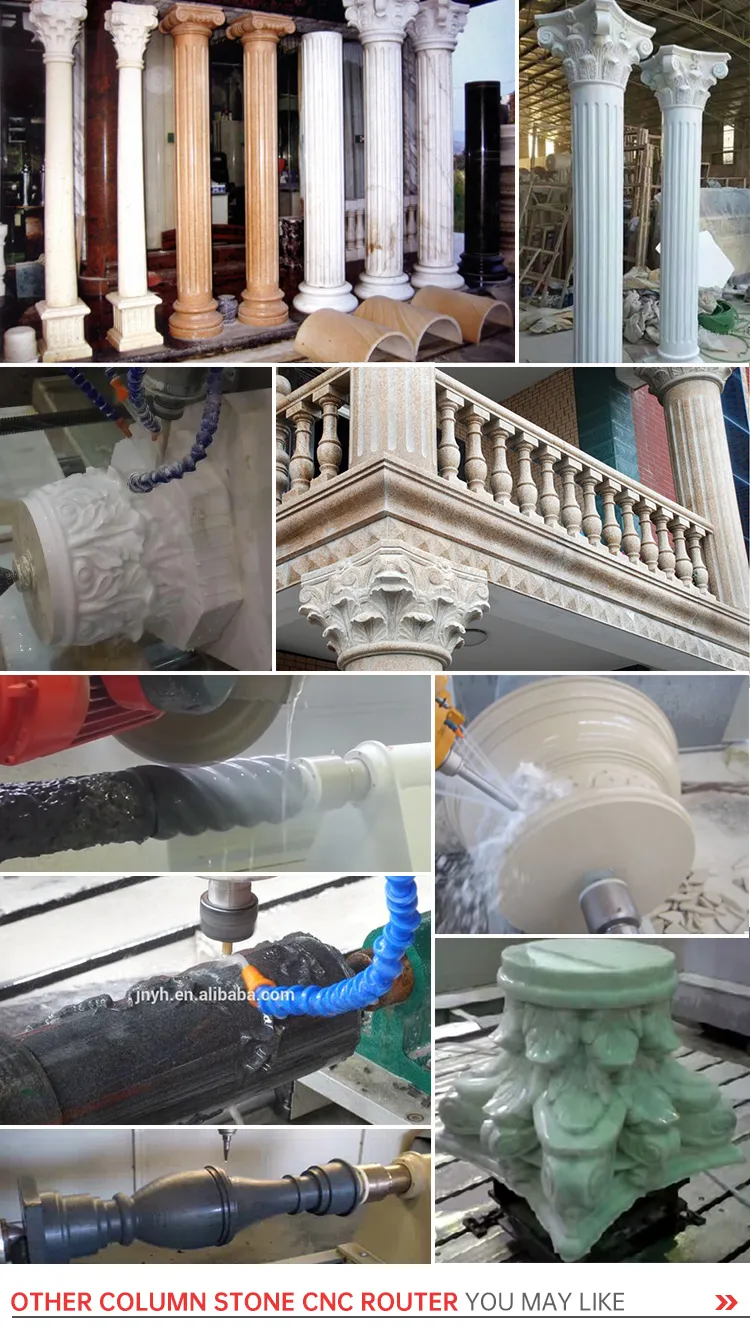

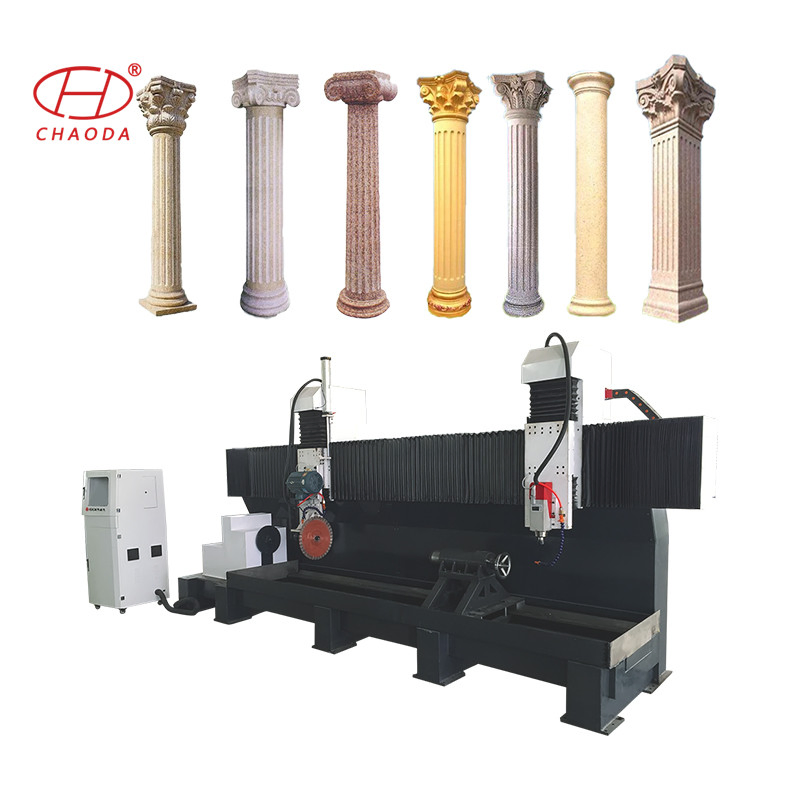

- Large rotary device handles 3D Roman columns, corbel pilasters, and pillars.
- Customizable working sizes to meet specific production requirements.
- Optional 4-axis or 5-axis configurations available.
| Model No. | JC7030RP |
| Lathe Bed | Heavy duty steel structure |
| Working Size | 700mm diameter, 3000mm length |
| Spindle Power | 5.5 / 7.5 / 11KW |
| Spindle Rotating | 12000 / 18000 / 24000rpm |
| Max Travelling Speed | 30m/min |
| Max Working Speed | 15m/min |
| Control System | DSP / Nsctudio |
| Motor | Stepper / Servo |
| Saw Blade Unit | Yes |
| Auto Oil System | Yes |
| Voltage | AC380v, 3 Phase, 50/60HZ |
Compatible Materials: Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, Grindstone, Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum composite panel, Copper, and more.
- Sample testing performed before shipment.
- 2 days of free comprehensive training for each machine.
- 12-month warranty period provided.
- English version manuals and operation videos included.
- Free technical support via phone, email, or remote session.
- Engineers available for overseas machinery service.
?
Frequently Asked Questions
What materials can this CNC machine process?
The JC7030RP is highly versatile, capable of working on Marble, Granite, Artificial Stone, Glass, Wood, PVC, and even soft metals like Aluminum and Copper.
Is the machine's working size customizable?
Yes, while the standard working size is 700mm in diameter and 3000mm in length, we can customize the dimensions based on your specific project requirements.
What are the main functions of the saw blade unit?
The integrated saw blade unit is designed for fast roughing and grooving, which significantly improves the efficiency of processing large stone columns.
Does the machine support 4-axis or 5-axis operations?
Yes, we offer optional configurations for both 4-axis and 5-axis movements to accommodate complex 3D carving and multi-sided machining.
What kind of technical support do you provide after purchase?
We provide a 12-month warranty, free training, English manuals/videos, and lifelong technical support via remote access, email, or phone. Overseas engineer service is also available.
How is the machine cooled during the cutting process?
The machine utilizes a double water cooling system to protect the spindle and the cutting tools, ensuring long-term operational stability.
