📊 Basic Information
Function
Hollow out, Cutting, Line Engraving, Basso-relievo, Lettering
Application Material
Marble
Certification
CE, ISO, BV, TUV
Spindle Power
3kw Water Cooling
Travel Motors
Japan Servo Motors
Controlling System
4 Axis Nc Studios
🔍 Product Description

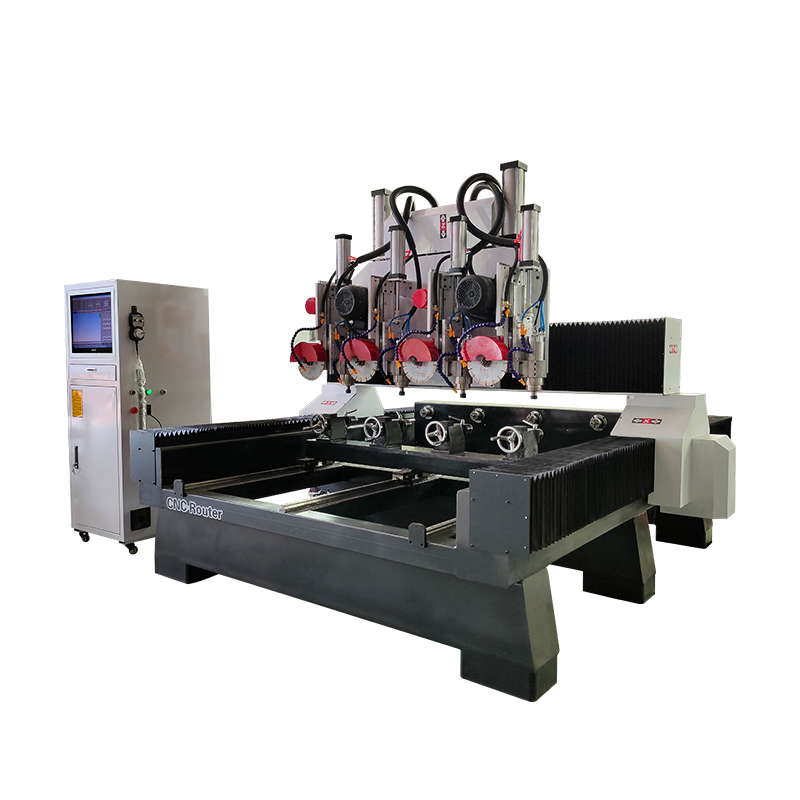

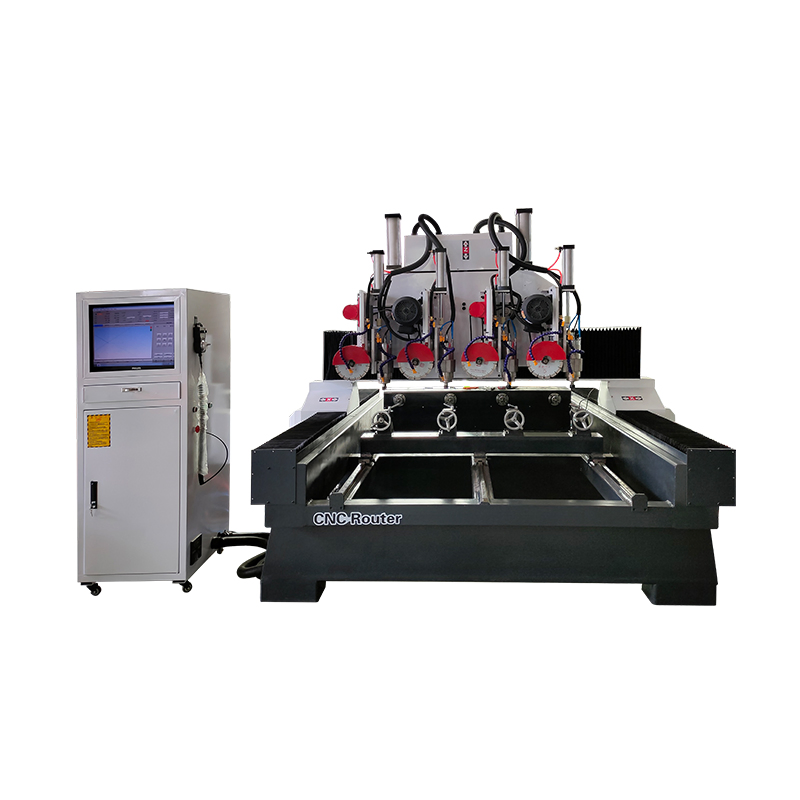

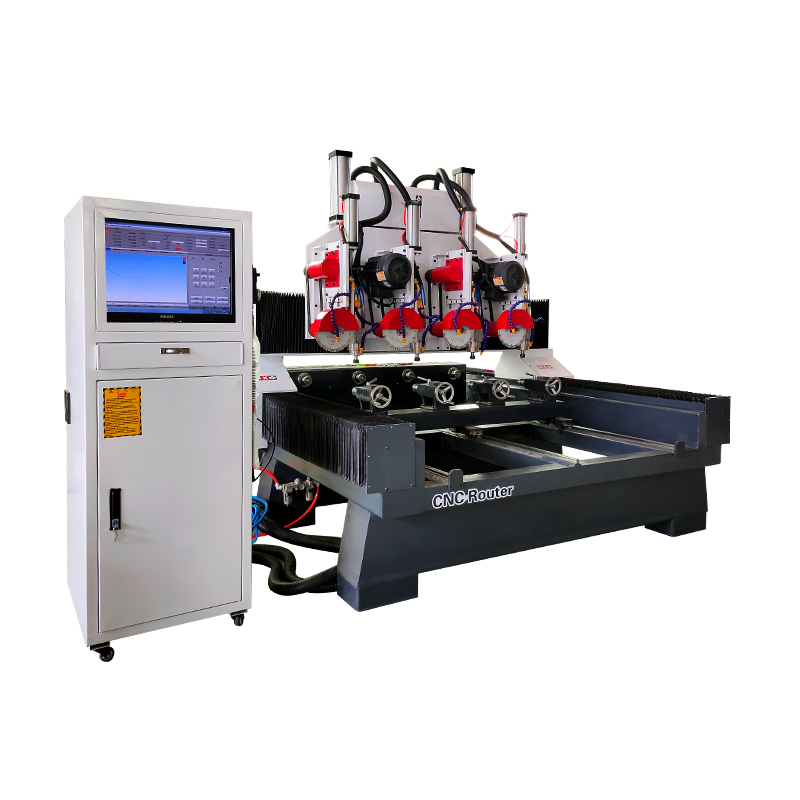

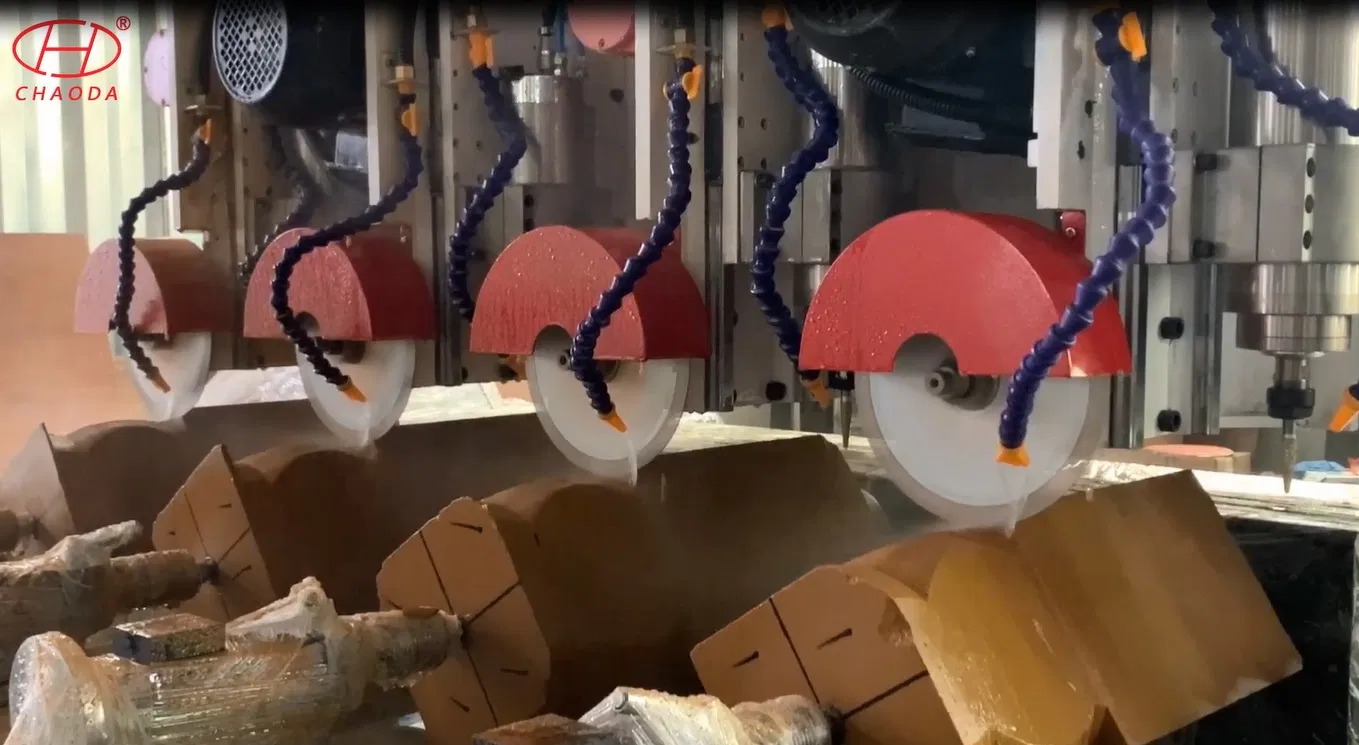

4 Head 3D CNC Stone Engraving Machine with Quick Saw Roughing and 4th Axis Rotary
| Description |
Parameters |
| Model | JCS1325R-4H |
| Working Area | 200mm diameter, 1300mm length |
| Guide Rail | Taiwan HIWIN square linear guide rail on X,Y, Z axis |
| Rack and Pinion | Taiwan Rack and pinion transmission on X, Y axis |
| Ball Screw | Taiwan Ball Screw on Z axis |
| Spindle Power | 3 kw water-cooling spindle |
| Spindle Speed | 0-24000rpm/min |
| Motor | Servo Motor |
| Work Voltage | AC380V/50Hz |
| Operating System | Nc Studio control system |
🛠️ Wide Range of Applications
Stone Materials: Artificial stone, Marble, Granite, Ceramic Tile, Milestone, Terrazzo, Limestone, Sandstone, Quartzite, Slate, etc.
Wood Materials: Solid Wood, Particle board, MDF, Wood Panel, Furniture (Door lock holes and edges), wave board screen, etc.
Acrylics & Plastics: Acrylics, Light guide plate, PVC, ABS, PE, PF, PU.
Metals & Compounds: Aluminum, Copper, FRP, Carbon Fiber Panel, Compact Grade Ceramic Chip.
❓ Frequently Asked Questions (FAQ)
What are the primary applications of the JCS1325R-4H?

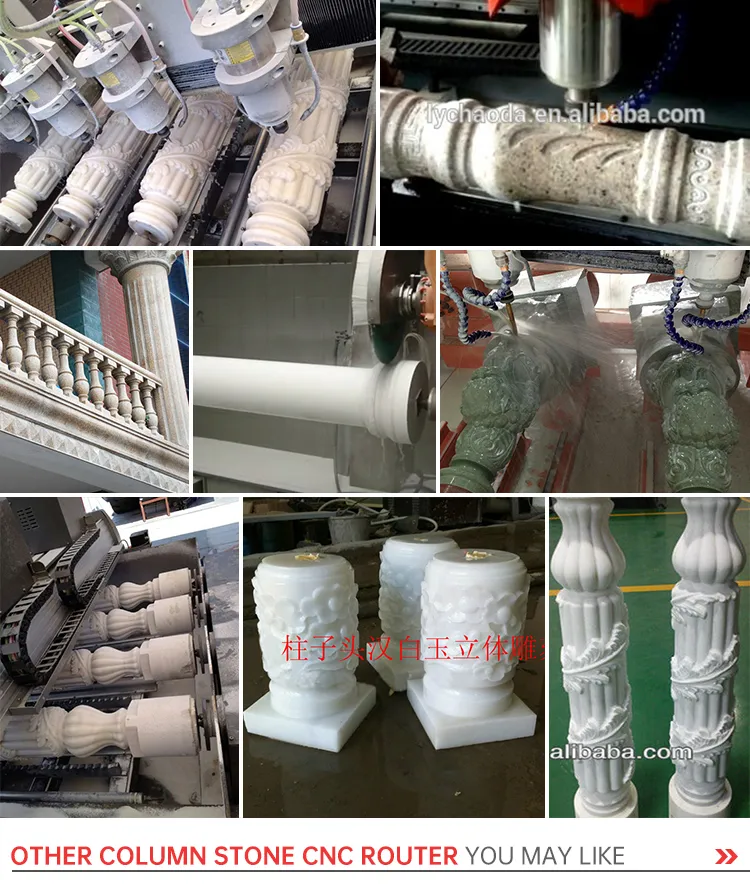

This machine is versatile and can be used for hollow out, cutting, line engraving, and basso-relievo on materials like marble, granite, wood, acrylic, and light metals. It is ideal for stone columns, railings, and statues.
How many spindles does the machine have and what is their power?
The machine is equipped with 4 pieces of 3kw water-cooling spindles, allowing for simultaneous processing to increase production efficiency.

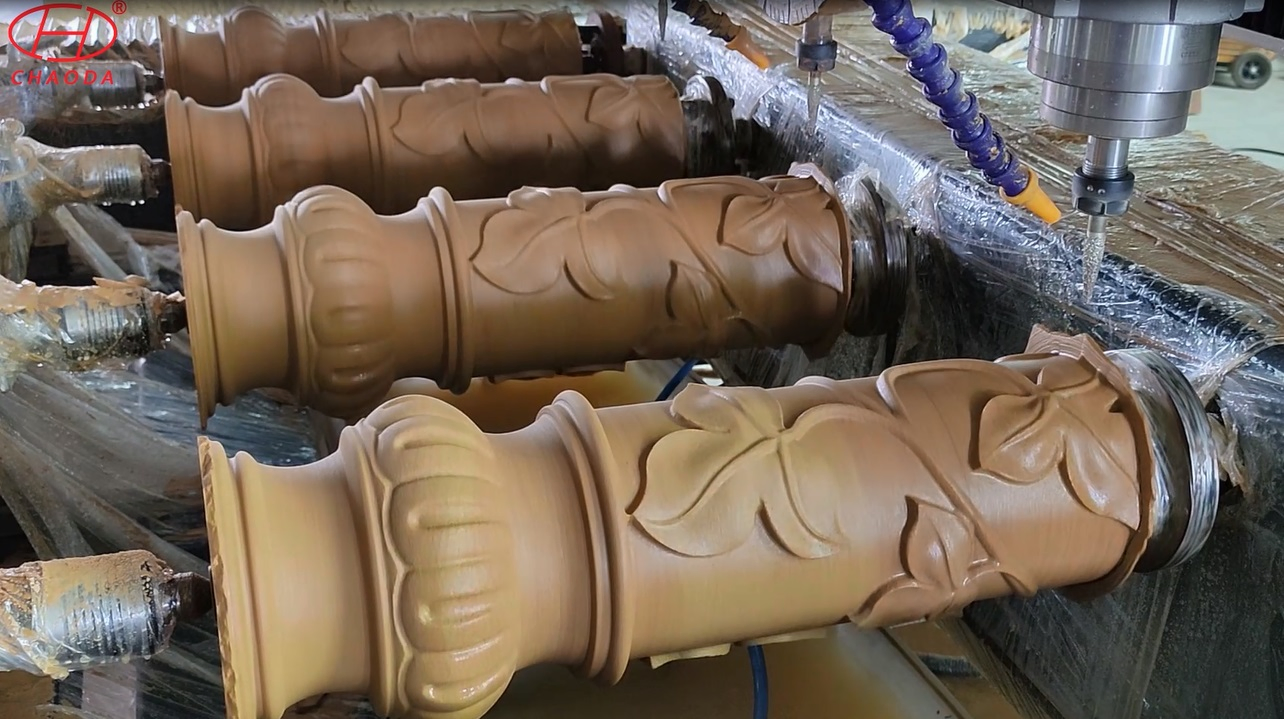

What is the rotary working area for cylindrical carving?
The rotary axis supports workpieces with a diameter of up to 200mm and a length of up to 1300mm across all four working stations.
What control system and motors are used in this CNC machine?
It utilizes the professional 4 Axis Nc Studio control system paired with high-precision Japan Servo Motors for stable and accurate movement.
Is the machine durable enough for stone processing?
Yes, it features a heavy-duty build (2500kg) and includes water-proof and dust-proof covers, along with an integrated oil system to protect core components during rigorous stone working tasks.
What software is compatible with this machine?
The machine is compatible with all standard CAM software, including Powermill, UG, and others that support G-code or HPGL commands.
