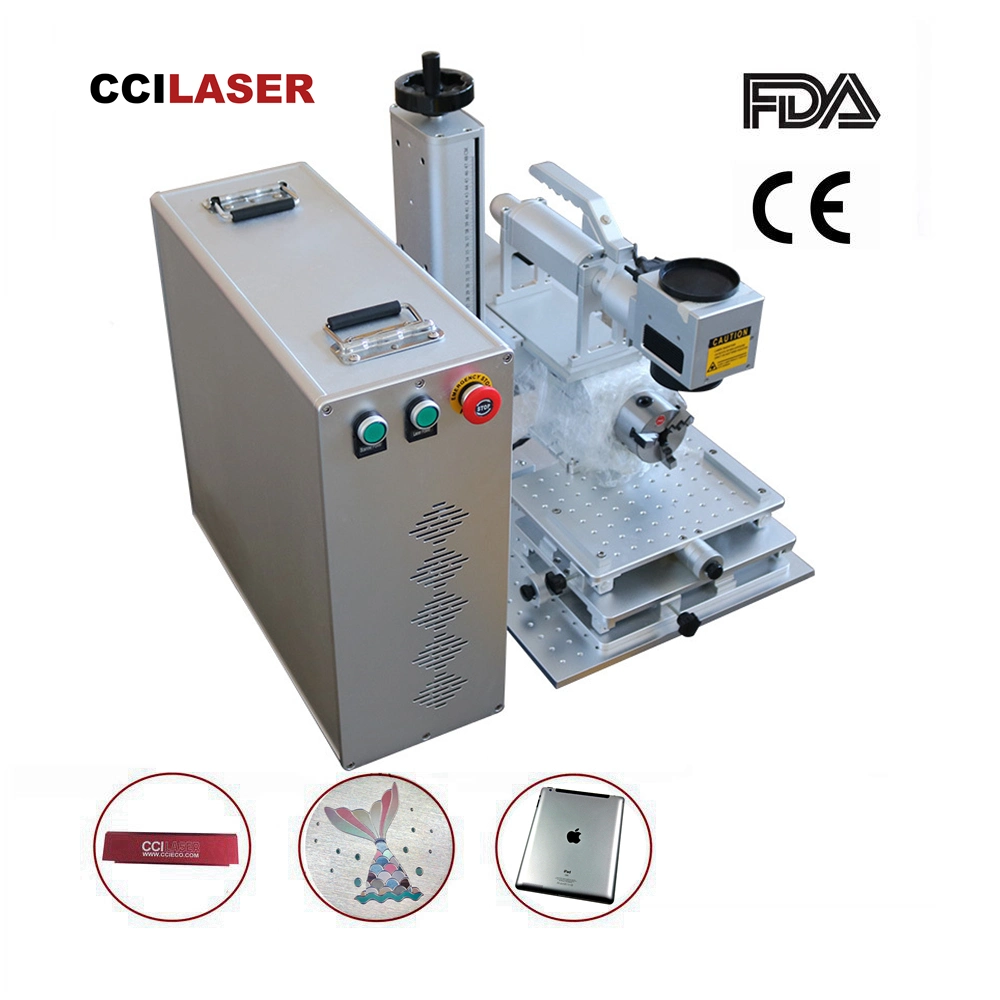

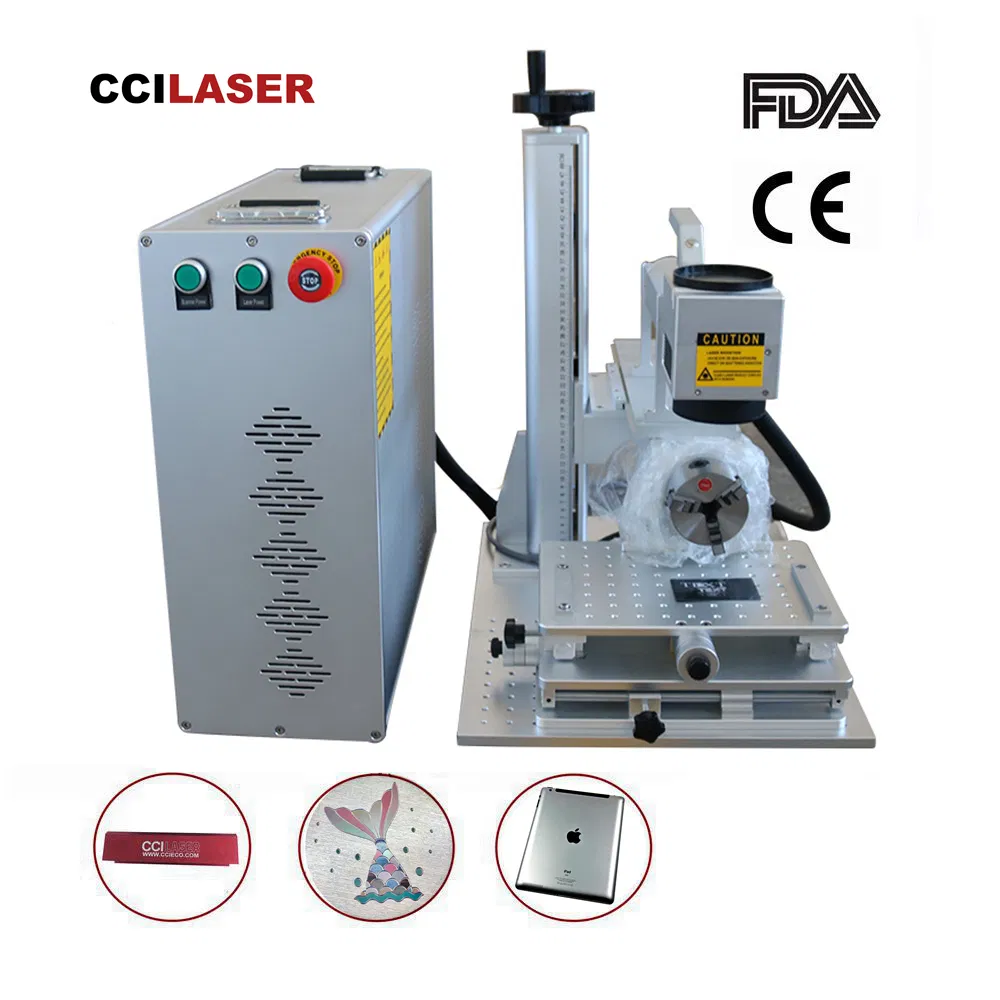

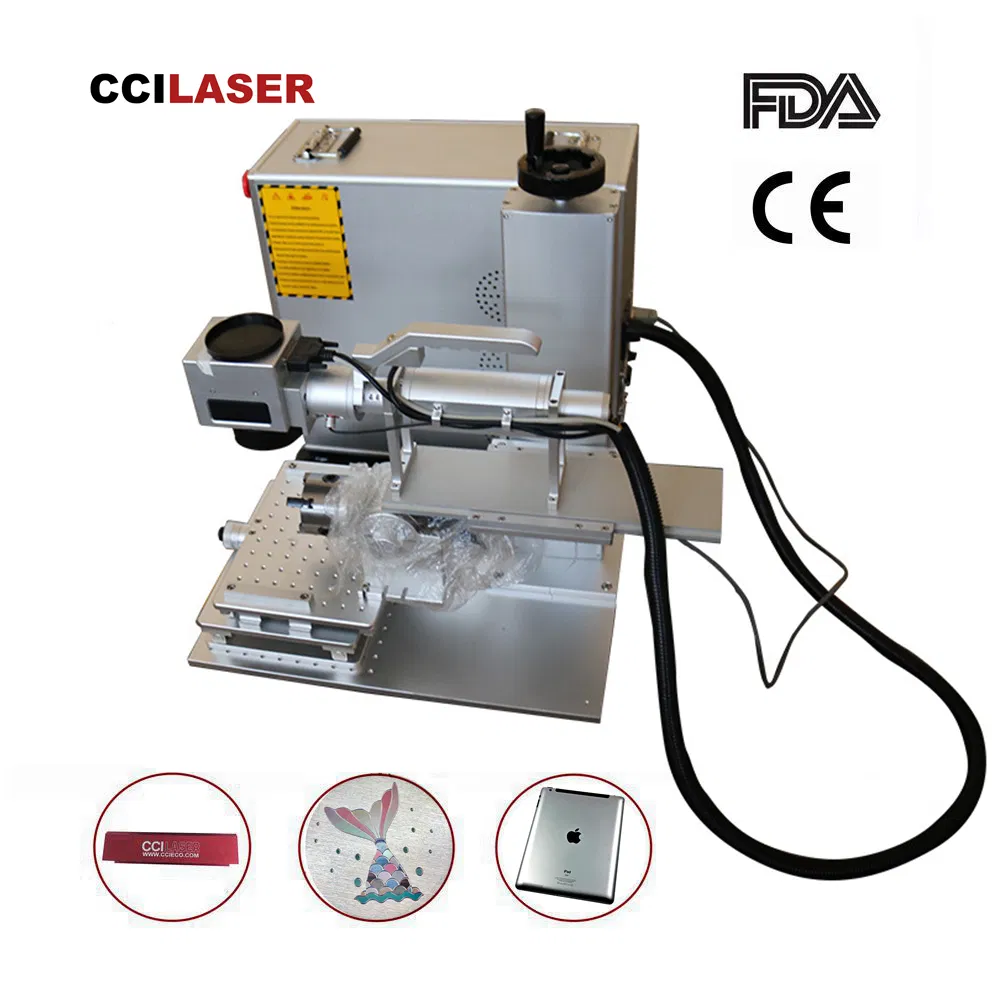

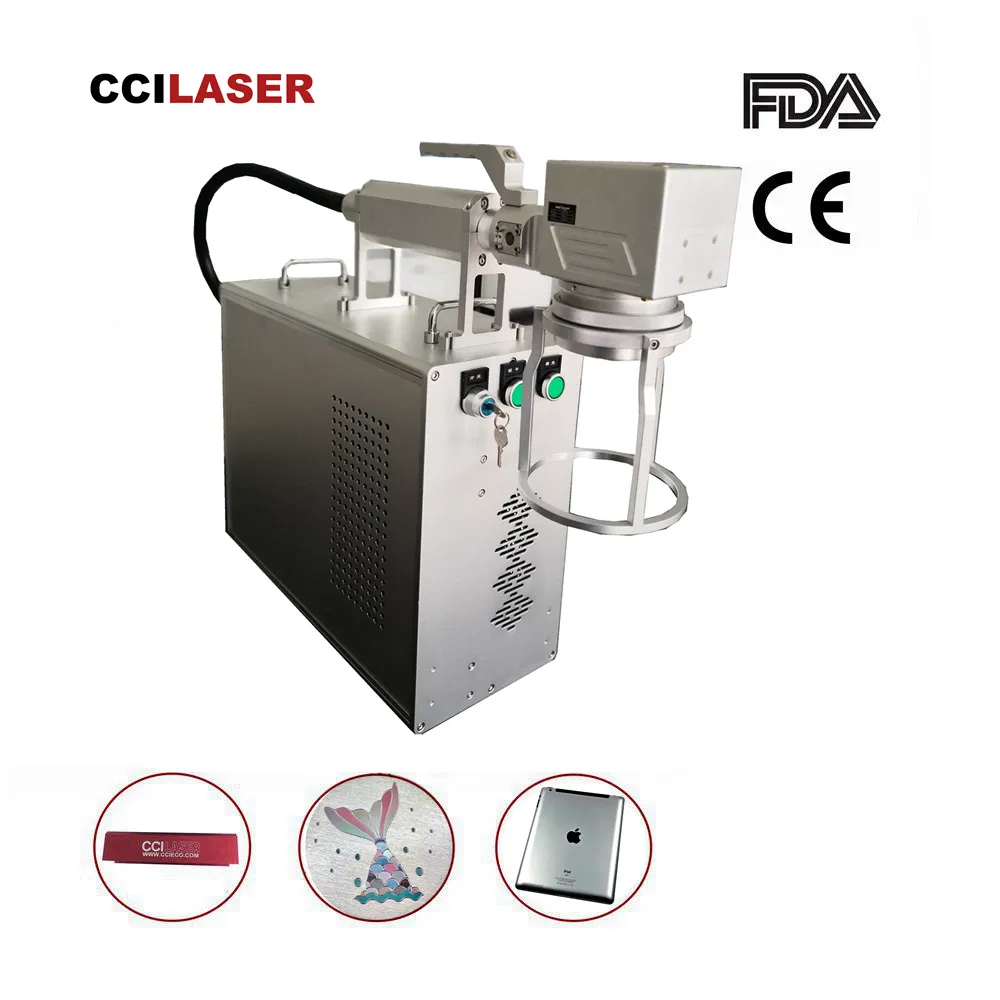

Fiber Laser Marking Machine FM-20/30
Fiber laser marking machine is designed for high-precision marking on a variety of materials:
| Model | FM-20 | FM-30 | FM-60 | FM-100 | FM-200 |
|---|---|---|---|---|---|
| Nominal Average Output Power | > 20W | > 30W | > 60W | > 100W | > 200W |
| Pulse Duration | 2-350ns | 2-350ns | 2-500ns | 2-500ns | 2-500ns |
| Maximum Pulse Energy | 0.8mJ | 0.8mJ | 1.5mJ | 1.5mJ | 1.5mJ |
| Pulse Repetition Rate | 1-4000kHz | 1-4000kHz | 1-4000kHz | 1-4000kHz | 1-4000kHz |
| Cooling Method | Air Cooled | ||||
| Central Wavelength | 1064nm | ||||
| Min. Character Size | 0.05mm | ||||
| Repeatability | ±0.001mm | ||||
| Marking Speed | < 7000mm/s | ||||

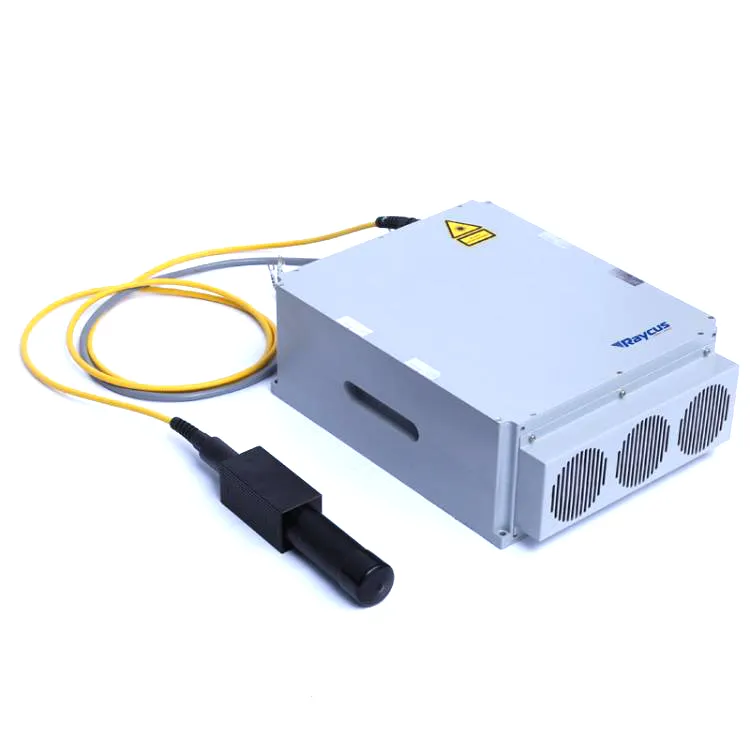

Equipped with industrial-grade Q-Switched Pulse Fiber Lasers. Features high peak power, high single-pulse energy, and maintenance-free operation with high reliability.

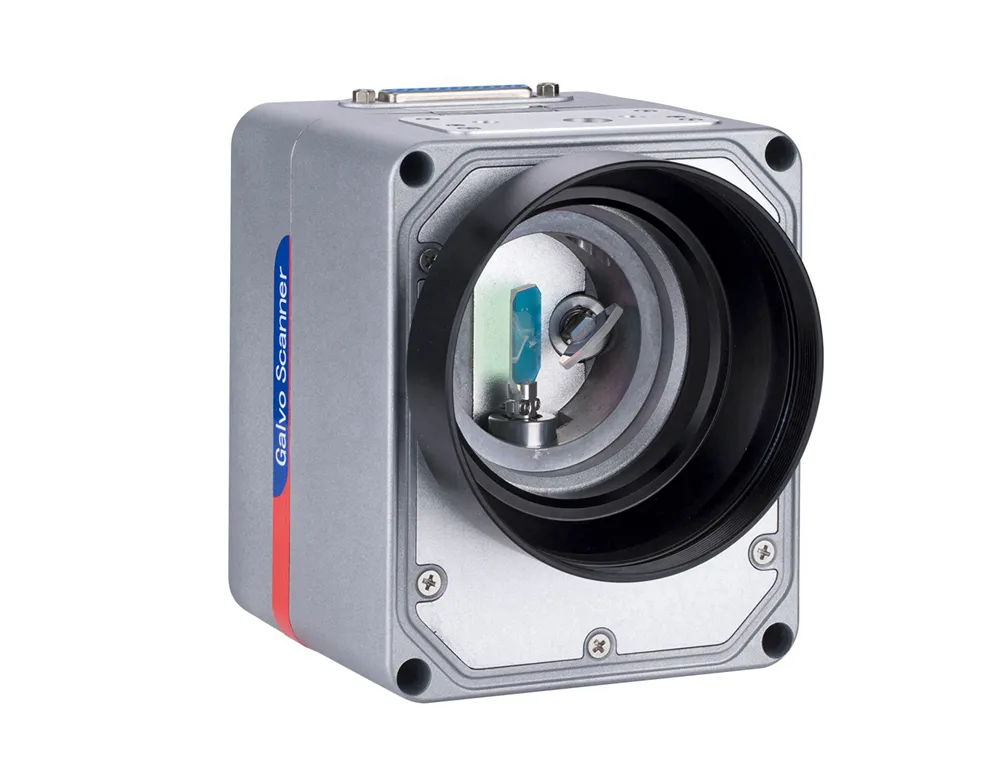

RC1001 model scanner offers excellent stability, high positioning accuracy, and fast marking speeds. Strong anti-interference ability ensures consistent performance.

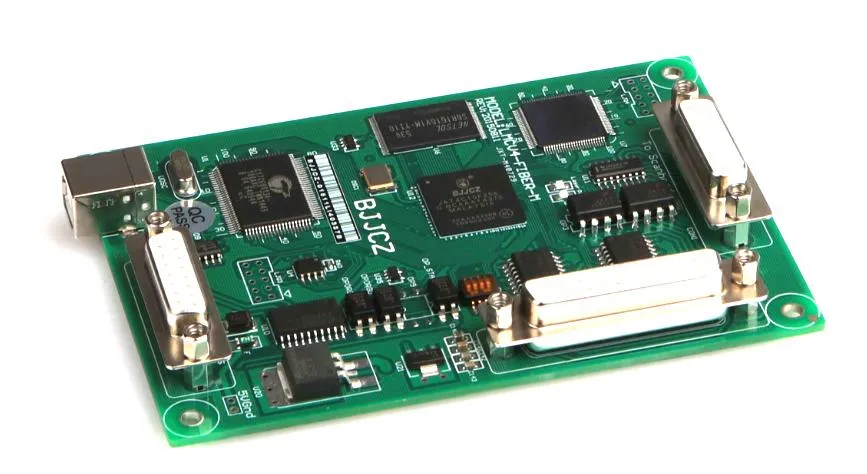

Digital signal control, compatible with USB 2.0. Supports extension axes for step or servo motors and high-speed remarking functions for mass production.

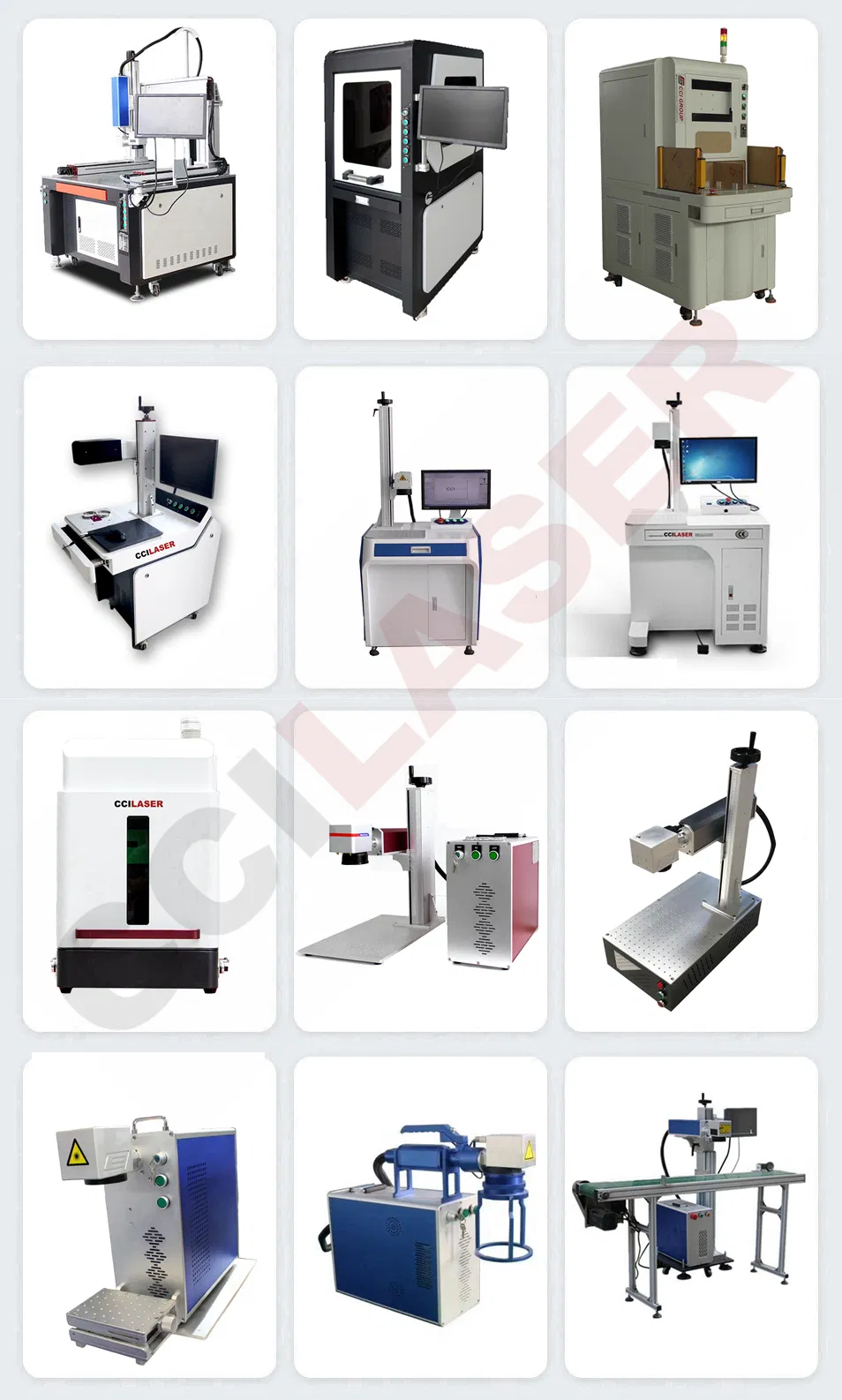

From portable desktop models to large format and fully enclosed protective versions, we provide solutions for every marking requirement.

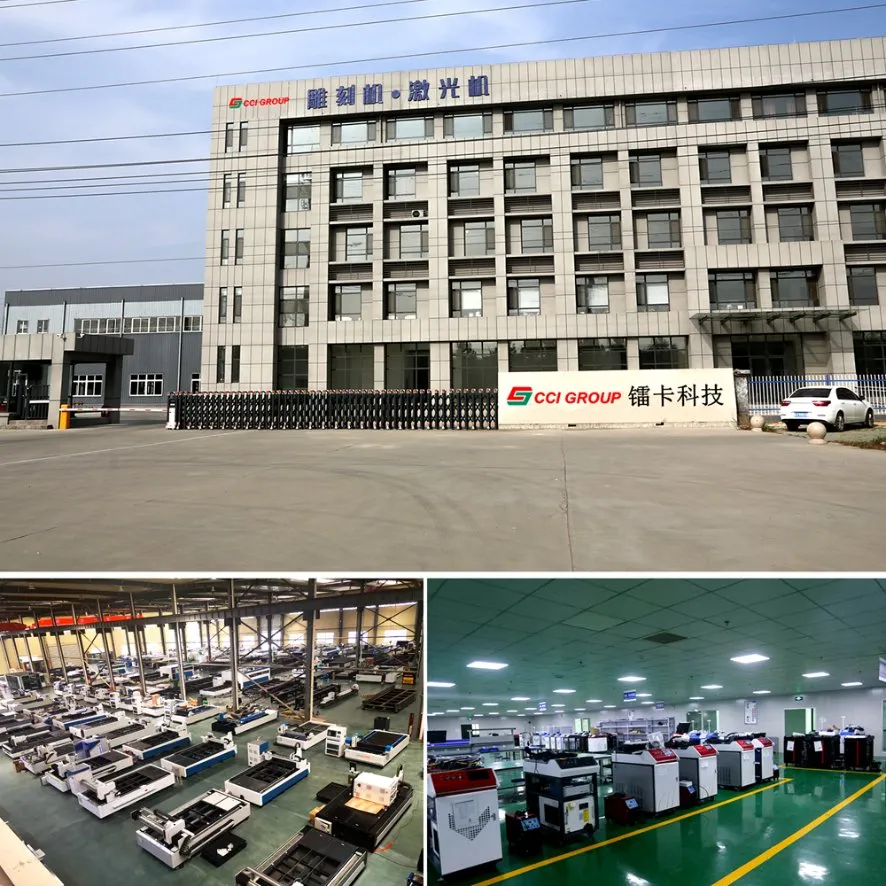

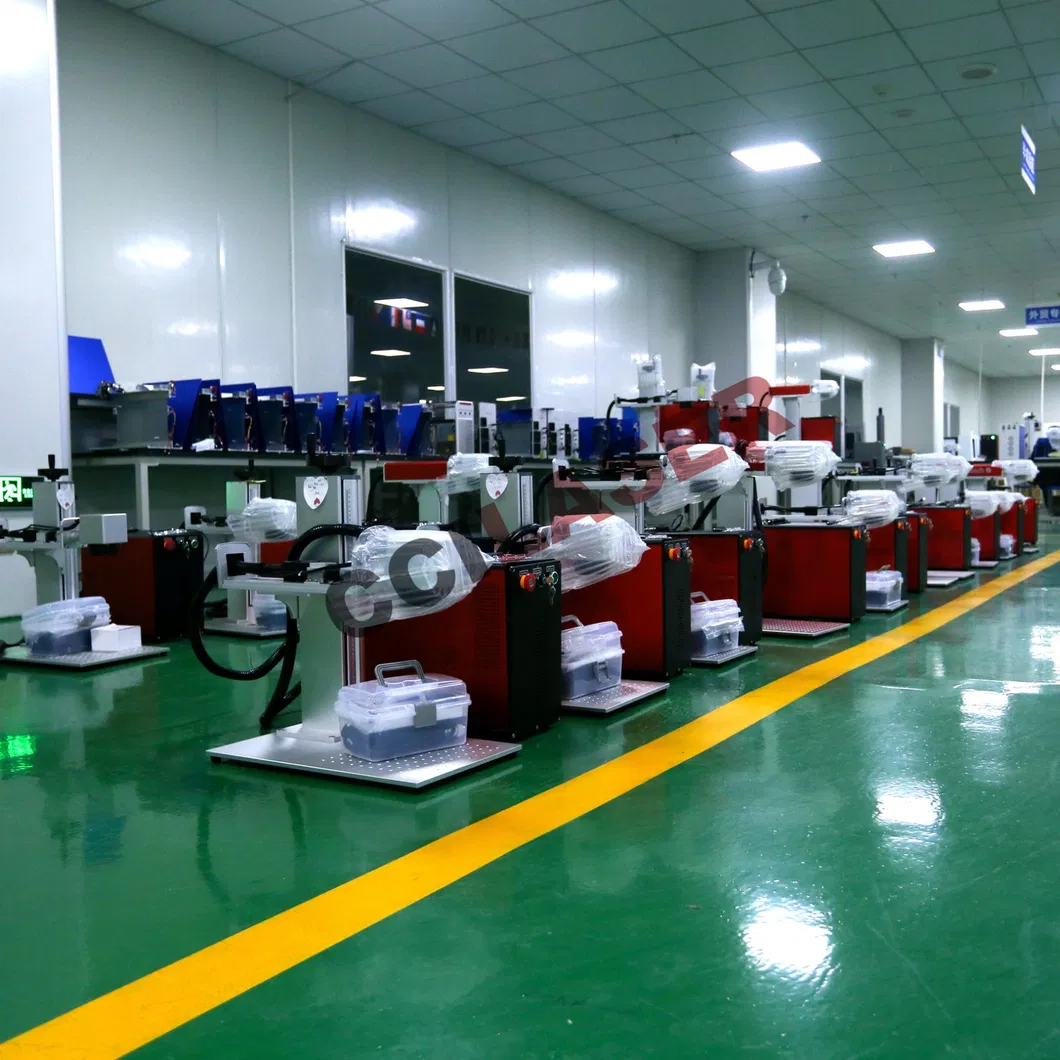

15,000m³ workshop with a capacity of 300-500 laser marking machines per month. Quality is guaranteed through professional management.
110 professional workers and 12 R&D experts. Each worker undergoes strict training to ensure accumulative accuracy of the final product.
Standard packaging includes fumigated wooden pallets or cases. Machines are protected with PE film to ensure precision during sea or air transport.
Our machines come with a comprehensive 36-month warranty period starting from the BL date, supported by 12-hour technical feedback.
For machines in stock, we can deliver within 7 days. Standard fabrication takes 15-25 days, while customized CNC machines may take 25-50 days.
Yes, our fiber laser marking machines are highly versatile and can engrave on all metals (stainless steel, copper, etc.) and most hard plastics and synthetic materials.
Usually, we require a 50% deposit via T/T, with the remaining balance paid by T/T or L/C at sight before the machine is dispatched to the loading port.
We use high-quality imported components from European and American markets, and our production staff have over 10 years of professional experience in laser fabrication.
We use professional-grade fumigated wooden cases or pallets. If space is tight, we utilize specialized PE film packing to ensure the high-precision components remain secure.
