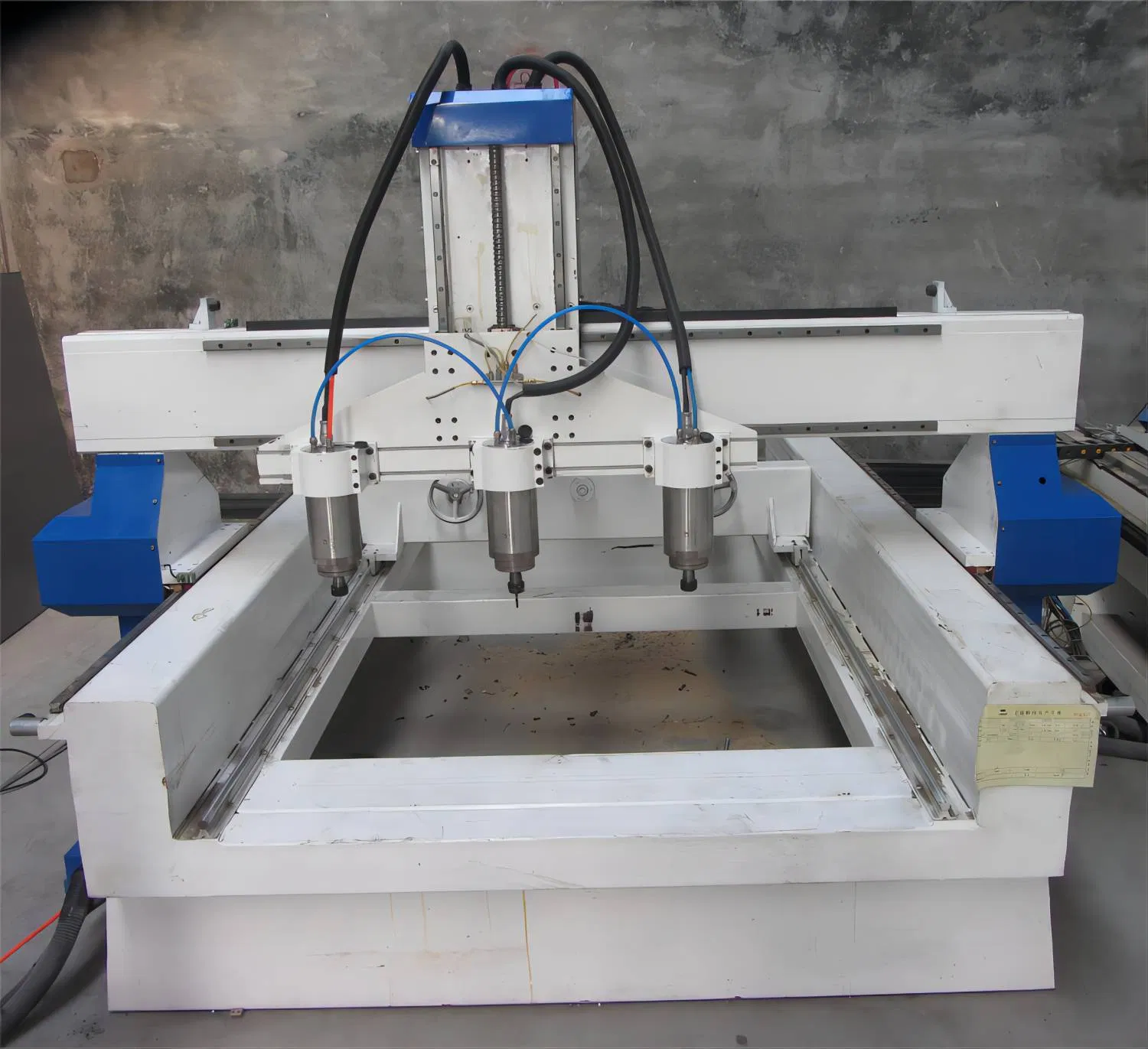

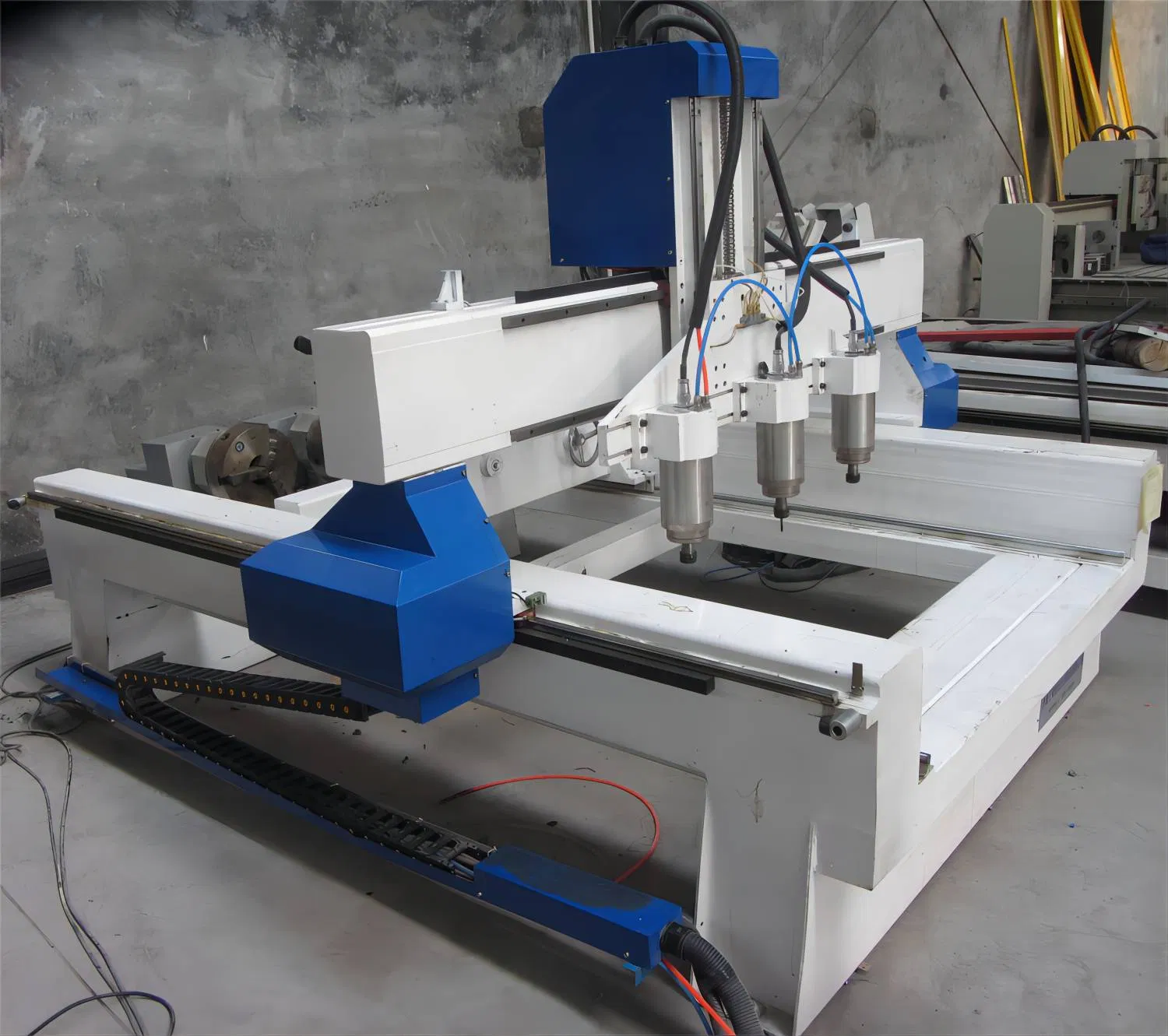

Rhino Multi Three Spindle 3 Rotary CNC Router Machine Wood Furniture CNC Carving Machine Double Head CNC Router 1313 4 Axis for Wood Column Milling
Rhino Multi Three Spindle 3 Rotary CNC Router Machine Wood Furniture CNC Carving Machine Double Head CNC Router 1313 4 Axis for Wood Column Milling
Rhino Multi Three Spindle 3 Rotary CNC Router Machine Wood Furniture CNC Carving Machine Double Head CNC Router 1313 4 Axis for Wood Column Milling
Rhino Multi Three Spindle 3 Rotary CNC Router Machine Wood Furniture CNC Carving Machine Double Head CNC Router 1313 4 Axis for Wood Column Milling
Rhino Multi Three Spindle 3 Rotary CNC Router Machine Wood Furniture CNC Carving Machine Double Head CNC Router 1313 4 Axis for Wood Column Milling
1 / 5
Rhino Multi Three Spindle 3 Rotary CNC Router Machine Wood Furniture CNC Carving Machine Double Head CNC Router 1313 4 Axis for Wood Column Milling
Rhino Multi Three Spindle 3 Rotary CNC Router Machine Wood Furniture CNC Carving Machine Double Head CNC Router 1313 4 Axis for Wood Column Milling
Rhino Multi Three Spindle 3 Rotary CNC Router Machine Wood Furniture CNC Carving Machine Double Head CNC Router 1313 4 Axis for Wood Column Milling
Rhino Multi Three Spindle 3 Rotary CNC Router Machine Wood Furniture CNC Carving Machine Double Head CNC Router 1313 4 Axis for Wood Column Milling
Rhino Multi Three Spindle 3 Rotary CNC Router Machine Wood Furniture CNC Carving Machine Double Head CNC Router 1313 4 Axis for Wood Column Milling

Rhino Multi Three Spindle 3 Rotary CNC Router Machine Wood Furniture CNC Carving Machine Double Head CNC Router 1313 4 Axis for Wood Column Milling

Customization: Available
Warranty: 3 Years
Type: Engraving Router
Send Inquiry

Product Description

i
Basic Information
Model NO.R-1313-3Spindle LayoutVertical
Spindle NumberSingle-SpindleFeed ModeMechanical
Controlling ModeCNCCertificationCE, ISO, FDA
ConditionNewColorCustomized
Spindle4.5kw Air CoolingXYZ Axis1300*1300*300mm
Vacuum TableWith 7.5kw PumpWorking Speed40m/Min
MotorServo Motor DriversRailsHiwin25 Rails
★
Product Description

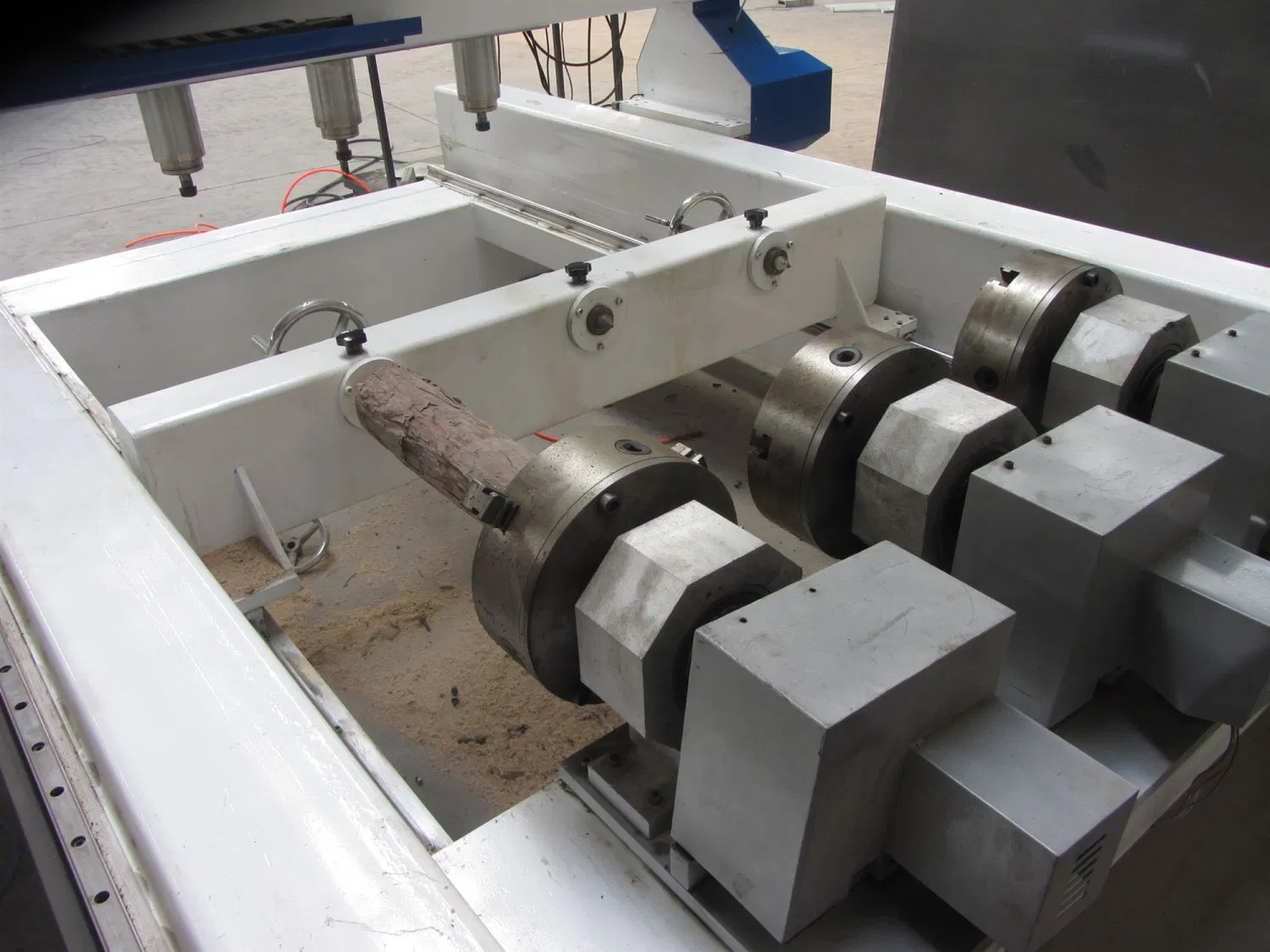

Three spindle 3 Rotary CNC router machine - Optimized for wood furniture carving and 4-axis column milling. Features double head design for high-efficiency processing.

CNC Router Machine
⚙
Product Parameters
X-Y-Z working area1,300 x 1,300 x 300mm
X-Y movementRack and pinion, gear drive/Taiwan HIWIN
Z movementBall screw drive/Germany
Max. cutting speed25,000mm/min
Spindle4.5kw Air cooling, 3 heads separately
Spindle speed18,000rpm
Control SystemDSP A11 (Digital Signal Processor)
VoltageAC380V/50-60Hz or 220V-270V
✔
Core Advantages
  • Heavy integral welding structure with 8-10mm steel gantry for maximum stability.
  • Double heads with 3 spindles working separately to significantly increase efficiency.
  • High-precision Taiwan HIWIN square rails and German TBI ball screws.
  • Intelligent protection system to prevent machine collision and wasting material.
  • Professional vacuum system with 7.5kw pump for strong material adsorption.
  • Compatible with Type3, Artcam, Castmate, and other CAD/CAM software.
▦
Material & Application

Application Areas: Furniture production (doors, cabinets), advertising signs, LED logos, mold industry (copper, aluminum), and arts/crafts.

Workable Materials: Solid wood (elm, teak, cherry, rosewood, etc.), Acrylic, PVC, Plastic, Foam, PE, PP, and soft metals.

📷
Machine Details

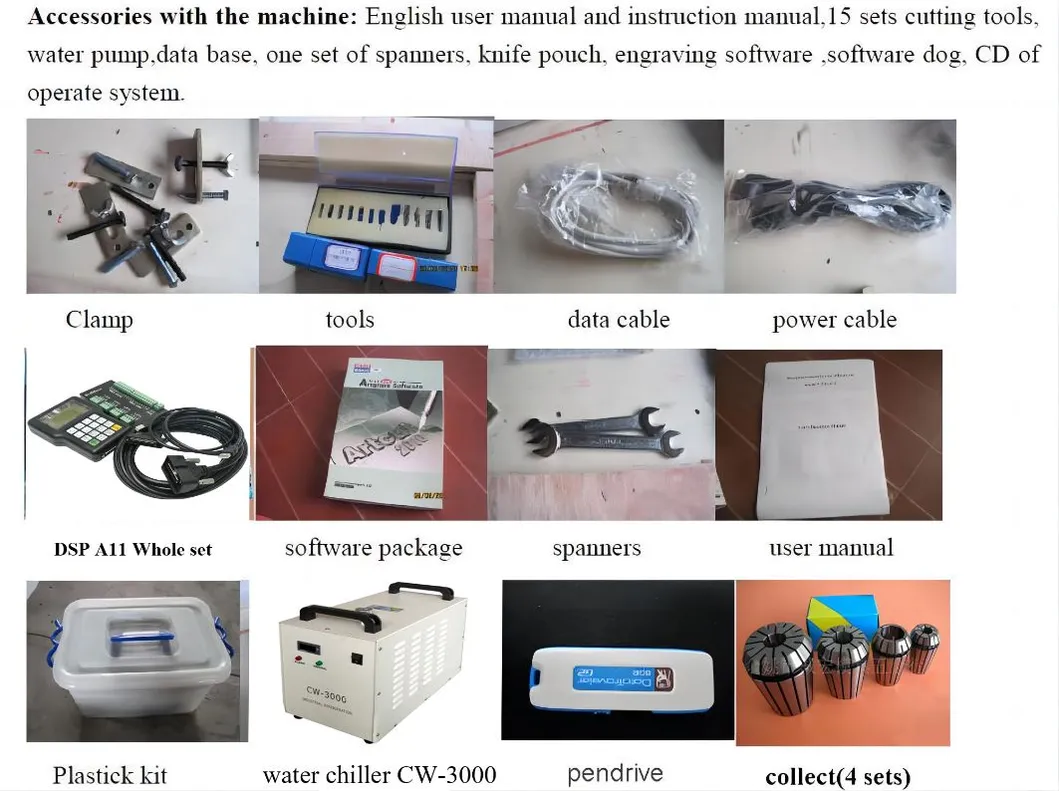

Packing list
Machine view

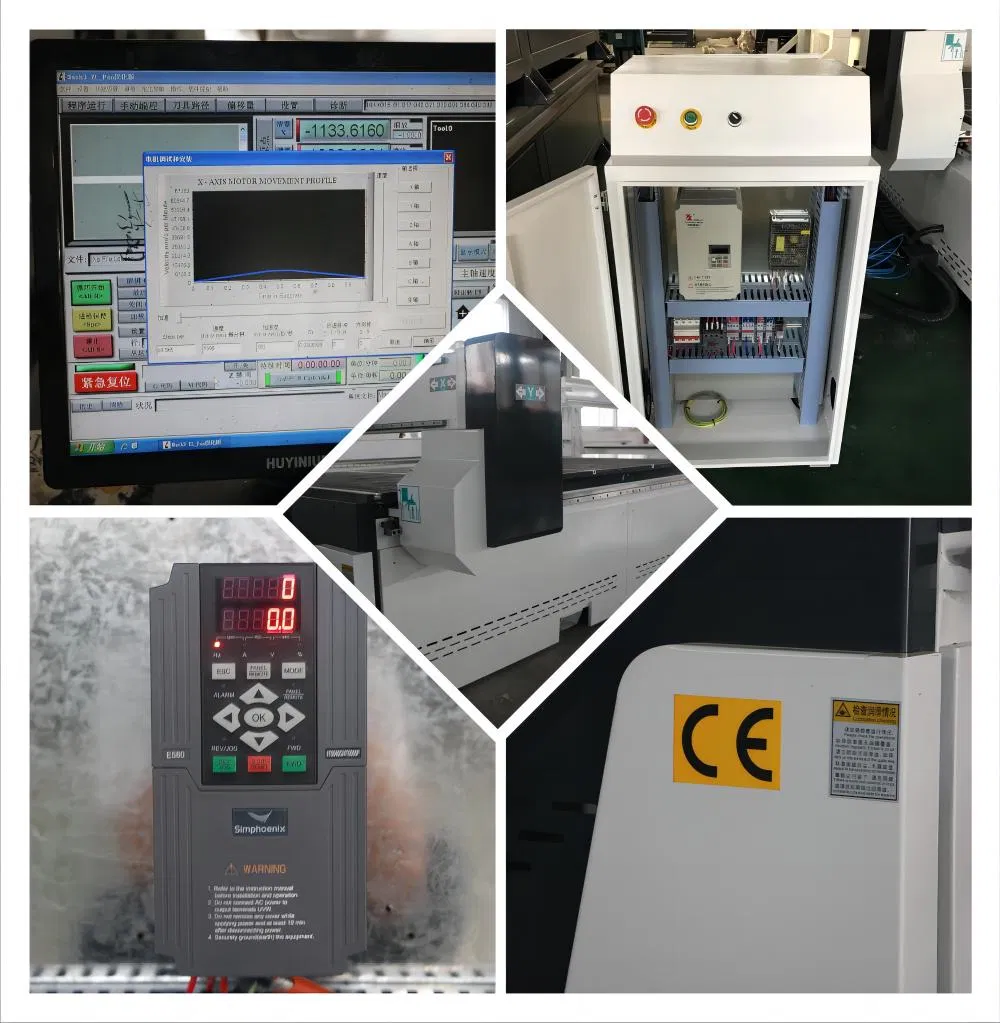

Detail part

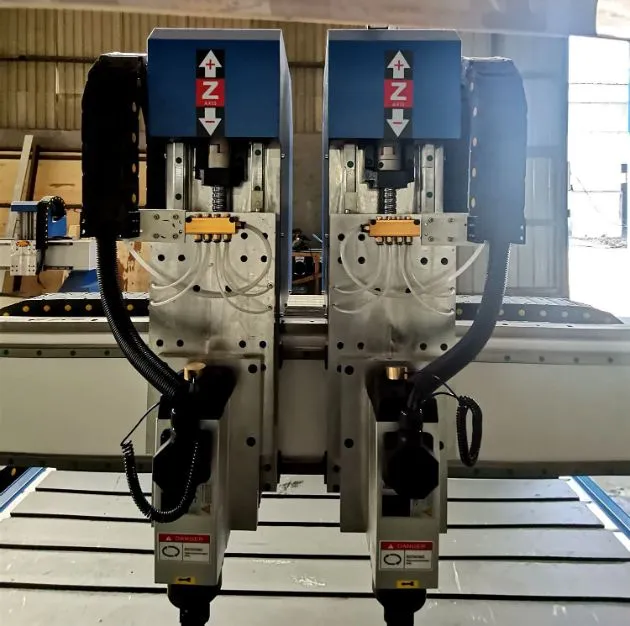

Spindle Detail

Separate Z Axis Spindles

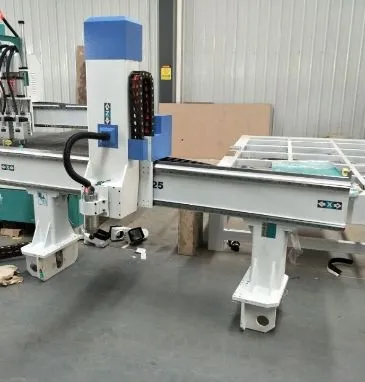

Gantry Detail

12mm Steel Gantry

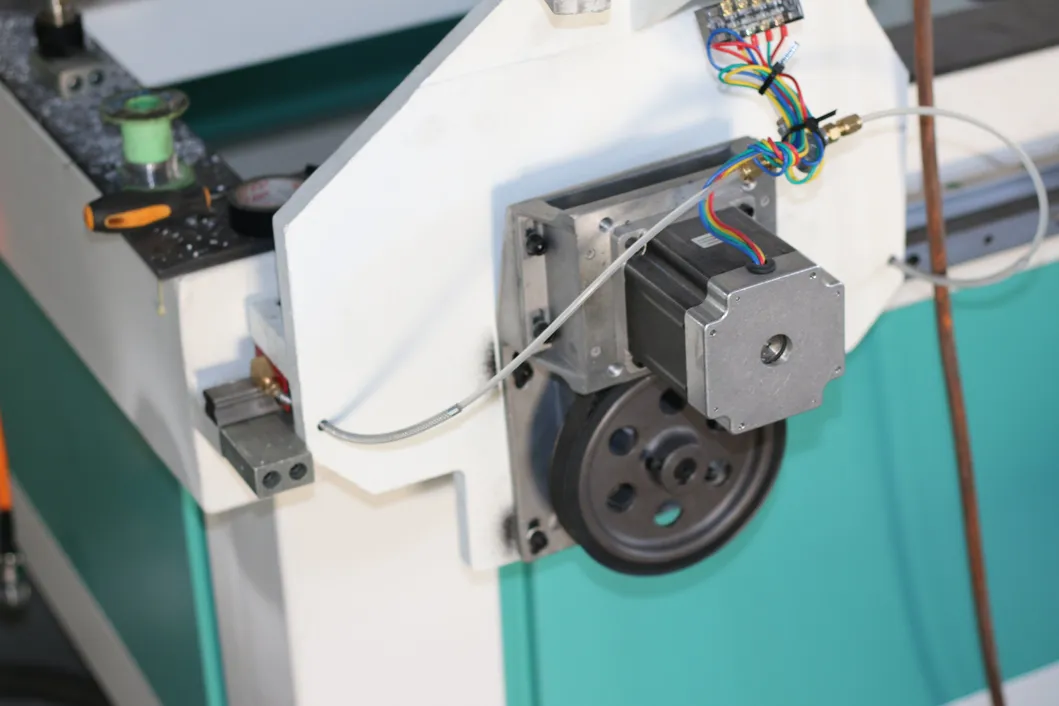

Motor Detail

Stepper Motors with Gearbox

◈
Processing Samples

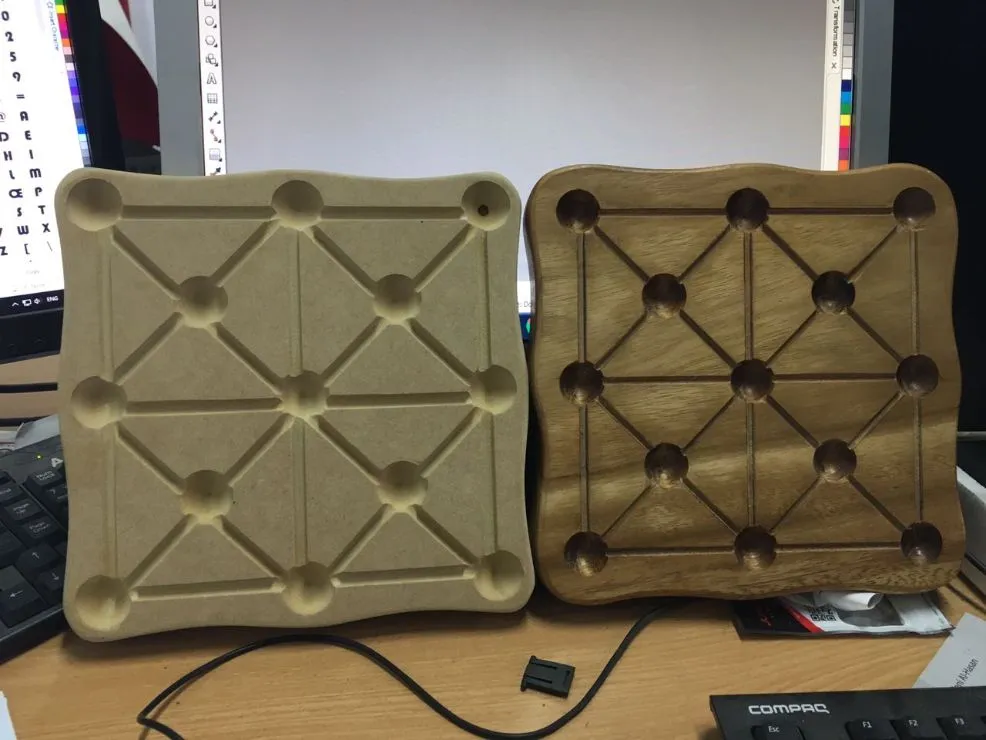

Sample 1

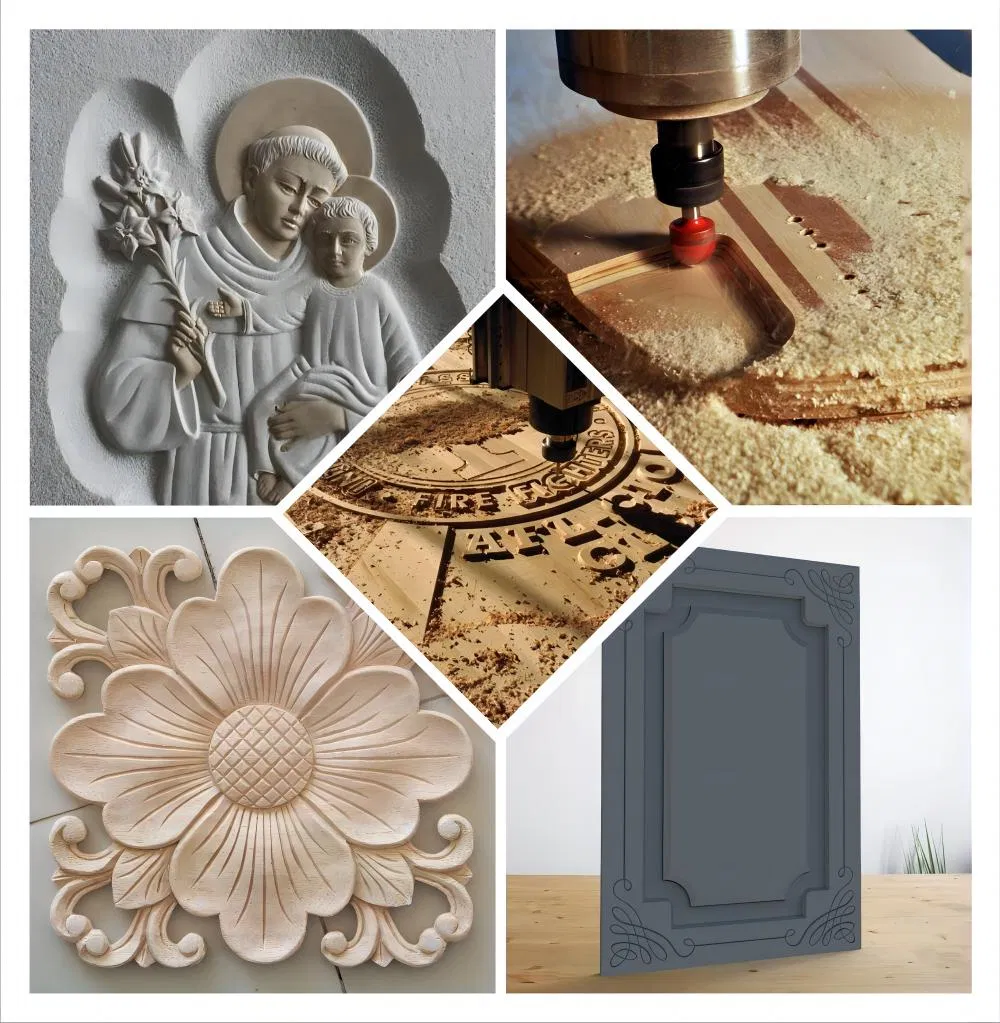

Sample 2
Sample 3
🛠
Service & Support
  • Two-year warranty under normal machine use.
  • Lifetime free maintenance and technical support.
  • 24-hour online support via email, phone, and remote assistance.
  • Free training with detailed manuals and instructional videos.
📦
Packaging & Shipping

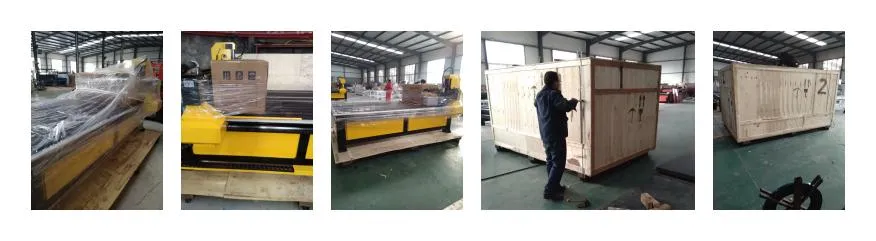

Package

Machines are protected with plastic film, secured on a plywood bottom bracket, and encased in a strong plywood box with steel straps for safe international transit.

Frequently Asked Questions
Q1: What materials can this CNC router process?
A: It can process all types of wood (solid wood, MDF, plywood), acrylic, plastic, PVC, foam, and soft metals like aluminum and copper.
Q2: Does the machine come with design software?
A: Yes, we provide Type3 and Artcam software for free. The machine is also compatible with any software that can generate G-code.
Q3: What is the spindle cooling method?
A: This model uses a 4.5kw high-power air-cooling spindle, which is efficient for processing hard materials without the need for water tanks.
Q4: How long is the warranty period?
A: We provide a two-year warranty under normal usage and offer free technical support for the lifetime of the machine.
Q5: Is the machine suitable for 4-axis carving?
A: Yes, it is designed for 4-axis wood column milling and complex three-dimensional carving.
Q6: How do you ensure machine quality before delivery?
A: Every machine undergoes a 24-hour continuous running test before delivery to ensure zero errors in production and assembly.
