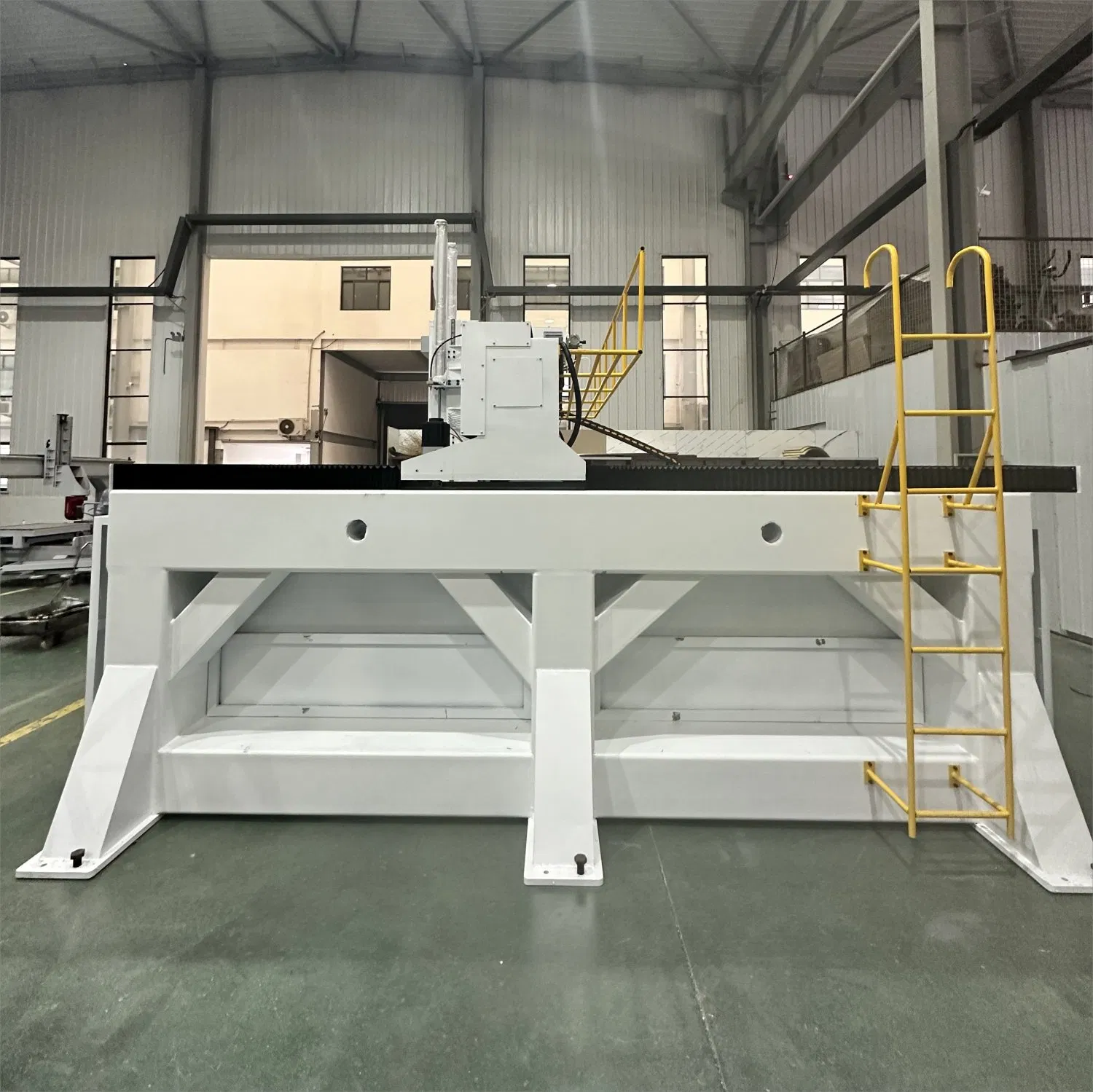

Rhino 2024 Rtcp Best Sales 5 Axis CNC 3D CNC Router Wood Working Machine Center High Precision Gantry Moving CNC Router 1300 2500mm Z 1000mm

1 / 5

Rhino 2024 Rtcp Best Sales 5 Axis CNC 3D CNC Router Wood Working Machine Center High Precision Gantry Moving CNC Router 1300 2500mm Z 1000mm

Customization:	Available
Warranty:	3 Years
Type:	Wooden Mold Router

Send Inquiry

Product Description

📋 Basic Info

Model NO.

RSKM-25-E

Spindle Layout

Vertical

Spindle Number

Single-Spindle

Feed Mode

Mechanical

Controlling Mode

CNC

Certification

CE, ISO, FDA, BV

Working Size

1300X2500mmx2000mm or Customized

Spindle

Atc 5 Axis Italy 13kw Water /Air Cooling

Control System

Syntec 5 Axis System/Osai/Fanuc

HS Code

8465990000

⚙️ Technical Parameters

Model	RSKM25-E
Working size	13000250001000mm
Body structure	Steel structure
X/Y/Z Working accuracy	±0.1mm/±0.05mm
Traveling speed	40m/min
Working speed	25m/min
Spindle	Italy HITECO 5 axis air cooling spindle 15KW
5 axis Head	DEMAS 5 axis head
Spindle rotary speed	0-24000rpm
5 axis part	B axis +-135 degree/C axis +-320 degree
Control system	Syntec system 5 axis 610MA-E5
Drive and motor	Syntec brand servo motor drivers
Machine weight	6000kg-20000kg

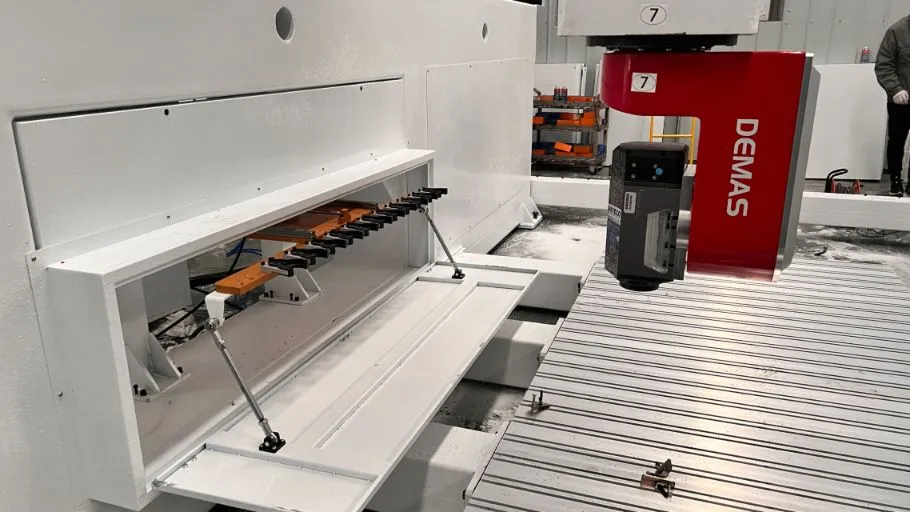

ATC	Linear tool changer 12-20 pieces

🚀 Our Advantages

✔

Exclusive streamlined design ensures high stability and long-term precision.

✔

Large working table and Z-axis feeding height (up to 2000mm) for massive block materials.

✔

Real 5-axis RTCP function (Rotation Tool Center Point) for complex surface processing.

✔

Superior rigidity with multiple row square rails (X: 3 rows, Z: 4 rows, Y: 2 rows).

✔

Heavy-duty steel welded T-SLOT table (20mm thickness) prevents deformation.

✔

Syntec advanced control system with man-machine conversation and diagnostic functions.

🛠️ Applications

Aerospace
Turbine blades, structural parts

Automotive
Engine parts, steering systems

Mold Making
1:1 car molds, yacht shipyard models

Energy
Wind turbine blades, drilling components

Medical
Artificial joints, dental implants

Amusement
Park facilities, sculptures

📸 Detailed Components

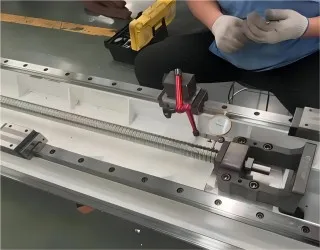

HIWIN/PMI high precision rails with Germany TBI ball screw.

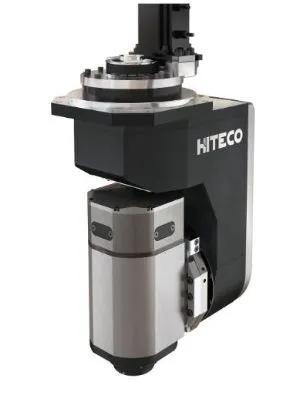

Italy Water cooled ATC 5 axis spindle for fiberglass and composite materials.

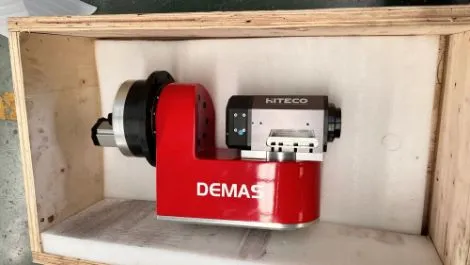

DAMES 5 Axis head with high precision and fast milling speed.

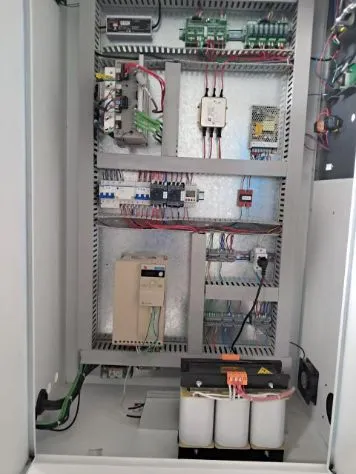

Syntec RTCP 610MA PLC with servo motor drivers.

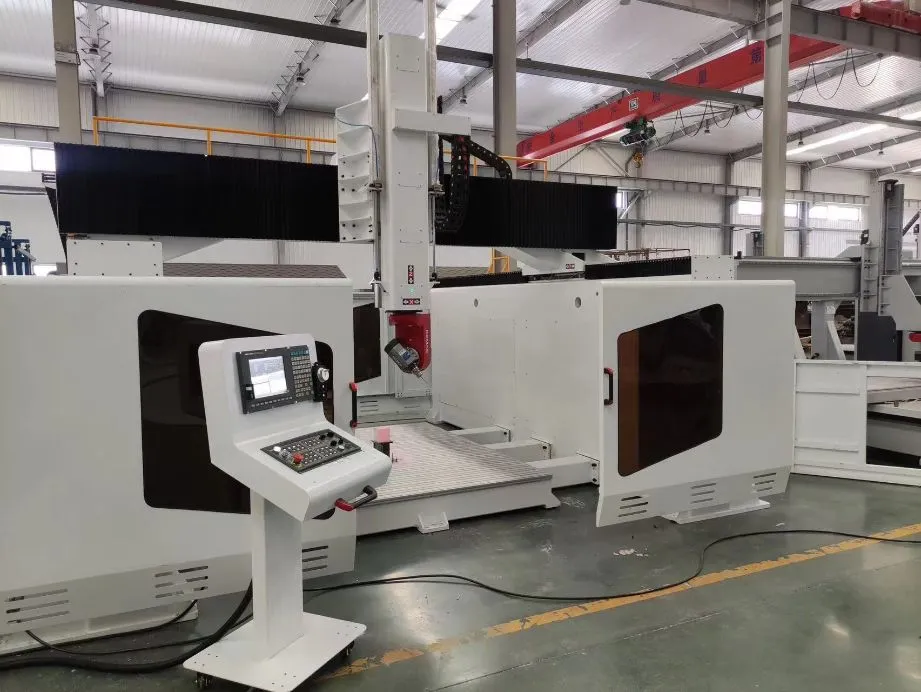

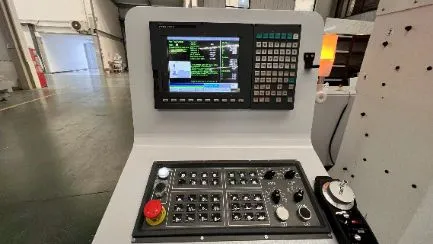

Advanced control panel with LED alarm light.

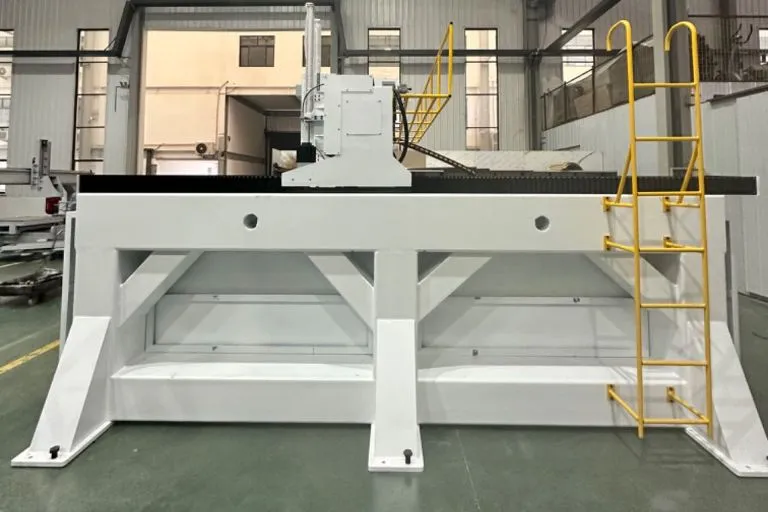

Heavy machine structure up to 20000kg.

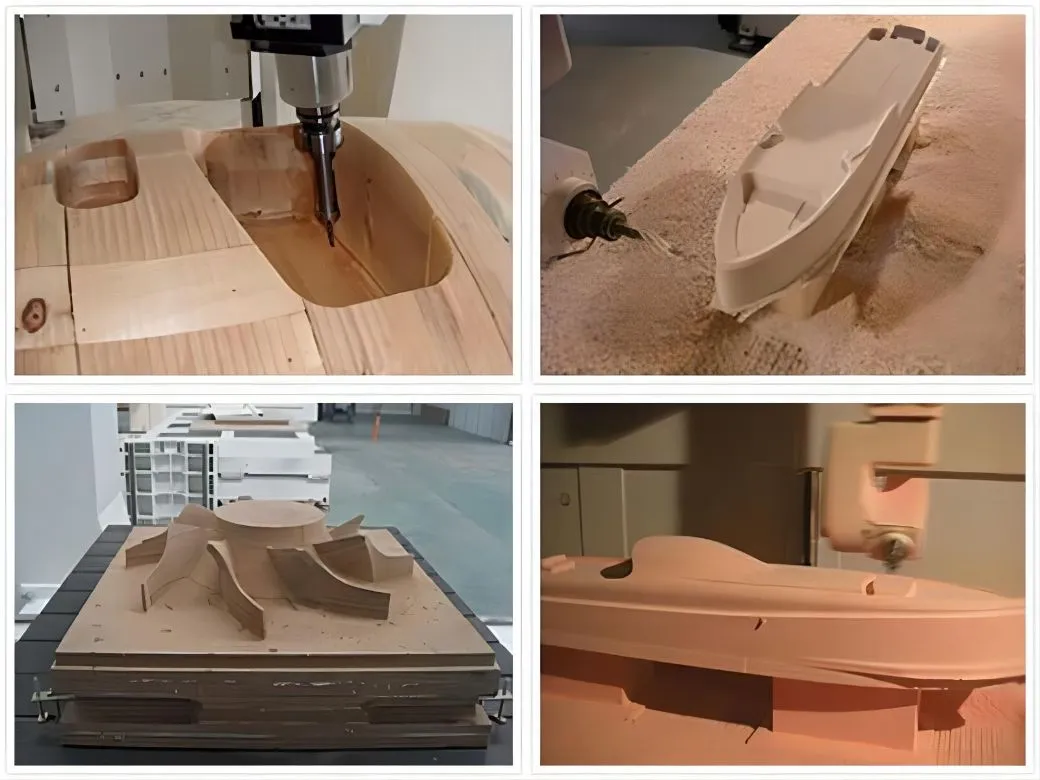

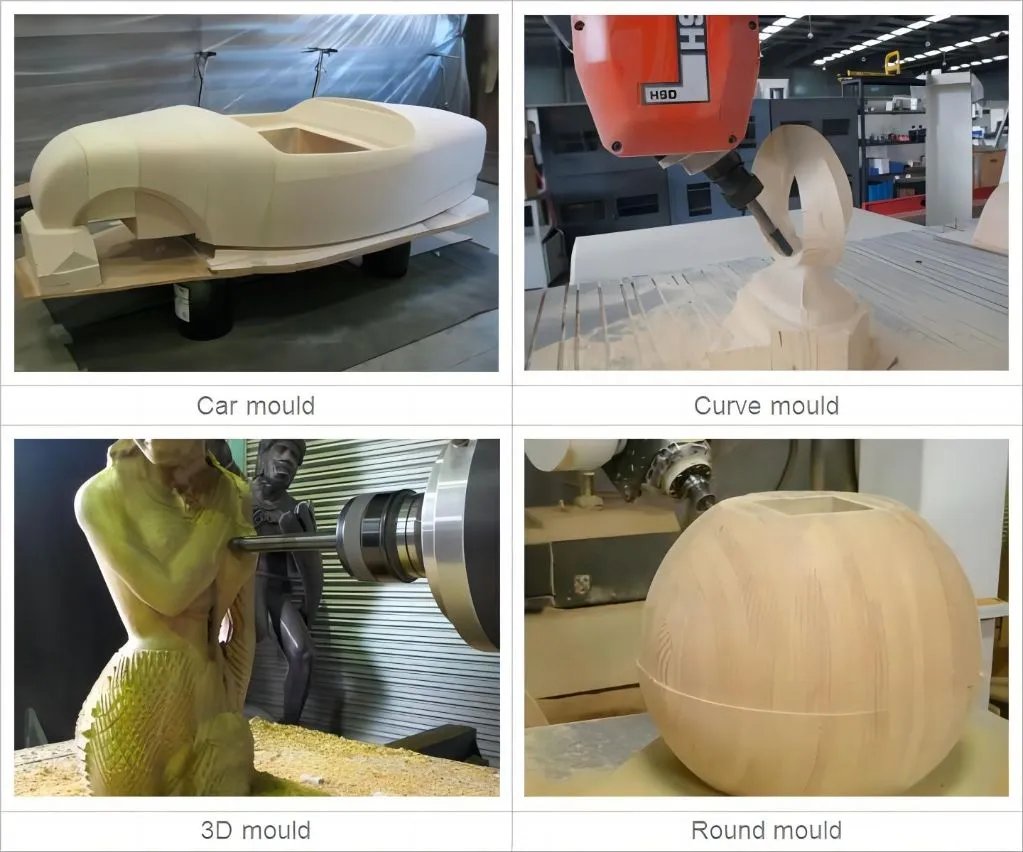

🎨 Sample Display

📜 Certifications

Gained CE / ISO certificate and audited status. Products including 5 axis, 4 axis, and 3 axis CNC routers can be exported globally with safety compliance.

📦 Packaging & Shipping

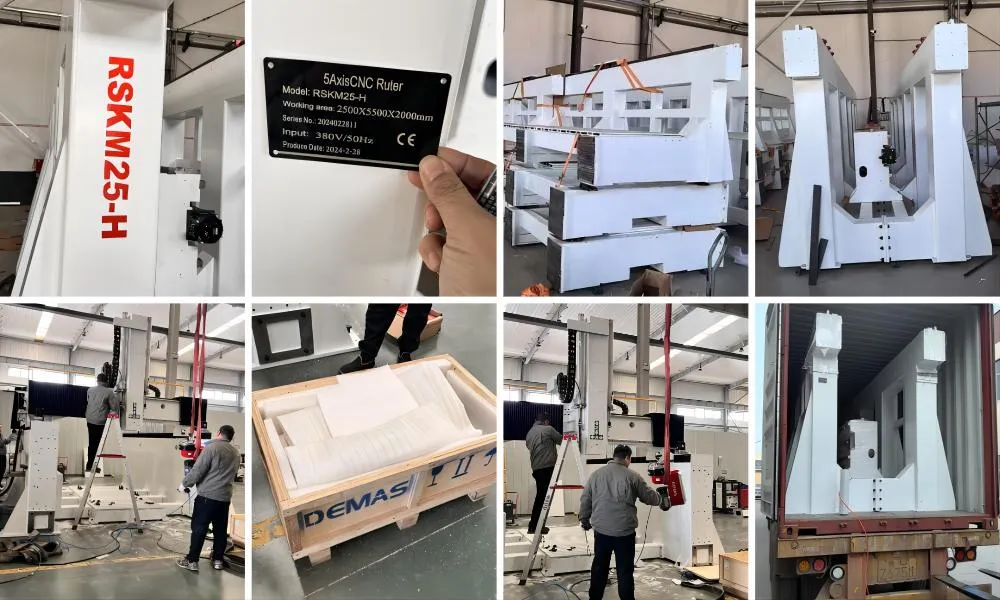

The main process includes gantry disassembly, Y-axis supporter disassembly, and electronic box protection. All components are loaded into containers via forklift with professional technician guidance.

❓ FAQ

🔹 What software and post processor are supplied?

We provide professional Powermill and UG software to help with your designs, including the popular PowerMill 5-axis post processor for seamless machine integration.

🔹 What kind of after-sales service is provided?

The machine includes a 2-year warranty and long-life service. We offer 7x24 hour support via online, telephone, and email with professional engineers.

🔹 What information is needed before purchase?

We primarily need to know your required working size and the specific materials you intend to mill to offer the most suitable 5-axis configuration.

🔹 What is the typical delivery time?

Generally, the machine is ready within 30 days. We spend an additional 3-5 days for rigorous inspection and performance testing before delivery.

🔹 Can the 5-axis CNC router be customized?

Yes, we can customize the machine based on your detailed requirements, including table size, spindle power, and specific control system options.

🔹 Is onsite installation and training available?

Yes, professional engineers can be dispatched to your facility for installation and training. This ensures your team can operate the complex 5-axis system efficiently.
