Product Description

Basic Specifications

Model NO.

FM-30

Laser Visibility

Visible

Applicable Material

Metal & Non-metal

Cooling System

Air Cooling

Technical Class

Pulse Laser

Laser Wavelength

Fiber Laser (1064nm)

Type

Optical Fiber Laser Marking Machine

Production Capacity

300 Sets Per Month

Package Size

100.00cm * 100.00cm * 150.00cm

Gross Weight

200.000kg

Product Description

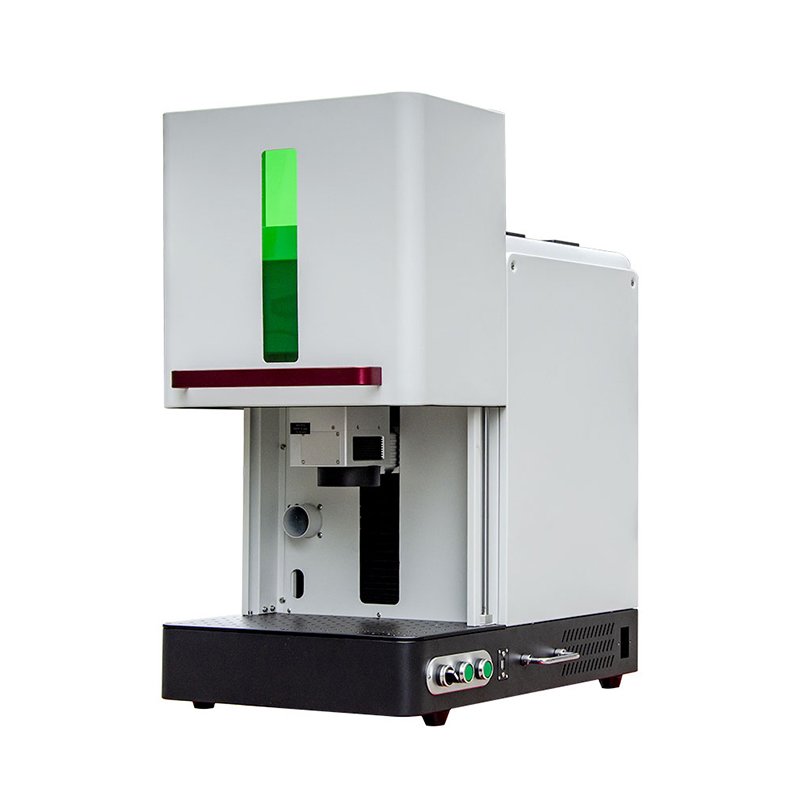

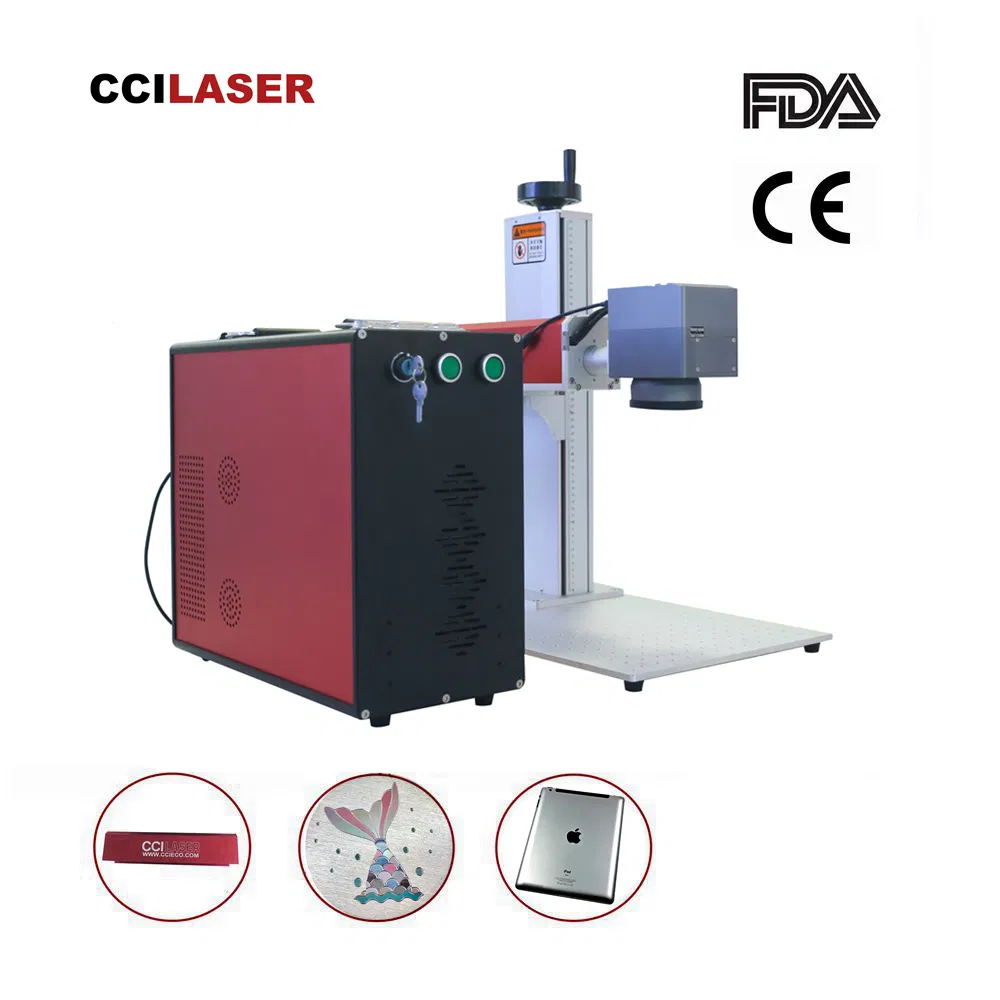

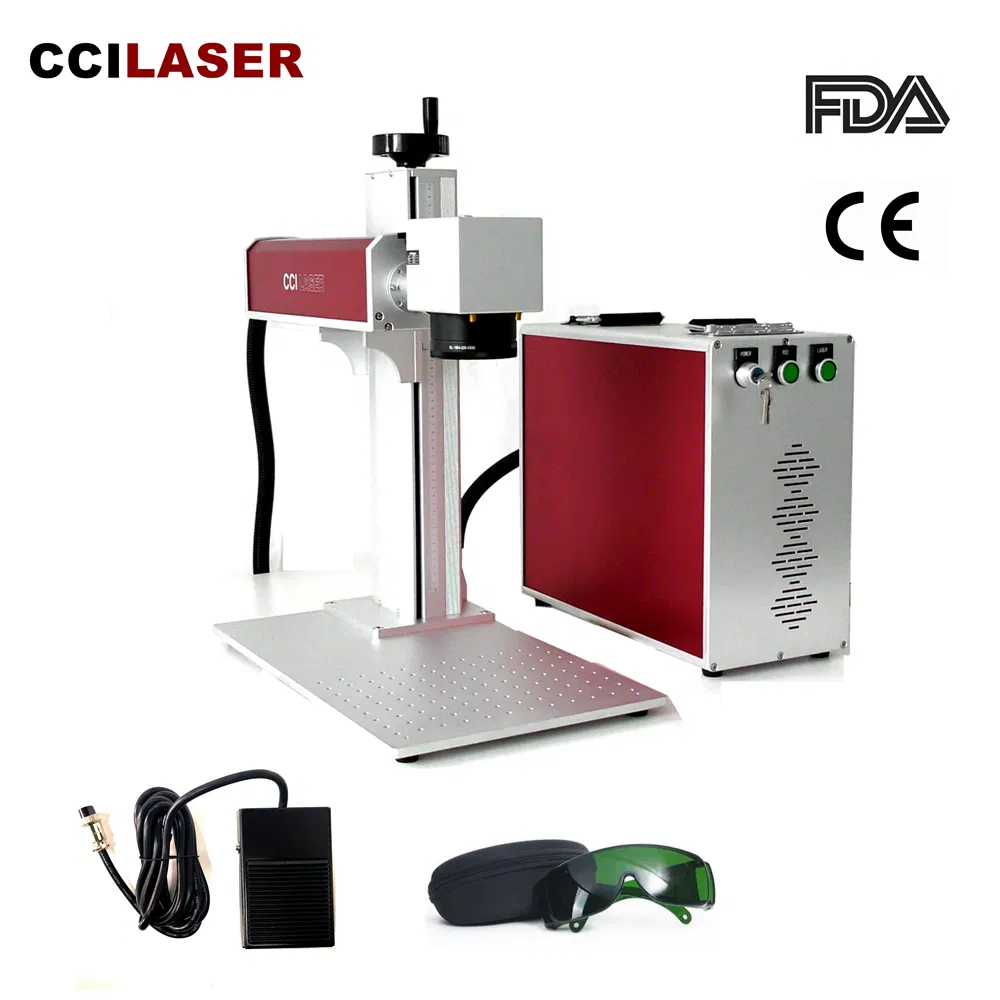

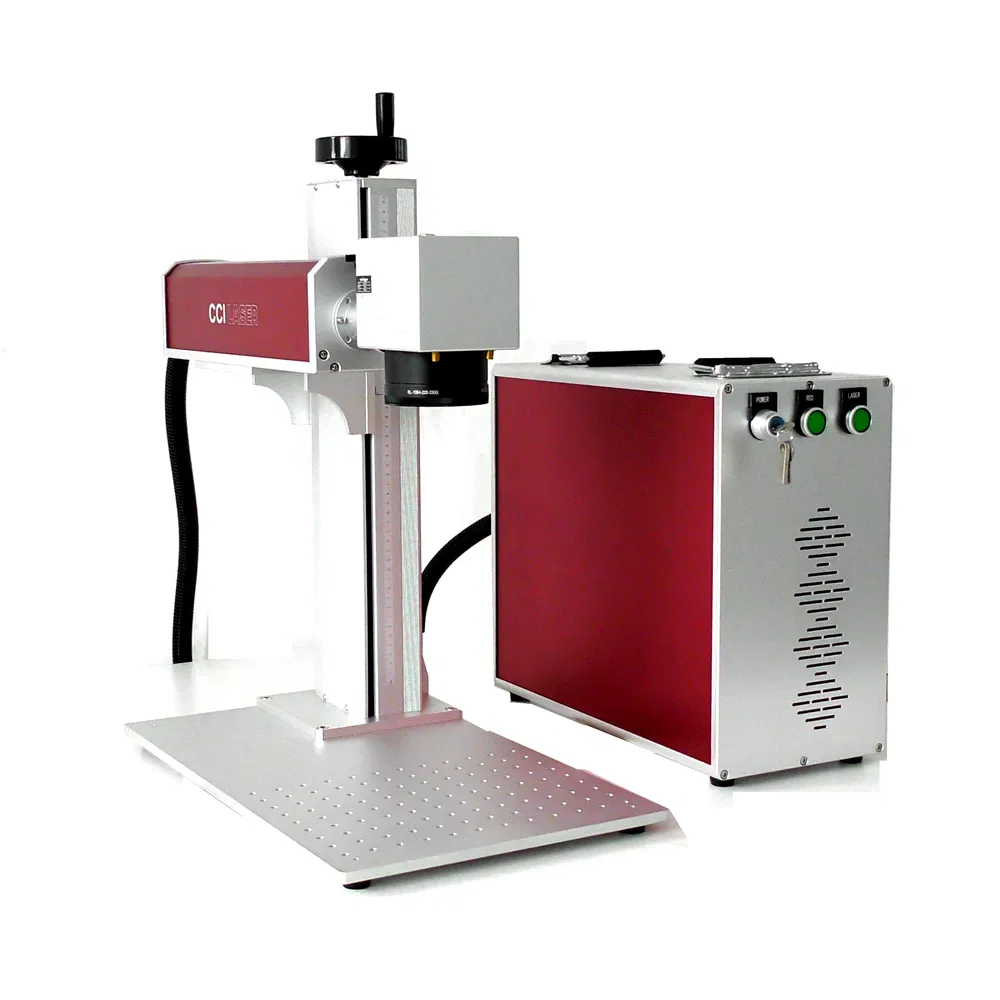

Fiber Laser Marking Machine FM-20/30

The Fiber laser marking machine is engineered for precision marking on a wide range of materials. It offers exceptional beam quality and high reliability for industrial applications.

Application Materials

Metal Materials: Stainless steel, carbon steel, copper, aluminum alloy, etc.
Nonmetallic Materials: Synthetic materials, rubber, leather, hard plastic, black film materials, etc.

Technical Parameters (JPT M7 Series)

Model	FM-20	FM-30	FM-60	FM-100	FM-200
Output Power	> 20W	> 30W	> 60W	> 100W	> 200W
Pulse Duration	2-350ns	2-350ns	2-500ns	2-500ns	2-500ns
Max Pulse Energy	0.8mJ	0.8mJ	1.5mJ	1.5mJ	1.5mJ
Repetition Rate	1-4000kHz	1-4000kHZ	1-4000kHZ	1-4000kHZ	1-4000kHZ
Marking Speed	< 7000mm/s
Repeatability	±0.001mm

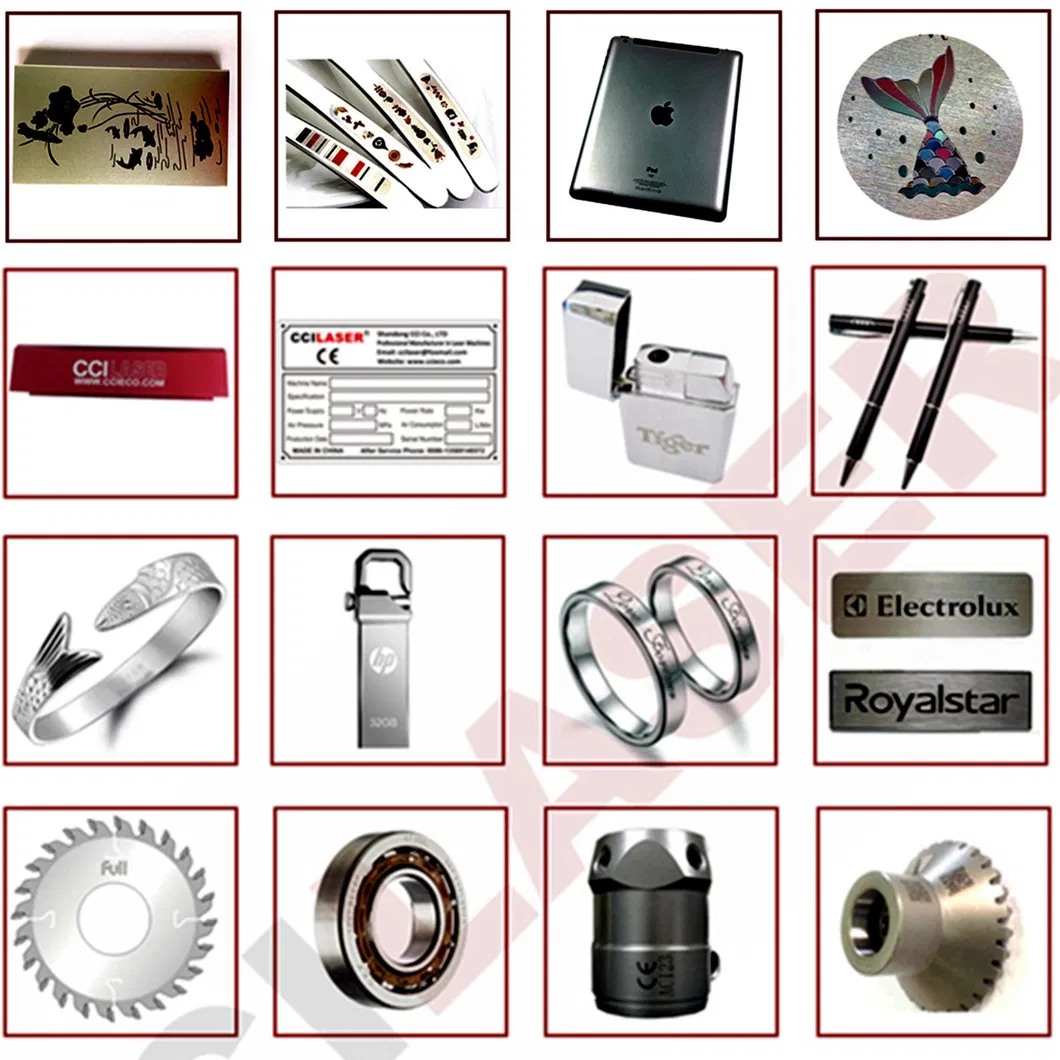

Main Features & Processing Effects

Utilizing the Q-switch pulse output laser beam, this machine is ideal for permanent marking and engraving on raw metals and industrial polymers. The EZCAD software ensures high-speed marking is as simple as printing.

Premium Components

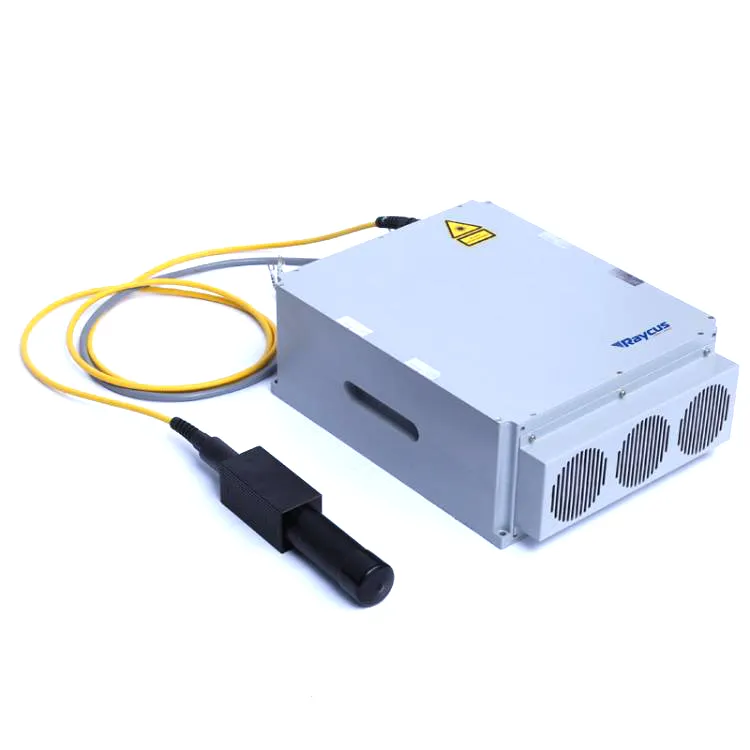

Raycus Laser Source

Features high peak power, high single-pulse energy, and optional spot diameter. Widely used in precision processing and graphic engraving with high stability.

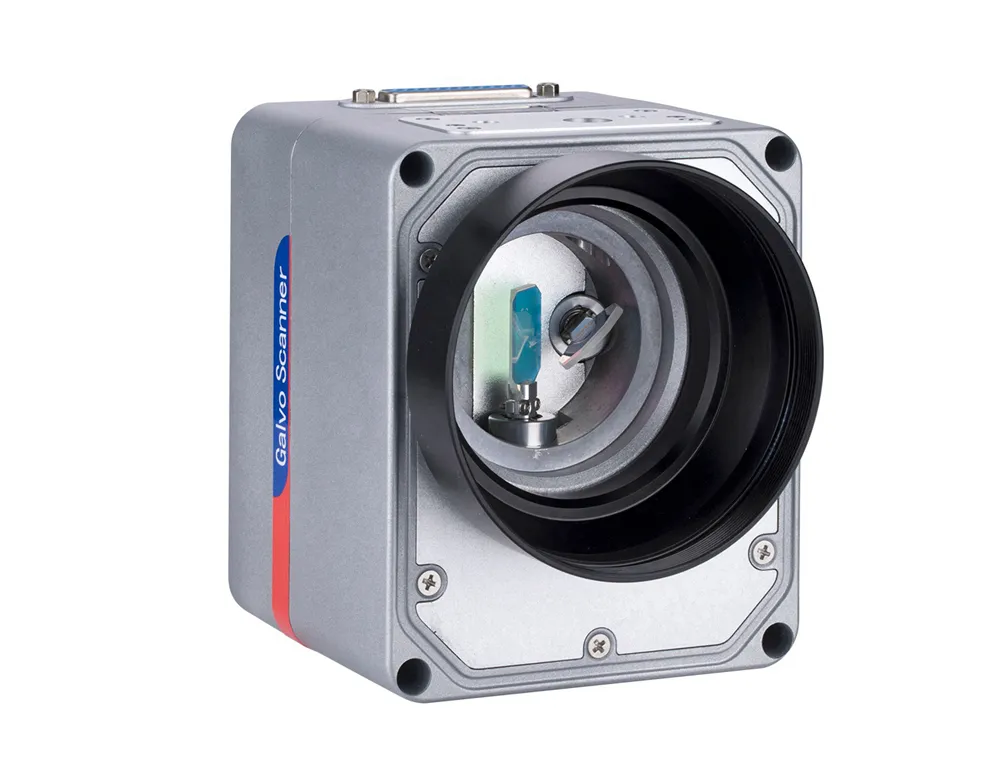

High Speed Galvo Scanner

RC1001 model offers excellent running stability, high positioning accuracy, and fast marking speed with strong anti-interference capability.

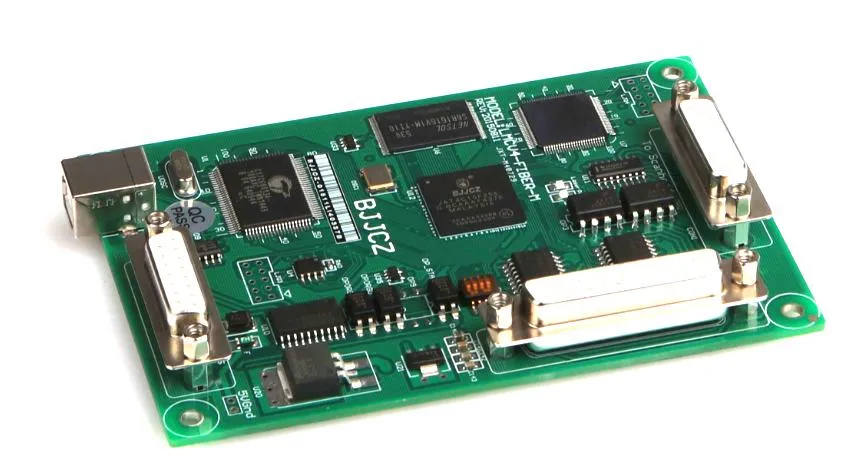

Original BJJCZ Control Card

Digital signal control, compatible with USB 2.0. Supports extension axes for step motors and allows one computer to control multiple boards simultaneously.

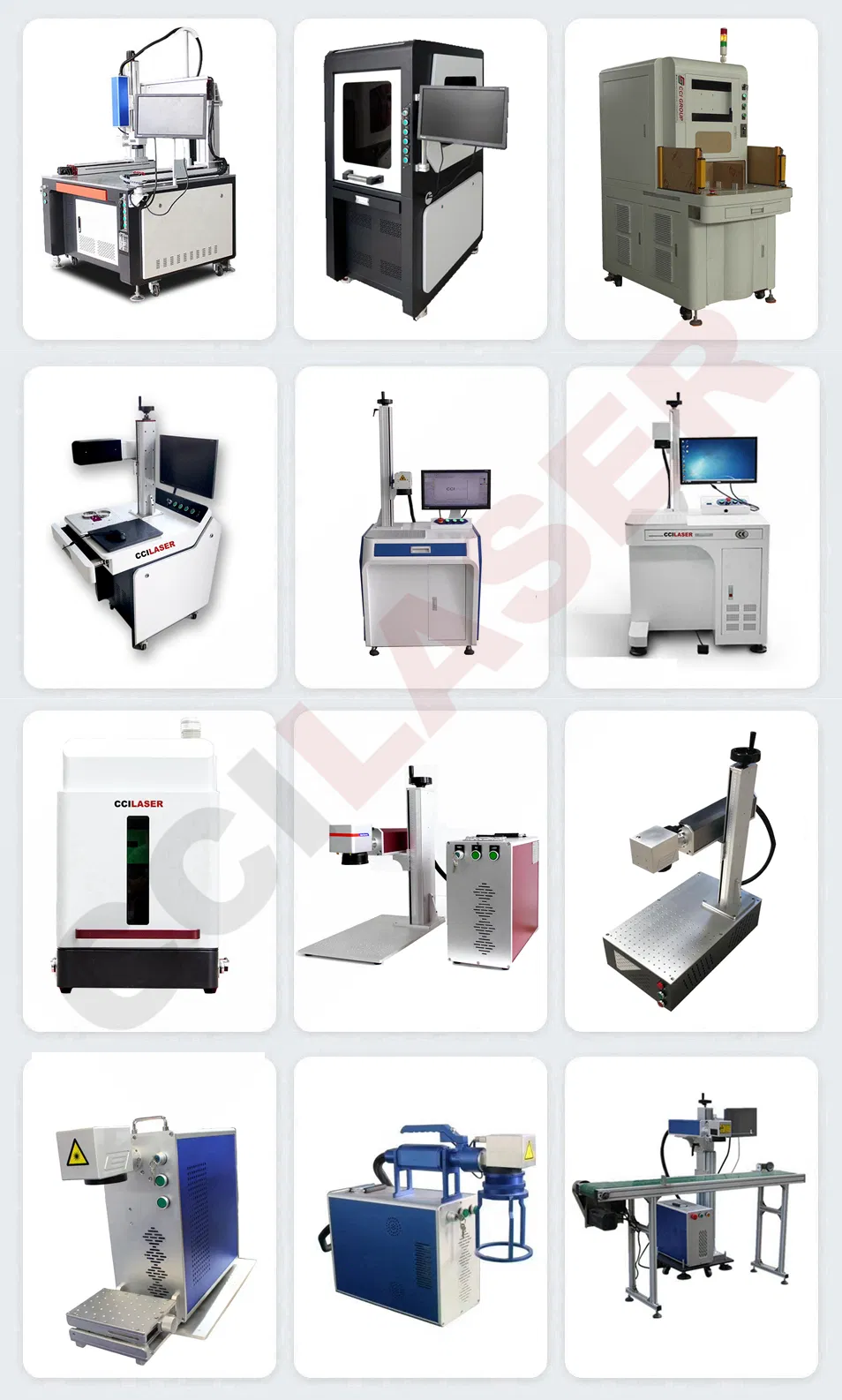

Product Categories

Packaging & Delivery

Standard packaging includes fumigated wooden pallets and cases. PE film is used for additional protection during container transit.

Frequently Asked Questions

1. What is the warranty period for the laser marking machine?

The fiber laser marking machine comes with a 36-month warranty period from the time of the Bill of Lading (BL).

2. How long is the typical delivery time?

If machines are in stock, we can deliver within 7 days. Standard fabrication takes 15-25 days, while customized CNC machines may take 25-50 days.

3. What payment methods are accepted?

We require a 50% deposit, with the balance to be paid via T/T or LC at sight prior to delivery at the loading port.

4. How is the machine packaged for international shipping?

Machines are packed in high-quality wooden cases or pallets to ensure precision and prevent damage during transport.

5. Why choose your equipment over lower-priced suppliers?

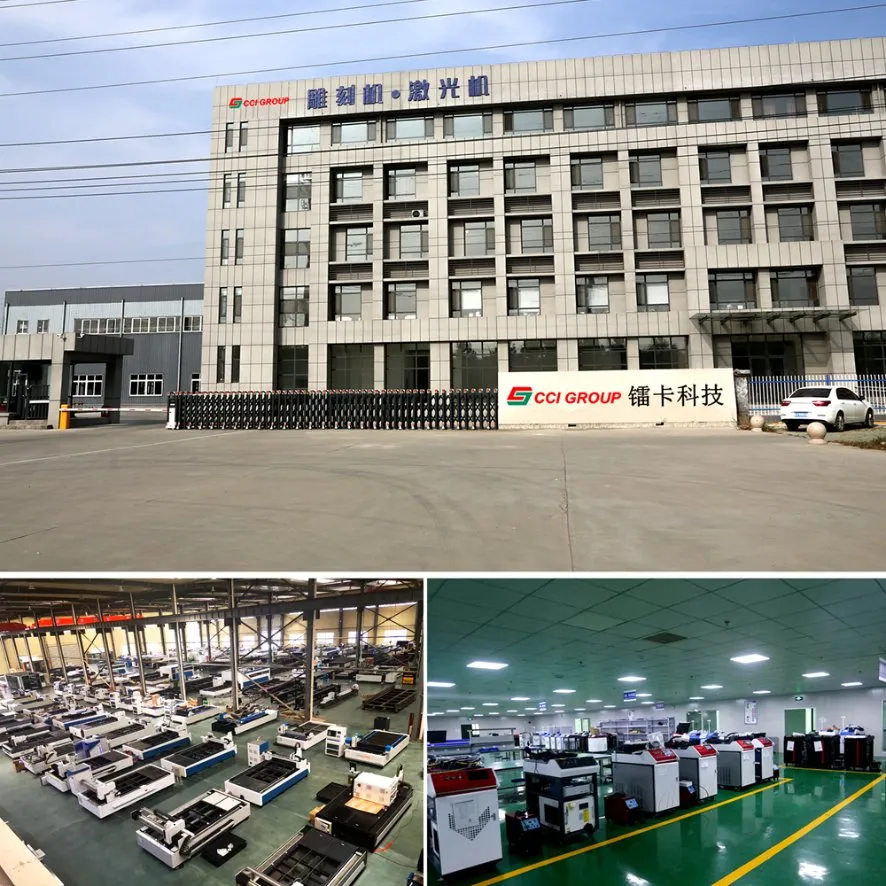

We utilize premium imported components from Europe and America, maintain our own machining factory for quality control, and employ technicians with over 10 years of professional experience.

6. What kind of after-sales support do you provide?

We provide 12-hour technical support feedback and have 35 professional staff members available 24/7 to guarantee stable operation.
