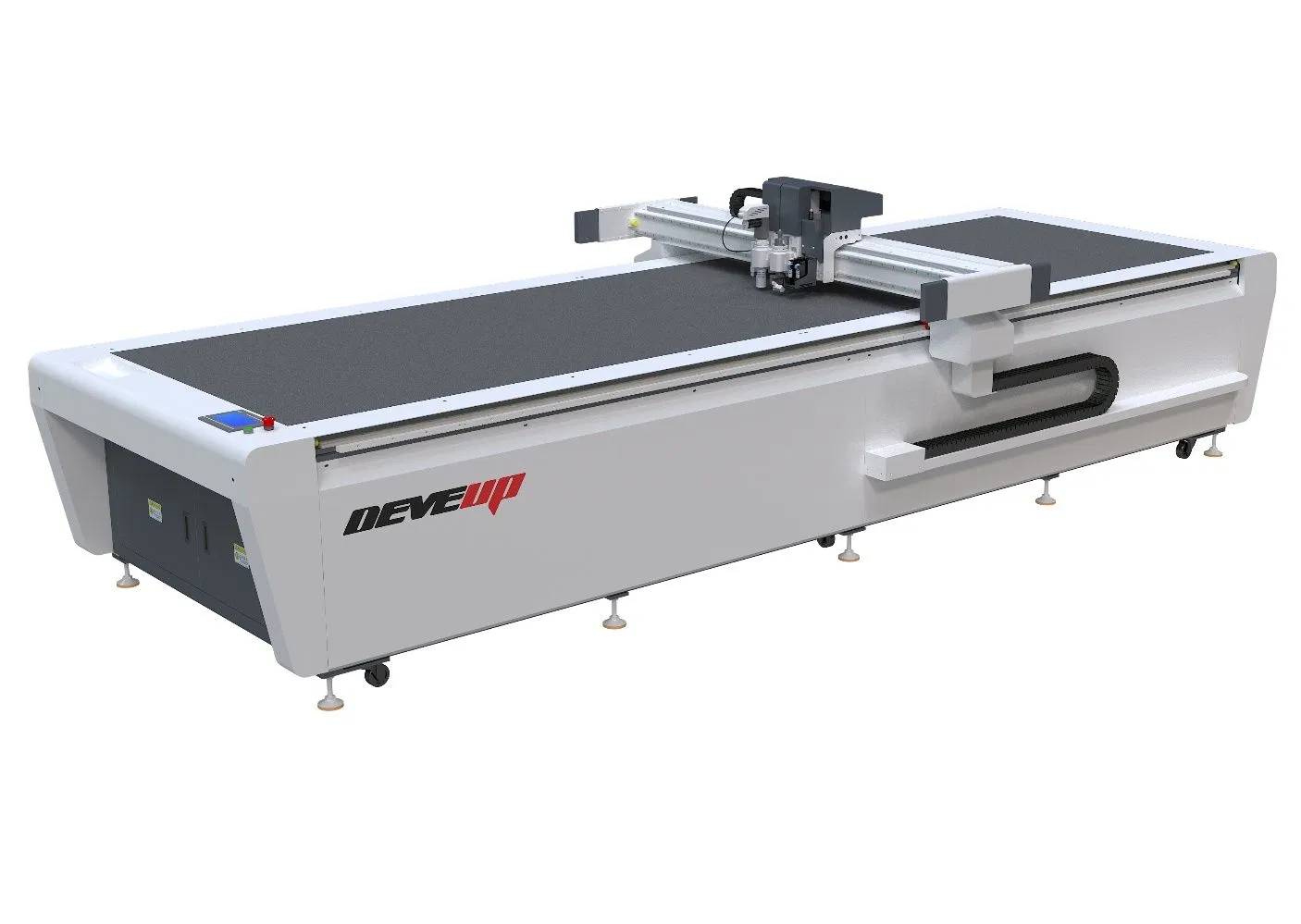

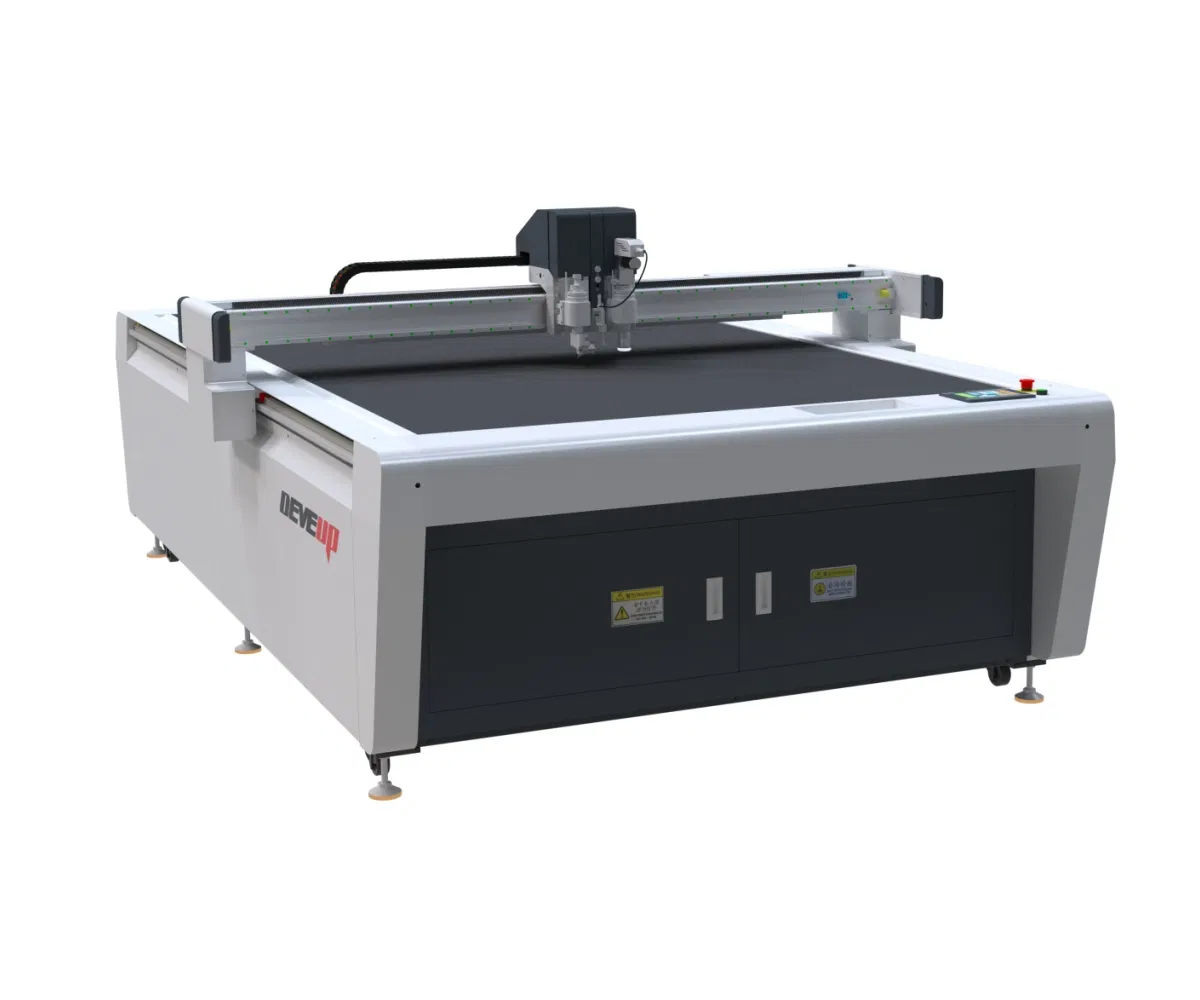

Phenolic Foam Insulation Board & Acoustic Panel CNC Oscillating Knife Cutting Machine
This digital cutting machine allows you to cut and groove various shapes for polyester fiber PET felt acoustic panels, foam insulation boards, and acoustic insulation materials. With an effective working width of 1600mm x 2500mm (customizable), it features oscillating cutting tools and beveling tools (15°, 22.5°, 30°, 45°) that switch automatically to complete cutting and slotting in one process.
Unlike thermal laser cutting, the CNC digital oscillating knife offers physical cutting advantages:
| Models | DO1625S / DO1330S / DO1830S / DO2030S |
| Working Area | 1600x2500mm / 1300x3000mm / 1800x3000mm (Customizable) |
| Multi-function Tools | Oscillating knife, Bevel slotting, Milling, Drawing mark, Cursor positioning |
| Applicable Materials | PET acoustic panel, Rubber foam, Fiberglass/Rock wool, XPS, Phenolic foam |
| Transmission System | Servo motor + Precision reducer + Linear guide rail + Helical rack |
| Precision | ±0.01mm |
| Cutting Speed | 0-1800mm/s (Material dependent) |
| Cutting Thickness | Standard ≤50mm, Maximum 110mm |
| Support Formats | PLT, DXF, AI |
| Control System | Multilingual LCD touch panel |

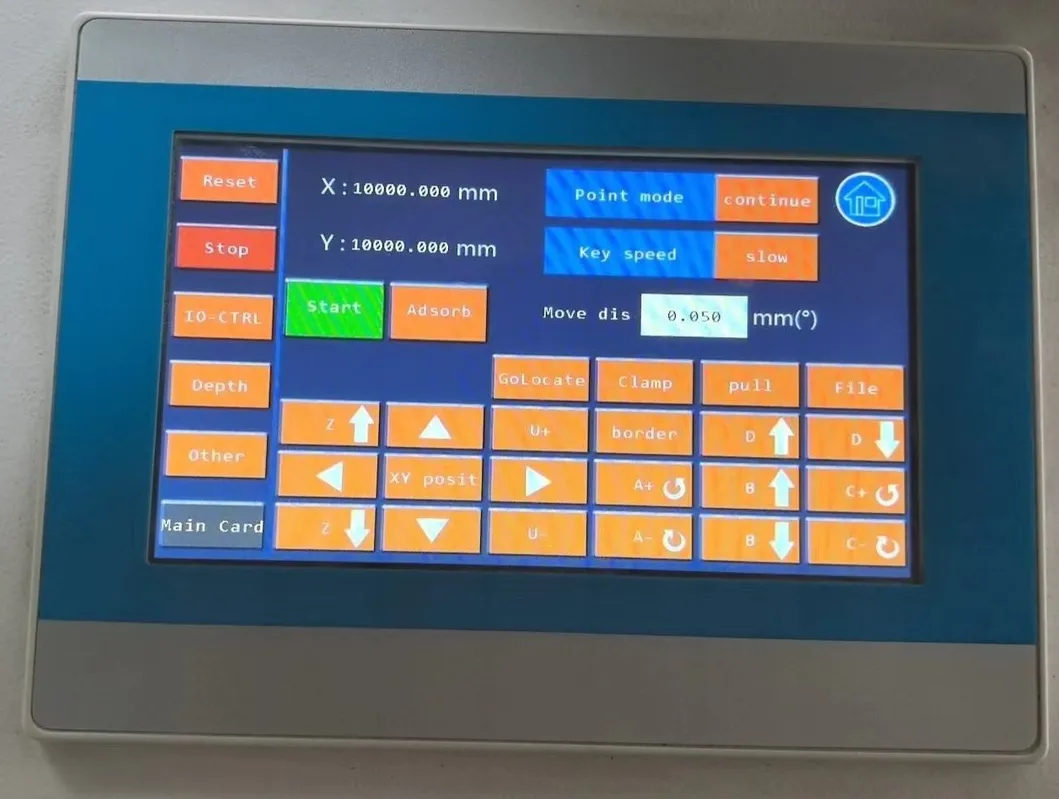

Intelligent Control Panel: Colorful touch control interface allows for direct data input, processing speed adjustment, and knife depth settings with automatic data protection.

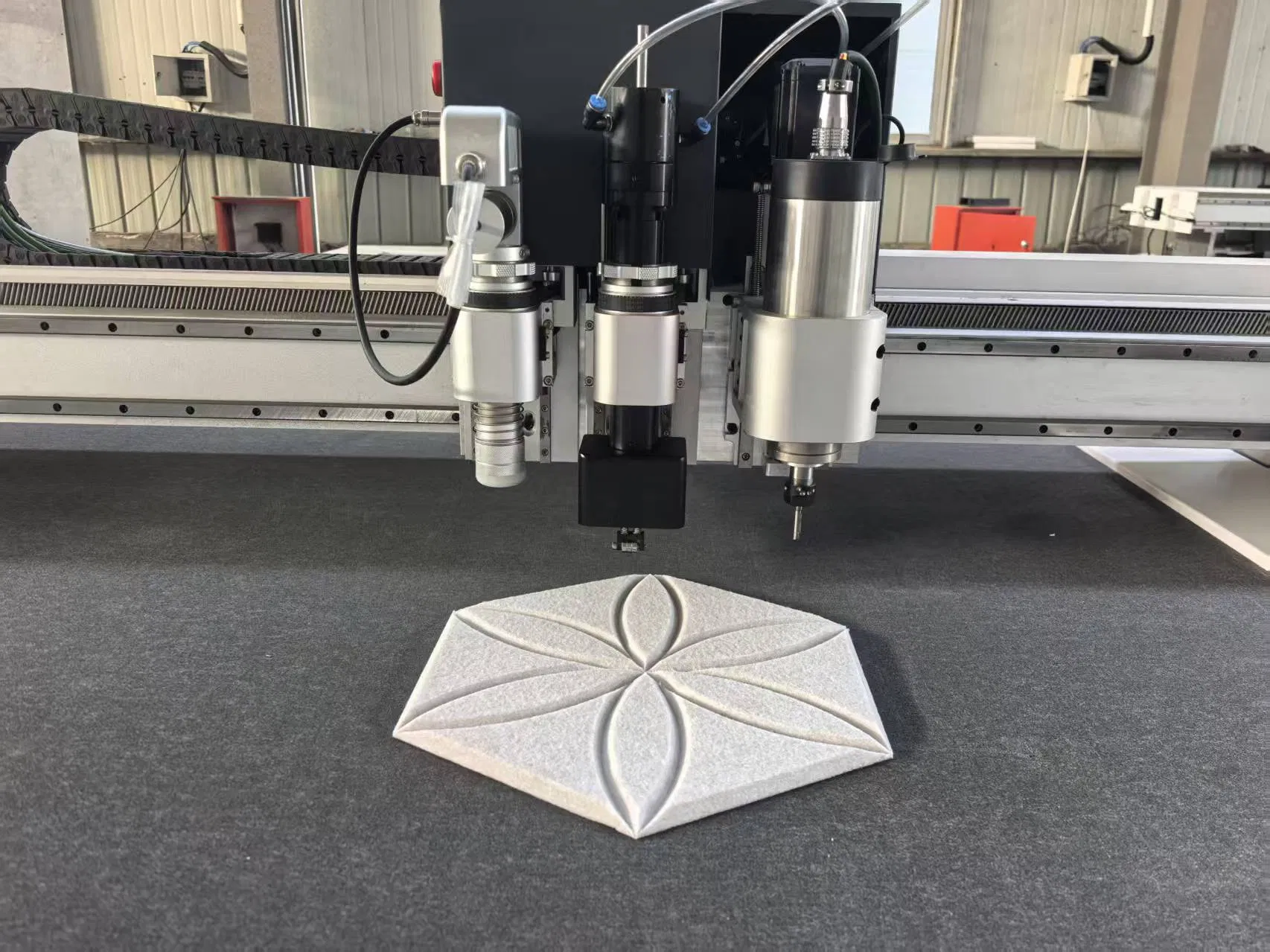

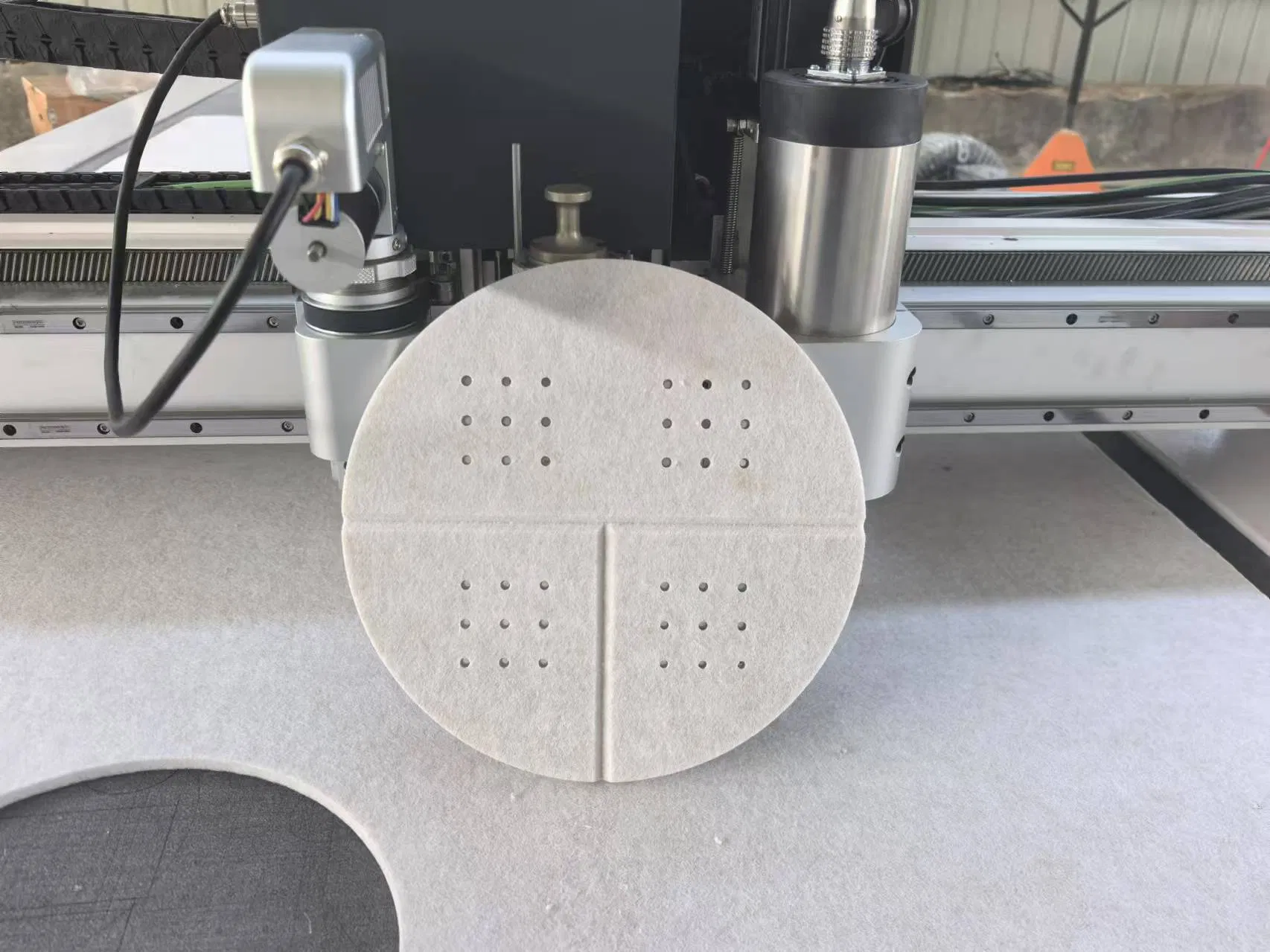

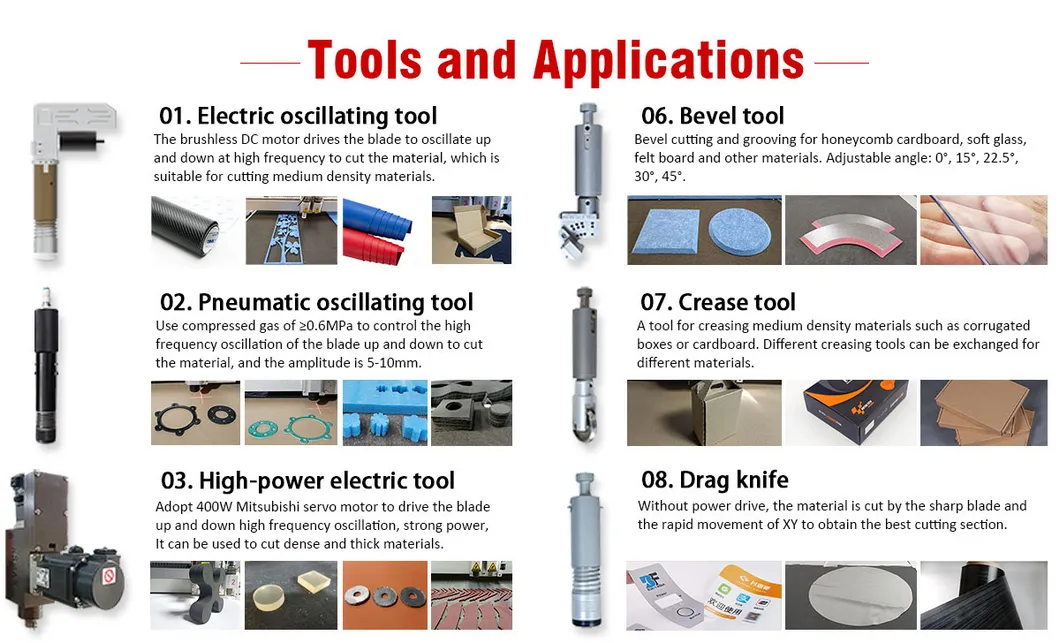

Interchangeable Tool System: Supports multiple tool heads for individual or concerted operation, making it a truly multi-purpose machine for diverse materials.

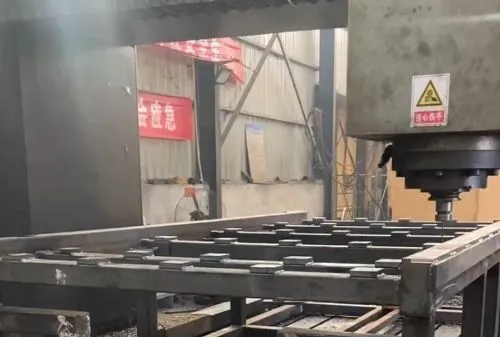

Robust Frame & Beam: Features a high-weight machine bed for stability and an aviation aluminum alloy extrusion beam for high-speed precision.

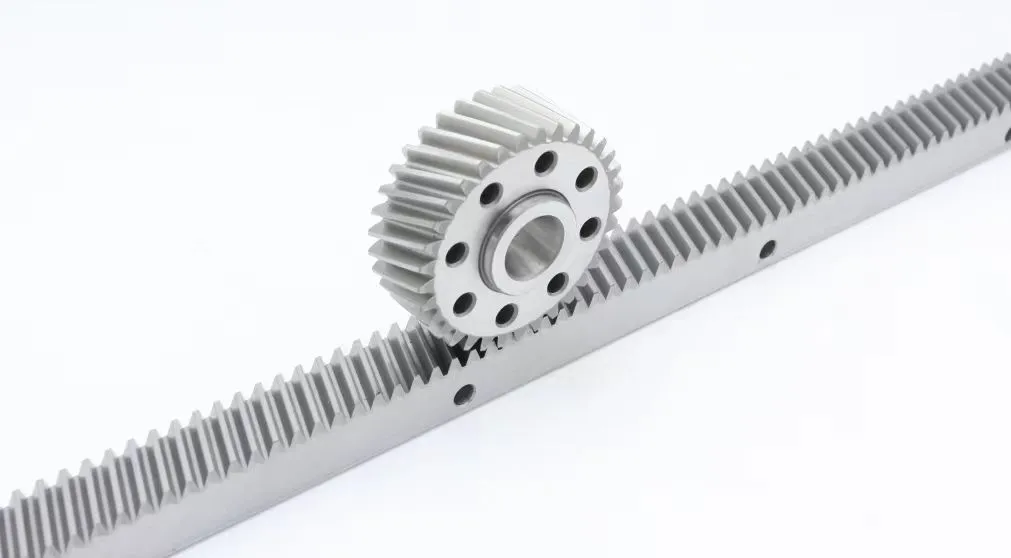

High Precision Drive: Imported helical rack and pinion combined with Taiwan PMI 20mm linear guides ensure low friction and high repeatability.

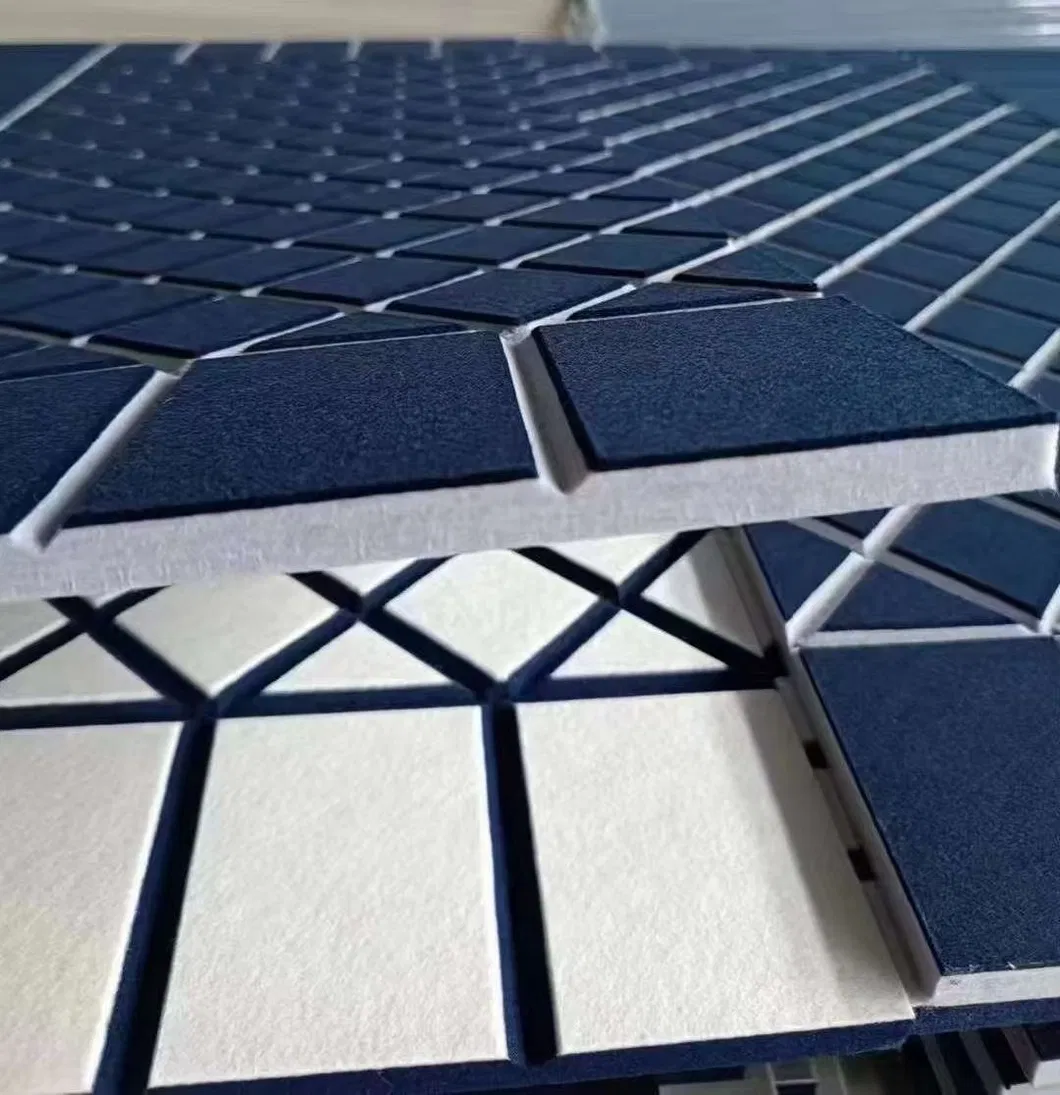

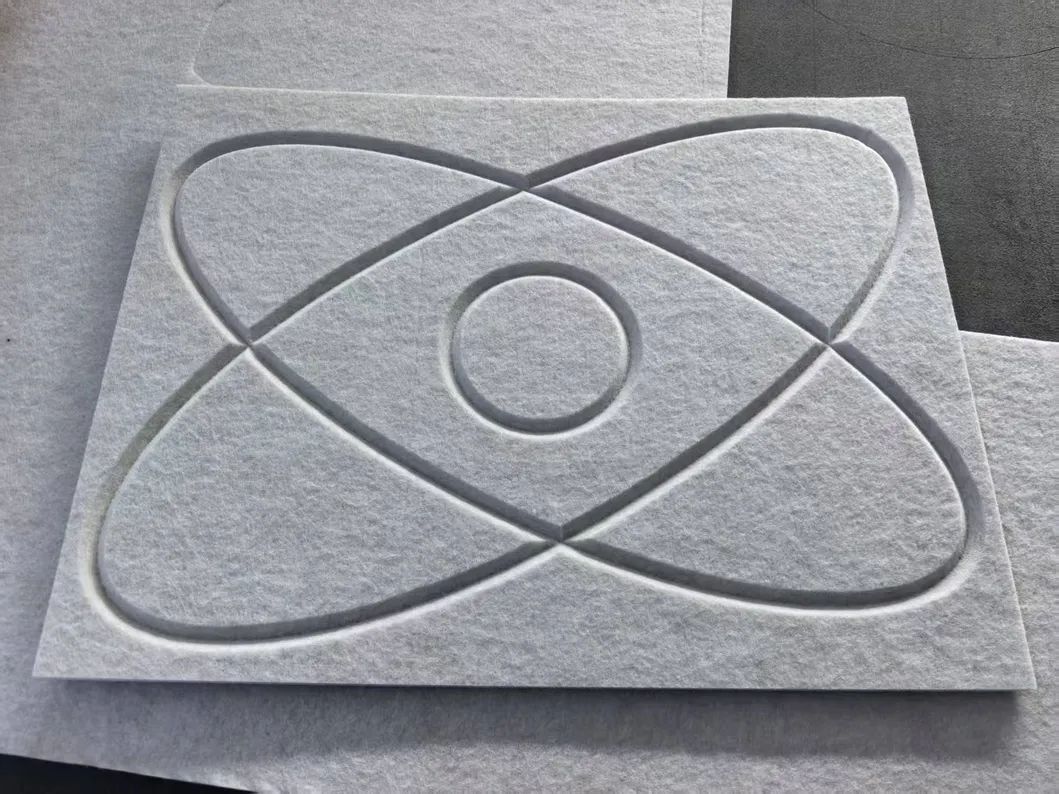

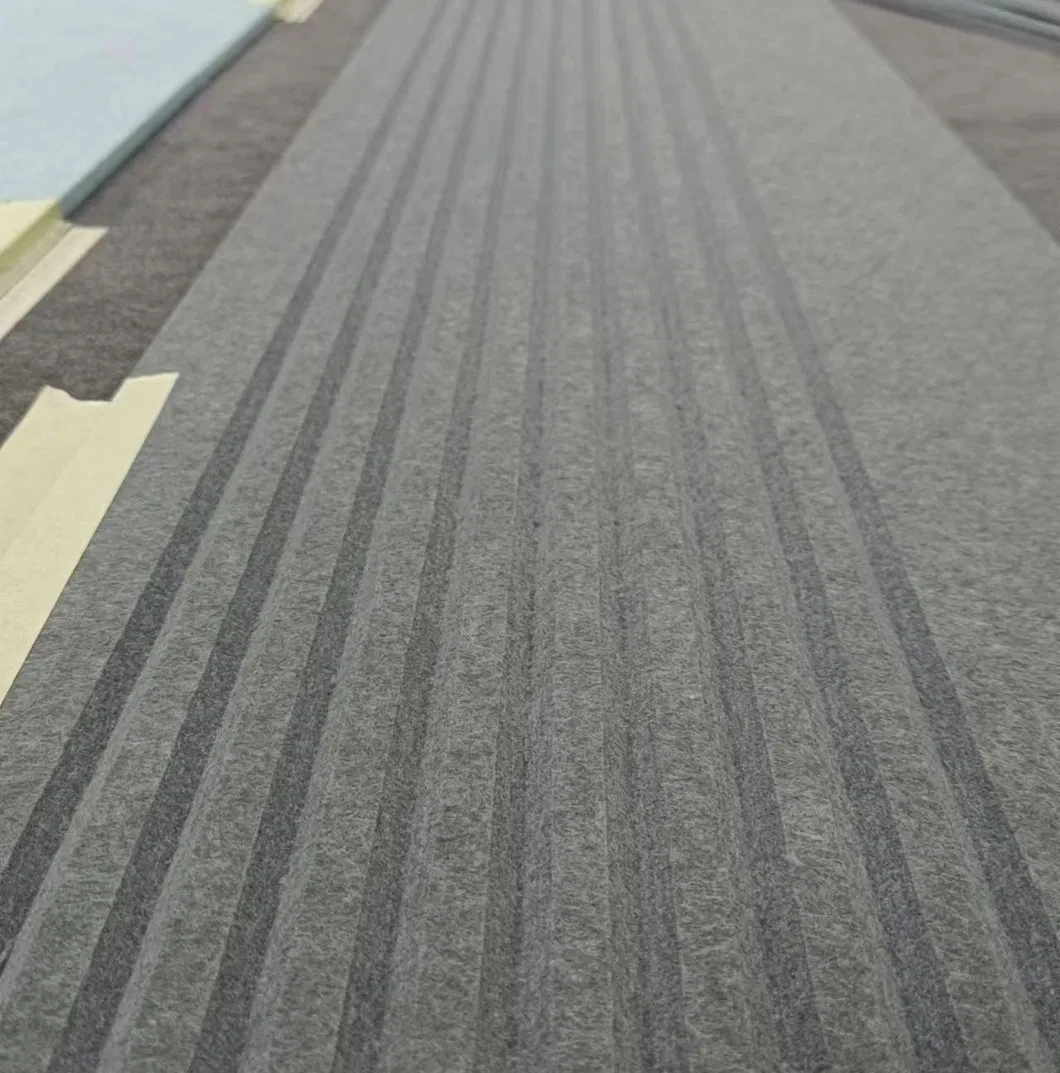

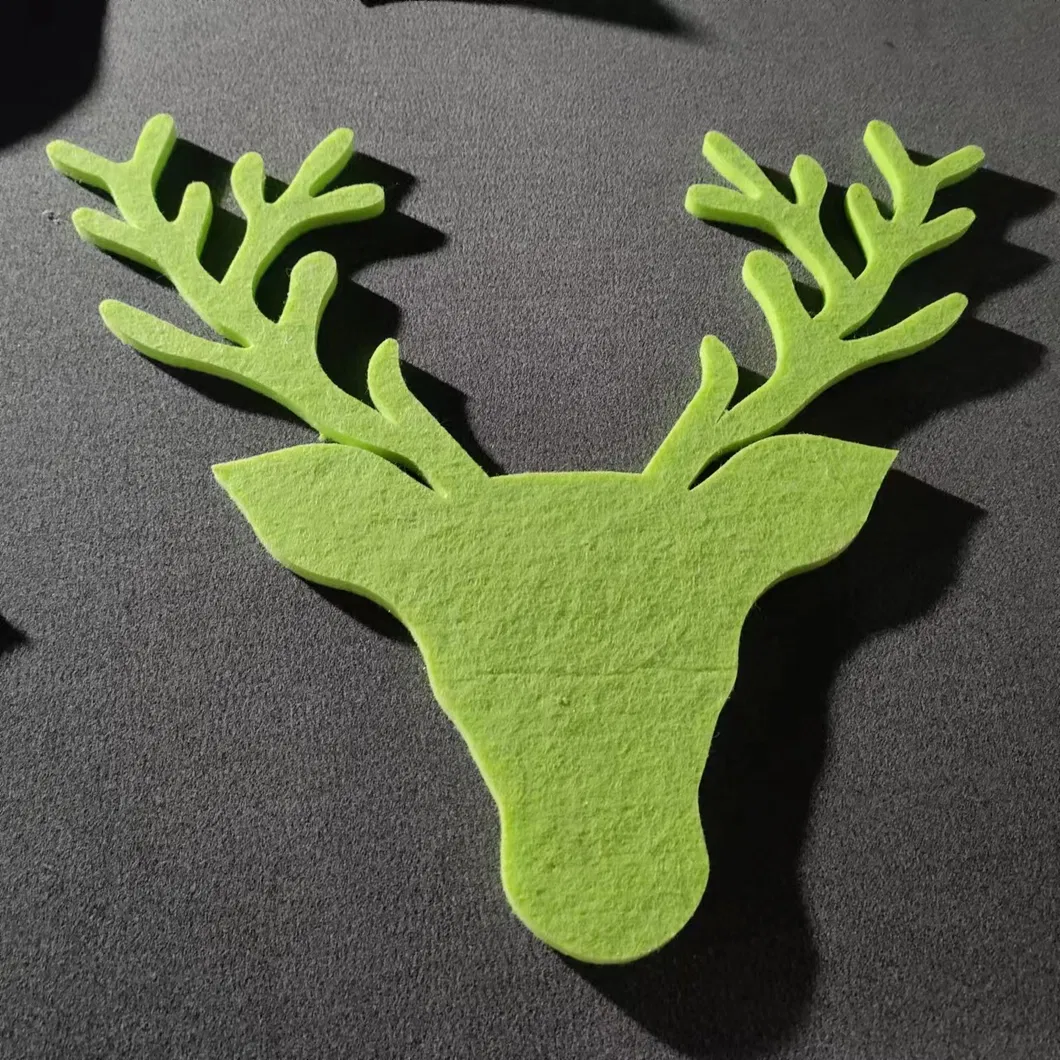

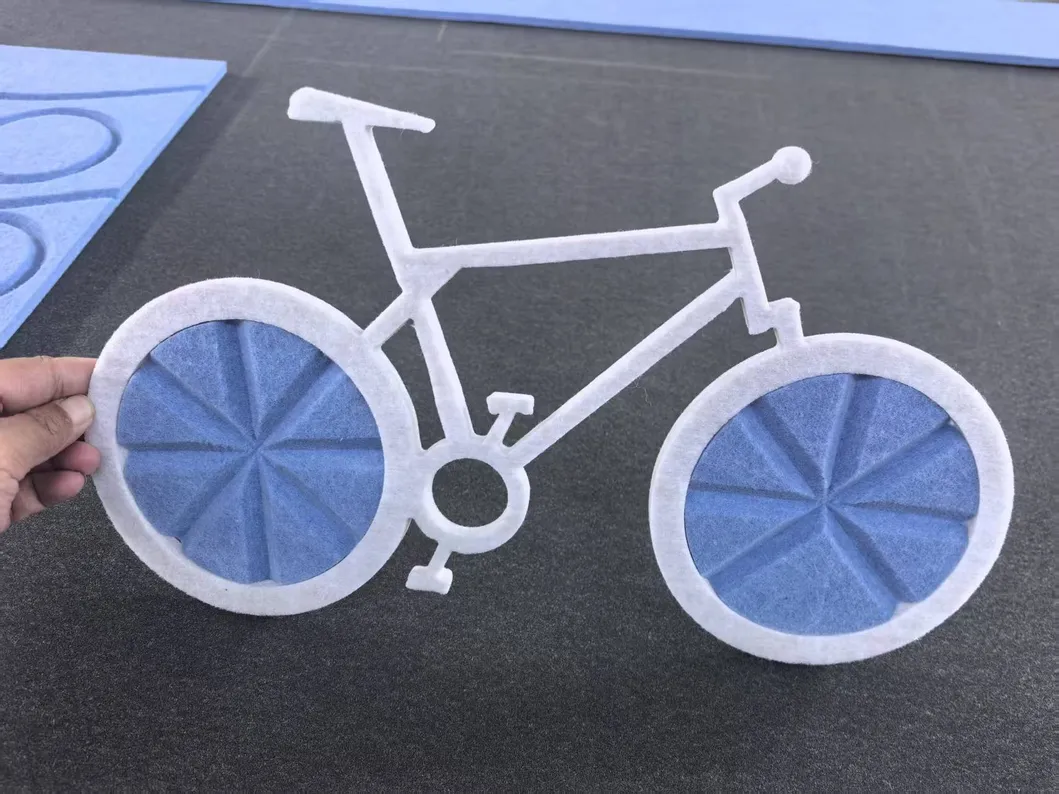

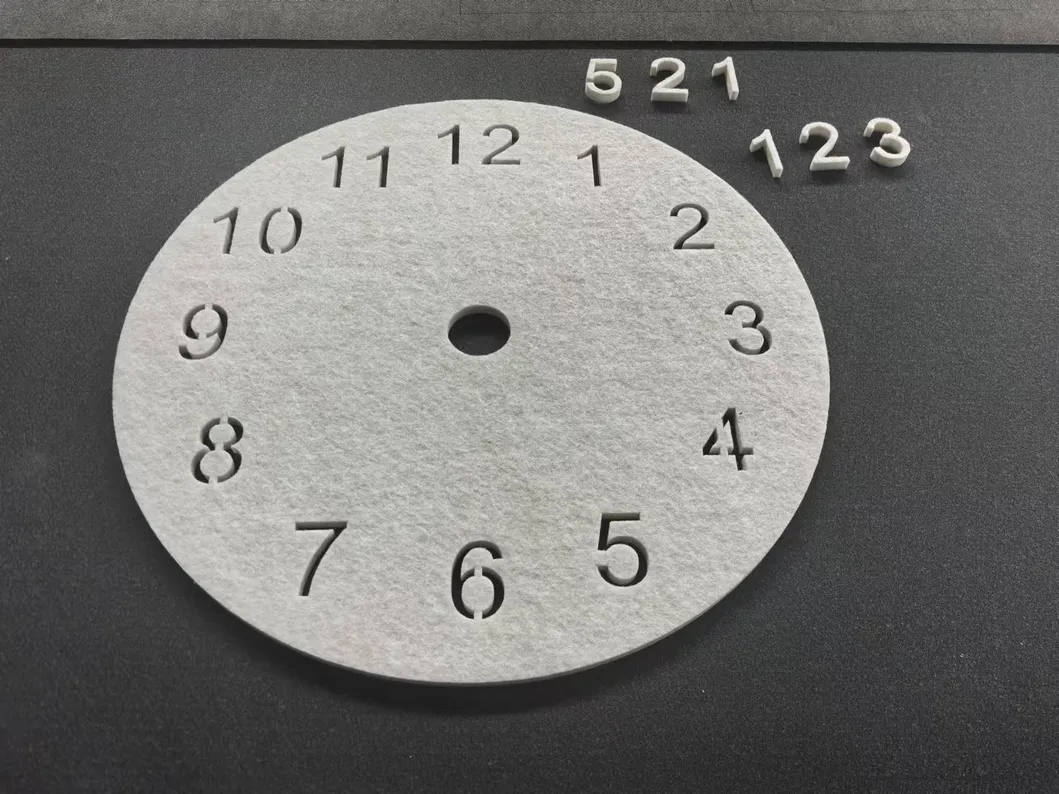

Widely used in insulation, soundproofing, advertising, and packaging. Capable of processing:
