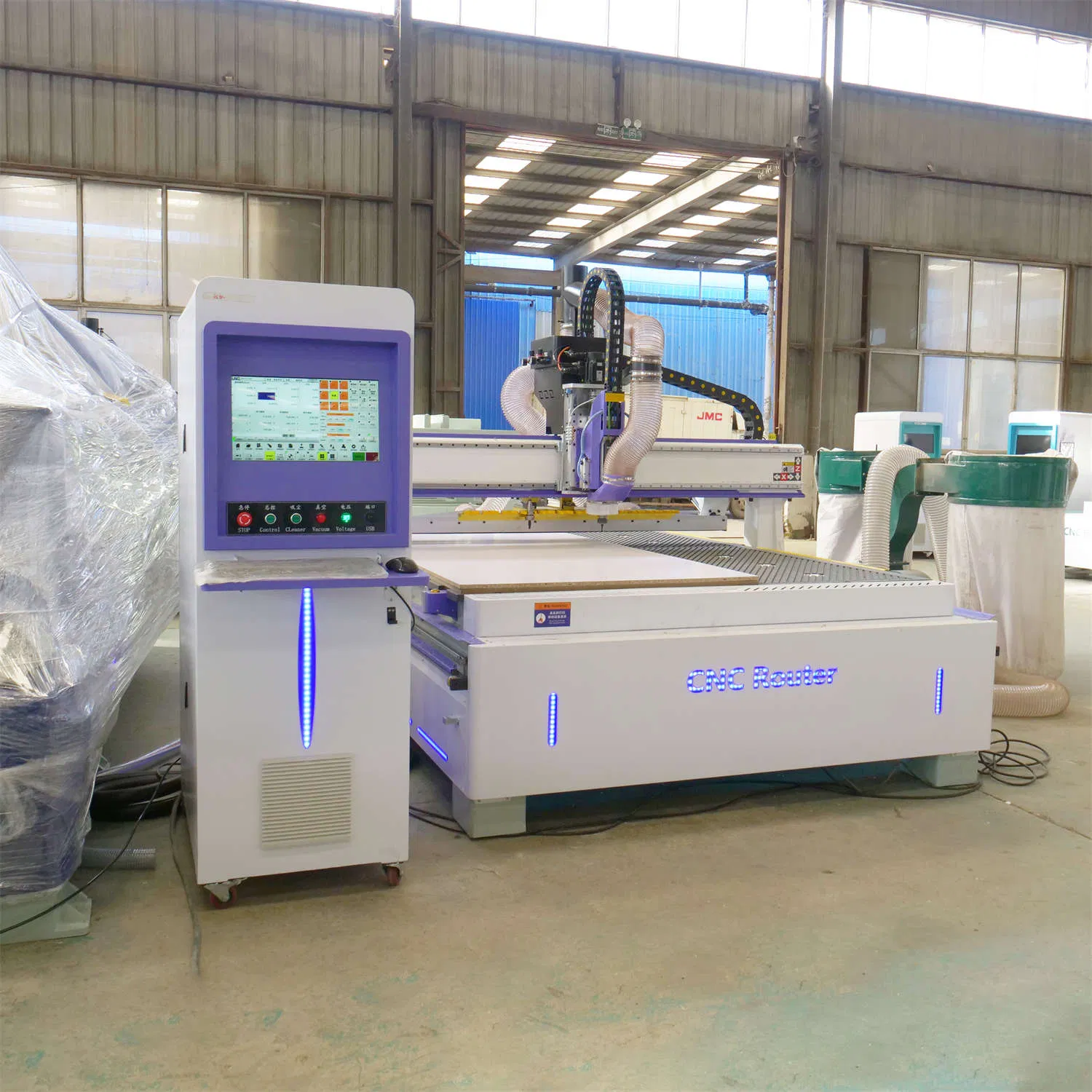

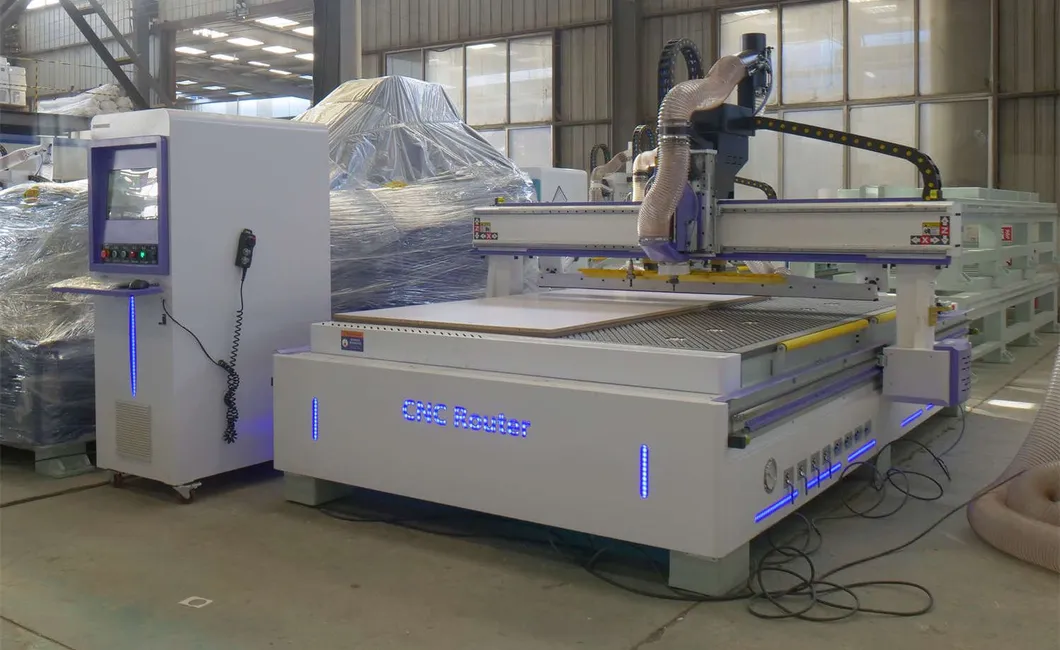

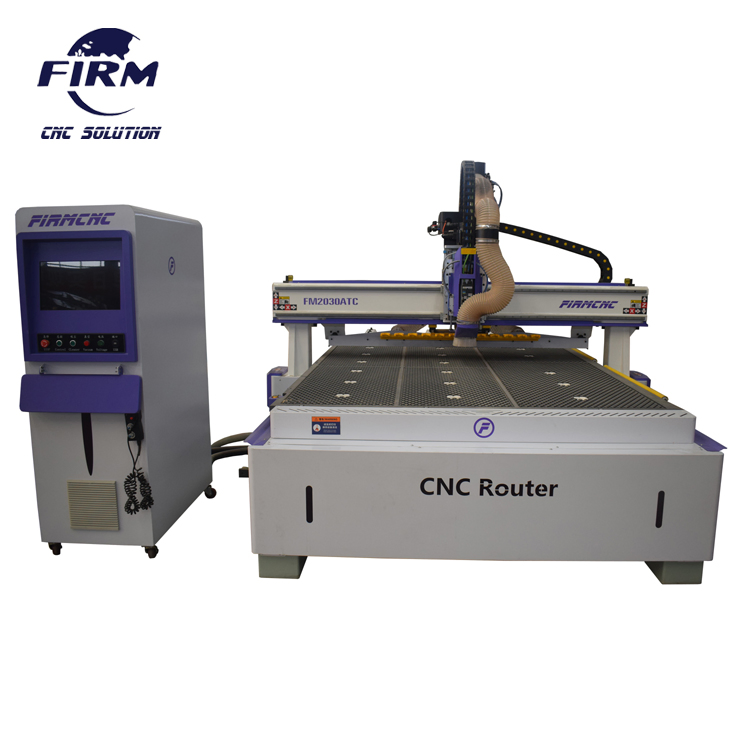

New Design Linear Auto Tool Changer CNC Wood Router 2030 Atc CNC Router

Overview & Basic Info

Model NO.

FM2030ATC

Spindle Layout

Spindle Over

Spindle Number

Single-Spindle

Feed Mode

Manual

Controlling Mode

CNC

Certification

CE, ISO, FDA

Condition

New

Control System

Taiwan Lnc

Spindle Power

9.0kw Air Cooling

Auto Tool Changer

Linear 12 Tools

Motor

1500W Servo Motor

Table

Vacuum and T-Slot

Working Speed

25m/Min

Max Travel Speed

50m/Min

Working Voltage

AC380V 3p 50Hz

HS Code

8465990000

Product Description

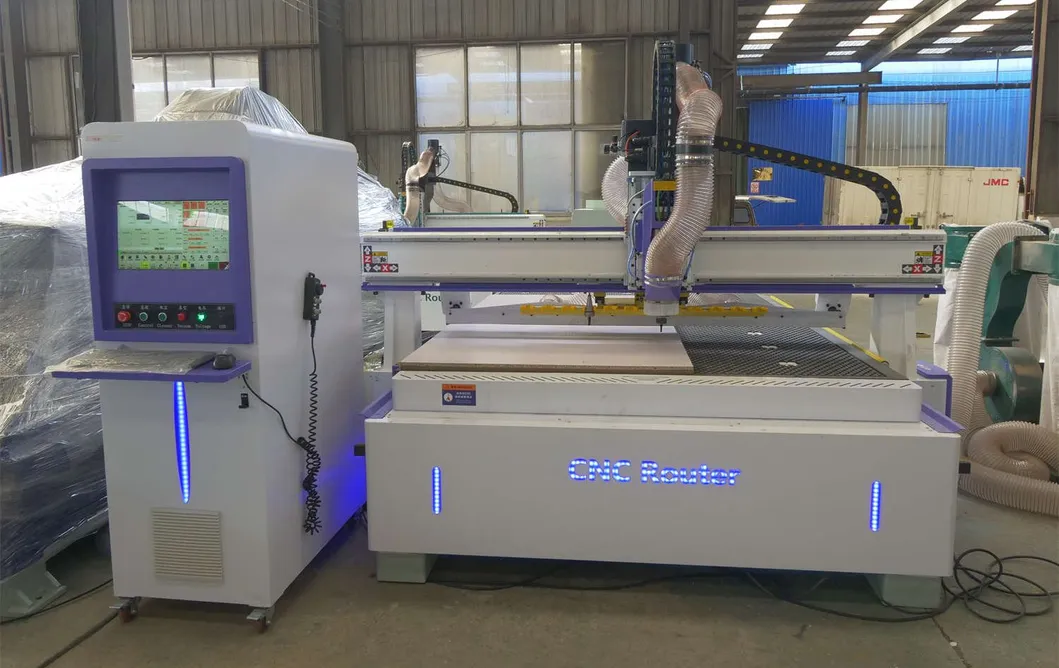

New Design Linear Auto Tool Changer CNC Wood Router 2030 ATC

Main Features:

1300*2500mm, 1500*3000mm, and 2000*3000mm standard sizes.

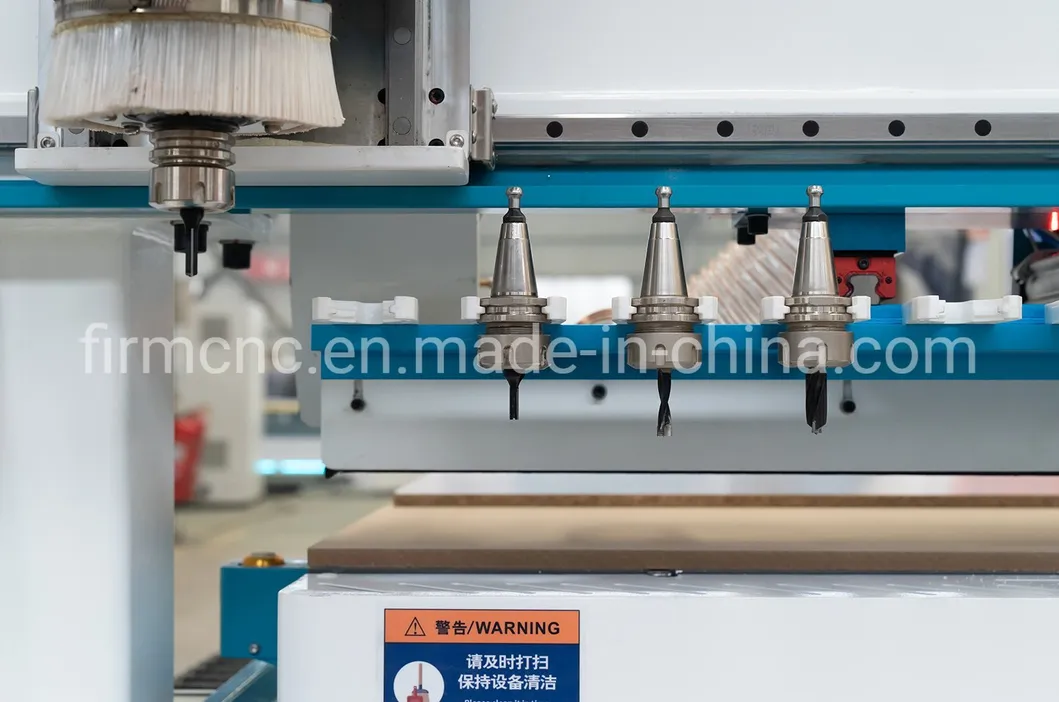

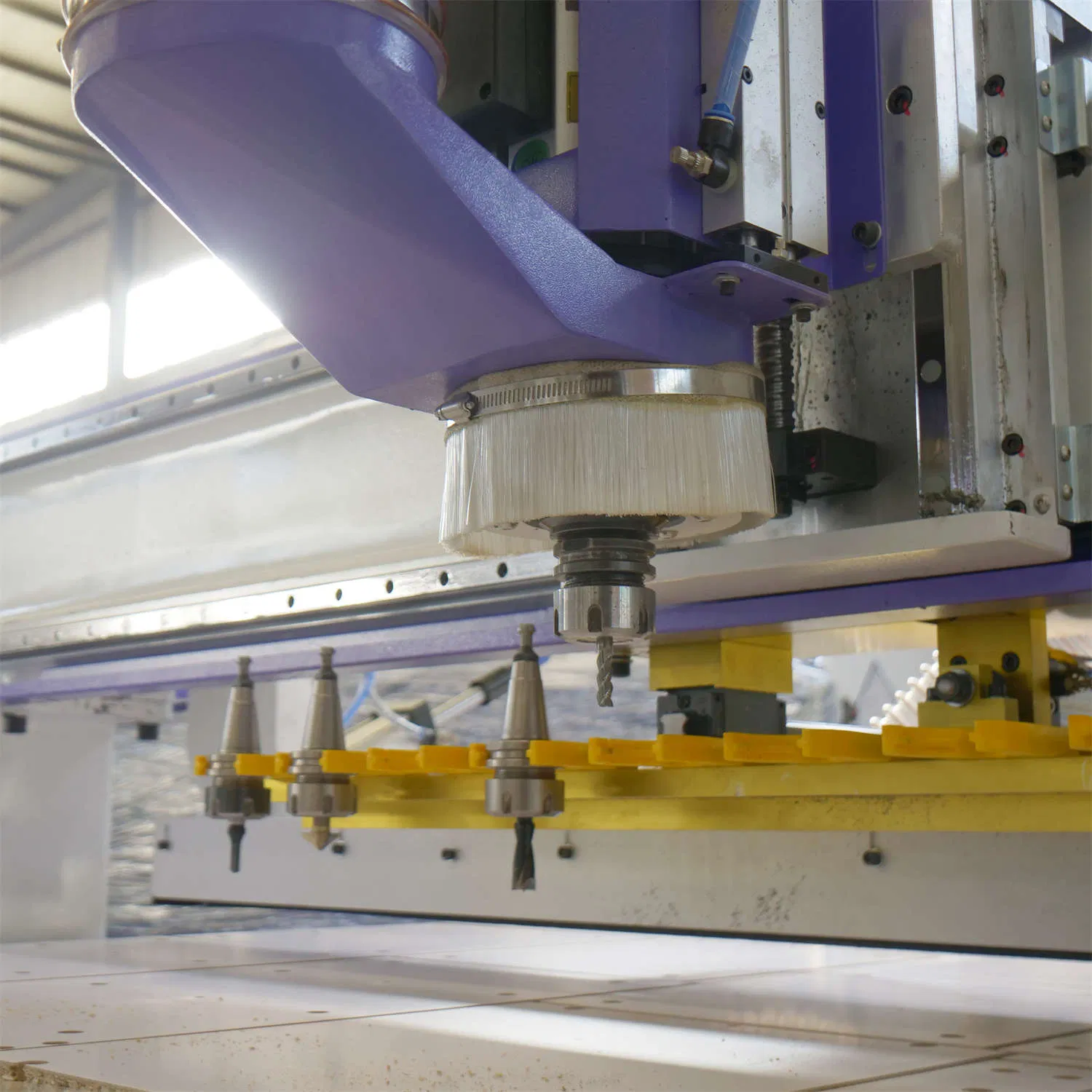

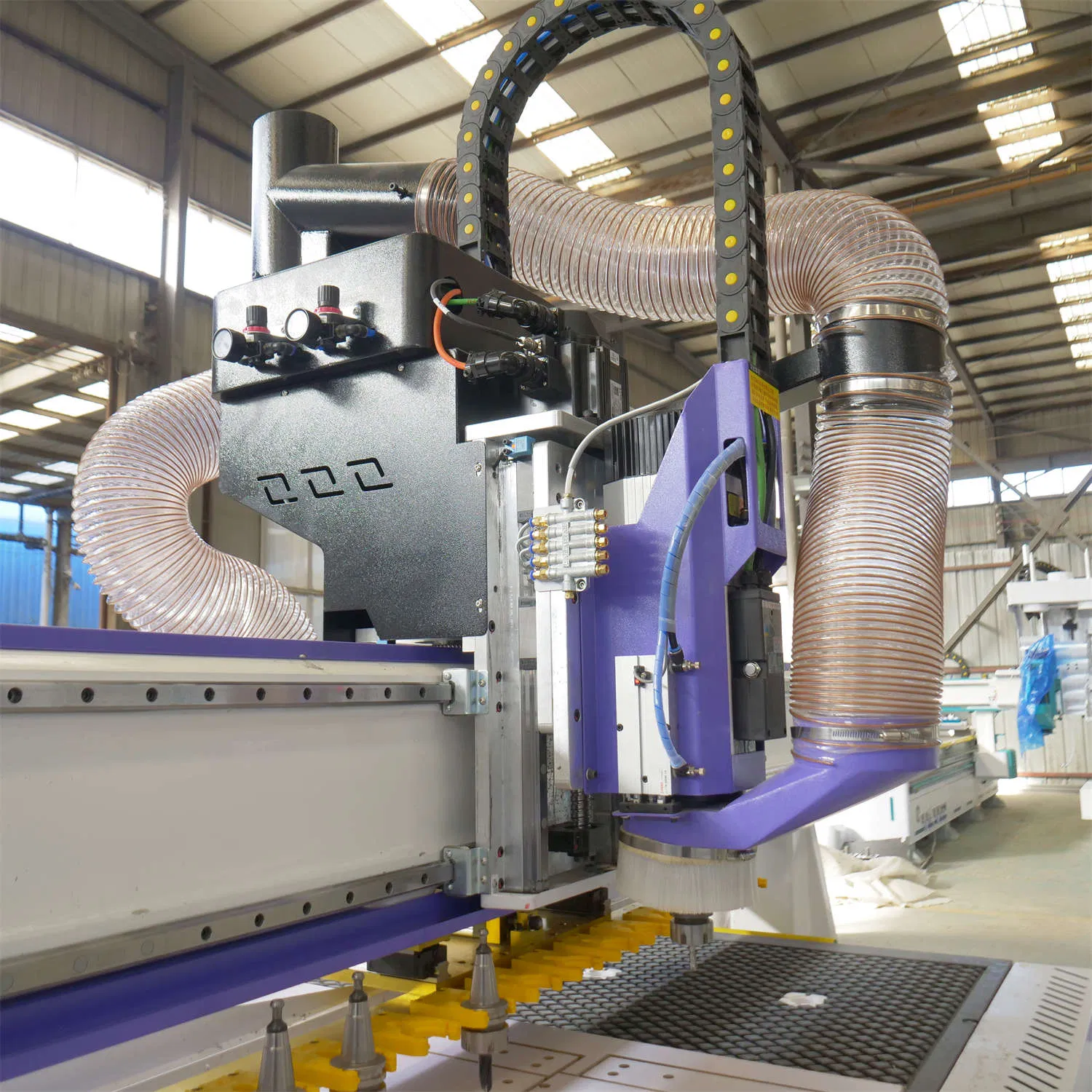

Linear /Circular 12 tools (6, 8, 10 tools optional).

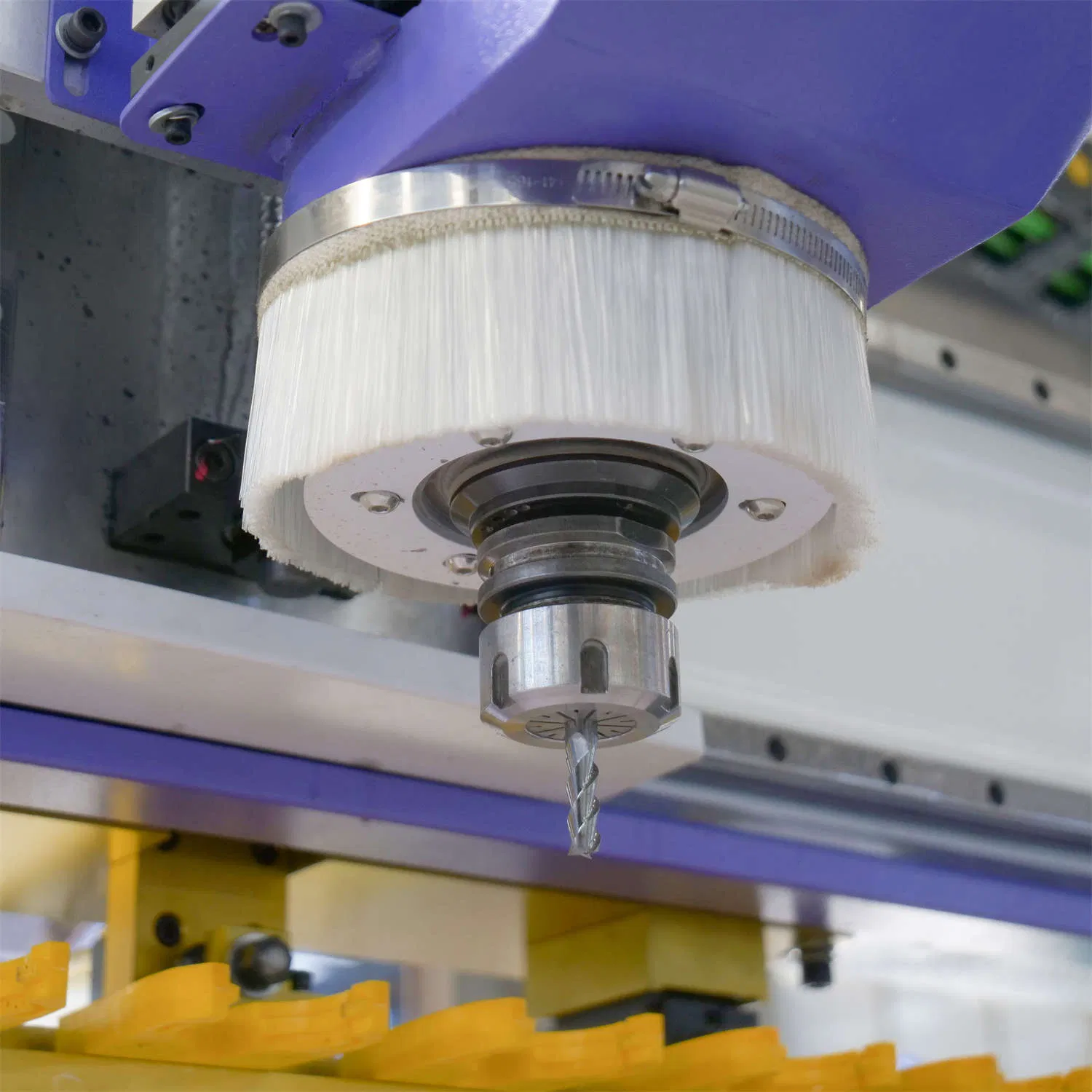

9.0KW ATC air cooling spindle (HQD, HSD optional).
Leadshine servo motors (Delta, Yaskawa brand optional).
Multifunction Vacuum and Aluminum T-Slot table.

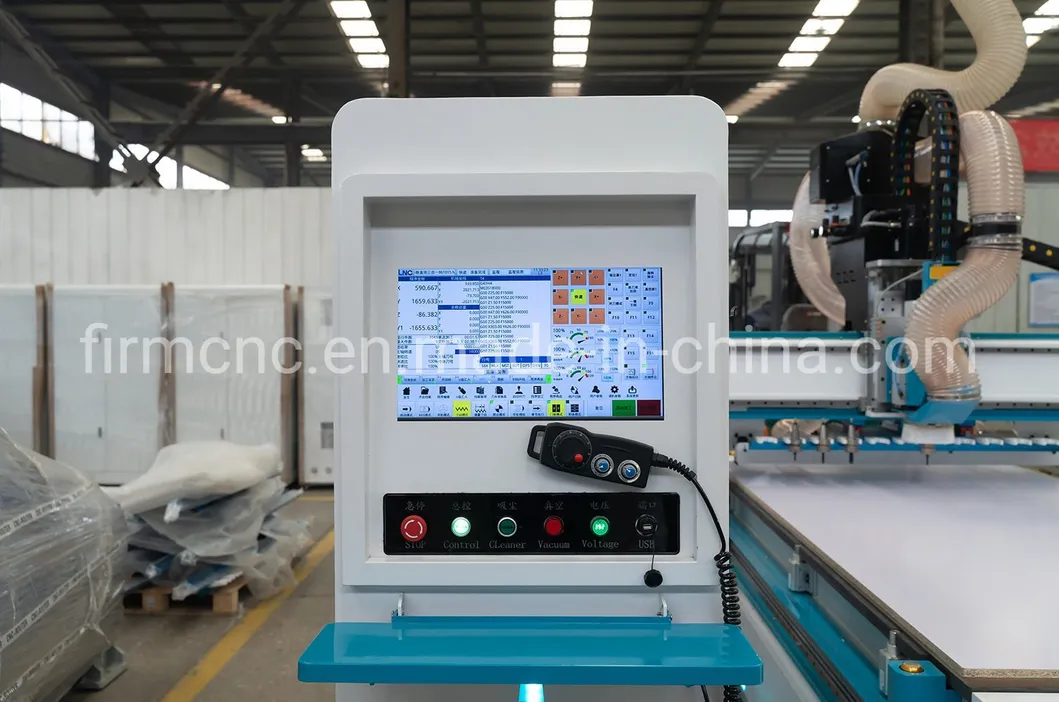

Easy to use Taiwan LNC controller compatible with standard CAD/CAM software.

Technical Parameters

Standard Configurations
Model	FM2030
Working Area	3000*2000mm
Table	Vacuum and T-slot table
Control system	Taiwan LNC CNC control system
Spindle	9.0KW air cooling spindle
Auto tool changer	Carousel auto tool changer for 12 tools
Body structure	Heavy steel welding structure (>10mm thickness)
Motor and drivers	1500W Leadshien servo motor and drivers
Rail guide	Taiwan HIWIN square guide rails
Transmission	Germany helical rack and pinion (X/Y), Taiwan TBI ball screw (Z)
Vacuum pump	11KW water vacuum pump
Technical Specification
Z Axis Travel	200mm
Positioning Accuracy	±0.01/2000mm
MAX. Traveling Speed	≥50000mm/min
MAX. Cutting Speed	≥25000mm/min
Working voltage	AC380V/3P/50Hz
N.W./G.W.	2800KG/ 2900KG

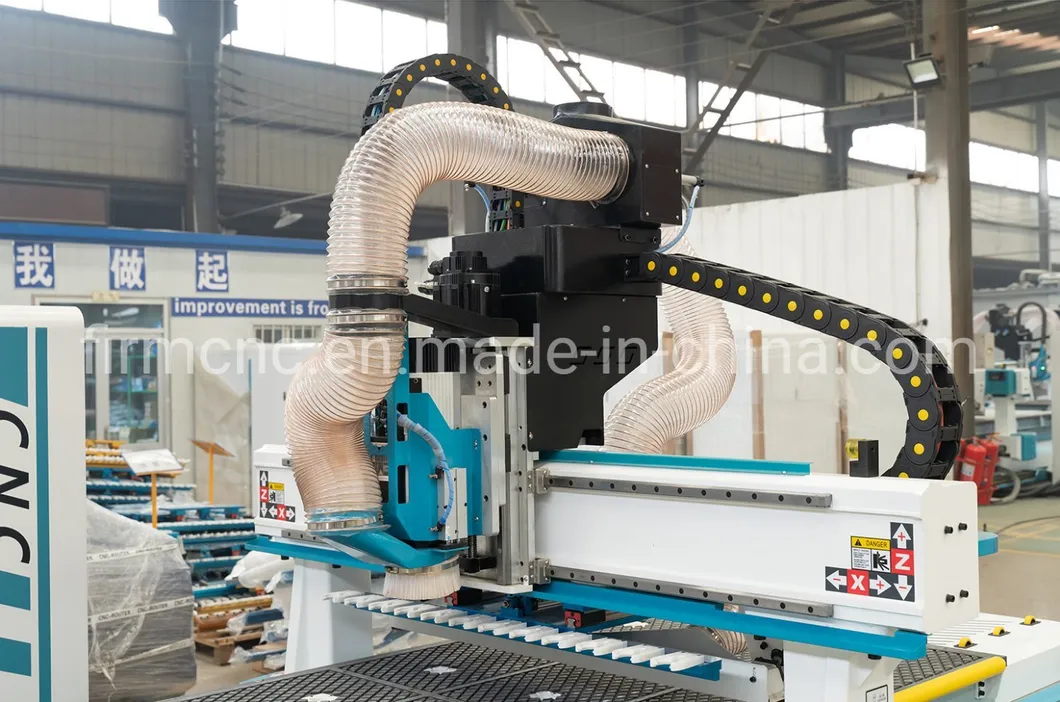

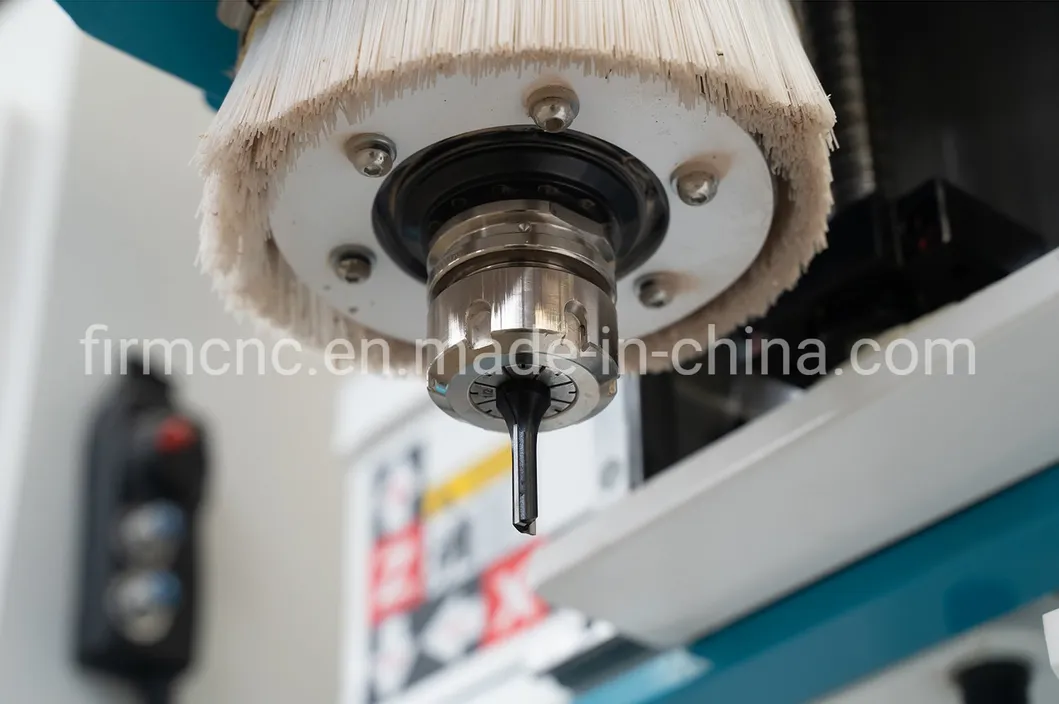

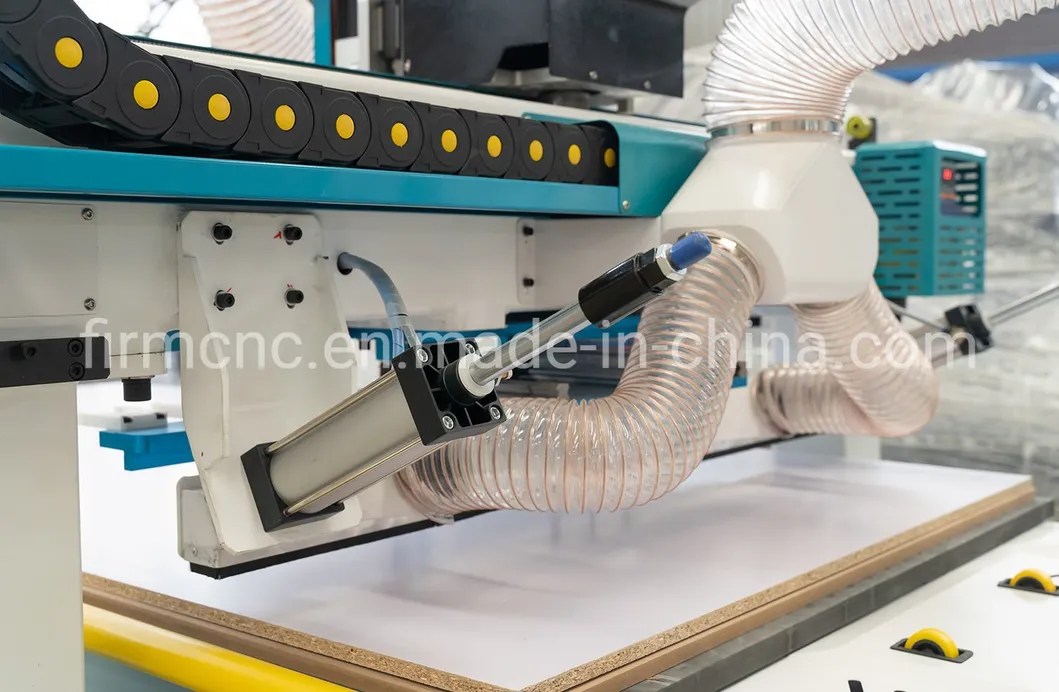

Main Components & Advantages

Application Scope:

Furniture: Wooden doors, cabinets, plate, office furniture, tables, chairs.
Wood Products: Voice boxes, game cabinets, computer tables, instruments.
Plate Processing: Insulation parts, PCB, car inner bodies, epoxy resin, ABS, PP, PE.
Decoration: Acrylic, PVC, MDF, stone, organic glass, soft metals (copper, aluminum).

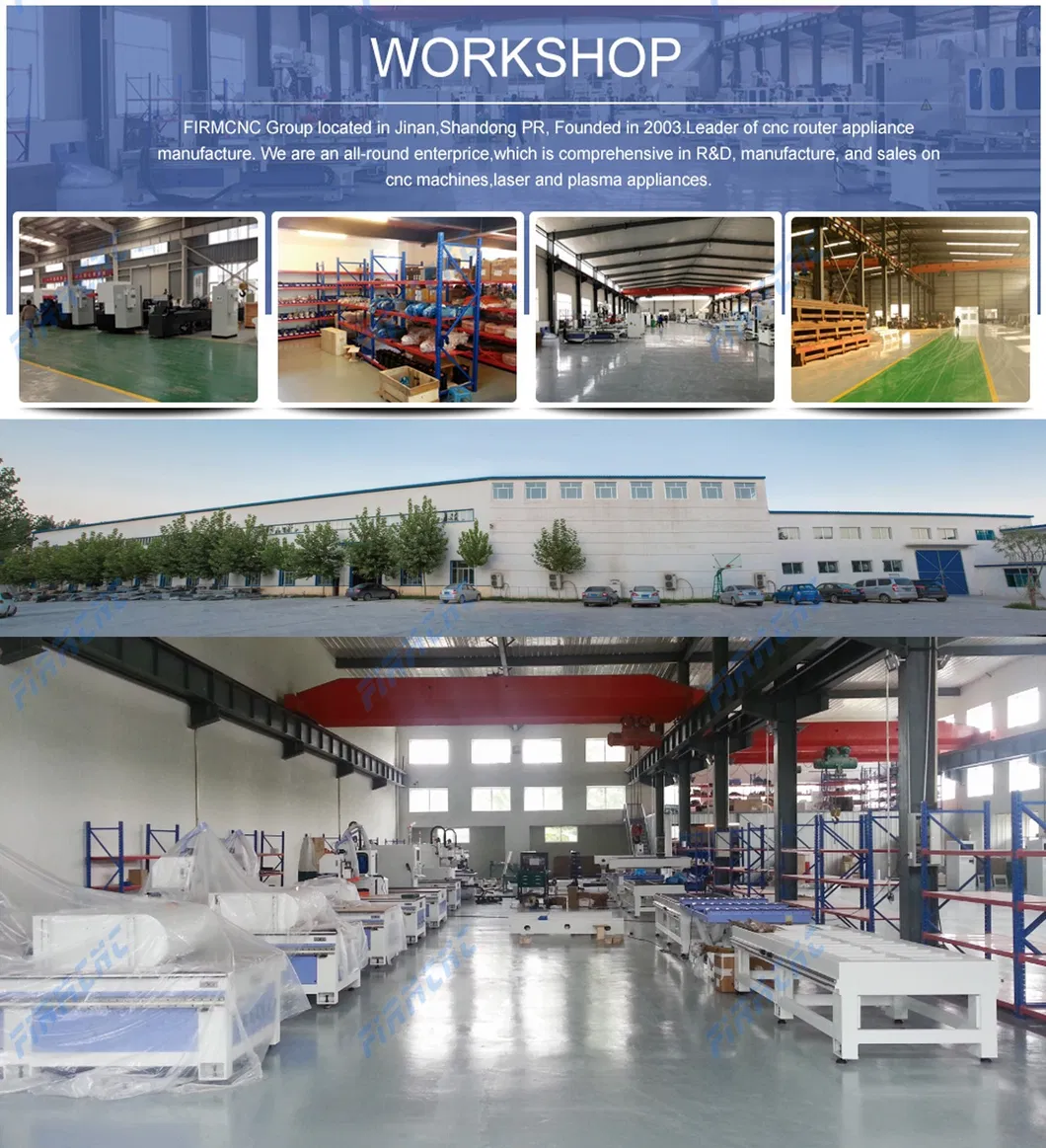

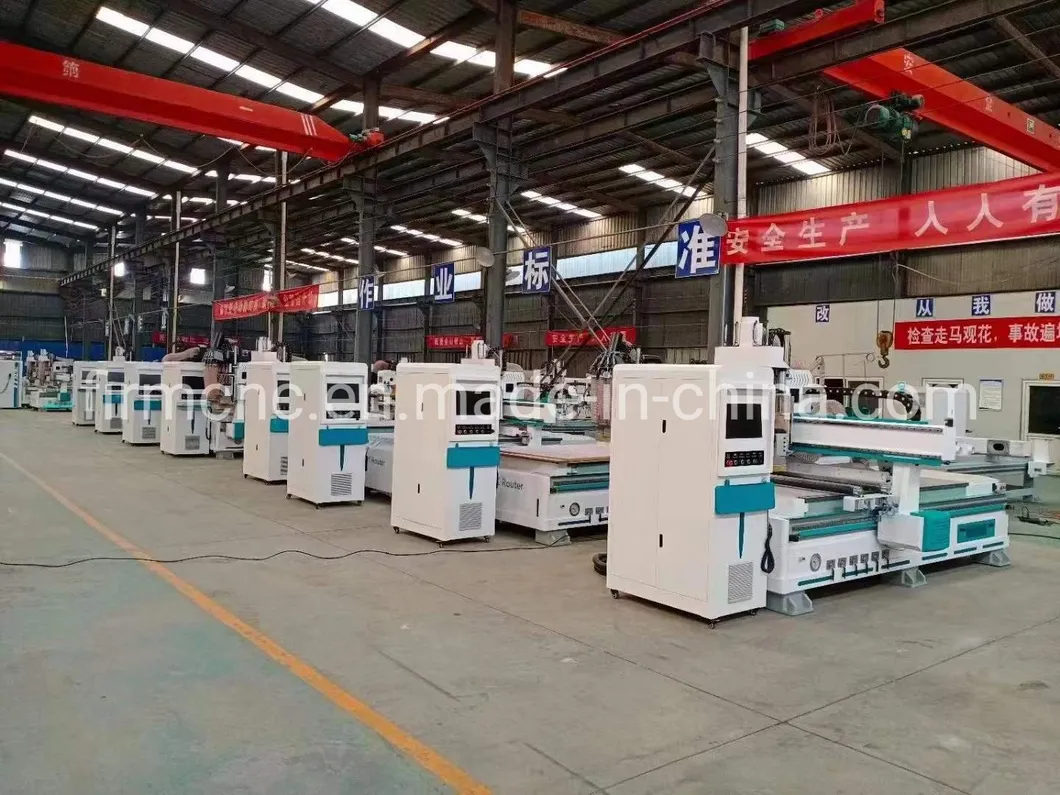

Production & Workshop

We have devoted to the CNC router industry for more than 18 years, with strong technical strength and a perfect service network. Our machines incorporate advanced technology, rich solutions, and European standards for a better user experience.

Our facility includes 10 modern production workshops, R&D teams, and dedicated after-sale service teams. Our equipment is popular across multiple industries worldwide.

Packing and Shipping:

Outer: Standard marine export plywood case.
Inner: Three layers (EPE pearl cotton film + PE stretchy film).
Delivery: Shipped in 10-15 working days after payment.

After-Sale Service

24-hour technical support by phone or email.
English manual and operation video CD included.
Machine adjusted and tested before delivery.
Remote online guidance available.
Engineers available to service machinery overseas.

Frequently Asked Questions

What is the delivery time for the CNC router?

Standard configurations take approximately 7 days. Customized series require 15 days, while advanced 4-axis and 5-axis machines take 20 days.

Is the machine easy to operate for a first-time user?

Yes, it is user-friendly. We provide English instruction books and guide videos. We also offer free training at our factory and 24/7 technical support.

Can the machine be customized for single-phase power?

Yes, we can provide configurations for 240V single-phase power, though certain components like vacuum pumps may have specific power limitations.

What materials can this ATC CNC router process?

It can process wood, MDF, acrylic, PVC, plastic, and soft metals like copper and aluminum, as well as various carbon mixed compounds.

How do you ensure the machine is protected during transit?

We use a three-layer inner protection (EPE and PE film) and a heavy-duty standard marine export plywood case for the outer packaging.

What kind of after-sales technical support is available?

We offer round-the-clock support via email and phone, remote guidance through video calls, and on-site engineering services if required.
