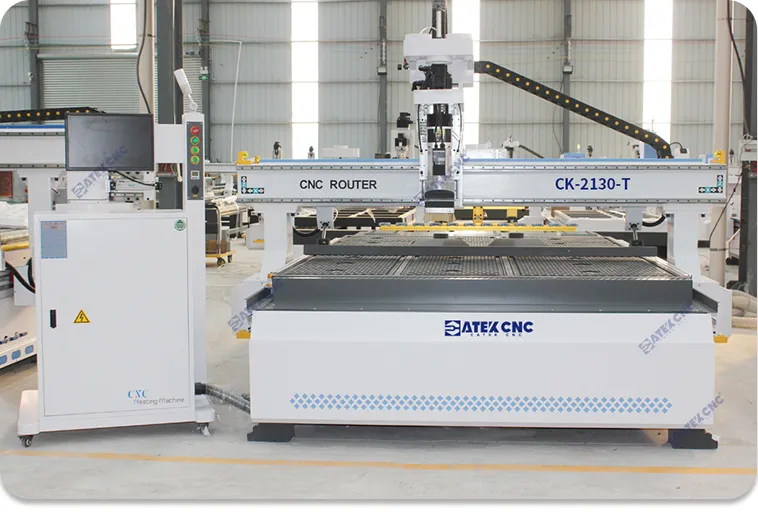

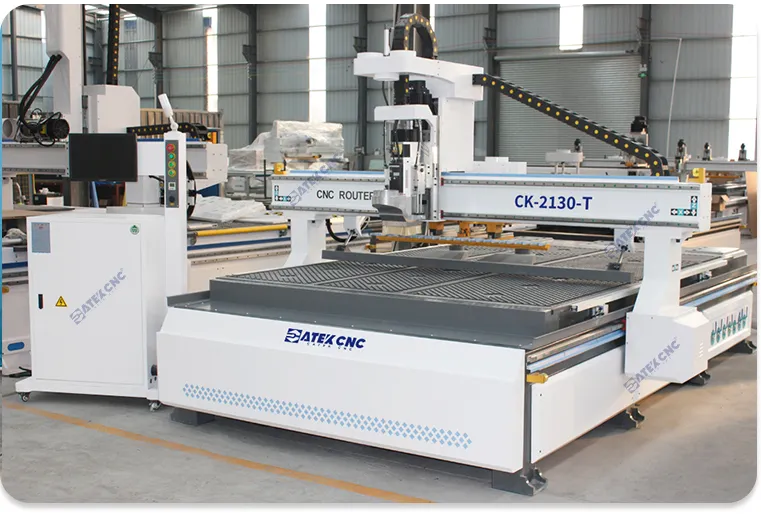

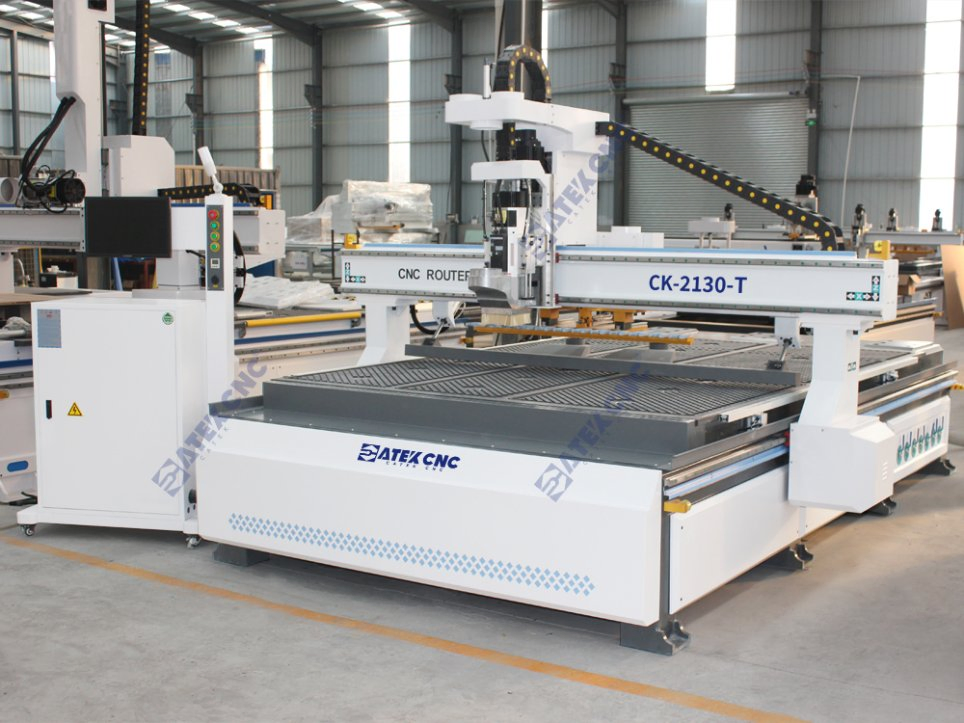

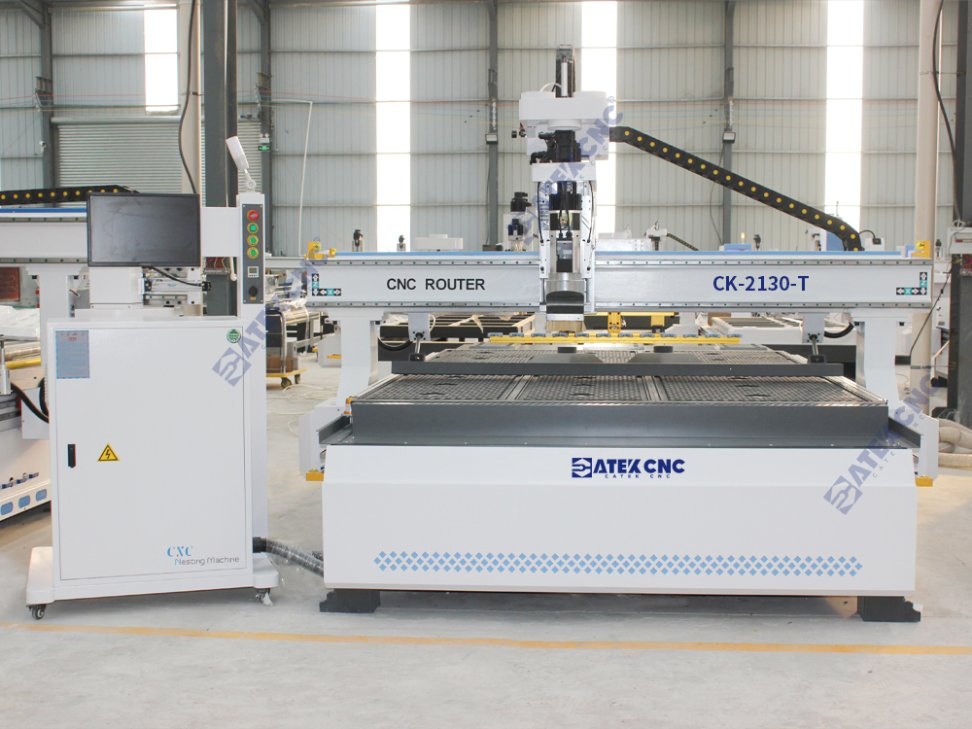

TitanPro Cutting
TitanPro Cutting

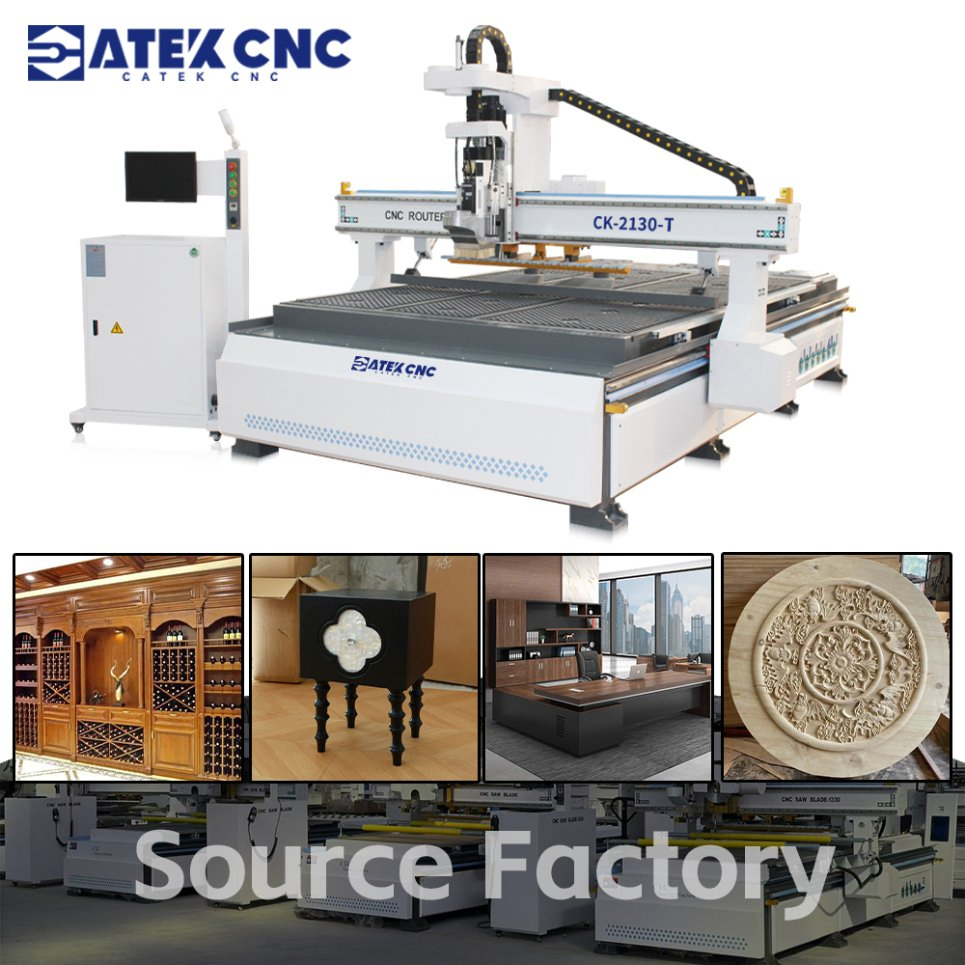

| Model NO. | CK-2130-T |
| Condition | New |
| Certification | ISO, CE, RoHS |
| CNC or Not | CNC |
| Voltage | 380V |
| Spindle Power | 9kw Air-Cooled Automatic Tool Change Spindle |
| Tool Magazine | 8/12/16 Linear Tool Changer Magazines |
| Drive Mode | 1.5kw High Power Bus Absolute Servo Motor Drive |
| Mesa | Vacuum Work Surface 26 Partitions, 35 Holes |
| Guide | Taiwan Hiwin High Precision 30 Linear Square Rail |
| Vacuuming Method | 3kw Double-Drum Dust Collector |
| Vacuum Pump | 11kw High Power Water Ring Vacuum Pump |
| Reducer | Japan Xinbao Planetary Gear Reducer |
| Lubrication System | Electric Lubrication Oil Injection Maintenance System |
| Security System | All XYZ Three-Axis Photoelectric Limit |
| Processing size | 2100*3000*200mm (customizable) |
| Dragon Gate | Thickened steel gantry, heavy steel beams |
| Bed | Heavy-duty thickened steel pipe welded bed, 8mm steel plate |
| Spindle Speed | 6000-18000r/min |
| Transmission mode | XY axis ground helical gear + Z axis TBI ball screw |
| Control System | Taiwan Baoyuan Control System |
| Repeat accuracy | ±0.02mm |
| Max cutting speed | 28000mm/min |
| Max movement speed | 60000mm/min |
| Machine weight | 2900KG |

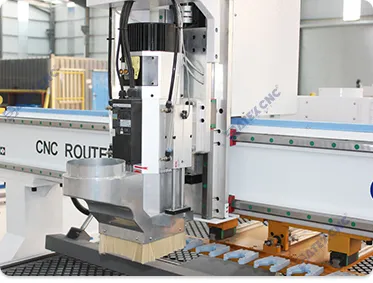

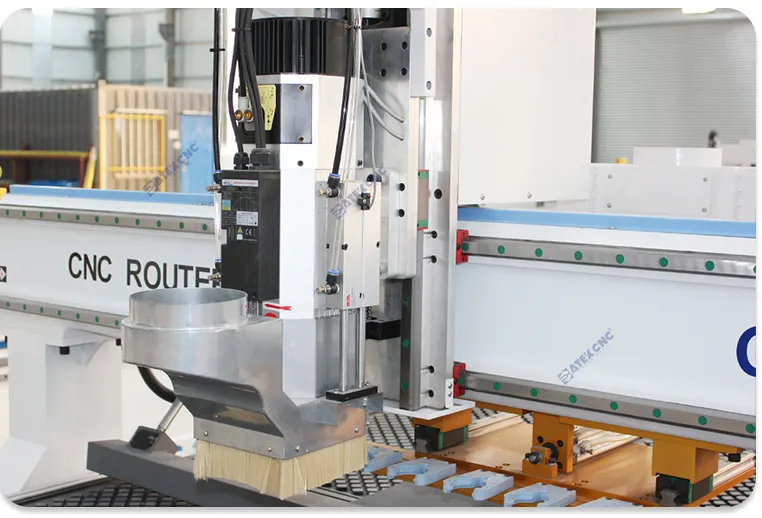

9KW air-cooled automatic tool-changing spindle for seamless multi-process machining.

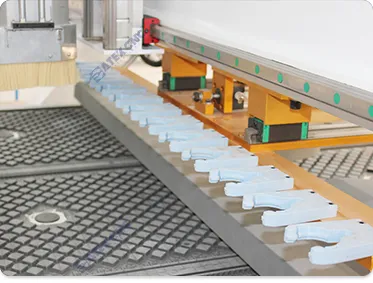

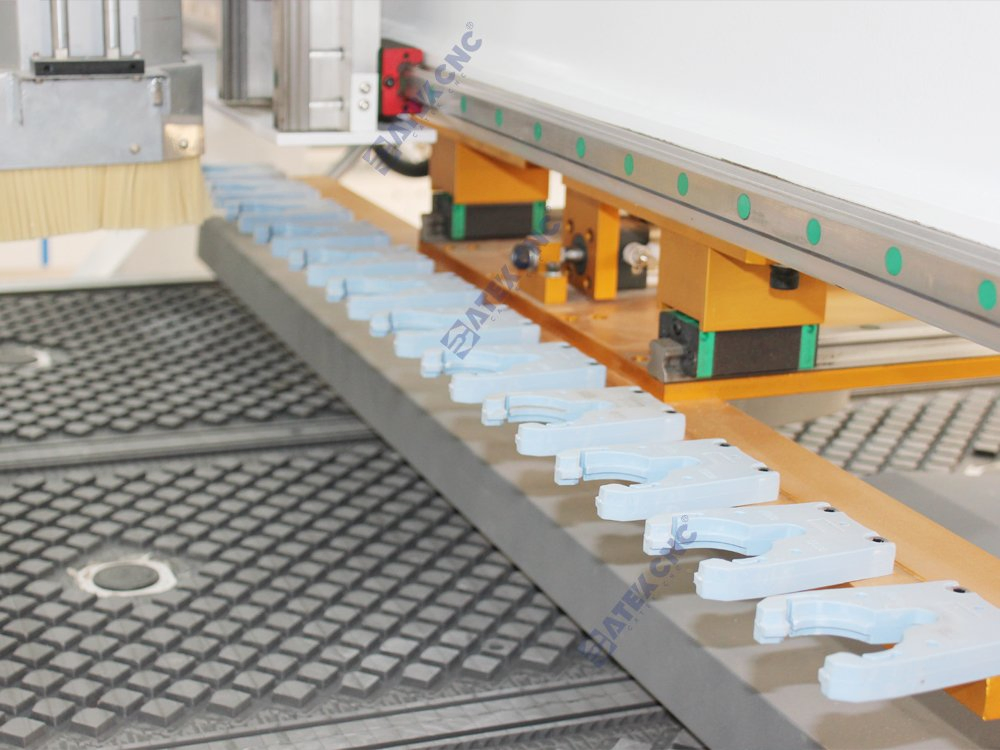

Linear automatic tool change magazine with ISO30 tool holders (12 tools capacity).

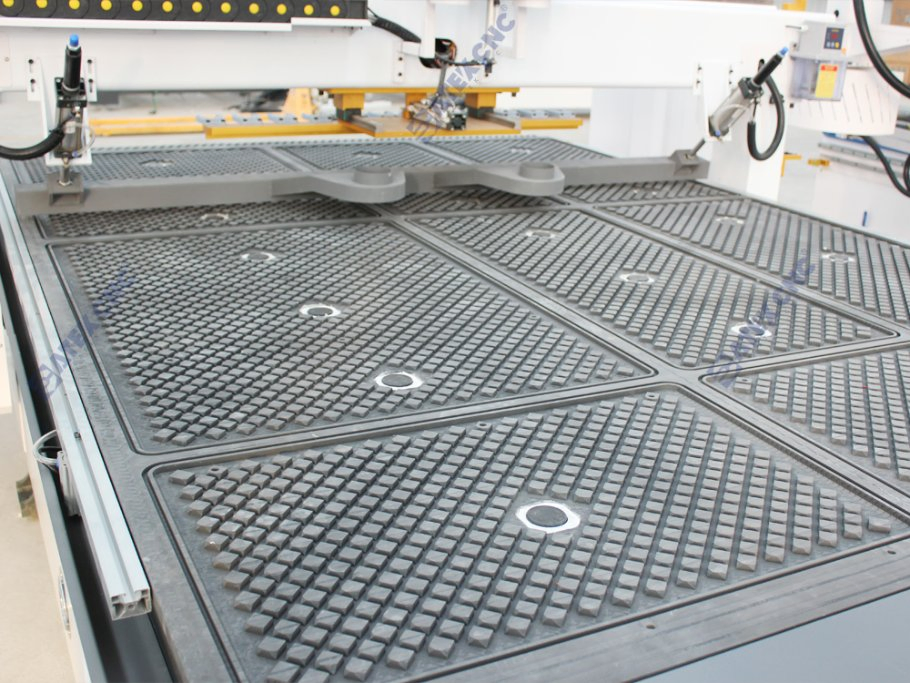

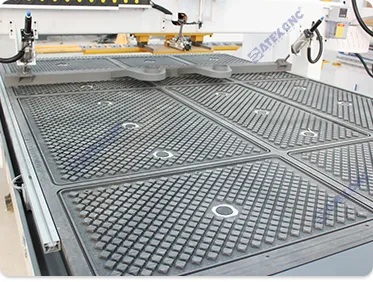

Vacuum adsorption workbench with 26 partitions and 11KW high-power vacuum pump.

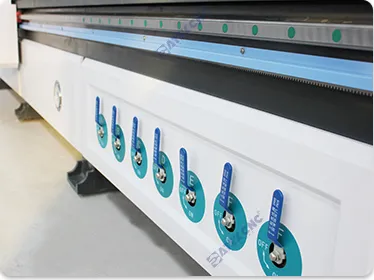

Independent partition control for versatile plate sizing and firm fixing.

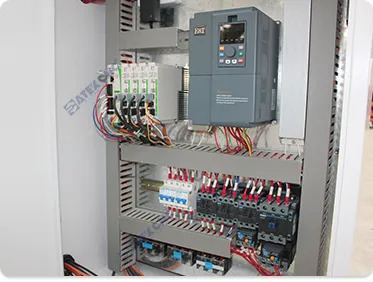

1500W bus absolute value servo drive for strong anti-interference performance.

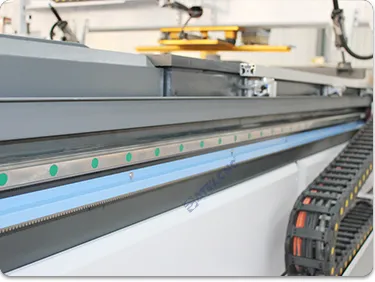

High-precision Taiwan Hiwin 30 linear square rails for smooth movement.
Wood board, MDF, artificial board, particle board, gypsum board, plastic, PVC, PCB, acrylic, aluminum-plastic board, aluminum, copper, epoxy resin, carbon fiber mixture, artificial stone, etc.
Industry Applications:
