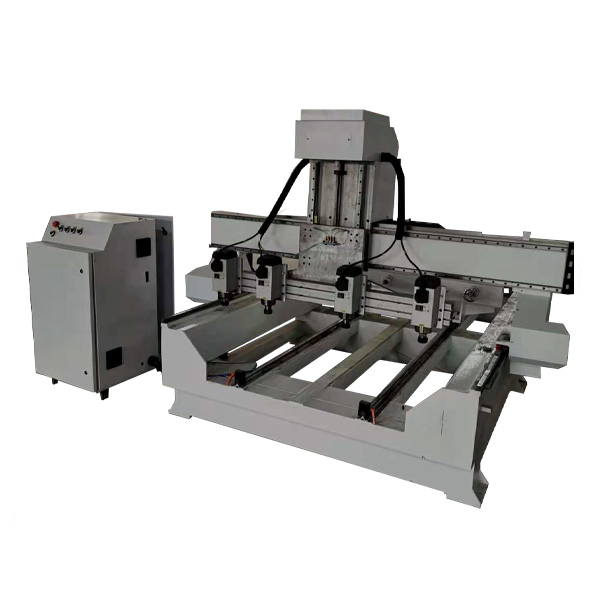

Multi Heads CNC Router Carving Wood 3D Relief Machine
Multi Heads CNC Router Carving Wood 3D Relief Machine
Multi Heads CNC Router Carving Wood 3D Relief Machine
Multi Heads CNC Router Carving Wood 3D Relief Machine
Multi Heads CNC Router Carving Wood 3D Relief Machine
1 / 5
Multi Heads CNC Router Carving Wood 3D Relief Machine
Multi Heads CNC Router Carving Wood 3D Relief Machine
Multi Heads CNC Router Carving Wood 3D Relief Machine
Multi Heads CNC Router Carving Wood 3D Relief Machine
Multi Heads CNC Router Carving Wood 3D Relief Machine

Multi Heads CNC Router Carving Wood 3D Relief Machine

Customization: Available
Warranty: 1 Year
Type: Engraving Router
Send Inquiry

Product Description

Basic Info

Spindle Layout
Horizontal
Spindle Number
4 Spindles
Feed Mode
Manual
Controlling Mode
CNC
Certification
CE
Customized
Customized
Condition
New
Working Area
1300*1800*300mm
Positioning Accuracy
± 0.03/300mm
X Y Structure
Taiwan Hiwin Square Guide Rails
Spindle
Water Cooling Spindle
Spindle Power
2.2kw
Motor
Stepper Motor
Control System
4 Axis Control System
Transmission
Helical Rack
Transport Package
Exporting Plywood Package
HS Code
8465990000
Production Capacity
1000 Sets Per Year

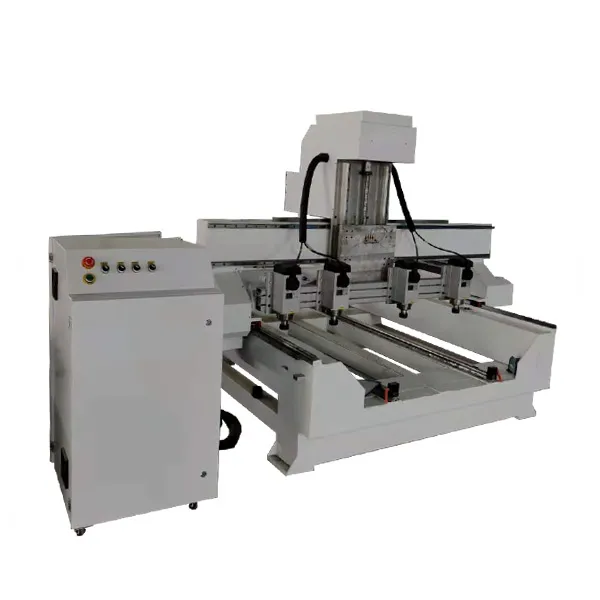

CNC Router Carving Wood 3D Relief Machine

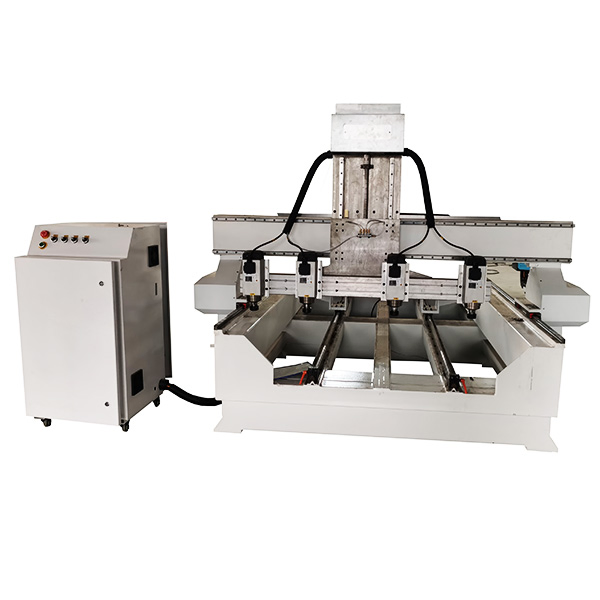

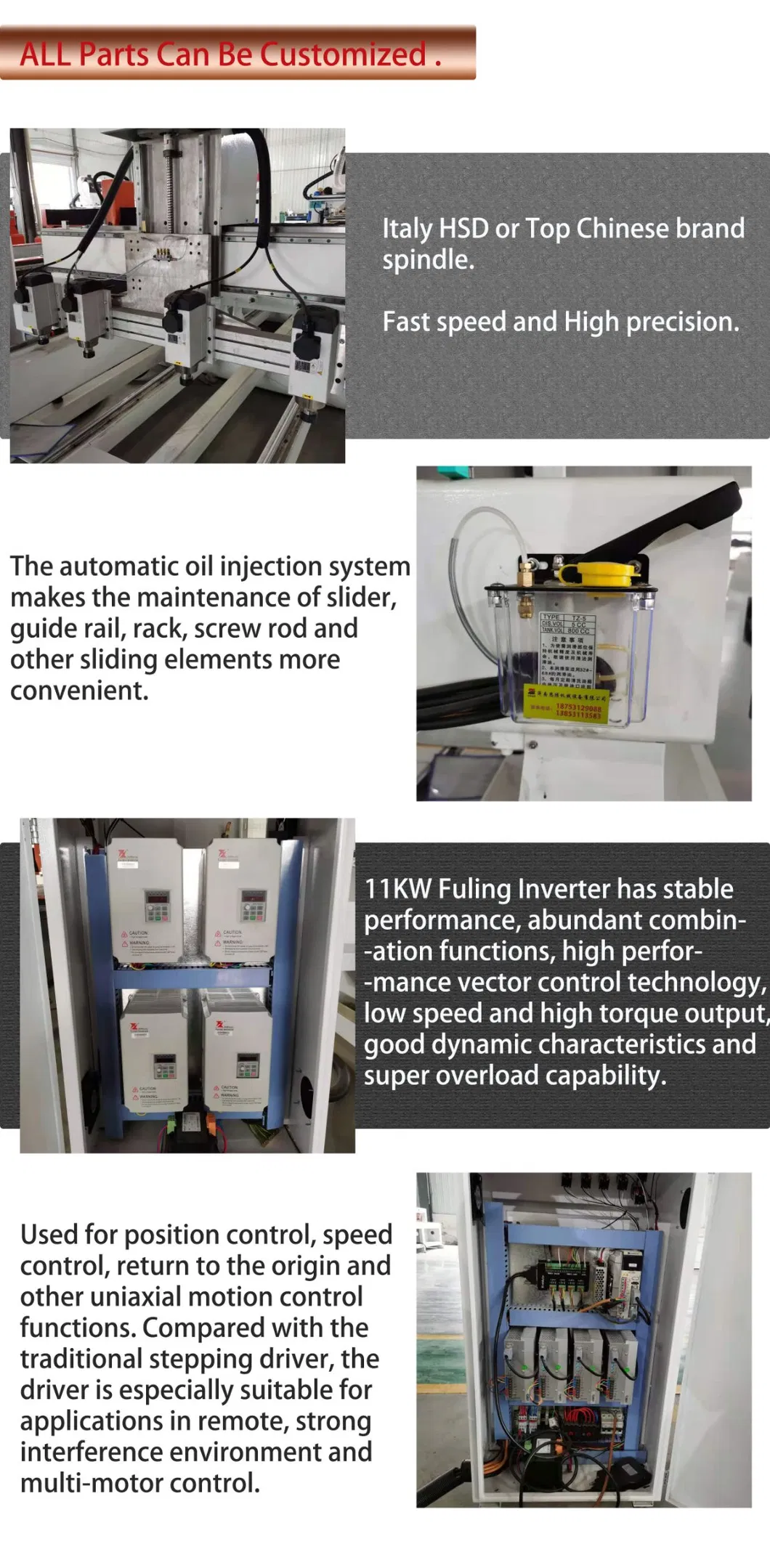

Multi Heads CNC Router Detail

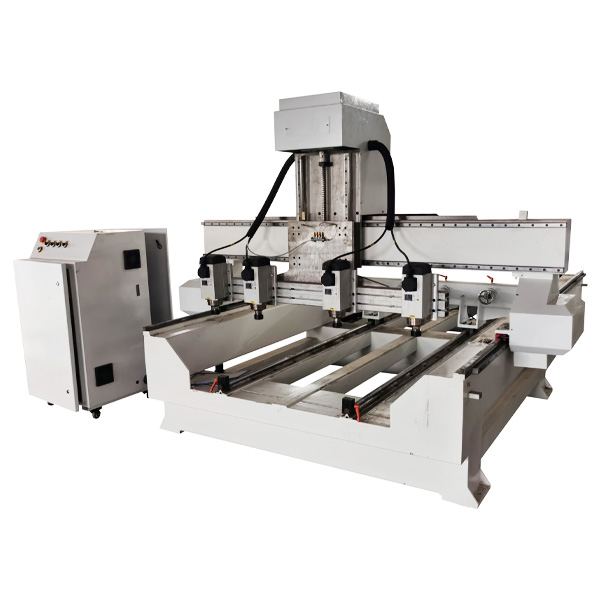

CNC Wood Relief Machine

Product Description

1. Four axis machine, with 4 Rotaries and 4 spindles, which can work at the same time or independently, and every one's max effective working area is 300mm(diameter) by 1500mm(length).

2. With Scanner or designed photo, it can do any 3D Engraving and 2D Engraving.

3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.

4. Has the 4th rotary which is used for engraving cylinder workpiece.

5. Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/ Castmate/Wentai etc.

6. Has the function of re-carving after break point and power failure.

7. Adopting stepper motor and driver, can be optional China or Japanese servo motors.

Configuration

  • Welded steel bed structure
  • Taiwan HIWIN square guide rails for three axises

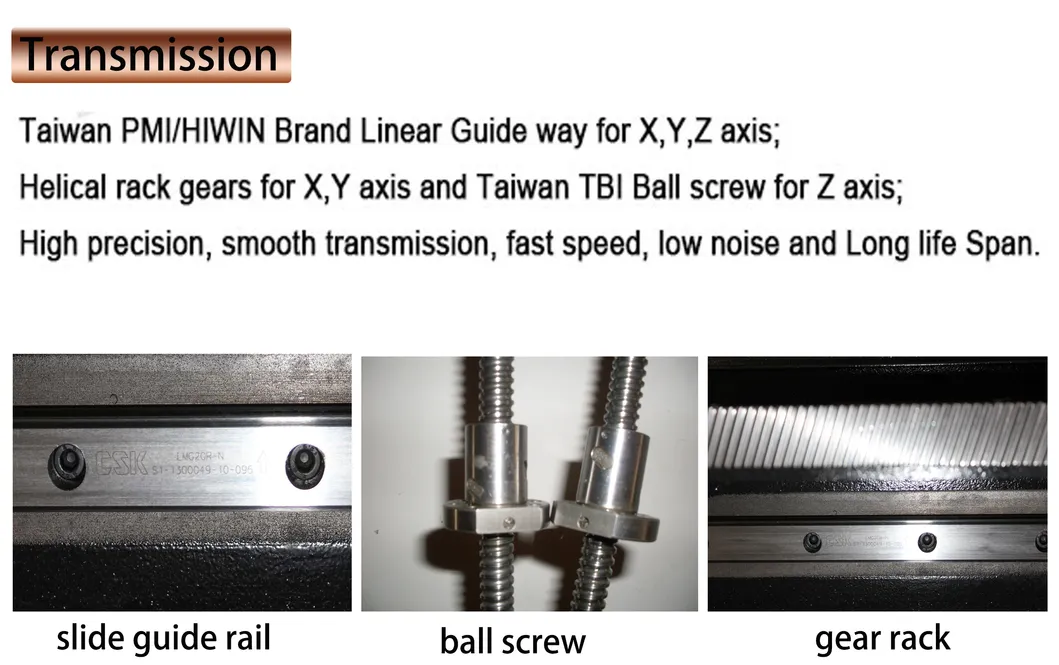

  • Rack transmission for X and Y axis, Ball screw for Z axis
  • 2.2KW water cooling spindle with water pump
  • Shenzhen SUNFAR inverter
  • MACH3 control system or 4 axis DSP/Ncstudio
  • Rotary attachment multi-pieces
  • Oil lubricating system
  • 450B stepper motor and 860H driver
  • 8 collects and 15 pieces cutters

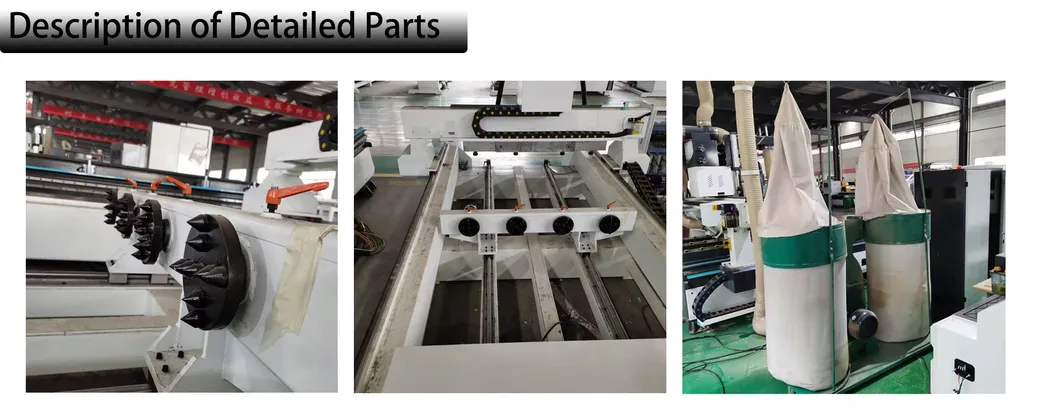

CNC Router Components

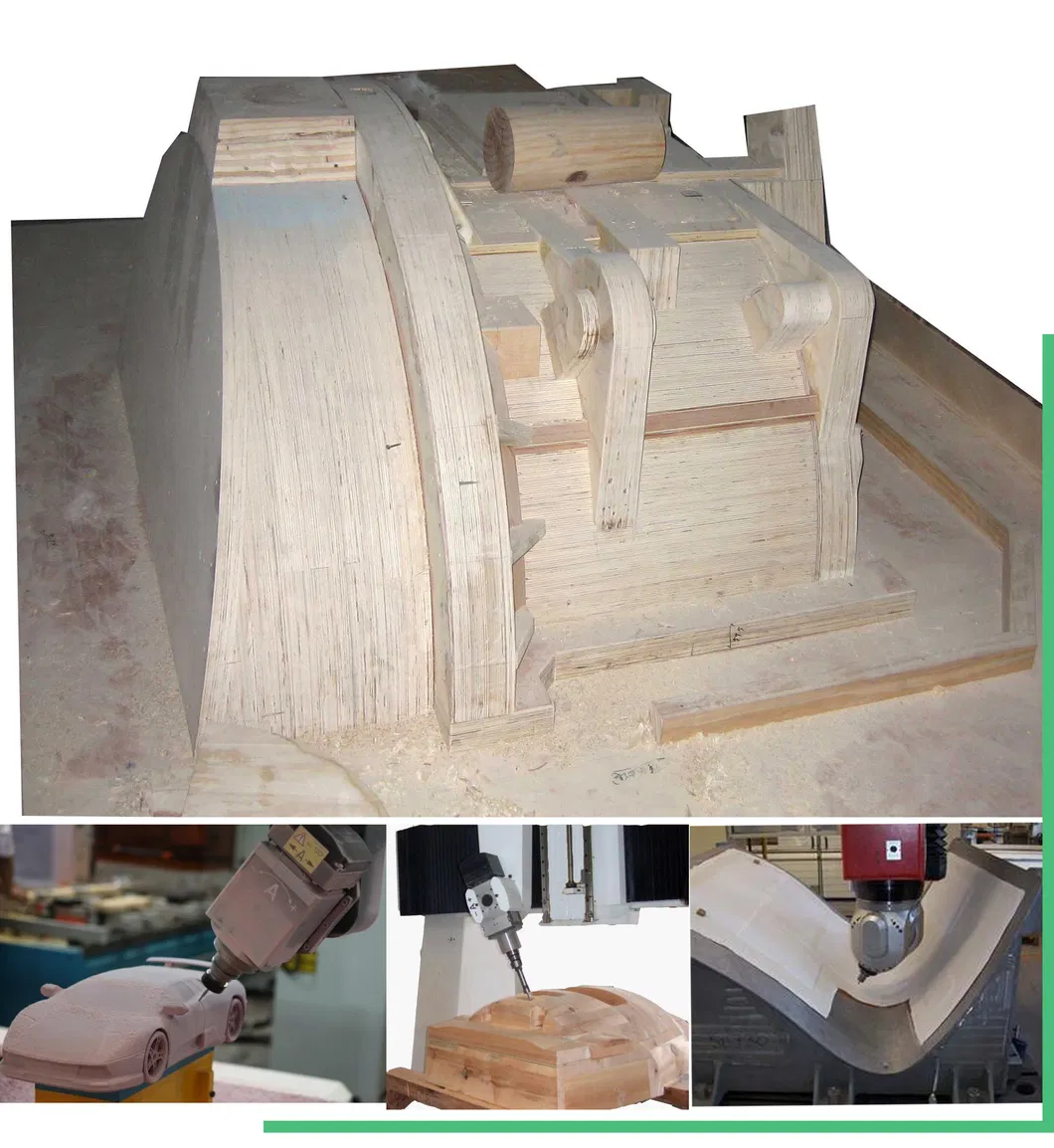

Engraving Process
CNC Woodworking

Technical Specifications

ModelZK 1318 CNC router
X,Y,Z Working Area1300*1800*300mm
Traveling Positioning Accuracy±0.03/300mm
Repositioning Accuracy±0.02mm
Lathe StructureThick wall square tubes welding bed
RailsTaiwan HIWIN square guide rails
Max. Speed0-30000mm/min
Spindle Power2.2KW water cooling
Spindle Speed0-24000RPM
Working Voltage380V/3 phase 50HZ
Command CodeG code(*uoo,*nc,*mmg, *plt)
Operating SystemMach3 / DSP / Ncstudio
SoftwareType3/Ucancam/JDpaint/Artcam
WarrantyOne year
CNC Samples
Finished Relief Work

Frequently Asked Questions

Q1: Can all four spindles work simultaneously? A: Yes, the machine features 4 spindles and 4 rotaries that can work at the same time to increase production efficiency, or they can operate independently for different tasks.
Q2: What kind of materials can this machine handle? A: It is designed specifically for wood 3D relief, carving, and can handle various woodworking projects, including cylindrical workpieces using the 4th rotary attachment.
Q3: Which control systems are available? A: You can choose between the MACH3 control system, 4-axis DSP, or Ncstudio control system depending on your operational preferences.
Q4: Is the machine structure durable? A: Yes, the whole machine is welded with a seamless steel structure and thick wall square tubes, providing excellent stability and preventing deformation over time.
Q5: What happens if there is a power failure during engraving? A: The machine includes a function for re-carving after a break point or power failure, ensuring you can resume your work without losing progress.
Q6: What is the delivery time and warranty? A: The standard delivery time is approximately 10-20 working days, and the machine comes with a one-year warranty.
