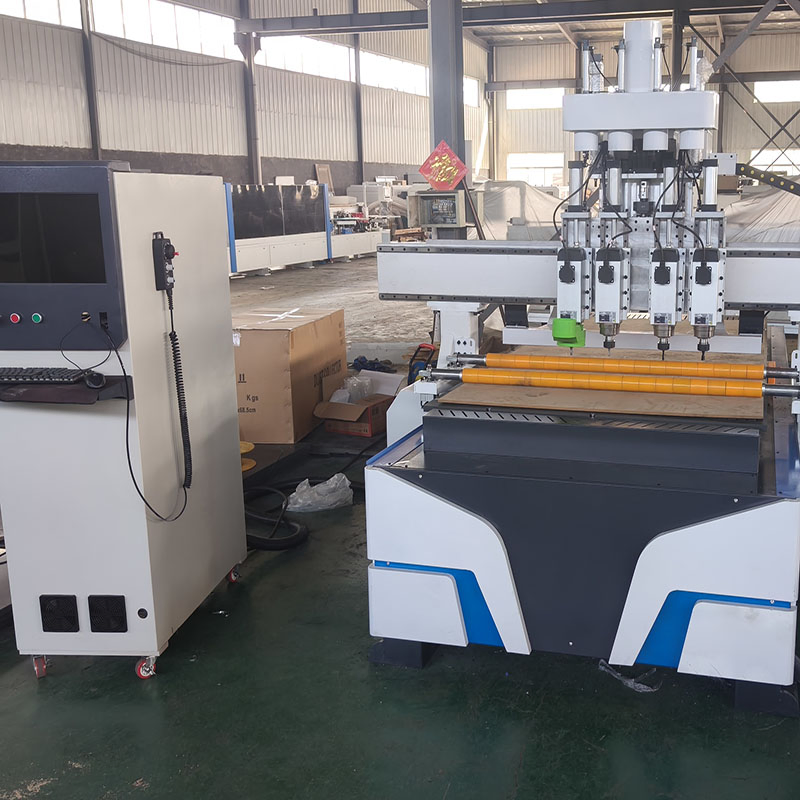

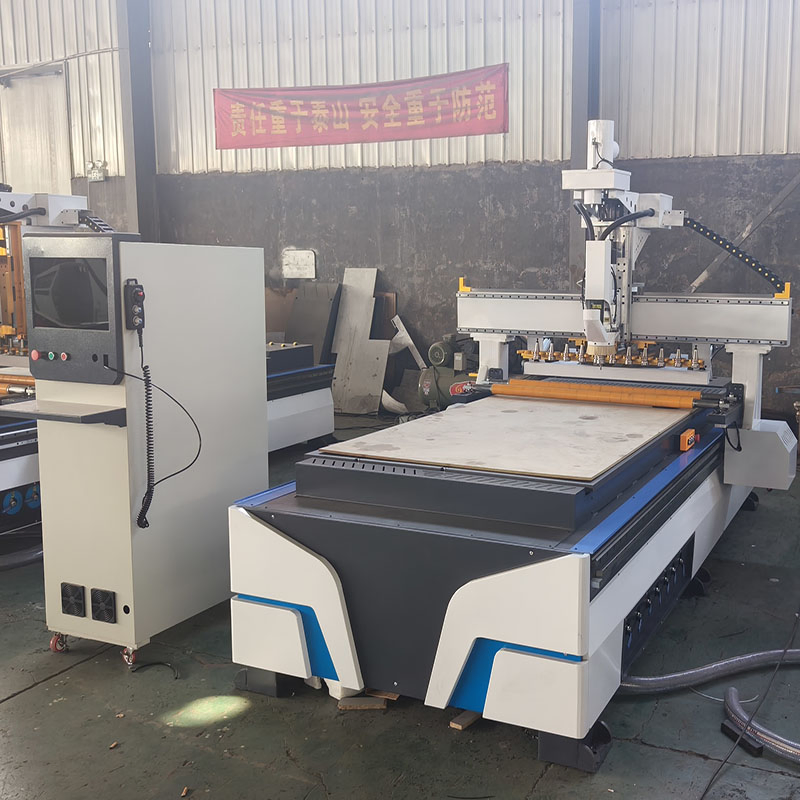

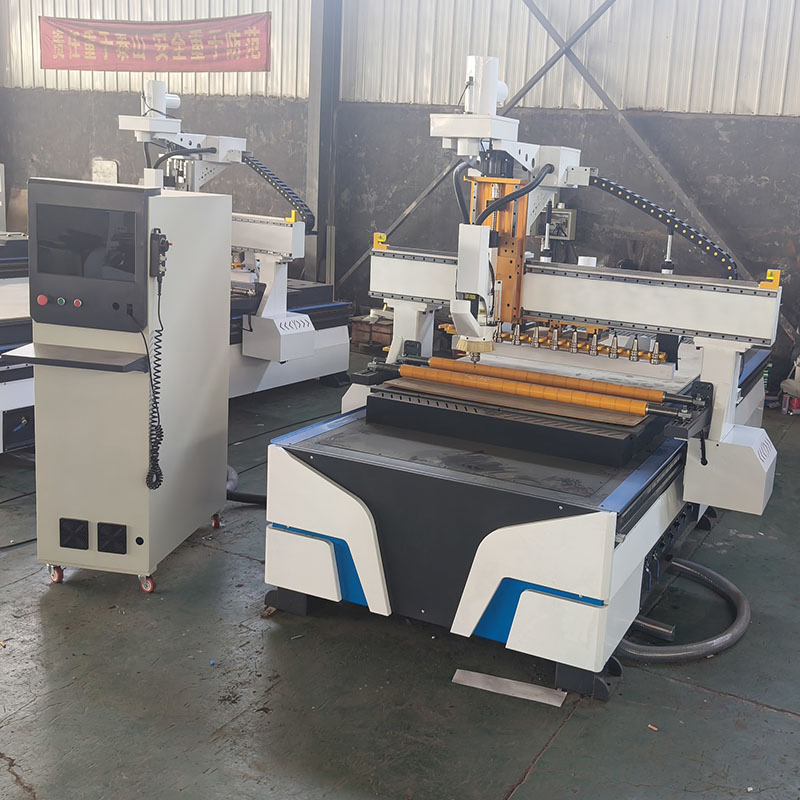

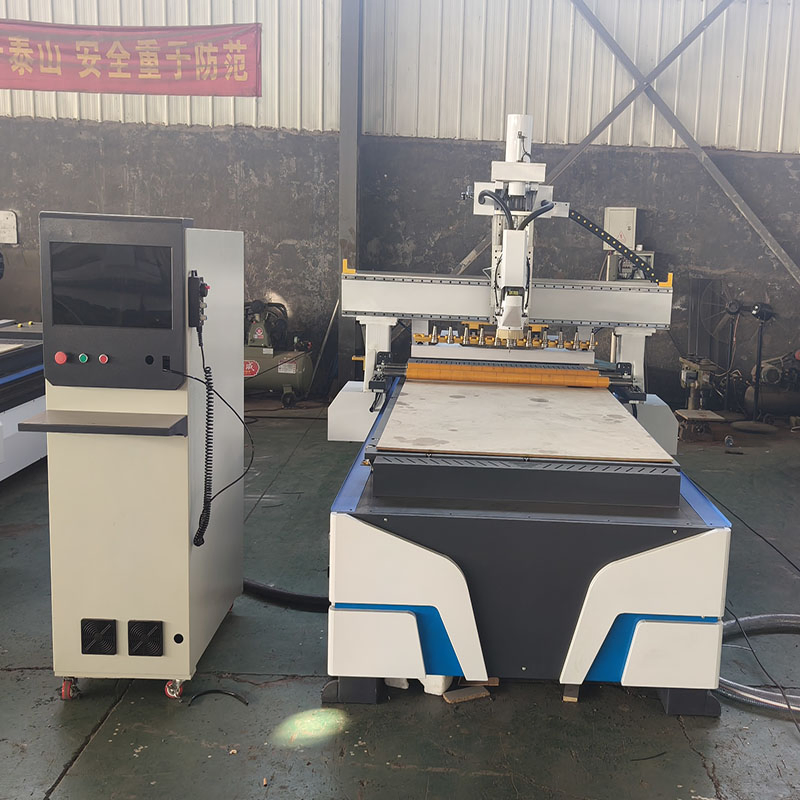

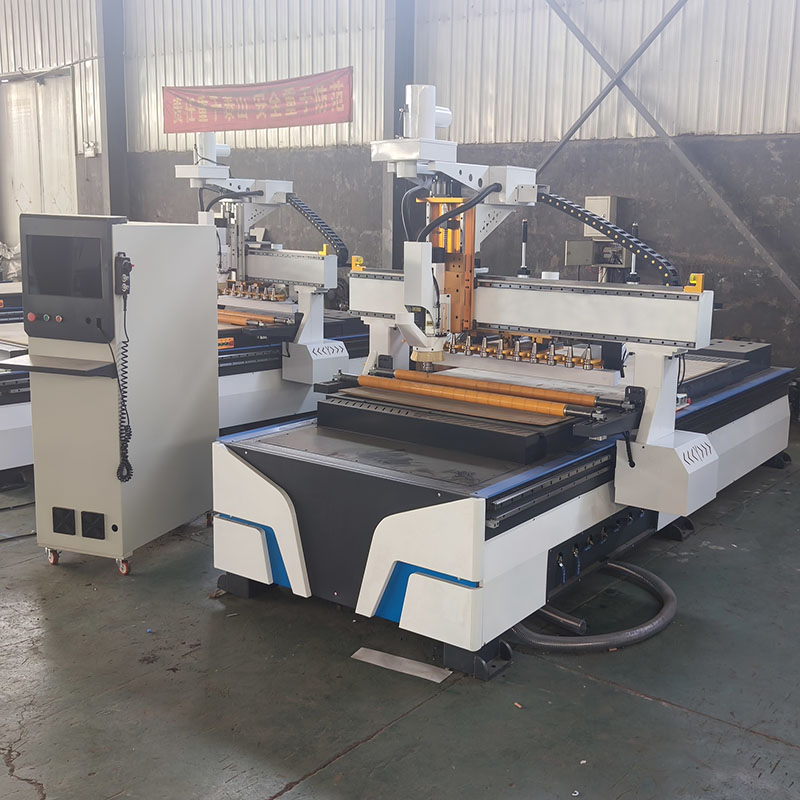

Multi Head Rotary 3D Wood Duplicator Carver Multi-Heads 4 Axis CNC Router Wood Carving Carpentry Machine
Multi Head Rotary 3D Wood Duplicator Carver Multi-Heads 4 Axis CNC Router Wood Carving Carpentry Machine
Multi Head Rotary 3D Wood Duplicator Carver Multi-Heads 4 Axis CNC Router Wood Carving Carpentry Machine
Multi Head Rotary 3D Wood Duplicator Carver Multi-Heads 4 Axis CNC Router Wood Carving Carpentry Machine
Multi Head Rotary 3D Wood Duplicator Carver Multi-Heads 4 Axis CNC Router Wood Carving Carpentry Machine
1 / 5
Multi Head Rotary 3D Wood Duplicator Carver Multi-Heads 4 Axis CNC Router Wood Carving Carpentry Machine
Multi Head Rotary 3D Wood Duplicator Carver Multi-Heads 4 Axis CNC Router Wood Carving Carpentry Machine
Multi Head Rotary 3D Wood Duplicator Carver Multi-Heads 4 Axis CNC Router Wood Carving Carpentry Machine
Multi Head Rotary 3D Wood Duplicator Carver Multi-Heads 4 Axis CNC Router Wood Carving Carpentry Machine
Multi Head Rotary 3D Wood Duplicator Carver Multi-Heads 4 Axis CNC Router Wood Carving Carpentry Machine

Multi Head Rotary 3D Wood Duplicator Carver Multi-Heads 4 Axis CNC Router Wood Carving Carpentry Machine

Customization: Available
After-sales Service: 1year
Warranty: 1year
Send Inquiry

Product Description

📋 Overview & Basic Information
Condition
New
Certification
CE
CNC or Not
CNC
Voltage
380V
Model
CNC1328
Motor
9kw+11kw
Applications
Cupboard, Furniture, Door, Wood Panel, Fixtures
Table Size
1300*2800mm
Driving Motor
1500W Servo Motor
Spindle Motor
9.0kw Changsheng Motor
Atc Tool Number
12
Vacuum System
6 Partition Vacuum 11kw Pump
Control System
Taiwan Baoyuan MW2200
Processing Accuracy
0.05mm
Packing Weight
2300kg
⚙️ Product Description & Highlights

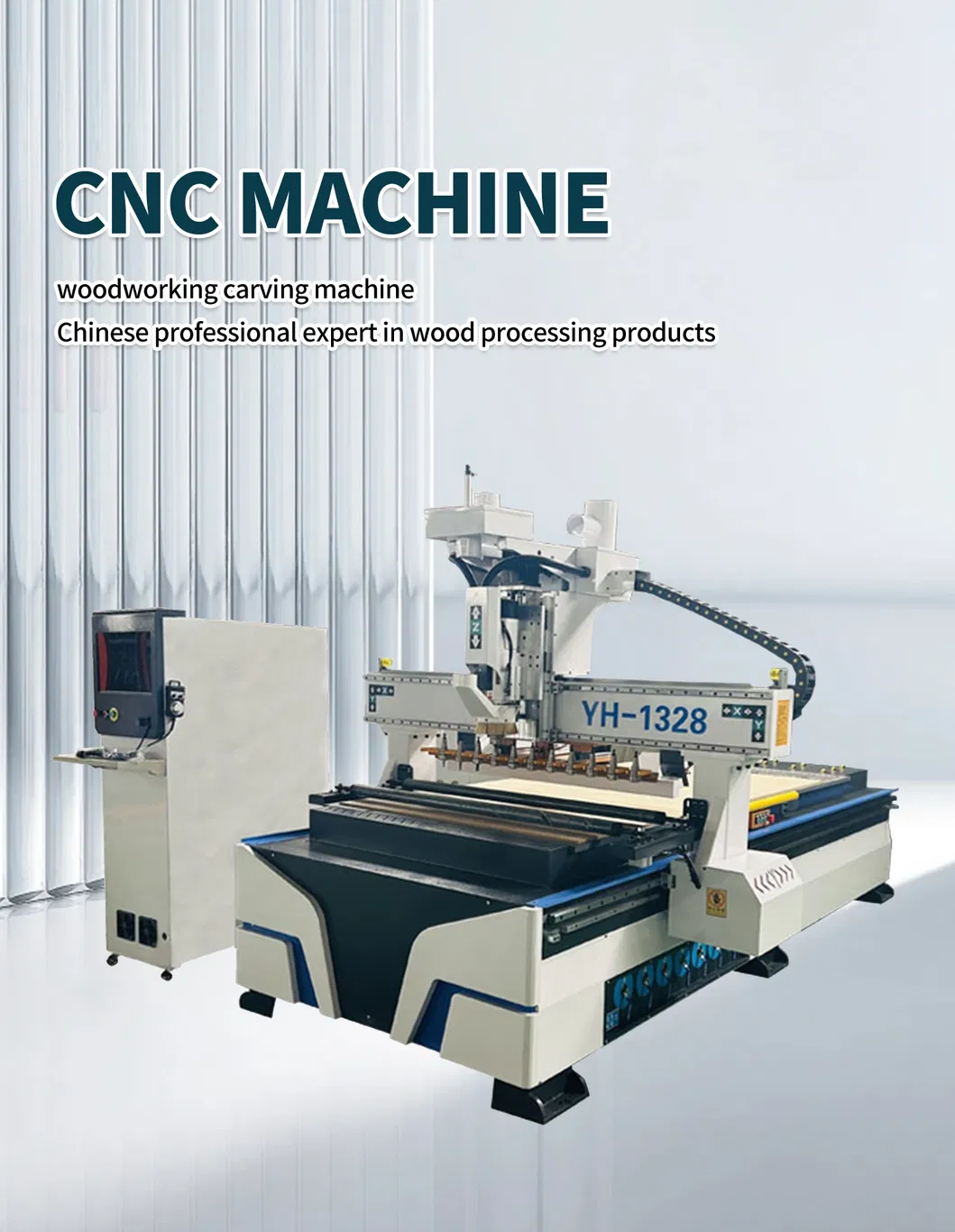

CNC Woodworking Machine
9.0KW HQD SPINDLE MOTOR
1500W AC SERVO MOTOR
TAIWAN BAOYUAN SYSTEM
LINEAR 12 SETS AUTO TOOL CHANGER
WITH PRESSURE ROLLER
VACUUM PUMP 11KW AIR COOL
4.0KW DUST COLLECTOR
🖼️ Detailed Photos

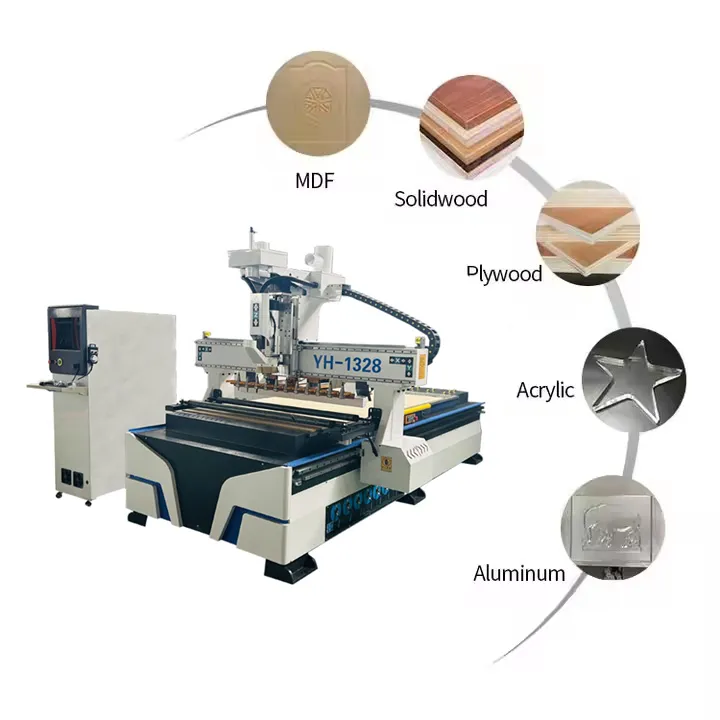

Detail 1

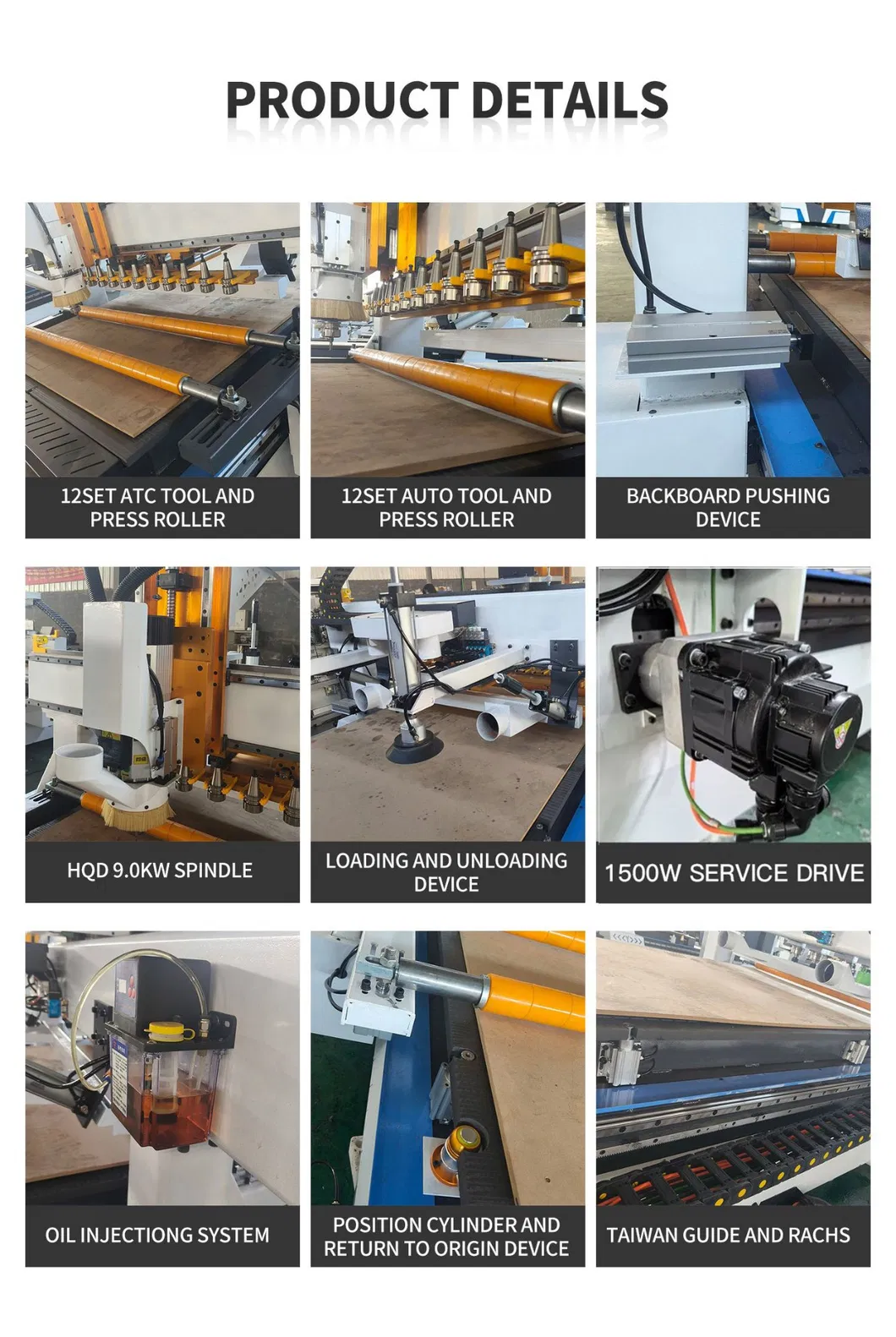

Detail 2

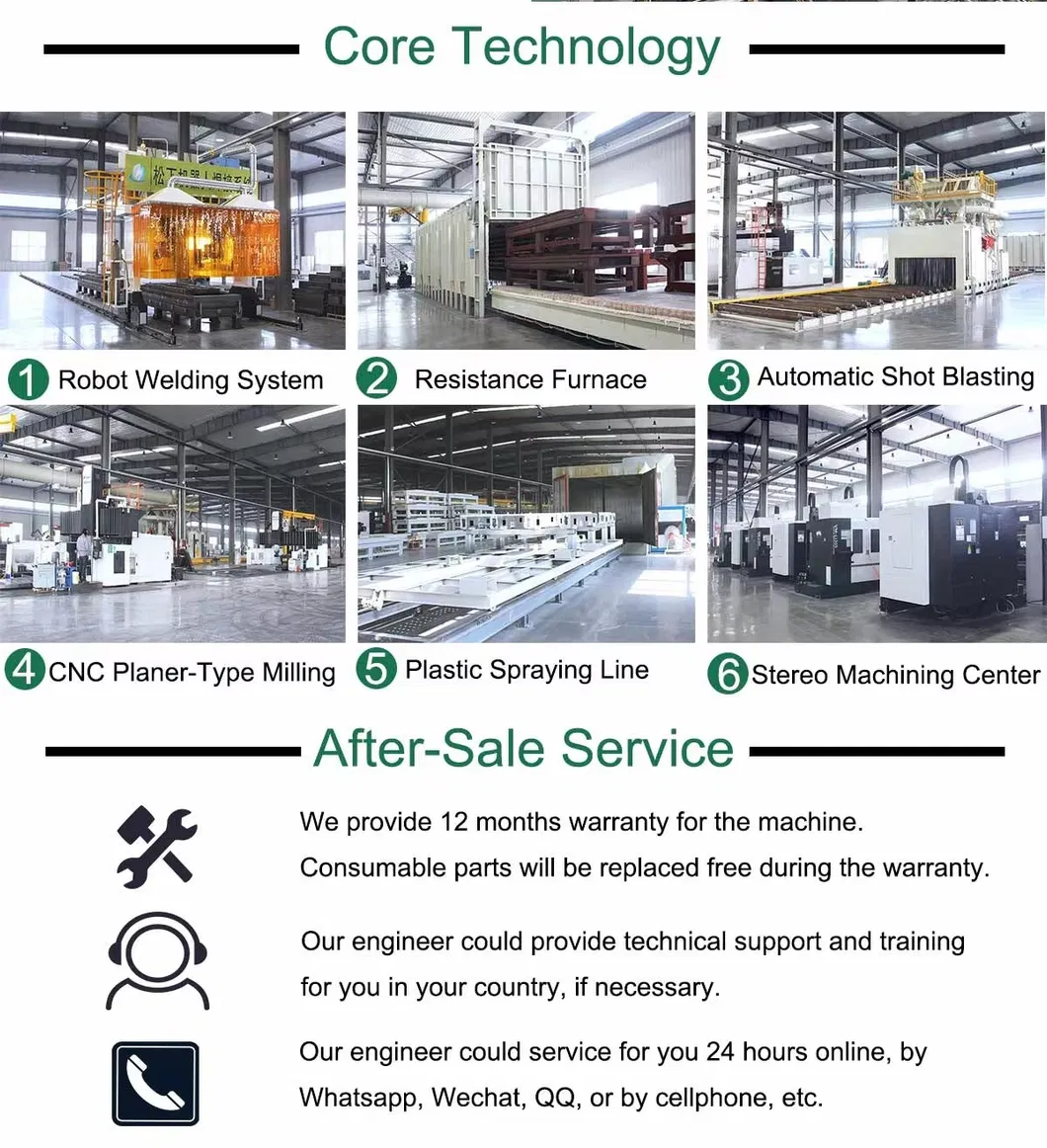

Detail 3
📊 Product Parameters
ModelCNC1328
X,Y Working Area1300x2800mm
Z Feed Height300mm
Repositioning Accuracy±0.01mm
Vacuum Table11KW Pump
Frame StructureThicker Steel tube structure
X, Y, Z Structure25mm Rail Linear Bearings and Ball Screw
Max. Rapid Travel Rate24000mm/min
Spindle Speed0-24000RPM
Working VoltageAC380V/50/60Hz, 3PH
Operating SystemTaiwan BAOYUAN control system
Software CompatibilityType3/UcancameV9 (Option: Artcam)
📦 Packing & Workshop
FCL Shipping
Full or Mix container load with waterproof plastic film.
LCL Shipping
Secure Woodden Box Packing for maximum protection.
Shipping
Packing
Logistics

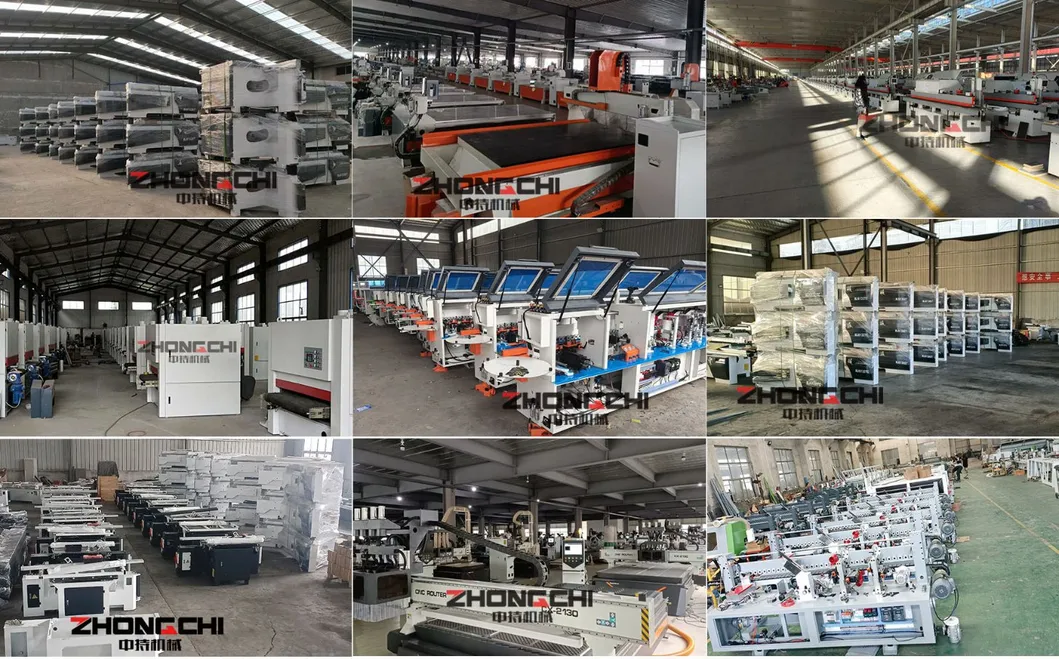

Workshop
🌟 Client Feedback & Certifications

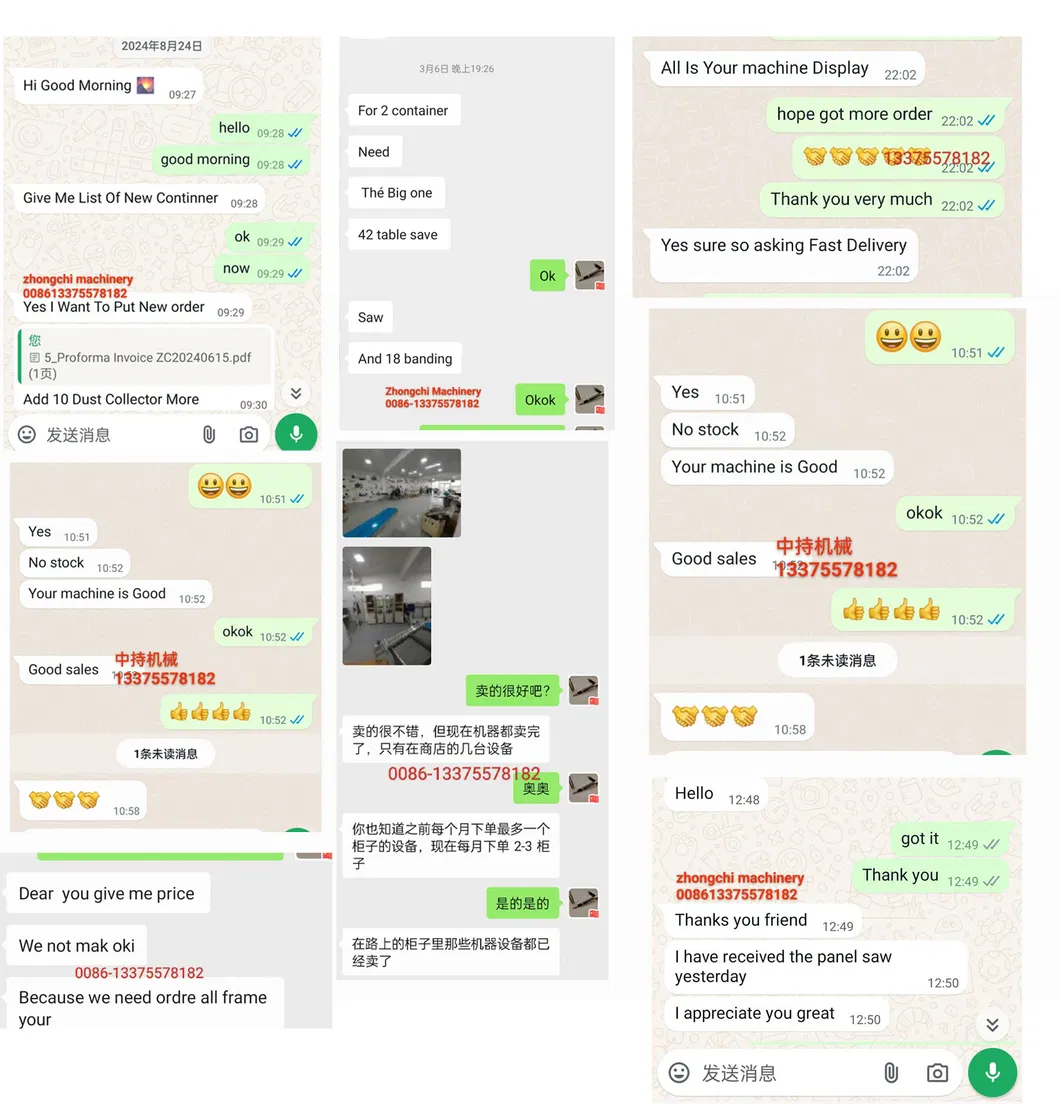

Client Feedback
CE Certifications
❓ Frequently Asked Questions
How do I choose the right CNC machine for my needs?
It is very easy to choose. Simply define the type of work you want to perform and the maximum size of your materials. Based on this, we can provide perfect solutions and configuration suggestions.
I am a beginner; is it difficult to operate this machine?
Not at all. We provide comprehensive tutorial videos and an English version of the manual. If you still have doubts, we offer support via telephone, video calls, or even engineer deployment to assist you.
What happens if the machine encounters problems during the warranty period?
We supply free replacement parts during the warranty period if any issues arise. Additionally, we provide lifelong free after-sales service to ensure your machine runs smoothly.
What is the Minimum Order Quantity (MOQ)?
The MOQ for our CNC machinery is 1 set. We can arrange shipping to your nearest port.
What materials and applications is this machine suitable for?
This machine is ideal for cupboards, furniture, doors, wood panels, and various fixtures, offering high precision for professional woodworking.
Is the machine certified for international standards?
Yes, our woodworking machines are fully CE certified, ensuring they meet the required safety and quality standards for international use.
