Product Overview

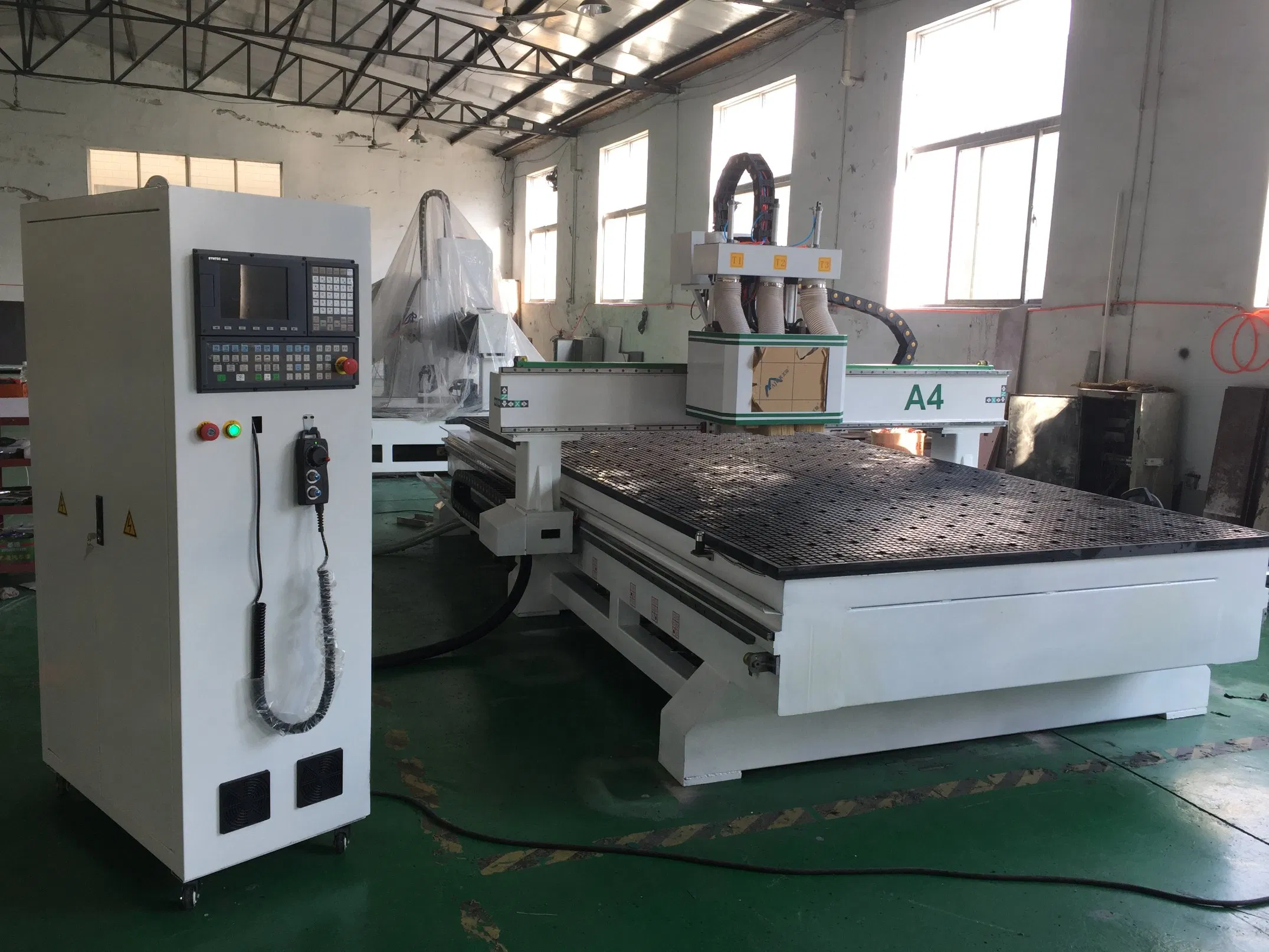

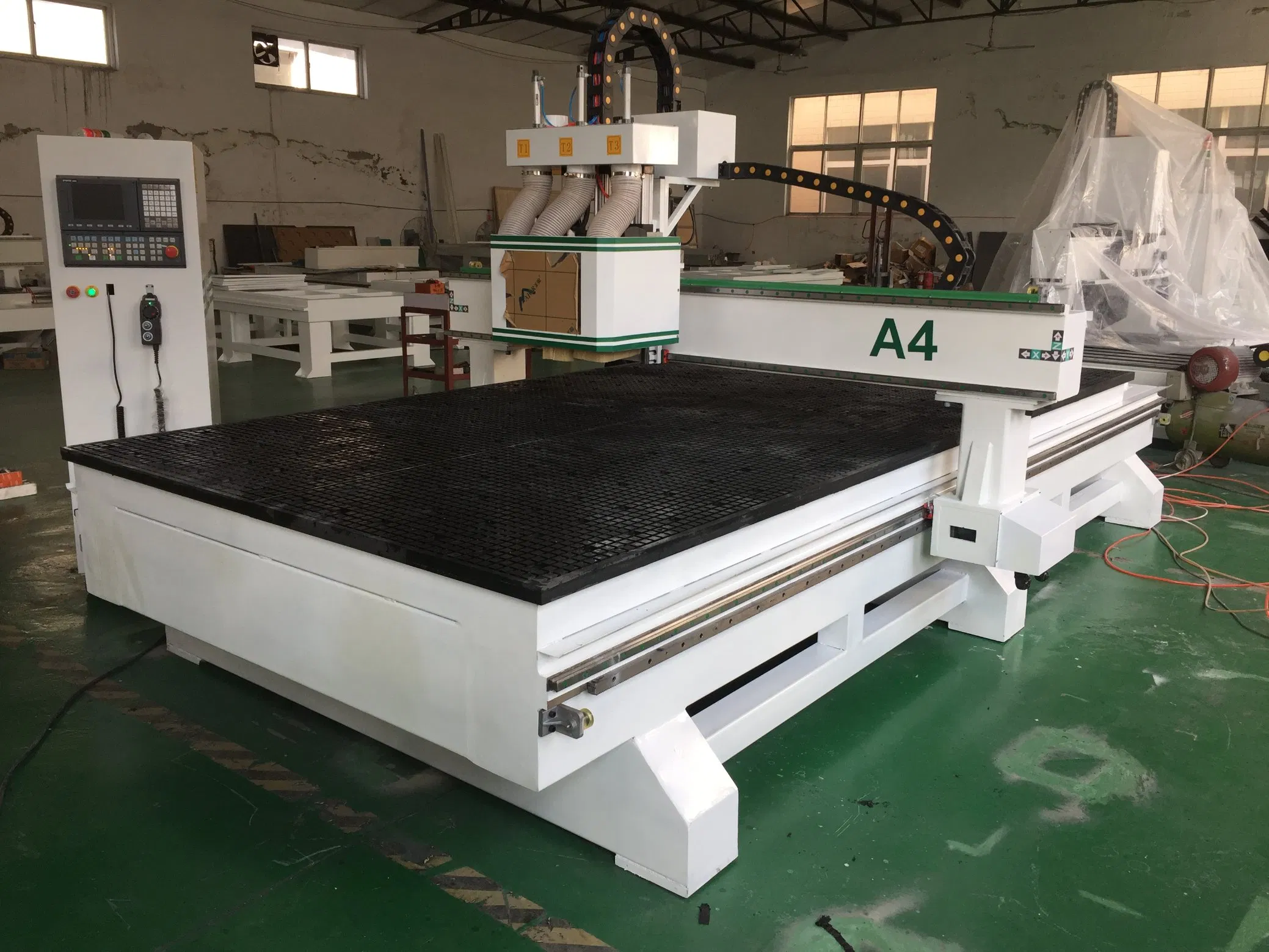

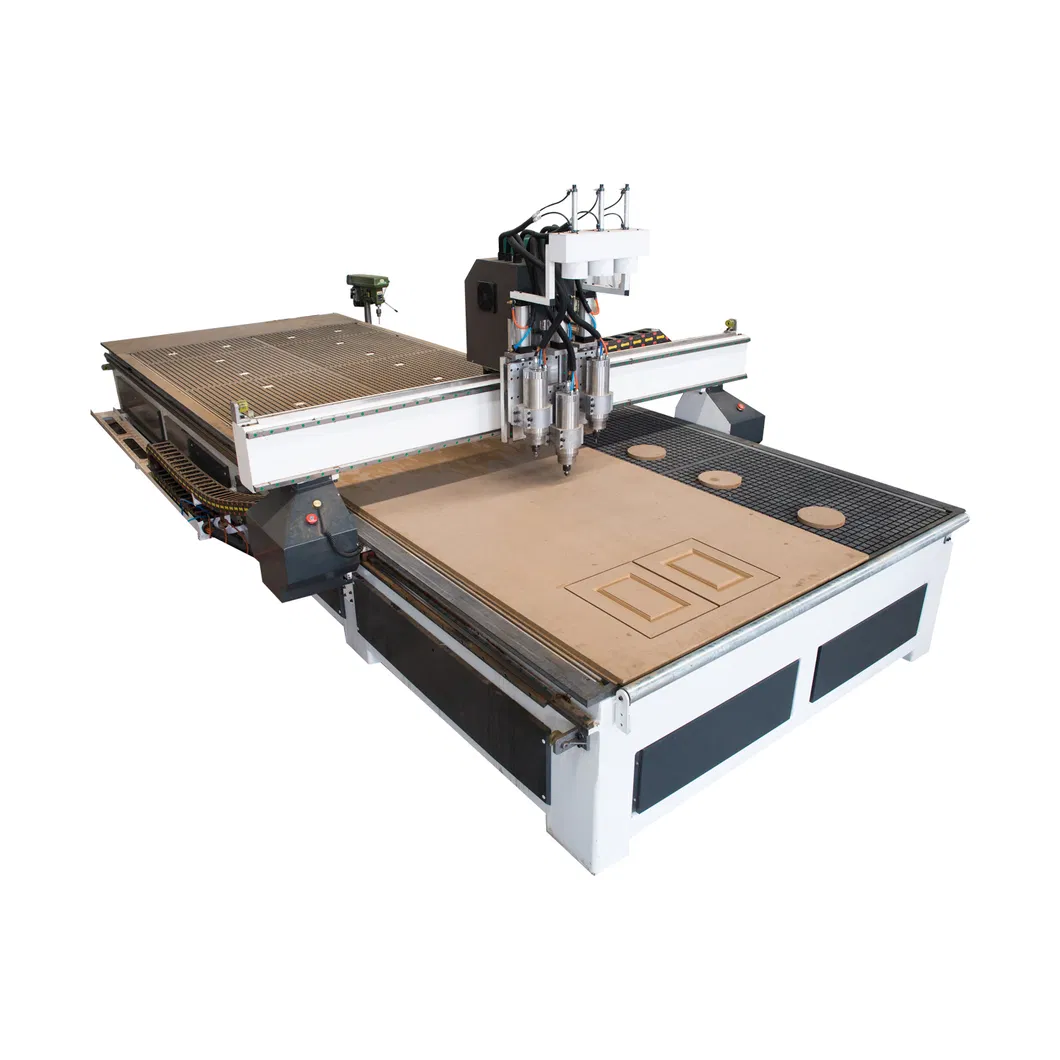

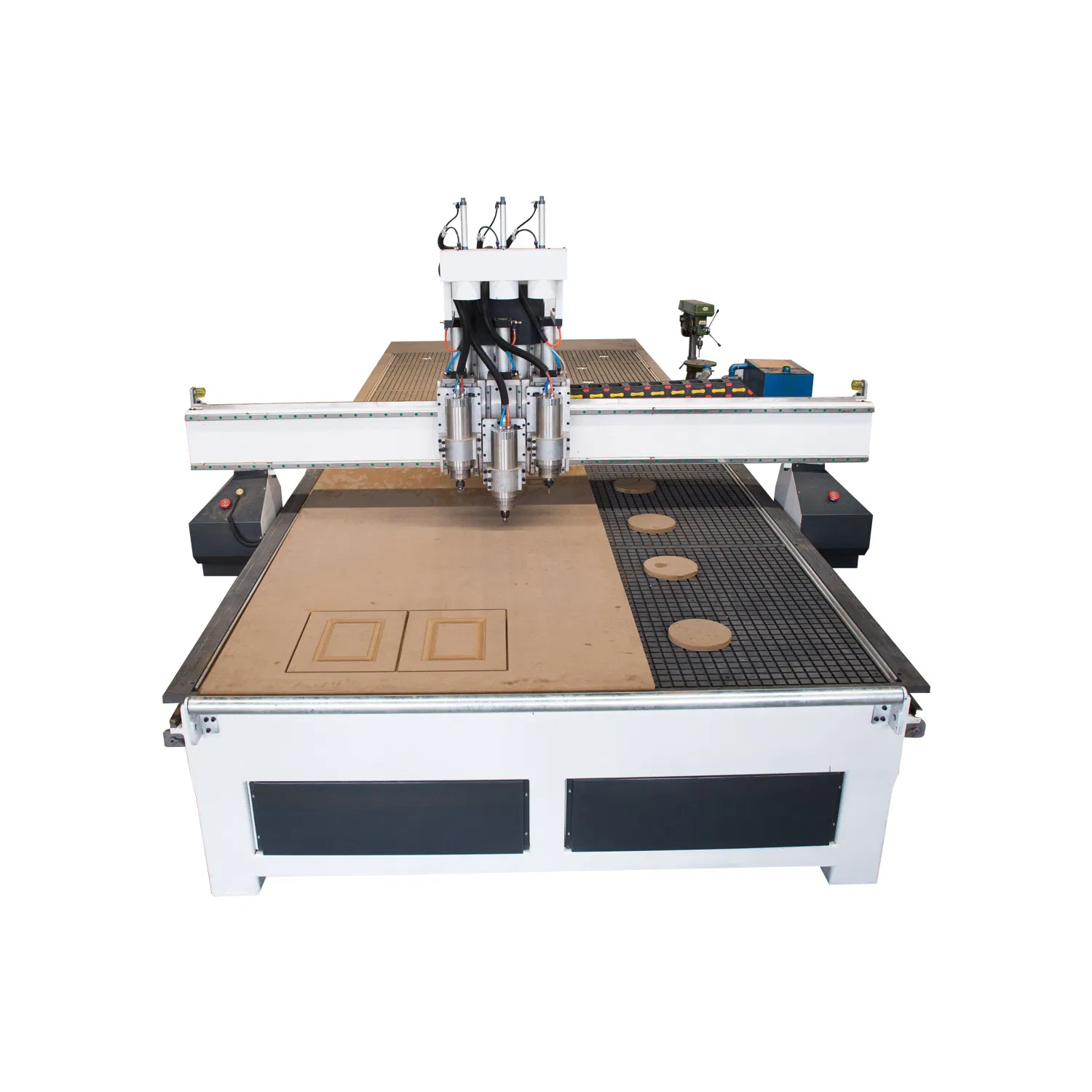

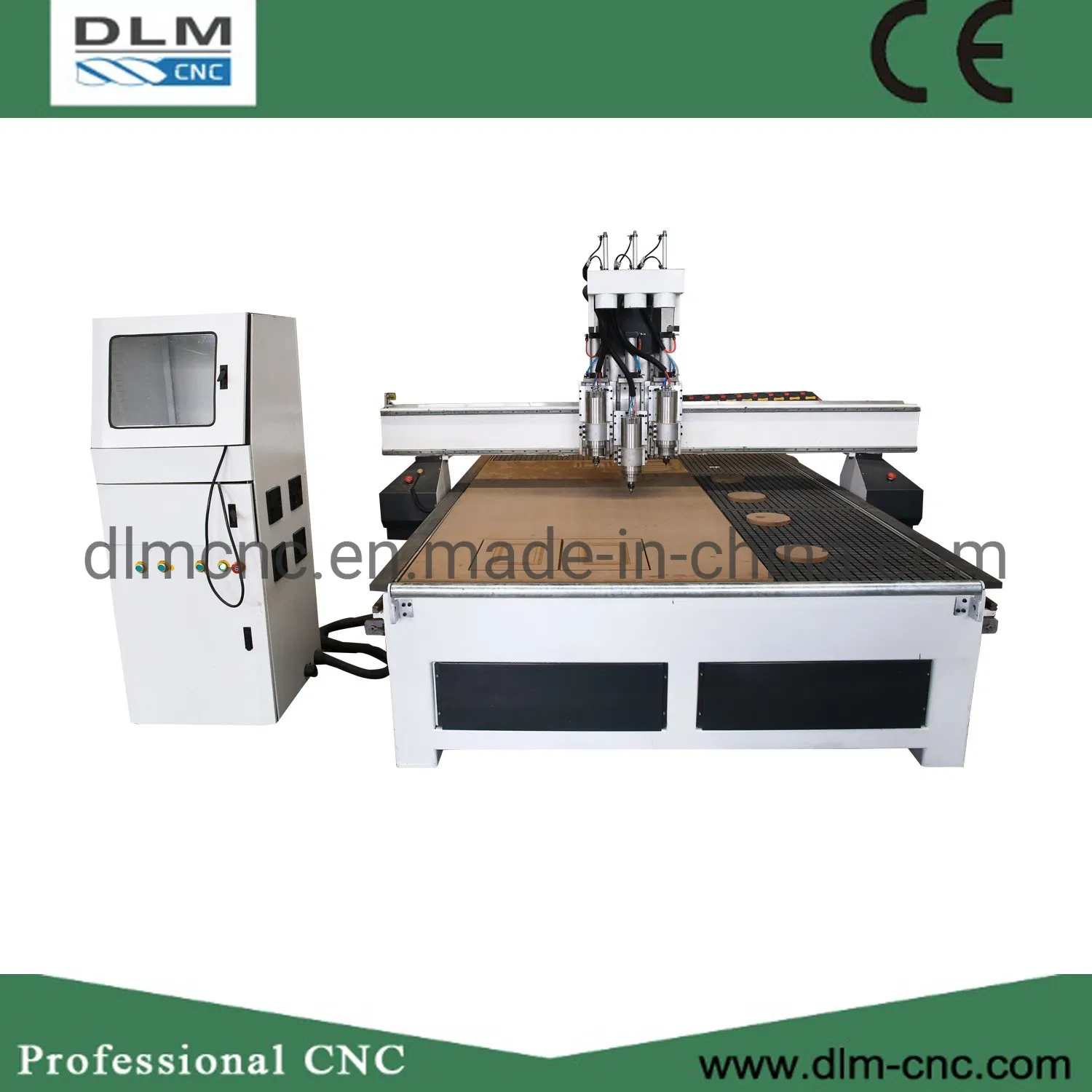

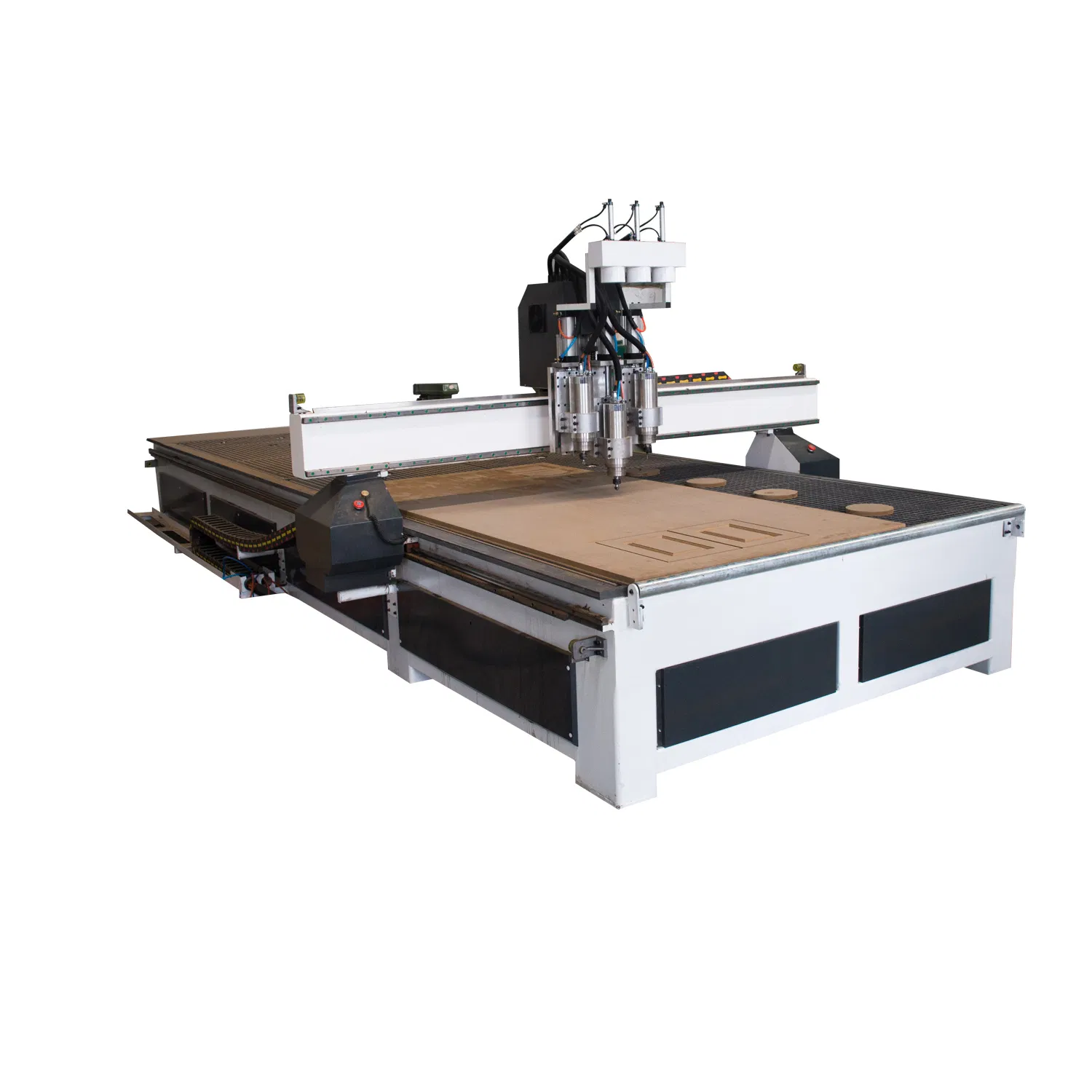

China CNC Woodworking Machinery 3 Spindles - Model NM-2030-3
1
Efficiency: It can save time for changing less than 3 cutters.
2
Stability: Stable structure with a heavy-type machine body.
3
Versatility: Double work position available for your choice.
Basic Information
Certification
CE, ISO 9001
Usage
Woodworking, Plastic, Stone, Rubber, Advertising, Mould
Spindles
6kw Air Cooling Spindle *3 PCS.
Motor
Servo Motor / Stepper Motor
Lubrication
Automatic Oil Lubrication System
Dust Collector
3kw with Double Bags
Specification
2000mm*3000mm
Technical Parameters
| Model | NM-2030-3 |
| Working Area | 1300mm*2500mm |
| Spindle * 3 PCS | 6KW Air Cooling Spindle * 3 Sets |
| Table Design | T-slot Vacuum Table/ PVC Vacuum Table |
| Rail | Taiwan Linear Rail |
| Driving System | Servo Motor / Stepper Motor |
| Controller | Taiwan Syntec/ NC Studio |
| Inverter | 7.5KW |
| Motor | Servo Motor |
| Pump | 5.5KW Chinese Becker Pump |
Frequently Asked Questions (FAQ)
What are the main applications of the NM-2030-3 CNC machine?
It is widely used in woodworking, plastic, stone, rubber, advertising, and mould manufacturing industries.
How does the 3-spindle design benefit the production process?
The multi-spindle design allows for faster operation by saving time when changing between up to 3 different cutters.
What type of table system does this CNC router use?
It features a versatile vacuum table, with options for T-slot or PVC configurations to suit various material holding needs.
Which control systems are compatible with this equipment?
The machine is compatible with high-quality controllers such as DSP, Taiwan Syntec, or NC Studio.
Is the machine structure suitable for heavy industrial work?
Yes, the machine is designed with a heavy-type body and stable structure to ensure precision during intensive woodworking tasks.
What software can be used for design and operation?
The equipment supports industry-standard software like Type 3 and Artcam for seamless project design.
