Basic Specifications
Spindle Number
Single-Spindle
Keywords
3 Axis CNC Router
Spindle
Water Cooling Spindle
Control System
Nc Studio System
Spindle Speed
0-24000rpm/Min
Production Capacity
100sets/Month

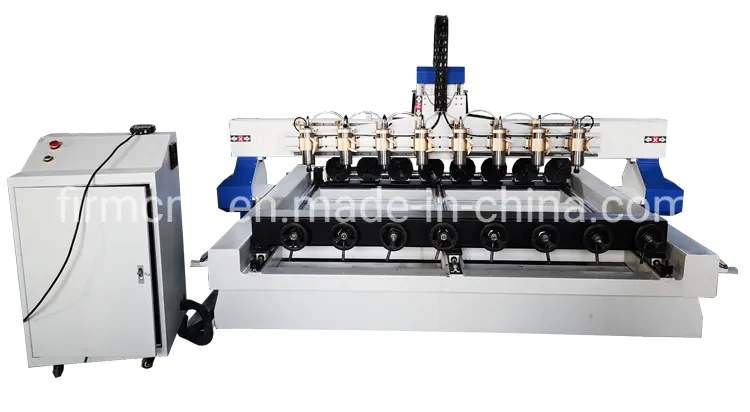

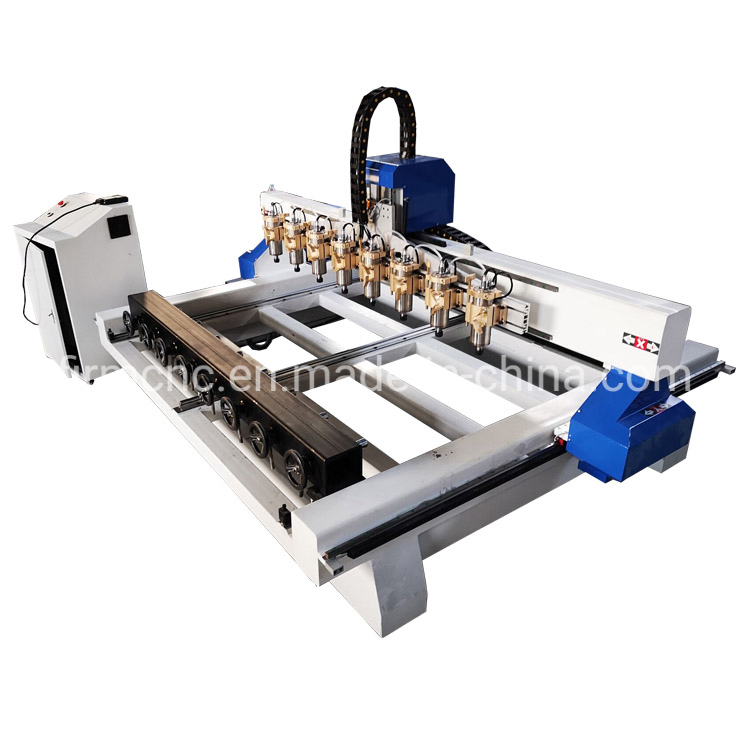

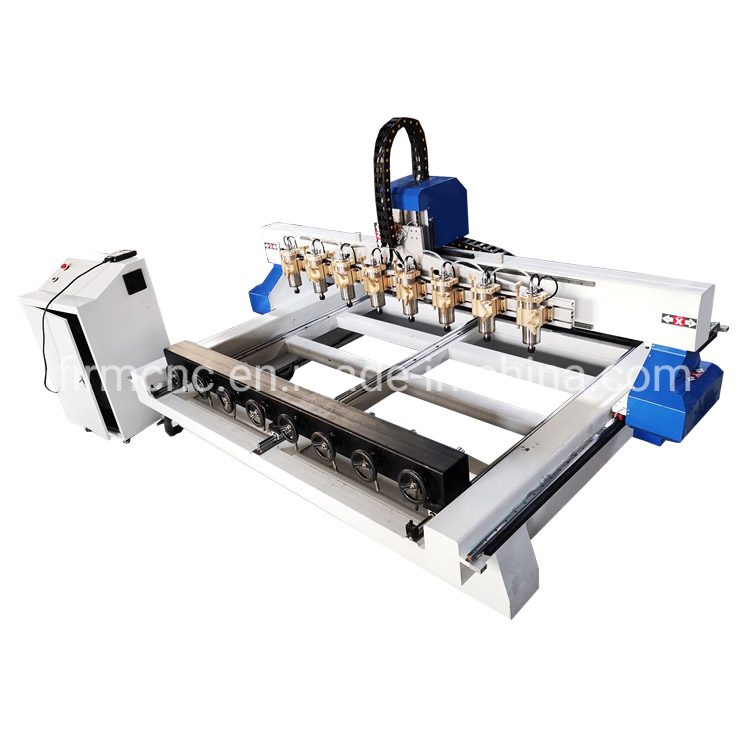

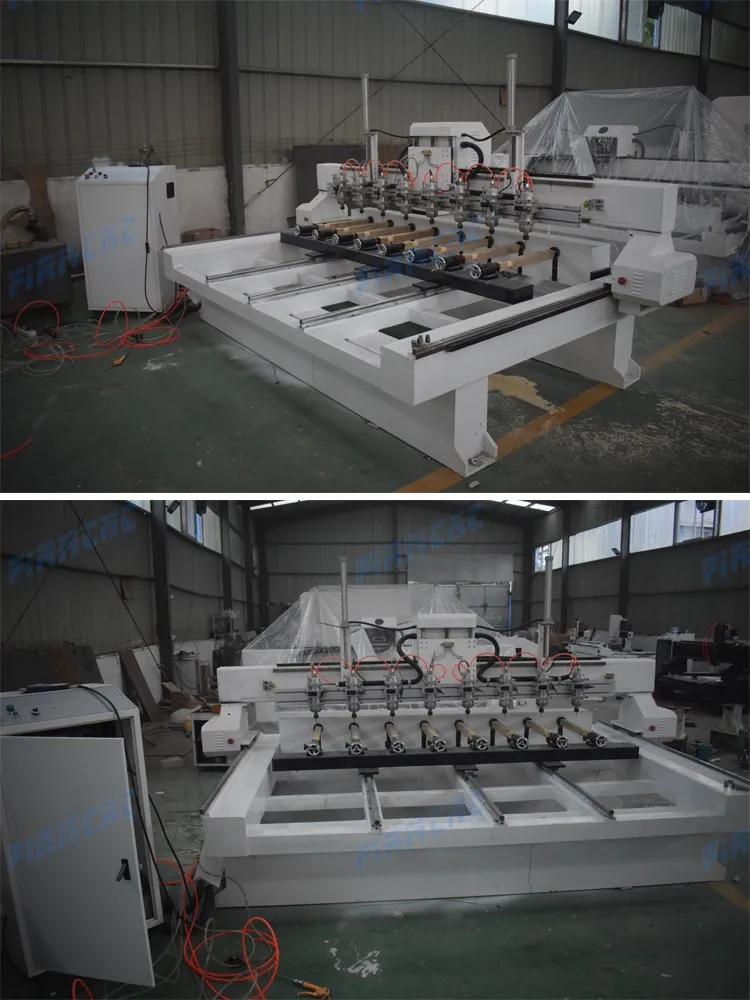

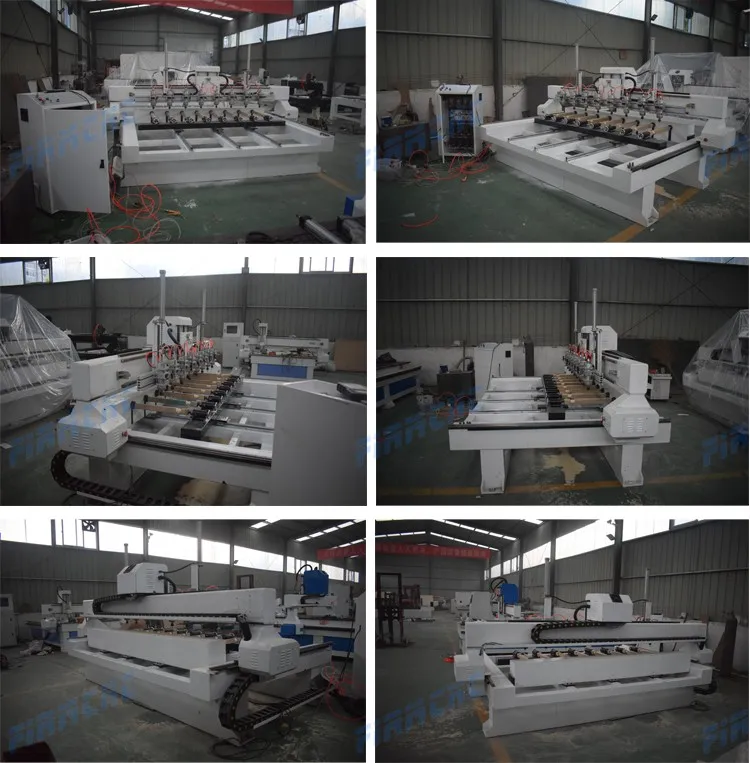

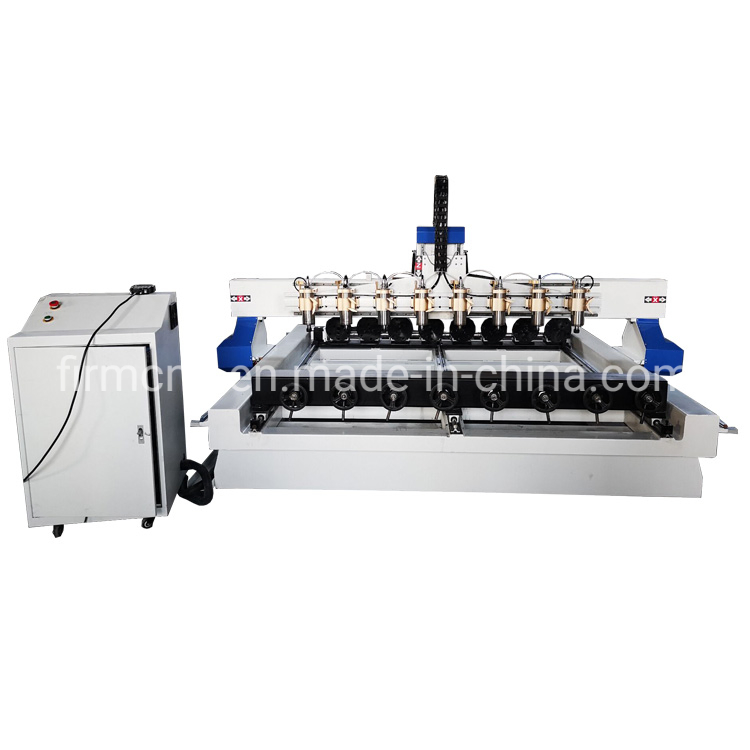

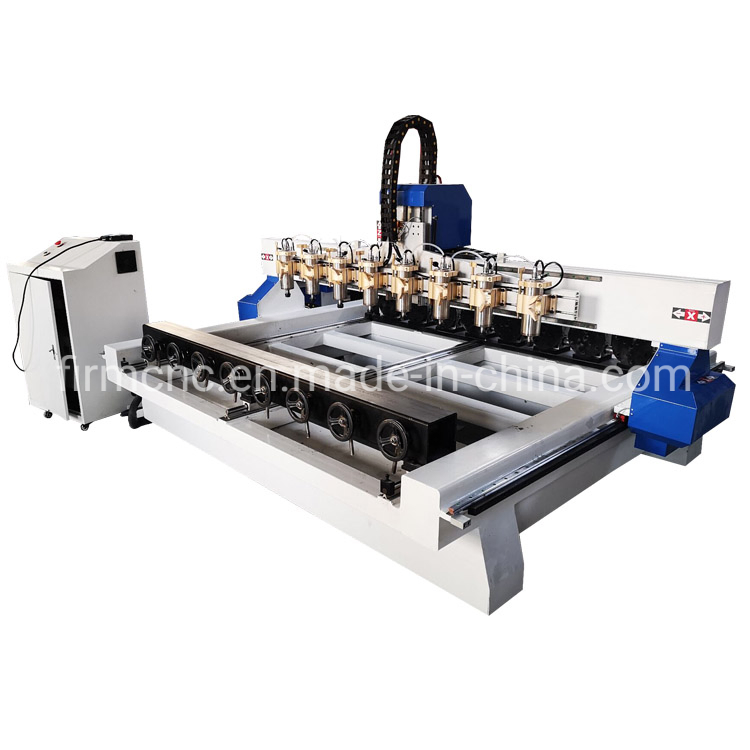

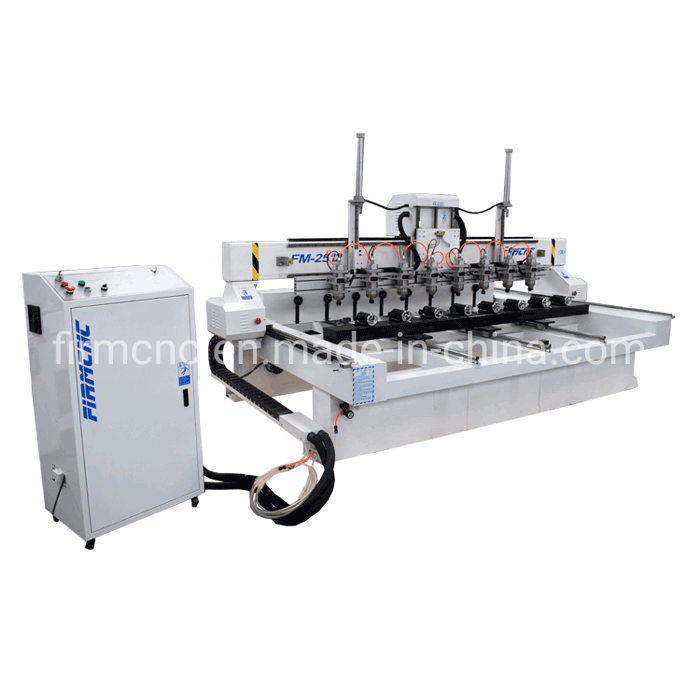

Multi Head 8 Rotary Axis 3D Wood Carving CNC Router
-
1
Engrave human statue, buddha, art work, furniture in 360° degree.
-
2
Four-axis controlling system, full servo driving system.
-
3
Adopt driving worktable for smooth running, high precision.
-
4
Hand shank control, convenient operation, easy study.
Technical Parameters
| Description |
FM1325 |
FM1530 Option |
FM2030 Option |
| Working Area |
2500*1300*300mm |
3000*1500*300mm |
2000*3000*300mm |
| Rotary axis diameter |
100mm, 150mm, 200mm, 250mm, 300mm optional |
| Transmission |
X/Y Axis helical rack and pinion, Taiwan Hiwin rails; Z Axis Taiwan TBI ball screw |
| Spindle Power |
1.5kw, 2.2kw, 3kw water cooling spindle optional |
| Travelling Speed |
15000mm/min |
| Software |
UG/Alpha Cam/Type3/UcancamV9/CATIA/Vetric Pro/Power Mill |
| Weight |
1550KG with package |

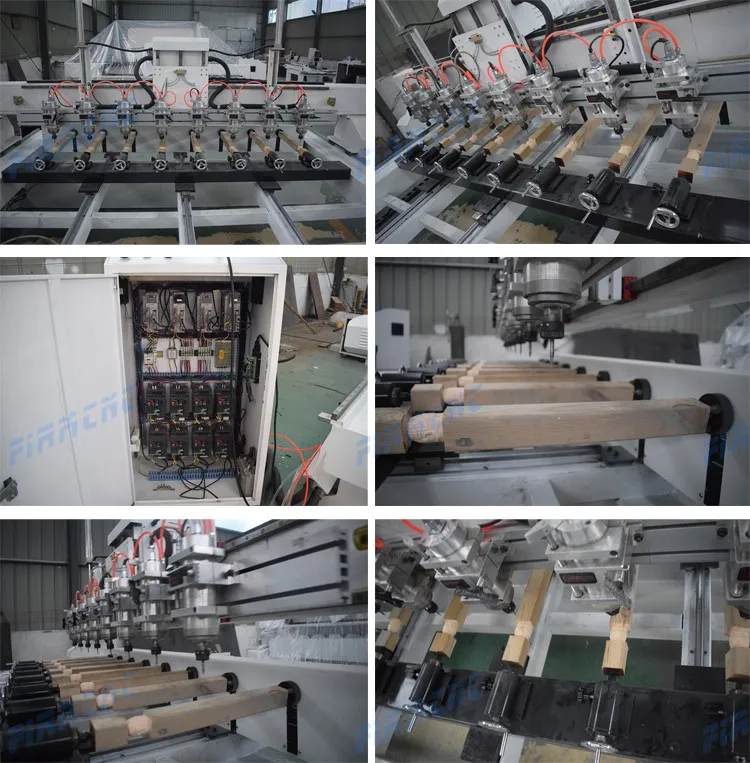

Main Components & Applications

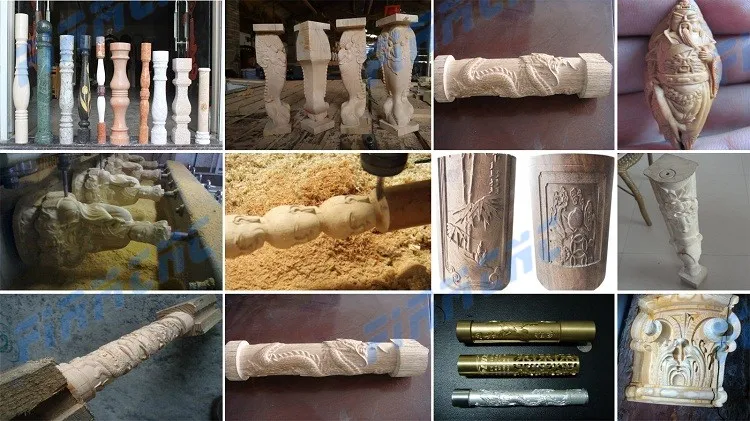

Suitable Industries: Furniture, home improvement, woodworking decoration, doors, wooden handicrafts.
Processing Capabilities: Dimensional wave board processing, carving, cabinet doors, wooden craft, paint doors, screens, process window, or styling products such as carved.
Specialty: Mainly used in the processing of cylindrical objects, such as cylindrical crafts, cylinder furniture accessories, stair railings, and cylindrical musical instruments.
Service & Packaging
After-sale Service
- English Version working manual provided.
- Online support and engineer calls available.
- One-year machine warranty with free parts for unintentional damage.
- Remote control support if needed.

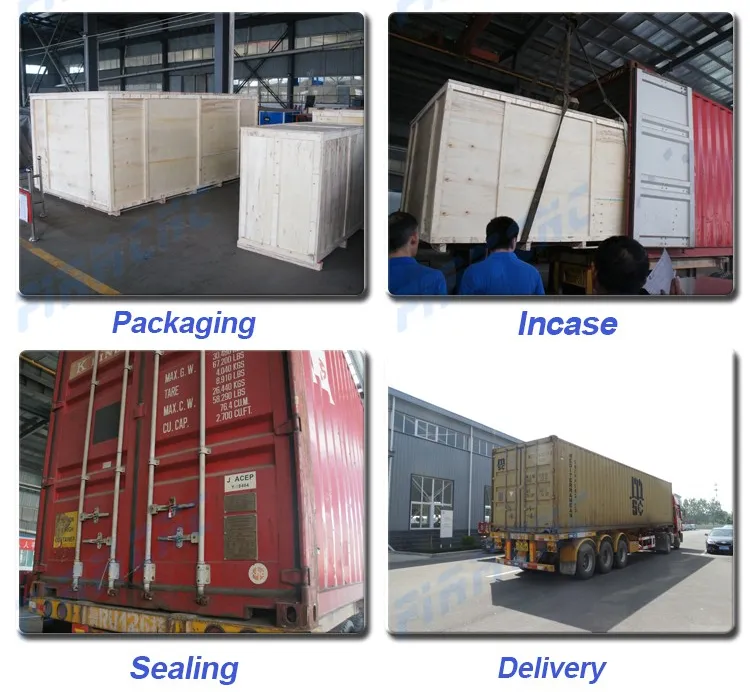

Packaging Details
- Foam and wrapping film inside (Rain-proof/Dust-proof).
- Standard export plywood case.
- Fumigation-free materials.
- Clear shipping marks with weight and model info.
Frequently Asked Questions
How do I choose the right CNC router for my needs?
To recommend the most suitable machine, please provide your specific working area requirements and the types of materials you plan to process. We will suggest the perfect configuration based on these details.
Are operation manuals and training videos included?
Yes, once the order is confirmed, we provide a comprehensive operation manual and working videos to help you get started quickly.
What support is available if I don't know how to operate the machine?
Our engineers provide full support through manuals, video calls, and email. We will guide you step-by-step through the operation process until you are comfortable.
How are replacement parts handled during the warranty period?
During the warranty period, we will send replacement parts free of charge. After the warranty, parts are available at agent prices. Most parts are designed for long-term durability.
Do you offer on-site after-sales service abroad?
Yes, our technicians can provide training and after-sales service at your facility. The customer is responsible for airfare and accommodation costs for the technician.
Can you process sample materials for me?
Yes, we can process samples of your materials to demonstrate the machine's capabilities and quality.
