TitanPro Cutting
TitanPro Cutting
| Model NO. | MB3015-15T | Type | Stone Grinding Machine |
|---|---|---|---|
| Control | CNC | Automation | Automatic |
| Precision | High Precision | Application | Granite, Marble |
| Method | Wet Grind | Certification | ISO, CE |
| Specification | 6300*1900*2000mm | HS Code | 8464909000 |

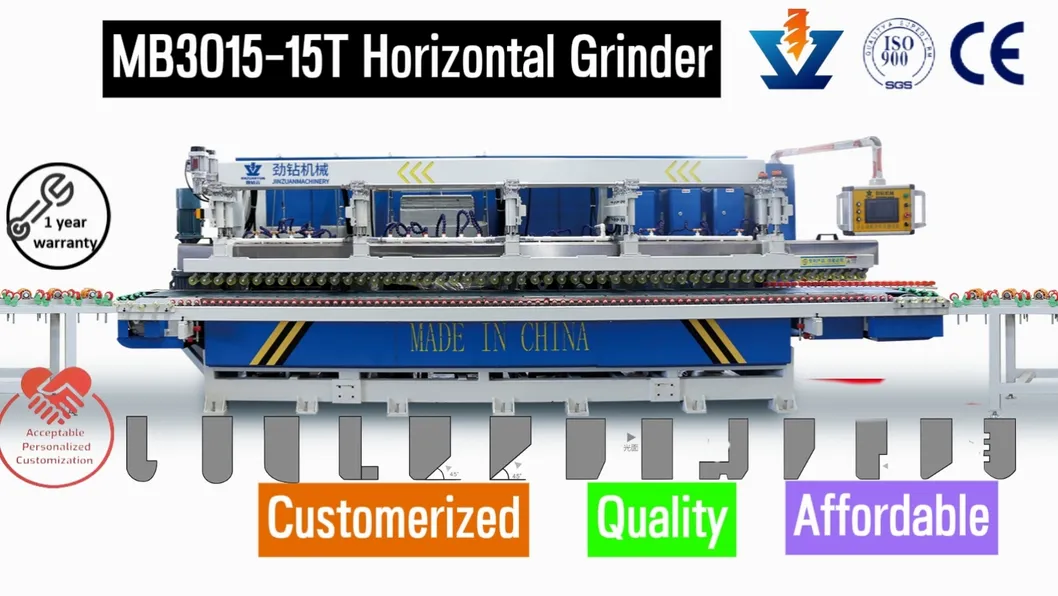

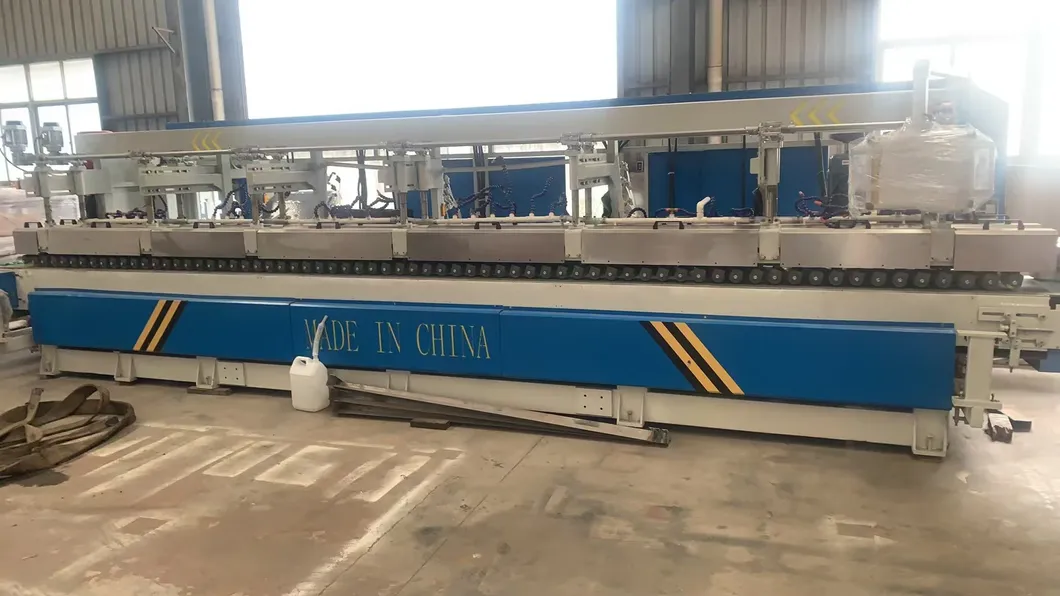

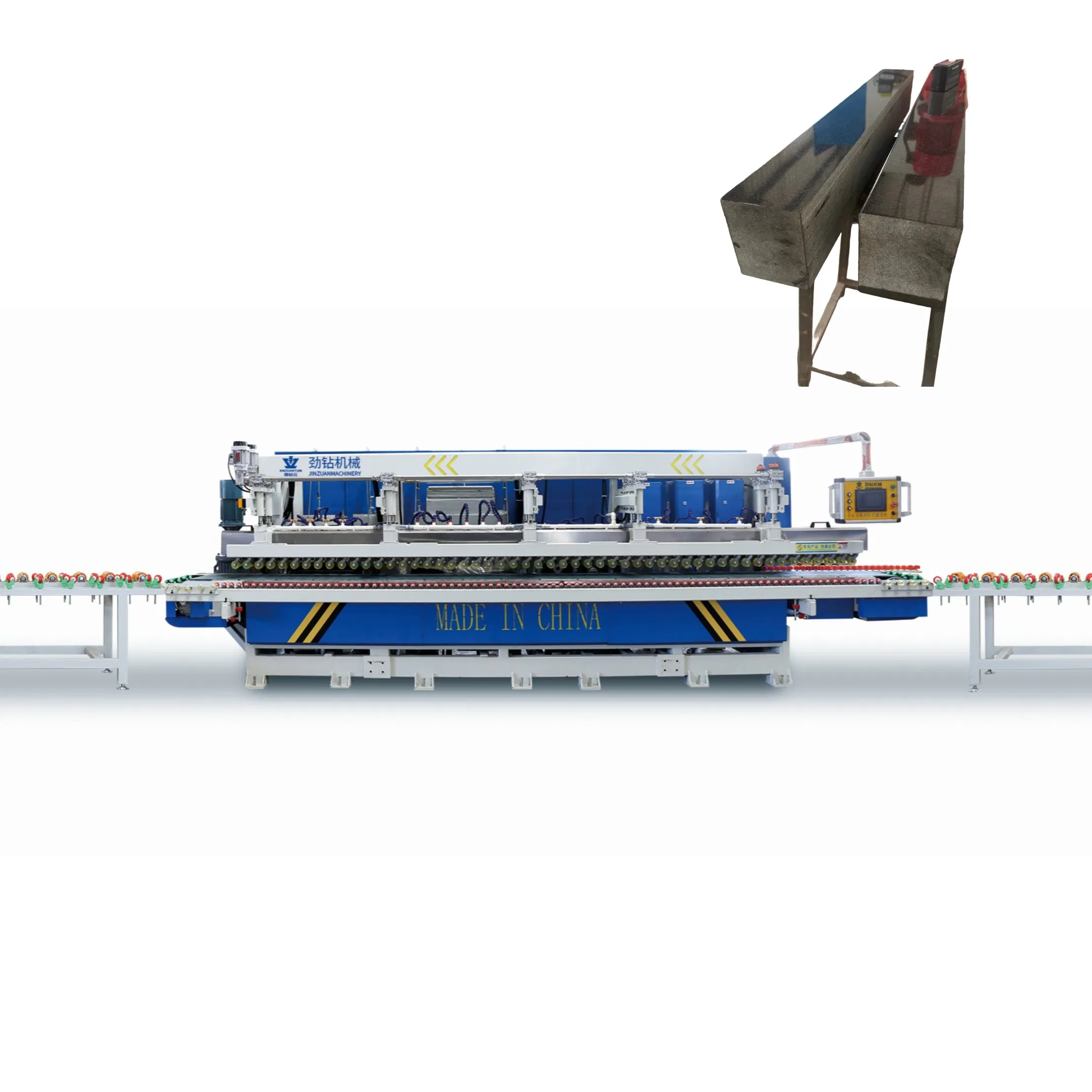

MB3015-15T Stone Grinding Polishing Ceramic Machine Quartz Edge Polisher

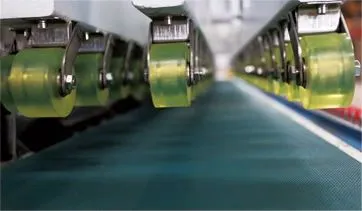

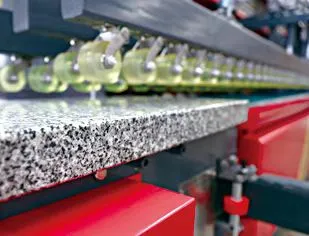

This machine adopts CNC technology, equipped with a touchscreen, variable frequency speed regulation, and memory function. During continuous processing, it allows setting notches on both sides, and the feeding can be continuous or intermittently processed. The machine is equipped with a new conveyor rack with waterproof and anti-slip universal wheels. It has a back plate connection function that can achieve multiple-side processing of workpieces. The polishing abrasive is equipped with internal water outlet, and three electric pressure bars are configured.
| Model No. | MB3015-15T |
| Platform Dimension | 3000*1500mm |

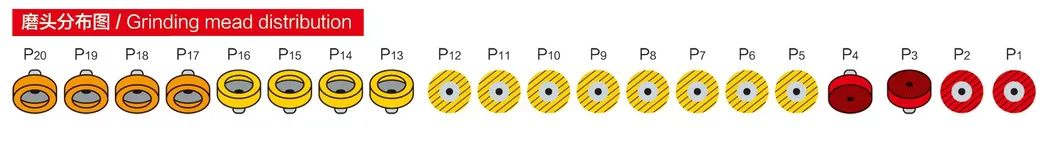

| Number of grinding heads | 15pcs (customizable) |
| Feed Output Speed | 1-3m/min |
| Grinding disc outer diameter | 150-200mm |
| Min/Max Processing Width | 80mm / 3000mm |
| Max Processing Thickness | 80mm |
| Total Power | 50kw |
| Body Weight | 4800kg |

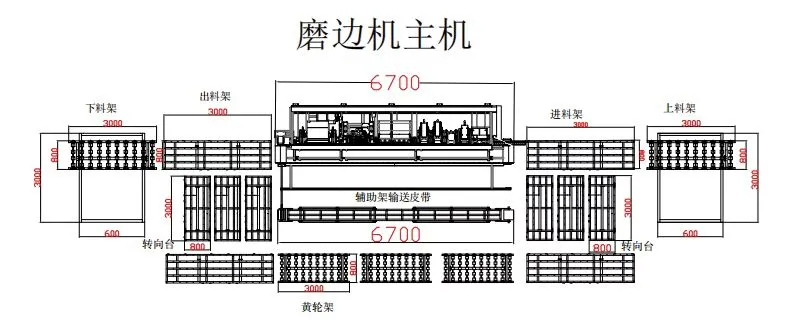

| Boundary Dimension | 6300*1900*2000mm |

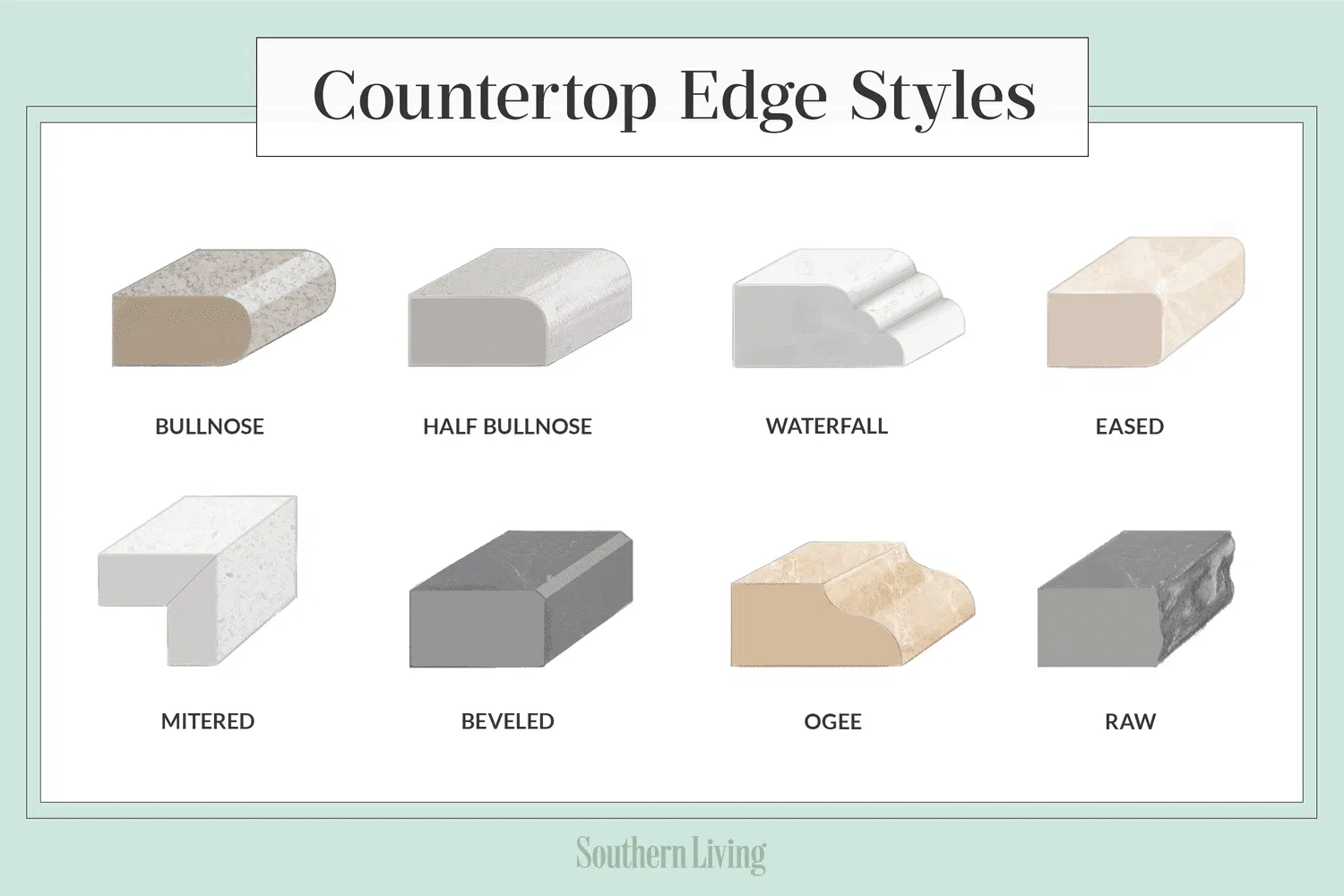

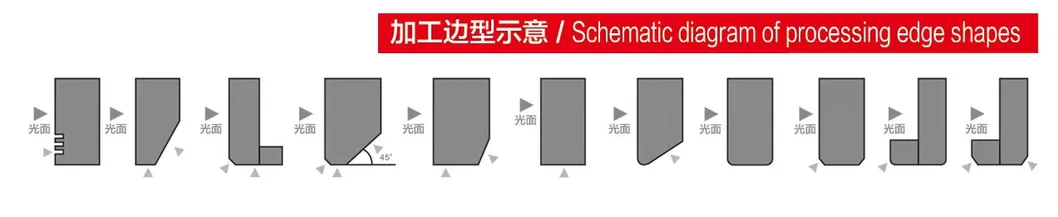

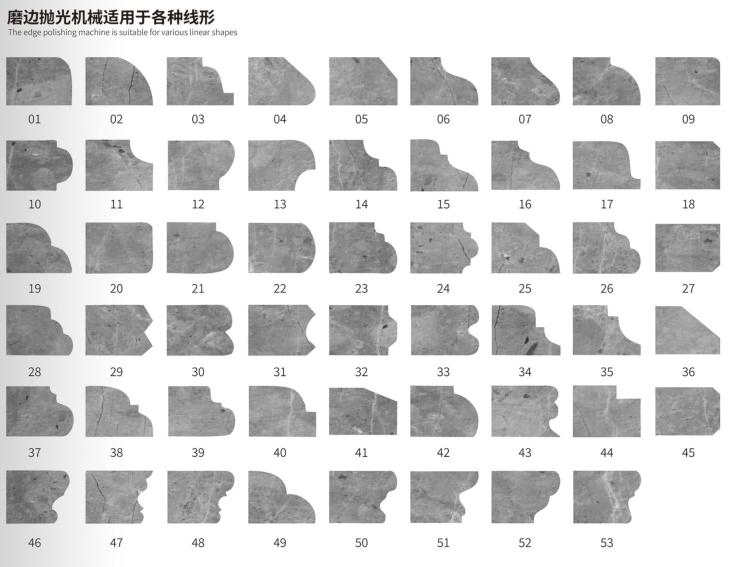

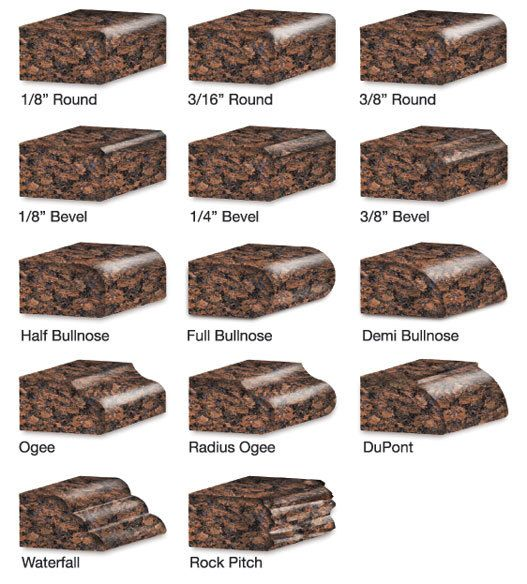

Which Shapes Our Grinder Could Make?

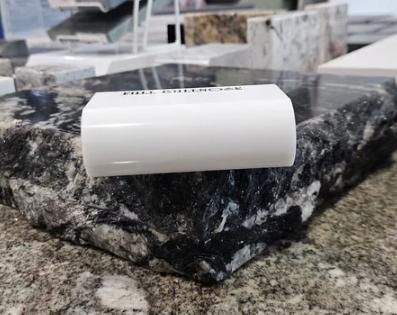

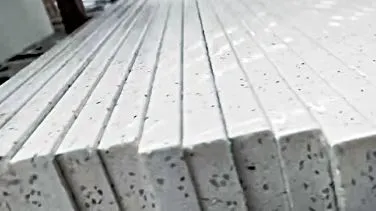

It functions as an integrated manual and automatic machine. It can synchronize automatic opening and lowering adjustment for processing slabs, stones, quartz, etc. Capabilities include rounded edge polishing, side chamfering, upper and lower R-rounding, and upper/lower chamfering in one single pass.

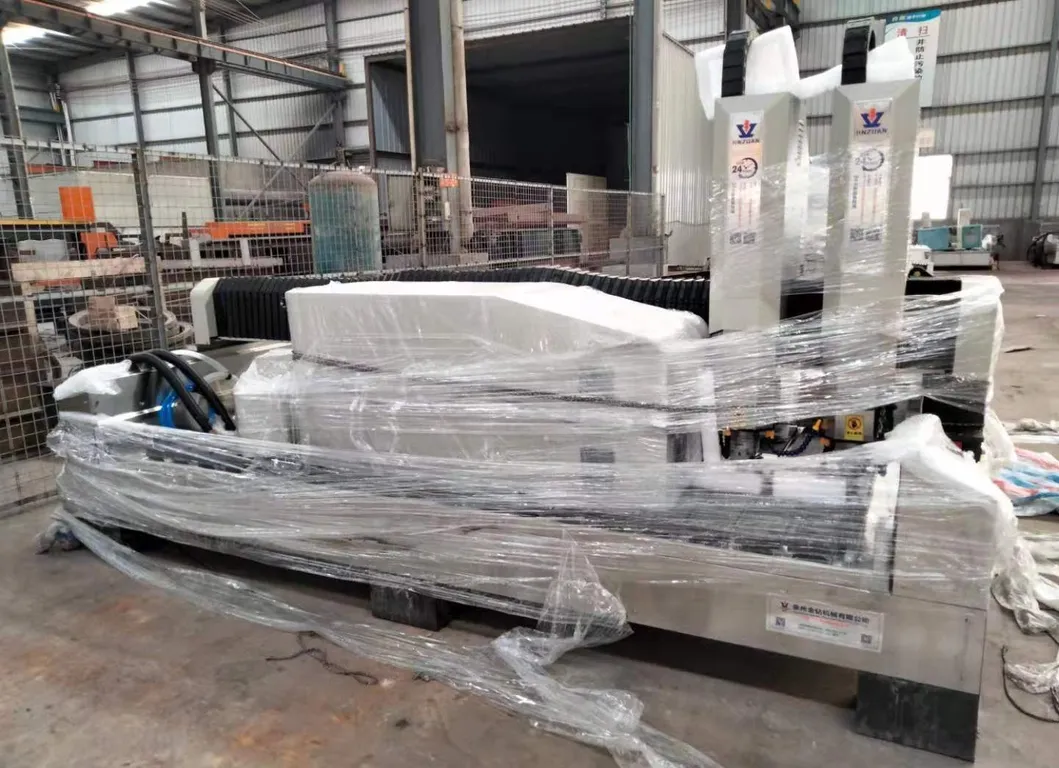

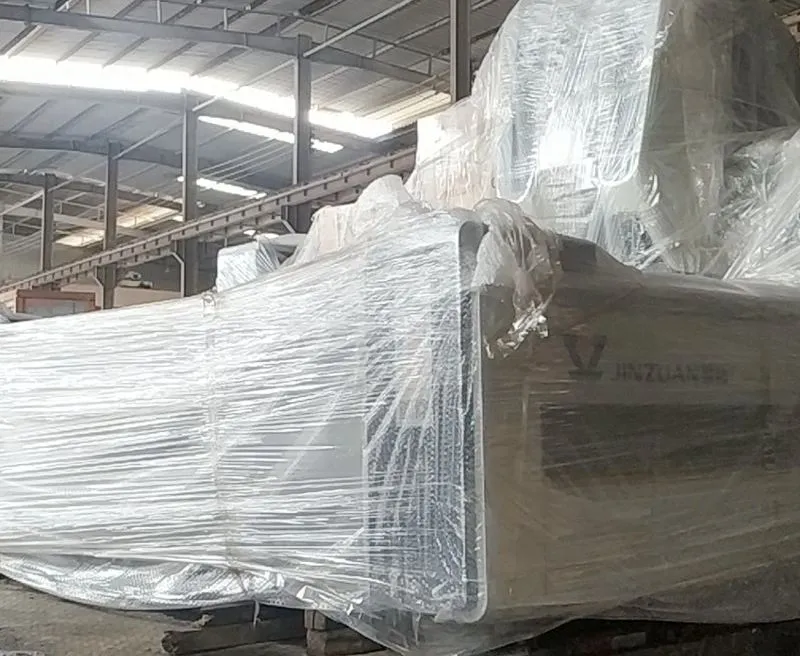

Our packaging technology requirements prioritize rust, moisture, pressure, and impact resistance. Equipment is fully protected and boxed before shipment to ensure a non-damaged condition upon arrival.
