TitanPro Cutting
TitanPro Cutting
| Model | CK-1325-TA-DSL |
| XYZ Work Schedule | 1300*2500*200mm (customizable) |
| Gantry | Thickened aged steel gantry, steel beams |
| Spindle | HQD 9KW air-cooled automatic tool change spindle |
| Spindle Speed | 6000-24000r/min |
| Driving Mode | High torque 1.5KW pure servo motor drive |
| Reducer | Japan Shimpo reducer |
| Tool Change Magazine | 8/12/16 linear tool magazine |
| Table | Vacuum table 6 zones and 24 holes |
| Control System | Taiwan LNC / Syntec dedicated control system |
| Operating Voltage | AC380V 50/60Hz |
| Dimensions | 9850*2150*2200mm |

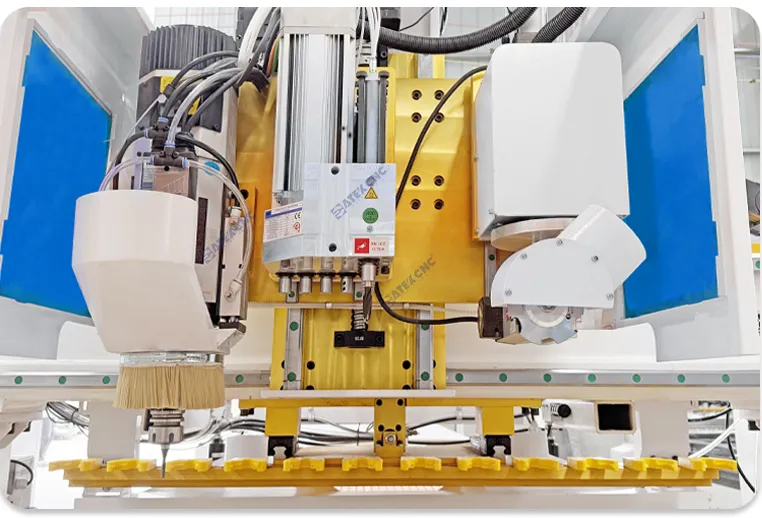

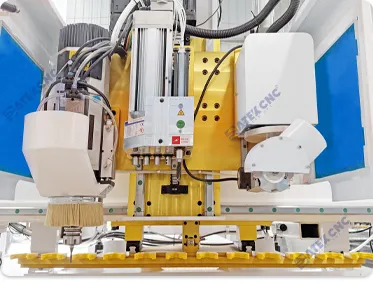

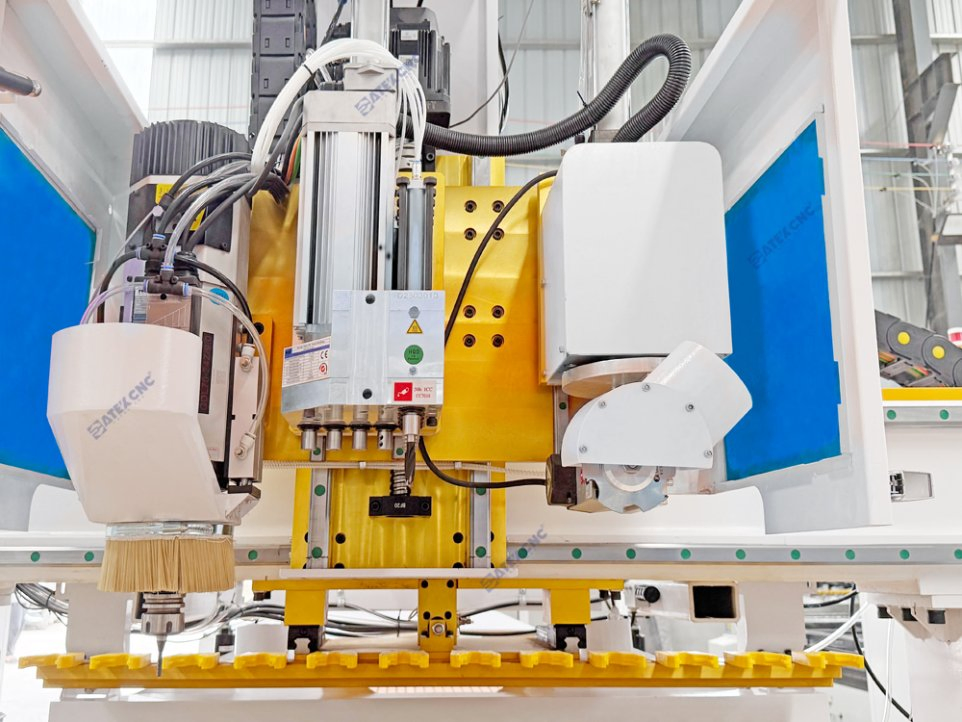

9KW air-cooled automatic tool change spindle with 12-tool linear magazine and 5+4 drill banks. Supports Lamino invisible parts saw blades for fast, manual-free processing.

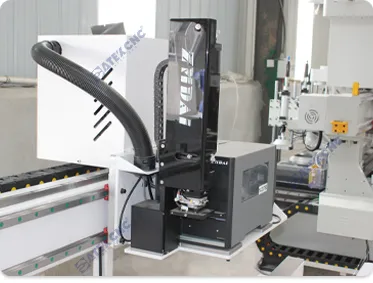

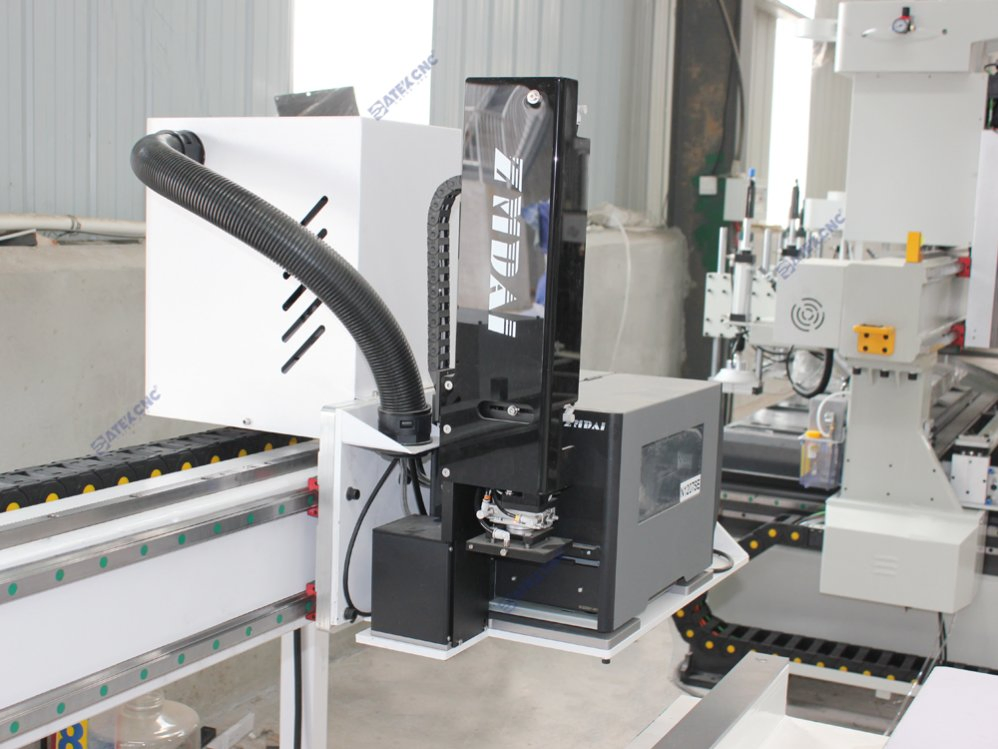

Independent labeling device with rotary unit. Increases labeling speed and prevents damage to small plates.

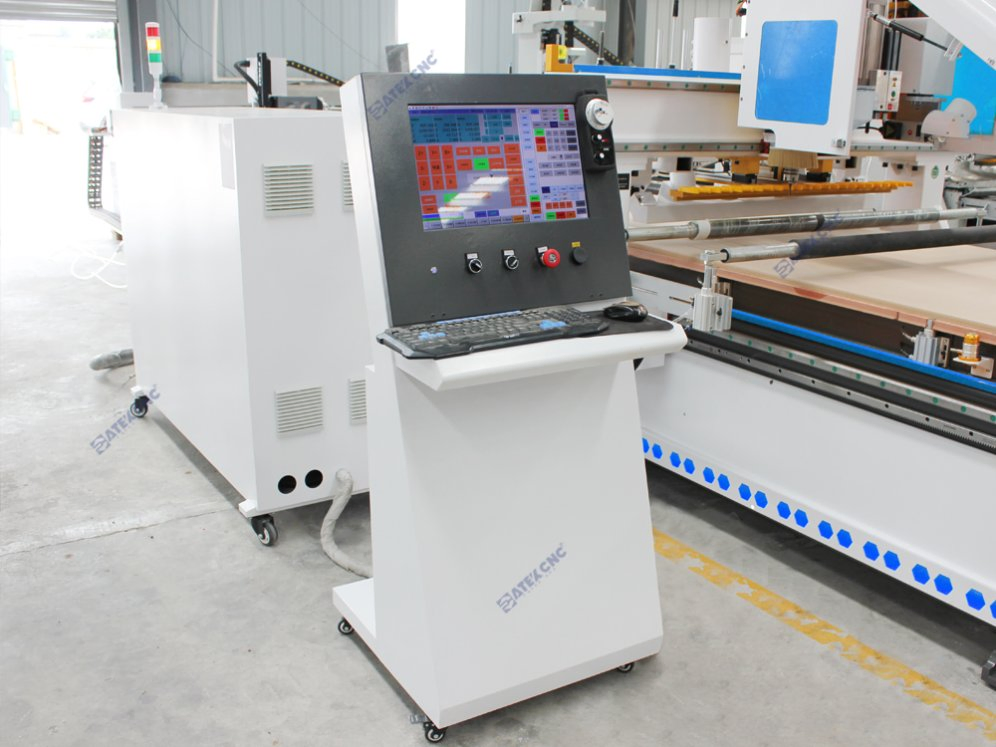

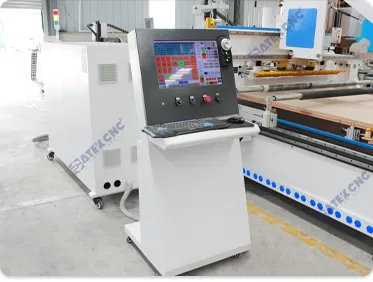

Taiwan SYNTEC CNC system: Industrial-grade screen, USB G-code reading, intuitive interface for complete control.

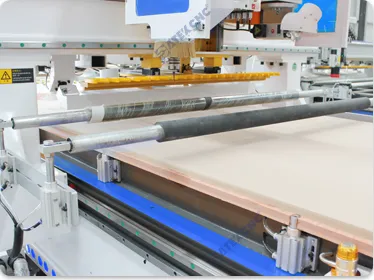

Double-rod pneumatic pressure wheel: Cylinder-controlled automatic lifting to fix multi-layer materials efficiently.

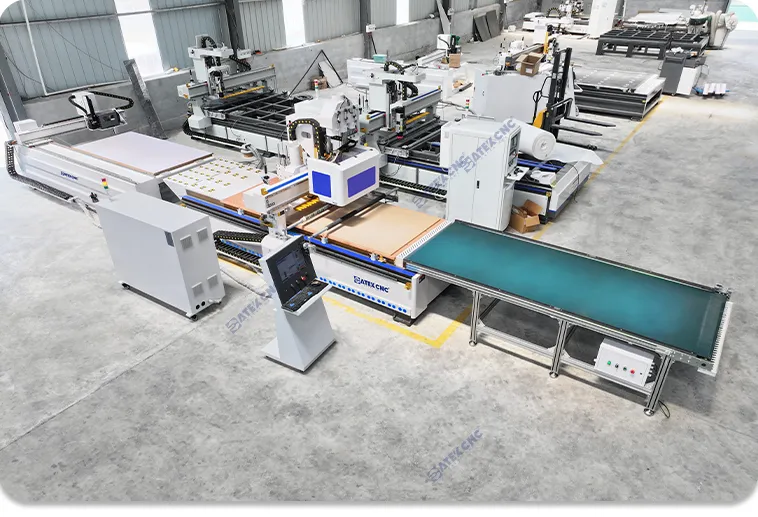

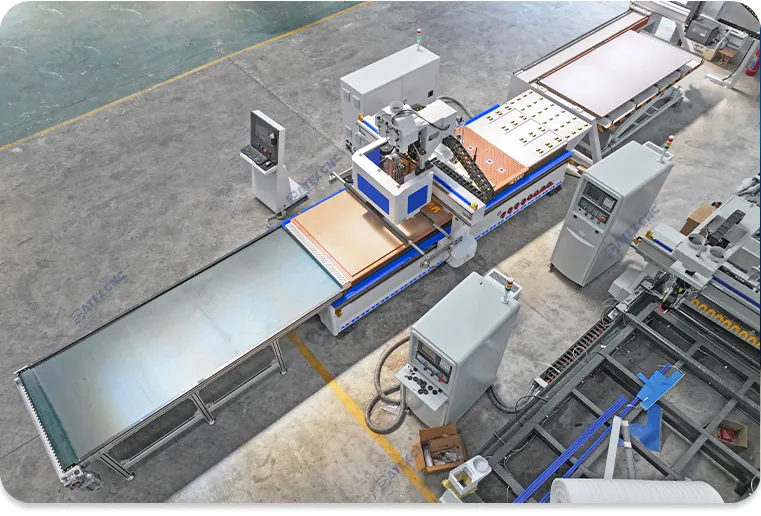

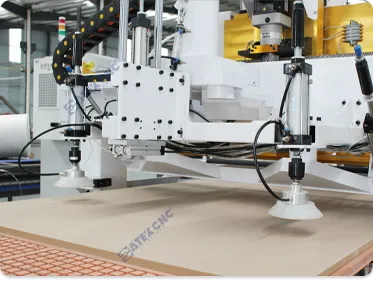

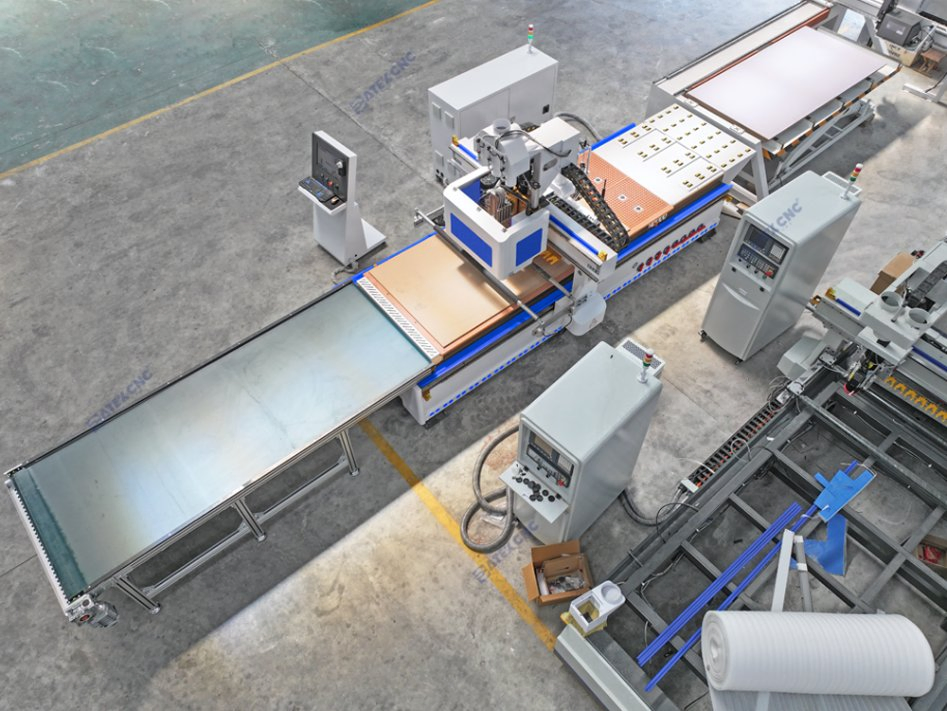

Automatic loading/unloading system with vacuum suction cups and conveyor belt platforms for unmanned processing.

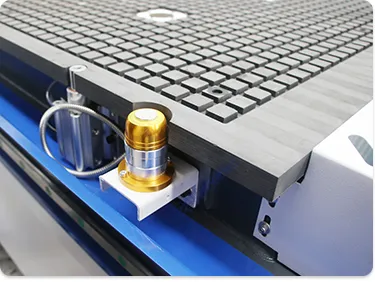

Automatic tool setting instrument: Calibrates tool height automatically after tool changes, improving efficiency.
Applicable Materials: Wood board, MDF, artificial board, particle board, gypsum, multilayer board, PVC, acrylic, aluminum, copper, epoxy resin, and more.

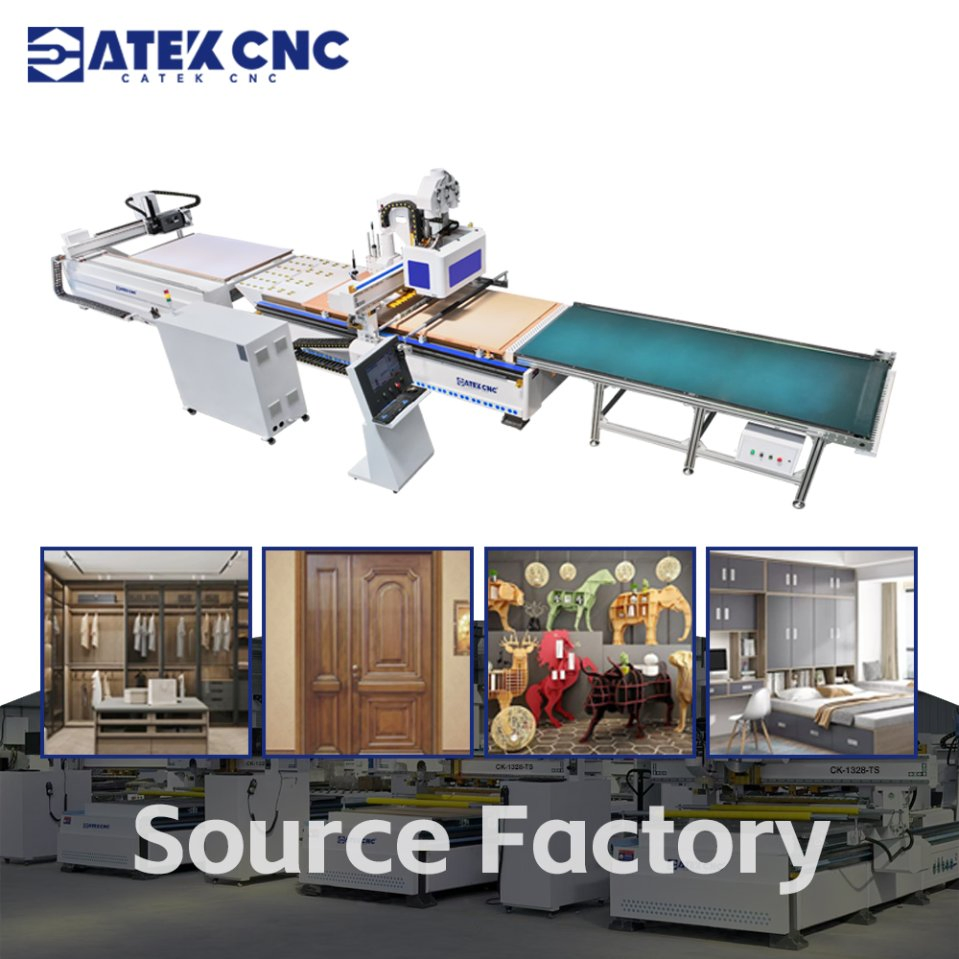

Application Industries: Panel furniture, cabinets, wooden doors, architectural decoration, advertising signage, and mold manufacturing.
