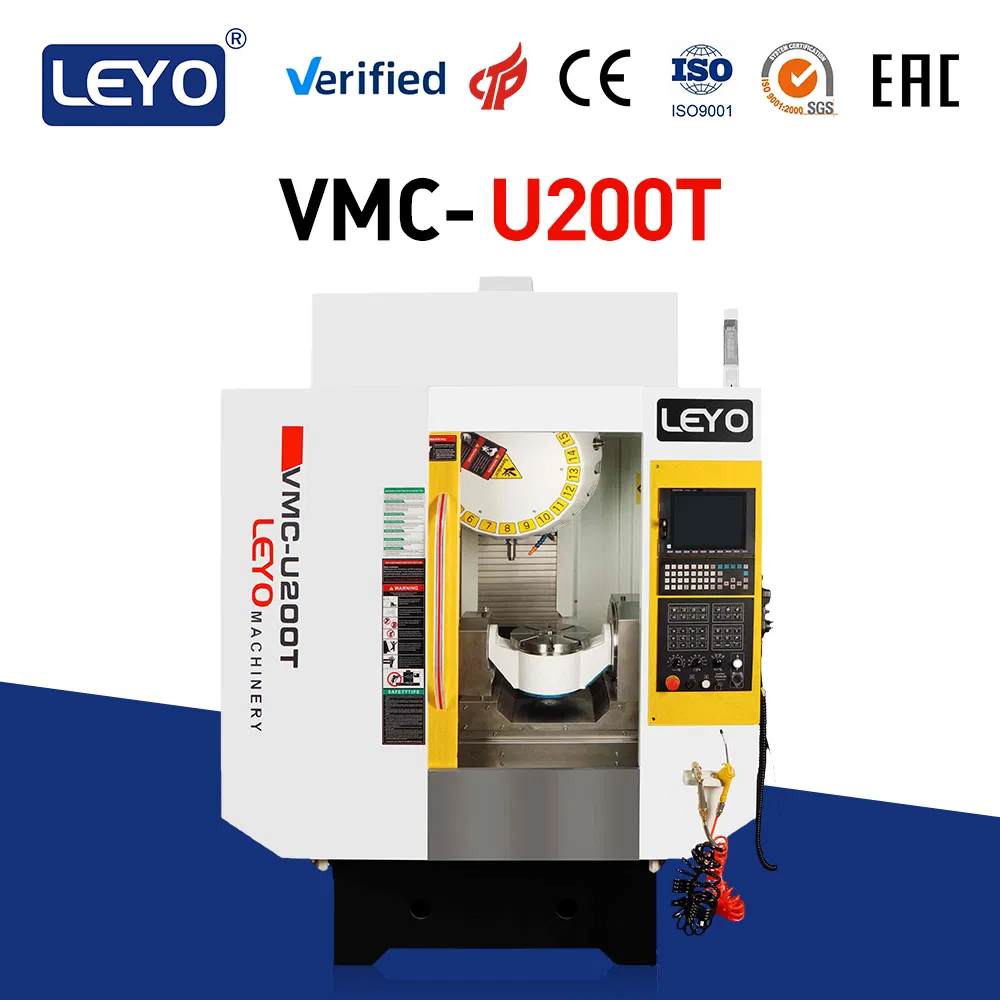

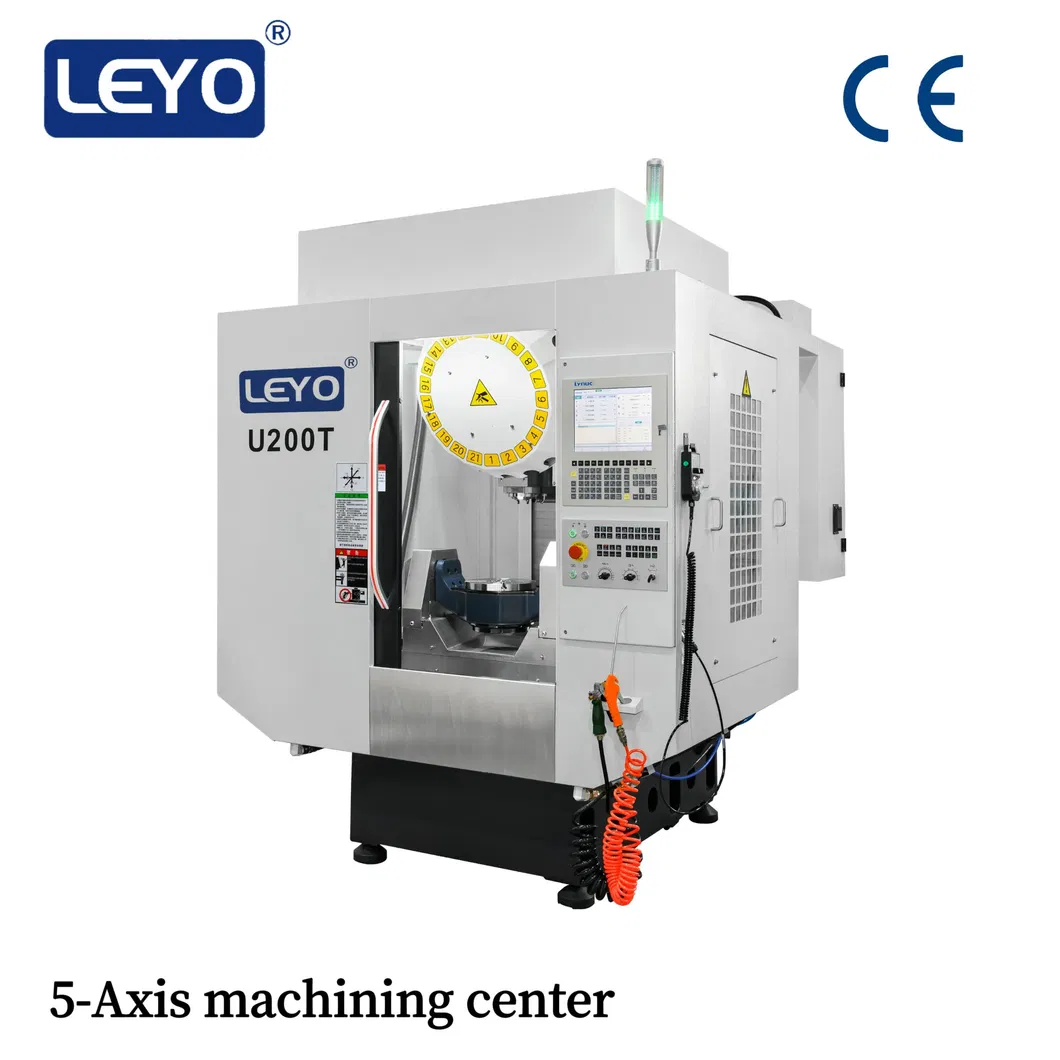

Leyo Ultra-Precision 5-Axis Simultaneous Machining Center

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

U200T

Application

Metal

Process Usage

Metal-Cutting CNC Machine Tools

Movement Method

Linear Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.005mm

Performance

Mid-Range CNC Machine Tools

Certification

CE, ISO 9001

Machine Type

3/4/5 Axis

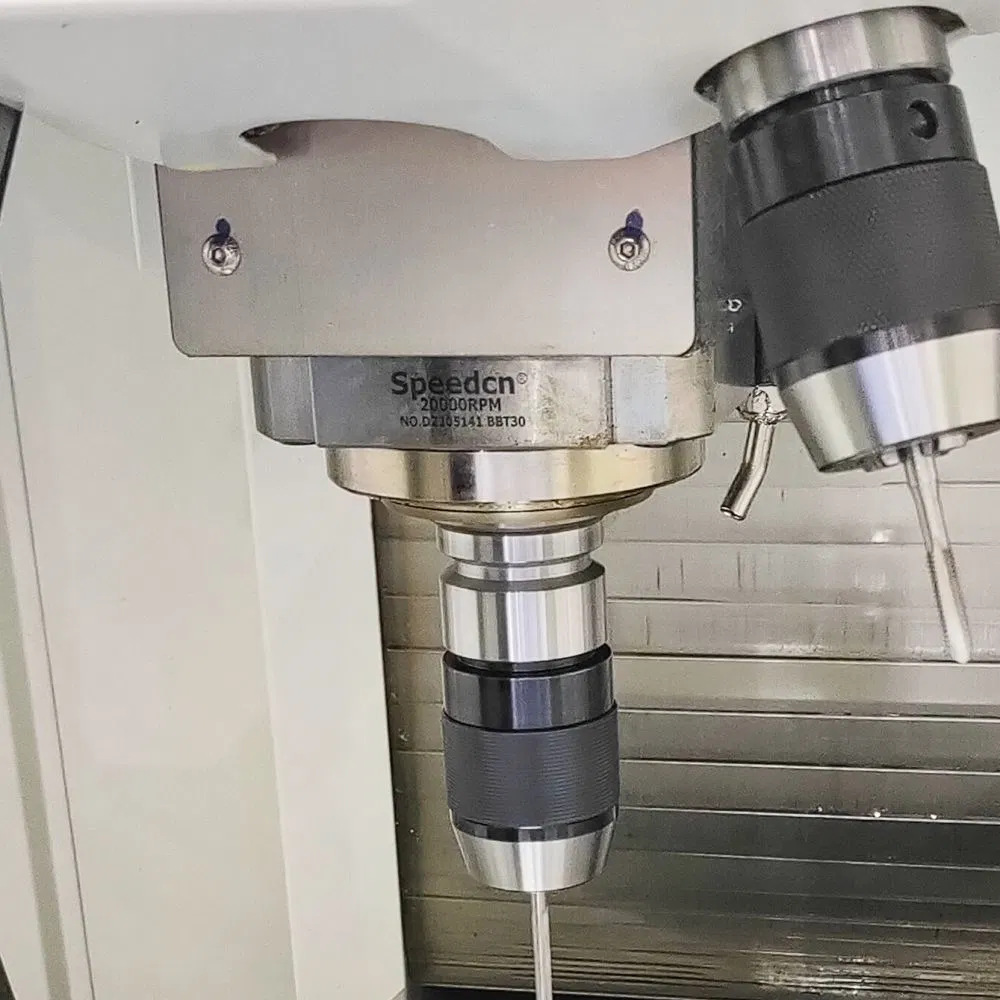

Spindle

Bt30-Direct-5.5 Kw-20000 Rpm

Machine Weight

3000 Kg

🖼️

Product Gallery

⚙️

Technical Parameters

Items	Unit	U-200T Specification
X/Y/Z axis travel	mm	600/400/320
X/Y/Z rapid moving speed	m/min	48/48/48
X/Y/Z rapid feeding speed	m/min	15
A-axis rapid movement	rpm	200
C-axis rapid movement	rpm	300
Tilt axis rotation angle	deg	±110°
Working table max load	kg	30
Spindle speed	rpm	0-20000
Spindle radial runout accuracy	mm	Near end 0.003mm
X/Y/Z reposition accuracy	mm	±0.005
A/C positioning accuracy	arcsec	6

💎

Why Choose 5-Axis Machining

Machine complex shapes in a single setup for increased productivity.
Save time and money with less fixture preparation.
Higher part accuracy because the workpiece does not move across multiple workstations.
Ability to use shorter cutting tools for higher cutting speeds and less tool vibrations.
Achieve superior surface finishes and overall better part quality.

🛠️

Customization & Services

Customized Service: Free design of logo, sheet metal, and machine configuration based on specific brand or power requirements.

One-Stop Procurement: Providing accessories including turntables, tailstocks, tool setting instruments, and consumables.

After-Sales Support: One-year warranty with free spare parts and lifetime technical guidance.

Fast Delivery: Standard production cycle can be optimized; fastest production time is 7 working days.

Frequently Asked Questions

1. What are the key advantages of a 5-axis simultaneous machining center? It allows for machining complex shapes in a single setup, increasing productivity, reducing fixture preparation time, and ensuring higher part accuracy by eliminating workstation transfers.

2. What is the positioning precision of the U-200T? The U-200T features a high reposition accuracy of ±0.005 mm and an A/C axis positioning accuracy of 6 arcsec.

3. Can the machine configuration be customized? Yes, we provide free customization of machine configurations, including spindle power/speed, controller brands, and the type of tool magazine according to your requirements.

4. What industries use these CNC machines? These machines are widely used in 3C electronics, automotive, medical devices, aerospace, 5G communications, and new energy vehicle industries.

5. What is the standard warranty and after-sales service? All models come with a one-year warranty. We provide free spare parts and online/offline technical guidance. Online technical support remains free for a lifetime.

6. How fast is the delivery for urgent orders? For urgent requirements, the production schedule can be adjusted. The fastest production and delivery time is 7 working days.
