TitanPro Cutting
TitanPro Cutting

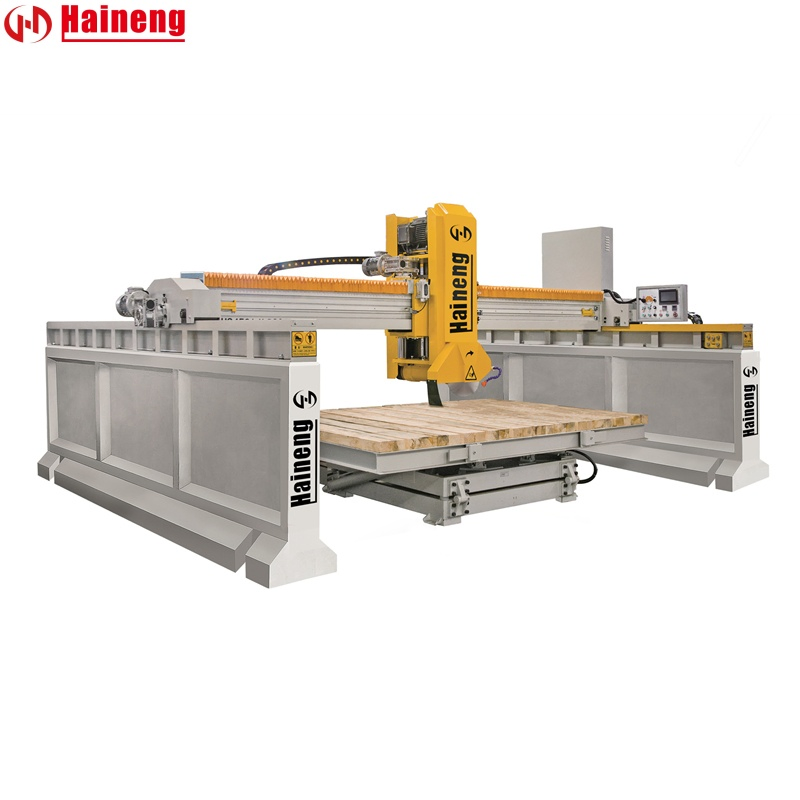

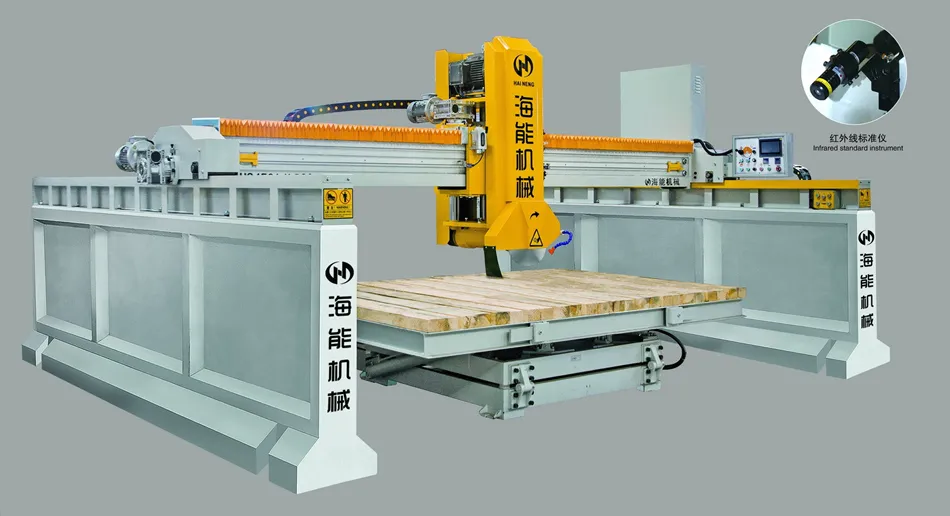

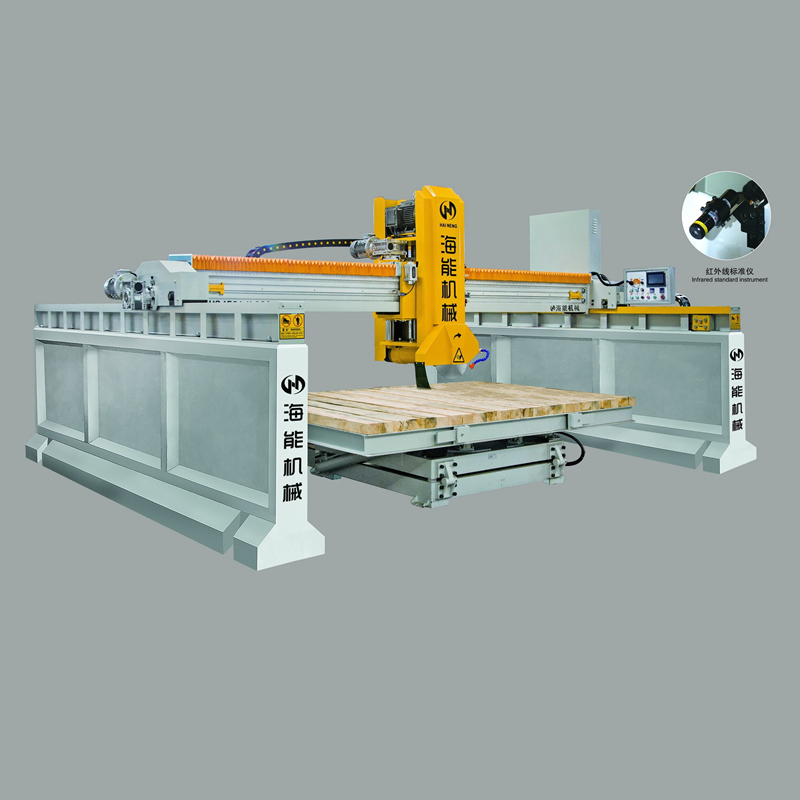

Infrared bridge stone cutting machine adopts microcomputer control, touch-type operation panel, and man-machine dialogue is flexible.
The main control components are all international famous brand components, the cross-beam adopts oil-immersed double V-shaped track, the transverse pass adopts stepless speed regulation, and the longitudinal splitting mechanism adopts double mountain-shaped guide rail combined with high-precision encoder counting to ensure the machine working precision.
Standard with 0-90 workbench, 0-85 degree flap, mainly used to cut high-precision specification board.

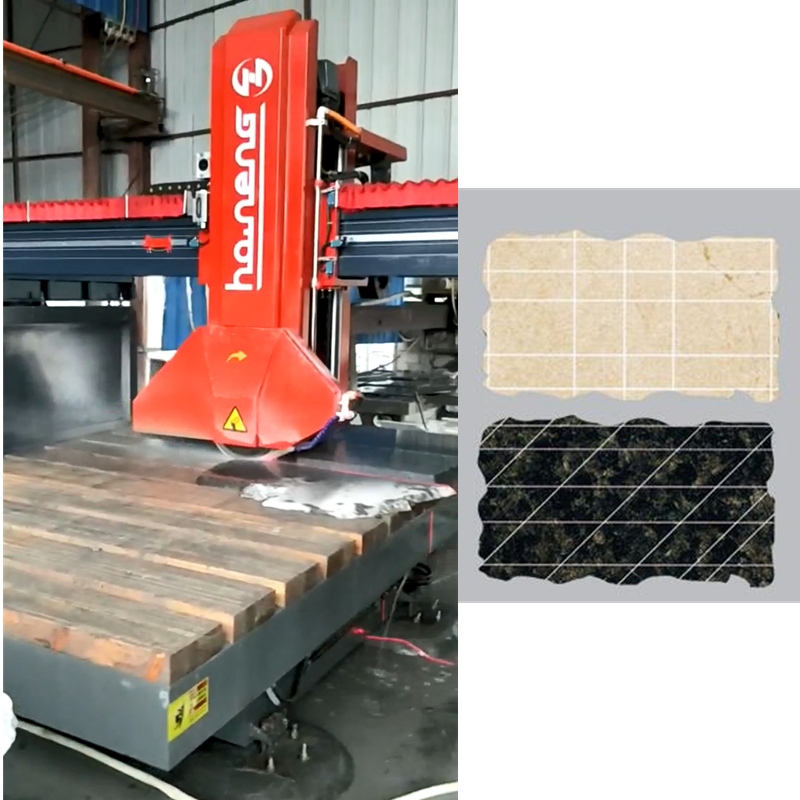

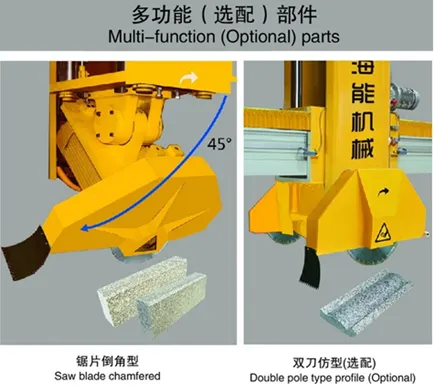

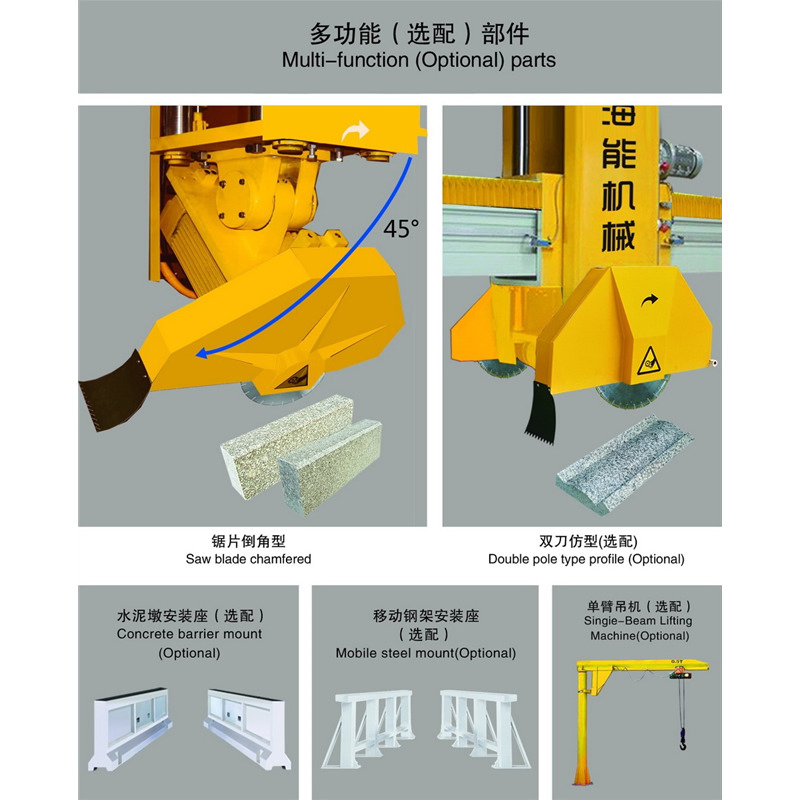

Optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting rectangles, octagons, arcs, and circles.
| Type | unit | HQ450A | HQ600A | HQ700A | HQ800A |
|---|---|---|---|---|---|
| Max. Working dimensions (L×W×H) | mm | 3200×2000×100 | 3200×2000×180 | 3200×2000×230 | 3200×2000×280 |
| Blade diameter | mm | Φ350-Φ450 | Φ350-Φ600 | Φ350-Φ700 | Φ500-Φ800 |
| Max.Lifting stroke | mm | 230 | 380 | 480 | 580 |
| Worktable size (L×W) | mm | 3200×2000 | |||
| Worktable turnover degree | n° | 0°-85° | |||
| Power of main motor | kw | 15 | 18.5 | 18.5 | 18.5 |
| Total weight | kg | 4800 | 5000 | 5200 | 5400 |
