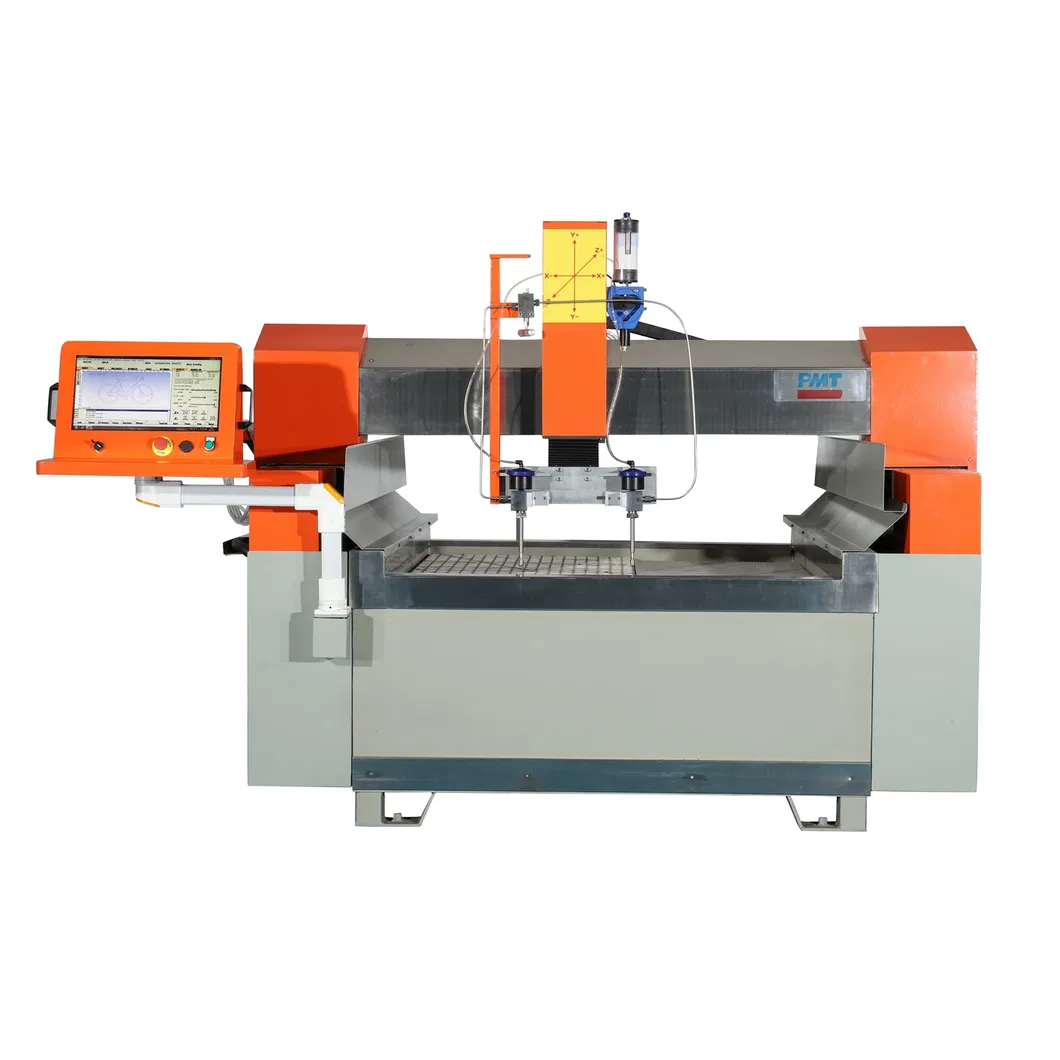

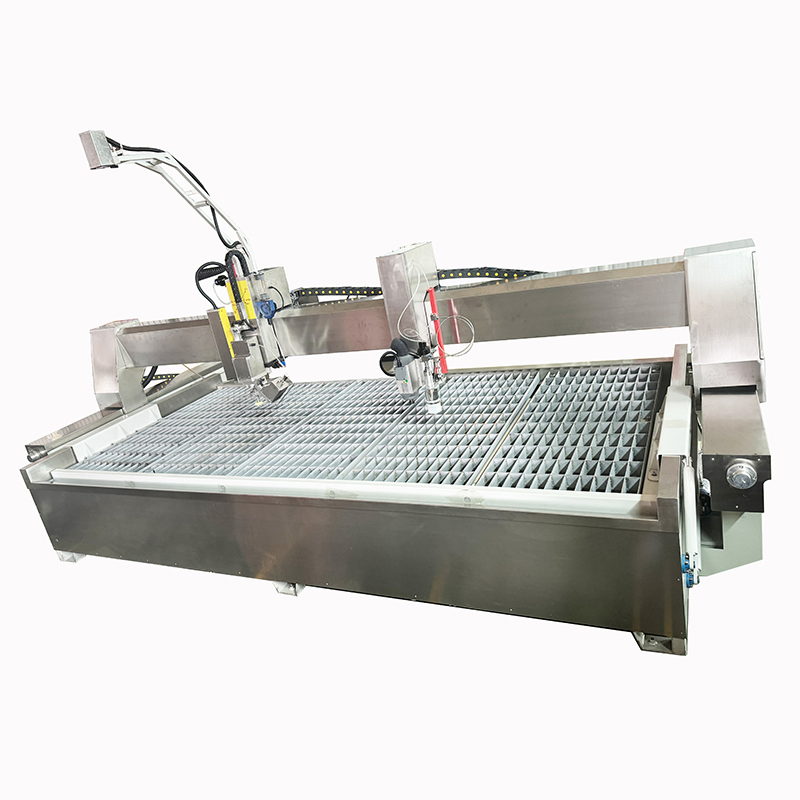

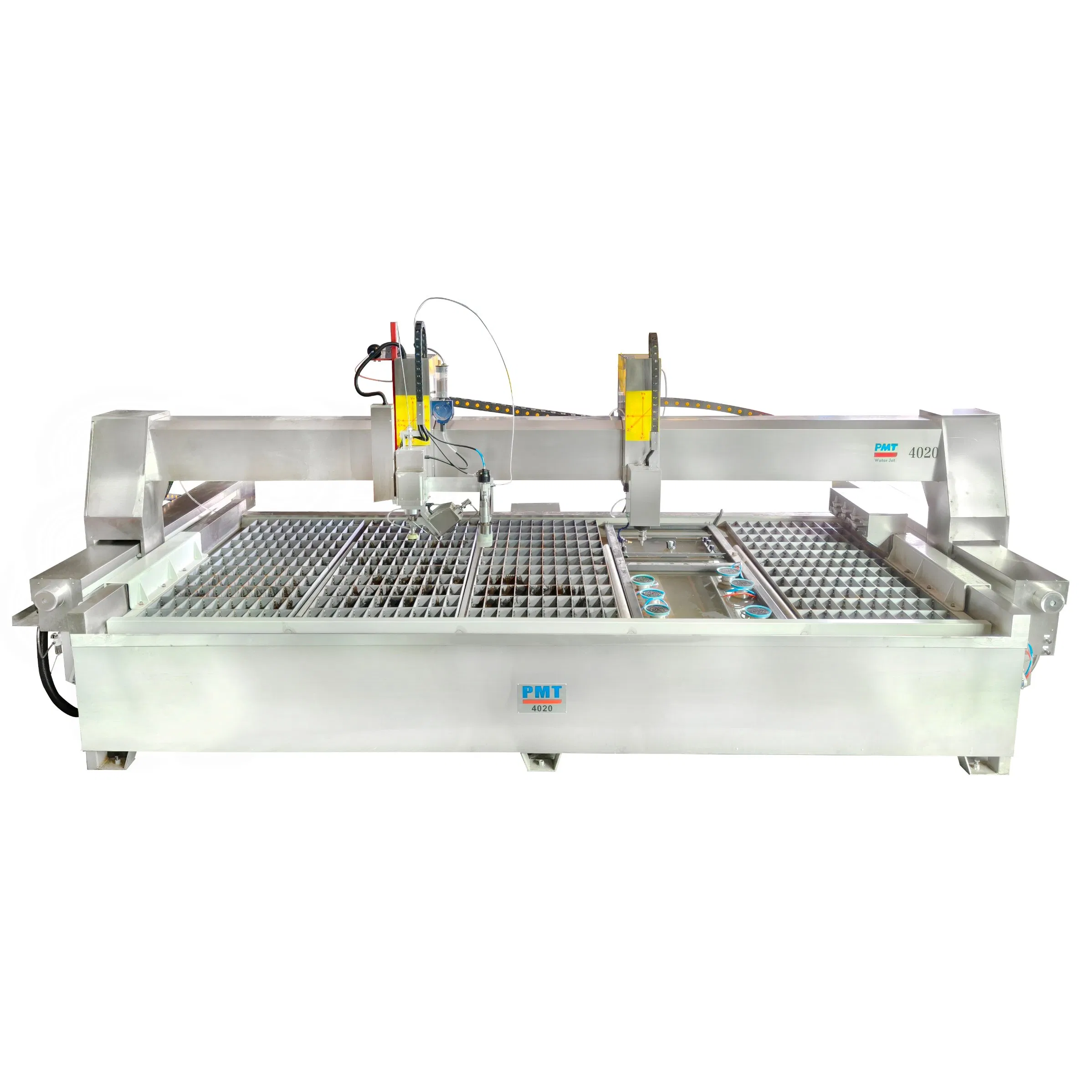

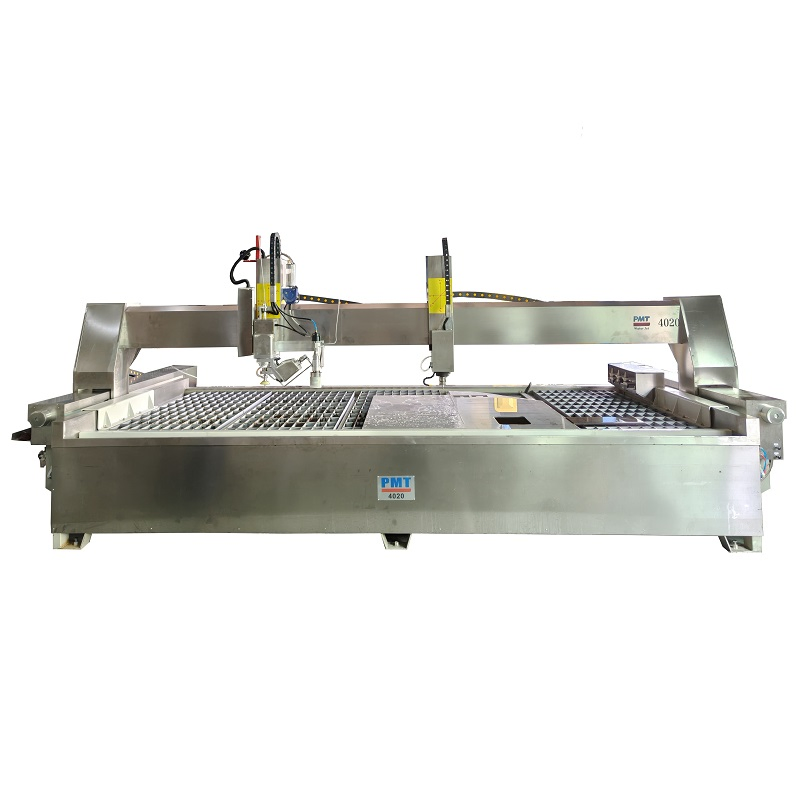

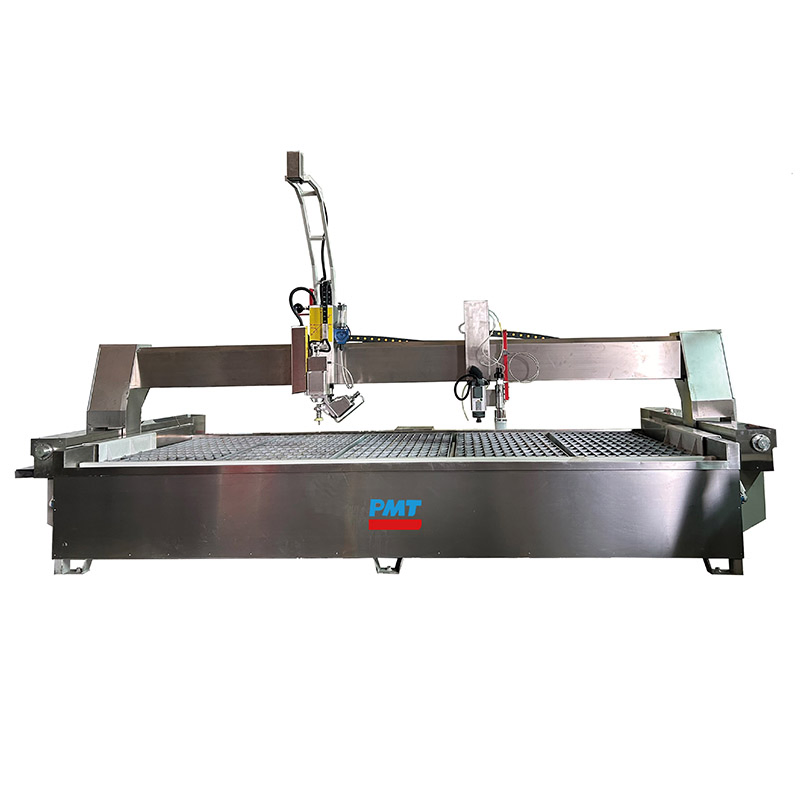

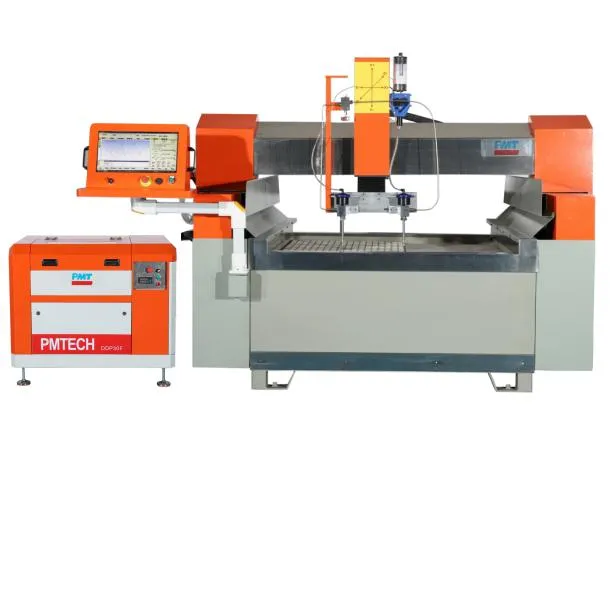

Industrial Water Jet Cutting Machine 3 Axis for Metal/Stone Precision Cutting

1 / 5

Industrial Water Jet Cutting Machine 3 Axis for Metal/Stone Precision Cutting

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.3 axis

CertificationCE, RoHS, ISO 9001:2000

ConditionNew

ControlAutomatic

Power SourceElectric

StyleCantilever

TypeThree-Axis

UseAbrasive Waterjet Cutting

Inventory StatusHave in Stock

HS Code8401100000

Application: Paper, Metal, Rubber, Ceramic, Glass, Stone, Plastic, Leather, Fabric

Product Description

Important Notice: This is FOB price. The machine must be installed in a cabinet; please contact us regarding shipping arrangements as platform freight costs may be inaccurate.

Advantages of Waterjet Cutting

Precision: Cutting accuracy up to 0.1mm with perfect smooth quality.
Versatility: Processes metal, rubber, foam, plastic, stone, ceramic tile, marble, glass, and composites.
Cold Cutting: Does not damage the internal structure of the material (no heat-affected zone).
Efficiency: Fast cutting speed; drilling, cutting, and forming done in one process.
Eco-friendly: Reduces dust and noise impact on operators.

Available Sizes: 1600*1550mm, 2500*1500mm, 3000*1850mm, 4000*1850mm, 6000*1950mm, etc.

Technical Parameters

Model	2015	2515	3020	4020	6020
Dimension (mm)	2650*2150	3100*2150	4500*2300	5250*2300	7250*2300
Max Cutting Range	2000*1600	2000*1500	3200*1750	4000*1750	6000*1750
Travel of Z Axis	180mm
Accuracy	Repositioning: ±0.025mm/m \| Cutting: ±0.1mm

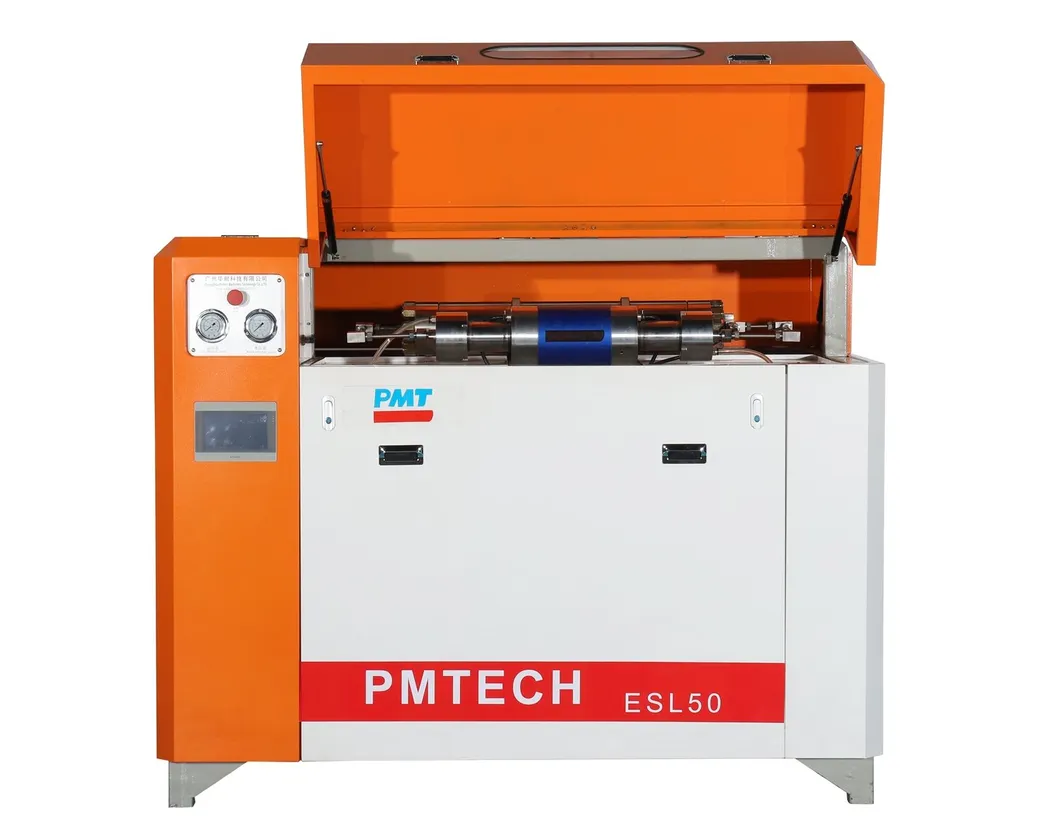

High Pressure Pump System

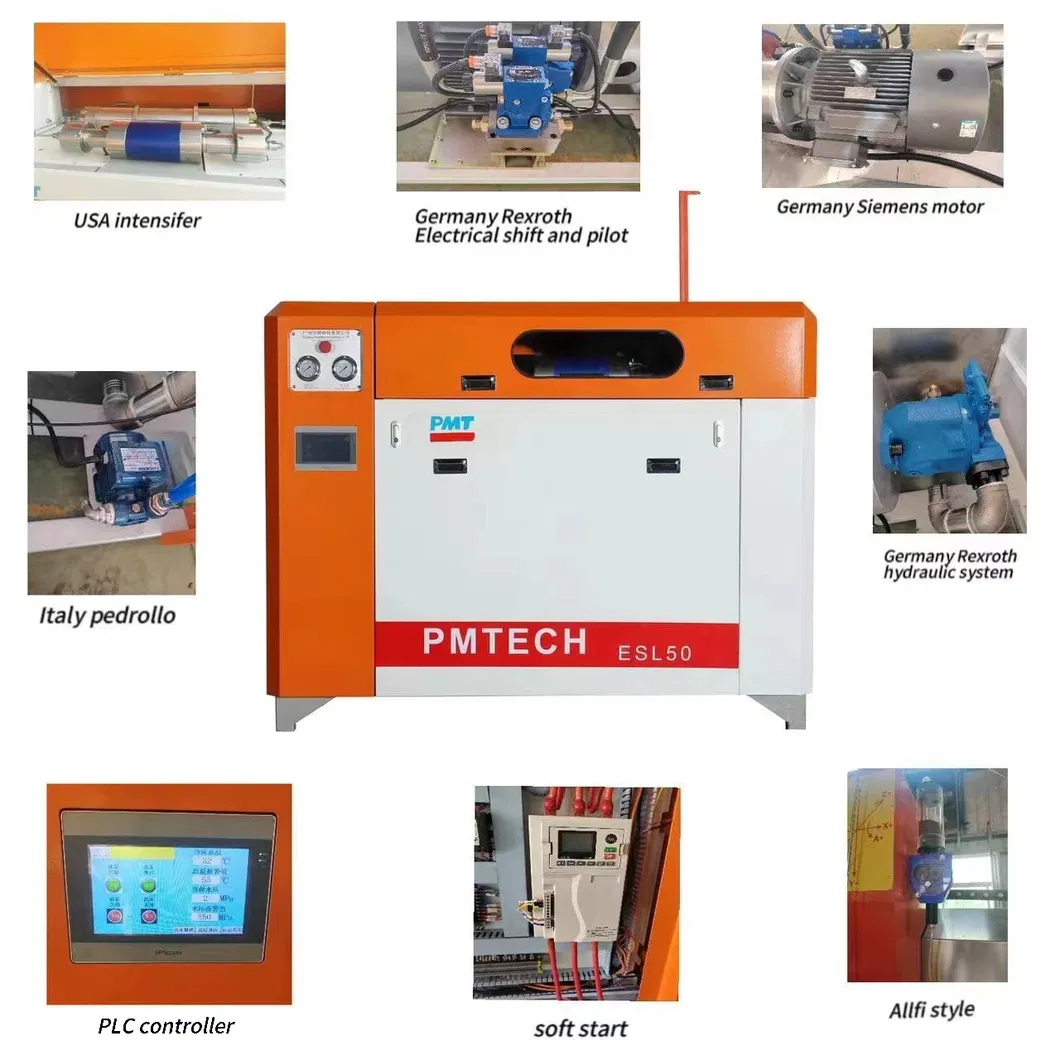

Includes water supply system, Hydraulic system, Waterjet Intensifier system, and Electrical control system. Equipped with German Siemens motors.

Power Rate	37kw / 50hp
Max Pressure	420Mpa / 4200bar
Working Pressure	300-350Mpa
Main Motor	Siemens Brand
Hydraulic System	Rexroth

Cutting Components & Control

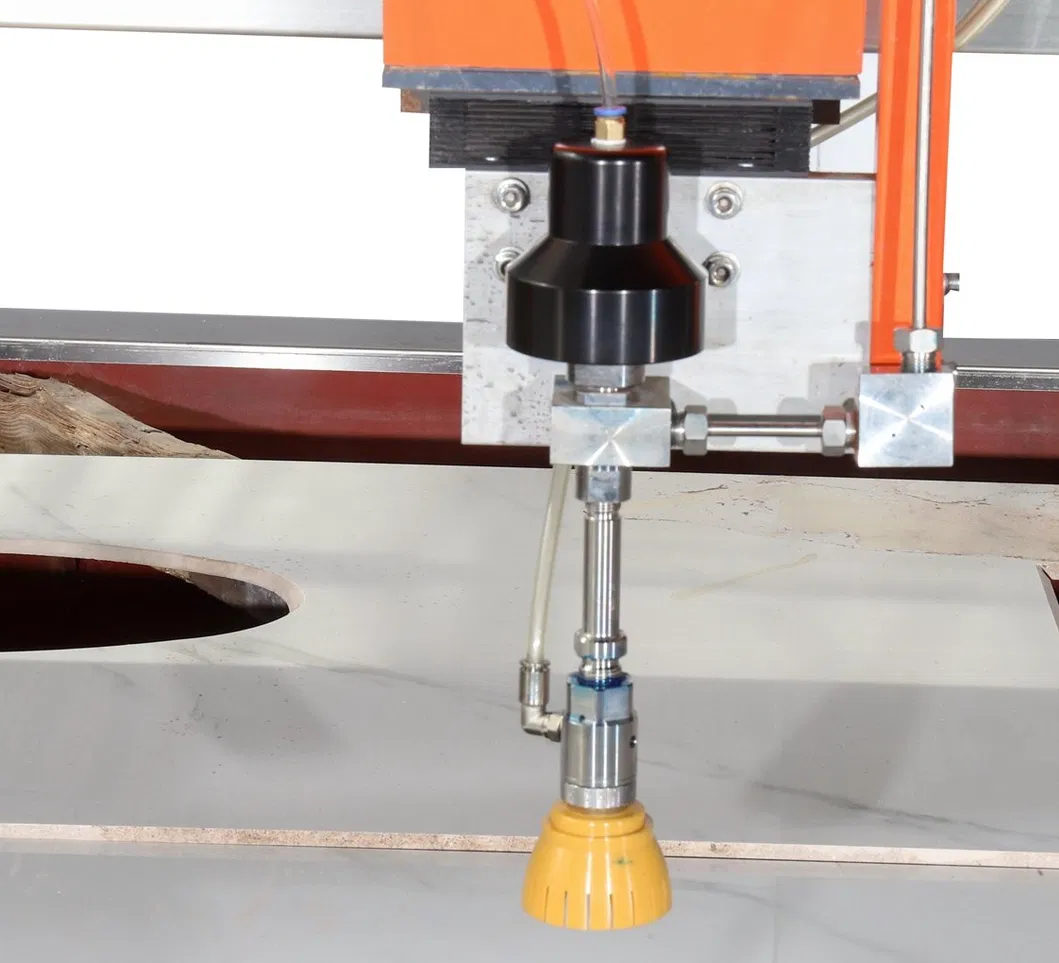

Diamond Cutting Head: Features imported diamond components capable of 1500 hours of operation.

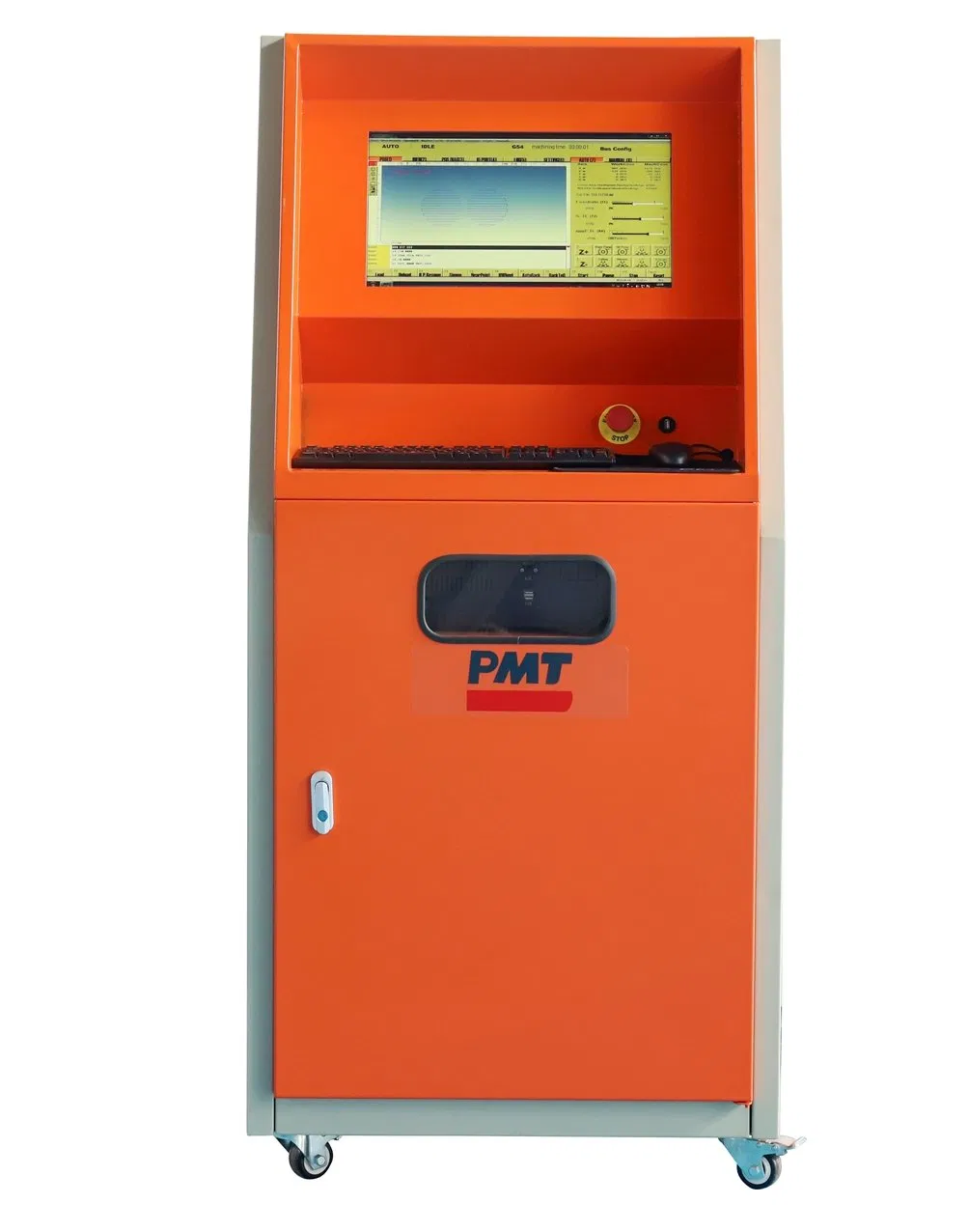

Control System	Windows 7 / Auto-CAD / NC-Studio-V10
Support Format	DXF files and NC code
Screen	19 inch LCD

Technical Training & Service

Training Includes: High-pressure system maintenance, sealed parts replacement, CNC programming, and CAD/CAM software operation.

After-Sales: 1-year warranty, lifetime maintenance, long-term spare parts supply, and 24-hour response time for troubleshooting.

Packaging & Shipping

Machine Package: Wooden crates or soft film wrapping for safety. Loaded in 20ft or 40ft containers (approx. 30-40cbm, 4000-6000kg per set).

Delivery Time: 15-30 days for machines; 1-7 days for spare parts.

Certifications & Partners

Frequently Asked Questions

What are the main advantages of waterjet cutting?

It provides cold processing with no heat reaction zone, preventing material deformation. It can cut nearly any material including soft (pure water) and hard (abrasive) types, even flammable materials.

How do I choose the right cutting table size?

Selection depends on the maximum dimensions of the materials you intend to process. Common sizes include 2000*1500mm and up to 6000*1750mm.

Is the cutting perfectly vertical?

Standard waterjet cutting has a slight physical taper. For high-precision vertical angle requirements, we offer a specialized five-axis dynamic cutting system.

How easy is the machine to operate?

The system is intelligent and user-friendly. You can upload DXF format files via USB, and the system automatically programs the cutting operation with minimal parameter setting.

What is the lifespan of the diamond cutting head?

Our imported diamond cutting heads are designed for durability, typically working for up to 1500 hours under proper maintenance.

What materials can be processed?

Abrasive waterjets can cut metal, stone, glass, ceramics, and composites. Pure waterjets are used for rubber, foam, leather, and fabric.
