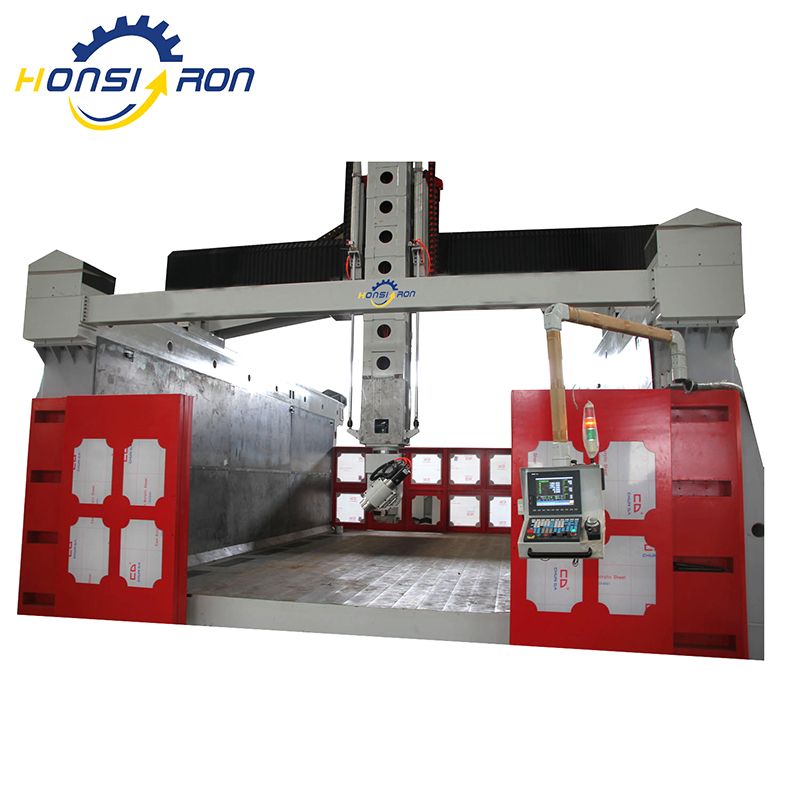

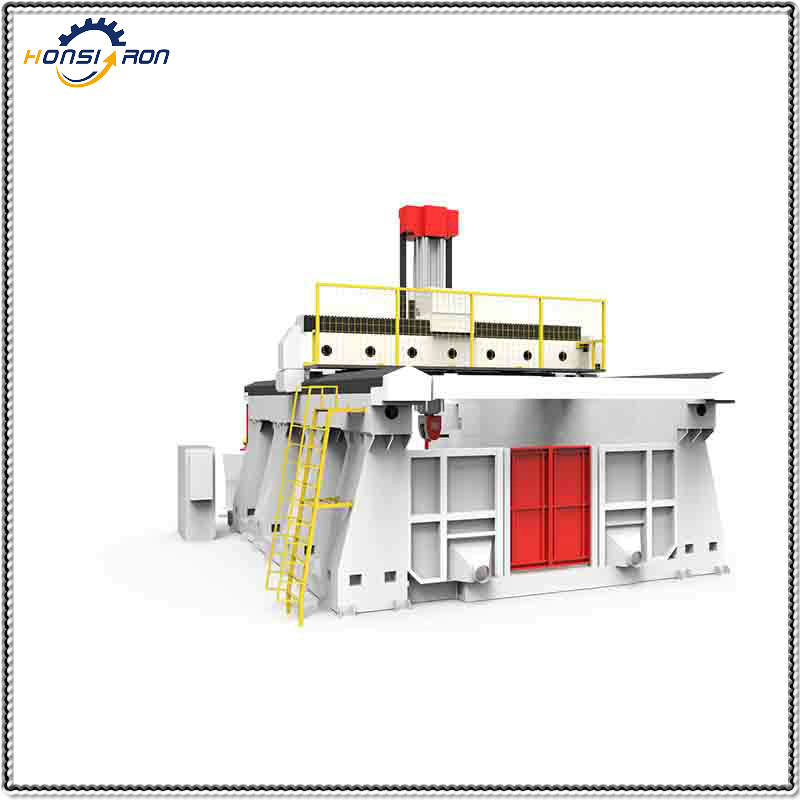

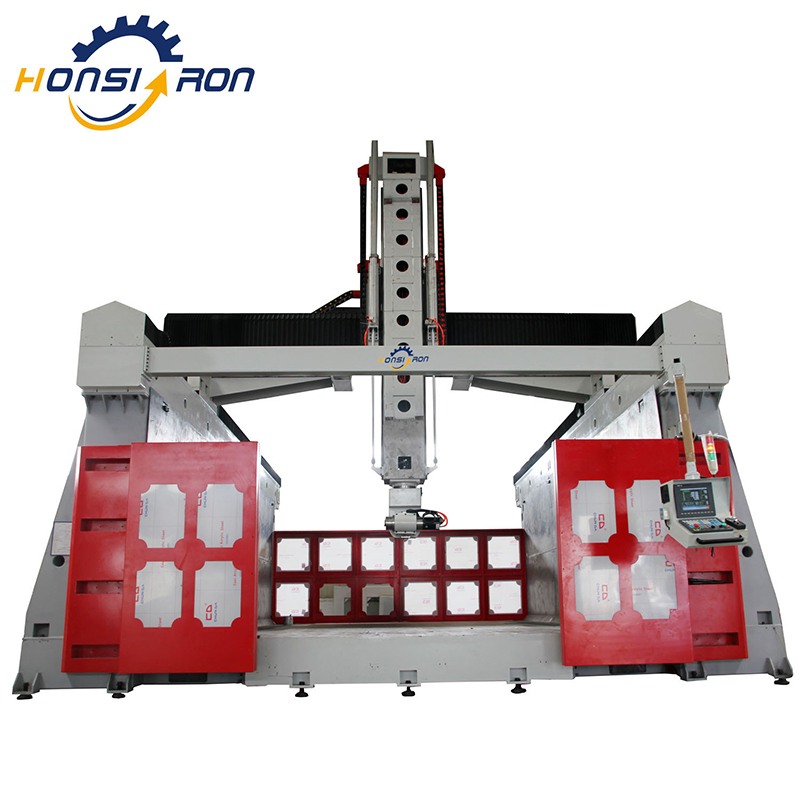

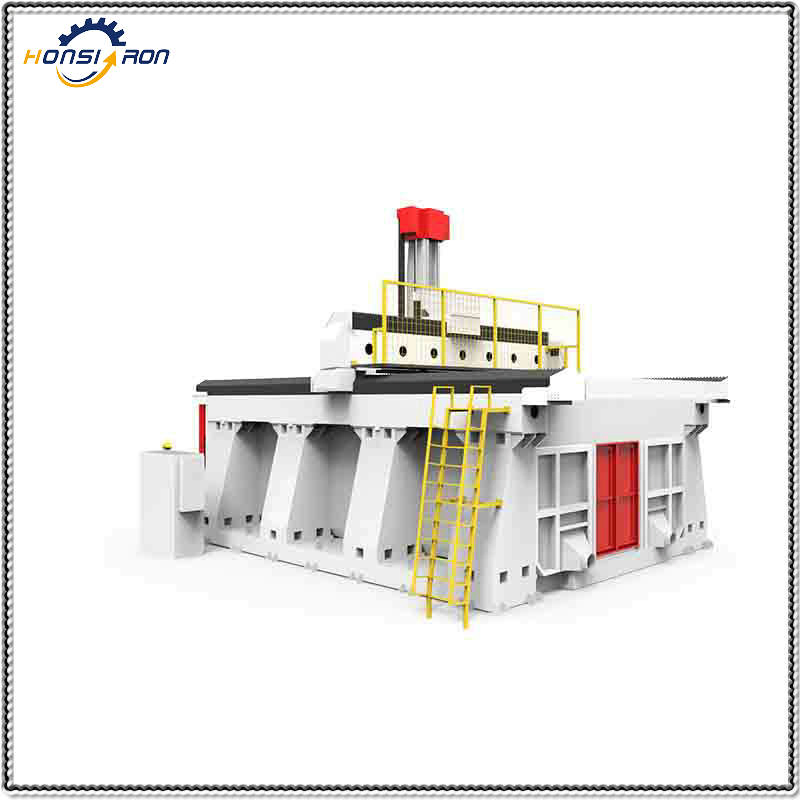

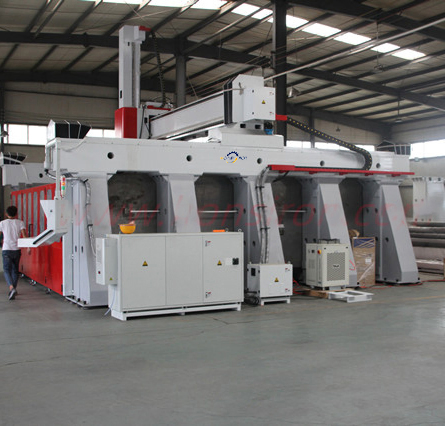

High Quality Automatic 5-Axis Simultaneous CNC Precision Machining Center

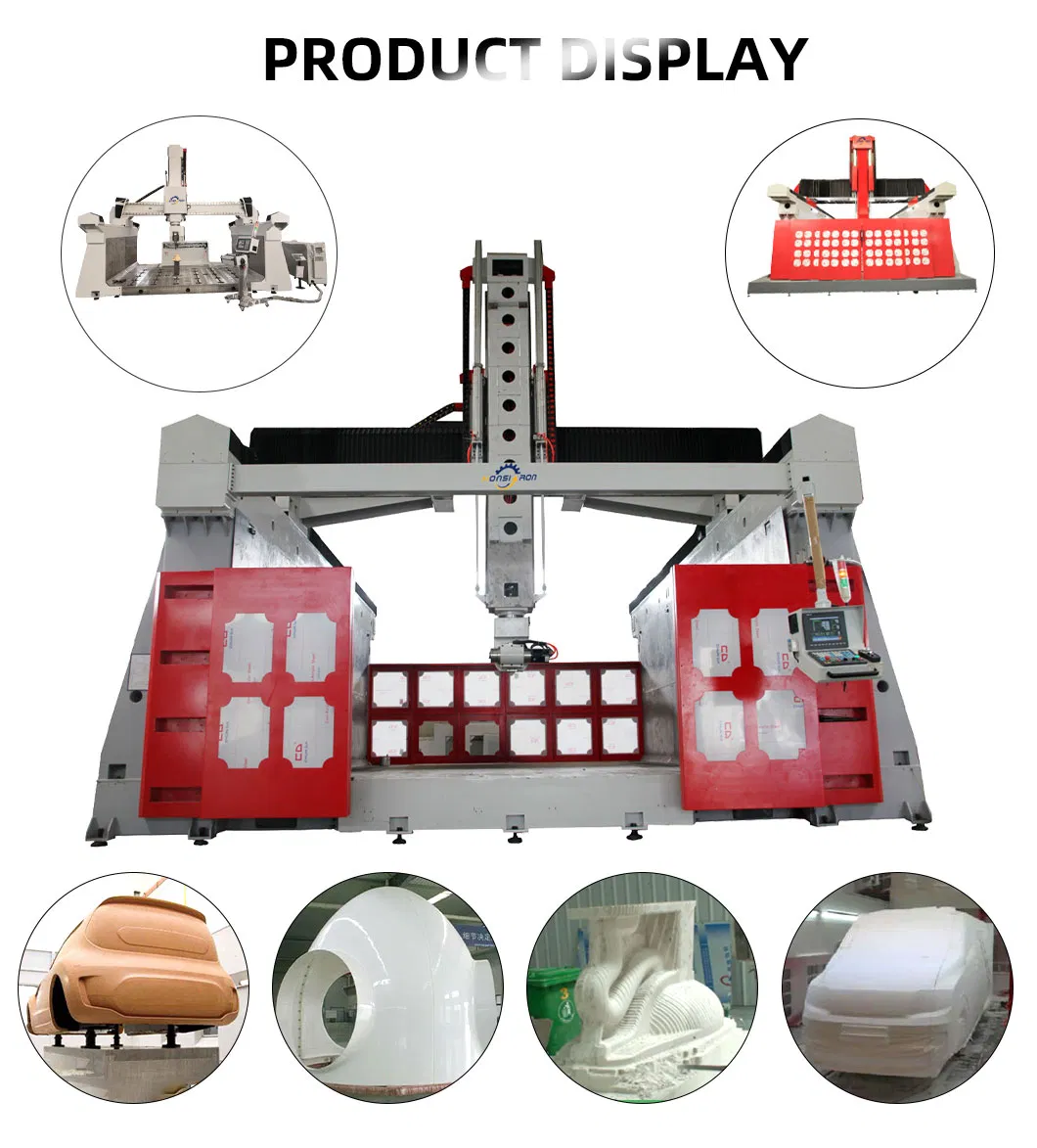

The 5-axis CNC router comes equipped with X-axis, Y-axis, Z-axis, A-axis, and C-axis operation, providing exceptional flexibility. Equipped with a 5-axis linkage control system, it is ideal for composite materials, aluminum, and wood processing, including cutting and carving large 3D models, casting molds, and sculptures.
| Machine Model | SF2030T-5S | SF3040T-5S | SF3565T-5S |
| XYZ Travel Size (mm) | 2000*3000*1000 | 3000*4000*1500 | 3000*4000*1500 |
| A axis / C axis | +/- 120° / +/- 360° | +/- 120° / +/- 360° | +/- 120° / +/- 360° |
| Idling Speed | XY: 50m/min | Z: 25m/min | ||
| Working Speed | XY: 30m/min | Z: 10m/min | ||
| Spindle | Italy 15Kw ATC spindle (0-24000rpm) | ||
| Controller | Syntec Controller (Taiwan) | ||
| Materials | EPS, Wood, Plastic, Composites, Fiberglass, Aluminum | ||

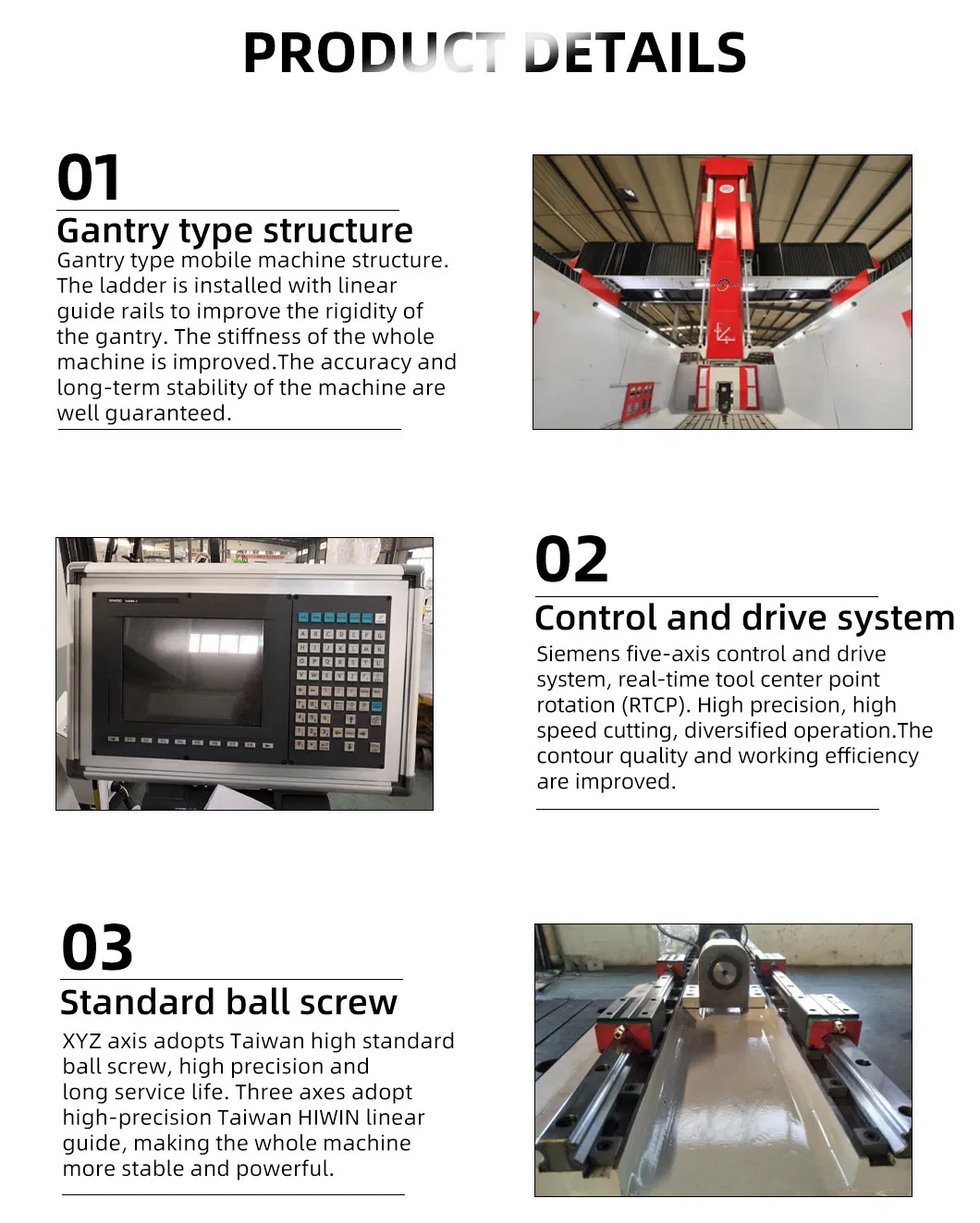

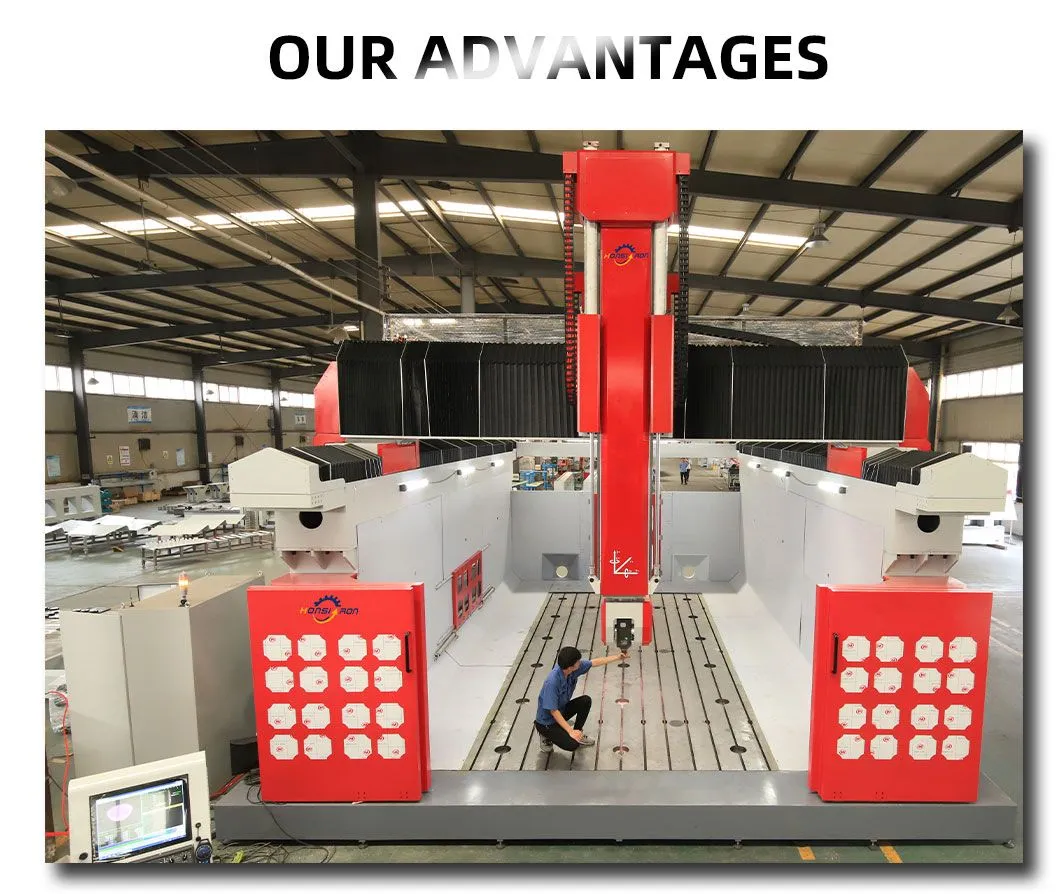

Features high-strength cast iron structure for Z ram and workbench with T-slot design and resin sand modeling to ensure precision retention.
Imported numerical control system ensures fast speeds and anti-collision protection to prevent mechanical damage during overtravel.
Equipped with high-torque harmonic/RV reducers and high-power spindles for maximum stability and processing efficiency.
Imported spindle with HSK taper hole clamping provides high clamping force and accuracy, ideal for high-speed machining.

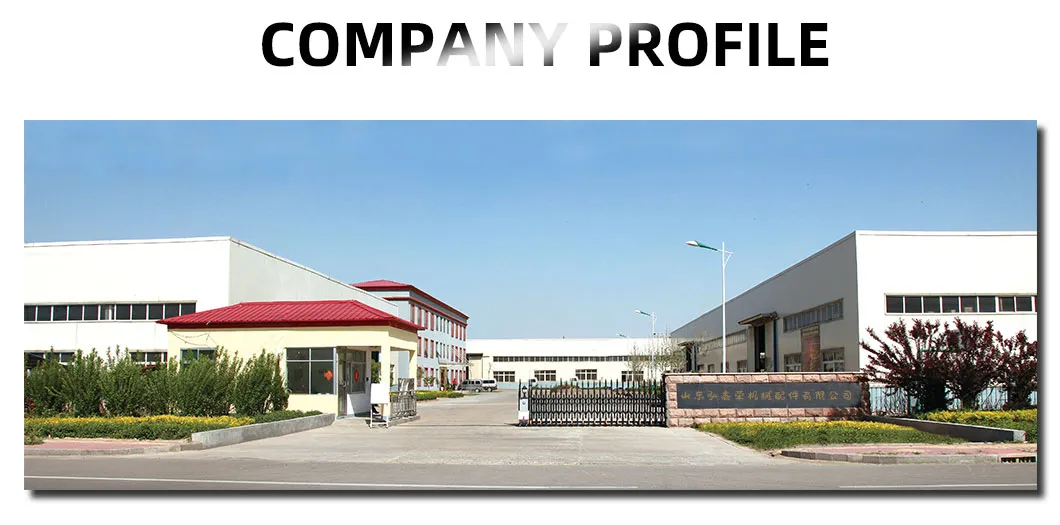

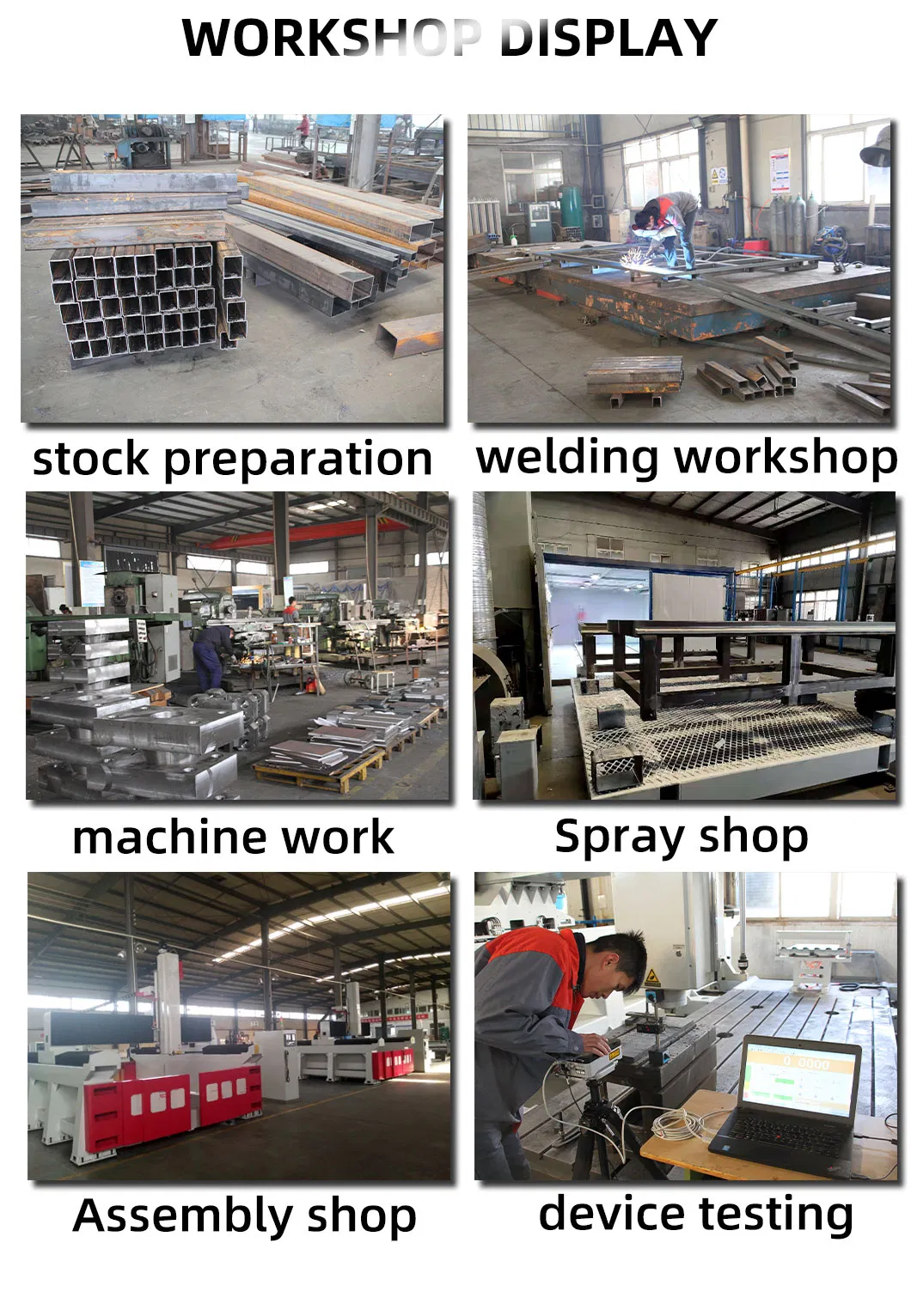

Our manufacturing base includes a 13,000 square meter modern plant with over 200 workers and 20 professional technicians. We utilize advanced production equipment including Vertical/Horizontal Machining Centers and Gantry Five-Face Machining Centers.
To ensure perfect performance before delivery, we utilize:
