Basic Information
| Model NO. | LR-2130-4S-ADL |
| Product Name | Atc CNC Router Machine for Wood |
| Certification | ISO, CE, RoHS |
| CNC or Not | CNC |
| Voltage | 380V |
| Work Schedule | 2100*3000*200mm |
| Spindle | 9kw HQD High-Speed Air-Cooled ATC Spindle |
| Spindle Speed | 0-18000r/Min |
| Servo Motor | Leadshine 1500W Bus-Type Absolute Servo Motor |
| Control System | Taiwan LNC control system |

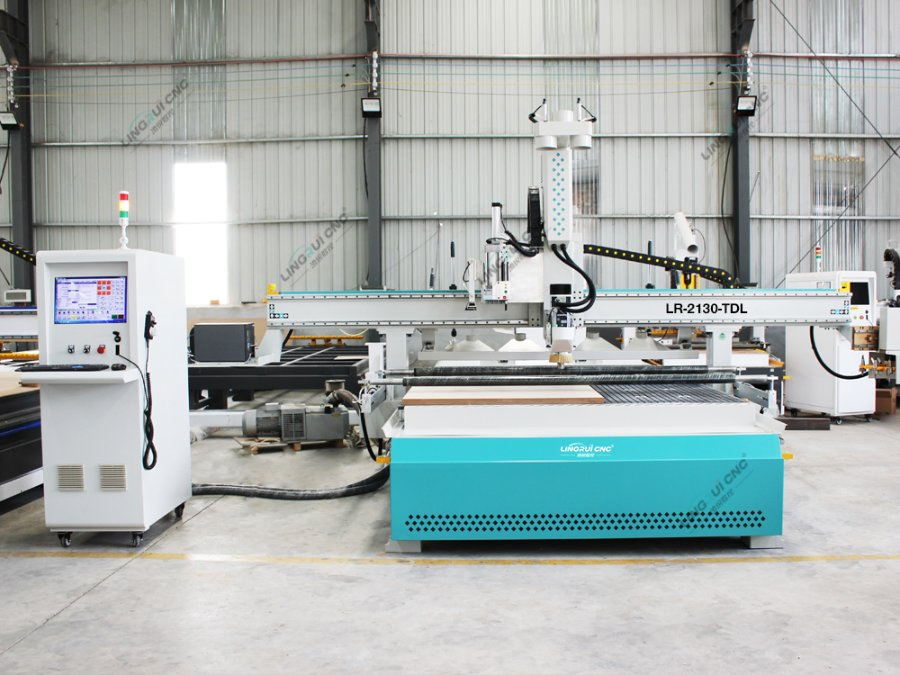

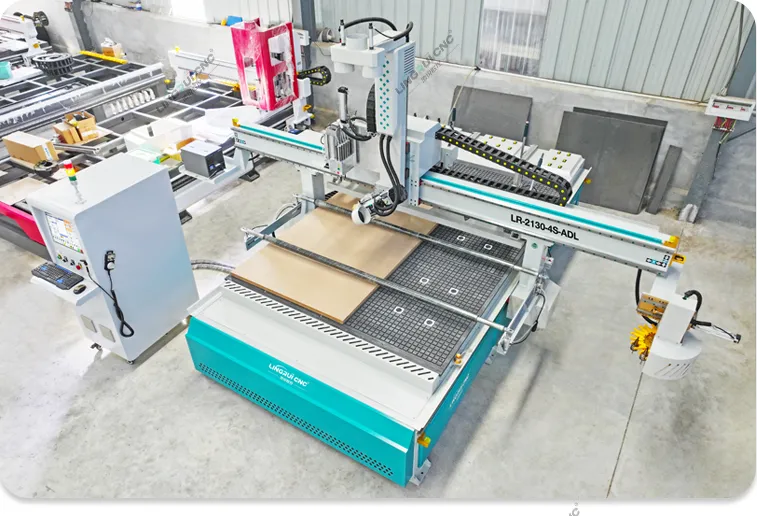

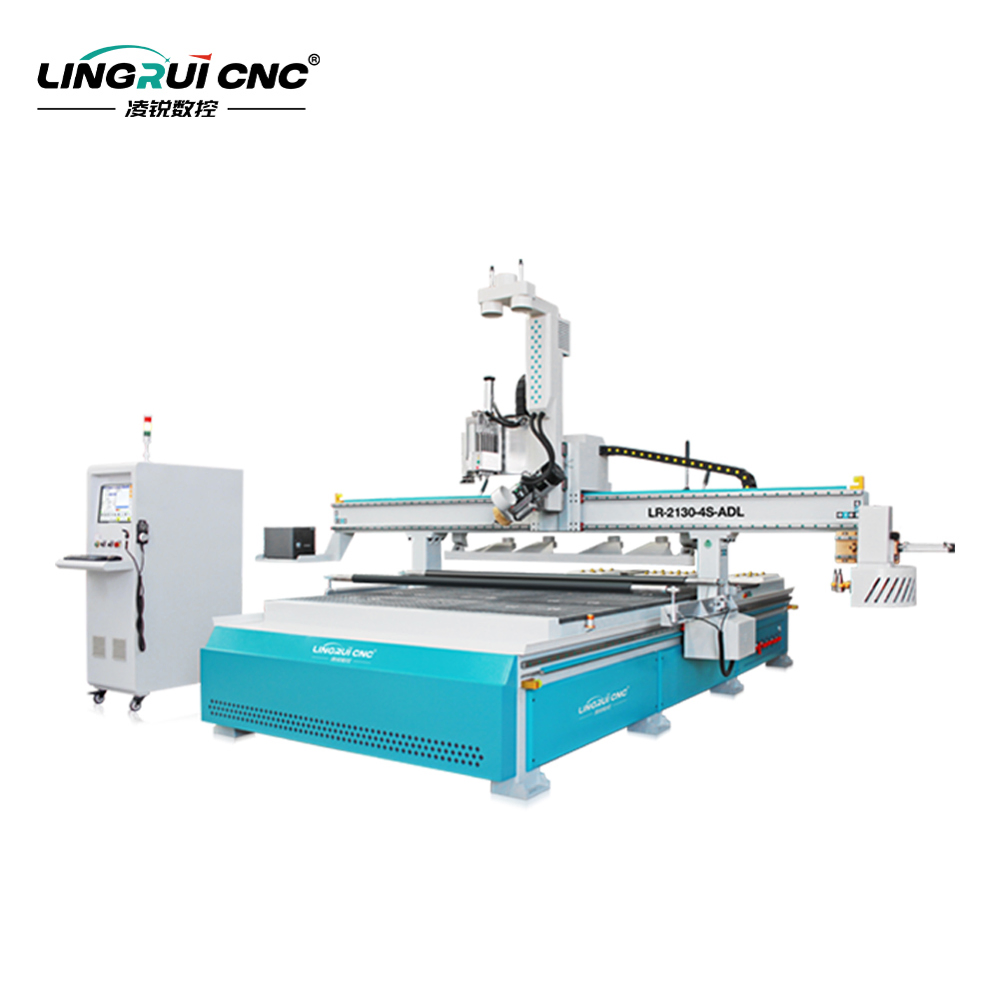

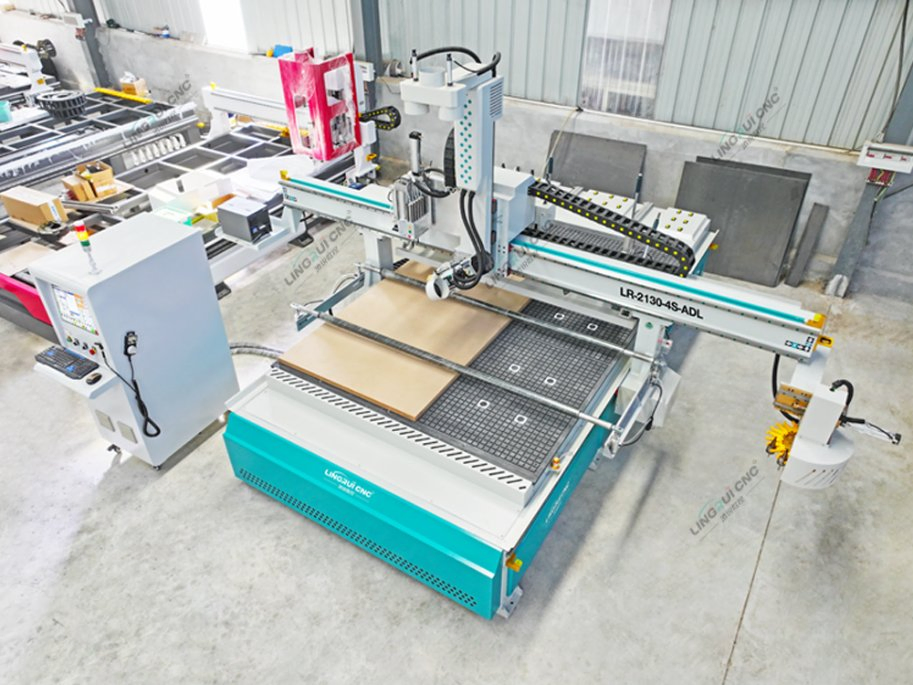

Machine Photos
Product Parameters
| Frame Structure | Heavy-duty frame with 8mm thickened steel plate, quenched and sandblasted |
| 4-Axis Swivel Angle | ±90° |
| Tool Magazine | 12-tool carousel-type tool magazine (customizable for 8–16 tools) |
| Guideways | Taiwan 30mm HIWIN linear guides |
| Vacuum Pump | 11kW water-ring vacuum pump |
| Dust Collection | 3kW bag-type dust collector |
| Max Rapid Speed | 100,000mm/min |
| Weight | 2800kg |
Details & Components

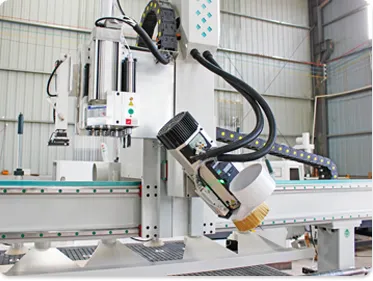

It uses a 9KW air-cooled automatic tool changer spindle and a 5+4 vertical drilling device. The automatic tool changer can automatically change tools during the machining process without manual intervention, meeting various machining needs.

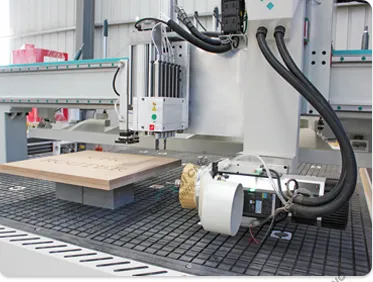

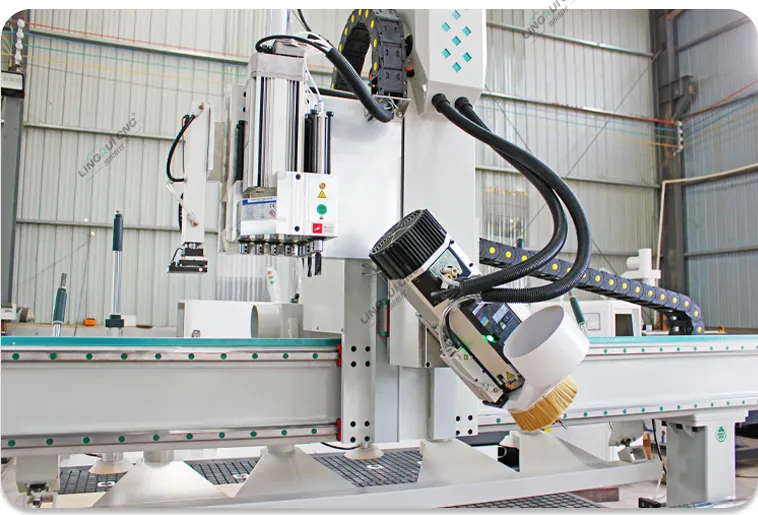

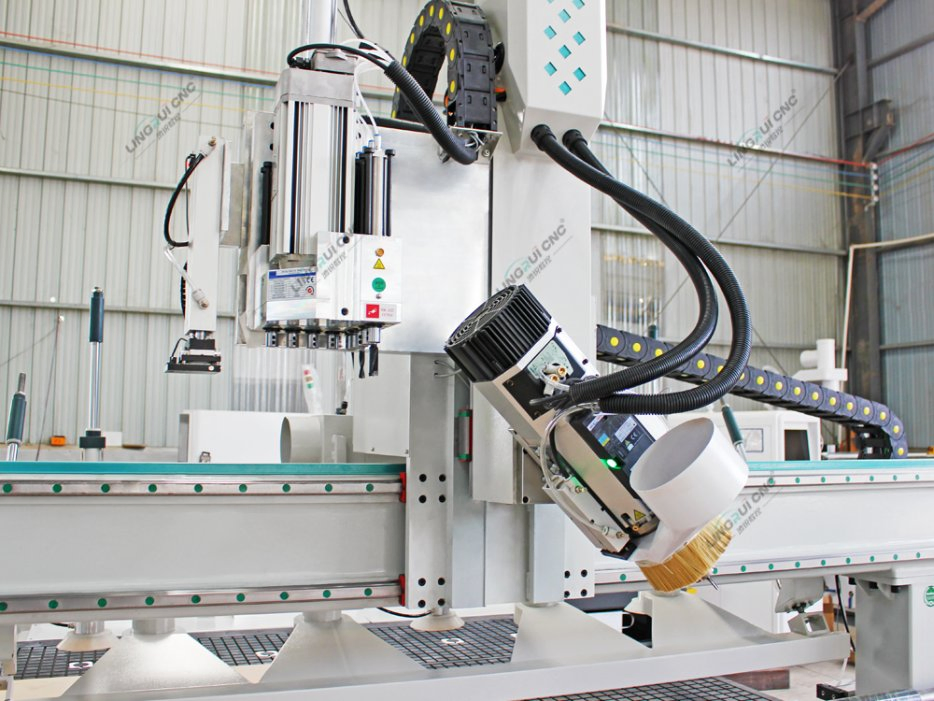

The spindle supports ±90° oscillation, easily achieving processes that traditional three-axis CNC machines cannot complete, such as slanted holes, bevel cutting, curved surface cutting, and irregularly shaped borders.

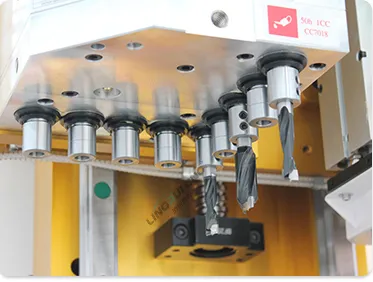

Equipped with a 5+4 vertical drilling kit, it can carry 9 different sizes of drill bits at once. Each bit is equipped with an independent pneumatic control unit for precise and efficient drilling.

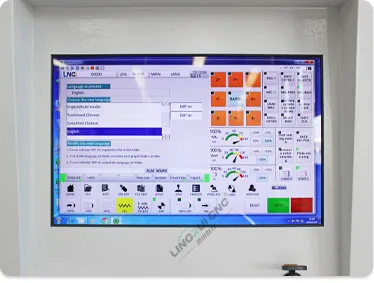

The high-end CNC system boasts comprehensive functions, compatibility with various CAD/CAM software, path preview, and breakpoint resume features to meet diverse user needs.
