High Precision Oturncnc Vertical 5-Axis Simultaneous Milling Machine CNC Vertical 3 Axis Milling Vmc Machining Center
High Precision Oturncnc Vertical 5-Axis Simultaneous Milling Machine CNC Vertical 3 Axis Milling Vmc Machining Center
High Precision Oturncnc Vertical 5-Axis Simultaneous Milling Machine CNC Vertical 3 Axis Milling Vmc Machining Center
High Precision Oturncnc Vertical 5-Axis Simultaneous Milling Machine CNC Vertical 3 Axis Milling Vmc Machining Center
High Precision Oturncnc Vertical 5-Axis Simultaneous Milling Machine CNC Vertical 3 Axis Milling Vmc Machining Center
1 / 5
High Precision Oturncnc Vertical 5-Axis Simultaneous Milling Machine CNC Vertical 3 Axis Milling Vmc Machining Center
High Precision Oturncnc Vertical 5-Axis Simultaneous Milling Machine CNC Vertical 3 Axis Milling Vmc Machining Center
High Precision Oturncnc Vertical 5-Axis Simultaneous Milling Machine CNC Vertical 3 Axis Milling Vmc Machining Center
High Precision Oturncnc Vertical 5-Axis Simultaneous Milling Machine CNC Vertical 3 Axis Milling Vmc Machining Center
High Precision Oturncnc Vertical 5-Axis Simultaneous Milling Machine CNC Vertical 3 Axis Milling Vmc Machining Center

High Precision Oturncnc Vertical 5-Axis Simultaneous Milling Machine CNC Vertical 3 Axis Milling Vmc Machining Center

Customization: Available
After-sales Service: Online After-Sales Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Certification
GS, CE, RoHS, ISO 9001
X/Y/Z-Axis Travel
2200X1400X1200mm
Table Size
1000X1000mm
Max. Loading
6000kg
Spindle Power
15/18.5kw
Origin
China
Product Description

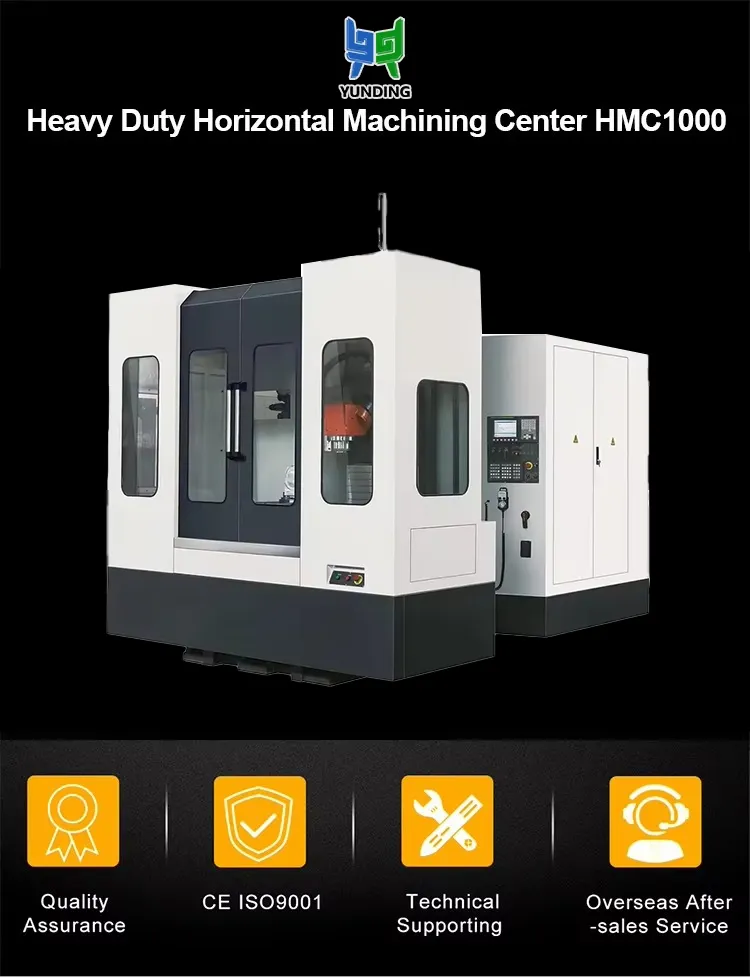

Professional Horizontal Machining Center

Horizontal Machining Center

🔹 Main Performance Characteristics

  • The fuselage and main components are of high strength cast iron, ensuring metallographic structure stability for long-term use.
  • Column bottom A-font bridge type structure combined with a box body base reduces vibration during heavy cutting.
  • X/Y/Z three-axis adopt high precision linear guides for accurate positioning and fast reaction.
  • Equipped with high speed, high precision, and high rigidity spindle units.
  • Intermittent automatic lubrication system.

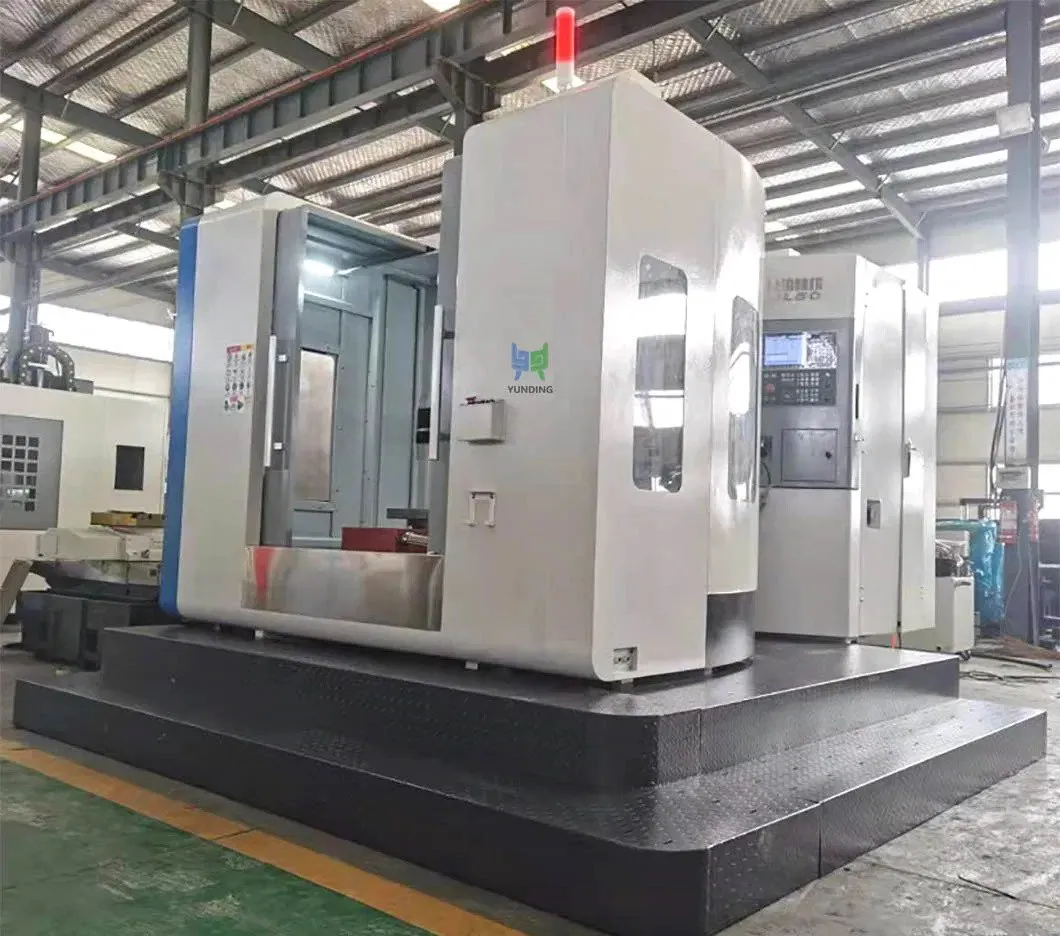

CNC Milling Machine

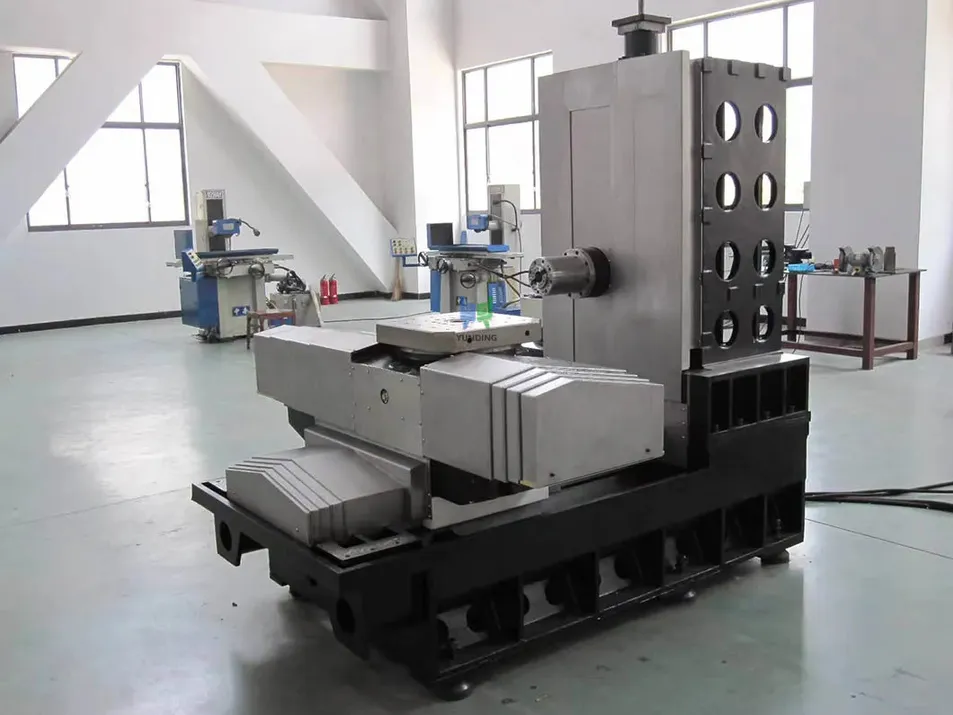

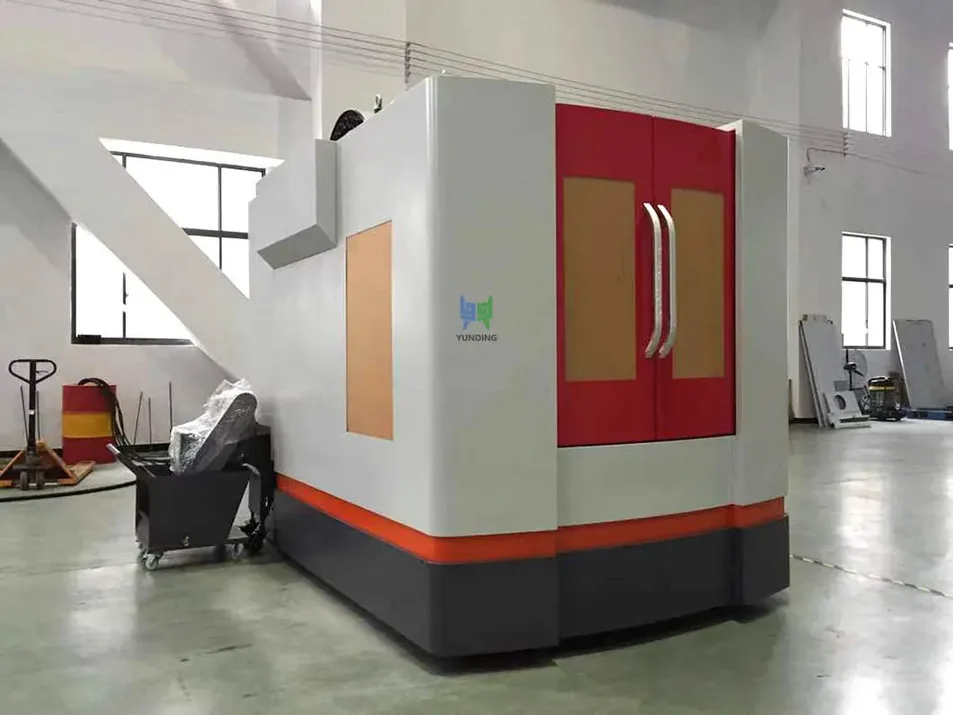

Processing Part 1 Processing Part 2

⚙️ Application Areas

Designed for X, Y, Z axis servo control, these machines are ideal for:

  • Processing variety of disks, plates, shells, cams, and complex molds.
  • Medium and small volume production requiring high precision.
  • Mechanical manufacturing, automotive, motorcycle, and instrumentation industries.
  • Optional four-axis rotation for special machining requirements.

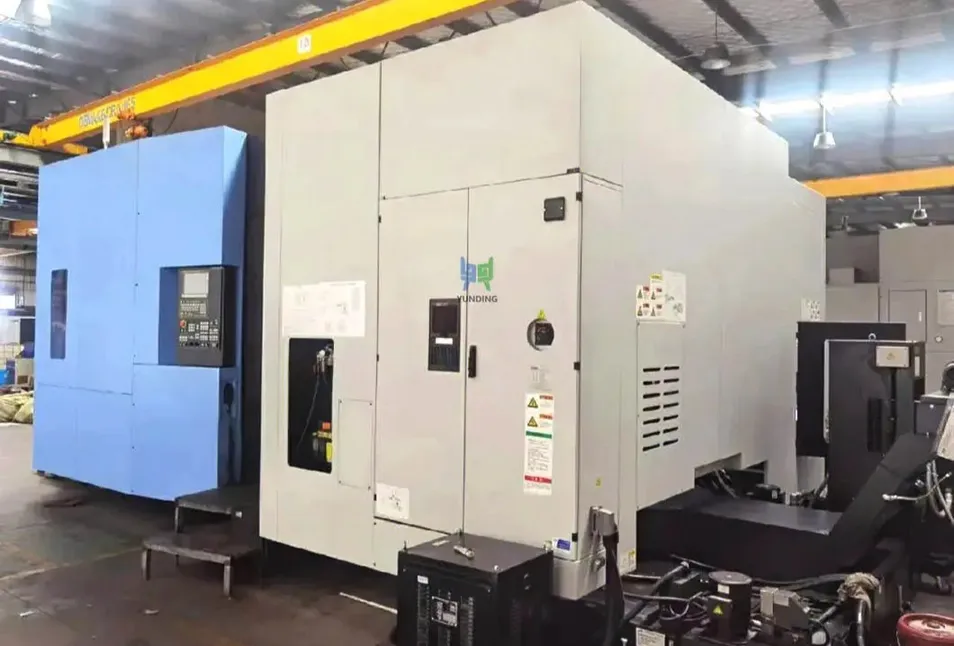

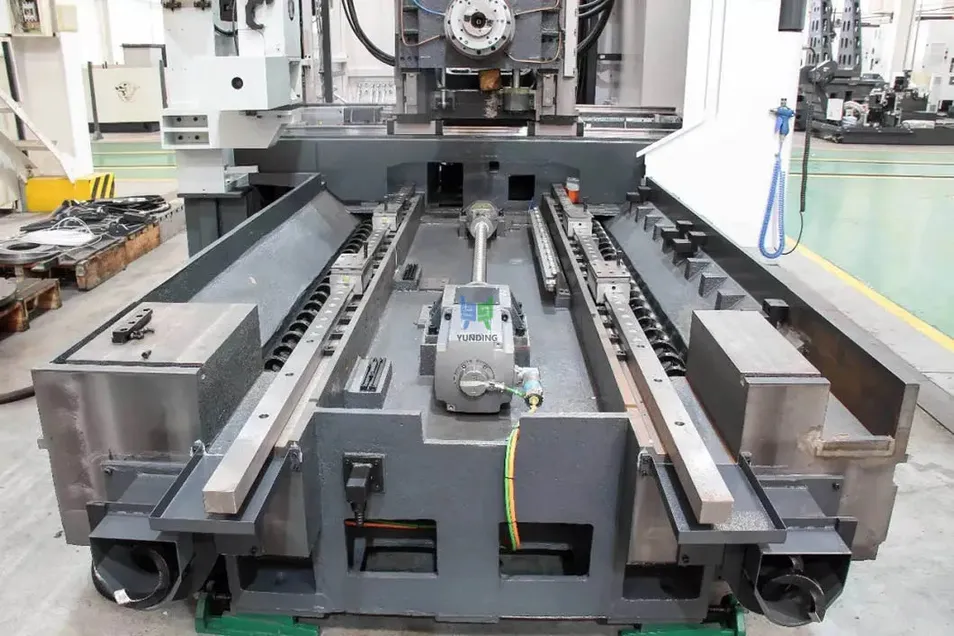

Machine Detail 1 Machine Detail 2

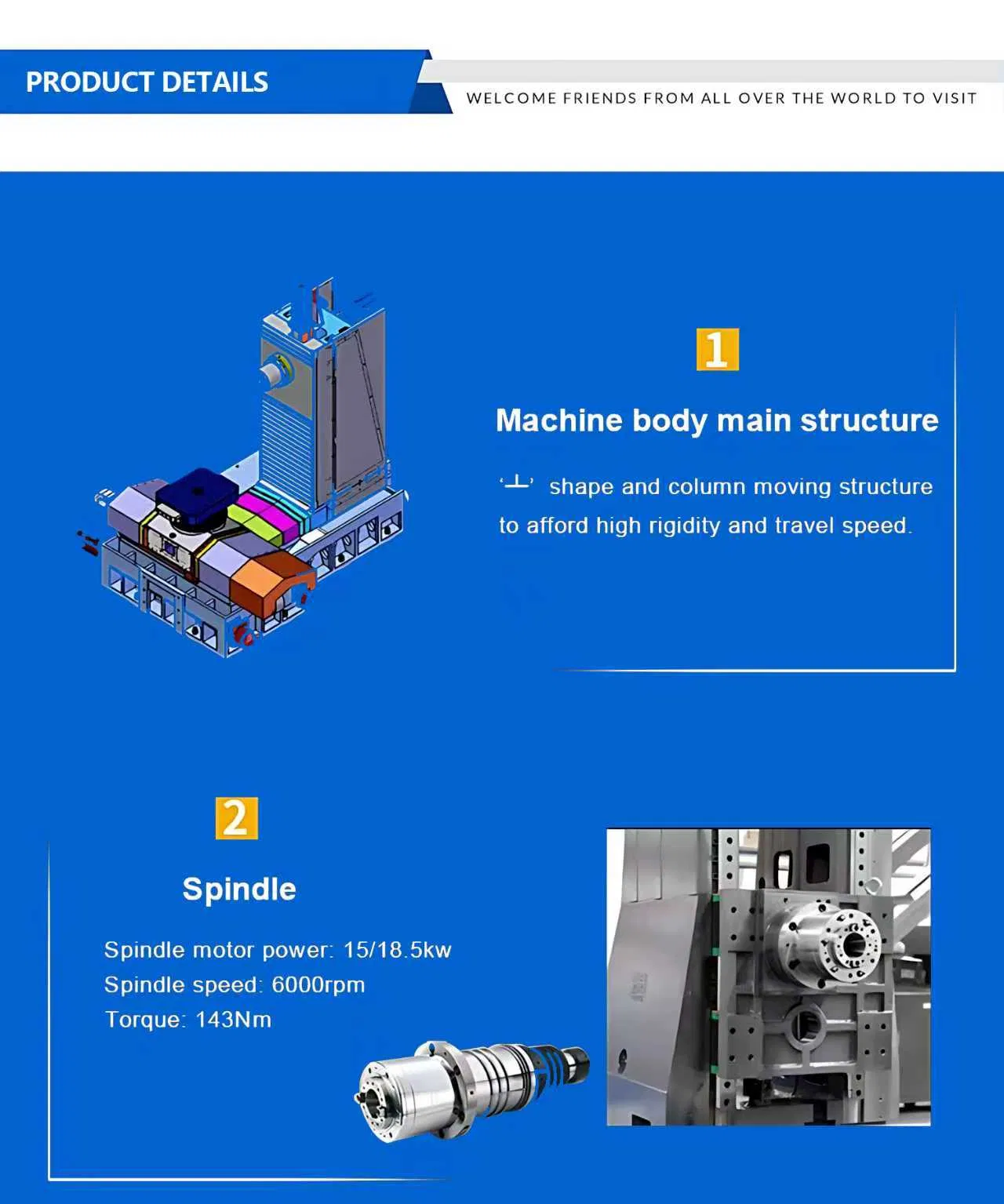

Structure Detail

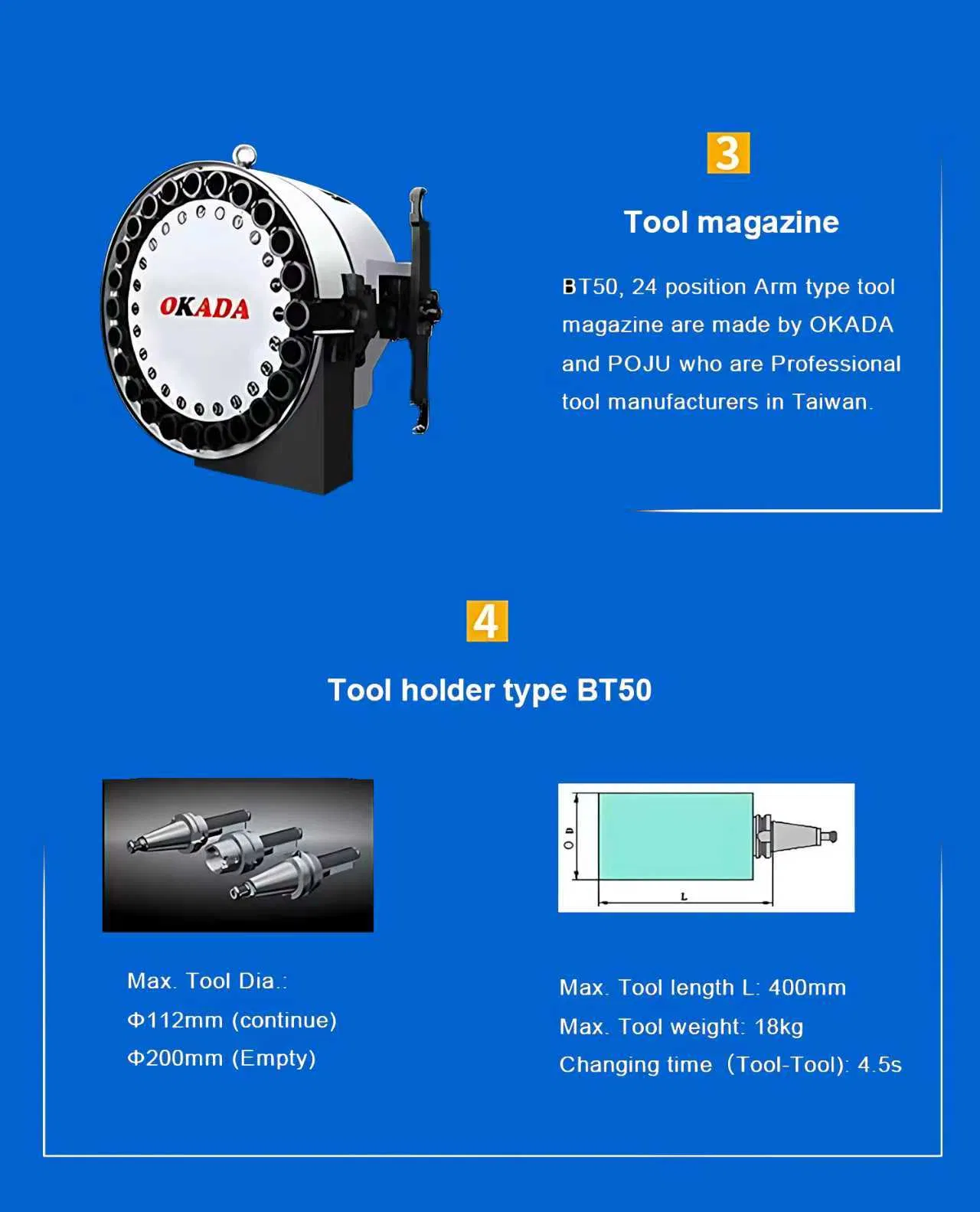

Control System
Specifications
Model HMC500 HMC630 HMC800 HMC1000
X-axis travel 800mm 1100mm 1600mm 2200mm
Y-axis travel 800mm 800mm 1000mm 1400mm
Z-axis travel 800mm 1100mm 1100mm 1200mm
Table size 500*500mm 630*630mm 800*800mm 1000*1000mm
Spindle range 8000rpm 6000rpm 6000rpm 6000rpm
Spindle power 11/15KW 15/18.5KW 15/18.5KW 15/18.5KW
Position accuracy 0.008 0.008 0.008 0.015
Repeatability 0.005 0.005 0.005 0.008
ATC Capacity 24 pcs (optional 30/40/60 pcs)
Full Dimension Chart
Frequently Asked Questions
How can I choose the most suitable machine?
Please share your specific requirements or product drawings with us. Our technical team will evaluate your needs and recommend the most suitable model for your processing precision and volume.
What are the main types of machines available?
We specialize in a wide range of CNC equipment, including CNC Lathes, CNC Milling Machines, Vertical and Horizontal Machining Centers, Drilling Machines, and Sawing Machines.
What are the accepted trade terms?
We accept standard international trade terms including FOB, CFR, and CIF to accommodate our customers' logistics preferences.
What are the payment terms for orders?
Standard terms are T/T with a 30% initial payment upon order and 70% balance payment before shipment. Irrevocable LC at sight is also accepted.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set for most of our high-end CNC machining centers.
What information is needed for a specific quote?
Please provide your industrial voltage, workpiece dimensions, and material types. If you require a CIF price, please also specify the port of destination.
