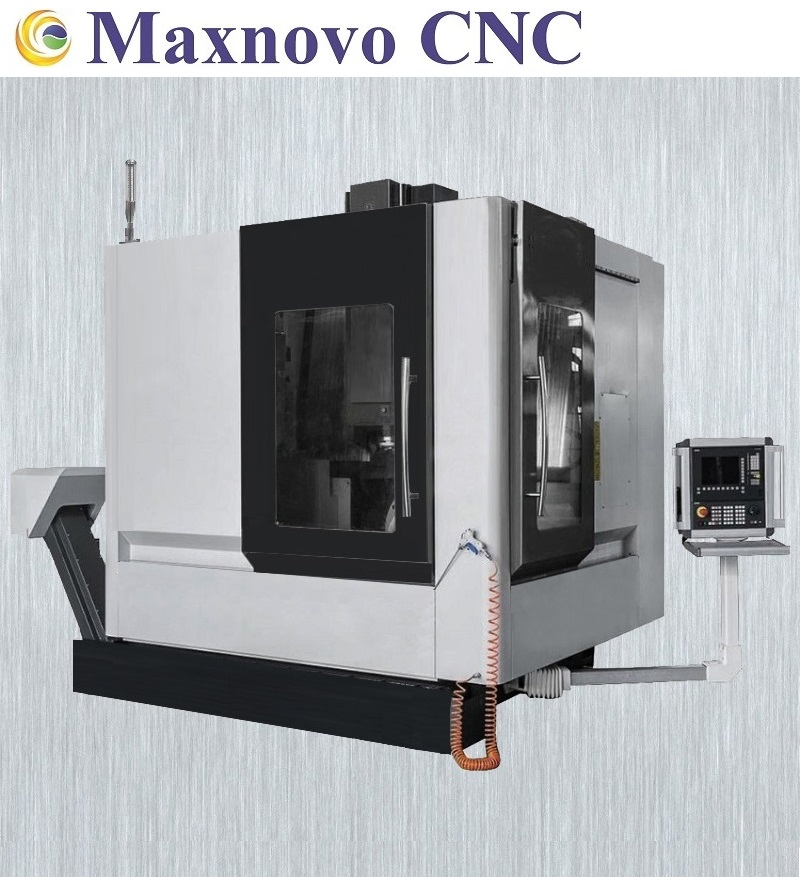

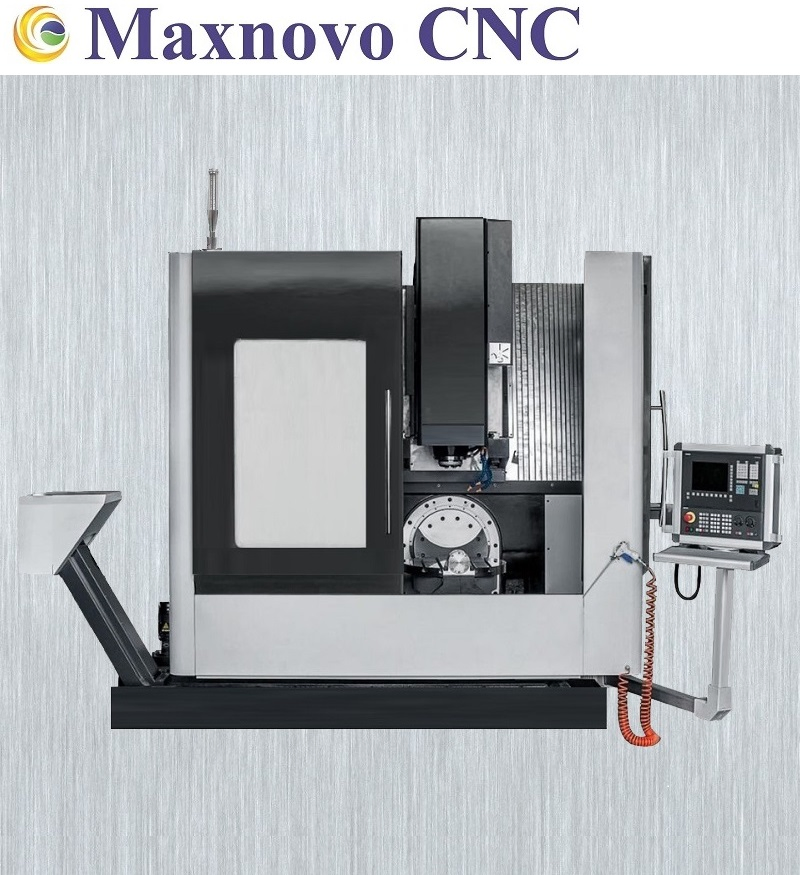

High Precision Fu5 PRO CNC 5-Axis Simultaneous Machining Center
High Precision Fu5 PRO CNC 5-Axis Simultaneous Machining Center
High Precision Fu5 PRO CNC 5-Axis Simultaneous Machining Center
High Precision Fu5 PRO CNC 5-Axis Simultaneous Machining Center
High Precision Fu5 PRO CNC 5-Axis Simultaneous Machining Center
1 / 5
High Precision Fu5 PRO CNC 5-Axis Simultaneous Machining Center
High Precision Fu5 PRO CNC 5-Axis Simultaneous Machining Center
High Precision Fu5 PRO CNC 5-Axis Simultaneous Machining Center
High Precision Fu5 PRO CNC 5-Axis Simultaneous Machining Center
High Precision Fu5 PRO CNC 5-Axis Simultaneous Machining Center

High Precision Fu5 PRO CNC 5-Axis Simultaneous Machining Center

Customization: Available
After-sales Service: Worldwide
Warranty: 1 Year
Send Inquiry

Product Description

🔹 Basic Info & Overview
Model NO.
MM-FU5 PRO
Type
Worktable Milling Machine
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
CNC Control System
Siemens 840d Controller
Table Size
650 mm (Diameter)
Table Load Capacity
300 Kgs
Spindle Speed
12000 Rpm
Origin
Jiangsu, China
⚙️ Product Description

This High Precision CNC 5-Axis Simultaneous Machining Center with SIEMENS Control System is the right solution to increase productivity and precision in manufacturing. Designed for powerful complete machining, it offers uncompromising quality and trustable performance.

High Precision CNC 5-Axis Simultaneous Machining Center
Machining Center Details

Main Features:

  • Cradle Type 5-Axis Simultaneous Rotary Table
  • Powerful Main Spindle speeds up to 12000 RPM
  • High Precision Linear Guides on all Axes
  • High-torque Servo-Drives on all Axes
  • High-Performance Ball Screws
  • High Rigidity Body for Longer Life
  • Disc Type ATC with 24-Stations
  • Automatic Chip Conveyor system
  • Automatic Central Lubrication System
  • Large Surface Treated Machine Structure
  • EMC Electromagnetic Compatibility
📊 Technical Parameters
Specification Item Technical Data
X-axis Travel700 mm
Y-axis Travel450 mm
Z-axis Travel400 mm
B-axis Swivel Angle± 110 deg.
C-axis Swivel Angle360 deg.
Rapid Feed (X/Y/Z)24 / 24 / 24 m/min
Positioning Accuracy± 0.005 mm
Repeating Accuracy± 0.003 mm
Spindle TaperBT40
Number of Tools24 Tools
Main Motor15 KW
Gross Weight11580 KGS
🏆 Quality & Advantages

Excellent quality is our dignity. All products are produced with high quality standards, offering outstanding manufacturing accuracy and trustable performance.

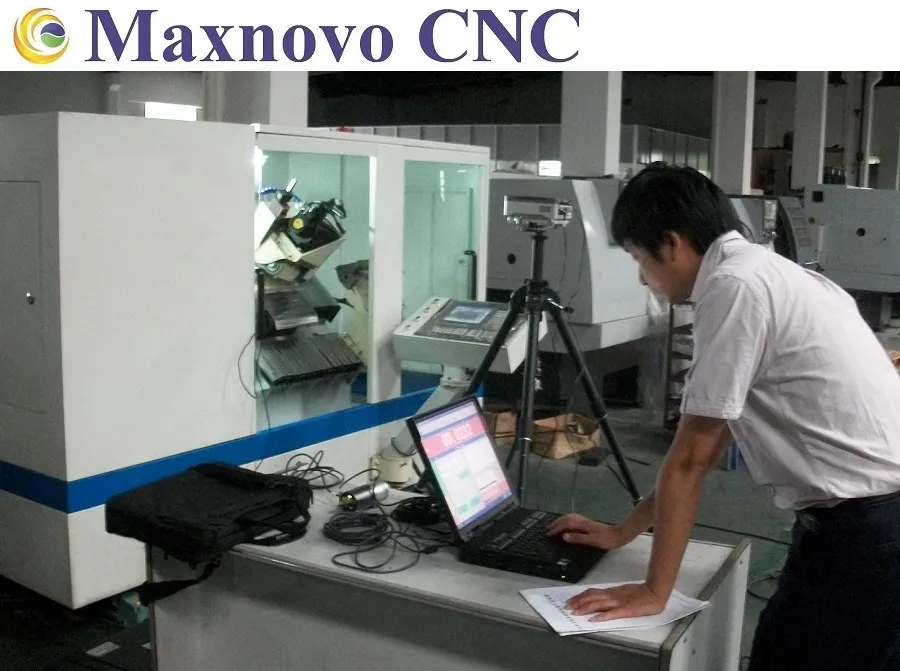

Laser Interferometer Testing

Laser Interferometer Testing

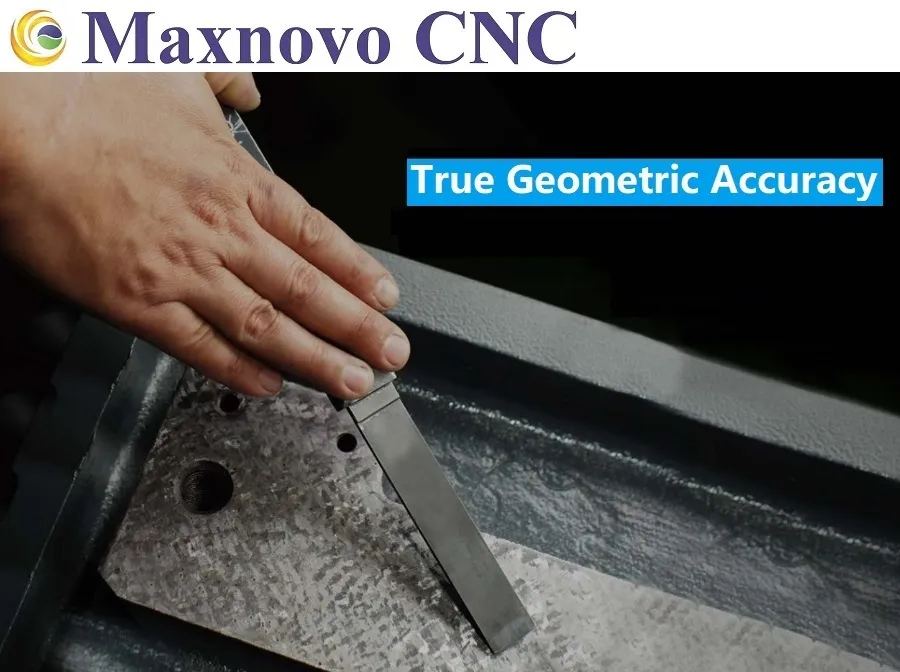

Metal Scraper Craftsmanship

Hand Scraper Craftsmanship

Hand Scrapping: All contact surfaces are scrapped with at least 20 spots per square inch and 40% contact rate to guarantee True Geometric Accuracy.

Casting Quality: Each casting piece passes high-pressure spray, annealing furnaces, and stress release tests to assure long-term stability.

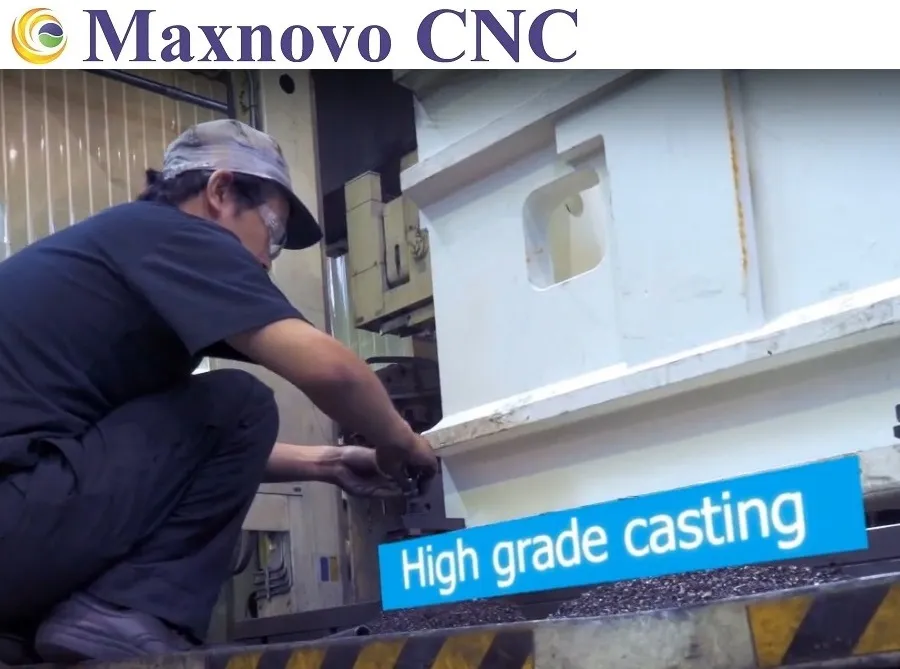

High Quality Casting

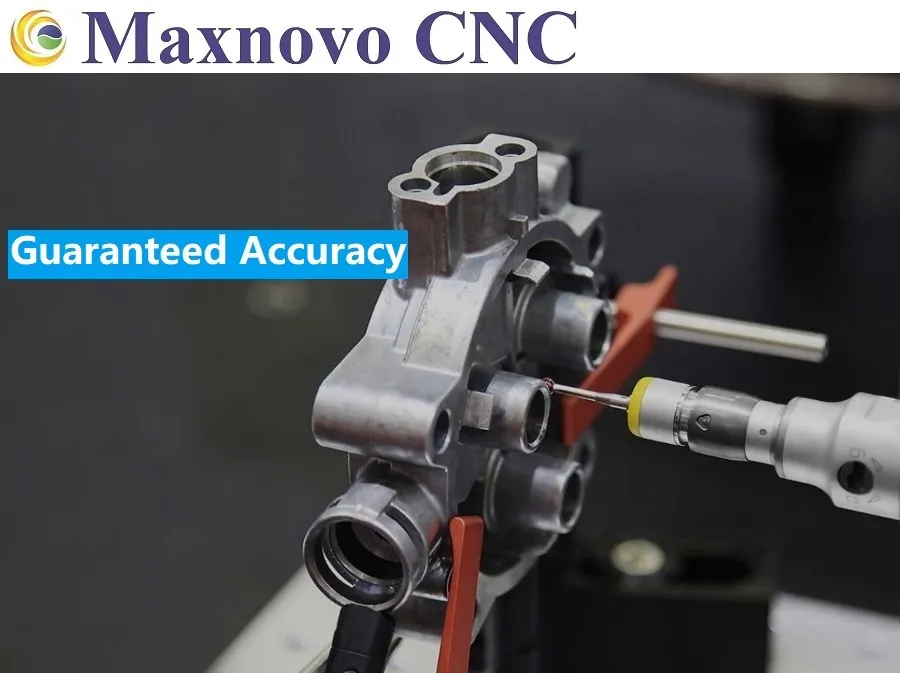

Precision Inspection

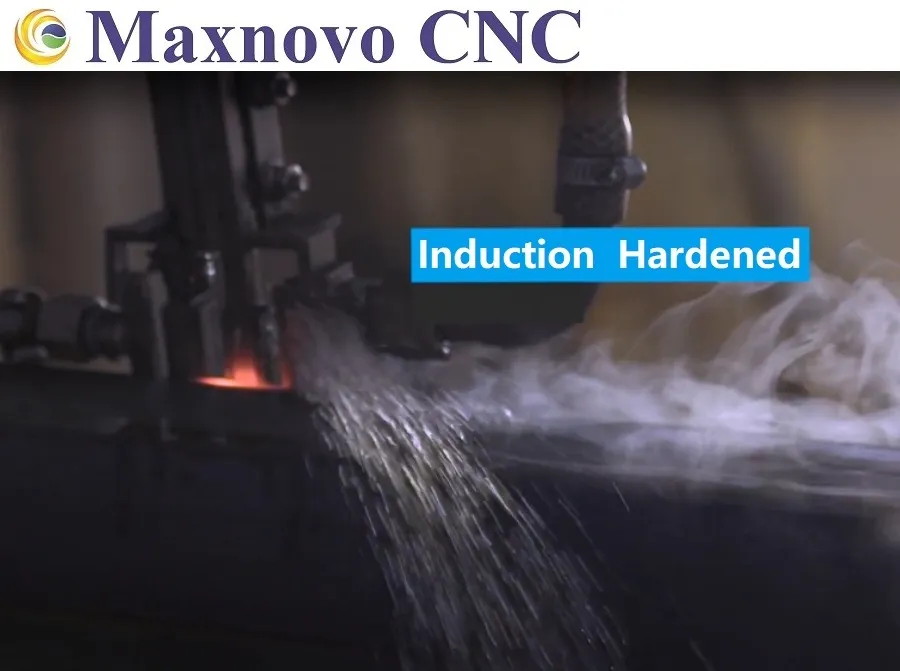

Assembly Line
Frequently Asked Questions
Can you provide OEM/ODM services?
Yes, we have the full capability to provide OEM and ODM manufacturing to meet specific client requirements.
What is the typical delivery lead time?
Generally, the average delivery time is around 2 months after the confirmation of the contract and deposit. Mass production timelines can be discussed case by case.
How is the machine precision guaranteed?
We use laser interferometer testing equipment and traditional hand-scraping techniques (20 spots per square inch) to ensure true geometric accuracy.

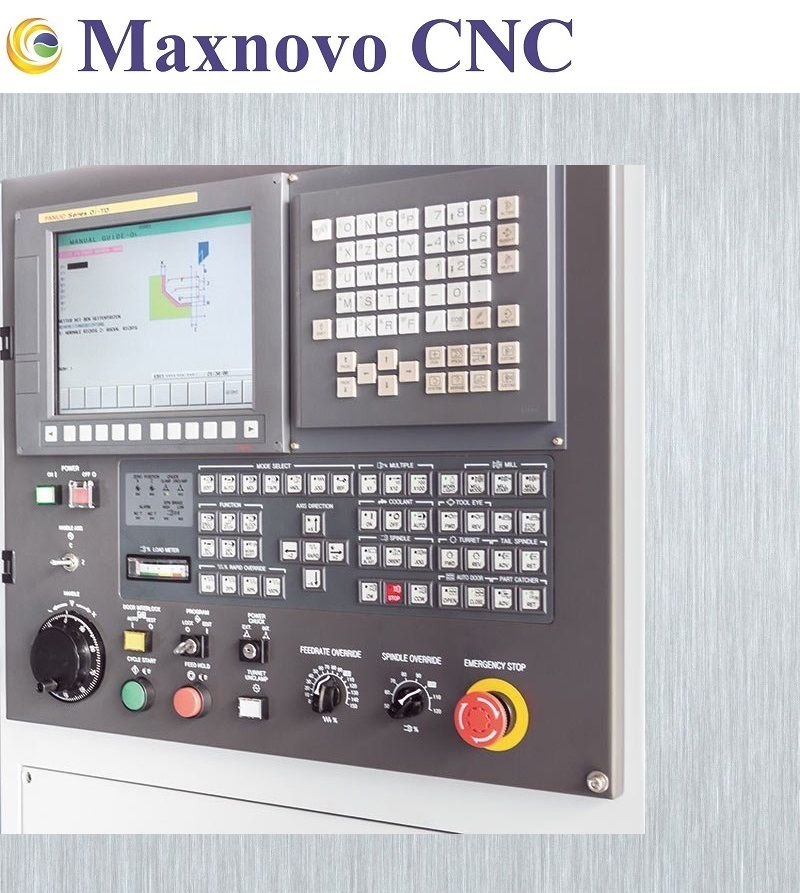

Which CNC control system is used?
The standard configuration features the Siemens 840D SL control system. A Fanuc CNC system is also available as an option.
What is the spindle specification for this model?
The MM-FU5 PRO features a powerful main spindle with a maximum speed of 12000 RPM and a BT40 taper.
Does the machine include a tool changer?
Yes, it comes equipped with a disc-type automatic tool changer (ATC) with a 24-station capacity and a tool change time of approximately 2 seconds.
