TitanPro Cutting
TitanPro Cutting
High-speed high-precision motorized spindle | Direct driven rotary table with high dynamic responsiveness | High-end CNC controller | High-efficiency hybrid machining

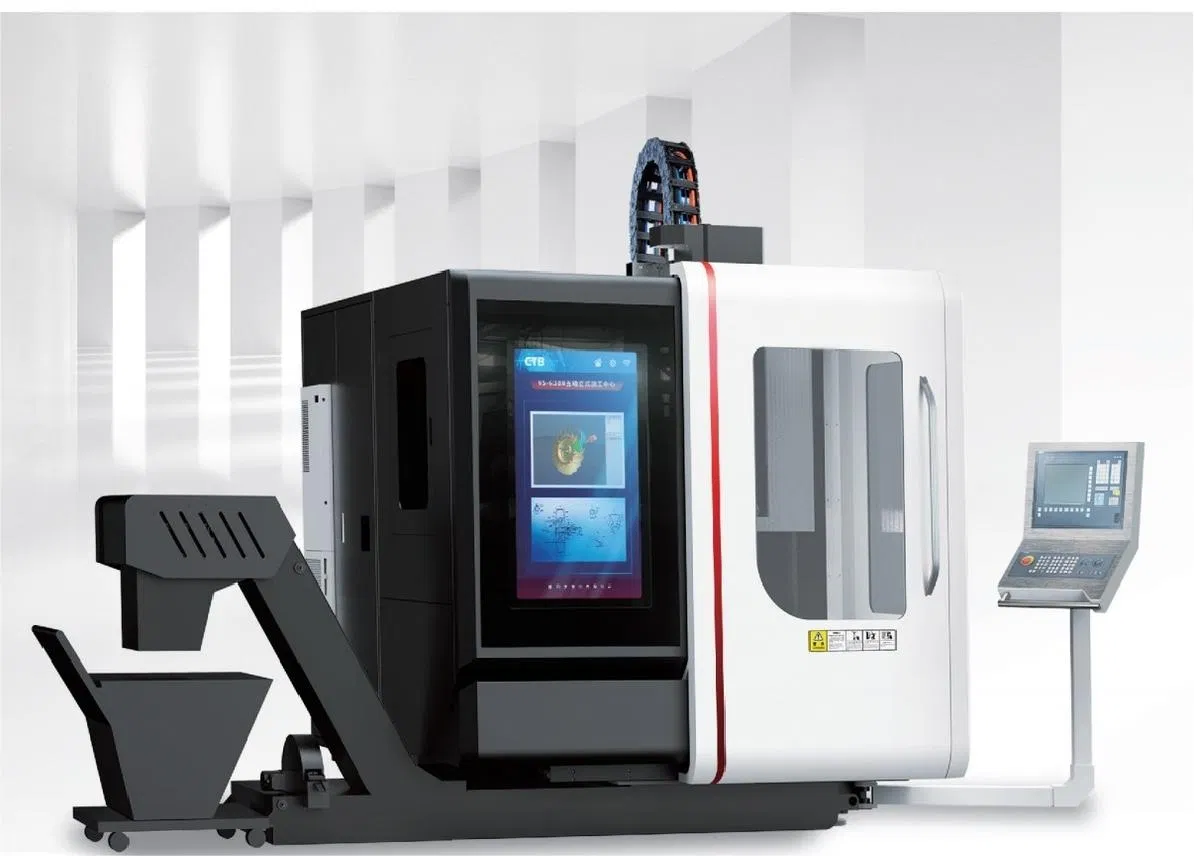

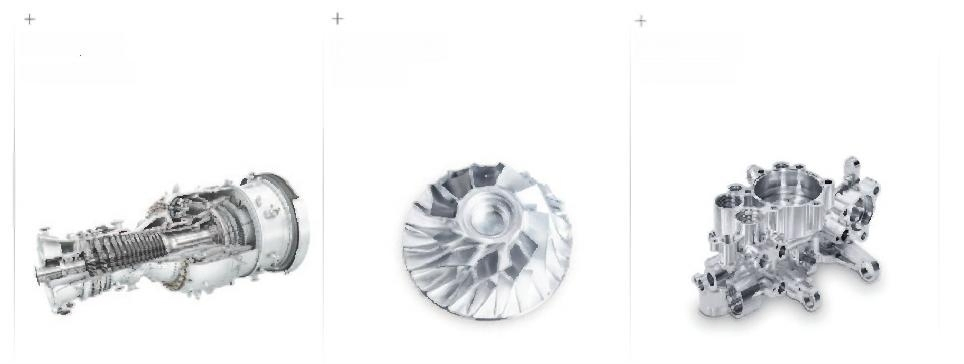

Classic C-shaped construction, independently developed high-precision motorized spindle, rotary table with direct drive, and a high-end CNC controller jointly contribute to its excellent quality performance. It also supports various sizes of motorized spindles and turning-milling rotary tables.

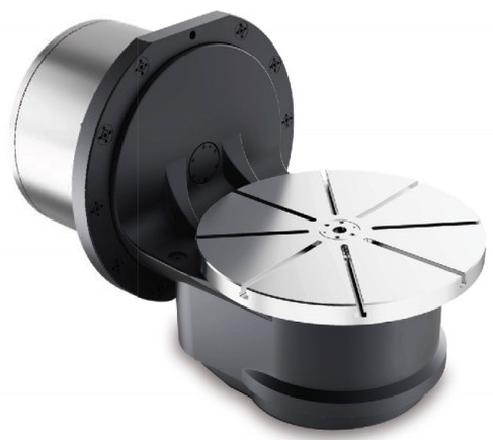

The independently developed rotary table with direct drive is provided with a high-precision torque motor featuring zero drive clearance and zero wear. A high-precision angle encoder and a high-end CNC controller are installed to realize high dynamic accuracy control.
The rotary tilt table allows five-axis simultaneous machining and a maximum workpiece weight of 500 kg. It can fulfill negative angle machining. The B axis is provided with an auxiliary support which is highly rigid.

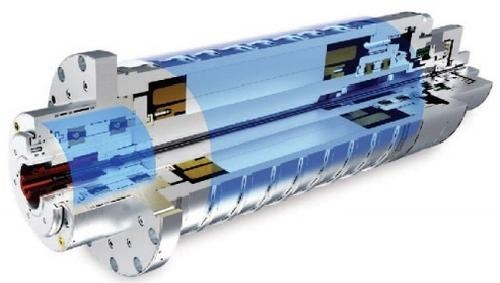

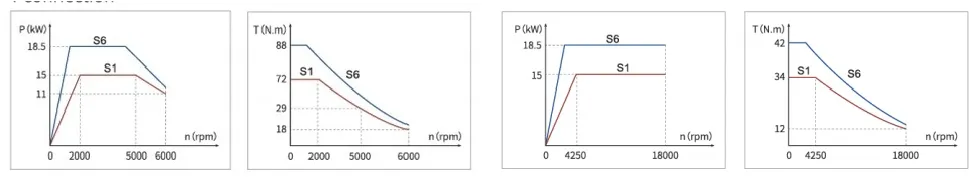

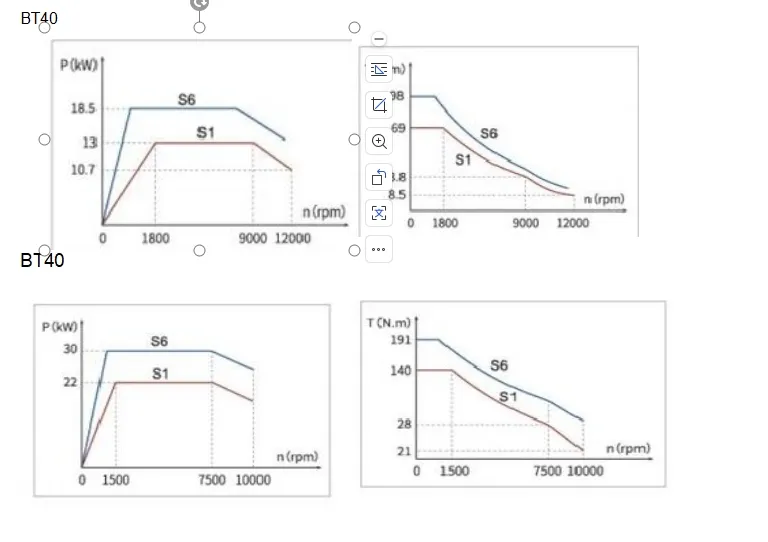

High-efficiency built-in asynchronous motor with copper rotor. Bearing preloading at fixed pressure to realize ultrahigh speed. Dynamically balanced to G1. Little noise and thermal deformation. High dynamic rotational accuracy.
| Parameter | Unit | Spec. |
|---|---|---|
| Table | ||
| Diameter | mm | 630 |
| Max. horizontal load | kg | 500 |
| Max. vertical load | kg | 300 |
| T slots (number × width) | No. × mm | 8 × 14H8 |
| Machining Range | ||
| X / Y / Z Axis Travel | mm | 600 / 450 / 400 |
| Distance from spindle nose to table surface (Max/Min) | mm | 550 / 150 |
| B axis range | ° | -35 ~ +110 |
| C axis range | ° | n × 360 |
| Spindle | ||
| Tool holder | - | BT40 / HSKA63 |
| Max. speed | rpm | 12,000 / 18,000 |
| Output torque (S1/S6) | N·m | 69/98 (BT40) | 72/88 (HSKA63) |
| Output power (S1/S6) | kW | 13/18.5 | 15/18.5 |
| Accuracy & Dimensions | ||
| Positioning Accuracy (X/Y/Z) | mm | 0.007 |
| Positioning Accuracy (B/C) | " | 6 |
| Repeatability (X/Y/Z) | mm | 0.005 |
| Repeatability (B/C) | " | 4 |
| Machine Weight | kg | 6,500 |
| Overall Dimensions (L×W×H) | mm | 4,000 × 4,000 × 3,200 |
(1: Standard | 0: Optional)
| CNC Controller | |
| SIEMENS SINUMERIK 840D | 1 |
| SIEMENS SINUMERIK 828D / ONE | 0 |
| HEIDENHAIN TNC640 / HUAZHONG HNC848D | 0 |
| Motorized Spindle | |
| BT40: max speed 12,000 rpm, 13 kW | 1 |
| HSKA63: max speed 18,000 rpm, 15 kW | 0 |
| Probes & Automation | |
| Optical probe / Optical tool setter | 1 |
| 5-axis accuracy calibration | 1 |
| Radio probe / Laser tool setter | 0 |
| Automatic door / Oil mist collector | 0 |
