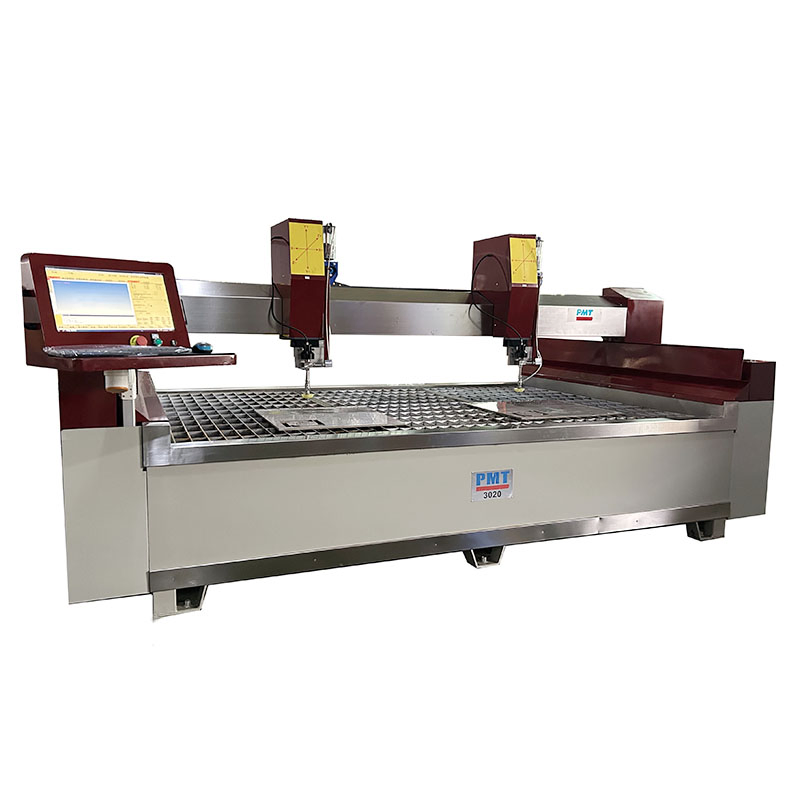

Factory ESL50-3020 5X Ab Five Axis Degsinning Marble Pattern Mosaic Water Jet Cutting Machine

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
PMT50HE-3020-5X
Control
Automatic
Power Source
Electric
Style
Cantilever
Type
Three-Axis
Use
Abrasive Waterjet Cutting
Inventory Status
Have in Stock
HS Code
8401100000
Applications: Paper, Metal, Rubber, Ceramic, Glass, Stone, Plastic, Leather, Fabric

Product Features & Advantages

This Waterjet Cutting Machine is an effective tool for any shape of artistic creation. Traditional cutting methods are often limited to straight lines, but this CNC-controlled system can cut complex curves and models without the need for manual polishing.

  • Smooth cutting quality and perfect finish.
  • High accuracy up to 0.1mm, ideal for complex murals and puzzles.
  • Fast cutting speed with excellent product consistency.
  • One-step process for drilling, cutting, and forming.
  • Reduces dust and noise, improving the operator's environment.
  • Cold cutting process preserves the internal structure of the material.
  • Ideal for processing composite materials and fragile porcelain.
  • Versatile: cuts metal, rubber, foam, plastic, stone, tile, marble, and glass.

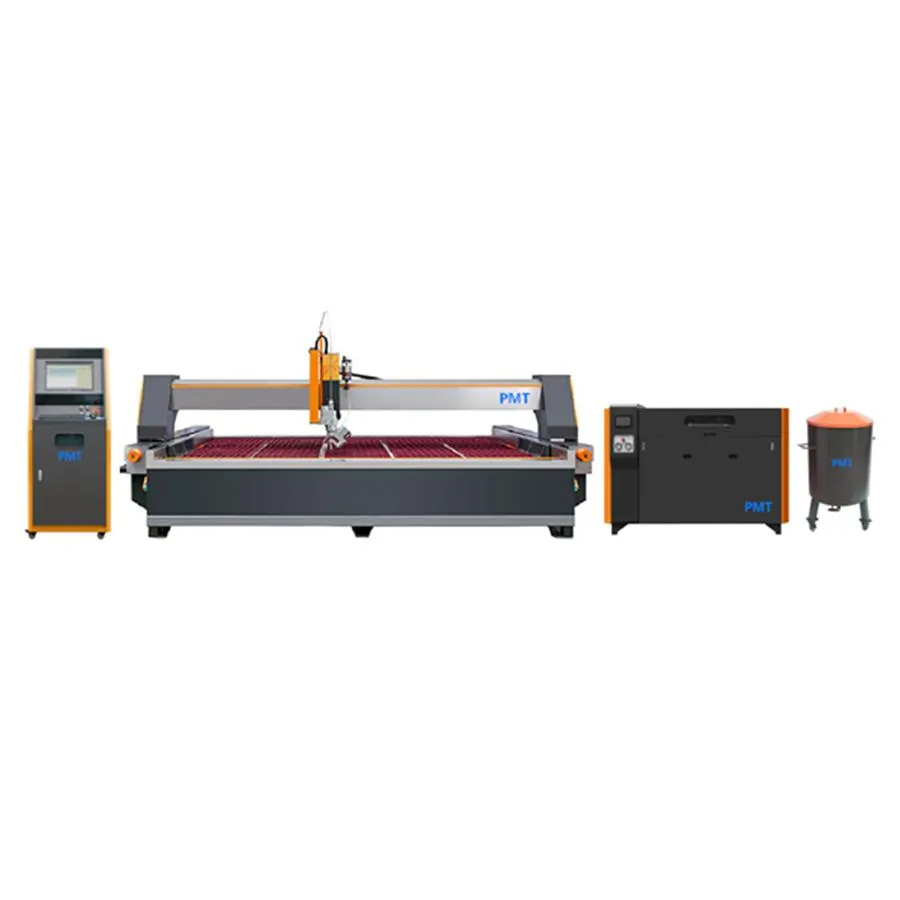

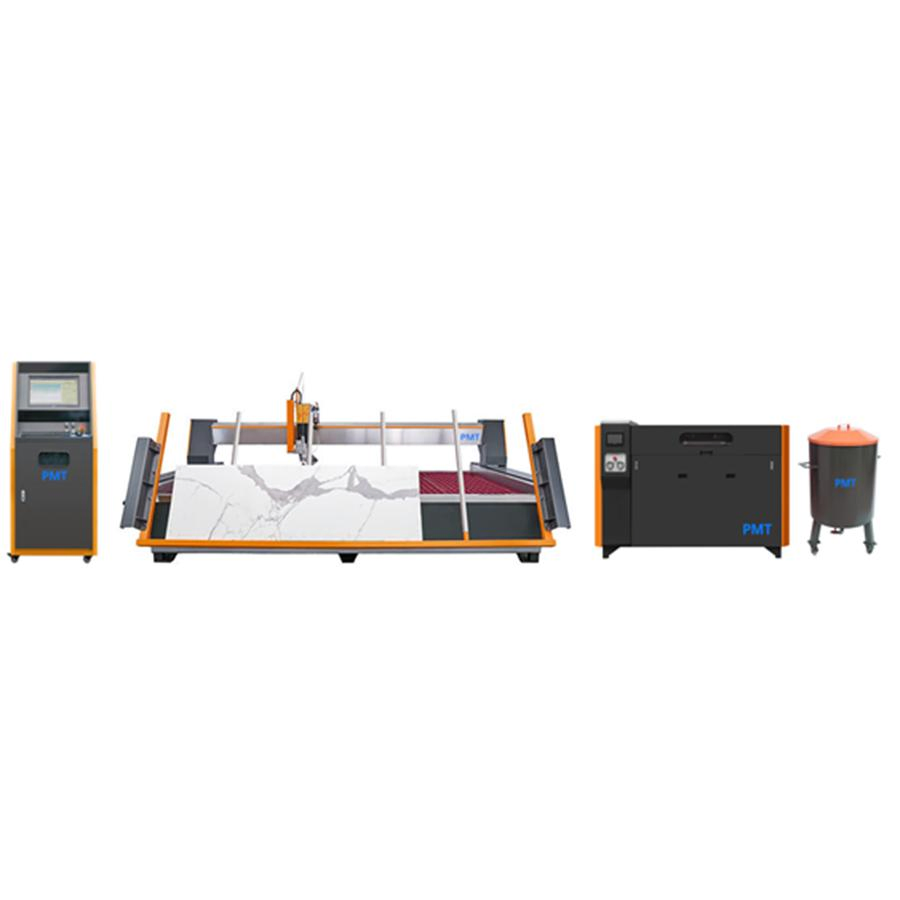

Water Jet Cutting Machine

50HE High Pressure Pump Structure

The system includes a water supply system, hydraulic system, and an intensifier system.

Pump Technical Specifications
Dimension (L*W*H)1800*1000*1400mm
Weight1200Kg
Power Rate37kw/50hp
Max. Pressure420Mpa / 4200bar
Working Pressure300-350Mpa
Max. Flow Rate3.7L/min
Power Supply380 V 50hz
Hydraulic SystemBosch Rexroth

Cutting Table Parameters

Model Max. Cutting Range Accuracy Servo System
16161600*1600mm±0.1mmYaskawa
25152500*1600mm±0.1mmYaskawa
30203000*2000mm±0.1mmYaskawa
40204000*2000mm±0.1mmYaskawa

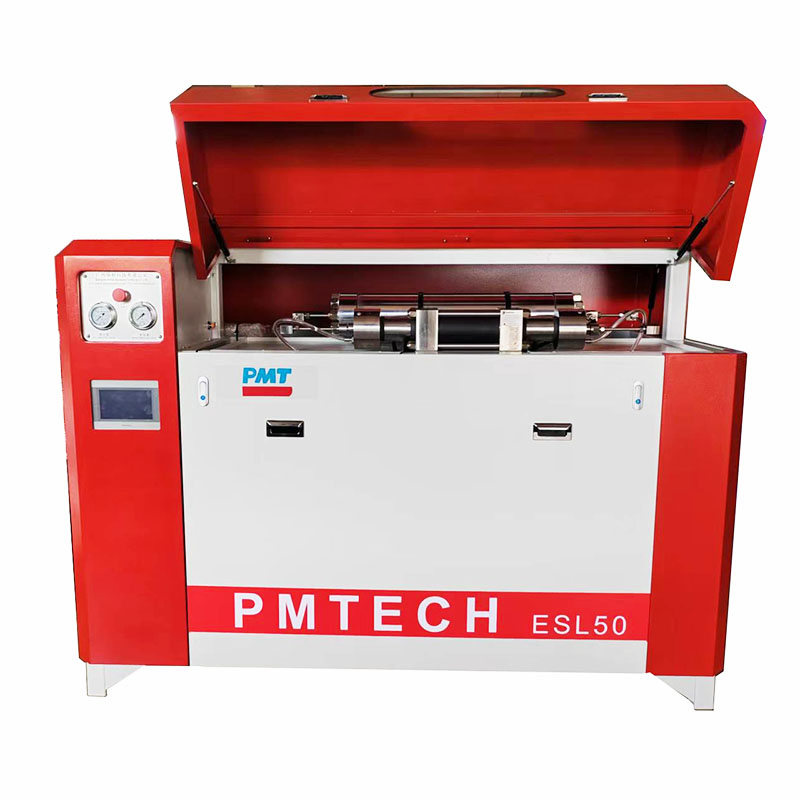

High Pressure Pump

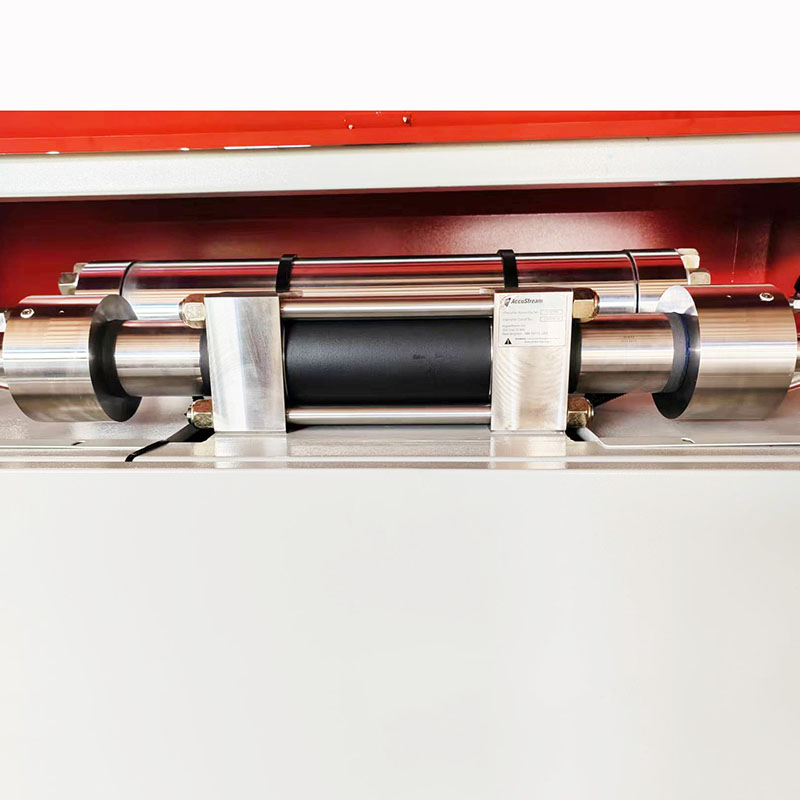

Internal Components
Controller

5-Axis Cutting & CNC Controller

Equipped with a Five-axis AB cutting system for specialized marble and ceramic patterns. The controller features a 19-inch LCD and supports Windows 10 with NC-Studio software.

CNC Controller
5-Axis Head

Workshop & Spare Parts

Specialized in professional waterjet cutting machines and high-quality spare parts. Components include 60k & 90k intensifiers, cutting heads, on/off valves, ruby orifices, abrasive nozzles, and ceramic plungers. Standard parts are compatible with major industry brands.

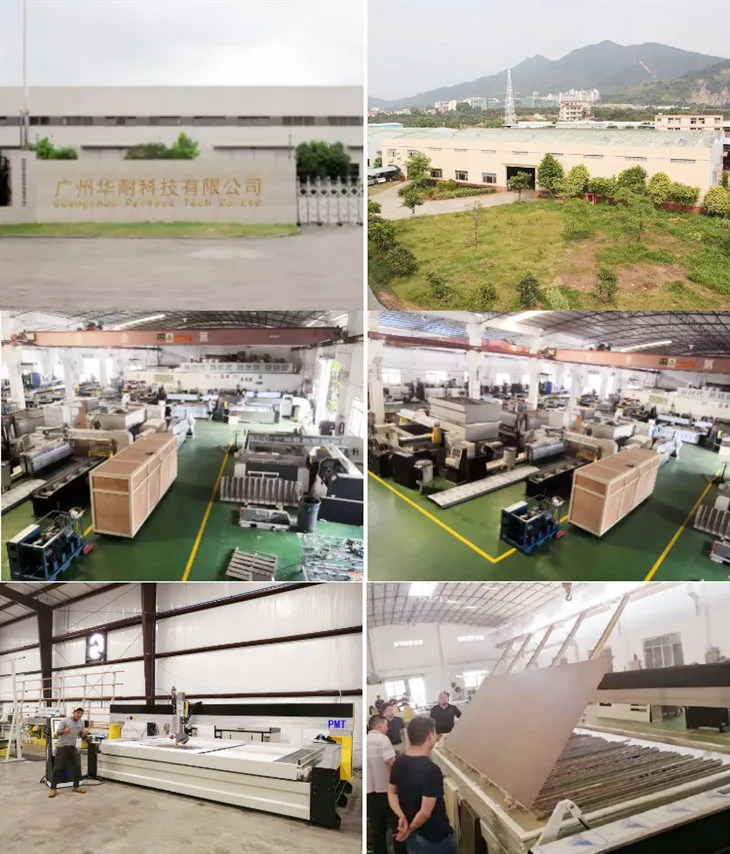

Workshop Equipment

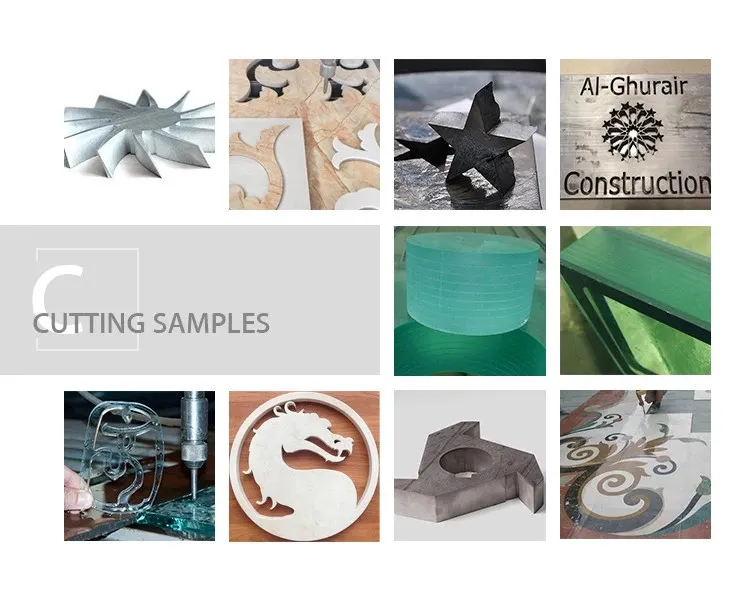

Cutting Samples

Packing & Delivery

Machine Package: Wooden crates with internal soft packaging. Standard sets are loaded into 20ft or 40ft containers (approx. 4000-6000kg per set).

Spare Parts: Soft inner packing with sturdy carton exteriors.

Abrasive Sand: 25kg bags, typically packed 40 bags per large bulk bag.

Delivery Time: 15-20 days for machines; spare parts are generally in stock.

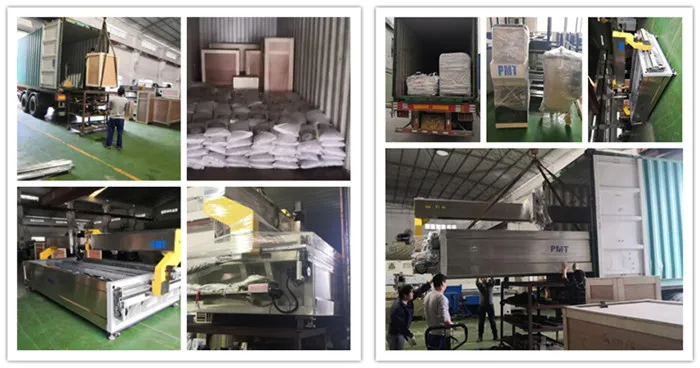

Shipping Package

Frequently Asked Questions

What are the advantages of water jet cutting?
It uses cold processing, which means there is no heat reaction zone, preventing material deformation. It can cut almost any material, including flammable and explosive objects, with high precision and neat edges.
How do I choose the right cutting table?
Selection depends on the maximum size of the materials you intend to process. We offer various models ranging from 1600*1600mm to 6000*2000mm.
How can I ensure vertical cutting accuracy?
Standard waterjets have a slight natural taper. For applications requiring precise vertical angles, we provide a specialized five-axis dynamic cutting system to compensate for this.
Is the equipment easy to operate for new users?
Yes, the intelligent controller allows you to upload DXF files via USB. The system automates the programming, requiring only a few simple parameter settings to begin operation.
What materials can this machine cut?
The machine is versatile and can process metal, glass, marble, ceramic tiles, rubber, foam, plastics, and various composite materials.
What kind of maintenance is required for the high-pressure system?
Regular maintenance includes replacing high-pressure and low-pressure seals and checking the intensifier components. We provide technical training covering troubleshooting and part replacement.
